Observed AOD by MODIS satellite

Impact of Aerosol Optical Depth on DNI. Observed AOD by MODIS satellite. AOD interpolated to the domain. Results (Sep. 29, 2013) . Modified Run. Original Run. DNI decreases in the modified run due to the improved AOD. Original run overestimated but DNI is underestimated in the modified run.

toshi
Télécharger la présentation

Observed AOD by MODIS satellite

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

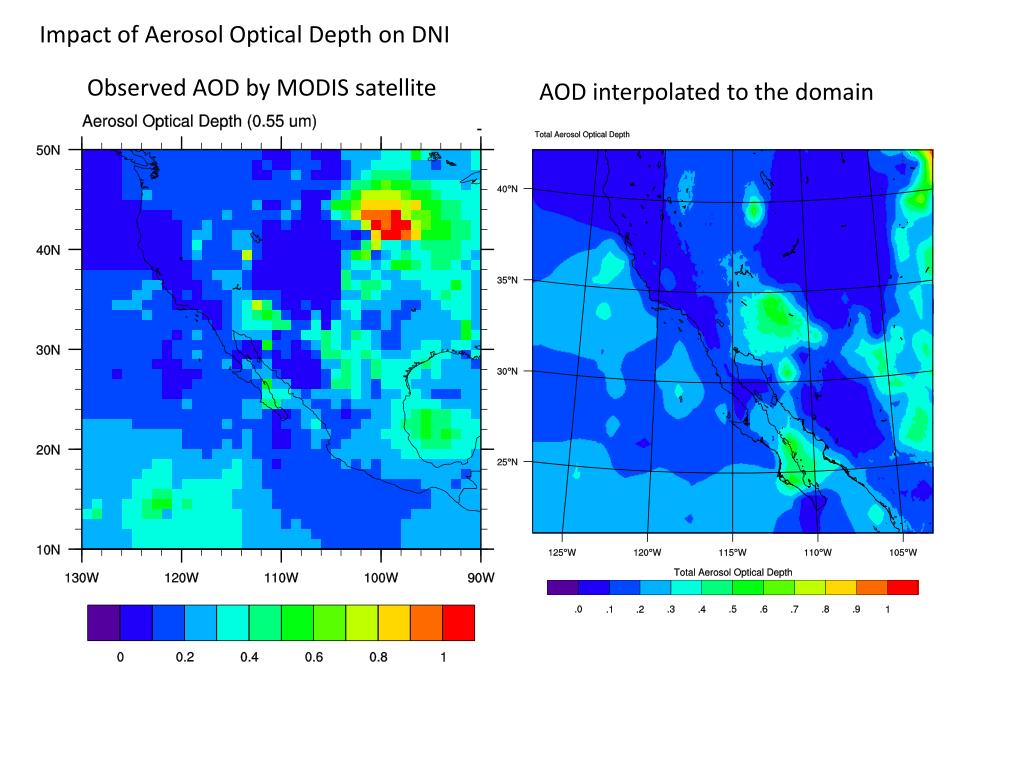

  1. Impact of Aerosol Optical Depth on DNI Observed AOD by MODIS satellite AOD interpolated to the domain

  2. Results(Sep. 29, 2013) Modified Run Original Run DNI decreases in the modified run due to the improved AOD.

  3. Original run overestimated but DNI is underestimated in the modified run.

  4. Shallow Cumulus Case (Sep. 26) Sep. 27 00 UTC

  5. Shallow Cumulus Case (Sep. 26) Original: Original configuration except with 44 vertical layers Improved: Same as Original run except with FNL as an initial condition

  6. Shallow Cumulus Case (Sep. 26) E4 Clouds form below the inversion layer. At high altitude, the other humid layer is generated and then cirrus clouds are produced. Observation also shows the humid layer at high altitude. Sep. 27 00 Z Sep. 26 12 Z Cold Bias

  7. Shallow Cumulus Case (Sep. 26) E5 Clouds form below the inversion layer. At high altitude, the other humid layer is generated but cirrus clouds are not producedsince relative humidity is lower than E4. Observation also shows the humid layer at high altitude. Sep. 27 00 Z Sep. 26 12 Z No bias

  8. Original Shallow Cumulus Case (Sep. 26) Sep. 27 00 UTC Improved

  9. March, 22, 2013 In the afternoon, PBL height is raised with the formation of shallow cumulus over Tucson.

  10. March, 22, 2013 Observation and WRF (Original run) Observed Humid layer (Potentially shallow cumulus) Simulated Humid layer (Potentially shallow cumulus) Original run shows the humid layer, lower than the observation and therefore it is difficult for shallow clouds to be forecasted.

  11. March, 22, 2013 Observation and WRF (Improved) Improved run PBL : YSU Surface Heat flux : twice Bulk Richardson Number :0.0  0.5 In this run, ascending of PBL top height is apparently found out comparing to previous runs. The lower surface heat flux makes the difference of the height of humid layer from the observation.
