1. Sofia Event Center 21-22 November 2013 Hybrid Cloud Damien Caro Technical Evangelist Manager dcaro@microsoft.com @dcaro

2. Private or Public Cloud ? or

3. Considering the cloud Public Cloud Platform $30 Scenarii Challenges Management $25 $20 Market Share (in Billions) $15 $10 $5 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020

4. Private Cloud • To be build • Requires expertise / MCSE Private Cloud certification • New competencies built on existing knowledge • Investments • Hardware : compute, storage, network • Software • Your policies: • Backup, retention • Security, access control, encryption • Automation • Service Level Agreements • Data on your systems • Local laws • Company regulations • Customized as you like • VM Size • Service Offerings • Automation • Performances • Network isolations

5. Public Cloud • « Unlimited » capacity • Pay what you use • Billing per hour based on the size of the VM • Network traffic per Gb • Cloud vendor policies • Backup • Security • Availability • Data are on third party system • Regulatory issues • Encryption • Performances • New competencies have to be acquired • New vocabulary, new concepts • Automation • Authentication • SDN : Software Defined Networking • Customization within the cloud vendor boundaries

6. TL chf $ $ $ £ ₩ kr $ kr руб Global datacenters € Global CDN Rp Global support $ $ ¥ R Local account teams Local currencies • 24 x 7 x 365support Over 1 billion customers, 20 million businesses76markets worldwide • 280 years of combined industry experience in infrastructure, security, product dev, and global ops

7. Hybrid Cloud scenarii • Connecting Private and Public clouds • Lift and shift • Backup and protection • Data Synchronization

8. On-Premises Private Cloud with Off-Premises Public Cloud Public Cloud PaaS Roles Private Cloud AD / DNS IaaS VMs SQL Farm IIS Servers AD / DNS S2S VPN tunnels Database S2S VPN Device Exchange

9. Dev& Test Cloud Environments On-Premises Public Cloud Developers Testers AD / DNS IaaS VMs Development Environment IaaS VMs Test Environment S2S S2S VPN device

10. Technical considerations • Software Defined Networking (SDN) • Site to Site connectivity • VPN Gateway • Public IP Address • MTU Size • Latency • AD in Windows Azure • Replication • VM Configuration

11. Lift and Shift On-Premises Public Cloud Private Cloud VM Resources PaaS Roles AD / DNS Legacy App Legacy App Legacy App IaaS VMs Database

12. Bring Your Own Server Public Cloud • Private Cloud MyApp.vhd Provision VM from Image or Disk using portal, script or API Upload VHD Create Disk or Image On Premises Virtual Server Use Case • Disk - Migration of VMs • Images – Sys-prepped (Generalized) VHD Must Be Fixed Disk OS must be configured as DHCP client OS should be configured to allow Remote Desktop

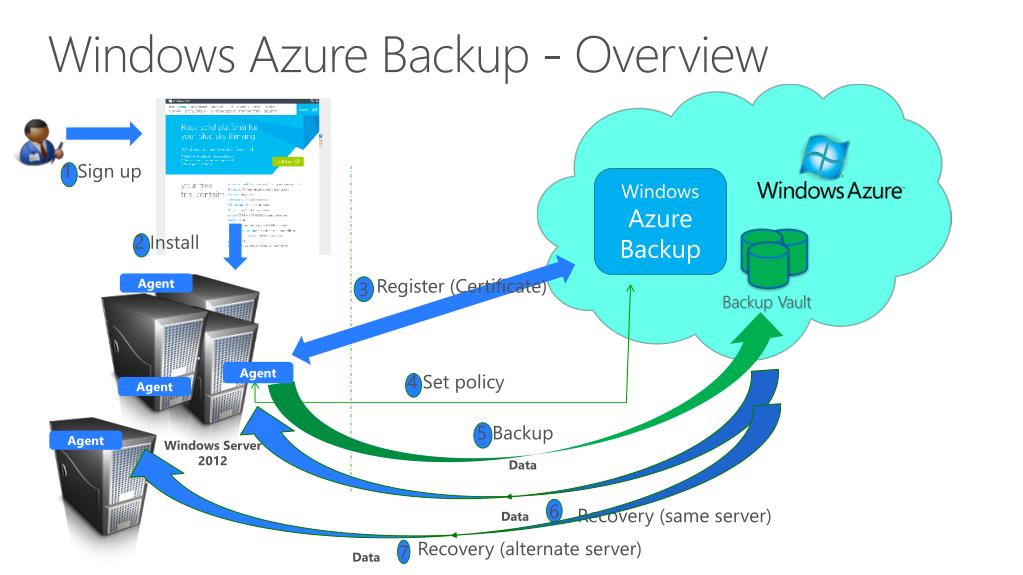

13. Windows Azure Backup - Overview 1 Sign up Windows Azure Backup 2 Install Register (Certificate) 3 Agent Backup Vault 4 Set policy Agent Agent 5 Backup Agent Windows Server 2012 Data 6 Recovery (same server) Data Recovery (alternate server) 7 Data

14. Cloud Disaster Recovery Public Cloud Cloud Stripping Provides Scale & replication between clouds Private Cloud East DC South DC North DC Scale PaaS Roles PaaS Roles PaaS Roles AD / DNS AD / DNS AD / DNS AD / DNS S2S VPN Device Data Replication IaaS VMs IaaS VMs IaaS VMs Servers Farm Database Database Database

15. Hyper-V Recovery Manager Site A Sign up AD System Center Virtual Machine Manager SQL Exch Create a recovery plan System Center Virtual Machine Manager Site B

16. Hyper-V Recovery Manager: create recovery plan Site A Configure AD System Center Virtual Machine Manager SQL Health monitoring Exch Create recovery plan Hyper-V Replica replicates virtual machines Create a recovery plan System Center Virtual Machine Manager Site B

17. Hyper-V Recovery Manager: recover from datacenter failure Create a recovery plan AD System Center Virtual Machine Manager Orchestrates recovery of services in theevent of an outage Create recovery plan SQL Exch Site B

18. Data Synchronization On-Premises • Hybrid applications; one-way publish or two-way sharing Application Mobile Devices Application Azure SQL DB Public Cloud SQL Server • Geo-located web applications • Use with Windows Azure Traffic Manager Application Application • Multiple locations (e.g. branch office, retail offices); share data between locations and/or aggregate data in cloud Azure SQL DB IaaS SQL Server Application Application • Scale-out via multiple copies of data • Hybrid PaaS and IaaS Database sync SQL Server Azure SQL DB

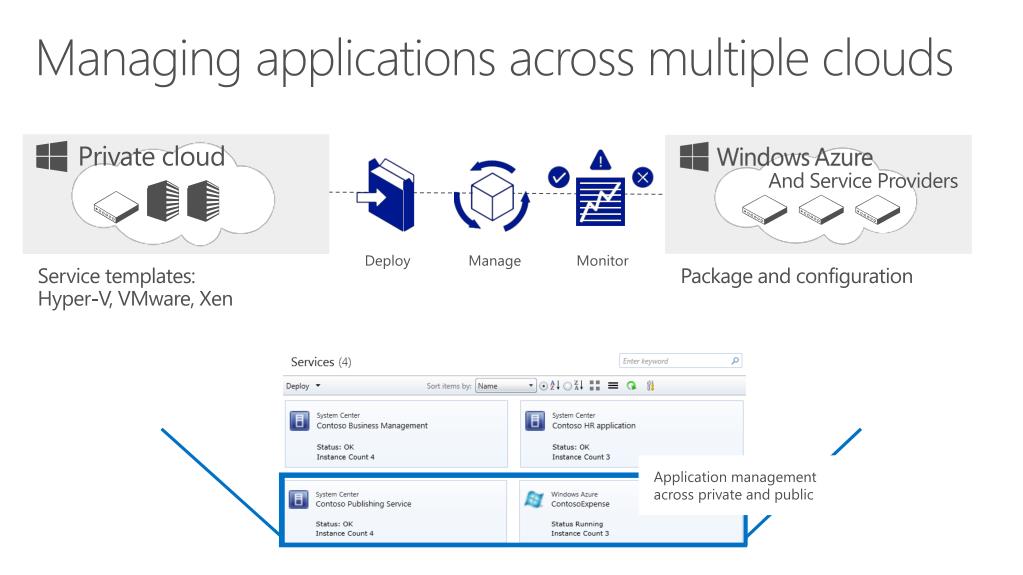

19. Managing applications across multiple clouds And Service Providers Deploy Manage Monitor Service templates: Hyper-V, VMware, Xen Package and configuration Private cloud Application management across private and public

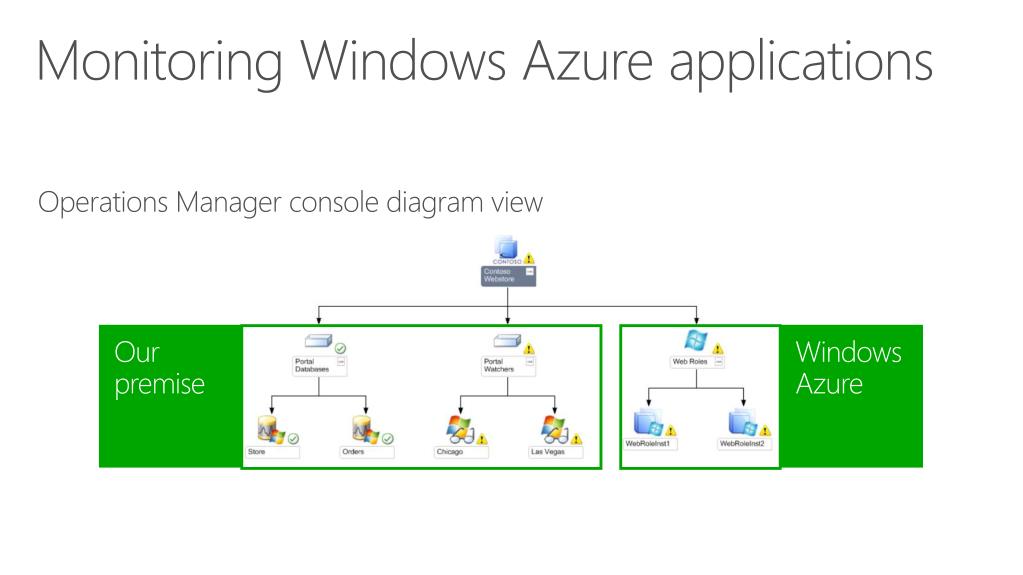

20. Monitoring Windows Azure applications On-premise operations manager Operations Manager console diagram view Windows Azure application Read app roles and structure Windows AzureService API Worker role Performance data, events, logs Performance data, events, logs Our premise Windows Azure Web role Table storage Read operational data and grooming Operations Manager Console Diagram View

21. Global Service Monitoring (GSM) Web Test + Schedule Web Test Operations Manager Microsoft Visual Studio 2012 Global Service Monitor Results Call Web App ! Workitem + Results Production Application On-premises Results

22. GSM Dashboard Points of Presence Response Times Test Status Alerts

23. The « Caramels au beurre salé »

24. Hybridcloud scenario • Technical challenges • Leverageyourexistingenvironment • You definewhatis the right balance • Opens new scenarii • Evolveatyour pace
