TE 01 disk-loaded guide (coaxial) load

TE 01 disk-loaded guide (coaxial) load. No electric field terminating on a conductor. No axial currents. No currents at wave-guide disk interface Attenuator and filter. Broadband matching to disk loaded guide. match. =Z.

vida
Télécharger la présentation

TE 01 disk-loaded guide (coaxial) load

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

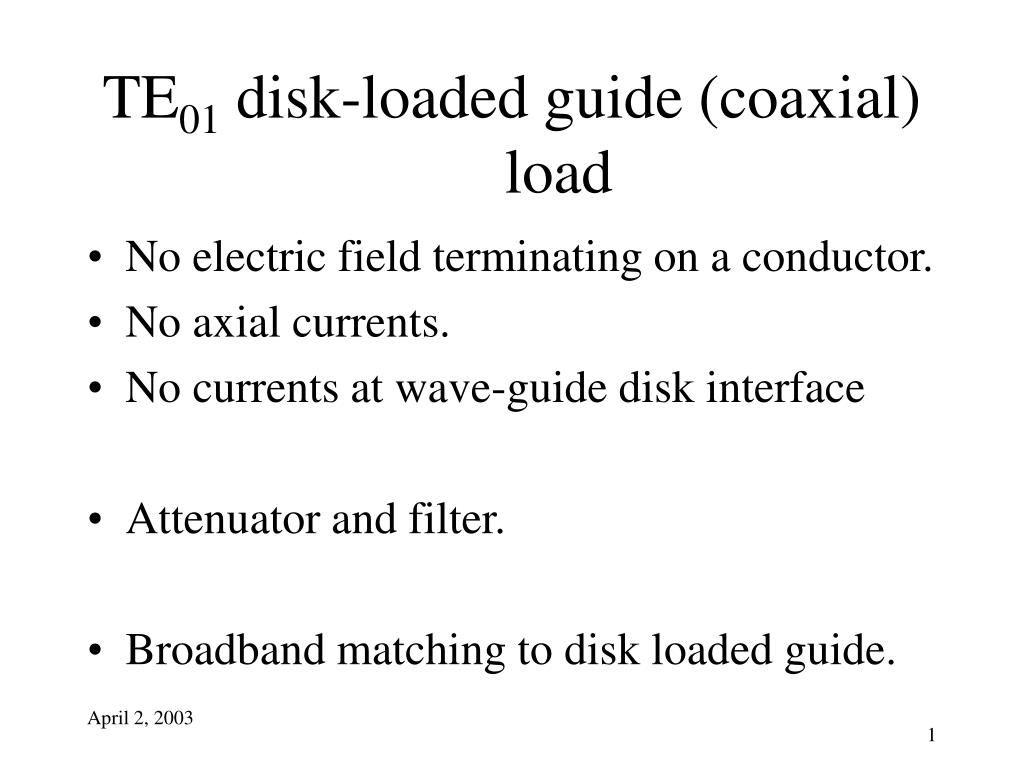

  1. TE01 disk-loaded guide (coaxial) load • No electric field terminating on a conductor. • No axial currents. • No currents at wave-guide disk interface • Attenuator and filter. • Broadband matching to disk loaded guide.

  2. match =Z

  3. Obtain disk radius ra and mechanical period pz of the matching cells. • With a given ra vary pz to obtain a 90 degree phase advance at 11424 MHz. Note Z. • Obtain functions ra(Z) and pz(Z).( Polynomial ) • Insert the values of Z that are required to yield a Butterworth function for Gin and obtain ra and pz for the matching cells. • Cascade the cells.

  4. vgg p/2 cells vgg1.smx 1.125” smatr 11424 MHz 0.375” Inner conductor p/2 Outer conductor ra and pz as a function of Inner conductor group velocity

  5. ra=1.8617 pz=2.01cm vg=9.09 [%C] Q=567 90degrees at 11424 MHz ra(Z), pz(Z) Din=0.75 inch Dout=2.25 inch Att=0.407 dB/cell sinctp P=100 MW For 20 dB round trip att.: Nac=20, Lac=34 cm Emax=39 MV/m Hmax=0.125 MA/m

  6. Sincel.mac ra.=1.9, pz=2.04, rin=.95 rout=2.857 cm Vg=7.22 Single cell Apc=0.513 dB/cell 90 degrees Pin=100 MW For 20 dB round trip att.: Nac=17 Lac=34 cm 11424 MHz Hmax=0.15 MA/m Emax=49 MV/m

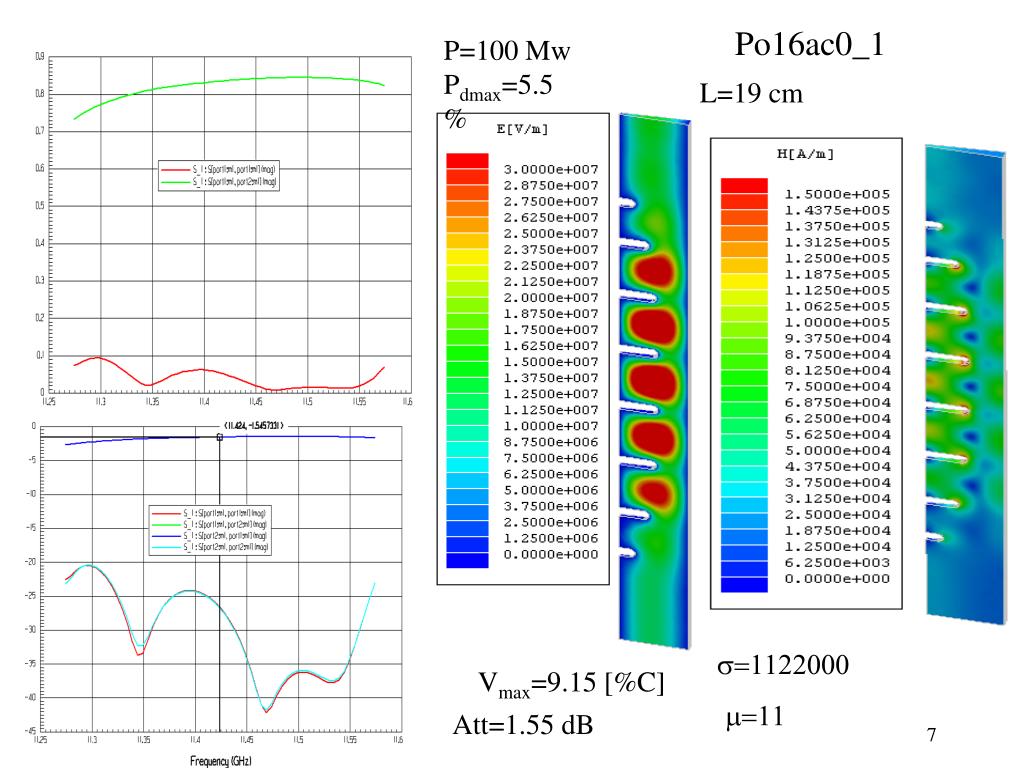

  7. P=100 Mw Pdmax=5.5 % Po16ac0_1 L=19 cm s=1122000 Vmax=9.15 [%C] m=11 Att=1.55 dB

  8. P=100 MW Dcc1=1.300 Pdmax=5.5% Po16ac0_2 L=19 cm input output Att=1.66 dB

  9. nac4_1 po16ac4 Dcc1=1.1300 output Att=3.189dB, 0.4 dB/cell input

  10. Reflection and attenuation output nac5 input Att=3.79 dB 0.6dB/cell

  11. P=100 MW Emax=30 MV/m Hmax=.1 MA/m nac6 Att=4.25 dB, 0.46 dB/cell For 20 dB round trip attenuation, L=9.5+ 36= 45.5 cm

  12. mawgco P=100 MW Att=1.9 dB

  13. po16ac0_1 Reflection and attenuation

  14. dcc po16ac4 Dcc1=1.1366, ac0 Dcc1=1.1300, ac0 comparison Dcc1=1.1300, ac4 Dcc1=1.1366, ac4
