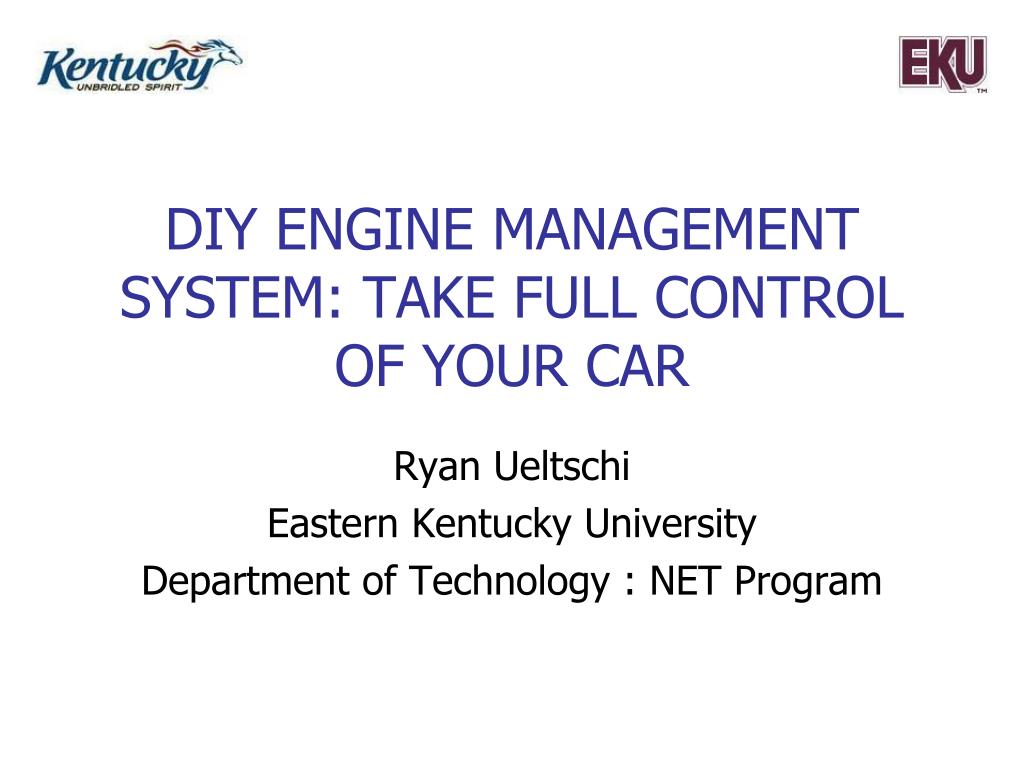

  1. DIY Engine management system: Take full control of your car Ryan Ueltschi Eastern Kentucky University Department of Technology : NET Program

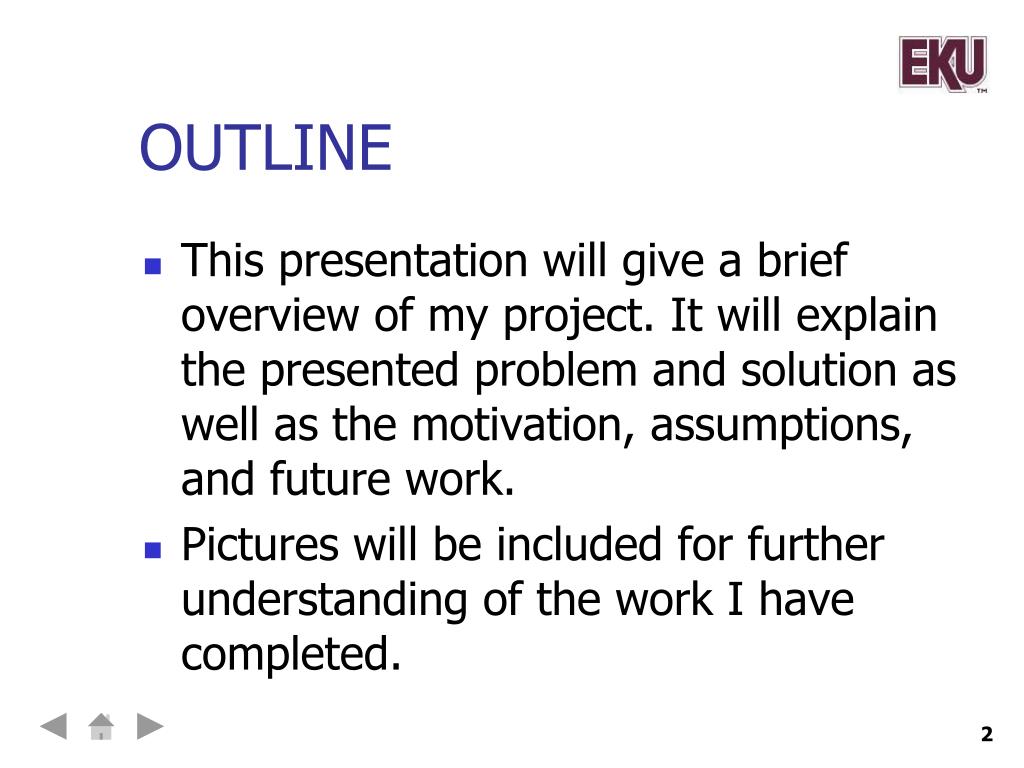

  2. OUTLINE • This presentation will give a brief overview of my project. It will explain the presented problem and solution as well as the motivation, assumptions, and future work. • Pictures will be included for further understanding of the work I have completed.

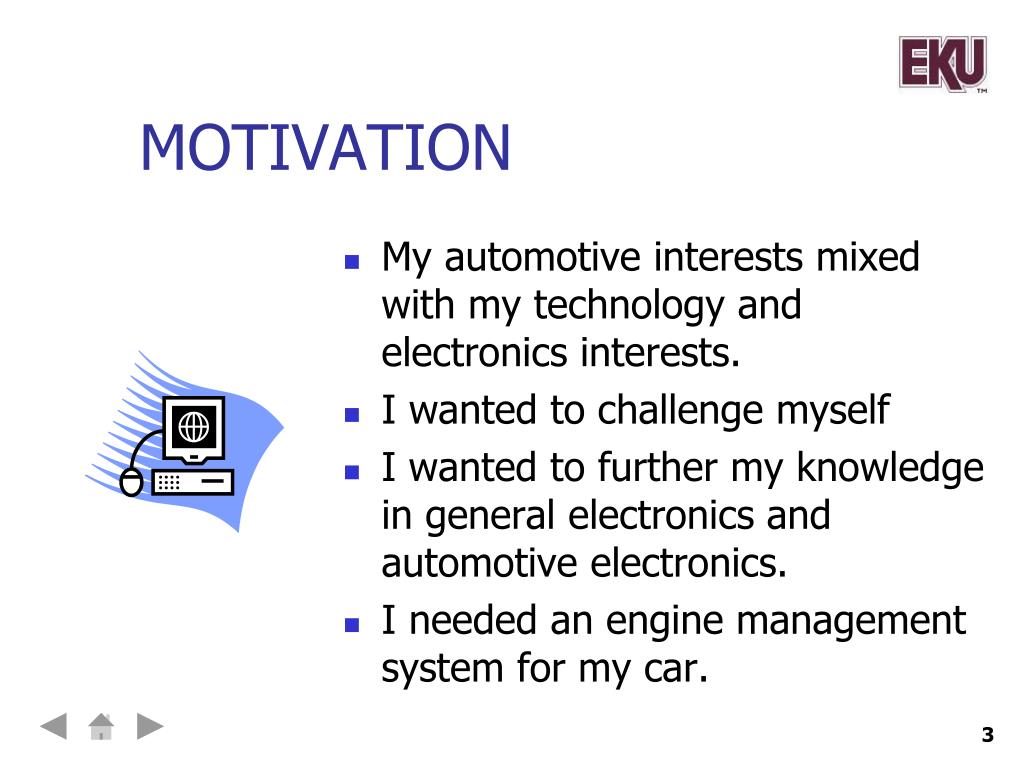

  3. MOTIVATION • My automotive interests mixed with my technology and electronics interests. • I wanted to challenge myself • I wanted to further my knowledge in general electronics and automotive electronics. • I needed an engine management system for my car.

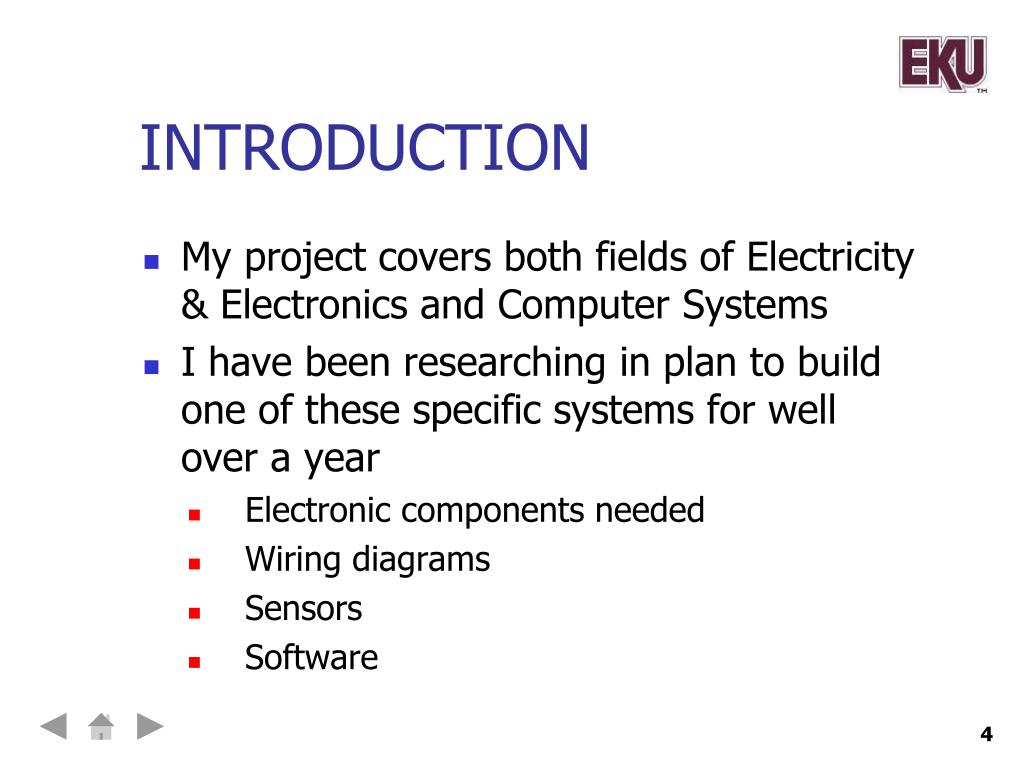

  4. INTRODUCTION • My project covers both fields of Electricity & Electronics and Computer Systems • I have been researching in plan to build one of these specific systems for well over a year • Electronic components needed • Wiring diagrams • Sensors • Software

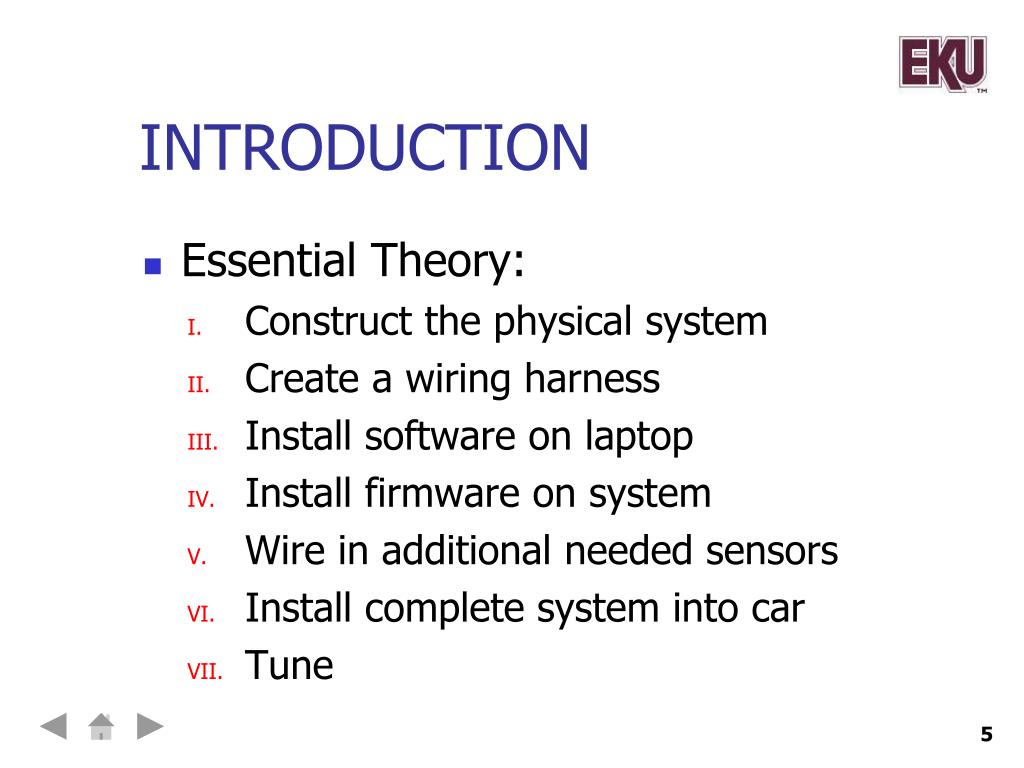

  5. INTRODUCTION • Essential Theory: • Construct the physical system • Create a wiring harness • Install software on laptop • Install firmware on system • Wire in additional needed sensors • Install complete system into car • Tune

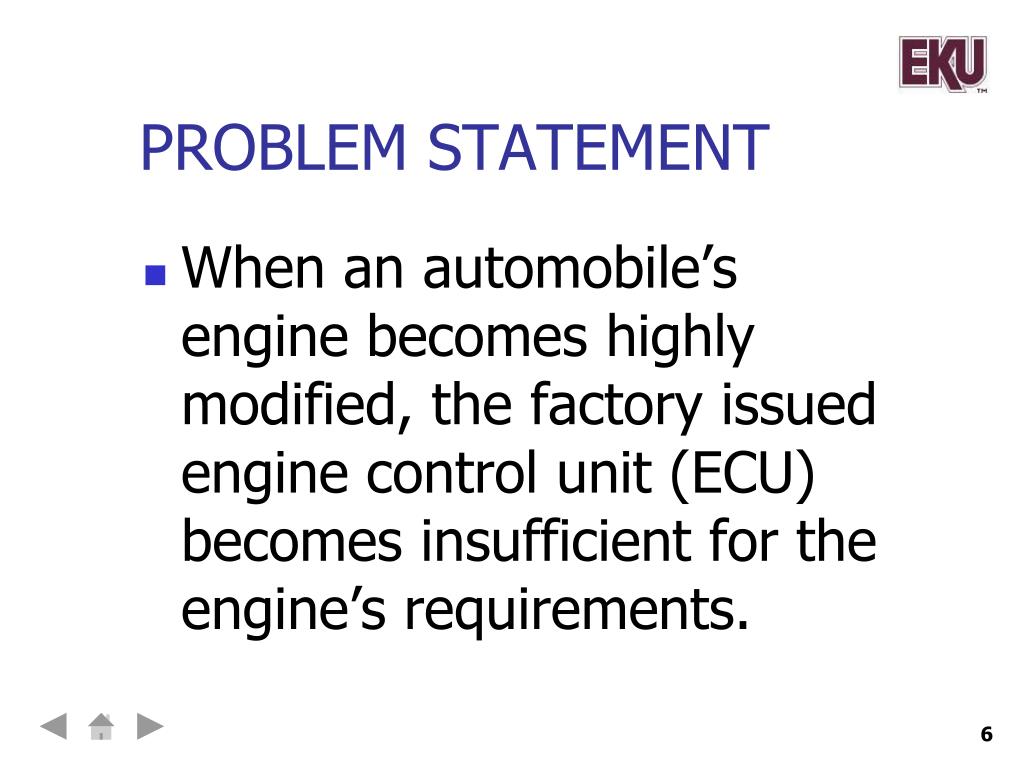

  6. PROBLEM STATEMENT • When an automobile’s engine becomes highly modified, the factory issued engine control unit (ECU) becomes insufficient for the engine’s requirements.

  7. PROBLEM STATEMENT • Sub Problems • Fuel trim adjustments • Timing adjustments • Idle settings • Sensors

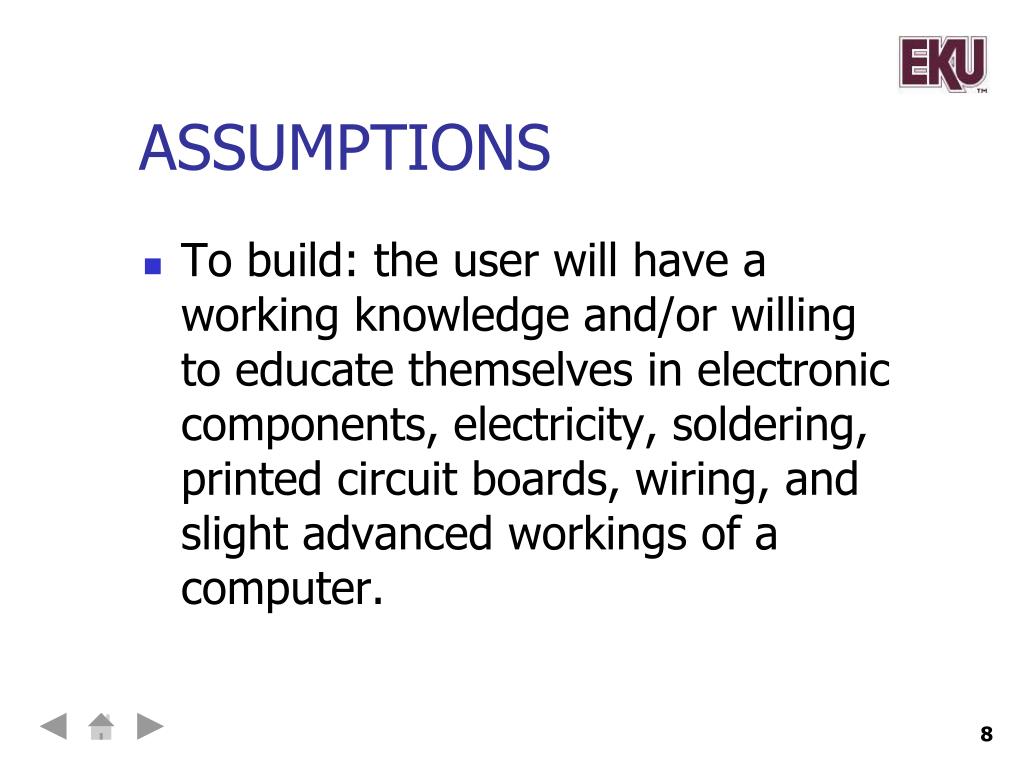

  8. Assumptions • To build: the user will have a working knowledge and/or willing to educate themselves in electronic components, electricity, soldering, printed circuit boards, wiring, and slight advanced workings of a computer.

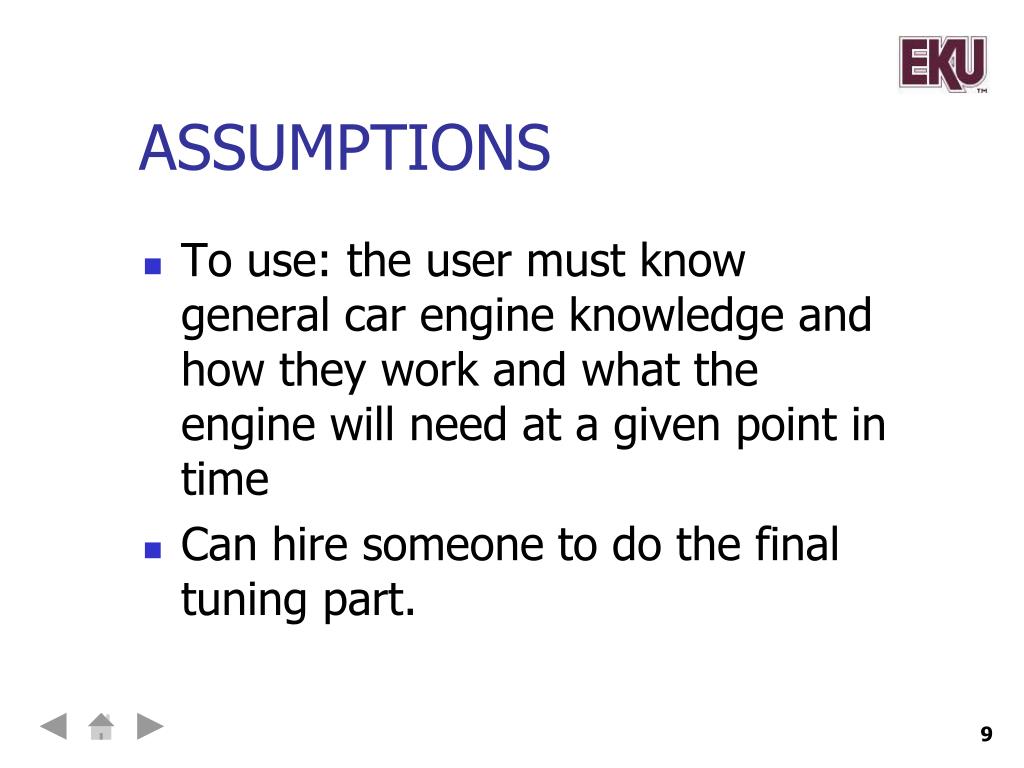

  9. Assumptions • To use: the user must know general car engine knowledge and how they work and what the engine will need at a given point in time • Can hire someone to do the final tuning part.

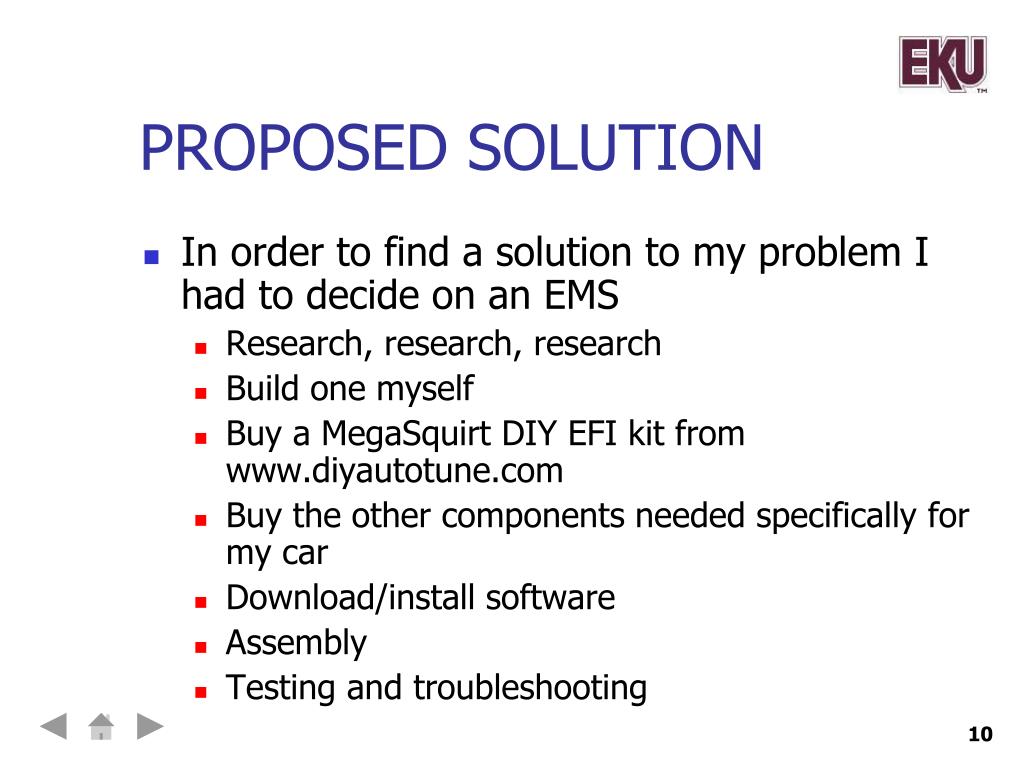

  10. PROPOSED SOLUTION • In order to find a solution to my problem I had to decide on an EMS • Research, research, research • Build one myself • Buy a MegaSquirt DIY EFI kit from www.diyautotune.com • Buy the other components needed specifically for my car • Download/install software • Assembly • Testing and troubleshooting

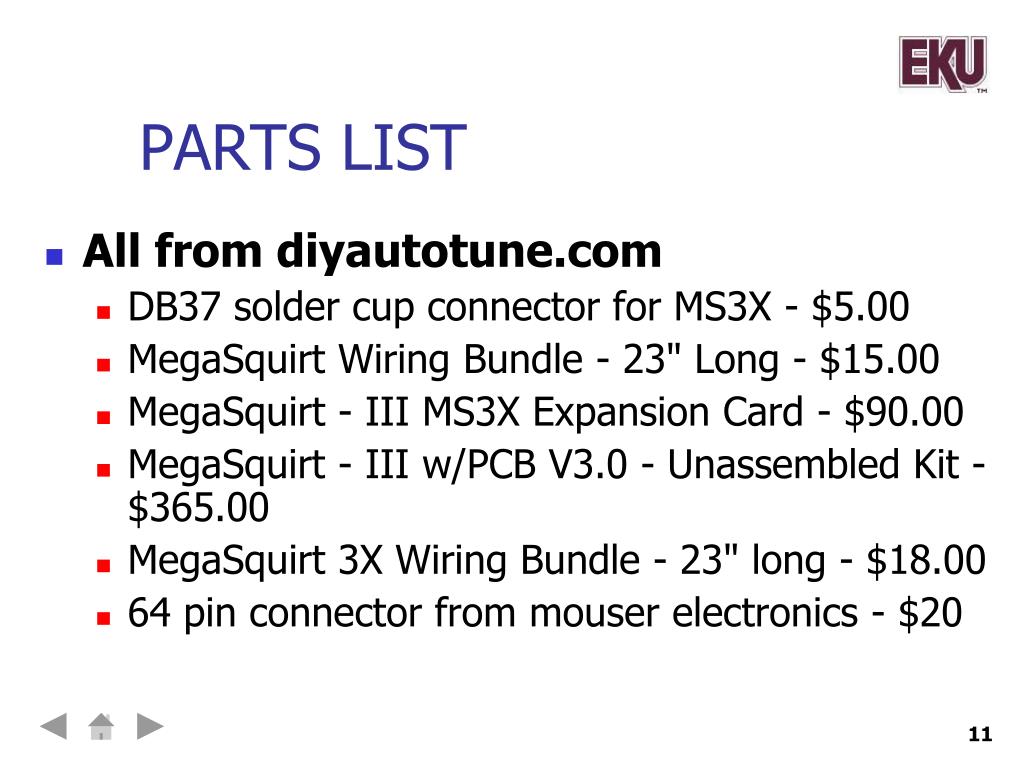

  11. Parts List • All from diyautotune.com • DB37 solder cup connector for MS3X - $5.00 • MegaSquirt Wiring Bundle - 23" Long - $15.00 • MegaSquirt - III MS3X Expansion Card - $90.00 • MegaSquirt - III w/PCB V3.0 - Unassembled Kit - $365.00 • MegaSquirt 3X Wiring Bundle - 23" long - $18.00 • 64 pin connector from mouser electronics - $20

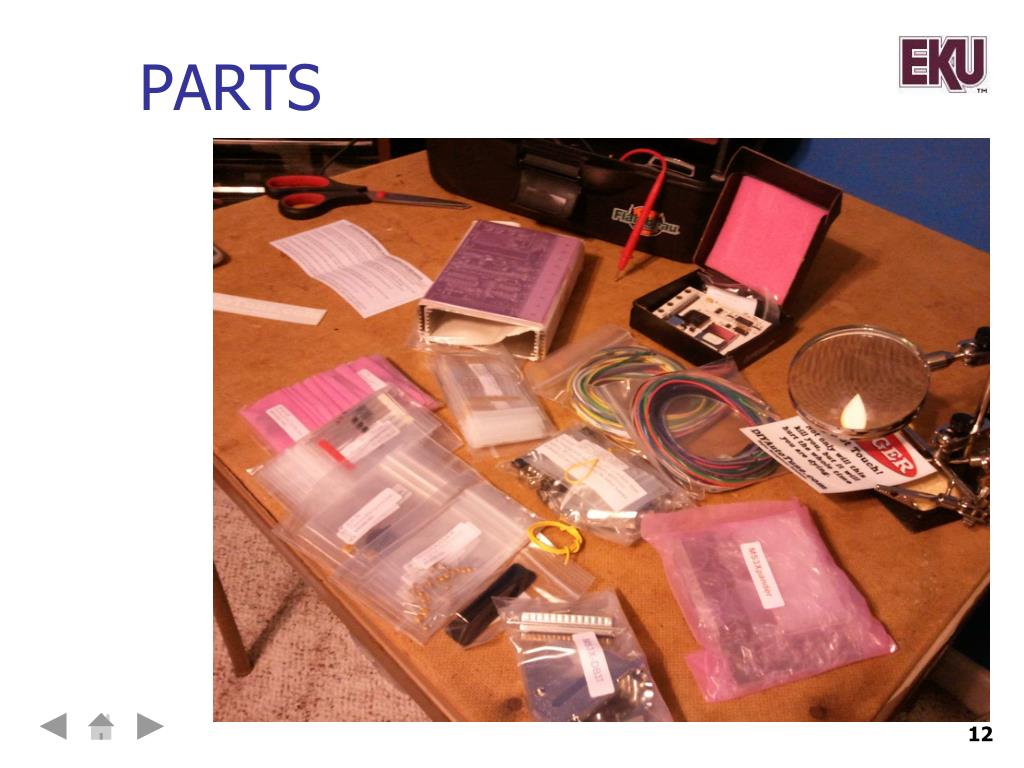

  12. Parts

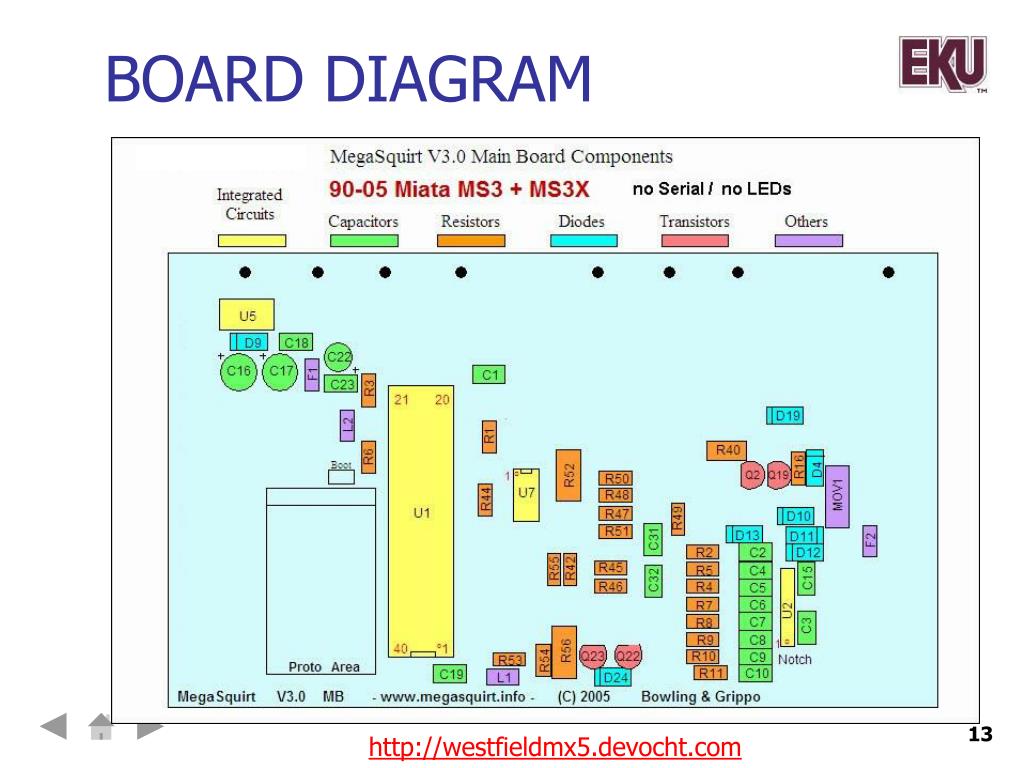

  13. Board Diagram http://westfieldmx5.devocht.com

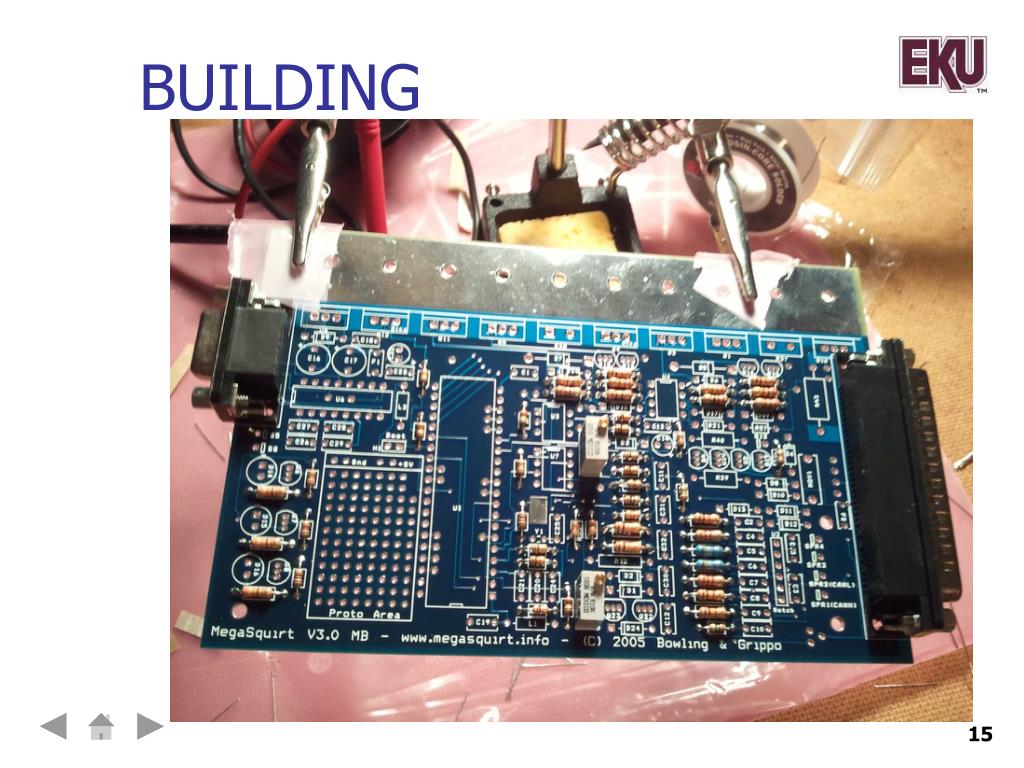

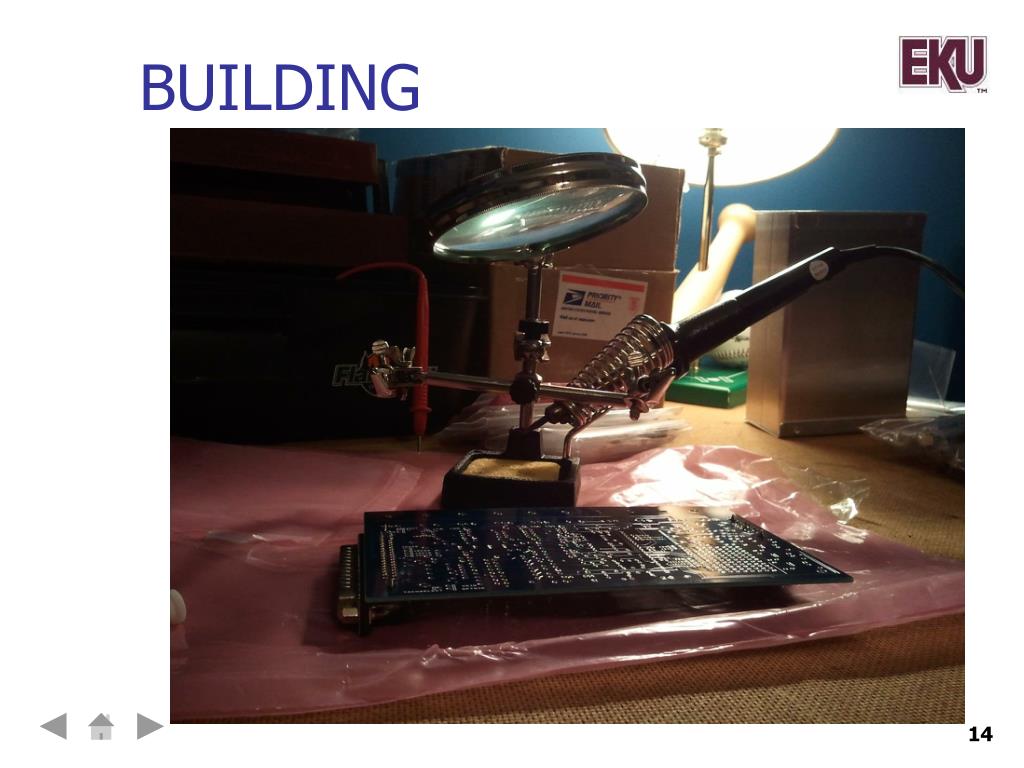

  14. Building

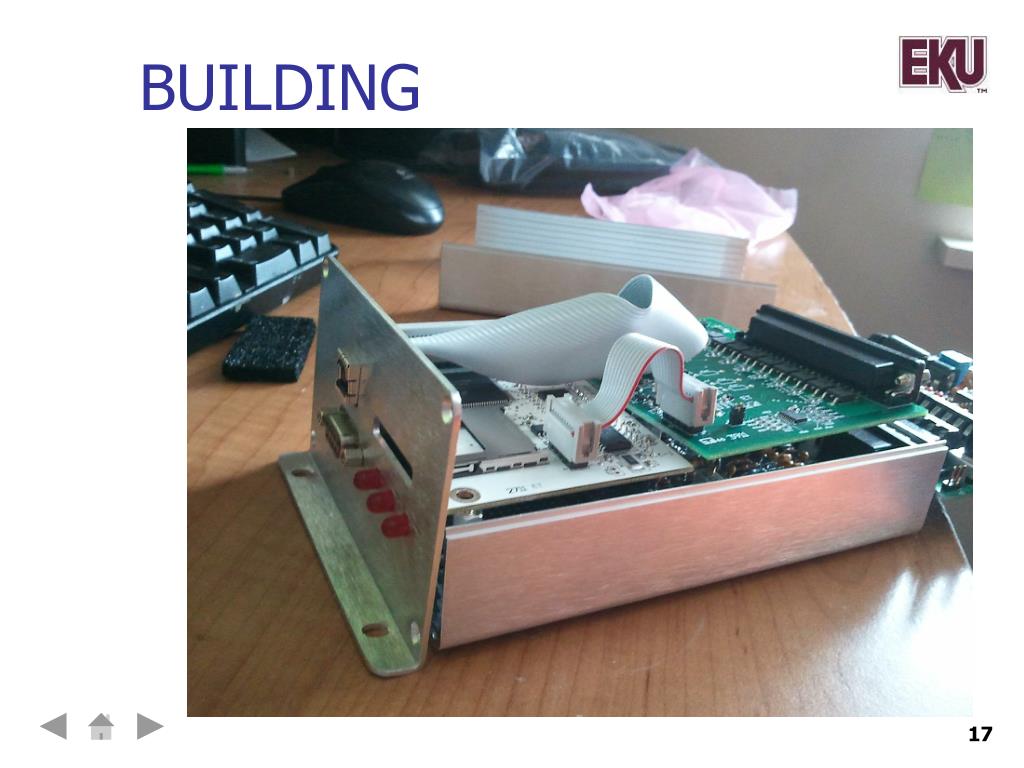

  15. Building

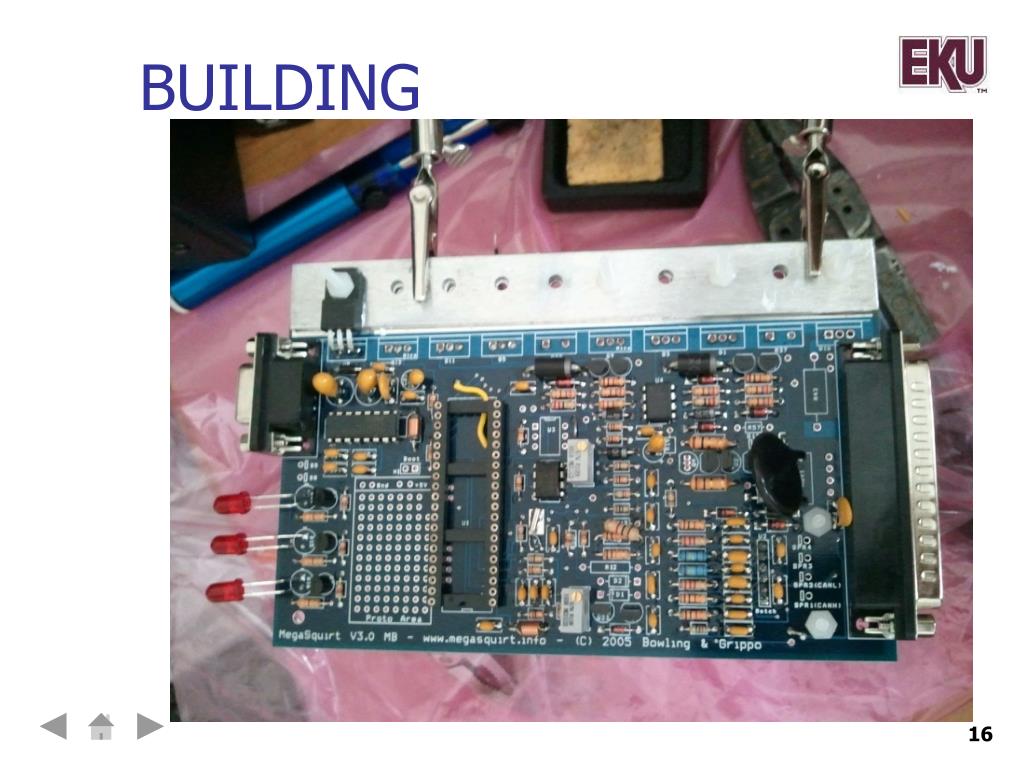

  16. Building

  17. Building

  18. http://www.msextra.com Wiring Diagram

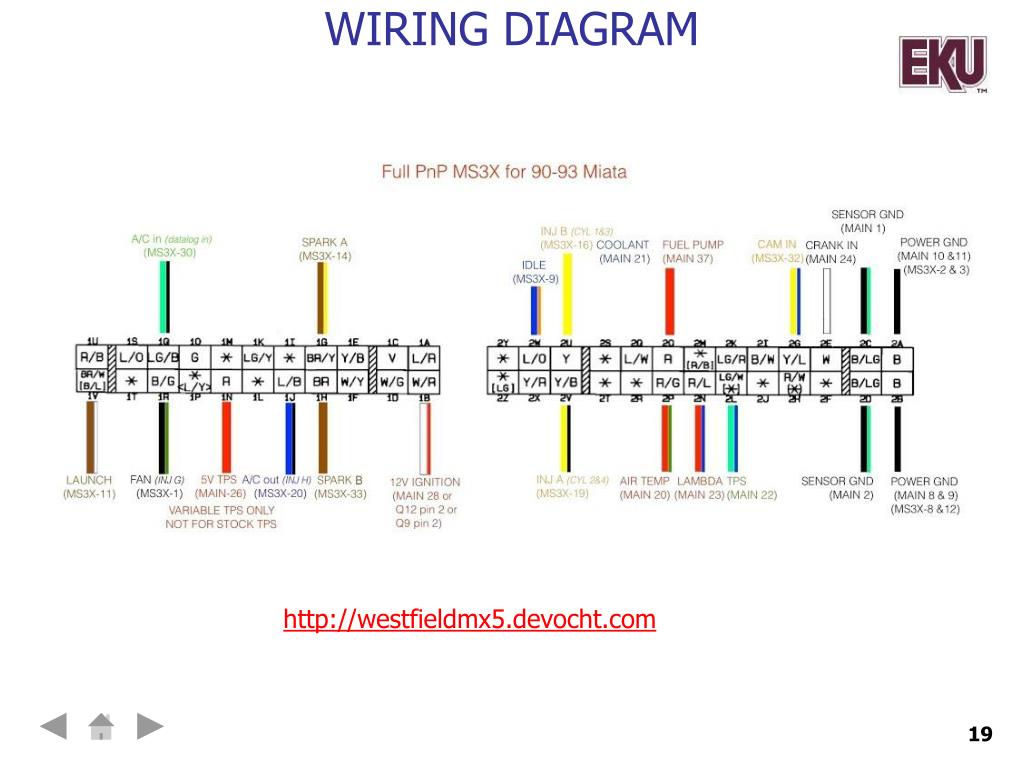

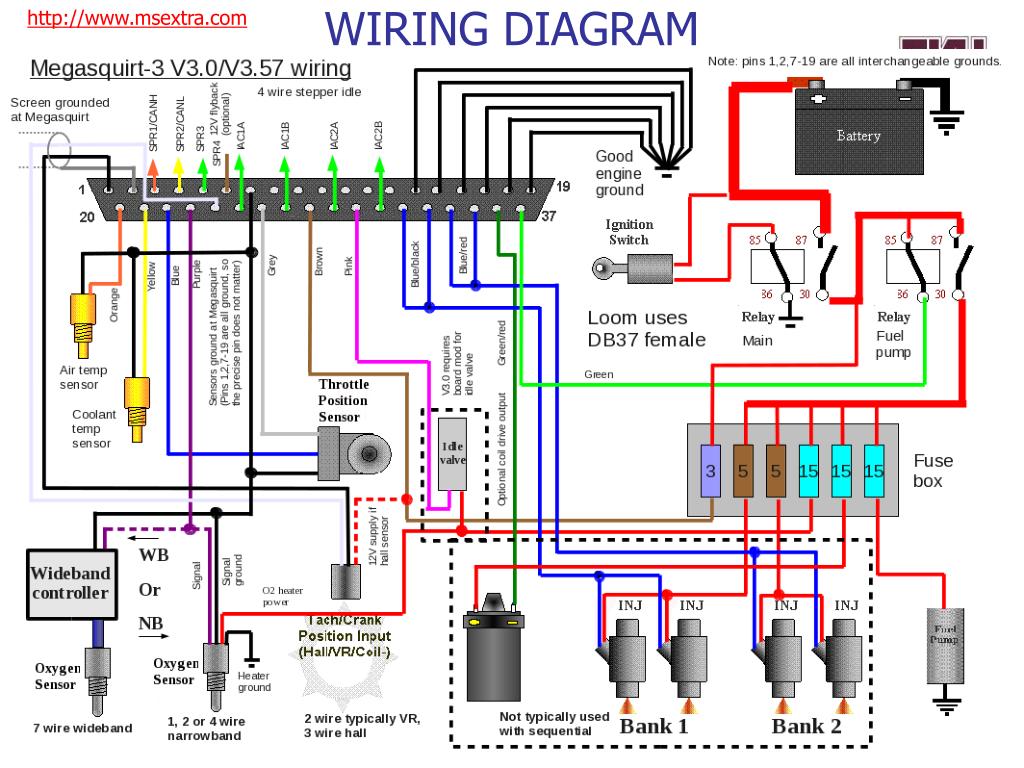

  19. Wiring Diagram http://westfieldmx5.devocht.com

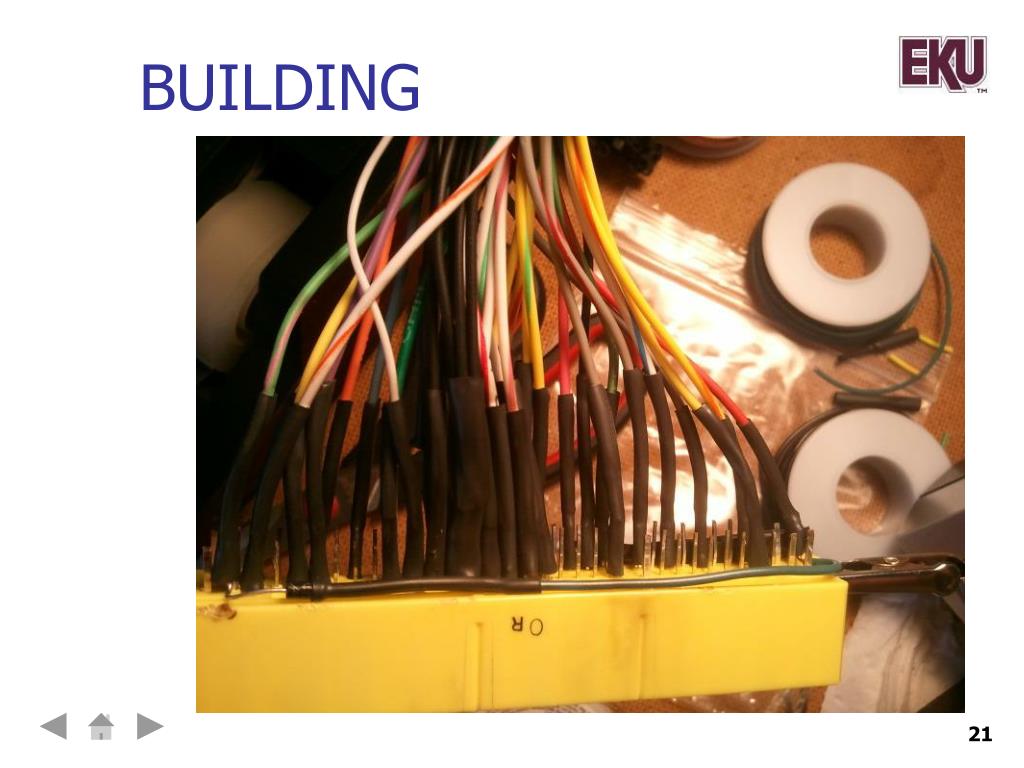

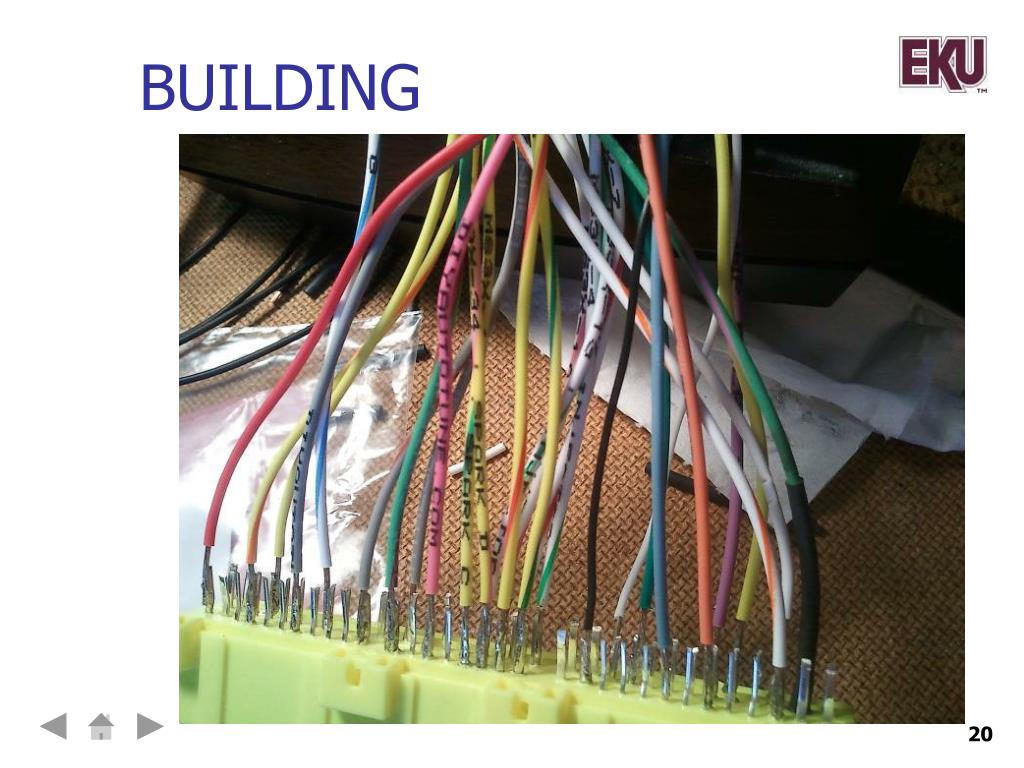

  20. Building

  21. Building

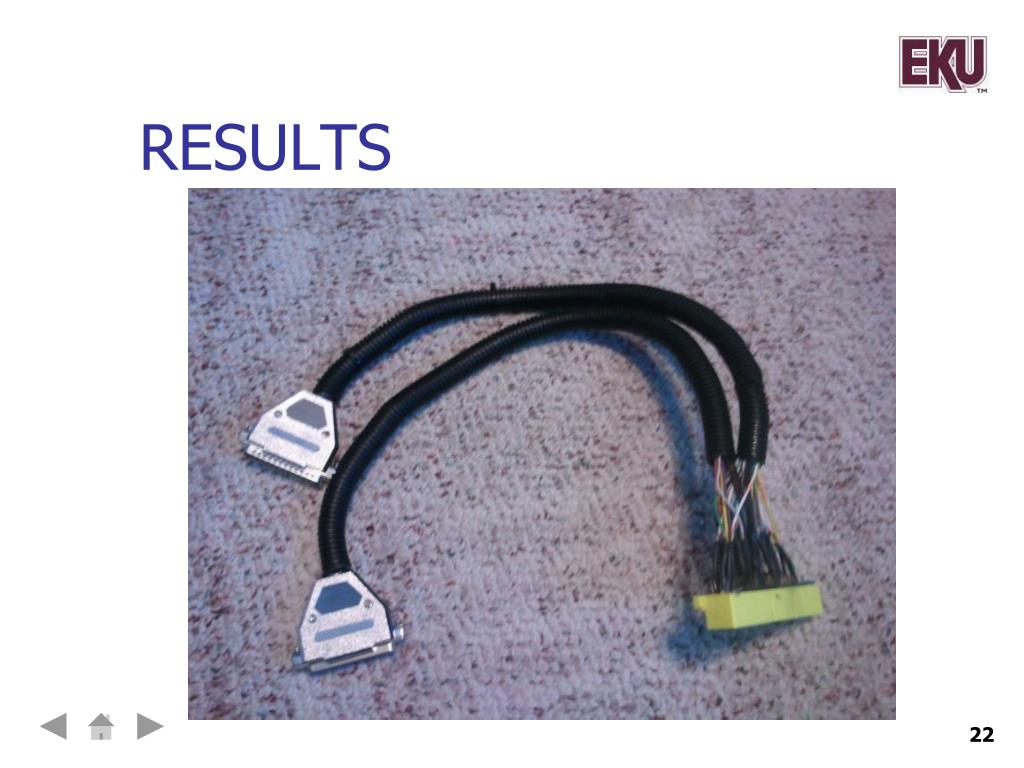

  22. RESULTS

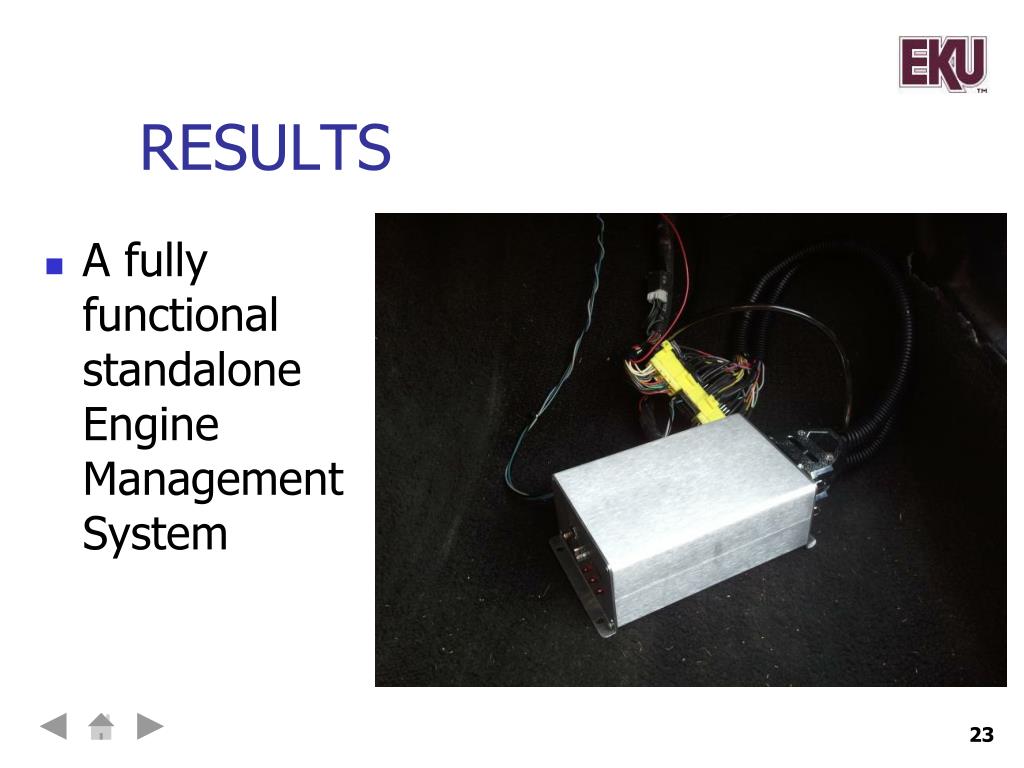

  23. RESULTS • A fully functional standalone Engine Management System

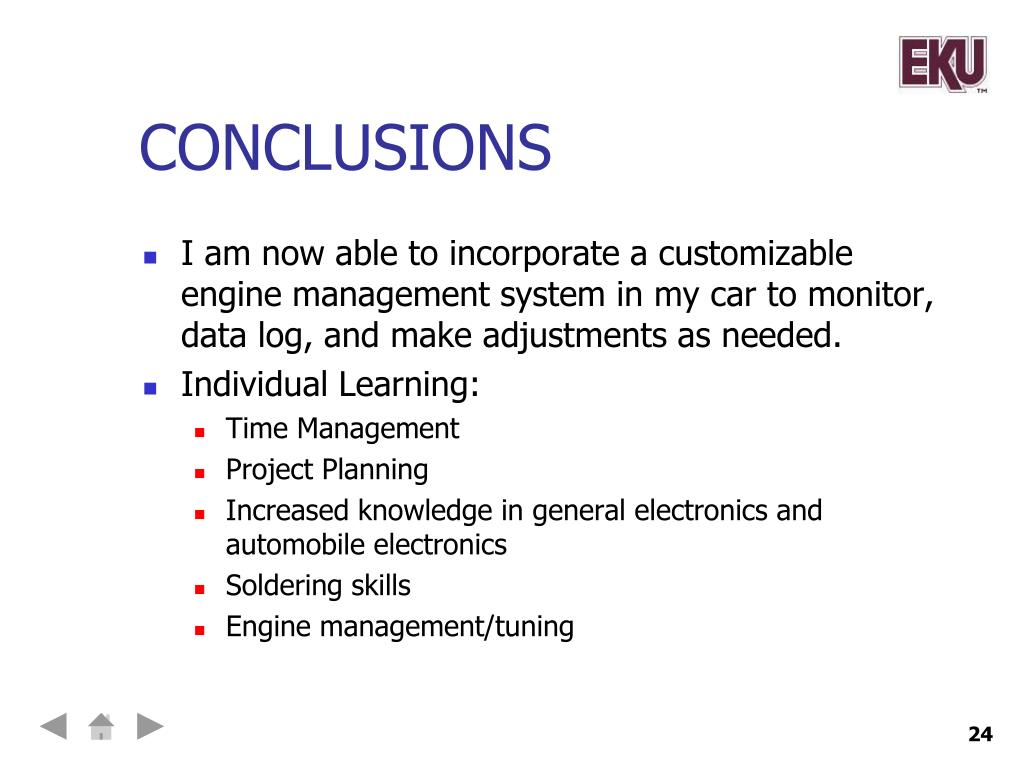

  24. CONCLUSIONS • I am now able to incorporate a customizable engine management system in my car to monitor, data log, and make adjustments as needed. • Individual Learning: • Time Management • Project Planning • Increased knowledge in general electronics and automobile electronics • Soldering skills • Engine management/tuning

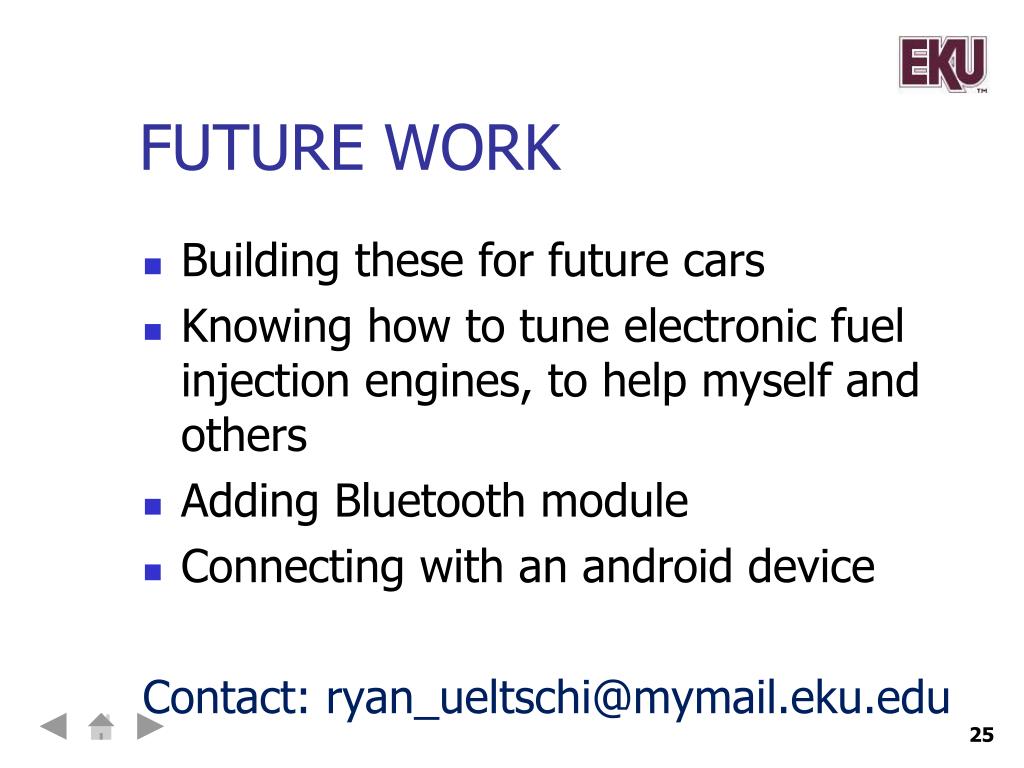

  25. FUTURE WORK • Building these for future cars • Knowing how to tune electronic fuel injection engines, to help myself and others • Adding Bluetooth module • Connecting with an android device Contact: ryan_ueltschi@mymail.eku.edu

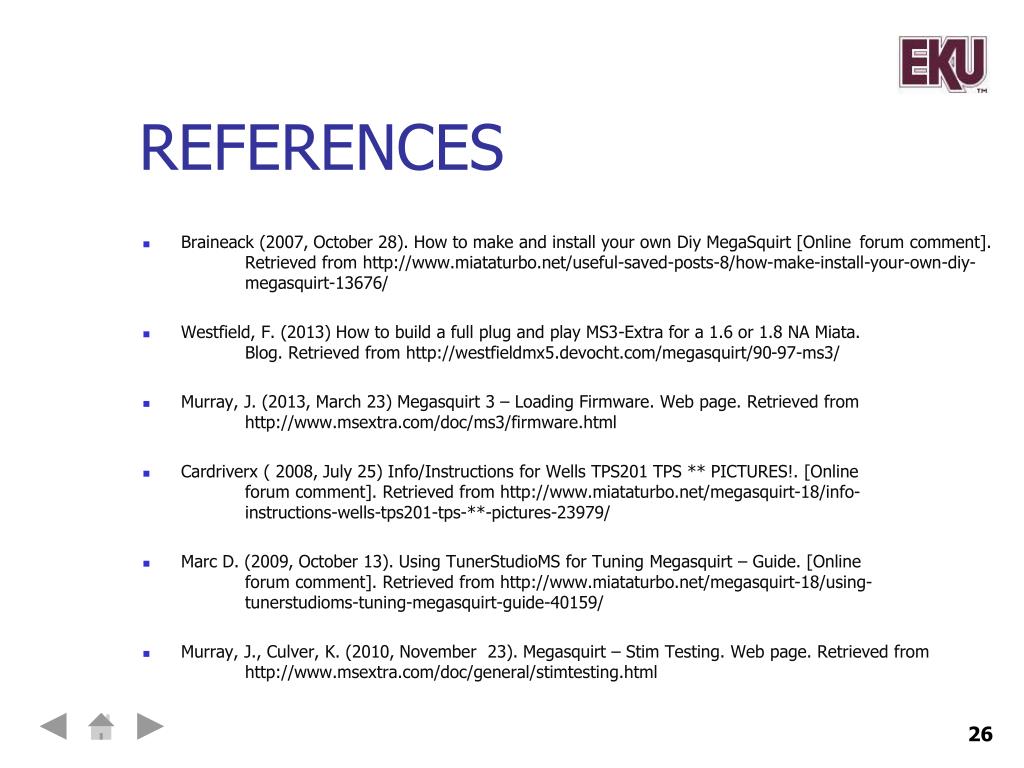

  26. REFERENCES • Braineack (2007, October 28). How to make and install your own Diy MegaSquirt [Online forum comment]. Retrieved from http://www.miataturbo.net/useful-saved-posts-8/how-make-install-your-own-diy- megasquirt-13676/ • Westfield, F. (2013) How to build a full plug and play MS3-Extra for a 1.6 or 1.8 NA Miata. Blog. Retrieved from http://westfieldmx5.devocht.com/megasquirt/90-97-ms3/ • Murray, J. (2013, March 23) Megasquirt 3 – Loading Firmware. Web page. Retrieved from http://www.msextra.com/doc/ms3/firmware.html • Cardriverx( 2008, July 25) Info/Instructions for Wells TPS201 TPS ** PICTURES!. [Online forum comment]. Retrieved from http://www.miataturbo.net/megasquirt-18/info- instructions-wells-tps201-tps-**-pictures-23979/ • Marc D. (2009, October 13). Using TunerStudioMS for Tuning Megasquirt – Guide. [Online forum comment]. Retrieved from http://www.miataturbo.net/megasquirt-18/using- tunerstudioms-tuning-megasquirt-guide-40159/ • Murray, J., Culver, K. (2010, November 23). Megasquirt – Stim Testing. Web page. Retrieved from http://www.msextra.com/doc/general/stimtesting.html

  27. ACKNOWLEDGEMENTS

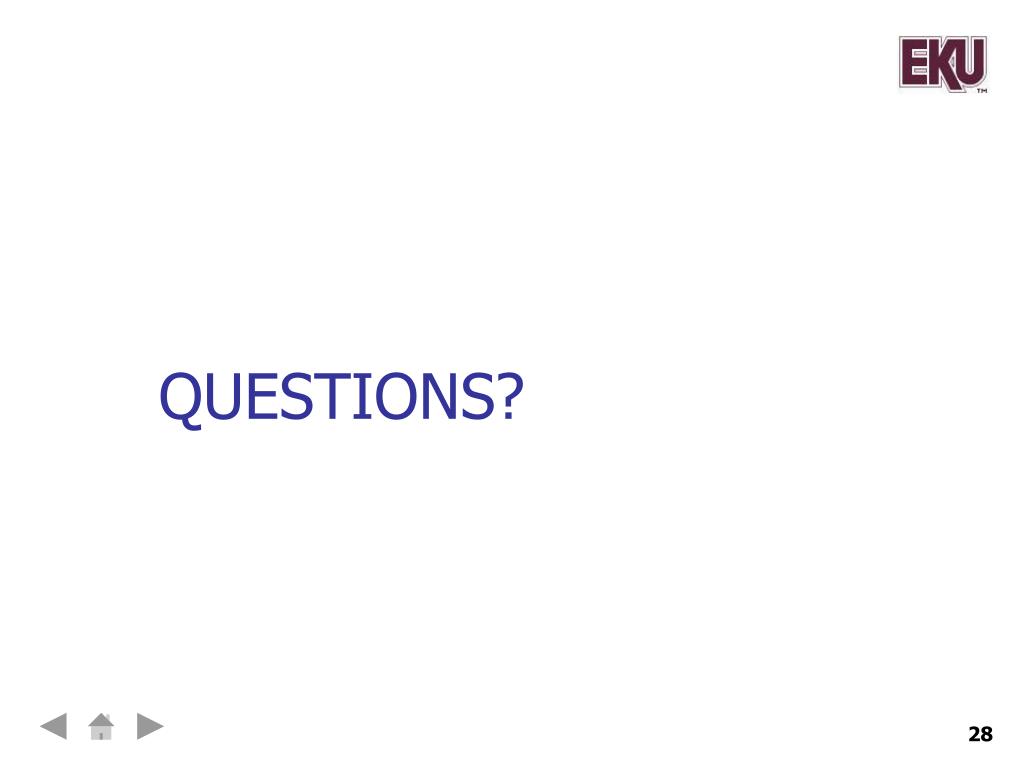

  28. Questions?
