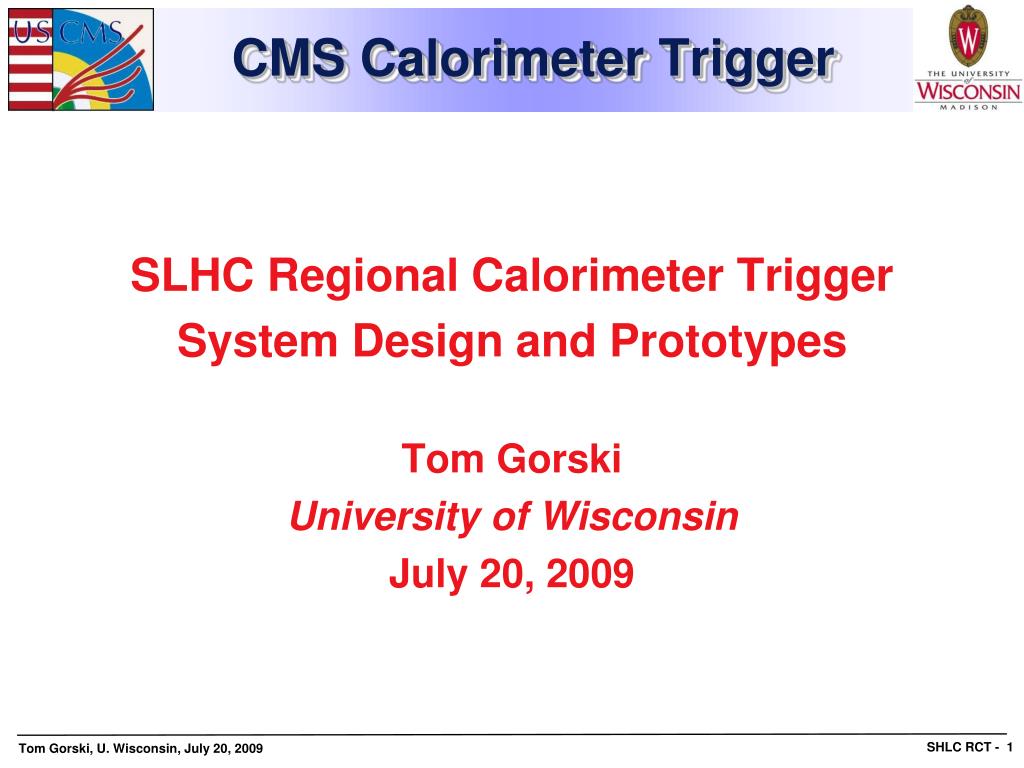

  1. CMS Calorimeter Trigger • SLHC Regional Calorimeter Trigger • System Design and Prototypes • Tom Gorski • University of Wisconsin • July 20, 2009

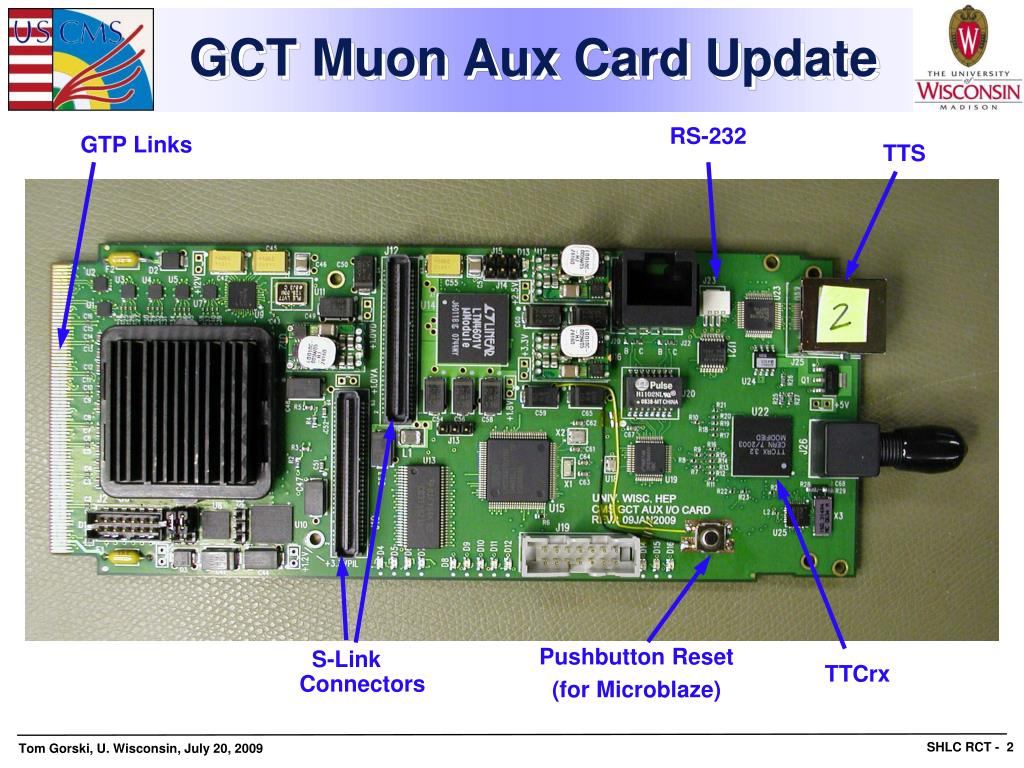

  2. GCT Muon Aux Card Update RS-232 GTP Links TTS Pushbutton Reset (for Microblaze) S-Link Connectors TTCrx

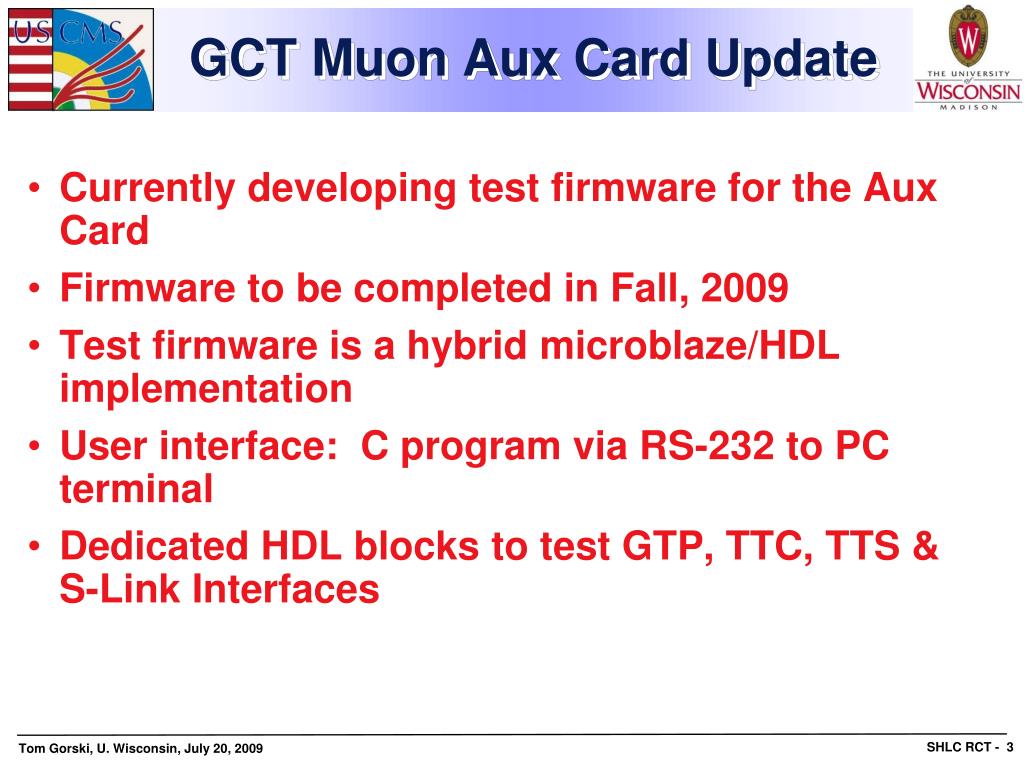

  3. GCT Muon Aux Card Update • Currently developing test firmware for the Aux Card • Firmware to be completed in Fall, 2009 • Test firmware is a hybrid microblaze/HDL implementation • User interface: C program via RS-232 to PC terminal • Dedicated HDL blocks to test GTP, TTC, TTS & S-Link Interfaces

  4. SLHC Cal. Trig. Demonstrator SLHC Cal. Trig. Demonstrator Prototype Design First Step: determine requirements to provide proof of principle of major elements of SLHC Cal. Trig. System Evaluate SLHC Cal. Trig. Conceptual Design Needs performance to incorporate algorithms Shown by M. Bachtis, S. Dasu, K. Flood (UW) in this workshop Compatible with firmware developed for these algos. K. Compton, M. Schulte, et al., (UW) Proceedings of IEEE Symposium on Field-Programmable Custom Computing Machines, April 2009. Must work with ECAL1, HCAL2 upgrade designs & eventually in combination with upgraded tracking trigger primitives Ph. Busson1 (LLR), J. Mans2 (UMinn) Integrated with SLHC Optical SLB J.C. da Silva, LIP. Clear evolutionary path from present LHC RCT Backwards-compatible functionality maintained.

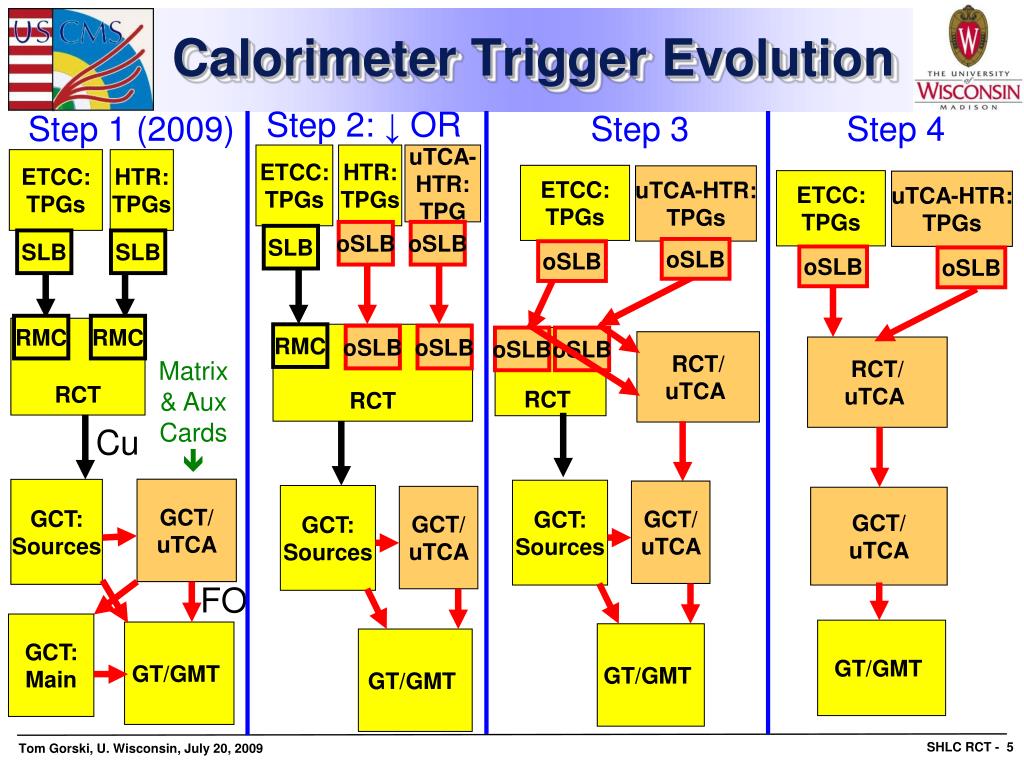

  5. Calorimeter Trigger Evolution Step 2: ↓ OR ↓ Step 1 (2009) Step 3 Step 4 ETCC:TPGs HTR:TPGs uTCA-HTR:TPG ETCC:TPGs HTR:TPGs ETCC:TPGs uTCA-HTR:TPGs ETCC:TPGs uTCA-HTR:TPGs oSLB oSLB SLB SLB SLB oSLB oSLB oSLB oSLB RMC RMC RCT RCT RMC oSLB oSLB oSLB RCT oSLB RCT/ uTCA RCT/ uTCA Matrix& AuxCards  Cu GCT/uTCA GCT:Sources GCT:Sources GCT/uTCA GCT:Sources GCT/uTCA GCT/uTCA FO GCT:Main GT/GMT GT/GMT GT/GMT GT/GMT

  6. Review: Current HCAL/ECAL to RCT Link 4X 1.2 Gbps Copper Links (19 bits data + 5 bits Hamming per link per crossing) RCT Receiver Card HCAL HTR or ECAL TCC RCT RCVR Mezz Vitesse V7216 Tx Vitesse V7216 Rx RCT Phase ASIC 4.8 Gbps aggregate • Intersection of 4,032 links at common destination (RCT) • Link Xmt & Rcv Clks are 3X the LHC Clock (~120 MHz)—no long term drift issues • Elastic buffers in V7216 Rx chips to manage short term clk jitter • RCT Phase ASIC provides channel bonding function, hamming code check, and buffering for 4X RCT processing pipeline (~160 MHz) in about 3 crossings • 120 MHz Link Clock skew tolerances: ±6ns @ Tx, ±1ns @ Rx • Scheme is stable, reliable, and has low latency

  7. Clock Frequencies and Data Rates • Calorimeter data produced by a 40.08 MHz synchronous process • Carried by high-speed serial links between processing stages • FPGAs support different clock domains for the high speed serial links and the programmable fabric, but at the cost of increased latency at the interface • Governing parameter is the Link Parallel I/O Clock Frequency • Key Decision: Run FPGA processing fabric and/or serial links synchronous to the LHC clock or on a decoupled timebase? • Decoupling frees designers to chose frequencies that maximize link data rates • Price of decoupling: • Increased latency on link/fabric interface • Increased complexity in pipeline control and link protocol (empty cycles) • Advantages of coupling: • Perfect match in bandwidth between calorimeter, links, and processing pipeline • Lowest latency on interfaces • Simplified pipeline control and link protocol • Existing Latency Constraints + Xilinx Rocket I/O Tile design exerts a strong influence towards the coupled approach

  8. TPG Decompression Functions • RCT Currently uses full LUTs for each H/E tower pair (217× 18 bits) • Implements arbitrary conversion function plus H/E cut for electrons • LUTs require significant board space, not practical for upgrade—need to go to functions instead • Functions can place significant demands on special FPGA resources (e.g., DSP slices, block RAM) • Demand depends on function type: • Mantissa/Exponent least costly—simple shift • Piecewise linear uses Add/Multiply per HCAL or ECAL tower • Logarithmic/Exponential about 4-8× more costly than piecewise linear • Will need to settle on general scheme early on in the process in collaboration with ECAL and HCAL groups • Pursued design approach will have parameters stored in FPGA RAM, and allow changes to them without requiring FPGA resynthesis

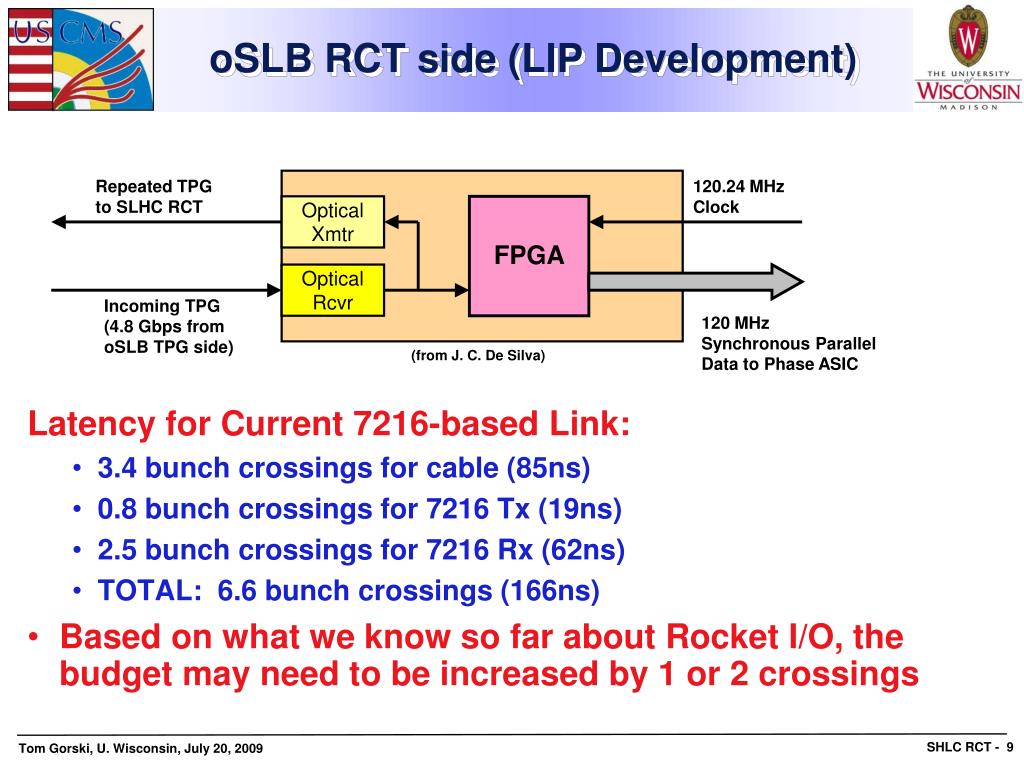

  9. oSLB RCT side (LIP Development) • Latency for Current 7216-based Link: • 3.4 bunch crossings for cable (85ns) • 0.8 bunch crossings for 7216 Tx (19ns) • 2.5 bunch crossings for 7216 Rx (62ns) • TOTAL: 6.6 bunch crossings (166ns) • Based on what we know so far about Rocket I/O, the budget may need to be increased by 1 or 2 crossings Repeated TPG to SLHC RCT 120.24 MHz Clock Optical Xmtr FPGA Optical Rcvr Incoming TPG (4.8 Gbps from oSLB TPG side) 120 MHz Synchronous Parallel Data to Phase ASIC (from J. C. De Silva)

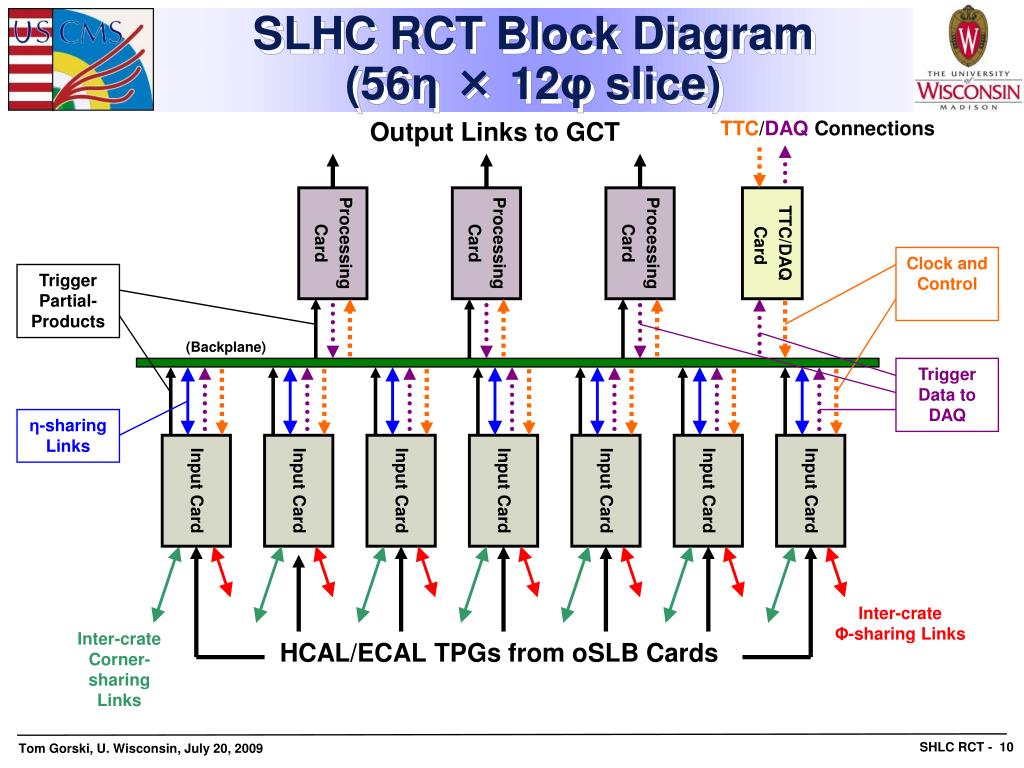

  10. SLHC RCT Block Diagram(56η × 12φ slice) Output Links to GCT TTC/DAQ Connections Processing Card Processing Card Processing Card TTC/DAQ Card Clock and Control Trigger Partial- Products (Backplane) Trigger Data to DAQ η-sharing Links Input Card Input Card Input Card Input Card Input Card Input Card Input Card Inter-crate Φ-sharing Links Inter-crate Corner-sharing Links HCAL/ECAL TPGs from oSLB Cards

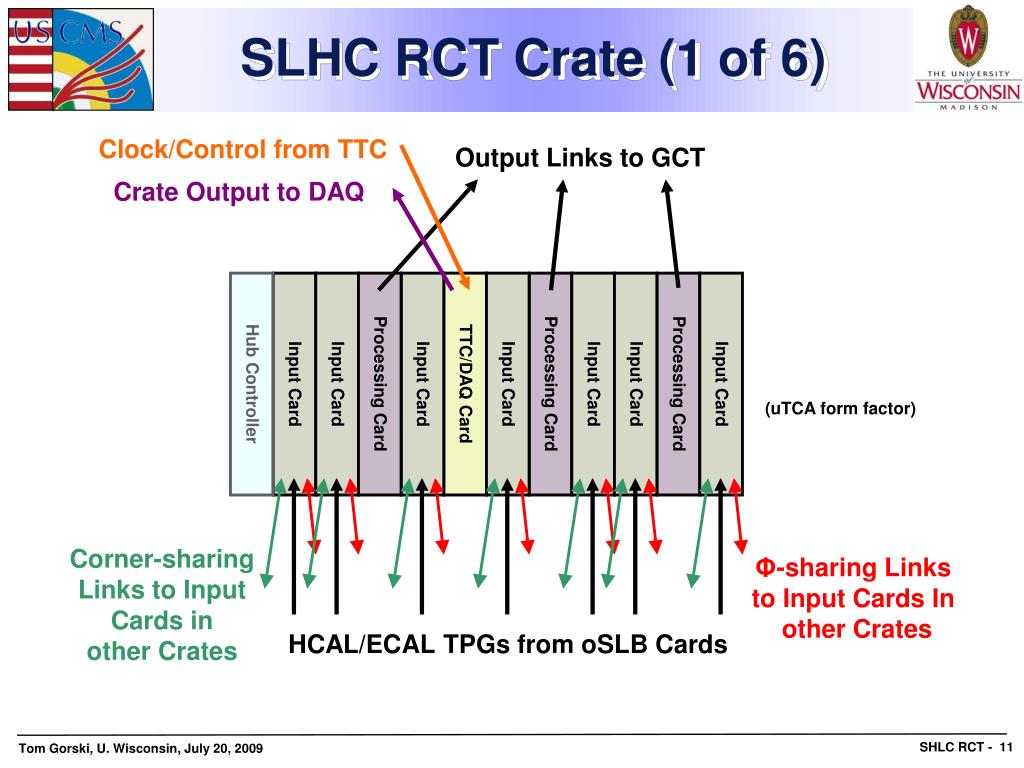

  11. SLHC RCT Crate (1 of 6) Clock/Control from TTC Output Links to GCT Crate Output to DAQ Hub Controller Input Card Input Card Processing Card Input Card TTC/DAQ Card Input Card Processing Card Input Card Input Card Processing Card Input Card (uTCA form factor) Corner-sharing Links to Input Cards in other Crates Φ-sharing Links to Input Cards In other Crates HCAL/ECAL TPGs from oSLB Cards

  12. Input Card Coverage/Sharing 56 towers in η 8 towers/card Input Card 0 Input Card 1 Input Card 2 Input Card 3 Input Card 4 Input Card 5 Input Card 6 Crate N+1 Input Card 0 Input Card 1 Input Card 2 Input Card 2 Input Card 3 Input Card 4 Input Card 5 Input Card 6 Crate N 12 towers/crate 72 towers in φ Input Card 0 Input Card 1 Input Card 2 Input Card 3 Input Card 4 Input Card 5 Input Card 6 Crate N-1

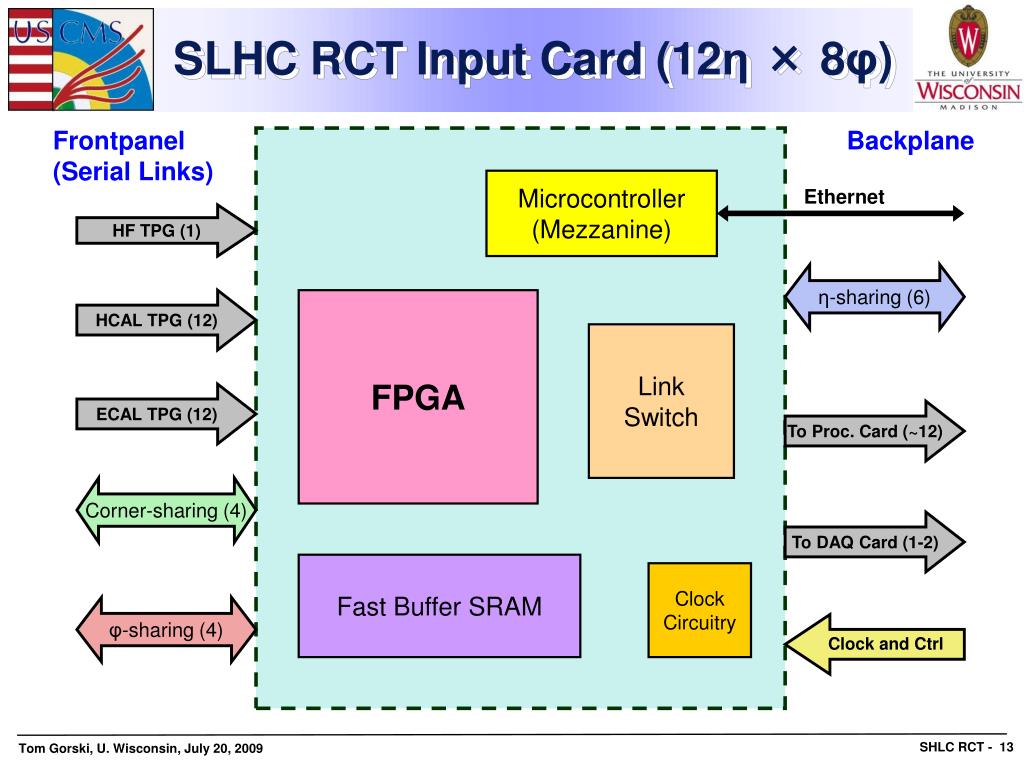

  13. SLHC RCT Input Card (12η × 8φ) Frontpanel (Serial Links) Backplane Microcontroller (Mezzanine) Ethernet HF TPG (1) η-sharing (6) HCAL TPG (12) FPGA Link Switch ECAL TPG (12) To Proc. Card (~12) Corner-sharing (4) To DAQ Card (1-2) Fast Buffer SRAM Clock Circuitry φ-sharing (4) Clock and Ctrl

  14. SLHC RCT Processing Card(~20η × 12φ) Frontpanel (Serial Links) Backplane Microcontroller (Mezzanine) Ethernet FPGA From Input Cards (~30) Link Switch Output to GCT To DAQ Card (1-2) Fast Buffer SRAM Clock Circuitry Clock and Ctrl

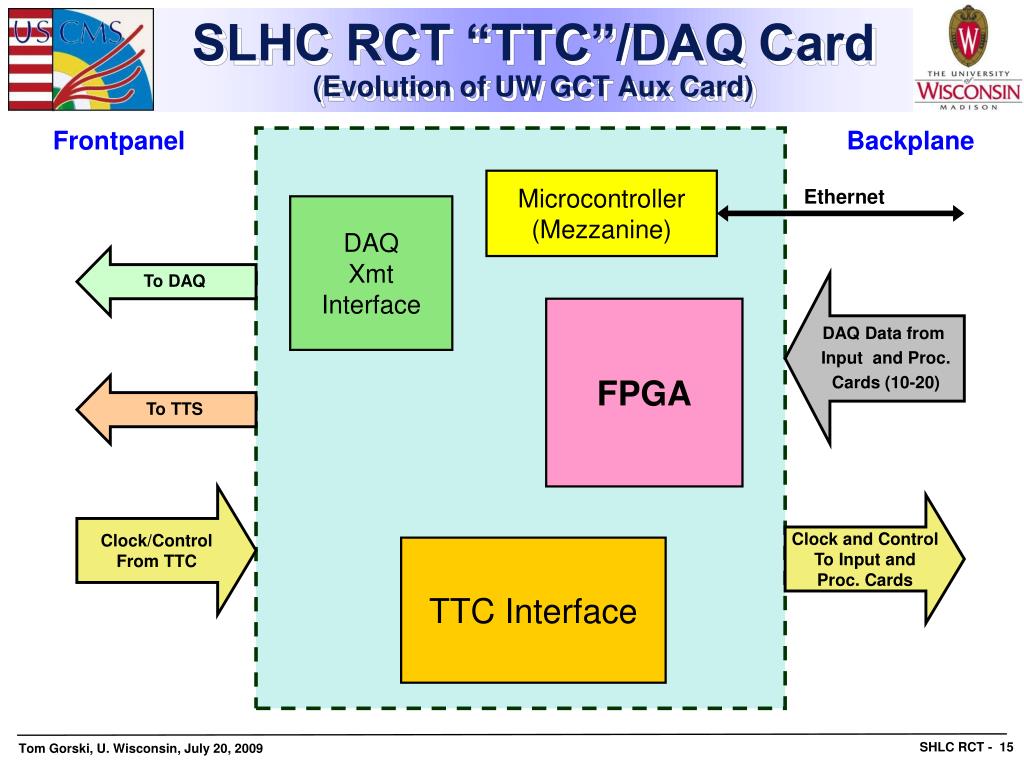

  15. SLHC RCT “TTC”/DAQ Card(Evolution of UW GCT Aux Card) Frontpanel Backplane Microcontroller (Mezzanine) Ethernet DAQ Xmt Interface To DAQ DAQ Data from Input and Proc. Cards (10-20) FPGA To TTS Clock/Control From TTC Clock and Control To Input and Proc. Cards TTC Interface

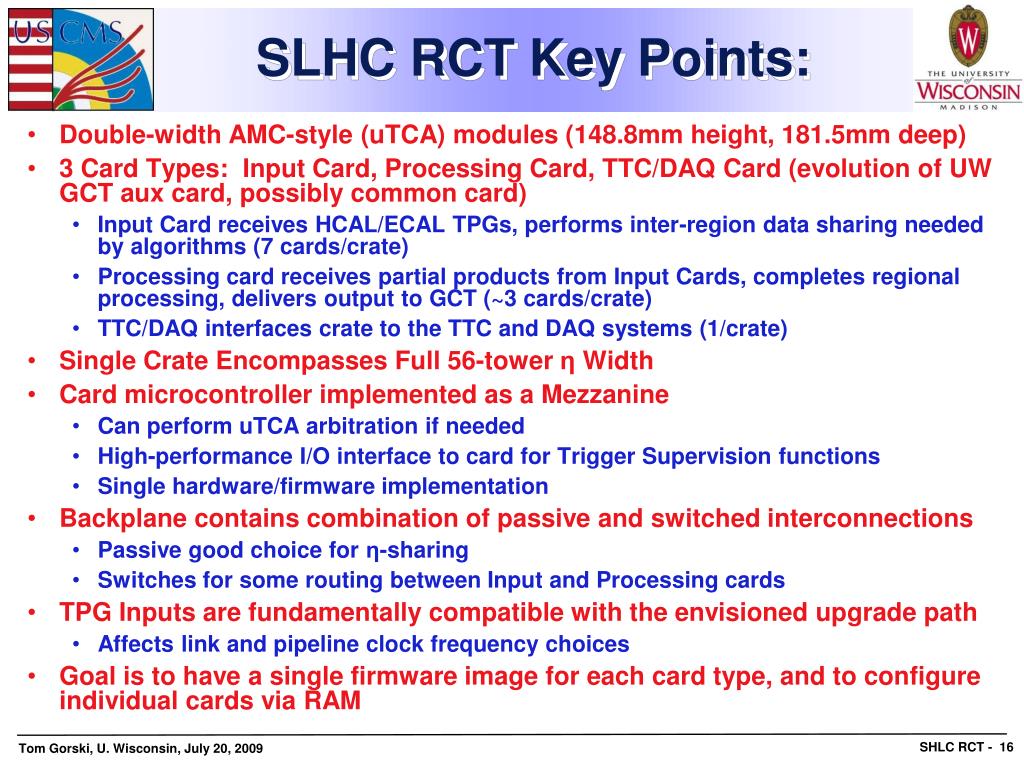

  16. SLHC RCT Key Points: • Double-width AMC-style (uTCA) modules (148.8mm height, 181.5mm deep) • 3 Card Types: Input Card, Processing Card, TTC/DAQ Card (evolution of UW GCT aux card, possibly common card) • Input Card receives HCAL/ECAL TPGs, performs inter-region data sharing needed by algorithms (7 cards/crate) • Processing card receives partial products from Input Cards, completes regional processing, delivers output to GCT (~3 cards/crate) • TTC/DAQ interfaces crate to the TTC and DAQ systems (1/crate) • Single Crate Encompasses Full 56-tower η Width • Card microcontroller implemented as a Mezzanine • Can perform uTCA arbitration if needed • High-performance I/O interface to card for Trigger Supervision functions • Single hardware/firmware implementation • Backplane contains combination of passive and switched interconnections • Passive good choice for η-sharing • Switches for some routing between Input and Processing cards • TPG Inputs are fundamentally compatible with the envisioned upgrade path • Affects link and pipeline clock frequency choices • Goal is to have a single firmware image for each card type, and to configure individual cards via RAM

  17. SLHC Cal. Trig Prototype(R&D Platform for Conceptual Design) Microcontroller (Mezzanine) GTX Links (6) SNAP 12 Transceiver (6X/6R) Ethernet FPGA (e.g., Xilinx XC5VTX240T) GTX Links (6) SNAP 12 Transceiver (6X/6R) Link Switch GTX Links (12) GTX Links (6) SNAP 12 Transceiver (6X/6R) Fast Buffer SRAM Link Clock Conditioning Circuitry Clock and Ctrl

  18. SLHC Cal. Trig Prototype • R&D Hardware Platform • Prove layout/PCB fabrication concepts and principal technologies for Input and Processing cards • Circuit Prototypes: • Microcontroller Mezzanine Concept • Link/Pipeline Clock Conditioning • External SRAM/FPGA Interface • Double-size AMC module (149mm x 182mm) • Suitable for trigger algorithm development • Capable of supporting hardware/firmware/system R&D for multiple years
