  1. PREAMBLE OFANALYTICAL INSTRUMENTATION

  2. PREAMBLE STRUCTURE • HOLLISTIC FIX • KEY CONCEPT • KEY RESEARCH AREA • KEY APPLICATION • INDUSTRIAL APPLICATION • RESEARCH • HOW WE STUDY • KEY JOBS • PROJECTS ONE CAN DO • TRENDS INDEX

  3. PREMBLE STRUCTURE

  4. 1. Ms. NEHA GARG 2. ROOM NO.307 3. 9411840054 4. neha171085@yahoo.com 5. MEETING HOURS– 1:30 -2:30 TEACHERS INTRODUCTION

  5. PREREQUISITES • BASICS OF CHEMISTRY • 1. Difference between solvent, solute, solution • 2. molecular structure • BASICS OF PHYSICS • 1. about electromagnetic spectrum • 2. concepts of electric field and magnetic field HOLISTIC FIX OF ANALYTICAL INSTRUMENTATION

  6. HOLLISTIC FIX………Continued • PRE REQUISTES • (4th Semester) • Basic Principles of INSTRUMENTATION • KNOWLEDGE OF TRANSDUCERS • ABOUT SIGNAL CONDITIONING

  7. ADVANCE COURSE (5th-6th-7th SEM) • BASIC KNOWLEDGE OF OPERATIONAL AMPLIFIER • BASICS OF SPECTROPHOTOMETERS • BASICS OF DETECTORS • BASICS OF DISPLAY DEVICES HOLLISTIC FIX OF AI………CONTINUED

  8. SCOPE IN RELATED FIELDS… • In Forensic Science & Toxicology • Micro Total Analysis systems • In Hospitals for routine clinical analysis, drugs • In oil refineries, food processing laboratories • For environmental pollution monitoring and control

  9. KEY CONCEPT OF AI Block Diagram of AI

  10. Components of instruments for spectroscopy

  11. ELECTROMAGNETIC SPECTRUM Electromagnetic rays- ultraviolet, visible, infrared,x-ray

  12. MONOCHROMATORused for selecting single wavelength

  13. PRISM MONOCHROMATORFirst type of widely used, “scanning” wavelength selection devicesHistorically made of salts such as sodium chloride, etc.VERY delicate. Often subject to damage in humidity and wide heat ranges.Not widely used today in spectroscopy equipment.

  14. Optics - Filter Properties Long pass filters transmit wavelengths above a cut-on wavelength Short pass filters transmit wavelengths below a cut-off wavelength Band pass filters transmit wavelengths in a narrow range around a specified wavelength Band width can be specified Neutral Density filter is a nondiscriminant intensity reducing filter Absorption Filter is colored glass that absorbs unwanted light

  15. Optical filters Interference filters: Dichroic, Dielectric, reflective filters…….reflect the unwanted wavelengths Absorptive filters: Colour glass filters…..absorb the unwanted wavelengths

  16. Construction of Filters Filter components “glue” Single Optical filter Interference filters

  17. Optical filter evaluation optical filter(90o) slit/shutter light source detector monochromator SPECTROFLUOROMETER FOR ASSESSMENT OF OPTICAL FILTER TRANSMISSION

  18. Optical filter evaluation light source beam splitter (45o) reference PMT slit/shutter grating grating Detector PMT Optical filter (45o)

  19. Different shapes and sizes of sample holder

  20. DetectorsPHOTOMULTIPLIER TUBES

  21. DIFFERENT TYPES OF DETECTORS

  22. Different wavelengths require different detectors!!

  23. Research areas in cluster of AI: • Measurement of isotopically labelled compounds • Electrochemical instruments • Development of high-pressure,high performance liquid chromatography • In staining and optical visualisation methods. • Spectrophotometery • Colorimetry • Electrophoresis KEY RESEARCH AREA OF ANALYTICAL INSTRUMENTATION

  24. Key Jobs & Companies PRIVATE SECTOR  Texas Instruments www.ti.com Honeywell turbo technologies www.honeywell.comST microelectronicswww.st.comAimil Limited www.aimil.com Rockwell Automation www.rockwellautomation.com

  25. Engineers India Limited. www.engineersindia.com Bharat petroleum corporation ltd. www.bharatpetroleum.com Defense Research & Development Organization. www.drdo.org Indian oil corporation ltd. www.iocl.com PUBLIC SECTOR JOBS

  26. HOW WE STUDY......?

  27. PROJECTS IN AICPACT measurement projects Use of model process systems to devise and evaluate improvements in process control Robust calibration of spectral data using small data sets Process (low-field) NMR On-line liquid chromatography

  28. Project 2 - Robust calibration Objectives To investigate the signal processing and experimental design requirements to select the optimum combination of samples and variables that facilitate the development of robust calibration when only small data sets are available, and to identify the mathematical tools that enable the user to utilise only a minimum number of samples

  29. Project 3 - Process NMR Objectives To investigate the potential (at-line and on-line) and to develop a low-field instrument for process analysis To develop signal and data processing methods for overlapping signals To compare with other analytical techniques To conduct plant-based evaluations

  30. Project 4 - On-line liquid chromatography Objectives To understand the reasons for the current low level of usage of on-line LC To identify industrial applications with good ‘payback’ To identify areas of weakness and to establish ways of overcoming such aspects

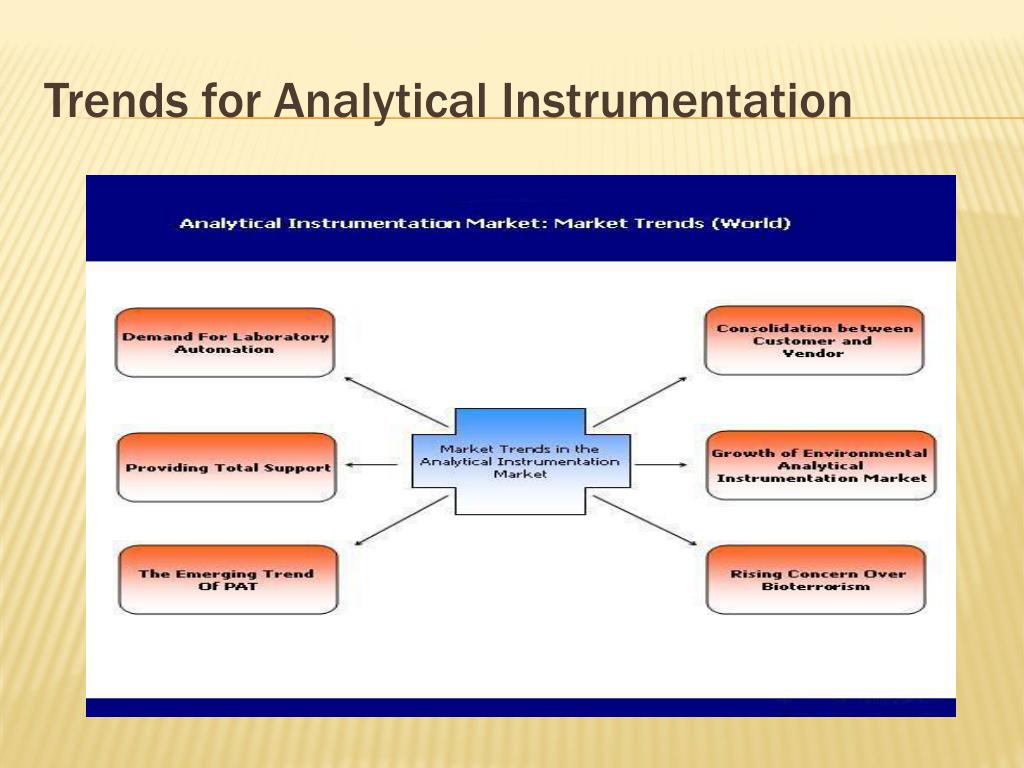

  31. Trends for Analytical Instrumentation

  32. THANK YOU
