  1. Conditional Transformations Fabian Noth noth@cs.uni-bonn.de

  2. WhatareConditionalTransformations? • Combininganalysisandtransformations on programs • (nearly) everytransformationrequires an analysis • Based on logic • Program aslogicfactbase • Uniformity • Independecyfromunderlyingsystem (e.g. javasourcecode) • Complexsequences • Combinationof simple CT

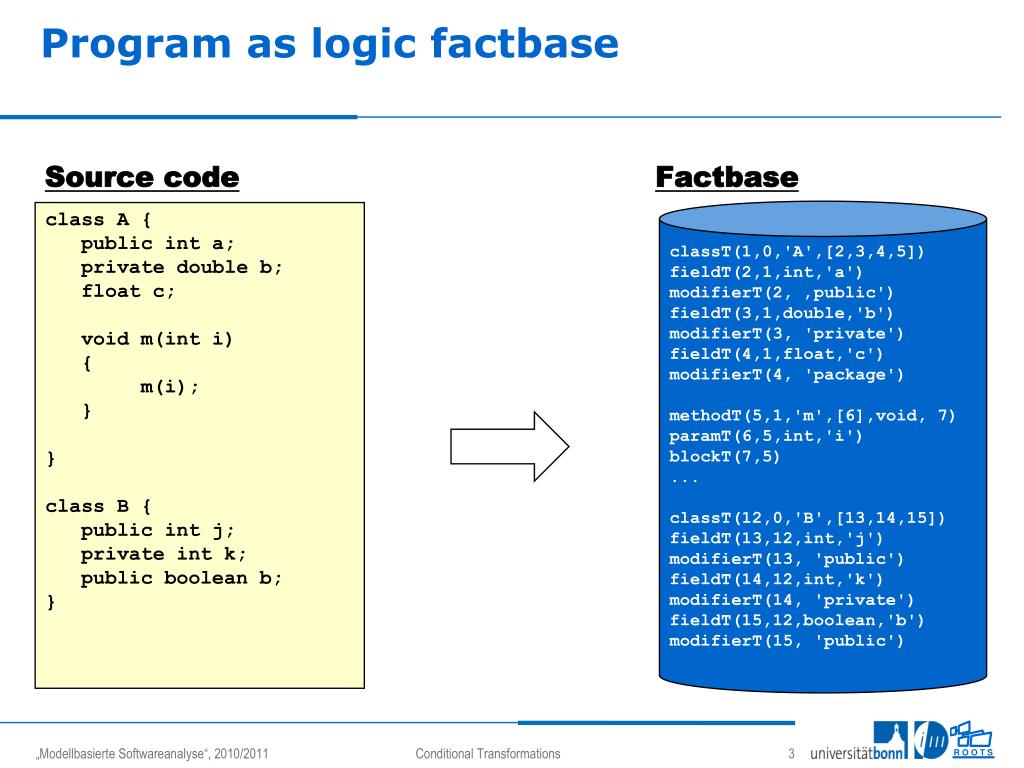

  3. Program aslogicfactbase Source code Factbase classT(1,0,'A',[2,3,4,5]) fieldT(2,1,int,'a') modifierT(2, ‚public') fieldT(3,1,double,'b') modifierT(3, 'private') fieldT(4,1,float,'c') modifierT(4, 'package') methodT(5,1,'m',[6],void, 7) paramT(6,5,int,'i') blockT(7,5) ... classT(12,0,'B',[13,14,15]) fieldT(13,12,int,'j') modifierT(13, 'public') fieldT(14,12,int,'k') modifierT(14, 'private') fieldT(15,12,boolean,'b') modifierT(15, 'public') class A { publicint a; private double b; float c; void m(int i) { m(i); } } class B { publicint j; private int k; publicboolean b; }

  4. Conditional Transformation • Program aslogicfactbase • Evaluateiftheconditionistrue • Analysingthefactbase • Propagation of valid substitutions (IDs) • Creationofmissing IDs • Propagation of all required IDs for Transformation • Changingthefactbase Condition ID-Creation Transformation

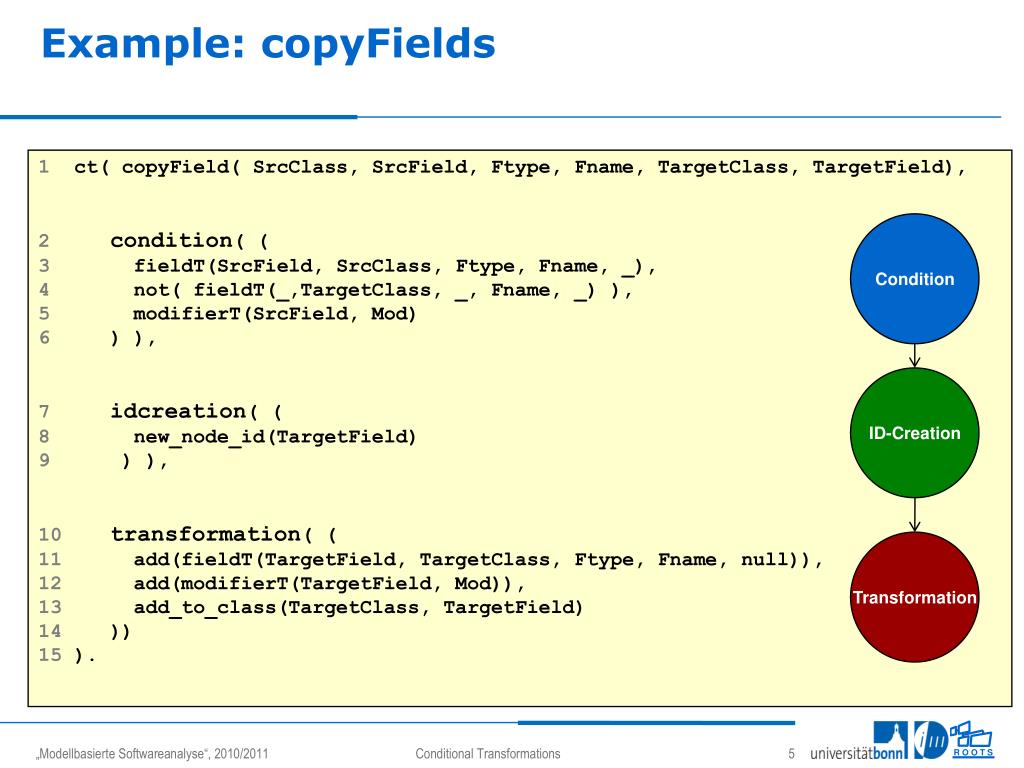

  5. Example: copyFields 1ct( copyField( SrcClass, SrcField, Ftype, Fname, TargetClass, TargetField), 2condition( ( 3fieldT(SrcField, SrcClass, Ftype, Fname, _), 4 not( fieldT(_,TargetClass, _, Fname, _) ), 5modifierT(SrcField, Mod) 6 ) ), 7idcreation( ( 8new_node_id(TargetField) 9 ) ), 10transformation( ( 11add(fieldT(TargetField, TargetClass, Ftype, Fname, null)), 12add(modifierT(TargetField, Mod)), 13add_to_class(TargetClass, TargetField) 14 )) 15 ). Condition ID-Creation Transformation

  6. Evaluatingthecondition Condition Factbase classT(1,0,'A',[2,3,4,5]) fieldT(2,1,int,'a') modifierT(2, ‚public') fieldT(3,1,double,'b') modifierT(3, 'private') fieldT(4,1,float,'c') modifierT(4, 'package') ... classT(12,0,'B',[13,14,15]) fieldT(13,12,int,'j') modifierT(13, 'public') fieldT(14,12,int,'k') modifierT(14, 'private') fieldT(15,12,boolean,'b') modifierT(15, 'public') Input: SrcClass = 1, TargetClass = 12 condition( ( fieldT(SrcField,SrcClass, Ftype, Fname, _), not( fieldT(_,TargetClass, _, Fname, _) ), modifierT(SrcField, Mod) ) ), • Substitution Set

  7. ID-Creation • Nounbound variables areallowed in thetransformation • Variables whichare not bound in theconditionhavetobebound in the ID-Creation • new_node_id(Var)-Command • Createsnew, unique ID • Binds variable Vartothis ID • Foreachsubstitution • skip-Command • If all variables arebound in thecondition idcreation( ( new_node_id(TargetField) ) ) +

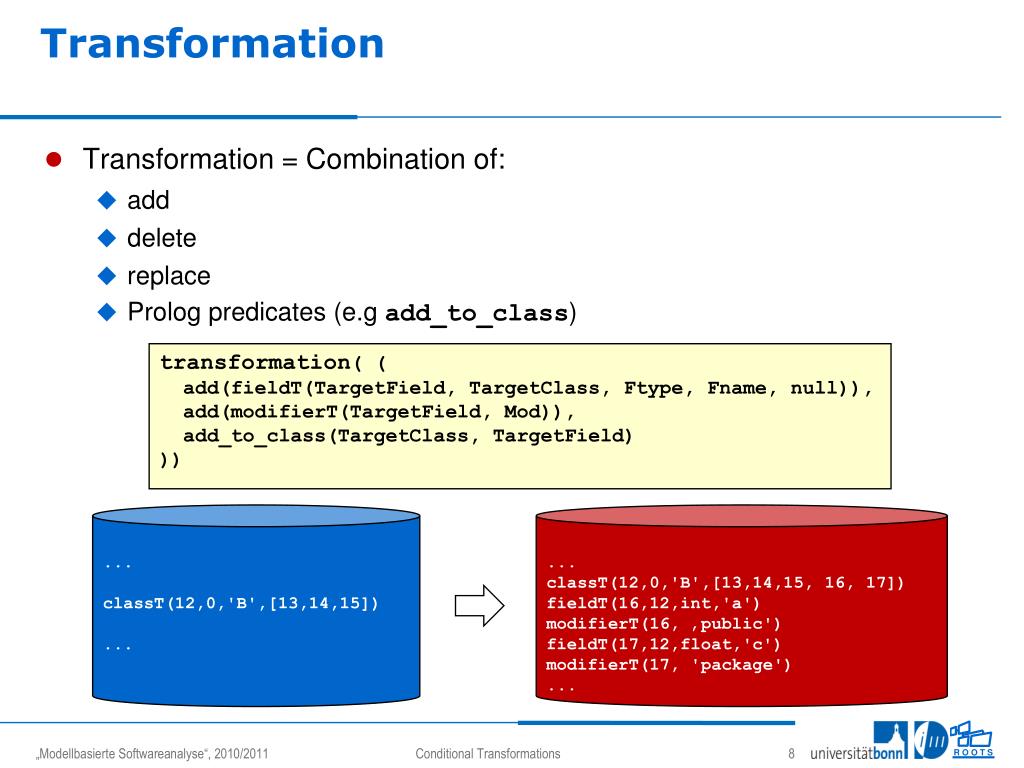

  8. Transformation • Transformation = Combinationof: • add • delete • replace • Prolog predicates (e.gadd_to_class) transformation( ( add(fieldT(TargetField, TargetClass, Ftype, Fname, null)), add(modifierT(TargetField, Mod)), add_to_class(TargetClass, TargetField) )) ... classT(12,0,'B',[13,14,15]) ... ... classT(12,0,'B',[13,14,15, 16, 17]) fieldT(16,12,int,'a') modifierT(16, ‚public') fieldT(17,12,float,'c') modifierT(17, 'package') ...

  9. Blackbox 1ct( copyField( SrcClass, SrcField, Ftype, Fname, TargetClass, TargetField), 2condition( ( 3fieldT(SrcField, SrcClass, Ftype, Fname, _), 4 not( fieldT(_,TargetClass, _, Fname, _) ), 5modifierT(SrcField, Mod) 6 ) ), 7idcreation( ( 8new_node_id(TargetField) 9 ) ), 10transformation( ( 11add(fieldT(TargetField, TargetClass, Ftype, Fname, null)), 12add(modifierT(TargetField, Mod)), 13add_to_class(TargetClass, TargetField) 14 )) 15 ). copyField( SrcClass, SrcField, Ftype, Fname, TargetClass, TargetField) Condition ID-Creation Transformation

  10. Blackbox i-1 i copyField

  11. Sequences ctseq( copyAndEncapsulateFields_Or(SrcClass,SrcField,TargetClass,TargetField), orseq( ct(copyField(SourceClass,SourceField,FType,Fname,TargetClass,TargetField)), ct(encapsulateField(SourceField)) ) ). • Copy all possiblefields • Encapsulate all possiblefields • No matter ifitis a copiedfieldor not i-1 i+1 Copy Encapsulate i

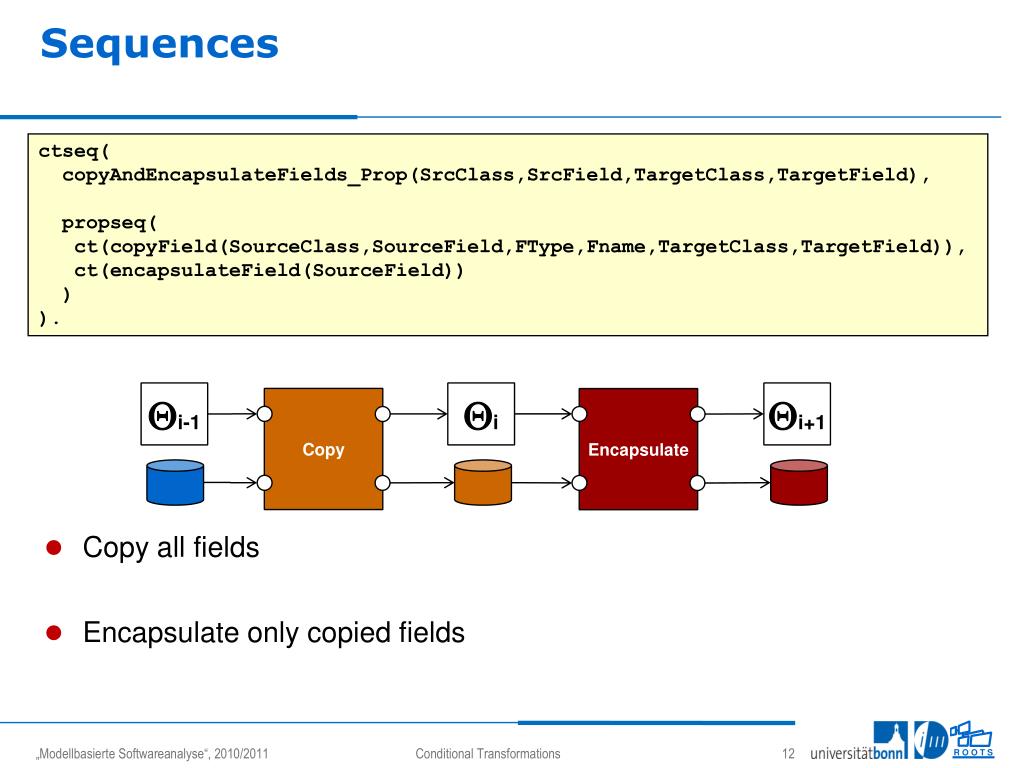

  12. Sequences ctseq( copyAndEncapsulateFields_Prop(SrcClass,SrcField,TargetClass,TargetField), propseq( ct(copyField(SourceClass,SourceField,FType,Fname,TargetClass,TargetField)), ct(encapsulateField(SourceField)) ) ). • Copy all fields • Encapsulateonlycopiedfields i-1 i+1 Copy Encapsulate i

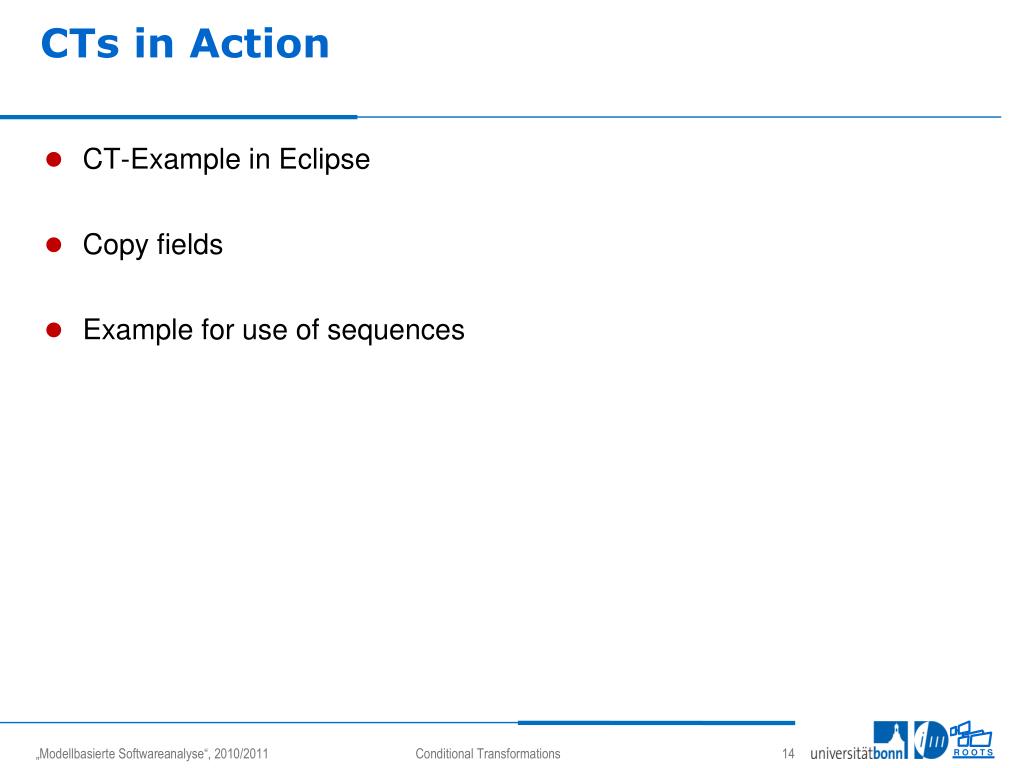

  13. CTs in Action • CT-Example in Eclipse • Copyfields • Exampleforuseofsequences
