  1. Ethernet over VDSL Broadband access over existing copper cables

  2. Ethernet over VDSL • Ethernet over VDSL enables creation of an Ethernet link over telephone lines with distances of up to 2.4 Km using VDSL as the transport medium • Data rates of up to 10Mbps, Full duplex, in parallel to the voice line (POTS/ISDN) 10Mbps Ethernet Voice

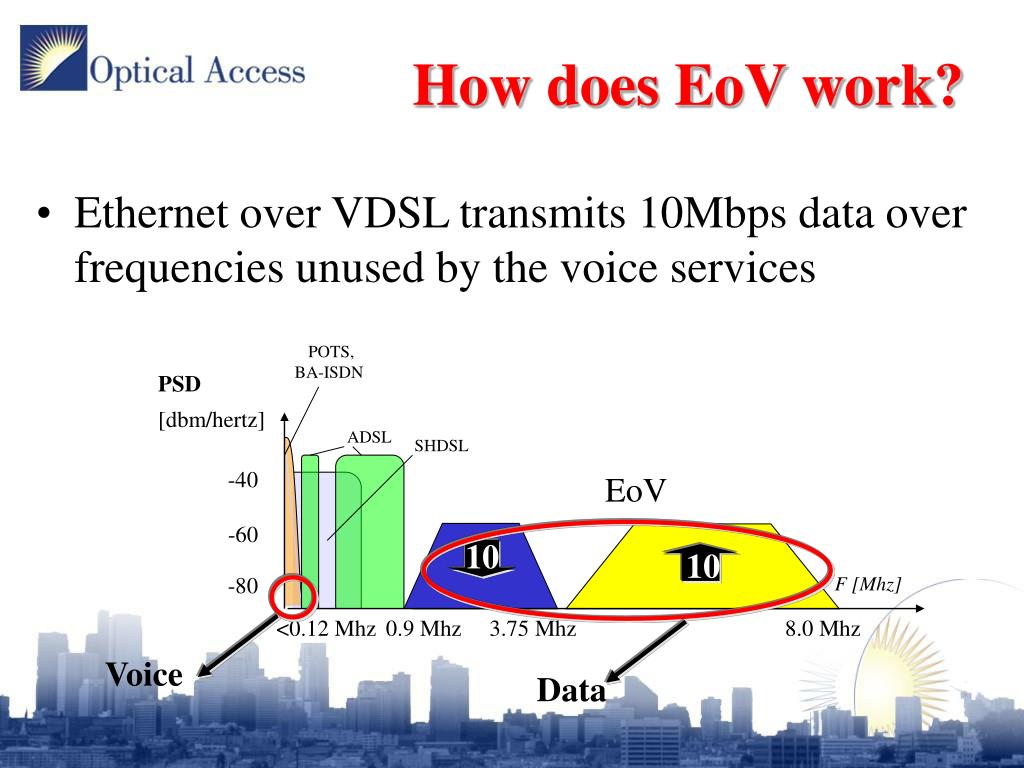

  3. How does EoV work? POTS, BA-ISDN PSD [dbm/hertz] ADSL SHDSL -40 EoV -60 10 -80 F [Mhz] <0.12 Mhz 0.9 Mhz 3.75 Mhz 8.0 Mhz 10 • Ethernet over VDSL transmits 10Mbps data over frequencies unused by the voice services Voice Data

  4. EoV Building Blocks CPE • Small unit • 1 port local loop • 1 port 10/100Base-T • 1 port Tel Splitter EoV Module • EoV splitterPunch-down block • 30 ports PSTN • 30 ports local loop • 30 port RJ-11 VDSL • RJ 11 EoV ports • Fits into OptiSwitch Chassis • Rate limit per port

  5. EoV Applications EoV High-speed Trunk EoV Ring with UTP Add-Drop 8 EoV links EoV Repeater Optical Ring with EoV Add-Drop 2.4Km 2.4Km

  6. EoV Features • Built in diagnostics tools to enable highest rate possible and link quality measurement • Link integrity application for automatic optimal configuration including support for changes in physical conditions (addition of users / weather)

  7. VDSL ETSI Standards PSD [dbm/hertz] -60 1 2 F [Mhz] 0.138 0.9 3.75 5.1 8.5 12.0 1 2 0.9-3.0 3.75-5.1 • ETSI Standards define Band Allocation and Link Power Spectrum Density (PSD) • ETSI Plan 997 – Europe • ETSI Plan 998 – U.S.A and Japan

  8. EoV Rate/Reach Upload Download • Symmetrical traffic is mandatory • EoV software configurable options: • 10Mbps full duplex – 1200m • ETSI 997 compliant 4Mbps – 1200m • ETSI 998 compliant 4Mbps – 1200m • Long range EoV 4Mbps – 2400m

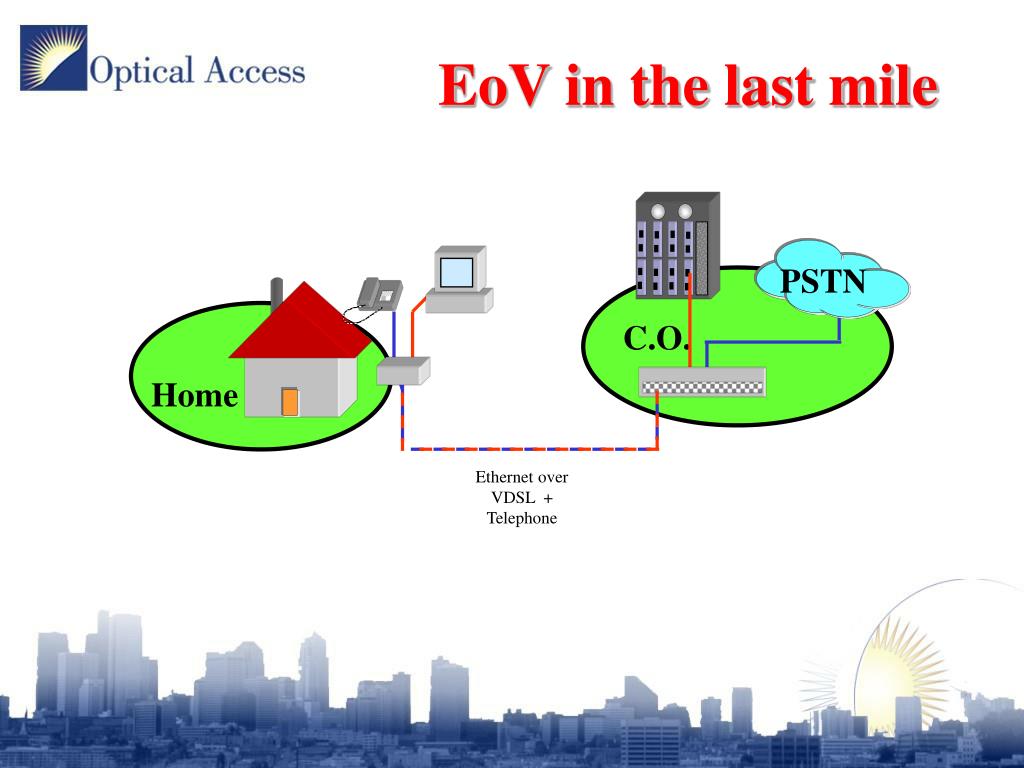

  9. EoV in the last mile Home PSTN Ethernet over VDSL + Telephone C.O.

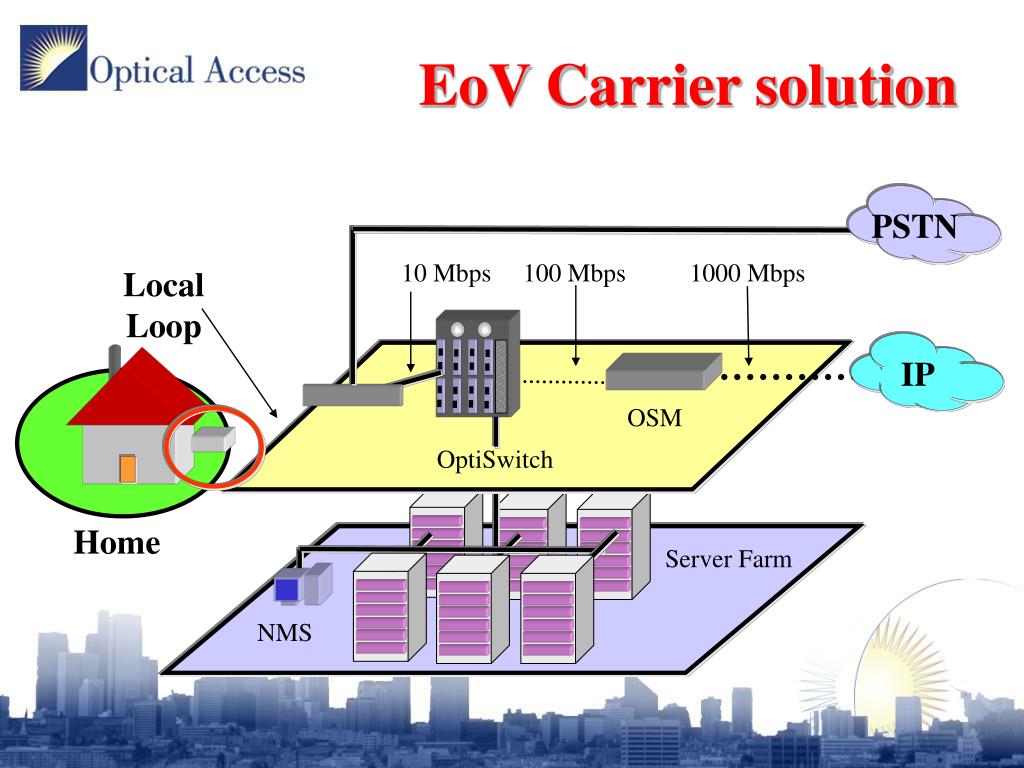

  10. EoV Carrier solution PSTN IP 10 Mbps 100 Mbps 1000 Mbps Local Loop OSM OptiSwitch Home Server Farm NMS

  11. EoV in the last 100m • Bandwidth Distribution for Wireless Broadband Carriers • Complimentary solution for Optical wireless • Two-way Satellite service providers • LMDS, WLL and BWLL • Backup for other Medium (Data over Power)

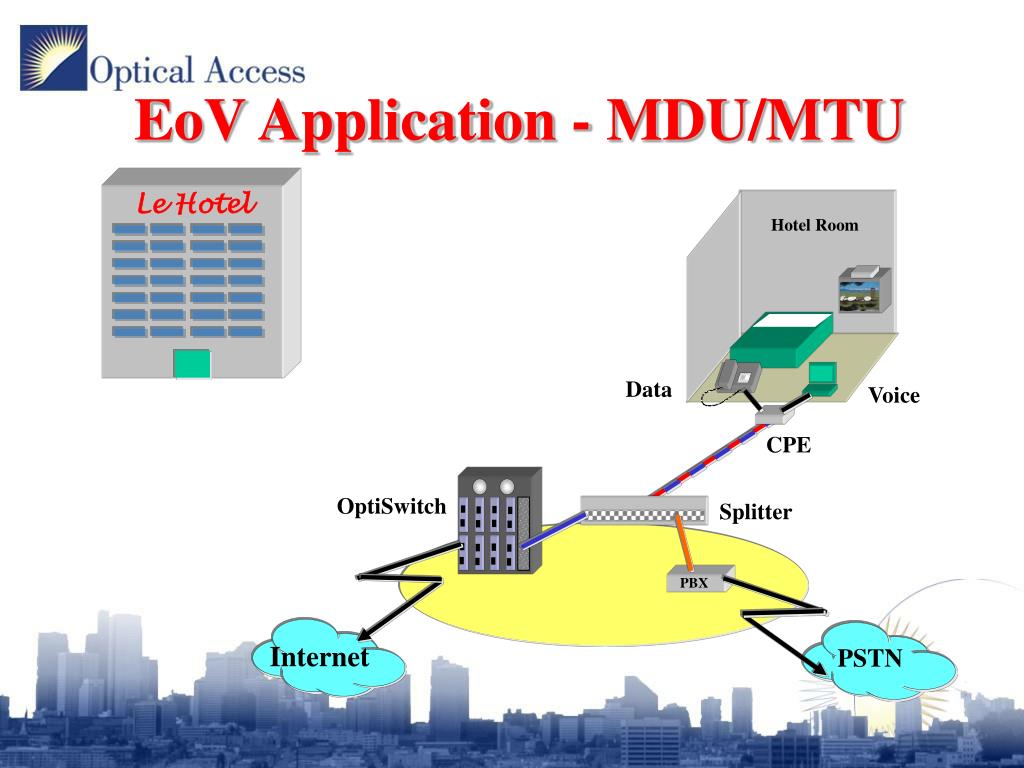

  12. EoV Application - MDU/MTU Le Hotel PSTN Internet Hotel Room Data Voice CPE OptiSwitch Splitter PBX

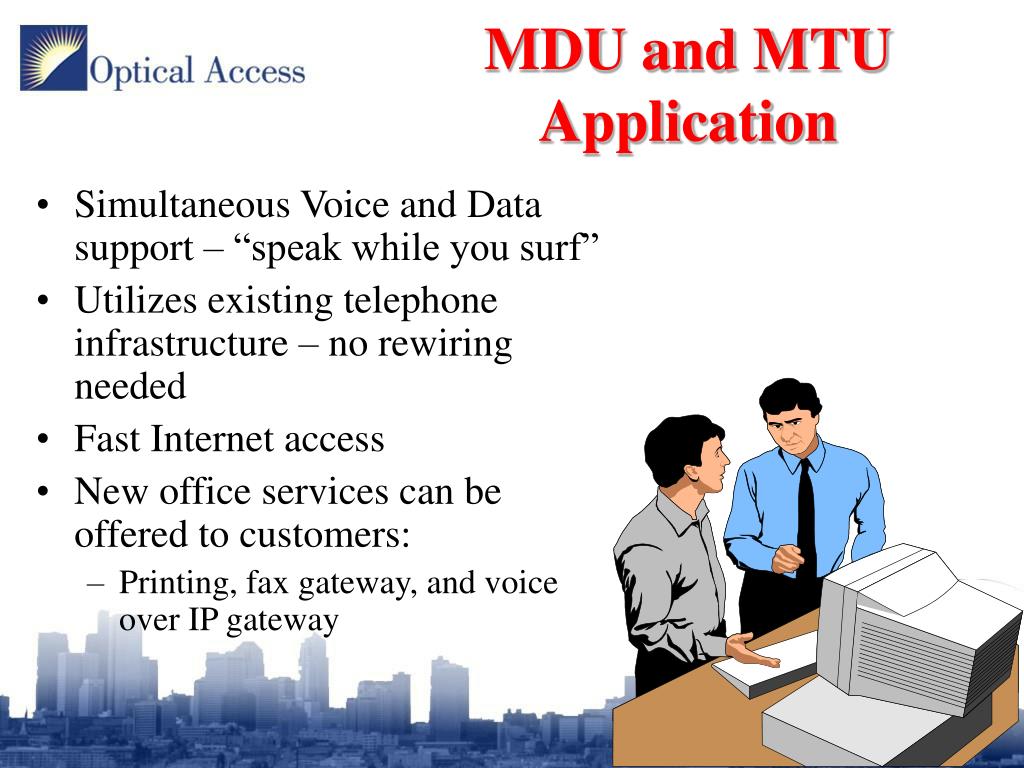

  13. MDU and MTU Application • Simultaneous Voice and Data support – “speak while you surf” • Utilizes existing telephone infrastructure – no rewiring needed • Fast Internet access • New office services can be offered to customers: • Printing, fax gateway, and voice over IP gateway

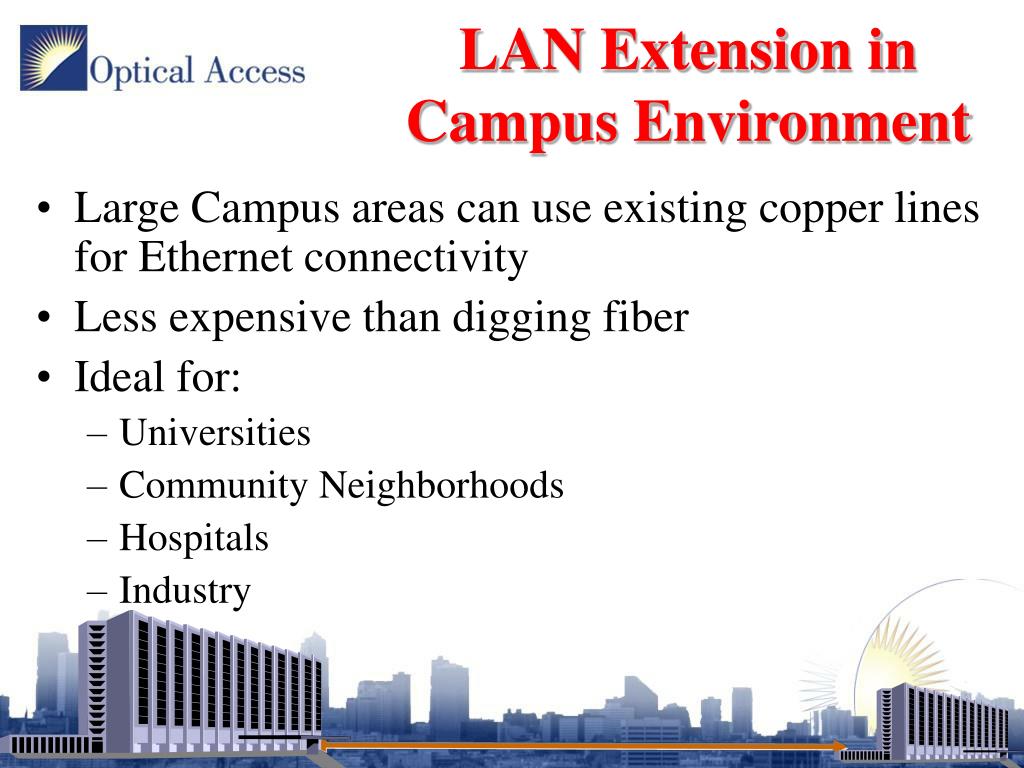

  14. LAN Extension in Campus Environment • Large Campus areas can use existing copper lines for Ethernet connectivity • Less expensive than digging fiber • Ideal for: • Universities • Community Neighborhoods • Hospitals • Industry

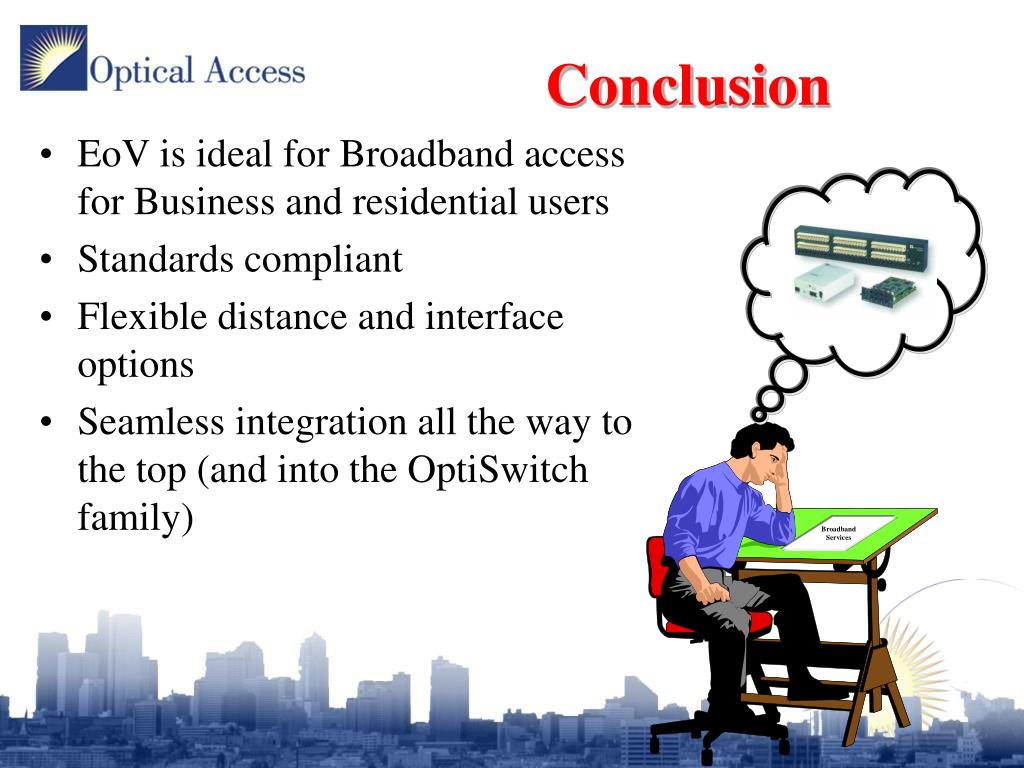

  15. Conclusion • EoV is ideal for Broadband access for Business and residential users • Standards compliant • Flexible distance and interface options • Seamless integration all the way to the top (and into the OptiSwitch family) Broadband Services

  16. Thank You!
