Effect of Faraday shields on capacitive coupling

Effect of Faraday shields on capacitive coupling . D.D. Blackwell and F.F. Chen , 2D imaging of a helicon discharge , Plasma Sources Sci. Technol. 6 , 569 ( 1997 ). No shield. With shield. m = +1 mode much stronger than m = –1 .

yuki
Télécharger la présentation

Effect of Faraday shields on capacitive coupling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Effect of Faraday shields on capacitive coupling D.D. Blackwell and F.F. Chen, 2D imaging of a helicon discharge, Plasma Sources Sci. Technol.6, 569 (1997) No shield With shield

  2. m = +1 mode much stronger than m = –1 D.D. Blackwell and F.F. Chen, 2D imaging of a helicon discharge, Plasma Sources Sci. Technol.6, 569 (1997) m = –1 m = +1

  3. Development of a time-resolved energy analyzer D.D. Blackwell and F.F. Chen, Time-resolved measurements of the EEDF in a helicon plasma,Plasma Sources Sci. Technol. 10, 226 (2001) RF modulated electron gun for calibration 2-electrode gridded analyzer with RF response

  4. Time-resolved EEDFs show no fast electronsabove a threshold of 10 -4 F.F. Chen and D.D. Blackwell, Upper limit to Landau damping in helicon discharges, Phys. Rev. Lett.82, 2677 (1999) I-V swept by oscillating Vs I-V at two RF phases Loading resistance agrees with calculations w/o L.D. Injecting a current causes a beam-plasma instability

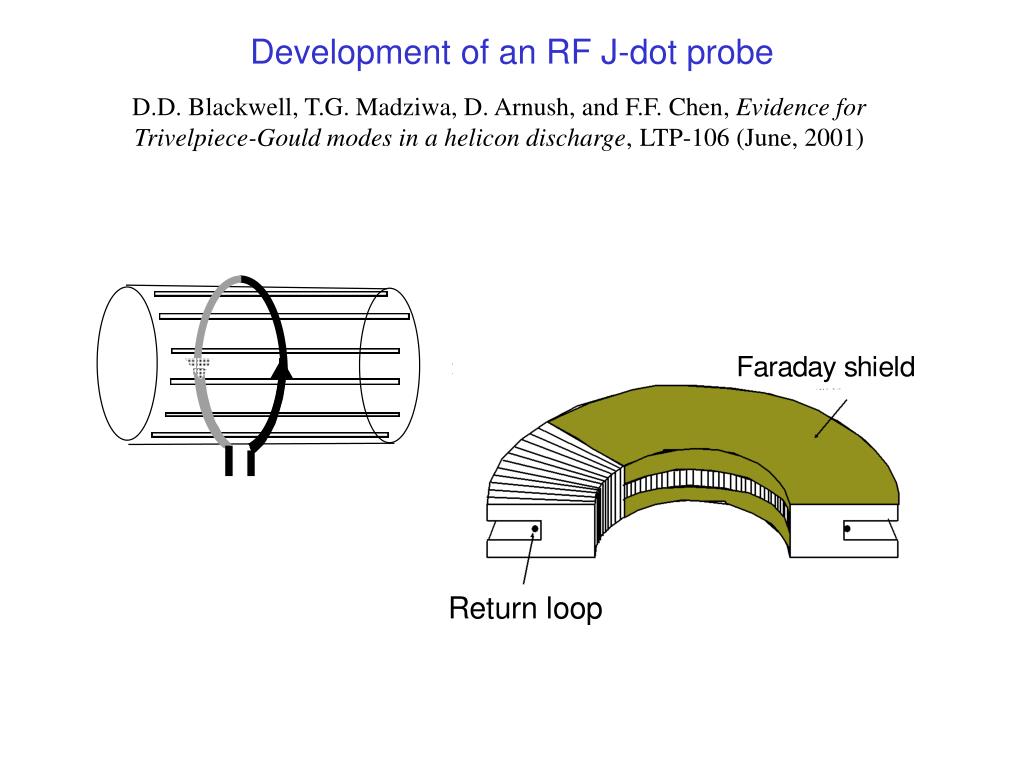

  5. Development of an RF J-dot probe D.D. Blackwell, T.G. Madziwa, D. Arnush, and F.F. Chen, Evidence for Trivelpiece-Gould modes in a helicon discharge,LTP-106 (June, 2001)
