DIFFUSION COEFFICIENT

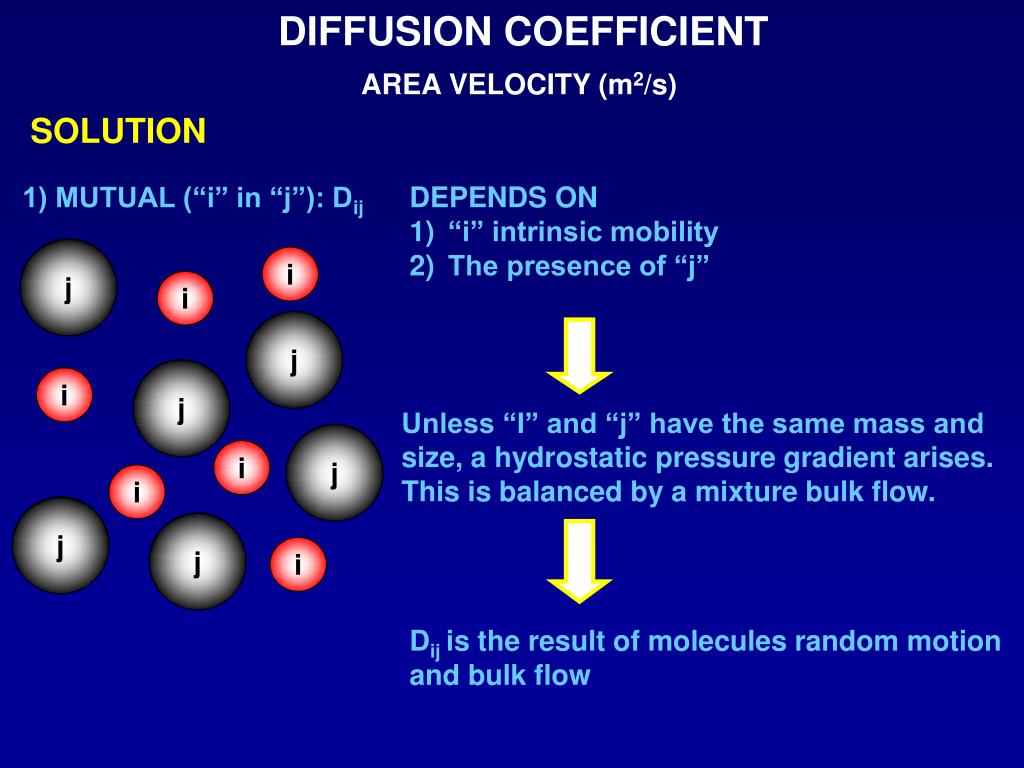

DIFFUSION COEFFICIENT. AREA VELOCITY (m 2 /s). SOLUTION. 1) MUTUAL (“i” in “j”): D ij. DEPENDS ON “i” intrinsic mobility The presence of “j”. j. i. i. j. j. i. Unless “I” and “j” have the same mass and size, a hydrostatic pressure gradient arises.
