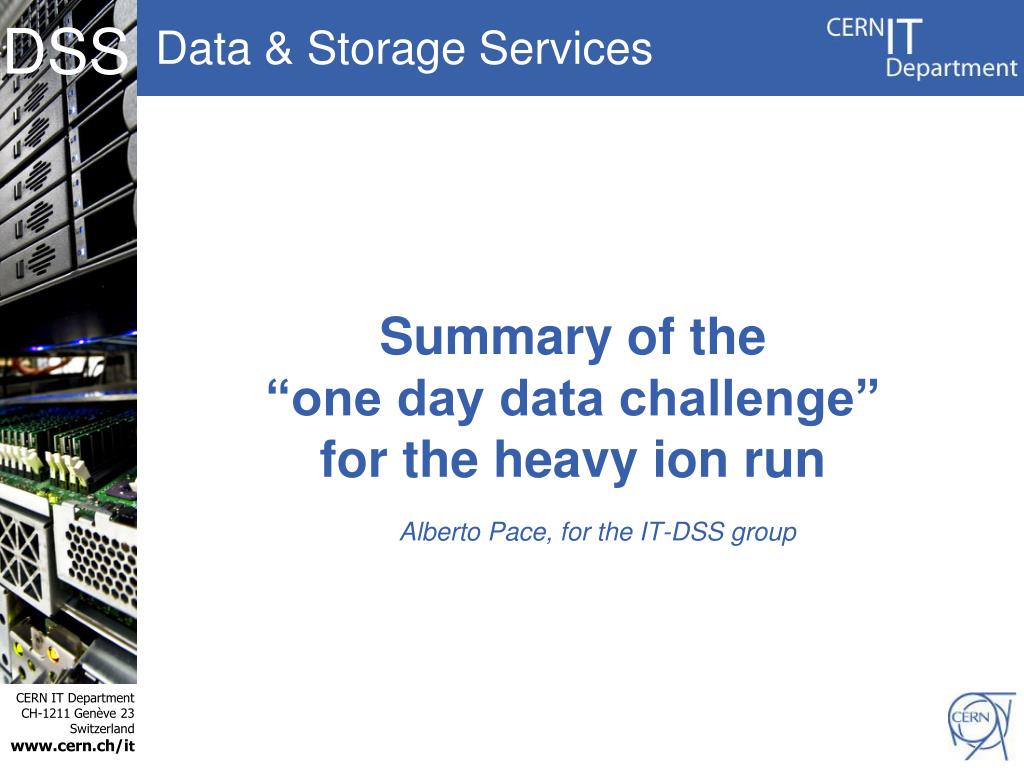

  1. Summary of the “one day data challenge” for the heavy ion run Alberto Pace, for the IT-DSS group

  2. Current situation • The ALICE and CMS disks pools have been extended in size to ensure to be able to keep all the data on disk for the entire duration of the run • In addition to the tape copy, this gives multiple independent copies at CERN, as the tier1 replication may be delayed. • Current pool sizes (TB) • ALICE: 2,412 (T0) + 2,542 (ALICEDISK) • CMS: 1,205 (T0) + 1,005 (T0STREAMER) + 1,727 (CMSCAF) + 1,618 in various additional pools • ATLAS: 4,603 in various pools • LHCb: 1,301 in various pools

  3. The HI test • Planned for Nov 1-4 but anticipated to Oct 22 for (only) 24 hours. Castor upgraded for the HI run just in time (on Oct 19). Test made during the CHEP conference. • ALICE: • Test lasted 24 hours as expected (from 15:30 on 21/10 until 16:00 on 22/10) • Sustained data rate of2.5 - 3 GB/s, with peaks at 7 GB/s (intrapool replications) • Average file size of 3 GB, efficient use of tape drives • CMS • Test started late and due to intra pool replication delays, data arrived on the T0 pool only starting at 4:00 on 22/10 and lasted only 6-7 hours • data rate of 1.2 GB/s, with peaks at 2.6 GB/s • Average file size of 30 GB, efficient use of tape drives • CASTOR has been able to handle successfully all data without any indication of bottlenecks or scalability issues

  4. The HI test • Planned for Nov 1-4 but anticipated to Oct 22 for (only) 24 hours. Castor upgraded for the HI run just in time (on Oct 19). Test made during the CHEP conference. • ALICE: • Test lasted 24 hours as expected (from 15:30 on 21/10 until 16:00 on 22/10) • Sustained data rate of2.5 - 3 GB/s, with peaks at 7 GB/s (intrapool replications) • Average file size of 3 GB, efficient use of tape drives • CMS • Test started late and due to intra pool replication delays, data arrived on the T0 pool only starting at 4:00 on 22/10 and lasted only 6-7 hours • data rate of 1.2 GB/s, with peaks at 2.6 GB/s • Average file size of 30 GB, efficient use of tape drives • CASTOR has been able to handle successfully all data without any indication of bottlenecks or scalability issues ALICE

  5. The HI test • Planned for Nov 1-4 but anticipated to Oct 22 for (only) 24 hours. Castor upgraded for the HI run just in time (on Oct 19). Test made during the CHEP conference. • ALICE: • Test lasted 24 hours as expected (from 15:30 on 21/10 until 16:00 on 22/10) • Sustained data rate of2.5 - 3 GB/s, with peaks at 7 GB/s (intrapool replications) • Average file size of 3 GB, efficient use of tape drives • CMS • Test started late and due to intra pool replication delays, data arrived on the T0 pool only starting at 4:00 on 22/10 and lasted only 6-7 hours • data rate of 1.2 GB/s, with peaks at 2.6 GB/s • Average file size of 30 GB, efficient use of tape drives • CASTOR has been able to handle successfully all data without any indication of bottlenecks or scalability issues ALICE CMS

  6. Seen from the TAPE Side ALICE Only 2 hours of overlap CMS

  7. The TAPE subsystem • The aggregated throughput was well received by the tape subsystem at sustained rated of 4 GB/s (you need to add the red and blue lines) • We used less than 50 drives, meaning an average performances exceeding 80MB/s/drive, with peaks at 110-120MB/s

  8. Validated Castor 2.1.9 features • The number of READ mounts was not interfering with production as we now have ceilings for concurrent reads. • The plot below shows the read mounts in blue limited to 40 concurrent since the CMS upgrade on the 19th • The write mounts related to the test are in grey Concurrent read ceiling since 19/10

  9. A new record for the tape subsystem • 250 TB of raw data written in a single day !

  10. Conclusion • From the Tier 0 perspective, the test was successful • However the full validation is not complete: • The two tests had a little time overlap: only 2 hours • The data rate from CMS was less than what requested. Is this what we should expect from CMS or this will increase during production ? • ATLAS was not sending data • The data we received was not white noise and we have achieved a higher compression factor on tape. • On 22/10, we wrote 153 tapes for 250 TB
