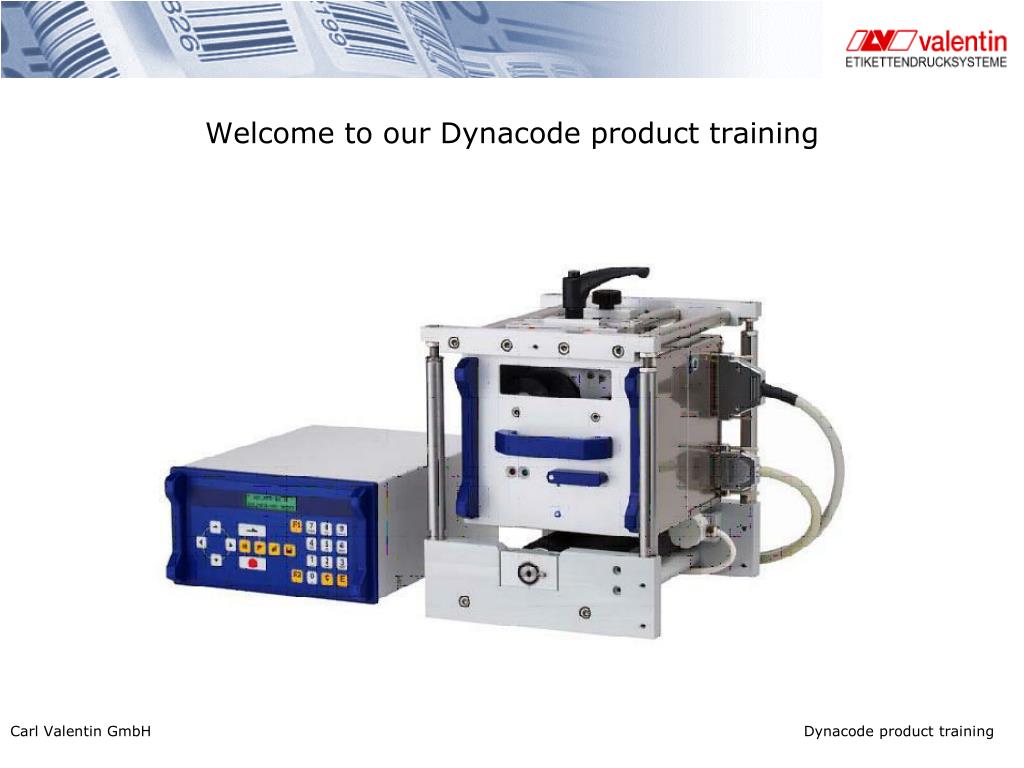

  1. Welcome to our Dynacode product training Carl Valentin GmbH Dynacode product training

  2. Program plan 1.) General information 2.) Operating modes 3.) Technical data 4.) Keyboard assignment – control unit 6.) Function menu 7.) Compact Flash card 8.) Installation Carl Valentin GmbH Dynacode product training

  3. 1.) General information The continuous and intermittent operating Dynacode is a direct print module with high resolution for installation in horizontal and vertical packaging machines. Not only the easy to change ribbon cassette is convincing but also different print widths, left and right versions and because of the separate control unit it is possible to integrate the Dynacode almost in each packaging process without any problems. Flexible labelling of packaging foil is effected either by means of Windows printer driver included in delivery or by our proven creation software. Carl Valentin GmbH Dynacode product training

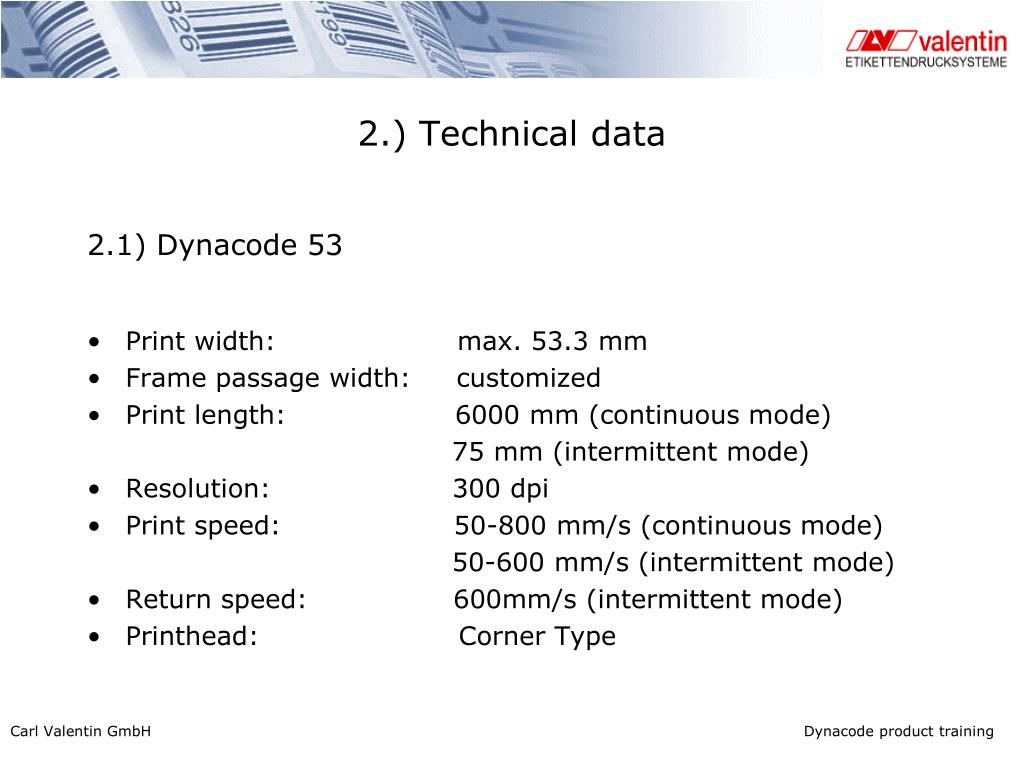

  4. 2.) Technical data 2.1) Dynacode 53 • Print width: max. 53.3 mm • Frame passage width: customized • Print length: 6000 mm (continuous mode) • 75 mm (intermittent mode) • Resolution: 300 dpi • Print speed: 50-800 mm/s (continuous mode) • 50-600 mm/s (intermittent mode) • Return speed: 600mm/s (intermittent mode) • Printhead: Corner Type Carl Valentin GmbH Dynacode product training

  5. 2.) Technical data 2.1) Dynacode 107 • Print width: max. 106.6 mm • Frame passage width: customized • Print length: 3000 mm (continuous mode) • 75 mm (intermittent mode) • Resolution: 300 dpi • Print speed: 50-600 mm/s (continuous mode) • 50-600 mm/s (intermittent mode) • Return speed: 600mm/s (intermittent mode) • Printhead: Corner Type Carl Valentin GmbH Dynacode product training

  6. 2.) Technical data 2.1) Dynacode 128 • Print width: max. 128 mm • Frame passage width: customized • Print length: 3000 mm (continuous mode) • 75 mm (intermittent mode) • Resolution: 300Dpi • Print speed: 50-450 mm/s (continuous mode) • 50-600 mm/s (intermittent mode) • Return speed: 600mm/s (intermittent mode) • Printhead: Corner Type Carl Valentin GmbH Dynacode product training

  7. 3.) Keyboard assignment Carl Valentin GmbH Dynacode product training

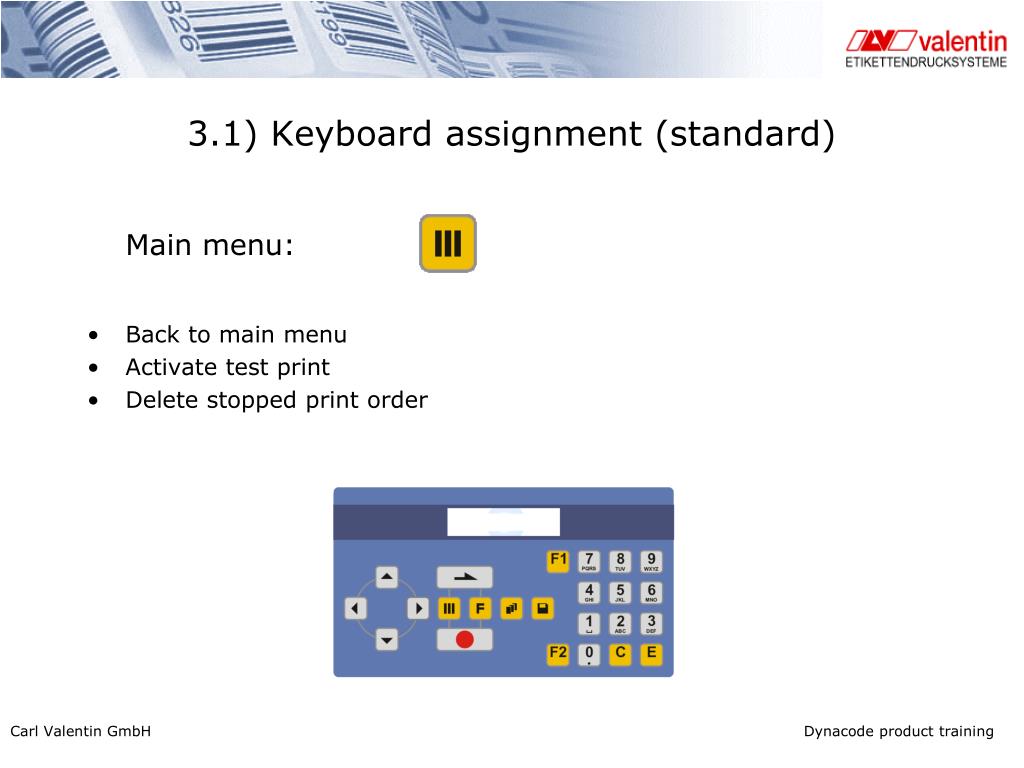

  8. 3.1) Keyboard assignment (standard) • Main menu: • Back to main menu • Activate test print • Delete stopped print order Carl Valentin GmbH Dynacode product training

  9. 3.1) Keyboard assignment (standard) • Function menu: • Change tofunctionmenu. • In function menu, one menu item back. Carl Valentin GmbH Dynacode product training

  10. 3.1) Keyboard assignment (standard) • Feed: • In function menu, change to next menu item • In an active print order, a dispensing impulse can be released Carl Valentin GmbH Dynacode product training

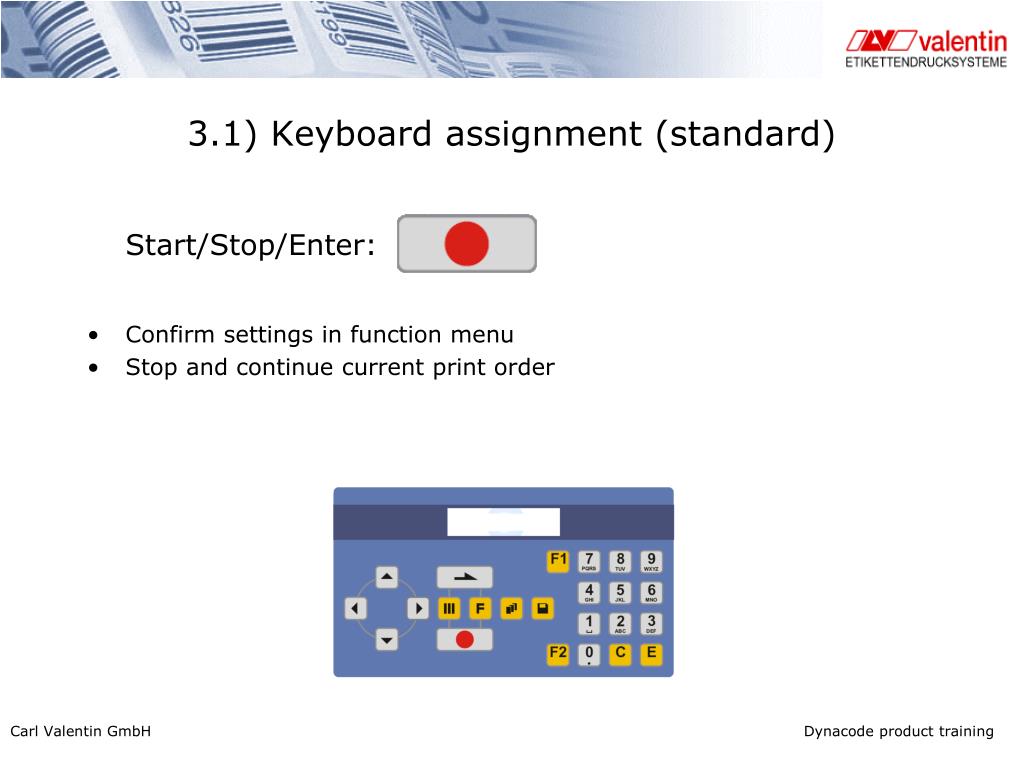

  11. 3.1) Keyboard assignment (standard) • Start/Stop/Enter: • Confirm settings in function menu • Stop and continue current print order Carl Valentin GmbH Dynacode product training

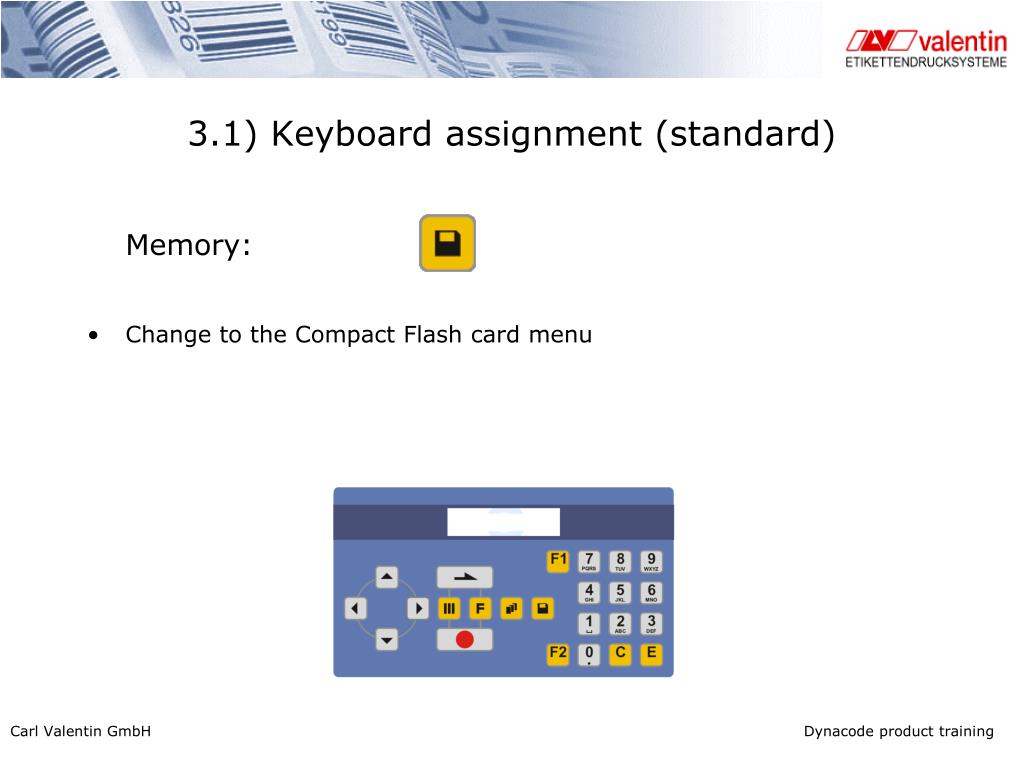

  12. 3.1) Keyboard assignment (standard) • Memory: • Change to the Compact Flash card menu Carl Valentin GmbH Dynacode product training

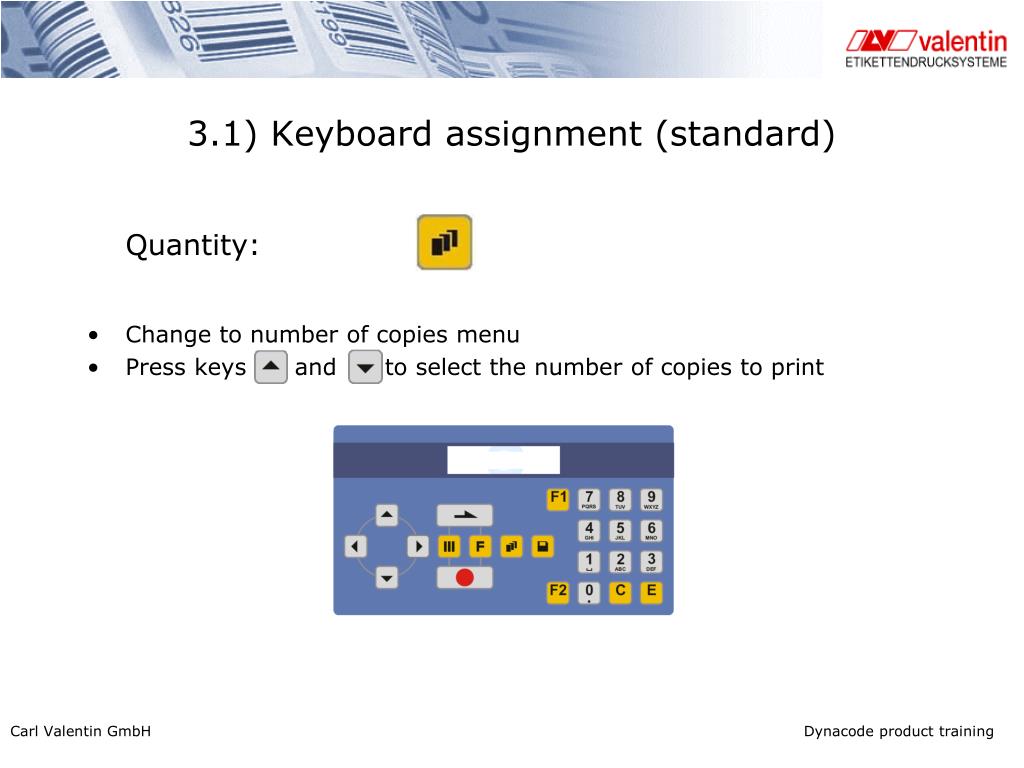

  13. 3.1) Keyboard assignment (standard) • Quantity: • Change to number of copies menu • Press keys and to select the number of copies to print Carl Valentin GmbH Dynacode product training

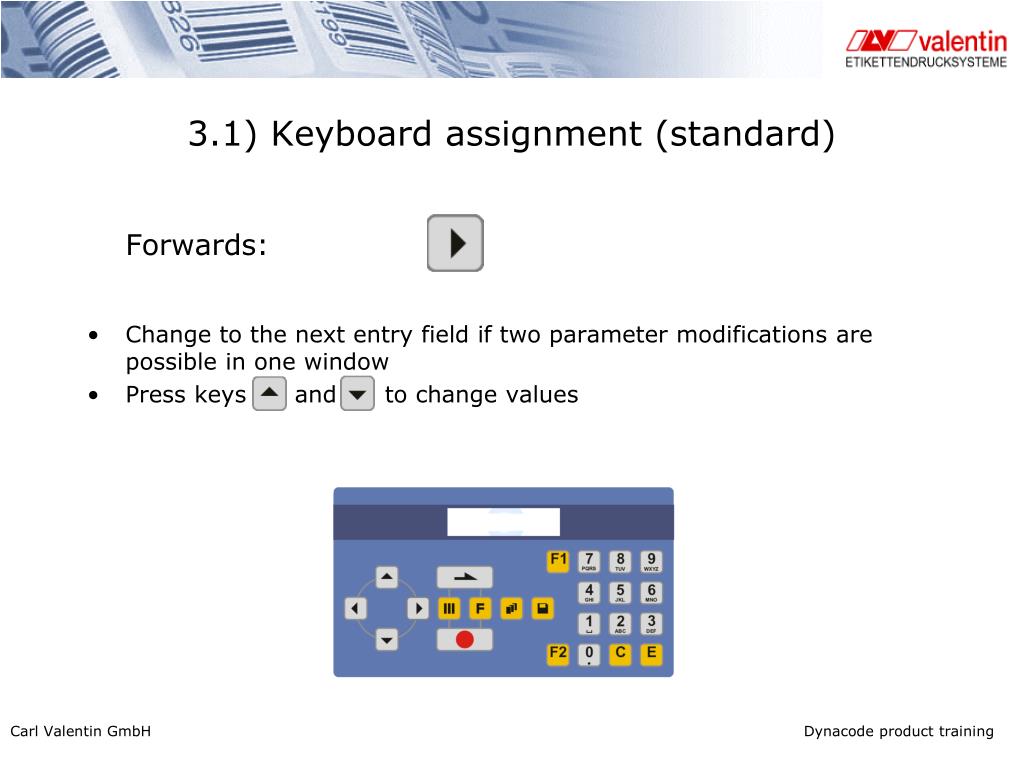

  14. 3.1) Keyboard assignment (standard) • Forwards: • Change to the next entry field if two parameter modifications are possible in one window • Press keys and to change values Carl Valentin GmbH Dynacode product training

  15. 3.1) Keyboard assignment (standard) • Backwards: • Change to the next entry field if two parameter modifications are possible in one window • Press keys and to change the values Carl Valentin GmbH Dynacode product training

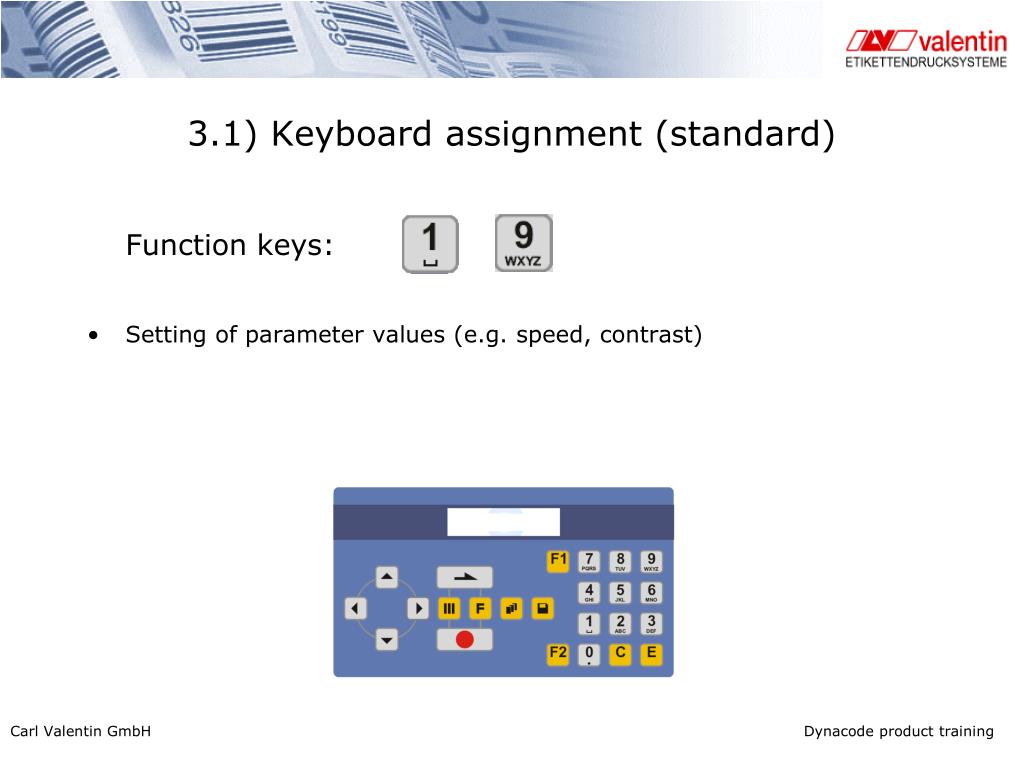

  16. 3.1) Keyboard assignment (standard) • Function keys: - • Setting of parameter values (e.g. speed, contrast) Carl Valentin GmbH Dynacode product training

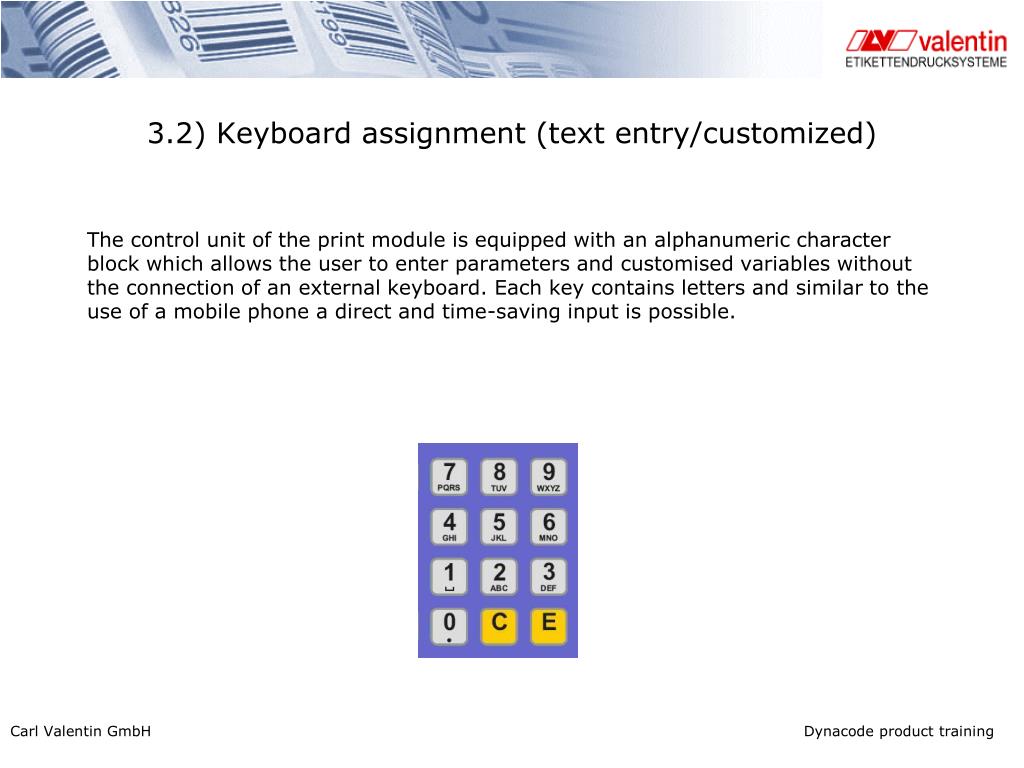

  17. 3.2) Keyboard assignment (text entry/customized) The control unit of the print module is equipped with an alphanumeric character block which allows the user to enter parameters and customised variables without the connection of an external keyboard. Each key contains letters and similar to the use of a mobile phone a direct and time-saving input is possible. Carl Valentin GmbH Dynacode product training

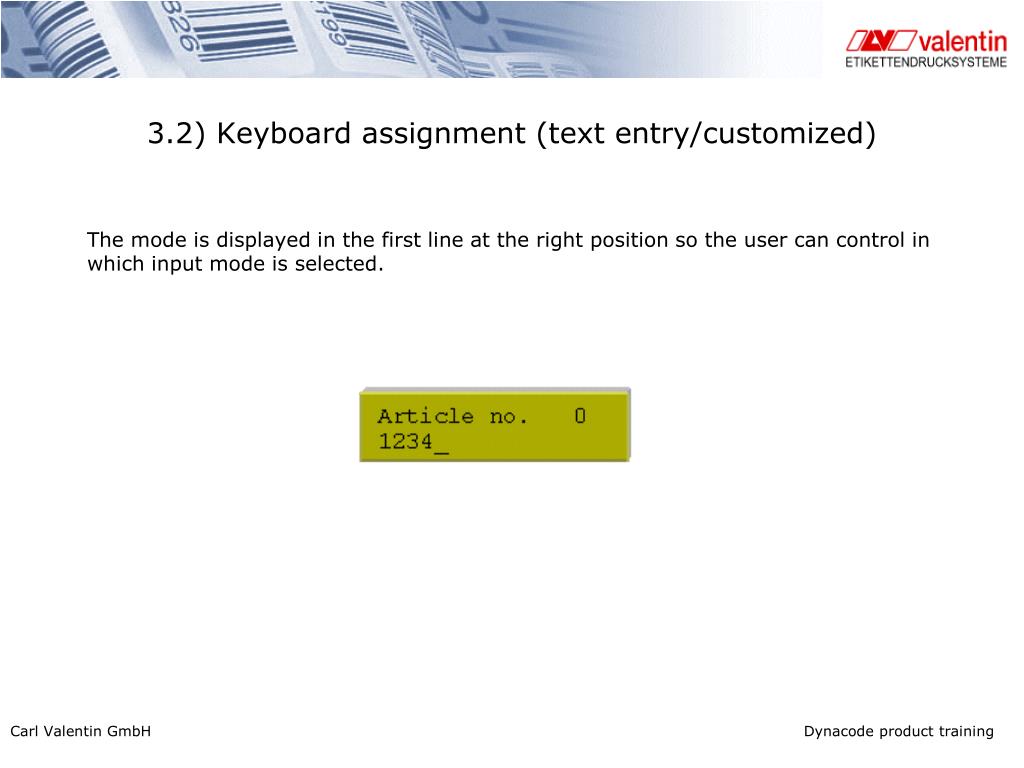

  18. 3.2) Keyboard assignment (text entry/customized) The mode is displayed in the first line at the right position so the user can control in which input mode is selected. Carl Valentin GmbH Dynacode product training

  19. 3.2) Keyboard assignment (text entry/customized) As the input is almost done with characters from one mode, the characters are divided in different groups. Following input modes are available: 0Standard, starting with figures • MStarting with capital letters • mStarting with small letters • AInput Alt • aInput Alt, is switched off after one character • Press key to select the desired mode. Carl Valentin GmbH Dynacode product training

  20. 4.) Funktionsmenü Carl Valentin GmbH Dynacode product training

  21. 4.1) Print settings • Main menu • intermittent mode • continuous mode Carl Valentin GmbH Dynacode product training

  22. 4.1) Print settings Carl Valentin GmbH Dynacode product training

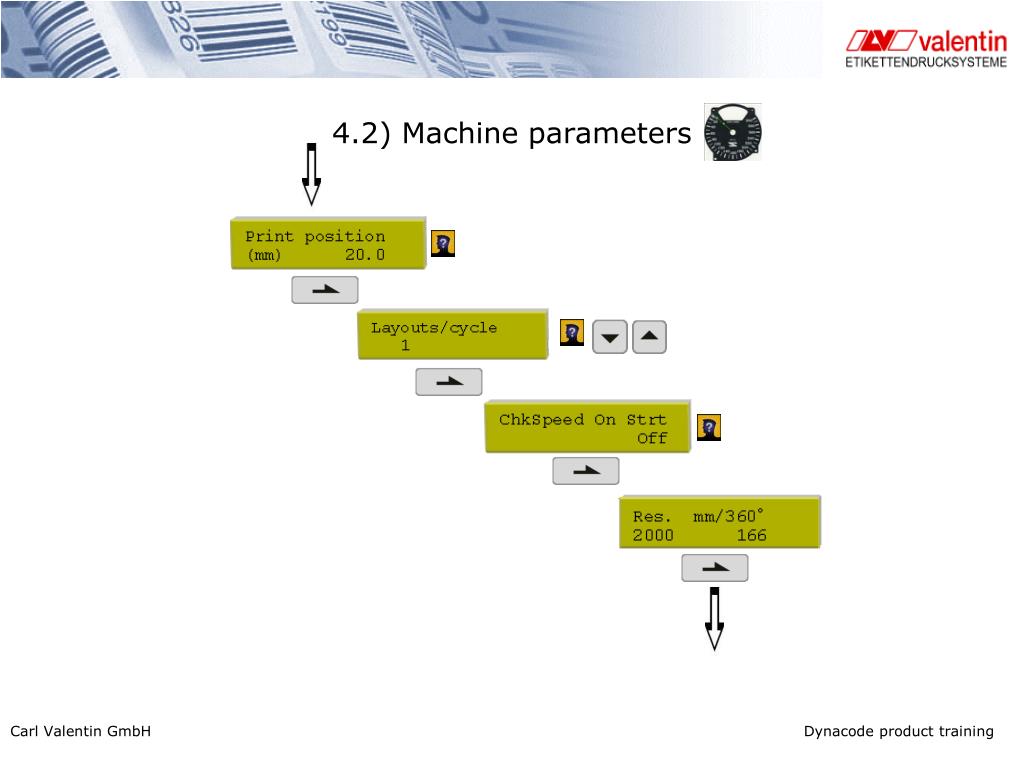

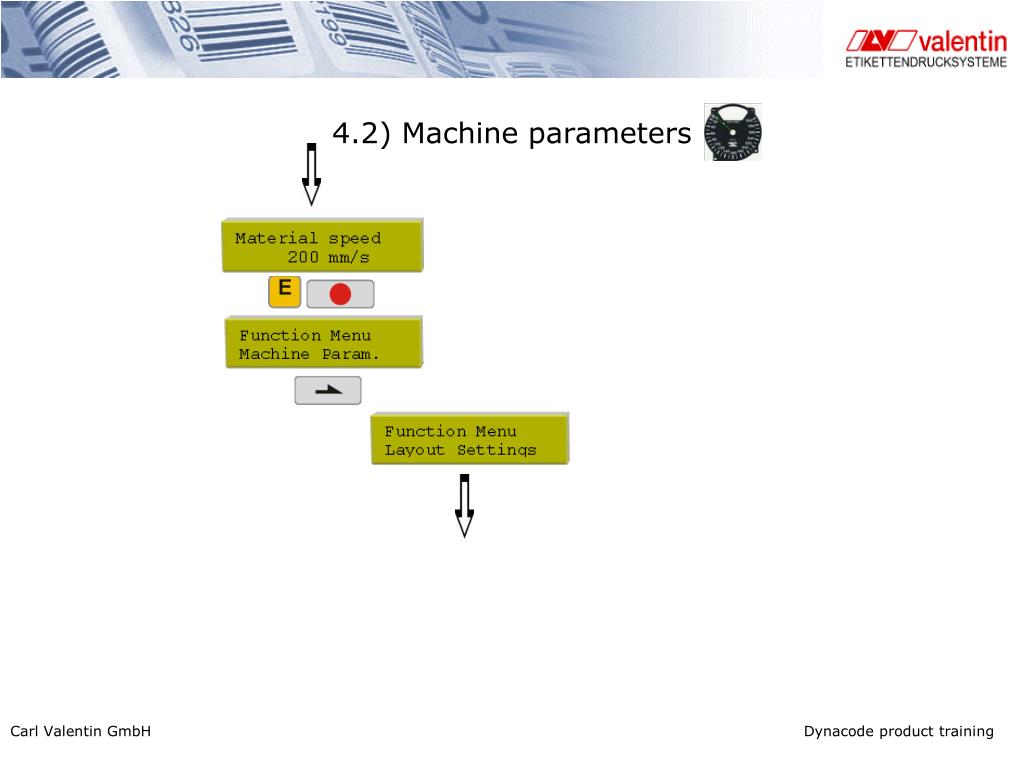

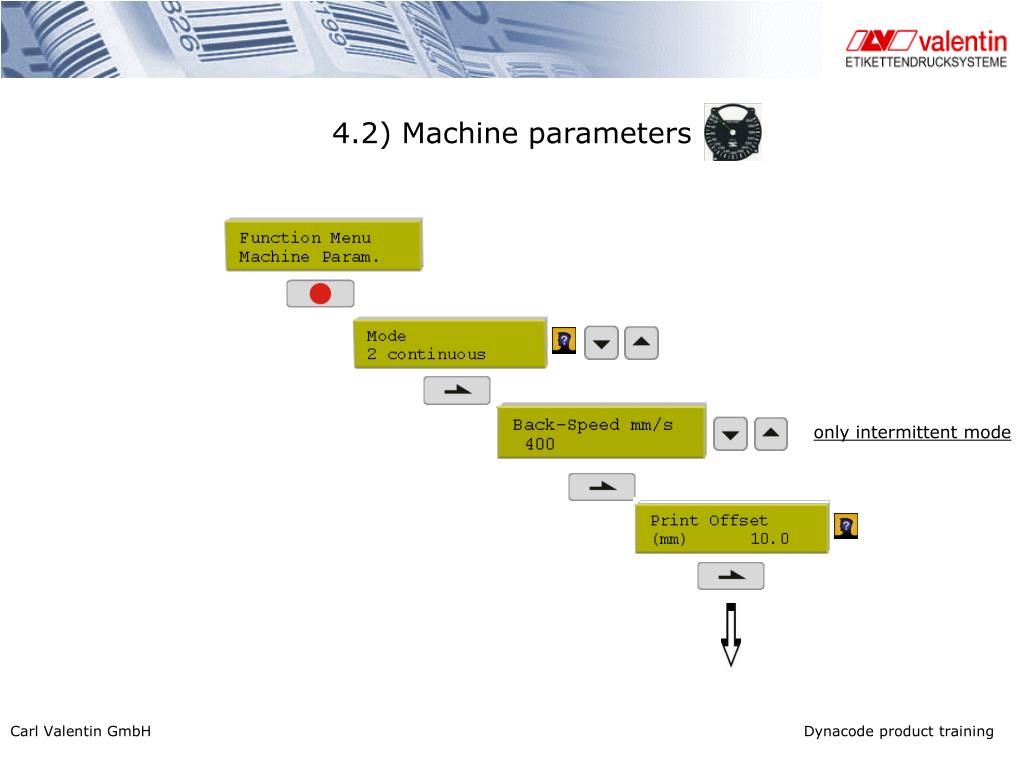

  23. 4.2) Machine parameters • only intermittent mode Carl Valentin GmbH Dynacode product training

  24. 4.2) Machine parameters Carl Valentin GmbH Dynacode product training

  25. 4.2) Machine parameters Carl Valentin GmbH Dynacode product training

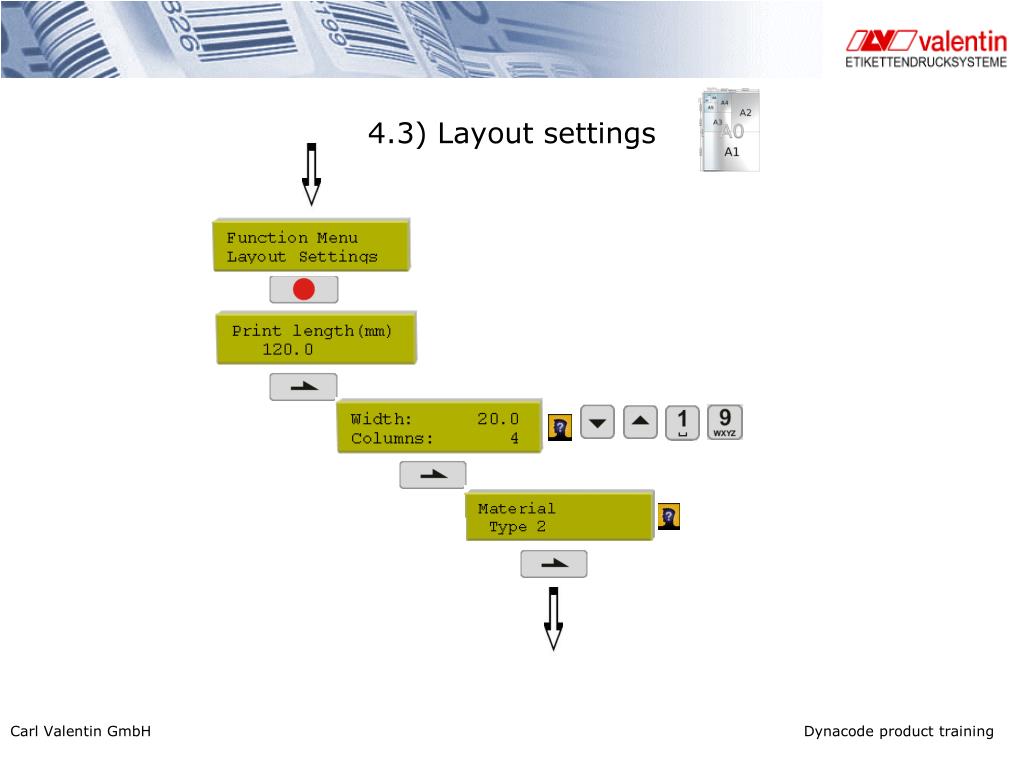

  26. 4.3) Layout settings Carl Valentin GmbH Dynacode product training

  27. 4.3) Layout settings Carl Valentin GmbH Dynacode product training

  28. 4.4) Ribbon save Carl Valentin GmbH Dynacode product training

  29. 4.5) Ribbon save Carl Valentin GmbH Dynacode product training

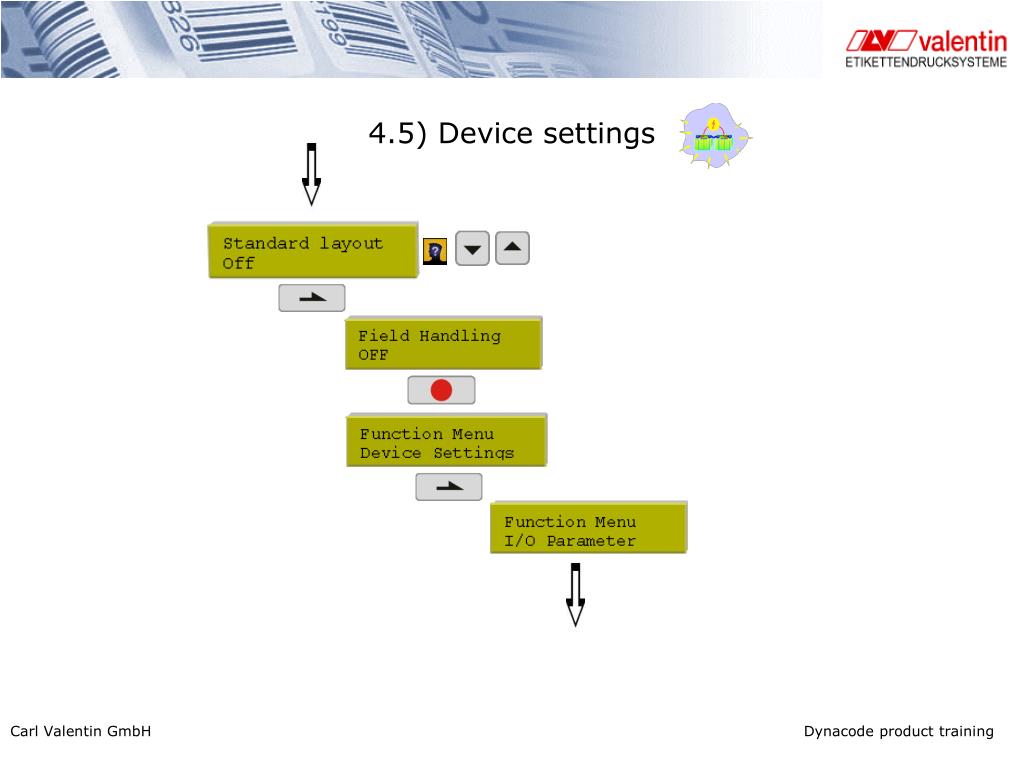

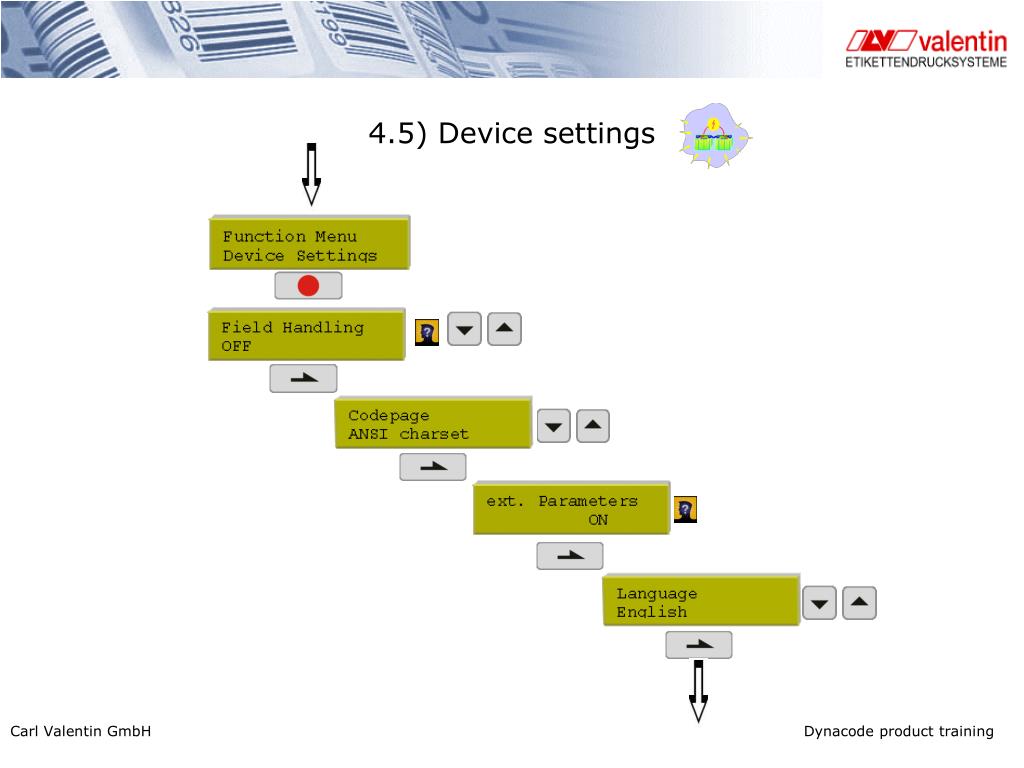

  30. 4.5) Device settings Carl Valentin GmbH Dynacode product training

  31. 4.5) Device settings Carl Valentin GmbH Dynacode product training

  32. 4.5) Device settings Carl Valentin GmbH Dynacode product training

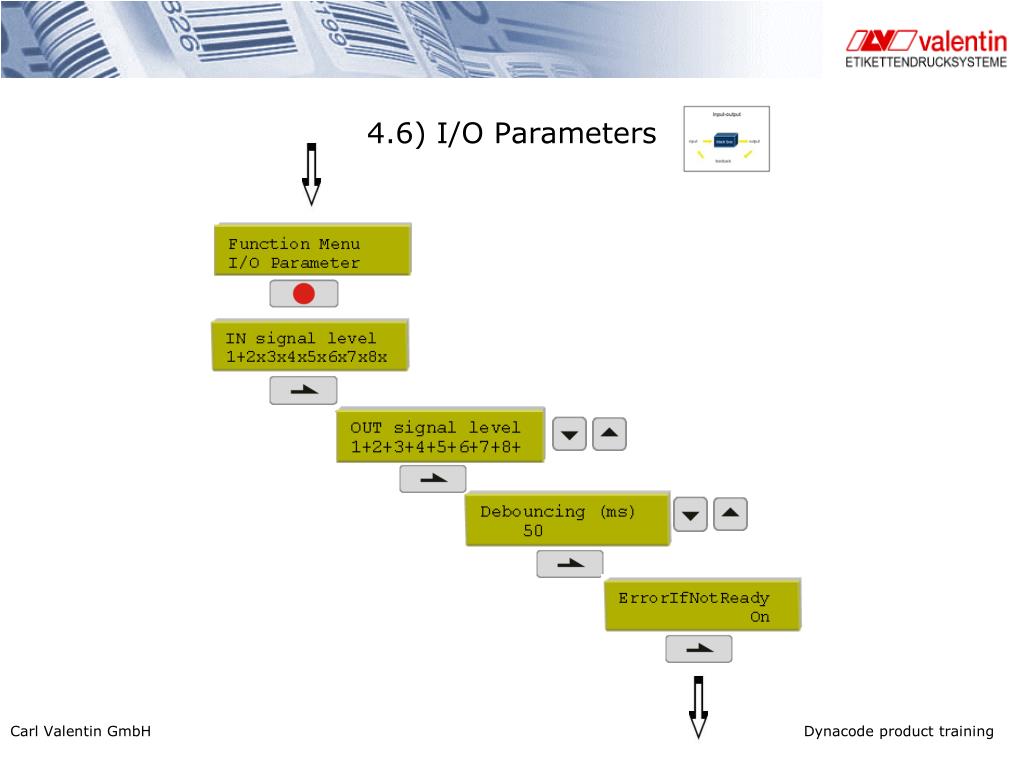

  33. 4.6) I/O Parameters Carl Valentin GmbH Dynacode product training

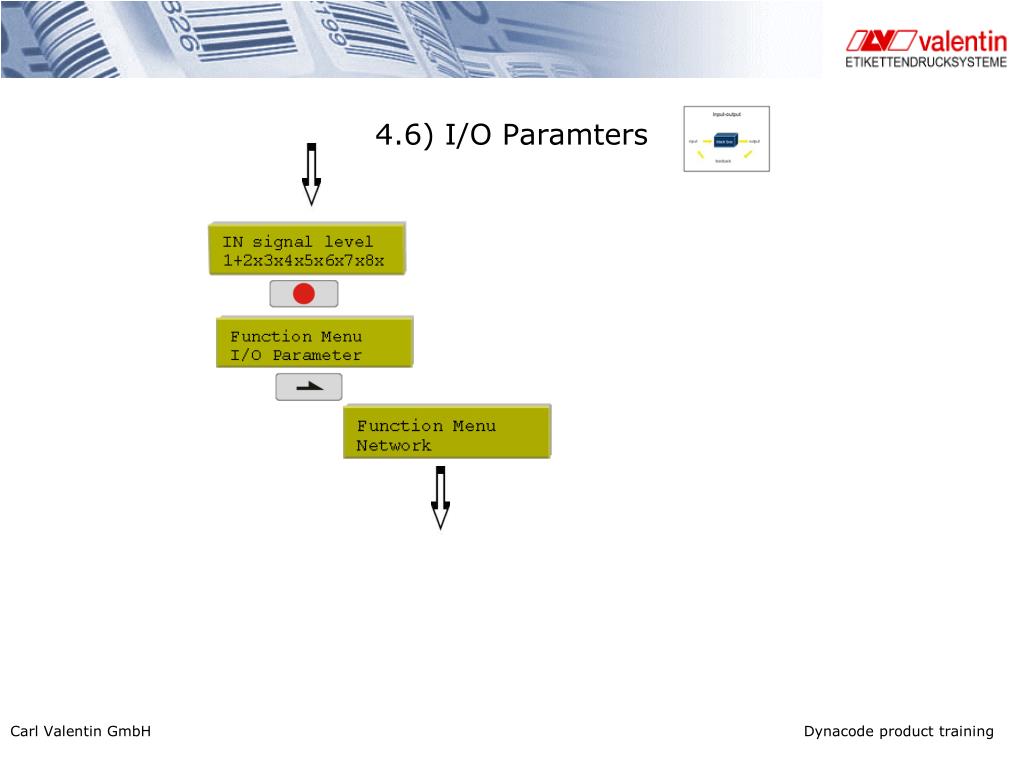

  34. 4.6) I/O Paramters Carl Valentin GmbH Dynacode product training

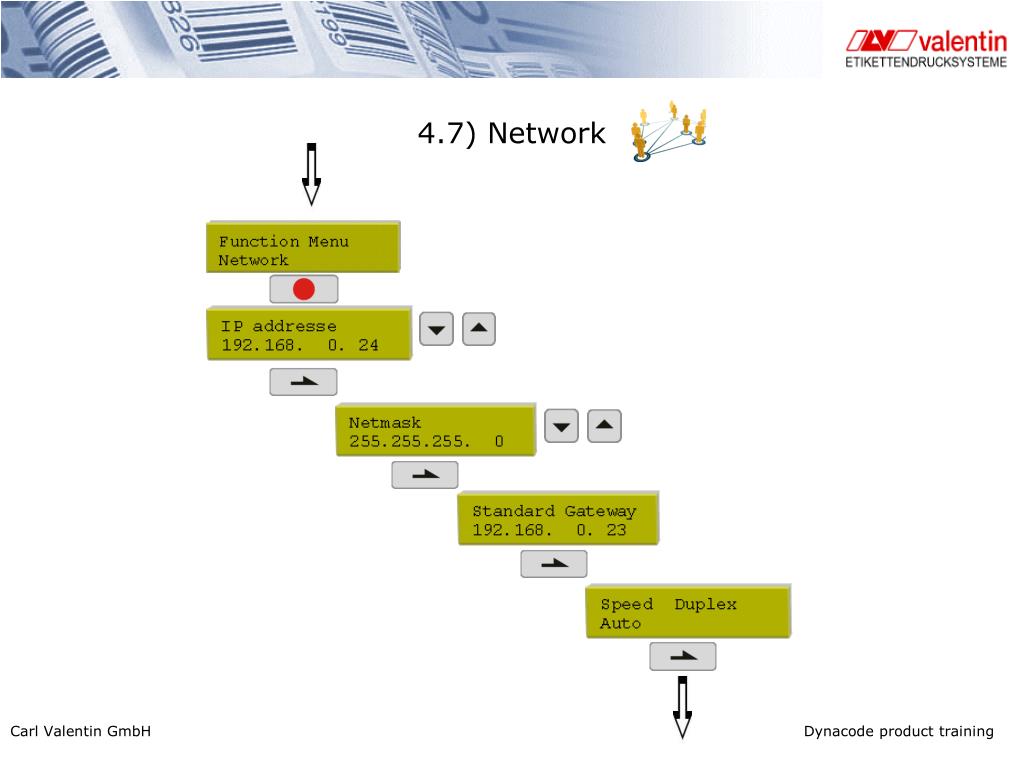

  35. 4.7) Network Carl Valentin GmbH Dynacode product training

  36. 4.7) Network Carl Valentin GmbH Dynacode product training

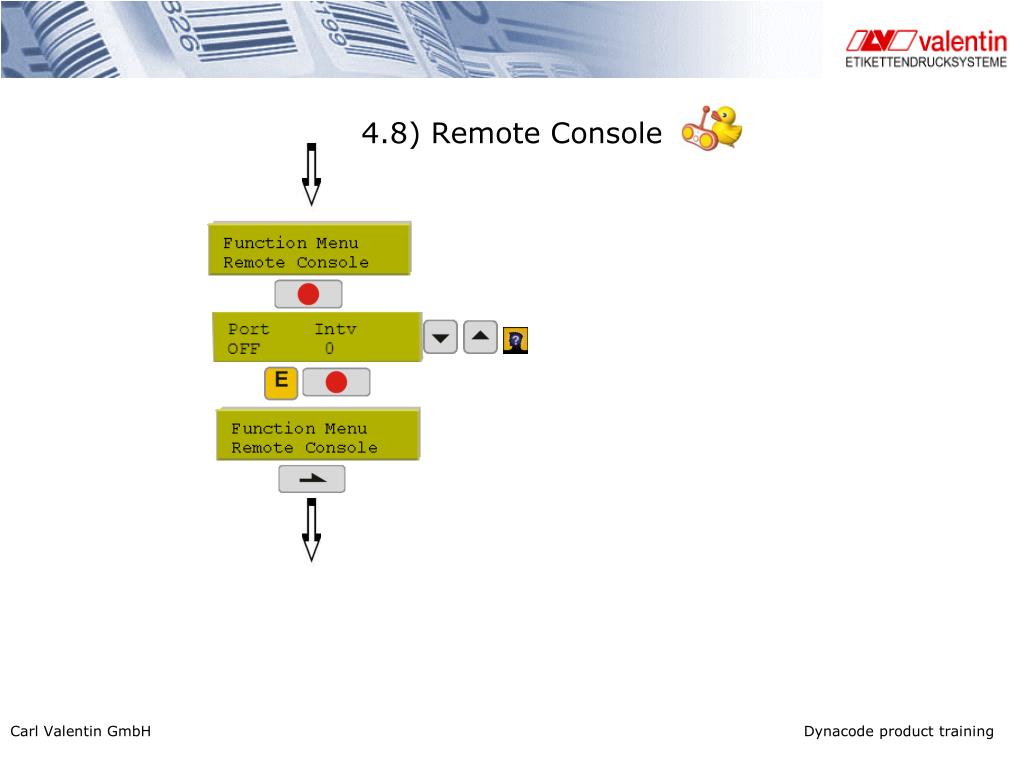

  37. 4.8) Remote Console Carl Valentin GmbH Dynacode product training

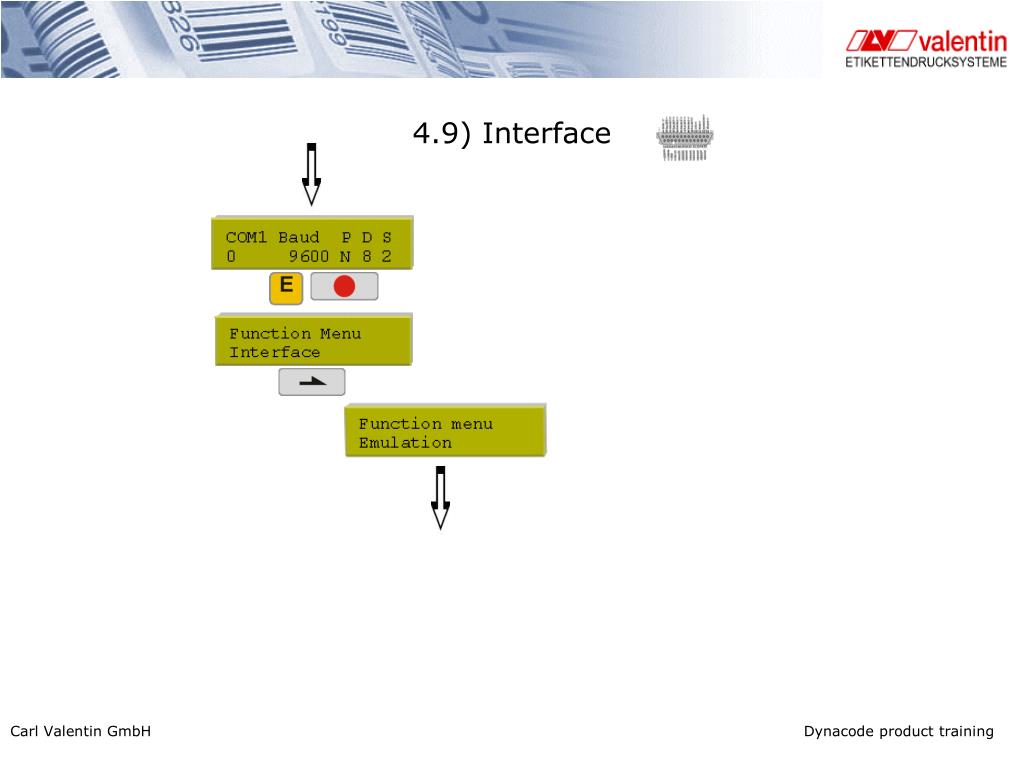

  38. 4.9) Interface Carl Valentin GmbH Dynacode product training

  39. 4.9) Interface Carl Valentin GmbH Dynacode product training

  40. 4.10) Emulation Carl Valentin GmbH Dynacode product training

  41. 4.11) Date & Time Carl Valentin GmbH Dynacode product training

  42. 4.11) Date & Time Carl Valentin GmbH Dynacode product training

  43. 4.11) Date & Time Carl Valentin GmbH Dynacode product training

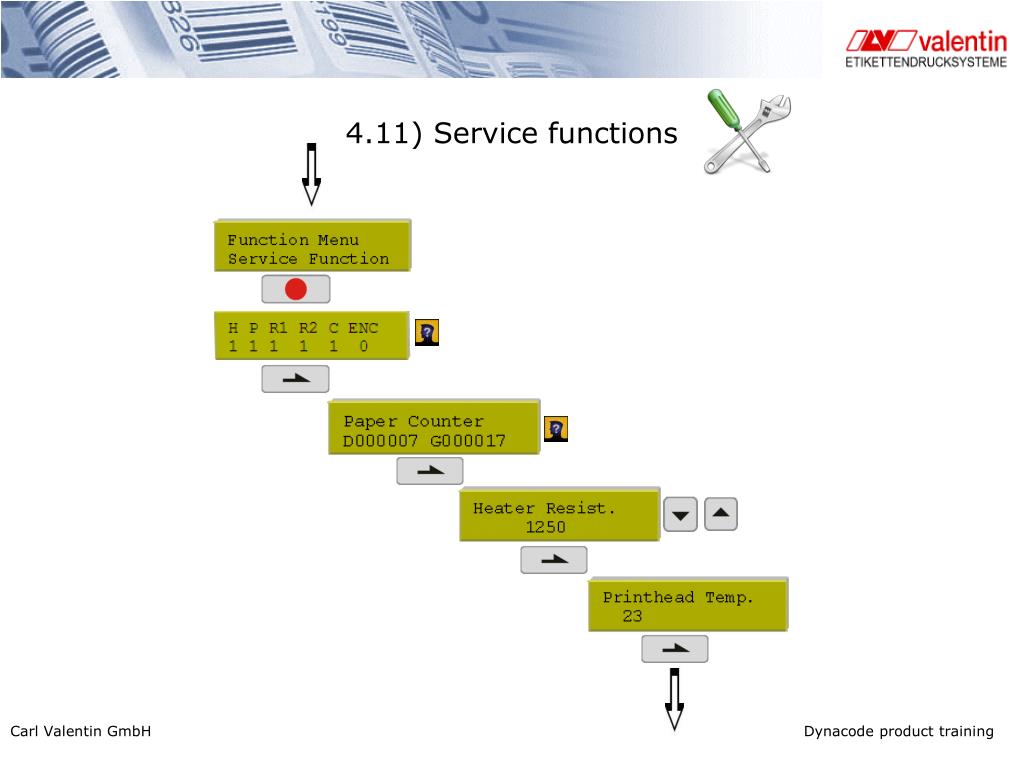

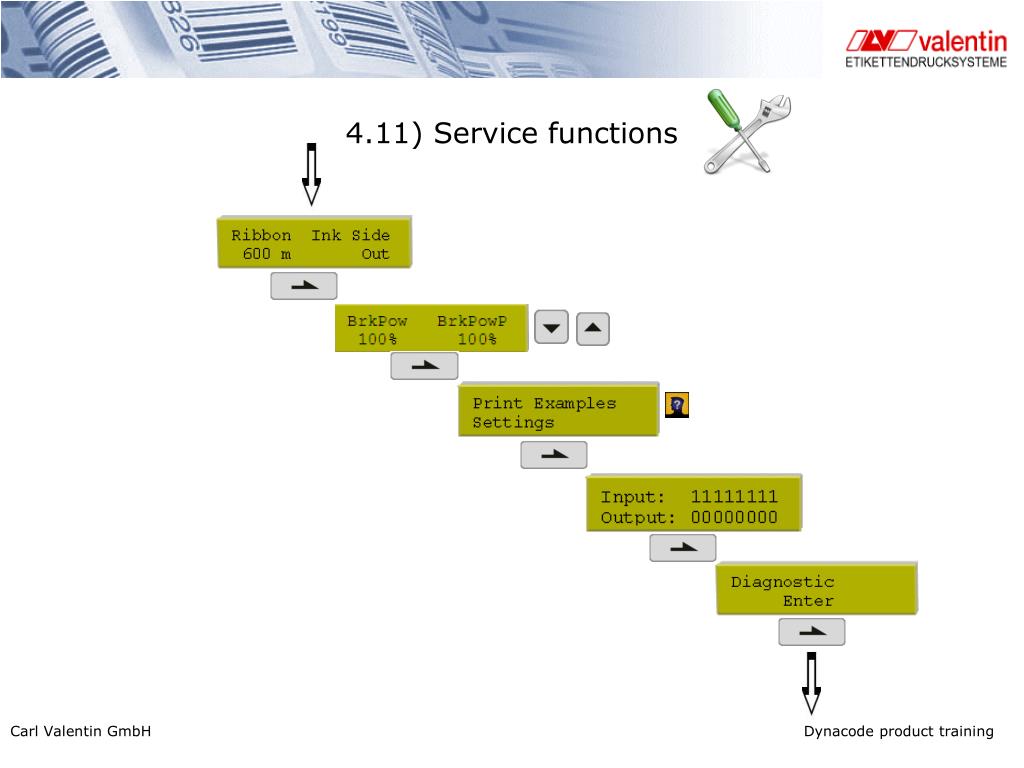

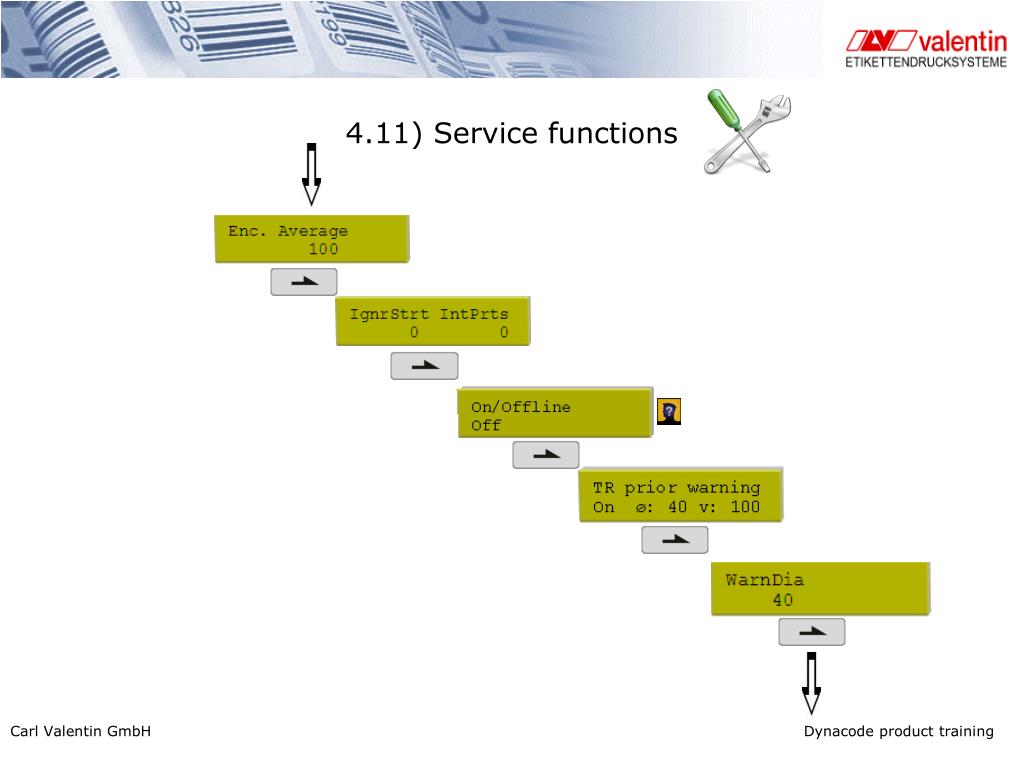

  44. 4.11) Service functions Carl Valentin GmbH Dynacode product training

  45. 4.11) Service functions Carl Valentin GmbH Dynacode product training

  46. 4.11) Service functions Carl Valentin GmbH Dynacode product training

  47. 4.11) Service functions Carl Valentin GmbH Dynacode product training

  48. Brake

  49. Compact Flash card This print module series are equipped at rear with a slot for a Compact Flash card. By means of this card you can permanently save via interface graphics, text, layout data or information from database. • In case of a malfunction of your original Compact Flash card we recommend a copy of your most important data. Please use a commercial Compact Flash reader for PC. Carl Valentin GmbH Dynacode product training

  50. Compact Flash card Insertion and removal of Compact Flash card: • Insert Compact Flash card with contact side forwards to the slot that was planned for it. • In order to prevent wrong insertion of cards, both sides of Compact Flash cards have different guiding. • A small part of Compact Flash card is visible at the support at the direct print module rear, so you can remove the card easily with hand. Carl Valentin GmbH Dynacode product training
