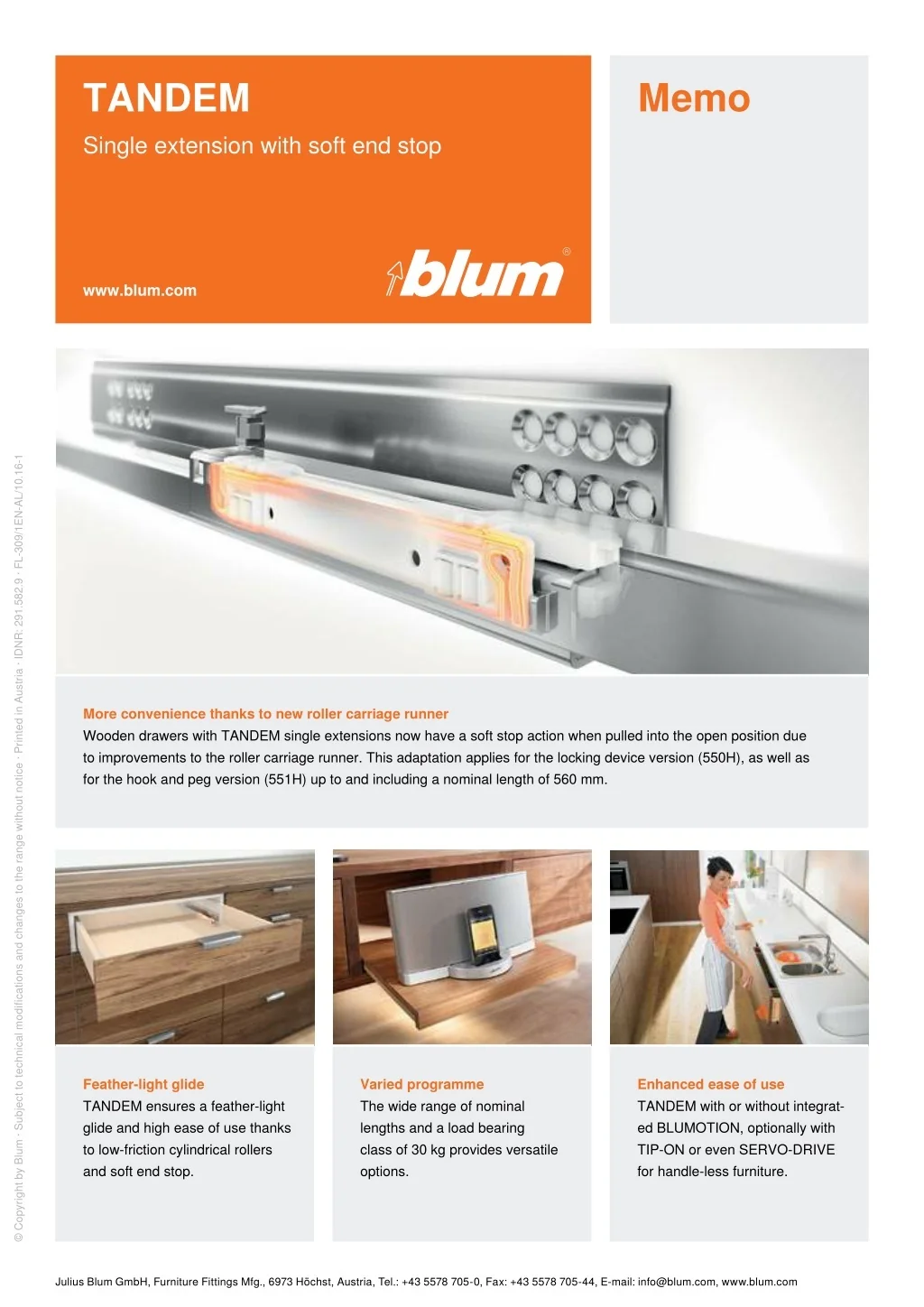

1. TANDEM Single extension with soft end stop Memo www.blum.com © Copyright by Blum · Subject to technical modifications and changes to the range without notice · Printed in Austria · IDNR: 291.582.9 · FL-309/1EN-AL/10.16-1 More convenience thanks to new roller carriage runner Wooden drawers with TANDEM single extensions now have a soft stop action when pulled into the open position due to improvements to the roller carriage runner. This adaptation applies for the locking device version (550H), as well as for the hook and peg version (551H) up to and including a nominal length of 560 mm. Feather-light glide TANDEM ensures a feather-light glide and high ease of use thanks to low-friction cylindrical rollers and soft end stop. Varied programme The wide range of nominal lengths and a load bearing class of 30 kg provides versatile options. Enhanced ease of use TANDEM with or without integrat- ed BLUMOTION, optionally with TIP-ON or even SERVO-DRIVE for handle-less furniture. Julius Blum GmbH, Furniture Fittings Mfg., 6973 Höchst, Austria, Tel.: +43 5578 705-0, Fax: +43 5578 705-44, E-mail: info@blum.com, www.blum.com

2. TANDEM Order specifications Locking device feature Runners left / right Load bearing capacity 30 kg Nominal length (mm) with BLUMOTION without BLUMOTION / for TIP-ON 270 550H2700B 550H2700.03 300 550H3000B 550H3000.03 350 550H3500B 550H3500.03 400 550H4000B 550H4000.03 450 550H4500B 550H4500.03 500 550H5000B 550H5000.03 550 550H5500B 550H5500.03 600 * 550H6000B 550H6000.03 650 * 550H6500B 550H6500.03 * without soft end stop Locking device left / right Order left and right separately Material Colour Part no Nylon / zinc Orange T51.1700.04 Hook & peg variant Runners left / right Load bearing capacity 30 kg Nominal length (mm) with BLUMOTION without BLUMOTION / for TIP-ON 260 ☎ 551H2601B ☎ 551H2601 285 ☎ 551H2851B ☎ 551H2851 310 ☎ 551H3101B ☎ 551H3101 335 ☎ 551H3351B ☎ 551H3351 360 ☎ 551H3601B ☎ 551H3601 385 ☎ 551H3851B ☎ 551H3851 410 ☎ 551H4101B ☎ 551H4101 435 ☎ 551H4351B ☎ 551H4351 460 ☎ 551H4601B ☎ 551H4601 485 ☎ 551H4851B ☎ 551H4851 510 ☎ 551H5101B ☎ 551H5101 535 ☎ 551H5351B ☎ 551H5351 560 ☎ 551H5601B ☎ 551H5601
