  1. Interoperability Developments at IRIS by Tim Ahern Program Manager IRIS Data Management System

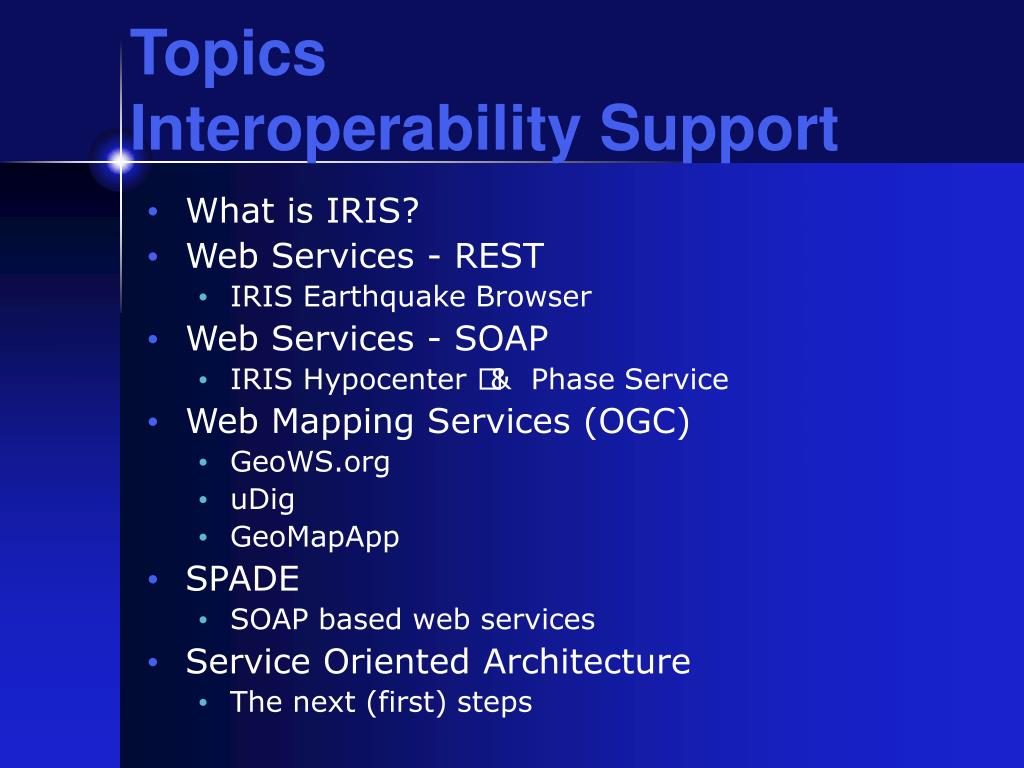

  2. Topics Interoperability Support • What is IRIS? • Web Services - REST • IRIS Earthquake Browser • Web Services - SOAP • IRIS Hypocenter & Phase Service • Web Mapping Services (OGC) • GeoWS.org • uDig • GeoMapApp • SPADE • SOAP based web services • Service Oriented Architecture • The next (first) steps

  3. Incorporated Research Institutions for Seismology IRIS is a Consortium of 106 Universities

  4. IRIS GSN 145 stations

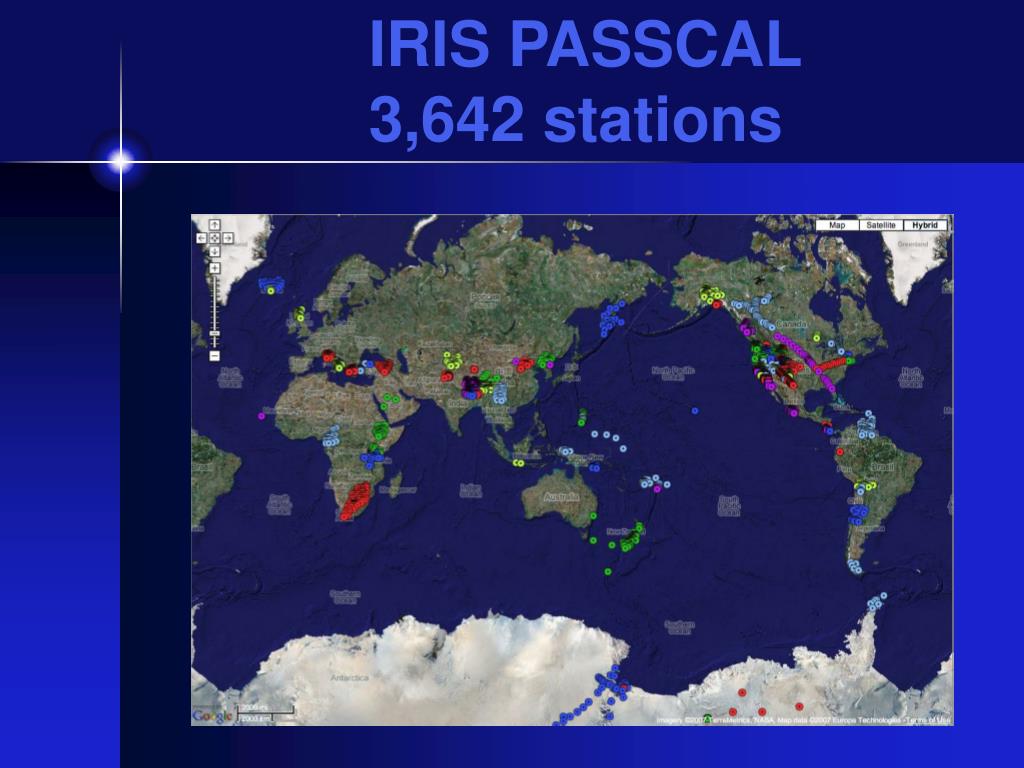

  5. IRIS PASSCAL 3,642 stations

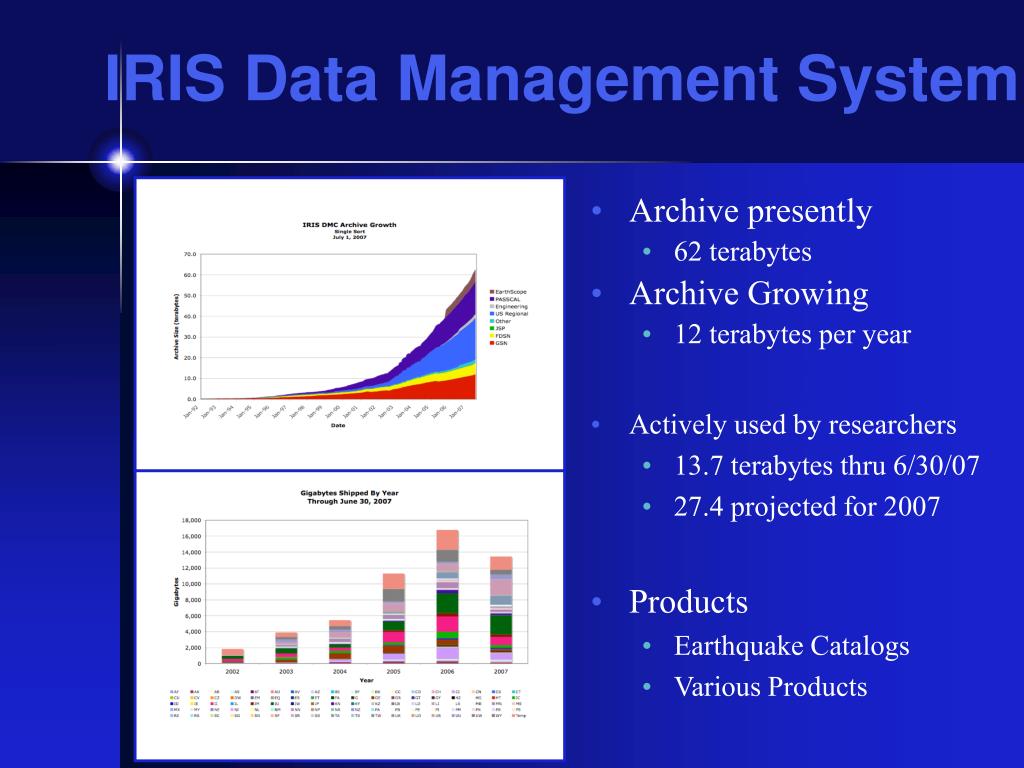

  6. IRIS Data Management System • Archive presently • 62 terabytes • Archive Growing • 12 terabytes per year • Actively used by researchers • 13.7 terabytes thru 6/30/07 • 27.4 projected for 2007 • Products • Earthquake Catalogs • Various Products

  7. AJAX IRIS Earthquake Browser (IEB) Bruce Weertman IEB DMC Event Service (XML) Rest HTTP DEMO NetCDF URL DMC Event Service (netCDF) GEON-IDV Rest HTTP http://www.iris.edu/ieb

  8. SeismiQuery Event Phase Service ISF SOAP XML WSDL XSLT HTML Display SOAP Based Web Services Hypocenter/Phase Service Joanna Muench Linus Kamb DEMO http://www.iris.edu/SeismiQuery/phases/phasePick.html

  9. Web Mapping Services Open Geospatial Consortium Rob Casey • GeoWS • IRIS, UNAVCO, LDEO/MGDS, NGDC • www.geows.org • uDig • http://udig.refractions.net/confluence/display/UDIG/Home • GeoMapApp • http://www.geomapapp.org/

  10. LDEO/MGDS LDEO/MGDS IRIS UNAVCO WMS WFS WCS WMS WFS WCS WMS WFS WCS WMS WFS WCS OGC OGC OGC OGC GeoMapApp DEMO GeoMapApp IRIS GSN Stations USGS Samples-MP USGS Epicenters

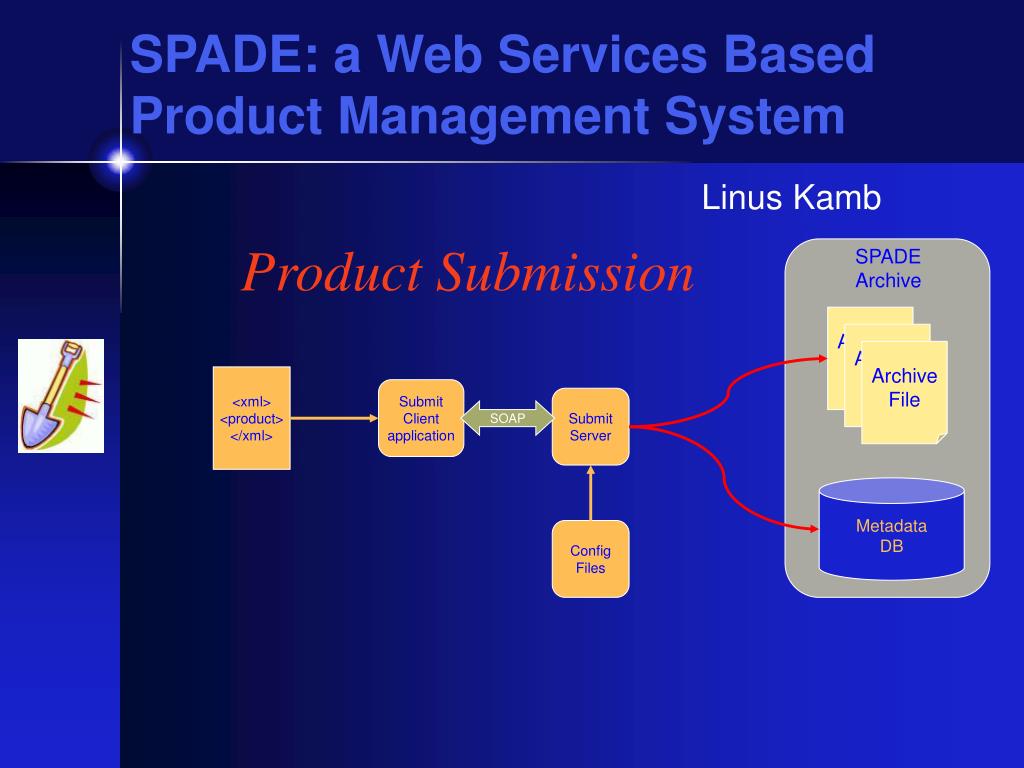

  11. SPADE Archive Archive File Archive File Archive File Metadata DB SPADE: a Web Services Based Product Management System Linus Kamb Product Submission <xml> <product> </xml> Submit Client application Submit Server SOAP Config Files

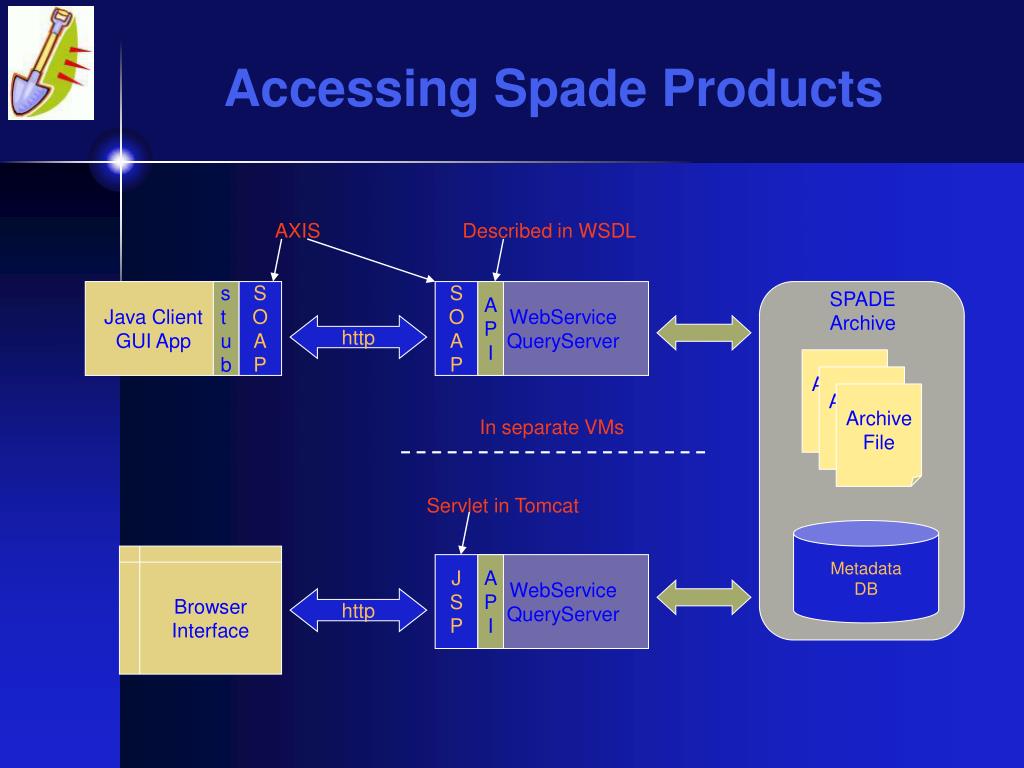

  12. SPADE Archive Archive File Archive File Archive File Metadata DB Accessing Spade Products AXIS Described in WSDL Java Client GUI App stub S O A P S O A P WebService QueryServer A P I http In separate VMs Servlet in Tomcat Browser Interface J S P A P I WebService QueryServer http

  13. Searchable Product Archive and Discovery Engine (SPADE) 7-1-2007 Magnitude 5.6 Hokkaido Japan on USArray Backbone DEMO

  14. Ground Motion Movies

  15. IRIS Services Future

  16. IRIS Service Oriented Future: Workflow

  17. Service Oriented Architecture Clients Example: Portlet Workflow Manager Other Earth Science Organizations IRIS DMC Services

  18. Thanks for your attention! Questions?
