Bubble Bag Making Machine

Bubble Bag Making Machine is used to produce Air Bubble Sheets to protect the products while transportation which ultimately reduces the chances of damaging the product. To get detailed information check out the Official Website, call WhatsApp 91-9311047681.

AuthenticDesigners
Télécharger la présentation

Bubble Bag Making Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

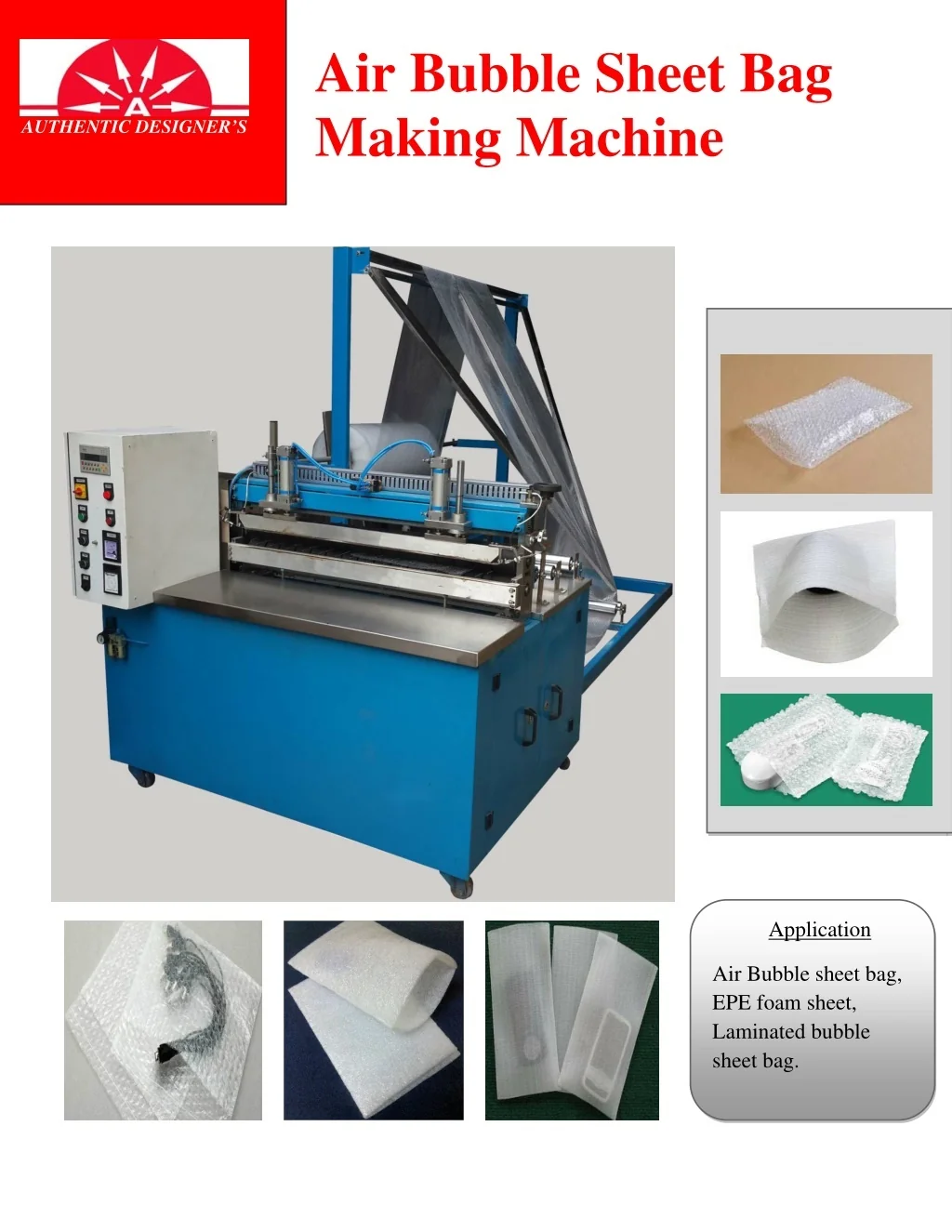

  1.     Air Bubble Sheet Bag Making Machine   AUTHENTIC DESIGNER’S           Application Air Bubble sheet bag, EPE foam sheet, Laminated bubble sheet bag.

  2. Automatic Air Bubble Sheet Bag Making Machine Features Automatic Length adjustment through digital Control Panel Servo controlled pulling system Heavy Duty Servo Special heavy duty , continuous rating helical gear box Heavy Duty pneumatic cylinders used. Double unwind and turn bar / Folder assy. (Stainless steel triangular Folder) Heavy duty , dynamically balanced Aluminum roller to support the Sheet during folding operation and smooth running of sheet Compressed Air required 2-3 CFM at bar Pressure. State of art technology. Powder coated , proper ventilated control panel Automatic Air Bubble Sheet Bag Making Machine Models Digital Display Meter for Parameter Setting. Sheet Thickness: Air Bubble Sheet 25 GSM to 300 GSM & EPE Foam 0.85 mm to 2.5 mm thick. Two Roll unwind system for two rolls. Very simple operation and low maintenance. Model Sealing Length* Power (KW) Speed ** for 150 mm pulling per min) 35-40 bag 30-35 bag 30-32 bag 30-35 bag Servo Capacity (KW) 1 1 1.5 1 No of folder 1 1 1 2 AD-AB75 AD-AB100 AD-AB150 AD-AB100 D 1000 mm 3.0 750 mm 1000 mm 3.0 1500 mm 3.5 2.5 ** Speed may vary depending material type & thickness.   * Other size on demands. Authentic Designer’s Address: E-138, Sector-63, Noida - 201307, Dist: G. B Nagar, U. P. (India) Phone : 0120-4331071, 72 Email : info@authenticdesigners.net, sales2@authentic-designers.com    Website: www.authentic-designers.com, www.authenticdesigners.net   AUTHENTIC DESIGNER’S
