Automatic Bag Packing Machine

Aprotech Engineers are the manufacturers and exporters of rice packing machine for filling and packing of rice and other grains with a capacity of up to 350 bags per hour with gravity filling method

AprotechIndia
Télécharger la présentation

Automatic Bag Packing Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

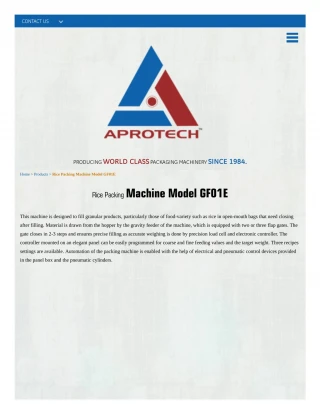

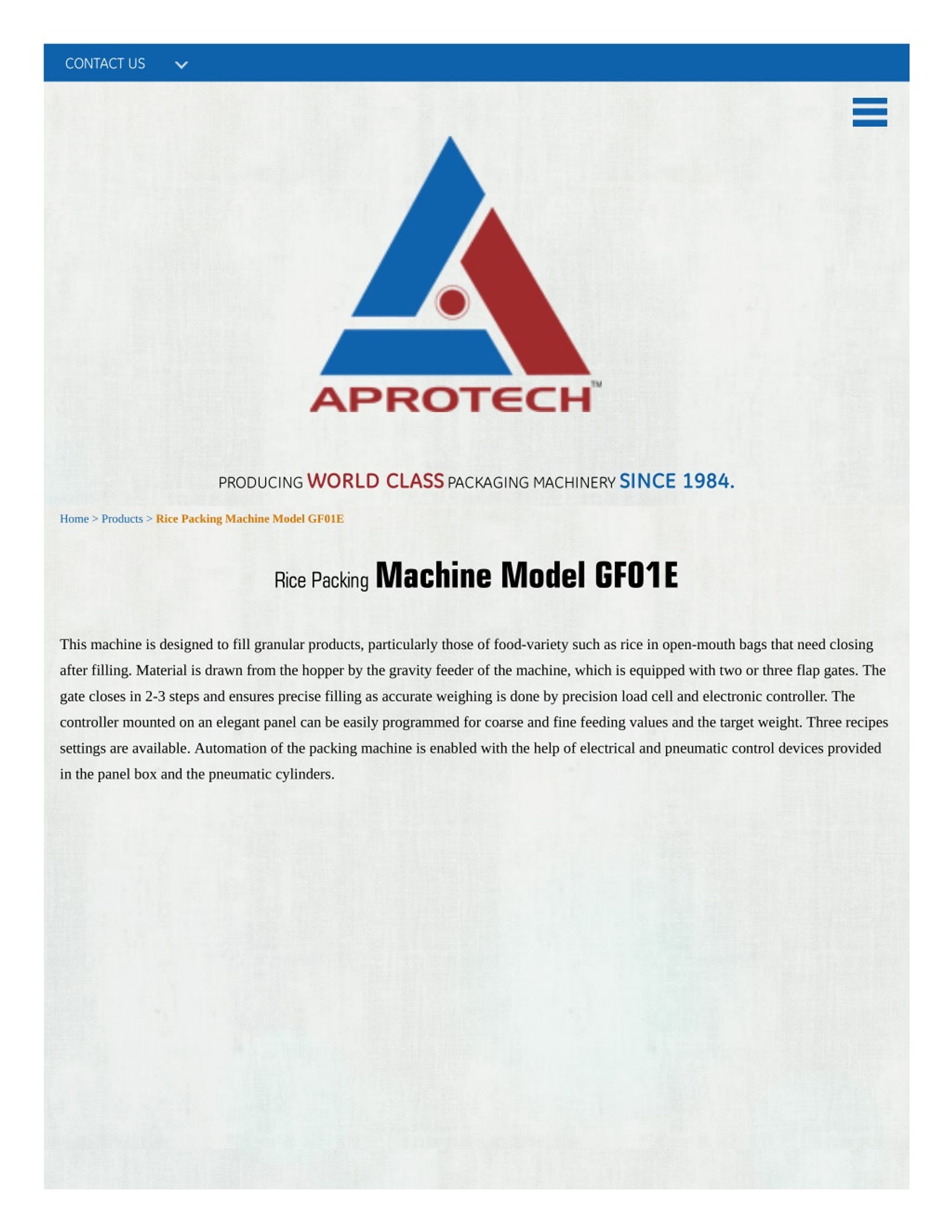

  1. CONTACT US PRODUCING WORLD CLASS PACKAGING MACHINERY SINCE 1984. Home > Products > Rice Packing Machine Model GF01E Rice Packing Machine Model GF01E This machine is designed to fill granular products, particularly those of food-variety such as rice in open-mouth bags that need closing after filling. Material is drawn from the hopper by the gravity feeder of the machine, which is equipped with two or three flap gates. The gate closes in 2-3 steps and ensures precise filling as accurate weighing is done by precision load cell and electronic controller. The controller mounted on an elegant panel can be easily programmed for coarse and fine feeding values and the target weight. Three recipes settings are available. Automation of the packing machine is enabled with the help of electrical and pneumatic control devices provided in the panel box and the pneumatic cylinders.

  2. Rice Packing Machine Model GF01E Rice Packing Machine Model GF01E GENERAL SPECIFICATIONS : Model Model GF01E GF01E Type of Bag Used Open Mouth Type Weighing Range 2 - 5, 5 – 50 kg Filling Method Gravity Drive Not Required Filling Capacity 200, 350 Bags Per Hour Weighing Method Electronic Loadcell With Controller Weighing Accuracy ± 0.1 % Compressed Air Requiremen 200 lpm @ 7 kg / cm2 Height of Machine 1500, 1800 mm Bag Holding Auto Bag Clamp And Auto Release Bag Rest Provided With Height Adjustment Materials Handled Materials Handled Rice, Pulses, Grains, Sugar Get in Touch with Us
