  1. IRC 2009 CHAPTER 4 FOUNDATION

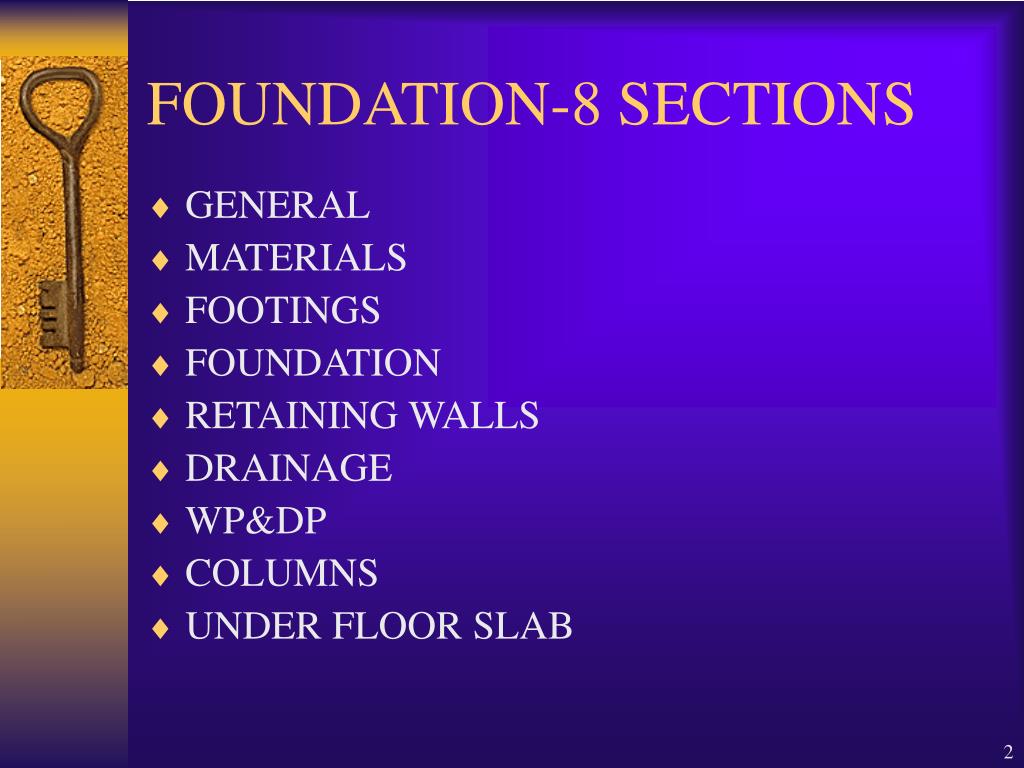

  2. FOUNDATION-8 SECTIONS • GENERAL • MATERIALS • FOOTINGS • FOUNDATION • RETAINING WALLS • DRAINAGE • WP&DP • COLUMNS • UNDER FLOOR SLAB

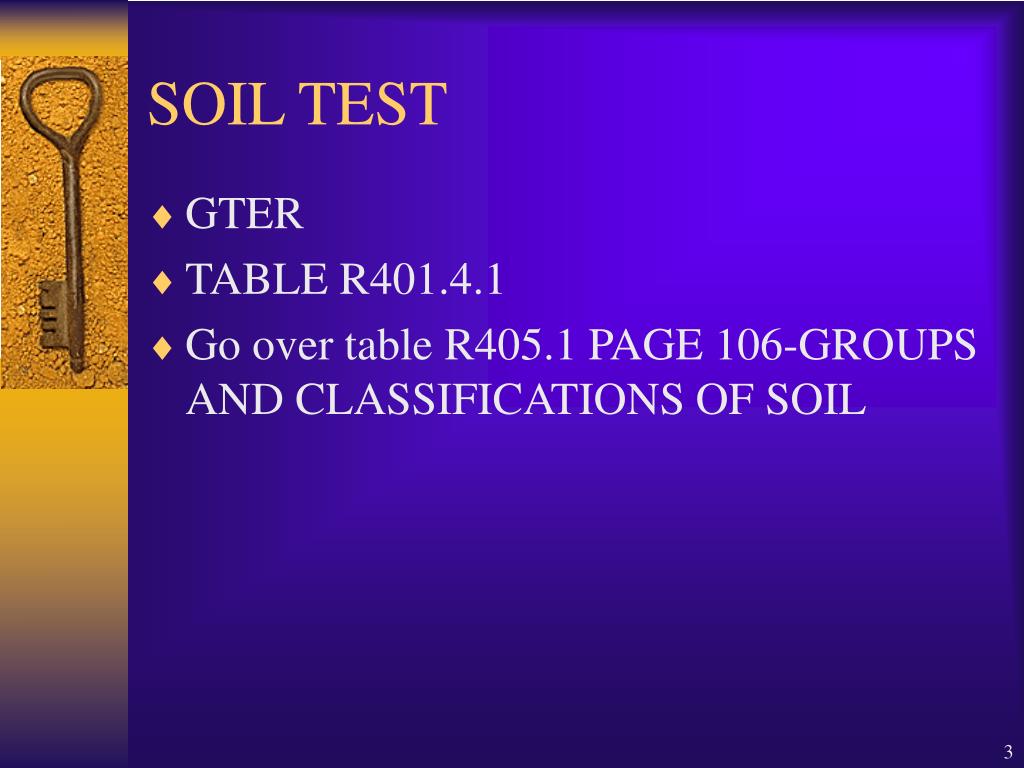

  3. SOIL TEST • GTER • TABLE R401.4.1 • Go over table R405.1 PAGE 106-GROUPS AND CLASSIFICATIONS OF SOIL

  4. MATERIALS R402 • WOOD FOUNDATION-FASTENERS-TREATMENT • CONCRETE-F’C-TABLE R402.2 • PRECAST CONCRETE-

  5. FOOTINGS AND RETAINING WALLS-R404 • TABLE R404.1.1(1)-(4) • CONCRETE • MASONRY • REINFORCEMENT FOR FOUNDATION WALLS • WOOD FOUNDATION WALLS-404.2-IDENTIFICATION, STUD SIZE, HT OF BACKFILL, BACKFILLING, DRAINGAE AND DAMPPRO0FING, Fastening, sill plate,

  6. FOOTINGS AND RET. WALLS • RETAINING WALLS-404.4 • PRECAST CONCRETE RETAINING WALLS-404.5

  7. FOUNDATION DRAINAGE-405 • CONCRETE AND MASONRY-405.1 • WOOD FOUNDATION-405.2

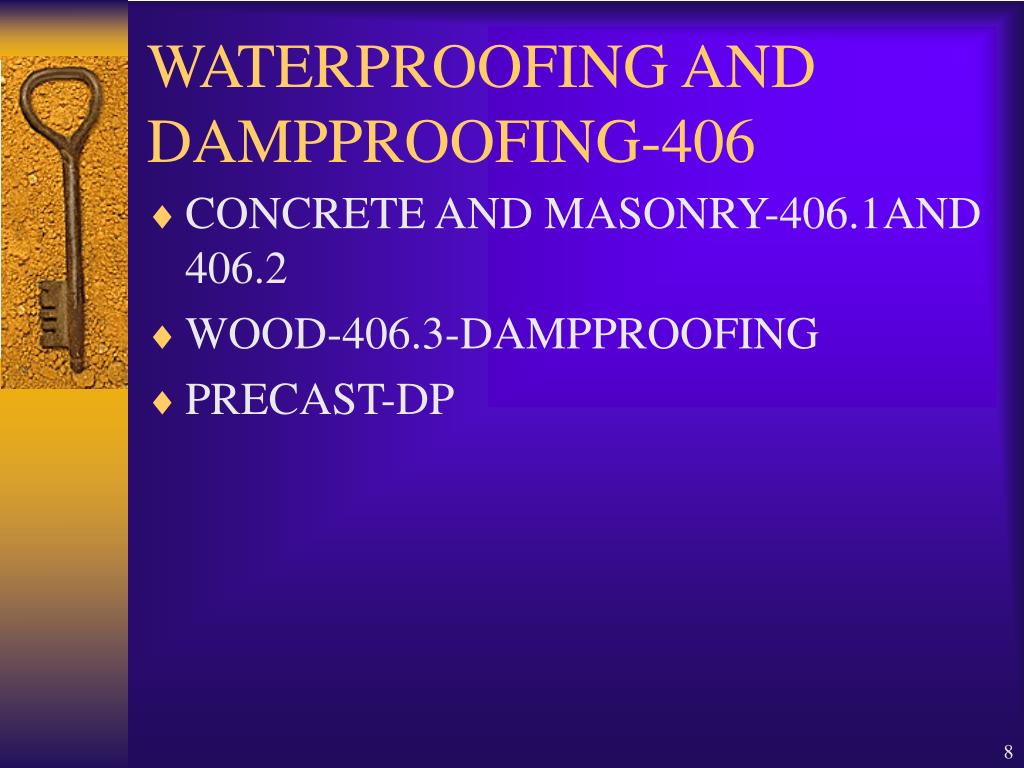

  8. WATERPROOFING AND DAMPPROOFING-406 • CONCRETE AND MASONRY-406.1AND 406.2 • WOOD-406.3-DAMPPROOFING • PRECAST-DP

  9. COLUMS-R407 • WOOD COLUMNS • STEEL COLUMNS

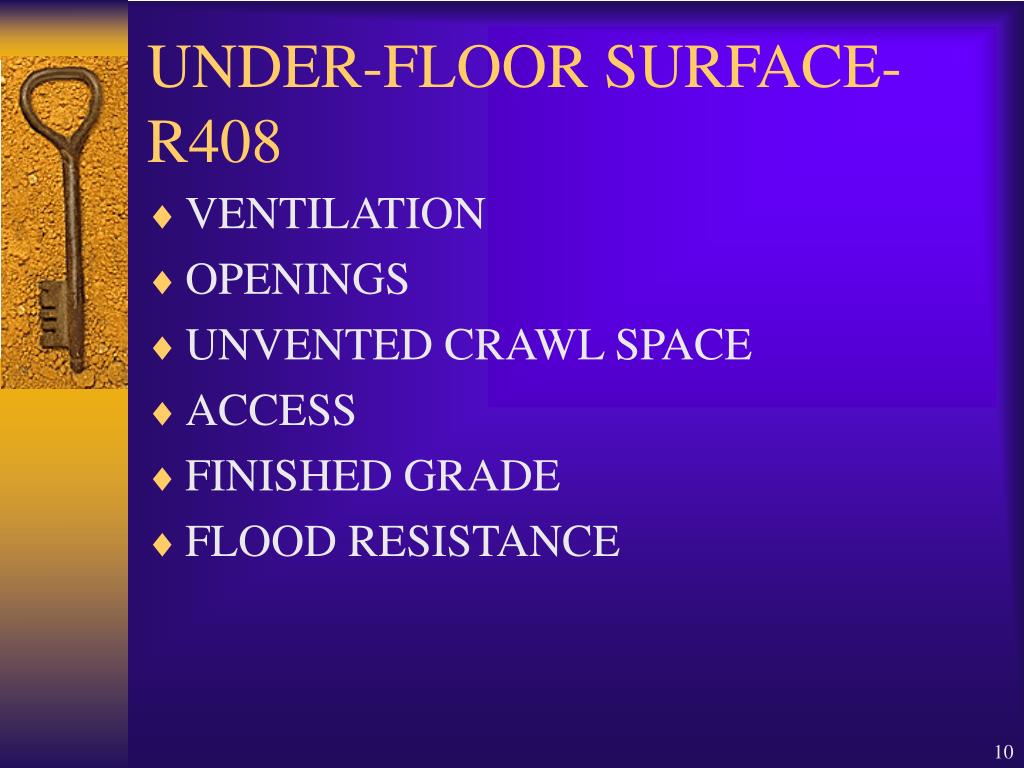

  10. UNDER-FLOOR SURFACE-R408 • VENTILATION • OPENINGS • UNVENTED CRAWL SPACE • ACCESS • FINISHED GRADE • FLOOD RESISTANCE

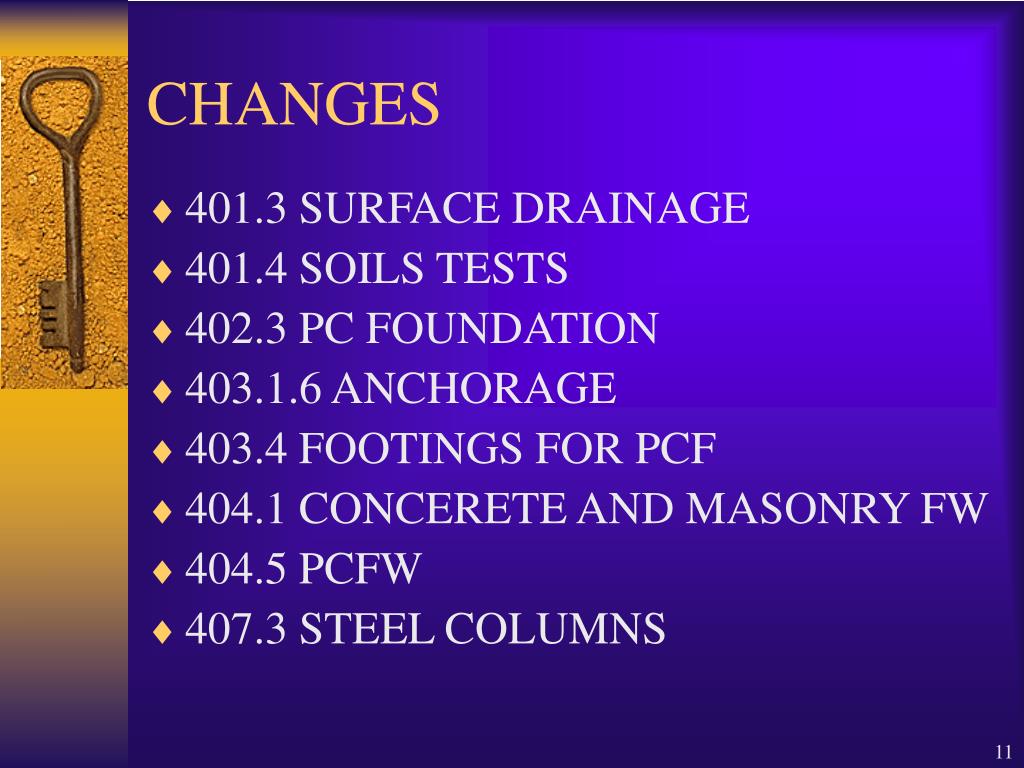

  11. CHANGES • 401.3 SURFACE DRAINAGE • 401.4 SOILS TESTS • 402.3 PC FOUNDATION • 403.1.6 ANCHORAGE • 403.4 FOOTINGS FOR PCF • 404.1 CONCERETE AND MASONRY FW • 404.5 PCFW • 407.3 STEEL COLUMNS
