The Lowest-Cost, High-Quality POS Printer available Today with Accessories & Software All in One Box! futurePRNT The Future of POS Printing –Today!
USBorPowered USBorEthernet Thermal Receipt Printer Internal Power Supply Guillotine Cutter or Tear Bar Vertical or Horizontal Operation Paper width: 80 or 58mm Roll Diameter: 83mm Reliability: Printer: 60 Million lines Cutter: 1 Million Cuts Printer Specifications
TSP100 futurePRNT printer 6 ft USB cable(USB model) 3 ftEthernet cable(LAN model) Wall mount & vertical operation kits 6 ft power cable & plug Power Switch Cover 1 roll of 80mm wide paper 58mm paper guide “Start-Up” CD-ROM All in One BOX!
Included Drivers • The TSP100 futurePRNT comes with a CD in the box that contains the following drivers: • Windows Vista • Windows 2k, XP • Windows 9x, Millenium • Linux • Mac OSX • OPOS • JavaPOS
The TSP100 futurePRNT is provided with free utilities included with the drivers. These functions allow the user to enhance the printing capability for any application. Here are just a few examples . . . Included Software Solutions!
Image Import Tool • Import any graphics with Star tool: • Mono or color jpgs, gifs or bmps can be accessed by the control panel, saved by name and even prepared for final output with a choice of dither methods. No need to pre-size, pre-save as a mono bmp file etc.
0660463 Cell Phone 1 80.20 1324370 Portable Phone 1 51.42 3364111 Answ. Machine 1 113.12 1410053 Italian Tile 10 572.93 0660457 Décor Mirror 1 86.96 0684152 Décor Bulb 1 1.54 0680472 Gas Grille 1 482.90 1840137 Hammock 1 132.50 5541704 Sec. Syst. 1 840.12 7241124 Comp.Wire 1 283.30 Subtotal 2,649.99 Tax 158.70 Total 2,803.69 MCCard Authorisation code#A471121 Modern font Old fashioned type face/ font Font Replacement The new Star Receipt Re-design Tool will allow a Retailer to replace any old fashioned fonts with modern TrueType fonts without changing the original POS software
Star Home Center 0660463 Cell Phone 1 80.20 1324370 Portable Phone 1 51.42 3364111 Answ. Machine 1 113.12 1410053 Italian Tile 10 572.93 0660457 Décor Mirror 1 86.96 0684152 Décor Bulb 1 1.54 0680472 Gas Grille 1 482.90 1840137 Hammock 1 132.50 5541704 Sec. Syst. 1 840.12 7241124 Comp.Wire 1 283.30 Subtotal 2,649.99 Tax 158.70 Total 2,803.69 MCCard Authorization code #A471121 Crop Receipt and Add Graphics Lose the old embedded Logo and replace it with a new one . . . . . . without changing your original POS software
Driver available to mark all second copies as “2nd Copy – Void” 2nd Copy / Journal Unique Reporting / Auto 2nd Copy / Journal Tools 2nd copy text available in any local language Word searchable electronic journal with immediate or end-of-day 2nd copy
25 Receipts Per Minute This is Star Micronics’ new standard to calculate the print speed of our printer. The TSP100 is rated at 25 RPM whether you’re printing graphics or plain text! What’s the Speed Limit?
Keep the Speed Up! 25 RPM 25 RPM

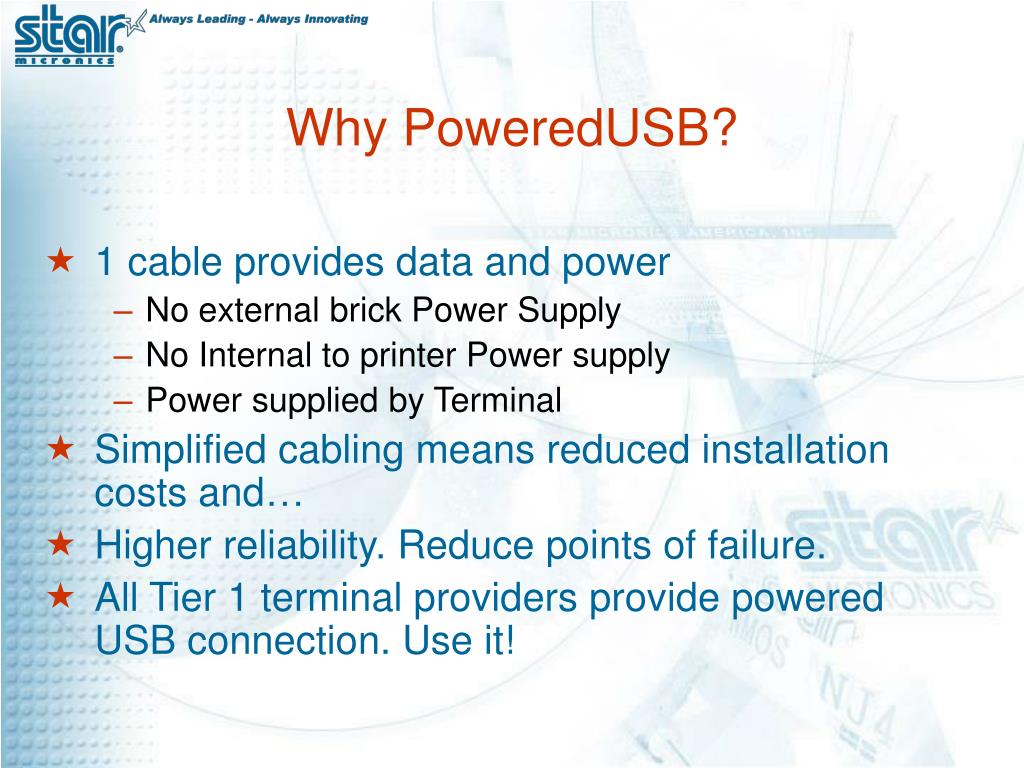

Why PoweredUSB? • 1 cable provides data and power • No external brick Power Supply • No Internal to printer Power supply • Power supplied by Terminal • Simplified cabling means reduced installation costs and… • Higher reliability. Reduce points of failure. • All Tier 1 terminal providers provide powered USB connection. Use it!

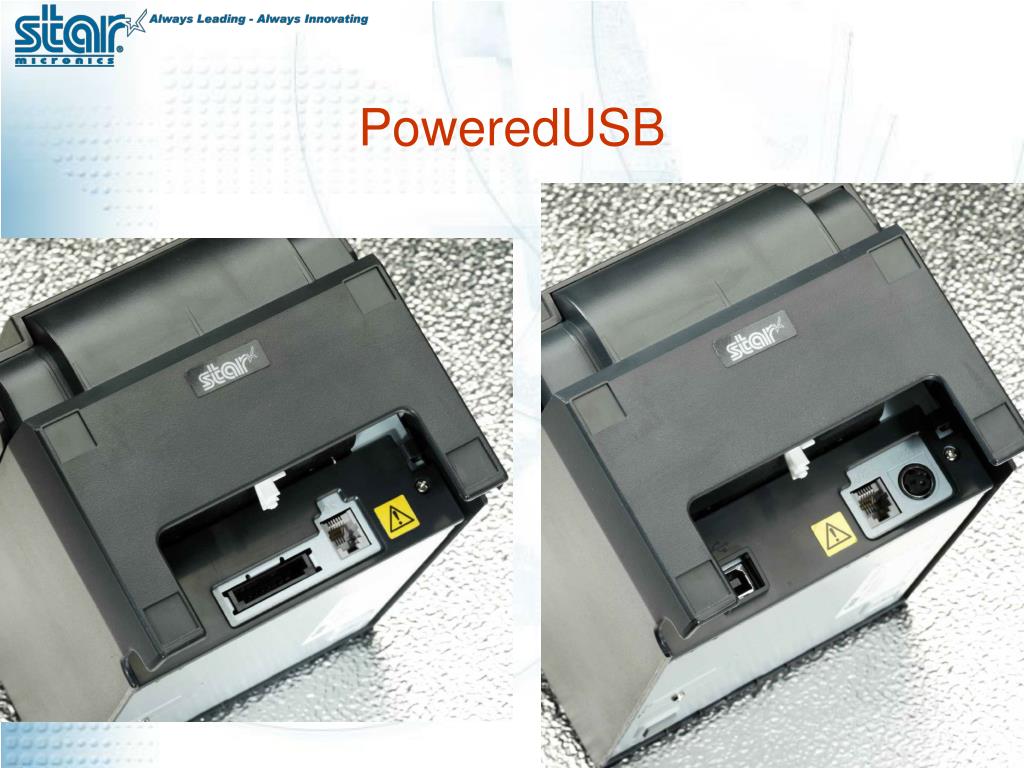

TSP100 Powered USB Series Standard TSP100U Series Hosiden Connector Standard USB Connector Power Connector Draw Kick Standard USB Connector FCI / Powered USB Connector Draw Kick PoweredUSB
Why USB and PoweredUSB • Why USB and Powered USB connectors on same printer? • Standard USB connector can be used for Interim solution. • If Powered USB hub is broken, standard USB can be used. • Future-Proofed solution. • Possibility to use Y cable or FCI powered USB cable.
The World’s only Dedicated Ethernet POS Printer Ethernet
Why Ethernet? • Printer can be up to 300 ft away from terminal • Low cost cabling • Very fast communication (100Mbps) • No need for PC or terminal close by. • No limitation on numbers of printers connected to the same network.
Why Ethernet? • No Port Specific: Printer can be connected anywhere on network. • Ethernet is reliable: • Ethernet uses a twisted pair wiring configuration and as such is resistant to electrical noise. • Ethernet is connected to network not PC. If one PC is down printer is still one for other PCs • Cable have lockable connectors. • Printer Status from “Remote Location” • Ethernet printer are mobile: • Printers can be moved on network without any resetting. • Ethernet is the communication of TODAY IP people!
Front LED indicates: When the printer has succesfully connected to network Printer has be disconnected from network. Ease of Use

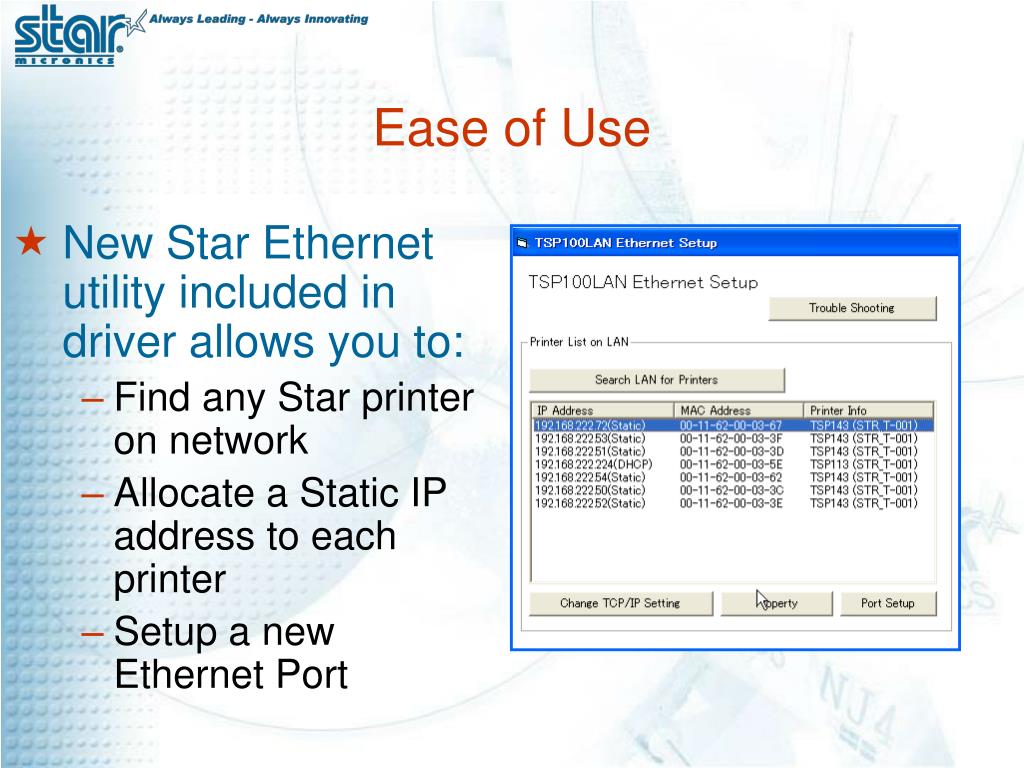

New Star Ethernet utility included in driver allows you to: Find any Star printer on network Allocate a Static IP address to each printer Setup a new Ethernet Port Ease of Use
Easy setup utility: Check Printer Status Review Raw Data Review Printer configuration Review Printer Device ID Ease of Use

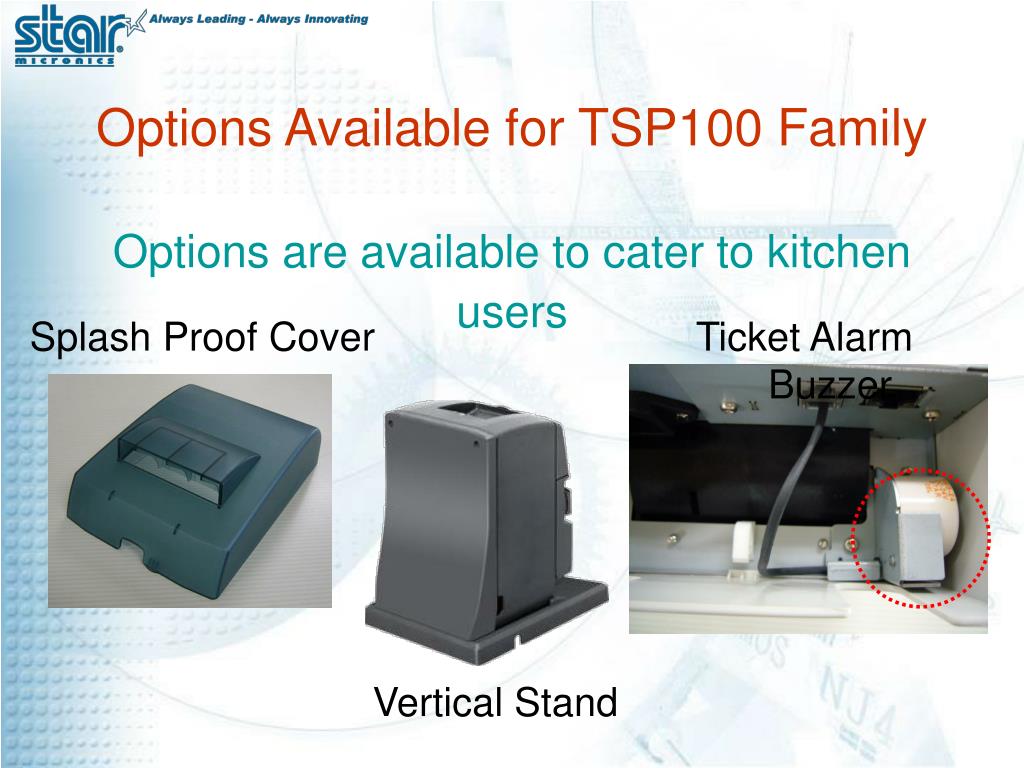

Splash Proof Cover Ticket Alarm Buzzer Vertical Stand Options Available for TSP100 Family Options are available to cater to kitchen users
