Belt-Drive-Vacuum-Pump 6000 L

Labtron belt-drive vacuum pump pressure of 1 Pa and a pumping speed of 6000 L/min at 360 rpm, delivering an ultimate vacuum operating within ambient temperatures of 7-40u00b0C, it maintains a body temperature of 40u00b0C. This robust, high-performance pump offers quiet, low-vibration operation and is both easy to use and maintain.

Erica57
Télécharger la présentation

Belt-Drive-Vacuum-Pump 6000 L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Belt Drive Vacuum Pump 6000 L www.labtron.uk | info@labtron.uk

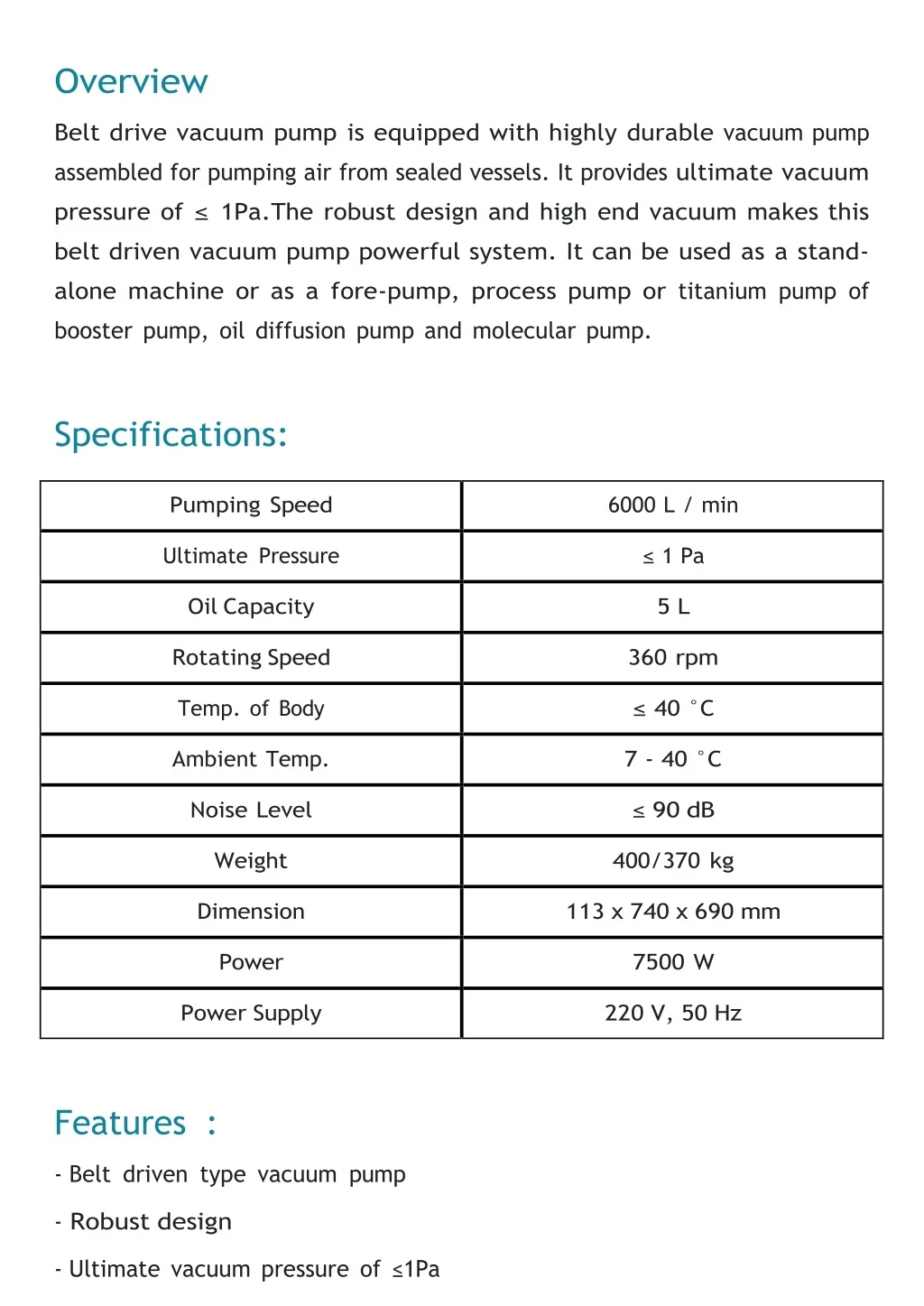

  2. Overview Belt drive vacuum pump is equipped with highly durable vacuum pump assembled for pumping air from sealed vessels. It provides ultimate vacuum pressure of ≤1Pa.The robust design and high end vacuum makes this belt driven vacuum pump powerful system. It can be used as a stand- alone machine or as a fore-pump, process pump or titanium pump of booster pump, oil diffusion pump and molecular pump. Specifications: Pumping Speed 6000 L / min Ultimate Pressure ≤1 Pa Oil Capacity 5 L Rotating Speed 360 rpm Temp. of Body ≤40 °C Ambient Temp. 7 - 40 °C Noise Level ≤90 dB Weight 400/370 kg Dimension 113 x 740 x 690 mm Power 7500 W Power Supply 220 V, 50 Hz Features: -Belt driven type vacuum pump -Robust design -Ultimate vacuum pressure of ≤1Pa

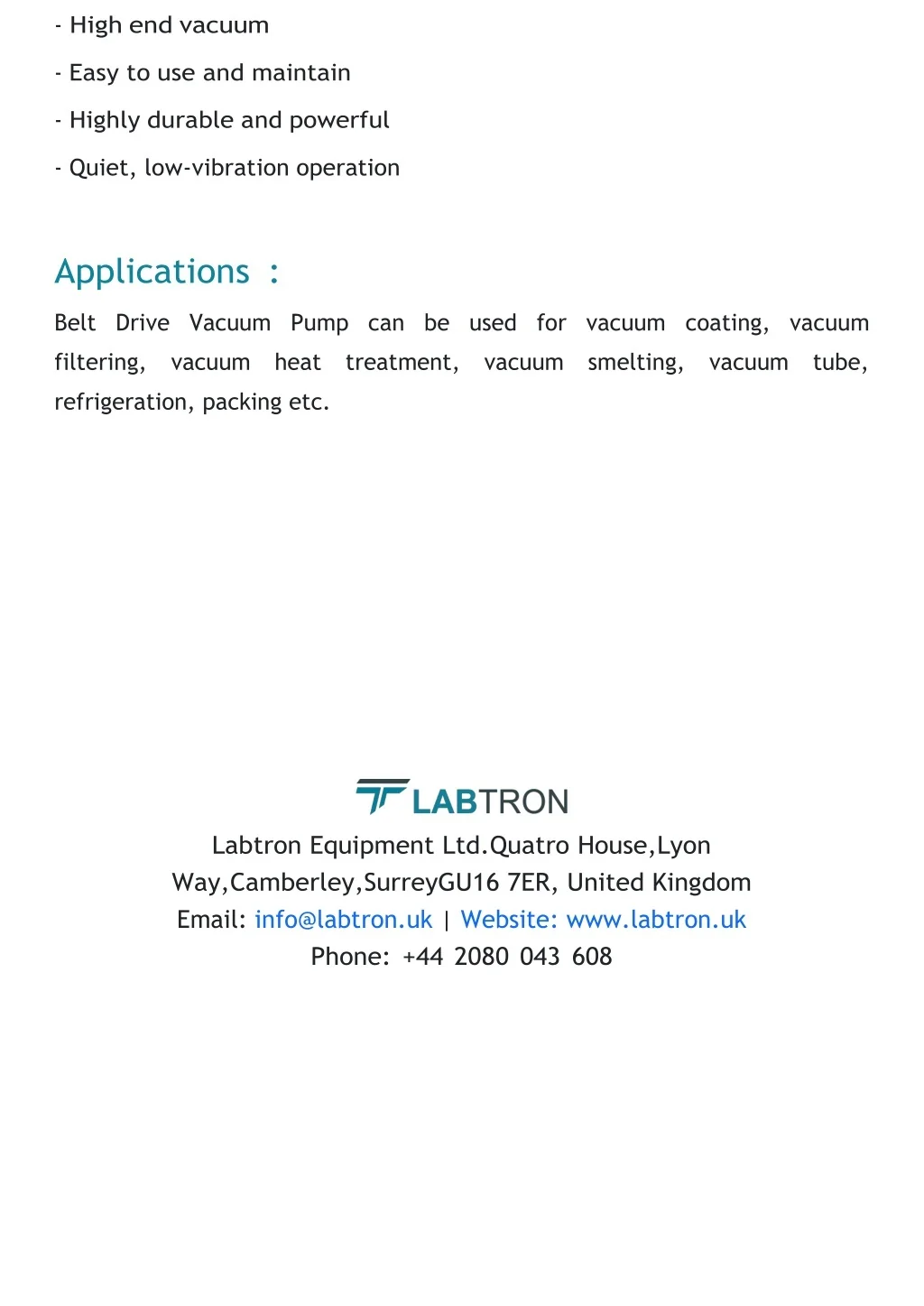

  3. -High end vacuum -Easy to use and maintain -Highly durable and powerful -Quiet, low-vibration operation Applications: Belt Drive Vacuum Pump can be used for vacuum coating, vacuum filtering, vacuum heat treatment, vacuum smelting, vacuum tube, refrigeration, packing etc. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
