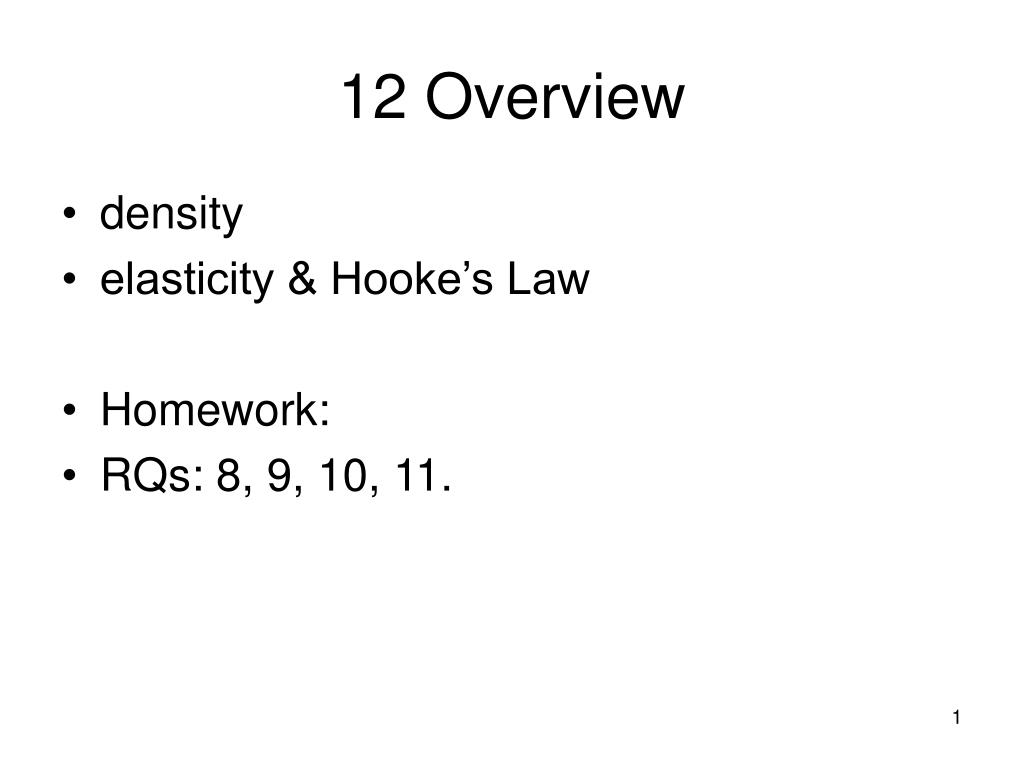

  1. 12 Overview • density • elasticity & Hooke’s Law • Homework: • RQs: 8, 9, 10, 11.

  2. Density • Density = mass/volume • depends on chemical type and structure • water 1.0 grams/cm3 • ice 0.9 grams/cm3 • copper 8.9 grams/cm3 • lead 11.9 grams/cm3

  3. Density Units • 1.0 grams/cm3 = 1,000 kg/m3 • think of 264 gallons of water, each gallon weighs 8.35 lbs.

  4. Elasticity - ability to regain shape • elastic material – perfectly regains shape • inelastic material – incompletely regains shape • elastic limit – force in which an elastic material becomes inelastic

  5. Hooke’s Law • Elastic Force ~ amount of stretch or compression • F ~ Dx; F/Dx = spring constant (stiffness) • Example: many springs obey Hooke’s Law within their elastic limit.

  6. Longer objects are easier to stretch. Thicker objects are harder to stretch.

  7. Summary • density is mass/volume, 1.0 grams/cm3 = 1,000 kg/m3 • elastic materials return to original shape • Hooke’s Law: deformation ~ force

  8. Crystal Structure solids with a regularly repeating pattern are crystals Examples: Graphite NaCl hexagonal cubic

  9. X-Ray Crystallography X-Rays are used to determine the structure of crystalline solids

  10. raindrops • which falls faster, small or large raindrops? • 5 mm drops: ~9 m/s (20 mph) • 0.5 mm: ~2 m/s (4 mph) • why? • A. Scaling

  11. Scaling • mass & weight increase at L3 , but area & strength increase with L2. • raindrops: weight increases faster than air-drag as size increases, causing terminal velocity to increase.
