  1. Unit 03a : Advanced Hydrogeology Basin Hydrogeologic Cycle

  2. Groundwater Basin • A groundwater basin is a hydrologic unit of groundwater storage defined as an area more or less separate from neighboring groundwater storage areas. • Basins are normally delimited by natural physical boundaries such as rivers, flow divides, and flow barriers.

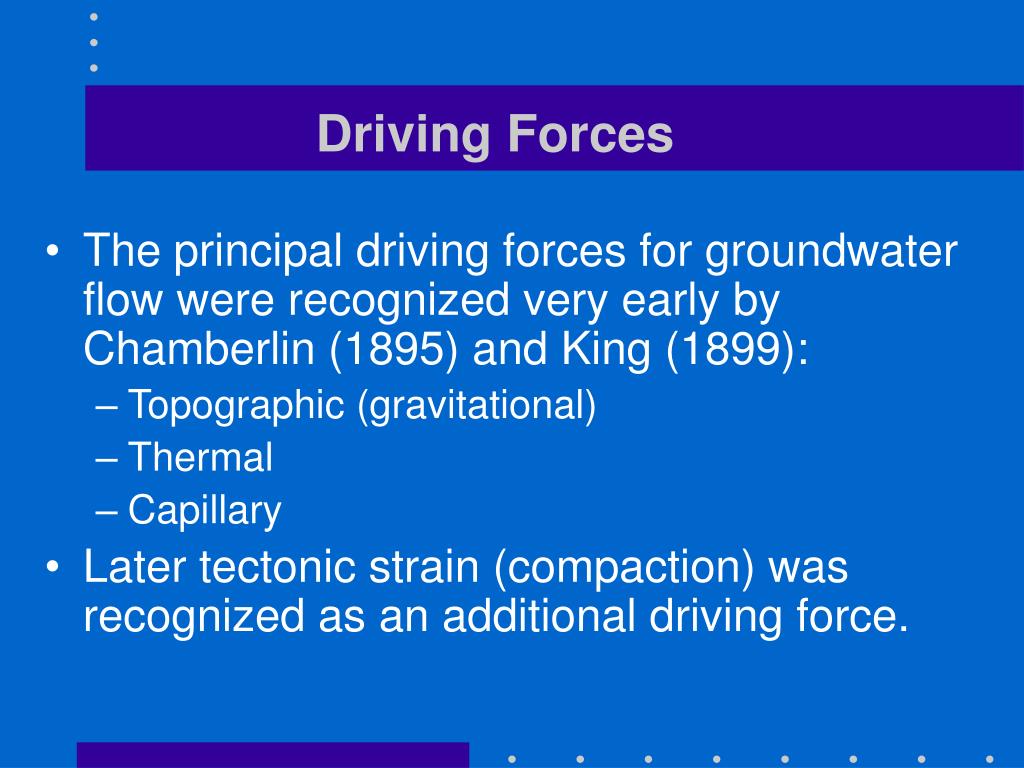

  3. Driving Forces • The principal driving forces for groundwater flow were recognized very early by Chamberlin (1895) and King (1899): • Topographic (gravitational) • Thermal • Capillary • Later tectonic strain (compaction) was recognized as an additional driving force.

  4. Topographic Driving Forces Chamberlin and later King defined and documented the confined and unconfined behaviour of groundwater systems over 100 years ago. • Thomas S. Chamberlin (1885) identified elevation differences as the topographic drive for groundwater movement • “the pressure-producing mechanism is the hydrostatic weight of the body of water….” T.C. Chamberlin • Franklin H. King (1899) stated that the water table everywhere is a subdued replica of the topography and that water moves from topographically high areas to topographically low areas • “the dynamic mechanism required to maintain flow is continuous replenishment by precipitation….” F.H.King

  5. Conceptual Model of Regional Flow • M. King Hubbert (1940) was the first to publish a conceptual model for a flow field based on head potential • Hubbert’s model predicts the characteristics of the flow net in both recharge and discharge areas and is consistent with the water table as a subdued replica of the topographic surface M. King Hubbert Hubbert’s model is essentially a 2D solution of Laplace’s equation where all boundaries except the upper surface are specified as no flow. The upper surface can be specified as any function representing the form of the water table. A general solution is:  f(x,z) = ao + S an cosh(npz/L).cos(npx/L) n =1 where f is the hydraulic potential and L is the length of the flow cell

  6. Hubbert’s Model One specific solution when the water table (upper surface boundary condition) is a simple cosine function: f(x,zo) = A – B cos(npx/L) has the form: f(x,zo) = A – B cosh(npz/L).cos(npx/L) cosh(npzo/L)

  7. Multi-Cell Model of Regional Flow • J. Tóth (1962, 1963) was the first to significantly extend the conceptual work of Hubbert • Tóth investigated a more complex flow system with a sinusoidal water table superimposed on a regional slope • Tóth identified local, intermediate and regional flow systems based on this simple topographic model. Tóth’s solution uses a slightly more complex boundary condition than Hubbert: f(x,zo) = B’x/L – b sin(2px/l) The first (B’) term represents the regional slope and the second (b) term the more local sinusoidal relief. The parameter b is the amplitude of the topography and L/l is the number of flow cells

  8. Tóth’s Model

  9. Tóth’s Model • If b=0 (no local-scale topography) only a regional flow system develops • If B’=0 (no regional-scale topography) only local flow systems develop • If b=B’=0 (no topography) waterlogged conditions will develop with the water table near the surface discharging by evapotranspiration • If B’ and b > 0 and L/l >> 0 then regional, intermediate and local flow systems will develop.

  10. Later Developments • Joe Tóth only considered an isotropic homogeneous aquifer in his early work and used simple analytical models. • Freeze and Witherspoon (1966,1967) used Tóth’s basic model but extended it’s application to layered systems using numerical models. • Freeze and Witherspoon dealt primarily with the role of permeability contrasts in influencing flow lines in layered systems. • These effects are important in understanding regional flow.

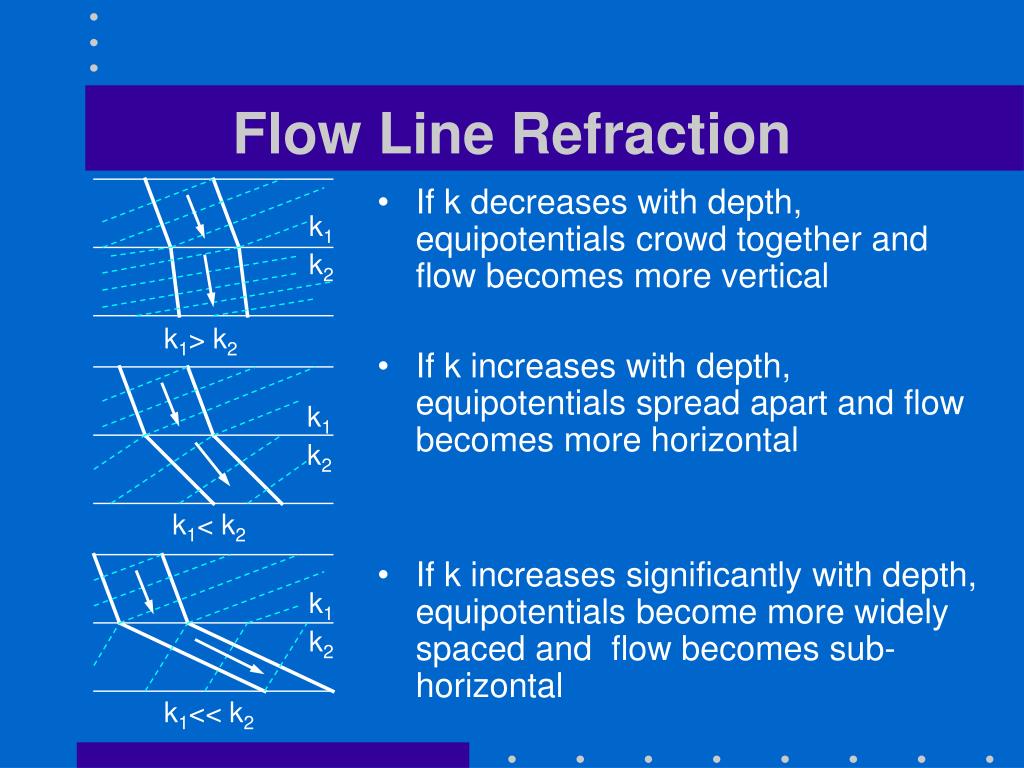

  11. k1 k1 k1 k2 k2 k2 Flow Line Refraction • If k decreases with depth, equipotentials crowd together and flow becomes more vertical • If k increases with depth, equipotentials spread apart and flow becomes more horizontal • If k increases significantly with depth, equipotentials become more widely spaced and flow becomes sub-horizontal k1> k2 k1< k2 k1<< k2

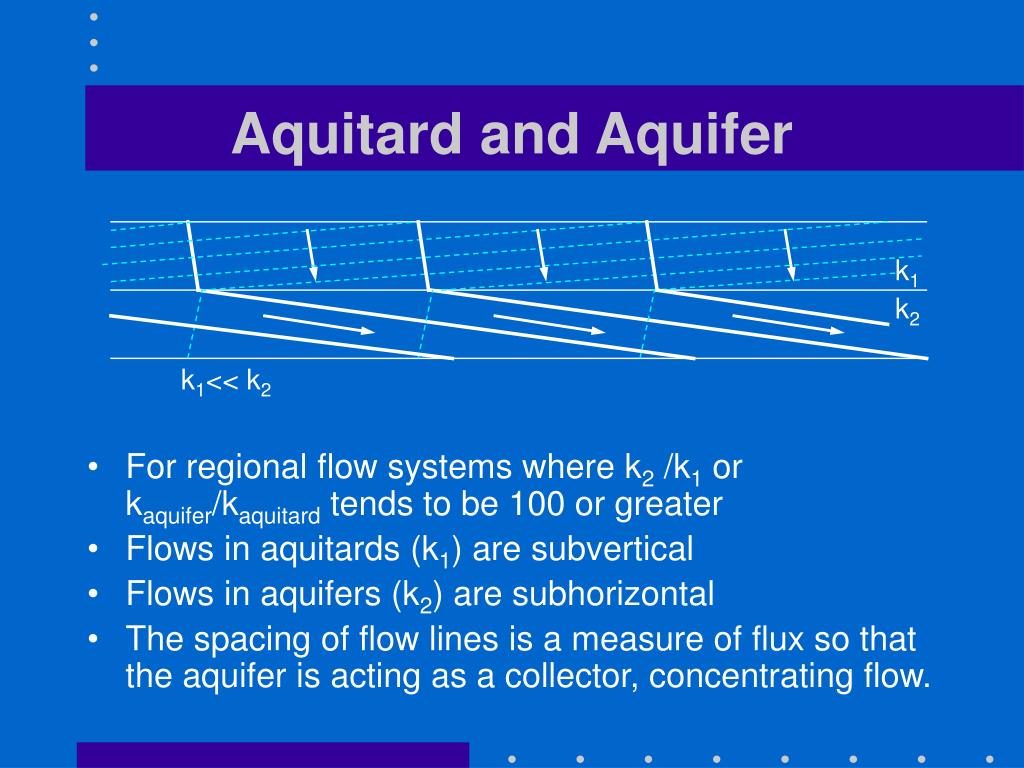

  12. k1 k2 k1<< k2 Aquitard and Aquifer • For regional flow systems where k2 /k1 or kaquifer/kaquitard tends to be 100 or greater • Flows in aquitards (k1) are subvertical • Flows in aquifers (k2) are subhorizontal • The spacing of flow lines is a measure of flux so that the aquifer is acting as a collector, concentrating flow.

  13. Regional Flow • To predict flow patterns in regional flow systems the data requirements include: • Permeability distributions • Geometry of basin boundaries (including the surface topography) • The most influential factors on flow patterns are: • Ratio of basin depth to lateral extent • Configuration of the water table (topography) • Permeability distribution • Major valleys collect flow and concentrate discharge • Deep permeable aquifers act as conduits and control recharge rates and the location of recharge areas • Stratigraphic pinchouts at depth exert an influence the location of recharge and discharge areas

  14. Effect of Topography on Flow Patterns Low relief topography Moderate relief topography High relief topography

  15. Moderate K ratio High K ratio Effect of Layers on Flow Patterns

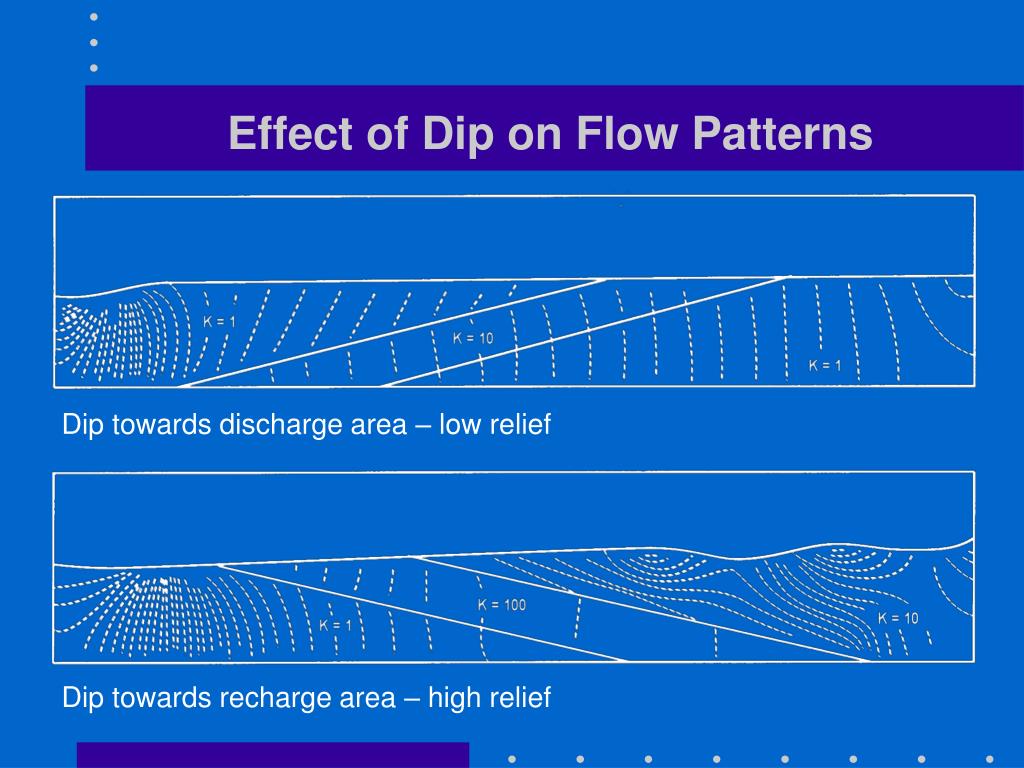

  16. Effect of Dip on Flow Patterns Dip towards discharge area – low relief Dip towards recharge area – high relief

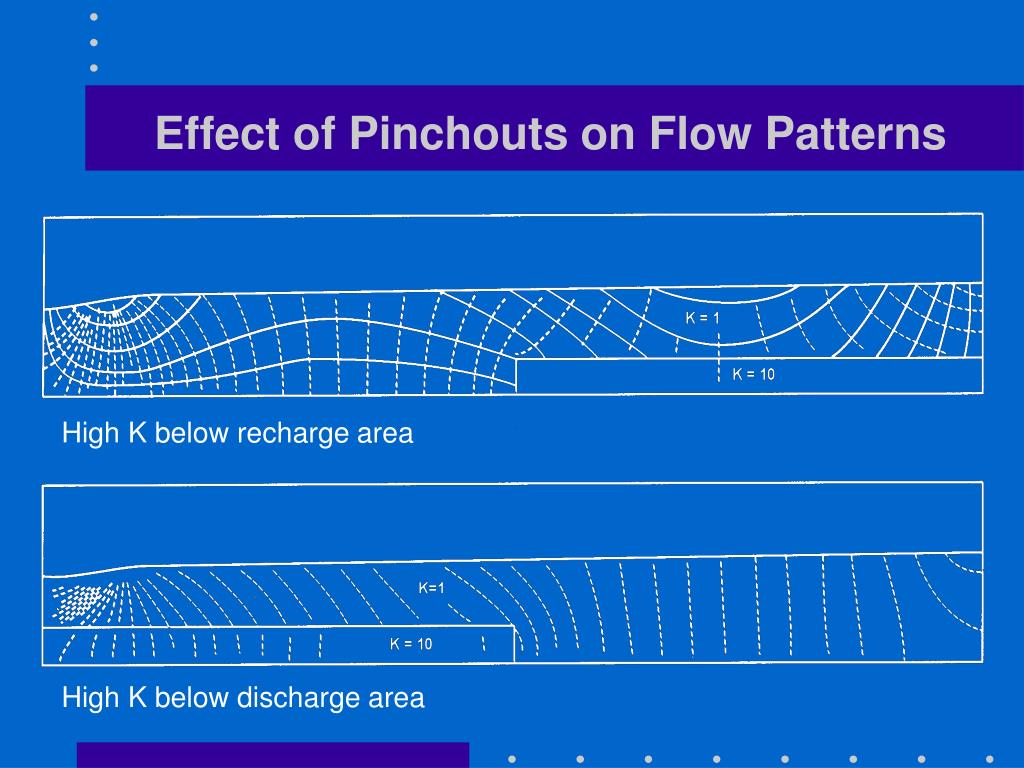

  17. High K below recharge area High K below discharge area Effect of Pinchouts on Flow Patterns

  18. Mountainous Terrain • 20% of global flow systems • K distribution dominated by fracturing • Deep circulation –relatively high Kv for fractured rock • Water circulates to depths where elevated temperatures exist • Water table free surface relatively unrelated to topography • Relationship between K and infiltration has strong influence on flow patterns

  19. Carbonate Terrain • 10% of global systems supplying >25% global population with water supply • Self-organized networks of solution enlarged fractures • Dual porosity systems – matrix dominates storage – fractures dominate flow • Tracer velocities up to 21 km/d (0.25 m/s) have been measured • A few springs integrate flow from large areas

  20. Groundwater in Coastal Regions • Freshwater flow limits saltwater encroachment • Development disturbs natural balance and can lead to major seawater intrusion • Control of saline intrusion achieved by: • Artificial recharge of freshwater • Reduction and rearrangement of wells • Development of coastal trough to limit intrusion • Development of coastal pressure ridge • Installation of subsurface flow barriers

  21. Small seawater wedge balanced by net outflow to ocean Seawater wedge advances inland as a result of pumping Mixing as a result of fluctuations in aquifer recharge Saline Intrusion

  22. Interface assumed rigid Fluids assumed immiscible Segregated flow Pressures for fluid columns onshore and offshore are assumed to balance gsz =gf(hf + z) z = hfgf / (gs - gf) Assuming gf = 1000 kN/m3 and gs = 1025 kN/m3 the depth to the saline interface z  40 hf This is called the Ghyben-Hertzberg formula. hf z z Ghyben-Hertzberg

  23. Seepage face below sea level (x,z) is point on interface Q’ = Q/L is discharge per unit length of coast z2 = 2Q’xrf + { Q’rf } 2 K(rs – rf) K(rs - rf) The depth to the interface at the coast (x=0) is: z = Q’rf K(rs – rf) The height of the water table for any x is: hf = 2Q’x (rs – rf) K rf The greater the flow, the deeper the interface and the greater the gap x. Glover Analysis x hf z m Interface Fresh water Salt water

  24. When pump wells lower the head above a saline interface, the interface rises. This is phenomenon is called “upconing”. There is an analytical solution that estimates the rise due to upconing for small perturbations of the saline interface. z = Q’rf _ 2pdK(rs – rf) The displacement process is unstable and premature breakthrough of salt water at the pump well occurs if z/d is greater than about 0.5. d z Upconing

  25. Surface Features • Surface features of groundwater flow (mainly discharge) include: • Springs • Seeps • Saline Soils • Permanent and Ephemeral Streams • Marshes, Swamps, Bogs and Fens (Wetlands) • Ponds, Sloughs and Lakes

  26. Prairie Profile Recharge Recharge Saline Seepage Saline Seepage • A central topographic high bounded by areas of natural discharge (Meyboom, 1966) • Geology is generaly low-K tills over higher-K intertill sands and gravels • No streams - most discharge occurs by evapotranspiration

  27. Groundwater and Vegetation • Willow rings occur around recharge sloughs and local discharge sloughs – phreatophytes with low alkali tolerance • Saline soils associated with intermediate to regional discharge systems – halophytes with high salt tolerance (foxtails, salicornia) • Discharge sloughs associated with region flow systems have high TDS and precipitate salts

  28. Bogs are characterized by spongy peat deposits, acidic waters, and a floor covered by a thick carpet of sphagnum moss. Bogs receive all or most of their water from precipitation rather than from runoff, groundwater or streams. Fens are peat-forming wetlands that receive nutrients from sources other than precipitation: usually from upslope drainage from soils and from groundwater. Fens differ from bogs because they are less acidic and have higher nutrient levels. They support a much more diverse ecology. Bogs and Fens

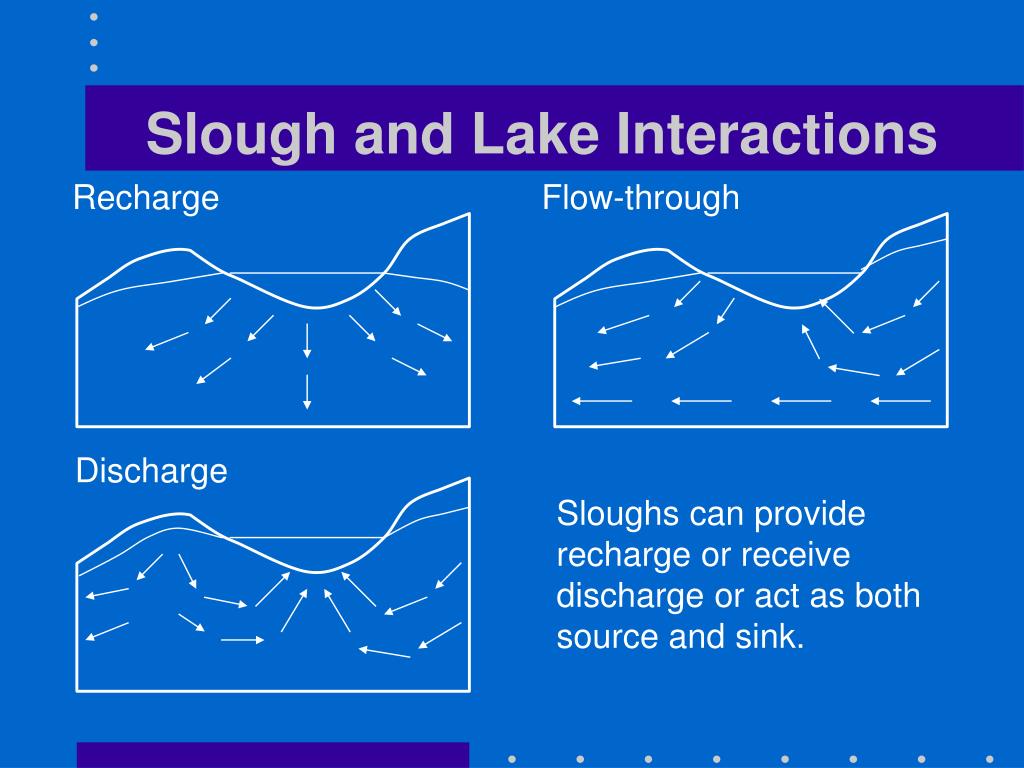

  29. Slough and Lake Interactions Recharge Flow-through Discharge Sloughs can provide recharge or receive discharge or act as both source and sink.

  30. Water entering the ground in recharge areas is transmitted to distant points and results in a soil moisture deficit in the soils overlying the recharge area Water entering the soil in a discharge areas cannot overcome the upward gradient and is returned to the surface by evapotranspiration locally. Recharge and Discharge Areas soil salinization dry

  31. Basin Hydrologic Cycle • How much groundwater participates in the basin hydrologic cycle? • Tóth estimates 90% of recharge never penetrates deeper than about 80 m. • Tritium studies confirm this theoretical estimate. • Many streams receive much of their baseflow component from the area within the nearest topographic high • Regional flow components are small compared with locally derived flows.
