  1. Winlink & AirMail Intro • Winlink2000 system overview • Global messaging service • Internet, HF & VHF/UHF components • AirMail client program (gotta have users) • Familiar interface, multi-mode • Gateways & Relays, even APRS • What can we do with this ? • Additional information references Huntsville - Madison County ARES / RACES

  2. Winlink2000 system overview • Global messaging service : From the beginning, Winlink2000 was designed to be compliant with IETF RFC 2821 in format so that it could provide direct Radio users and Internet third-party users seamless, transparent email with attachments of reasonable size without any additional stress or learning curve.This allows any mobile or portable operation to interface into the Internet e-mail system from virtually anywhere in the World over the various separate classes of users - such as Army MARS or the Amateur service. Each class of service is totally separated from the next so that boundaries and purposes are not mixed. Army MARS only sees Army MARS stations and users, while the Amateur stations only see other Amateur stations and users. Huntsville - Madison County ARES / RACES

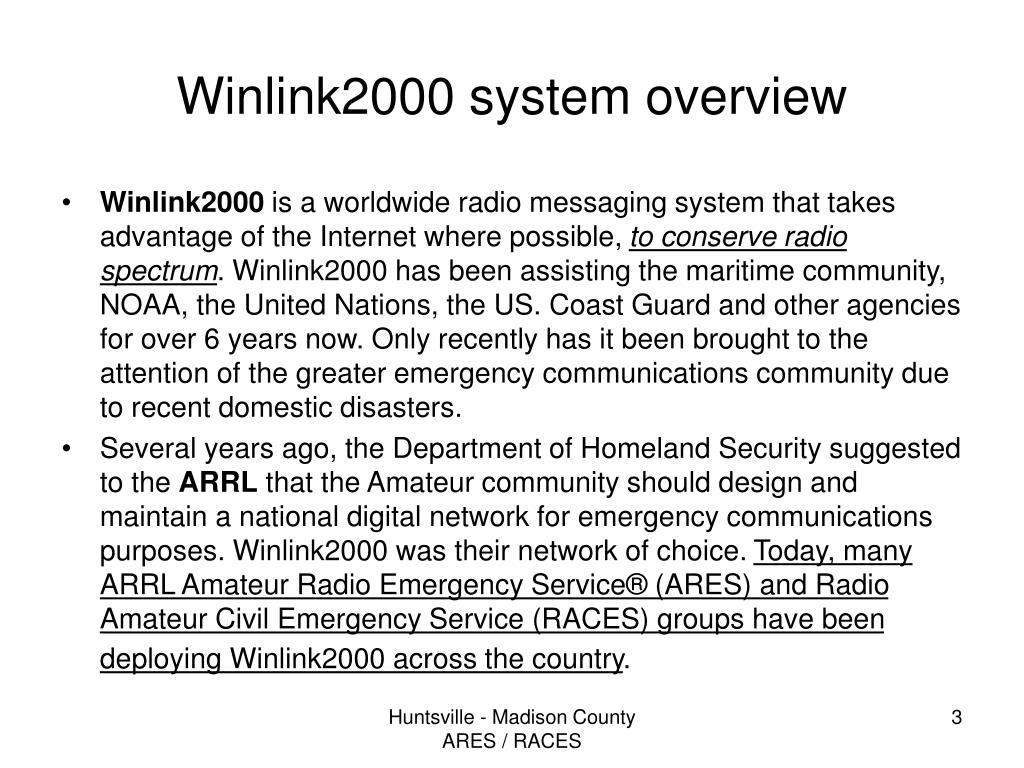

  3. Winlink2000 system overview • Winlink2000 is a worldwide radio messaging system that takes advantage of the Internet where possible, to conserve radio spectrum. Winlink2000 has been assisting the maritime community, NOAA, the United Nations, the US. Coast Guard and other agencies for over 6 years now. Only recently has it been brought to the attention of the greater emergency communications community due to recent domestic disasters. • Several years ago, the Department of Homeland Security suggested to the ARRL that the Amateur community should design and maintain a national digital network for emergency communications purposes. Winlink2000 was their network of choice. Today, many ARRL Amateur Radio Emergency Service® (ARES) and Radio Amateur Civil Emergency Service (RACES) groups have been deploying Winlink2000 across the country. Huntsville - Madison County ARES / RACES

  4. Winlink2000 system overview • Internet, HF & VHF/UHF components :The Winlink2000 system is a "star" based network containing 5 mirror image, redundant COMMON MESSAGE SERVERS (CMS); located in San Diego (USA), Washington DC (USA), Wien (Austria), Halifax (Canada), and Perth (Australia). These ensure that the system will remain in operation should any chunk of the Internet become inoperative. Traffic goes in and out between the CMS and the Internet email recipient, and between the end users and the RADIO MESSAGE SERVER (RMS) gateways. Multiple Radio-to-Radio addresses may be mixed with radio-to-internet e-mail addresses, allowing complete flexibility. Huntsville - Madison County ARES / RACES

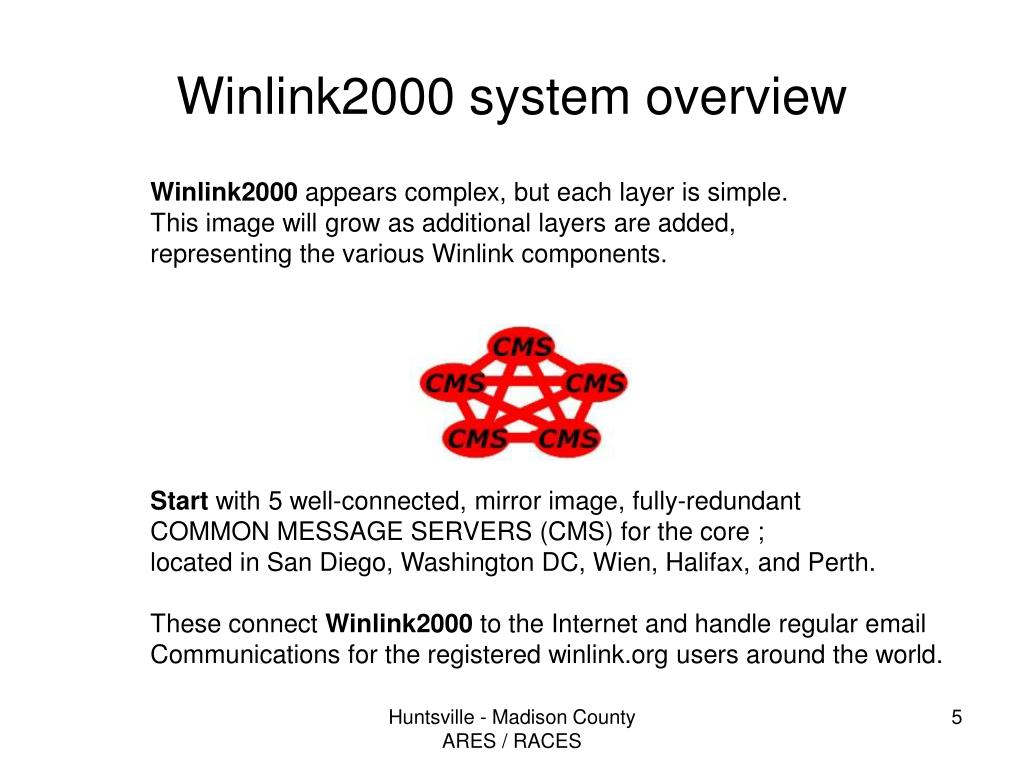

  5. Winlink2000 system overview Winlink2000 appears complex, but each layer is simple. This image will grow as additional layers are added,representing the various Winlink components. Start with 5 well-connected, mirror image, fully-redundant COMMON MESSAGE SERVERS (CMS) for the core ; located in San Diego, Washington DC, Wien, Halifax, and Perth.These connect Winlink2000 to the Internet and handle regular email Communications for the registered winlink.org users around the world. Huntsville - Madison County ARES / RACES

  6. Winlink2000 system overview Add HF Paclink to connect via HF radios or the Internet to the core… Huntsville - Madison County ARES / RACES

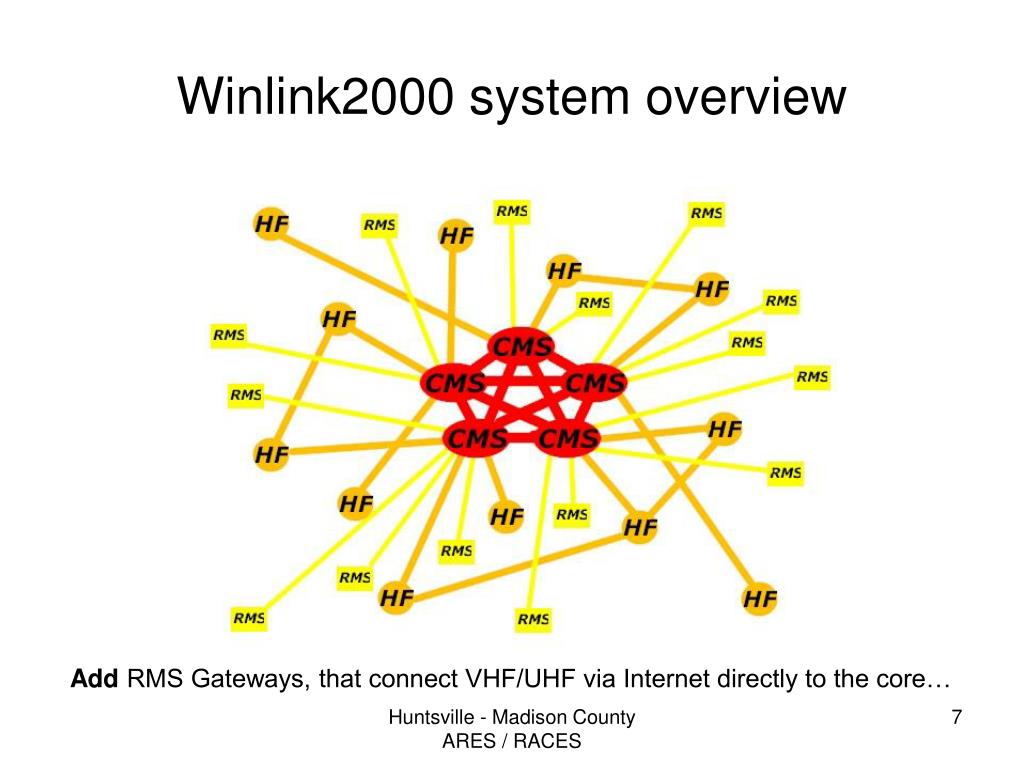

  7. Winlink2000 system overview Add RMS Gateways, that connect VHF/UHF via Internet directly to the core… Huntsville - Madison County ARES / RACES

  8. Winlink2000 system overview Add AirMail Client stations, that can connect end users in many ways… Huntsville - Madison County ARES / RACES

  9. Winlink2000 system overview Add Relay stations for efficiency and to handle brief outages, Huntsville - Madison County ARES / RACES

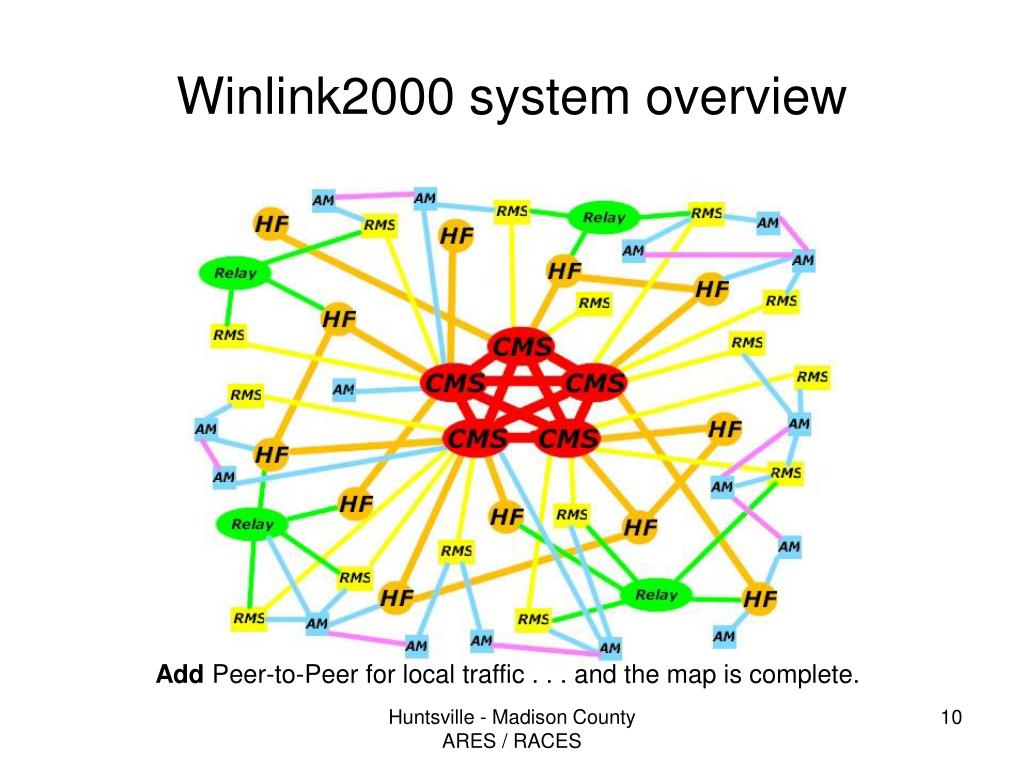

  10. Winlink2000 system overview Add Peer-to-Peer for local traffic . . . and the map is complete. Huntsville - Madison County ARES / RACES

  11. AirMail client program • Familiar interface, multi-mode capable:To make it simple and attractive, a clean and functional client program was necessary to make this an efficient process. AirMail was designed to look and feel like more common email clients that folks were accustomed to.This program can connect via HF, VHF, or the internet.It shows an inbox, an outbox, and has an address book. You can attach small files, just like regular email. You can use this to send email to an internet address. Very simple, and straightforward. We like simplicity.!. Huntsville - Madison County ARES / RACES

  12. AirMail client program • The first time you connect to a CMS it creates your account. You can then even access that account with your internet web browser. There is even an auto-white-list to help block SPAM. • You can originate an email message with your computer and your radio that can be delivered to any valid internet email address worldwide ;…(think 3rd party messages for a served agency)… … ( thinkICS213 forms, think Health & Welfare ) … … ( think . . . . . . . . . . . . . ) … Huntsville - Madison County ARES / RACES

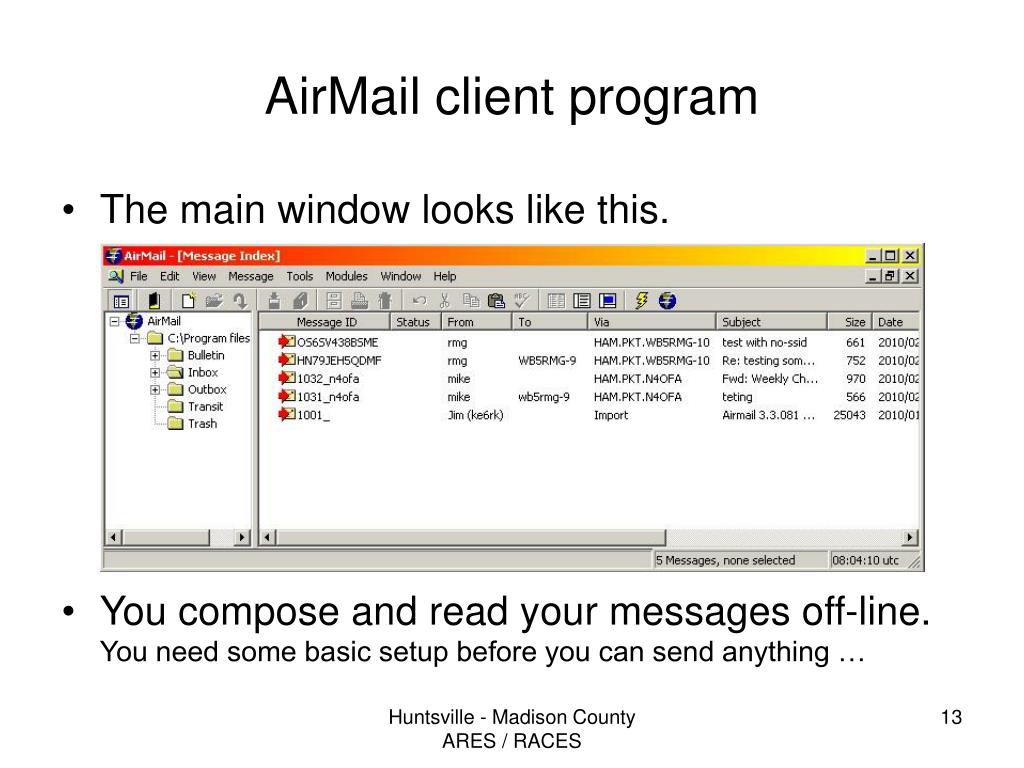

  13. AirMail client program • The main window looks like this. • You compose and read your messages off-line.You need some basic setup before you can send anything … Huntsville - Madison County ARES / RACES

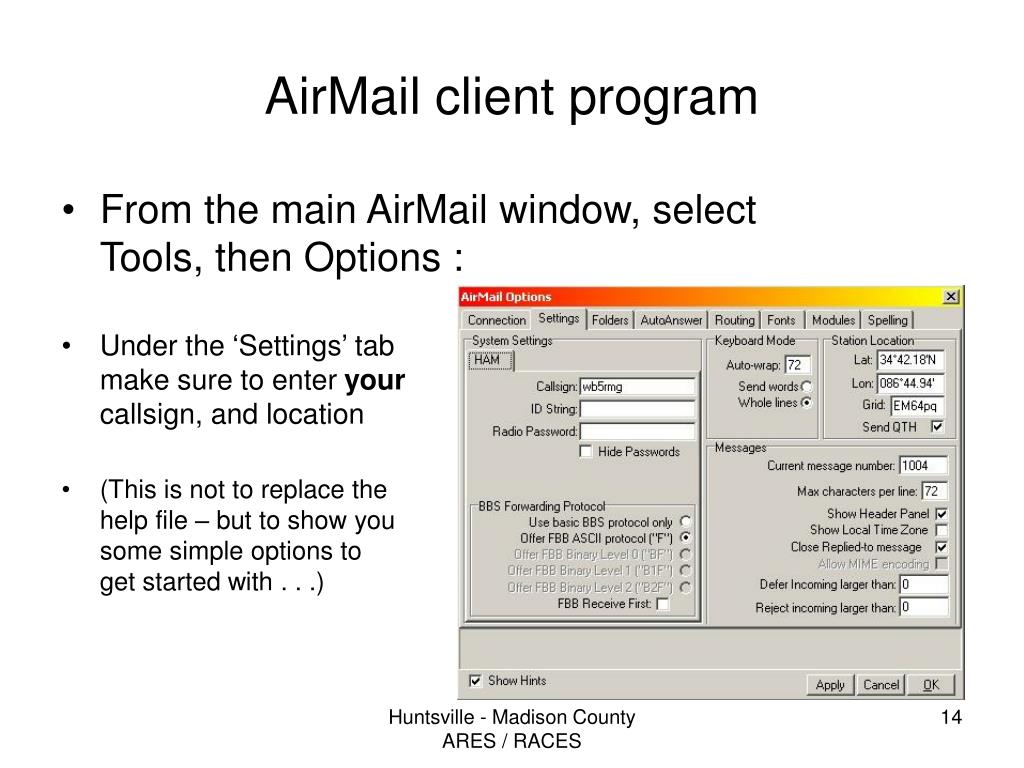

  14. AirMail client program • From the main AirMail window, selectTools, then Options : • Under the ‘Settings’ tabmake sure to enter yourcallsign, and location • (This is not to replace thehelp file – but to show yousome simple options toget started with . . .) Huntsville - Madison County ARES / RACES

  15. AirMail client program • Then on the ‘Modules’ tab, you select which modules will be configured for use : • ‘Terminal’ is for keyboardsessions • ‘VHF packet’ is to setupyour local RF link • ‘Internet’ is to connect viathe internet with telnet Huntsville - Madison County ARES / RACES

  16. AirMail client program • If you select the ‘VHF Packet’ module,click the ‘setup’ button : • Here you select your TNCand COMport & baud rate • In my case I’m using theAMPEstreams programwhich connects to AGWPE(because my TNC is really old). • Soundcard support andconfiguration will not becovered here … Huntsville - Madison County ARES / RACES

  17. AirMail client program • Or – configure the Telnet interface, and connect to the CMS using the internet. This is the easiest way to create your account initially.(of course use your callsign, not mine) • I have both setup on my laptop;at home it connects over the internet,but I can take it portable and usea VHF radio and connect to anRMS Gateway . . . • I’m not going to cover HF here… Huntsville - Madison County ARES / RACES

  18. AirMail client program • Compose a new message • Post the message for sending • Connect, and it does both send & receive. Huntsville - Madison County ARES / RACES

  19. AirMail client program • With a TNC or soundcard modem, you would use the packet module, which connects and provides status, like this. Huntsville - Madison County ARES / RACES

  20. Gateways & Relays, even APRS • The basic idea is to get your (email) message to the internet, and allow you to retrieve messages sent to you. • With the various gateways on VHF, D-Star, and even APRS – this actually works better than you might think. • A new ‘Relay’ program allows a gateway station to even hold the messages during an outage for relay later, or by way of an alternate HF station… The relay software can even allow local traffic to deliver locally. • Currently, there are more than 15,000 radio users on all the classes of users and approximately 100,000 Internet recipients. Monthly traffic averages over 150,000 messages. This is in place, and is working.!.!. Huntsville - Madison County ARES / RACES

  21. HF & VHF Gateways • HF enables long-rangeconnectivity usingPactor 1, 2 & 3 • VHF provides last-mileconnectivity usingAX-25, D-Star &802.11 Huntsville - Madison County ARES / RACES

  22. VHF Gateways • The new RMS Gateways havereplaced Telpak, for widelydeployed local VHF connectivity.They connect in real-timeto a CMS. • VHF provides last-mileconnectivity usingAX-25, D-Star & 802.11to the Airmail users. • This map updates thruthe day to indicate whichrelays have been active. Huntsville - Madison County ARES / RACES

  23. VHF Gateways • Looks like we have a bitof sparse coverage herein the deep south. • My guess is that manygroups have not yetrecognized how wellthis system is working. • We all can help byusing it and spreadingthe word . . . . . Huntsville - Madison County ARES / RACES

  24. What can we do with this ? • This network grows each time a new user registers on winlink.org via Airmail. If you have an internet connection (and who doesn’t these days) – you can download Airmail and setup with a telnet connection. Register your callsign. Take simple steps to expand. • If you have VHF radios and an old idle TNC from the old days of packet radio, hook it up, and practice how you could use it if/when your internet was down. If you have enough equipment, consider establishing another RMS gateway in your area. To be most effective – each locality needs to have overlapping gateways, ideally connected via different ISP service. Think of contingency operations. • If you have HF capability and digital desires, consider Pactor.Yeah the fancy higher-speed modems are not cheap, but this does work – and during an emergency it may be ALL that is working. Huntsville - Madison County ARES / RACES

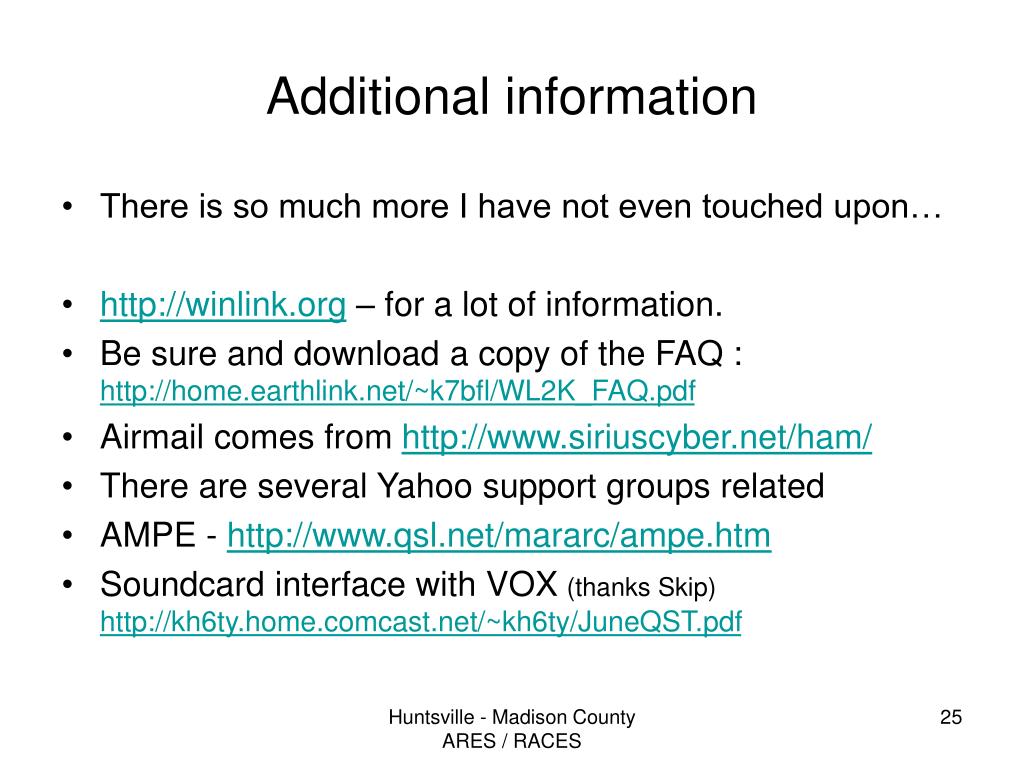

  25. Additional information • There is so much more I have not even touched upon… • http://winlink.org – for a lot of information. • Be sure and download a copy of the FAQ :http://home.earthlink.net/~k7bfl/WL2K_FAQ.pdf • Airmail comes from http://www.siriuscyber.net/ham/ • There are several Yahoo support groups related • AMPE - http://www.qsl.net/mararc/ampe.htm • Soundcard interface with VOX (thanks Skip)http://kh6ty.home.comcast.net/~kh6ty/JuneQST.pdf Huntsville - Madison County ARES / RACES
