1. COMP108Algorithmic FoundationsAlgorithm efficiency + Searching/Sorting Prudence Wong http://www.csc.liv.ac.uk/~pwong/teaching/comp108

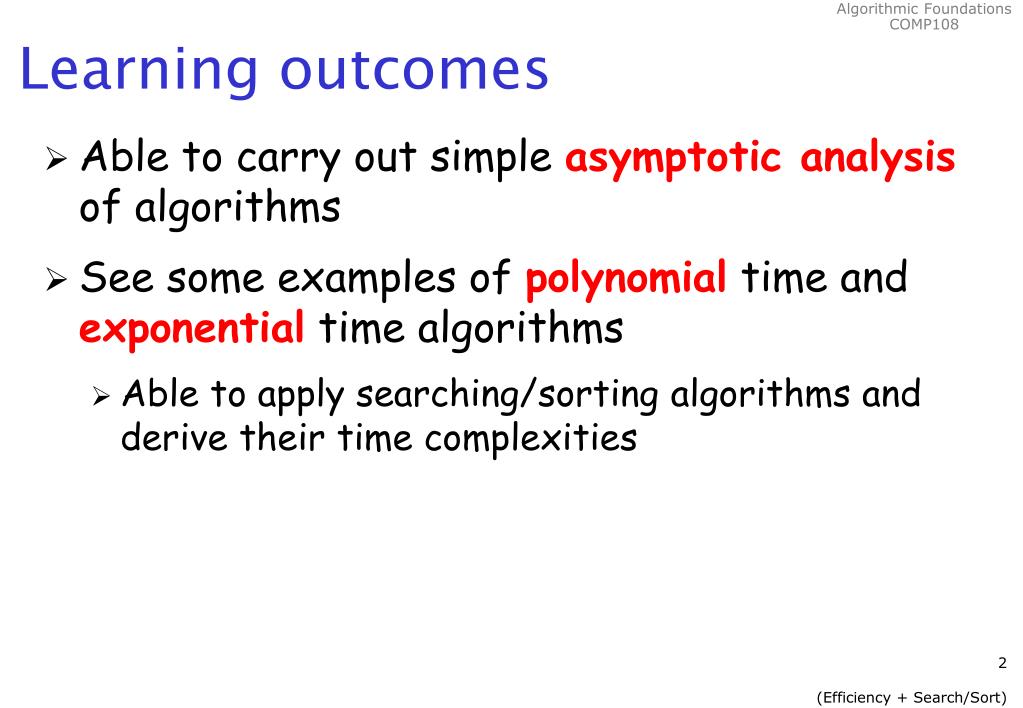

2. Learning outcomes • Able to carry out simple asymptotic analysis of algorithms • See some examples of polynomial time and exponential time algorithms • Able to apply searching/sorting algorithms and derive their time complexities

3. Time Complexity Analysis • How fast is the algorithm? Code the algorithm and run the program, then measure the running time • Depend on the speed of the computer • Waste time coding and testing if the algorithm is slow Identify some important operations/steps and count how many times these operations/steps needed to executed

4. Time Complexity Analysis • How to measure efficiency? Number of operations usually expressed in terms of input size • If we doubled the input size, how much longer would the algorithm take?If we trebled the input size, how much longer would it take?

5. Why efficiency matters? • speed of computation by hardware has been improved • efficiency still matters • ambition for computer applications grow with computer power • demand a great increase in speed of computation

6. Amount of data handled matches speed increase? • When computation speed vastly increased, can we handle much more data? • Suppose • an algorithm takes n2comparisons to sortn numbers • we need 1 sec to sort 5 numbers (25 comparisons) • computing speed increases by factor of100 • Using 1 sec, we can now perform100x25comparisons,i.e., to sort50 numbers • With 100 times speedup, only sort 10 times more numbers!

7. Time Complexity Analysis input n sum = 0 for i = 1 to n do begin sum = sum + i end output sum • Important operation of summation: addition • How many additions this algorithm requires? We need n additions (depend on the input size n)

8. Space Complexity Analysis input n sum = 0 for i = 1 to n do begin sum = sum + i end output sum We need to store the number n, the variable sum, and the index i => needs 3 memory space In this example, the memory space does not depend on the input size n In other case, it may depend on the input size n

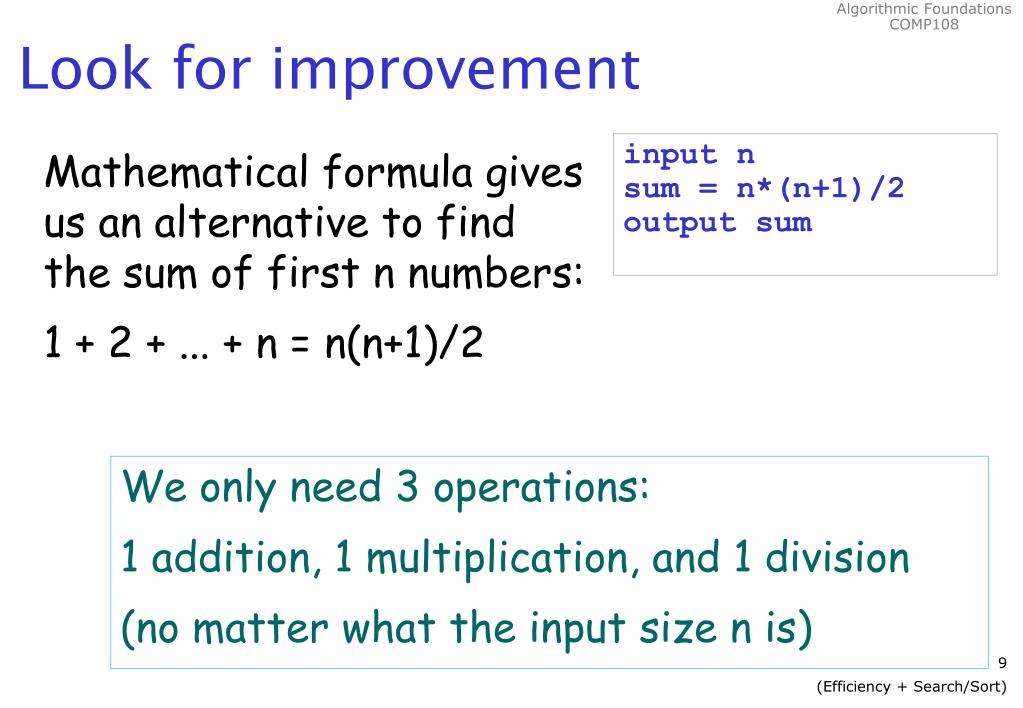

9. Look for improvement input n sum = n*(n+1)/2 output sum Mathematical formula gives us an alternative to find the sum of first n numbers: 1 + 2 + ... + n = n(n+1)/2 We only need 3 operations: 1 addition, 1 multiplication, and 1 division (no matter what the input size n is)

10. Finding the minimum...

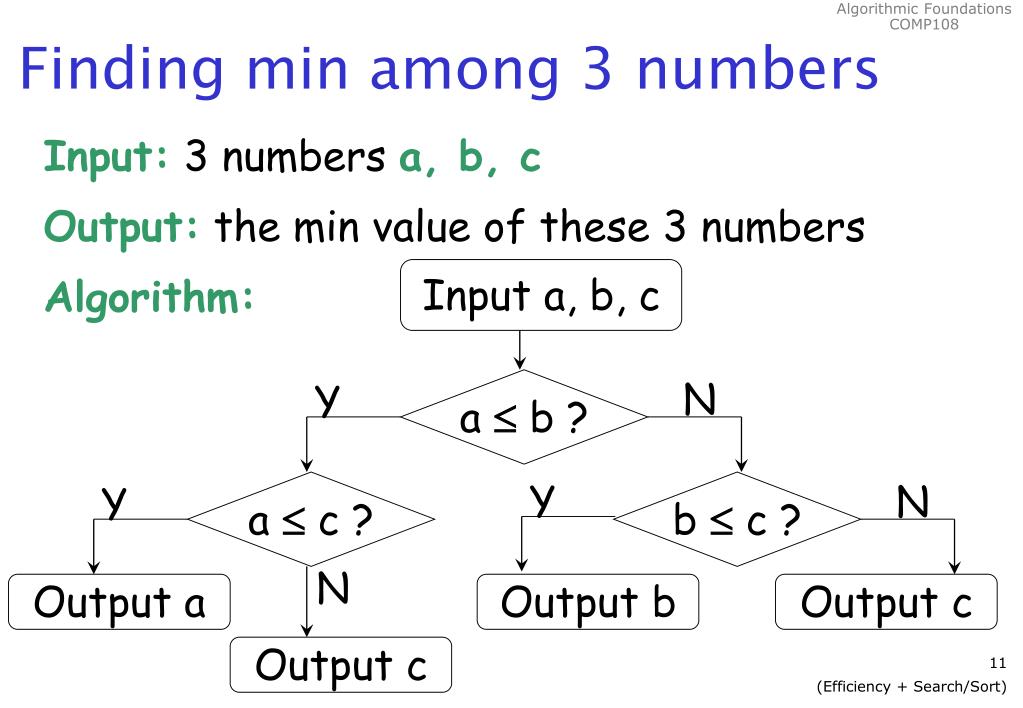

11. Finding min among 3 numbers Input: 3 numbers a, b, c Output: the min value of these 3 numbers Algorithm: Input a, b, c a  b ? N Y a  c ? Y b  c ? N Y N Output a Output b Output c Output c

12. Finding min among 3 numbers Example 1 Input a, b, c a=3, b=5, c=2 Y N a  b ? a  c ? Y b  c ? N Y N Output a Output b Output c Output c 2 is output

13. Finding min among 3 numbers Example 2 Input a, b, c a=6, b=5, c=7 Y N a  b ? a  c ? Y b  c ? N Y N Output a Output b Output c Output c 5 is output

14. Time Complexity Analysis • Important operation: comparison • How many comparison this algorithm requires? input a, b, c if (a  b) then if (a  c) then output a else output c else if (b  c) then output b else output c It takes 2 comparisons

15. Finding min among n numbers Input a0, a1, ... Any systematic approach? a0  a1 ? N Y a0  a2 ? Y a1  a2 ? Y N N a0  a3 ? a1  a3 ? a2  a3 ? a2  a3 ?

16. Finding min among n numbers Input a[0], a[1], ..., a[n-1] min = 0 i = 1 i = i+1 i < n? N Y Output a[min] a[i] < a[min]? Y min = i N

17. Finding min among n numbers input a[0], a[1], ..., a[n-1] min = 0 i = 1 while (i <n) do begin if (a[i] < a[min]) then min = i i = i + 1 end output a[min] Example a[]={50,30,40,20,10} 0 50 1 30 1 30 3 20 4 10

18. Finding min among n numbers n-1 • Time complexity: ?? comparisons input a[0], a[1], ..., a[n-1] min = 0 i = 1 while (i <n) do begin if (a[i] < a[min]) then min = i i = i + 1 end output a[min]

19. Finding min using for-loop • Rewrite the above while-loop into a for-loop input a[0], a[1], ..., a[n-1] min = 0 for i = 1 to n-1 do begin if (a[i] < a[min]) then min = i end output a[min]

20. Time complexity- Big O notation …

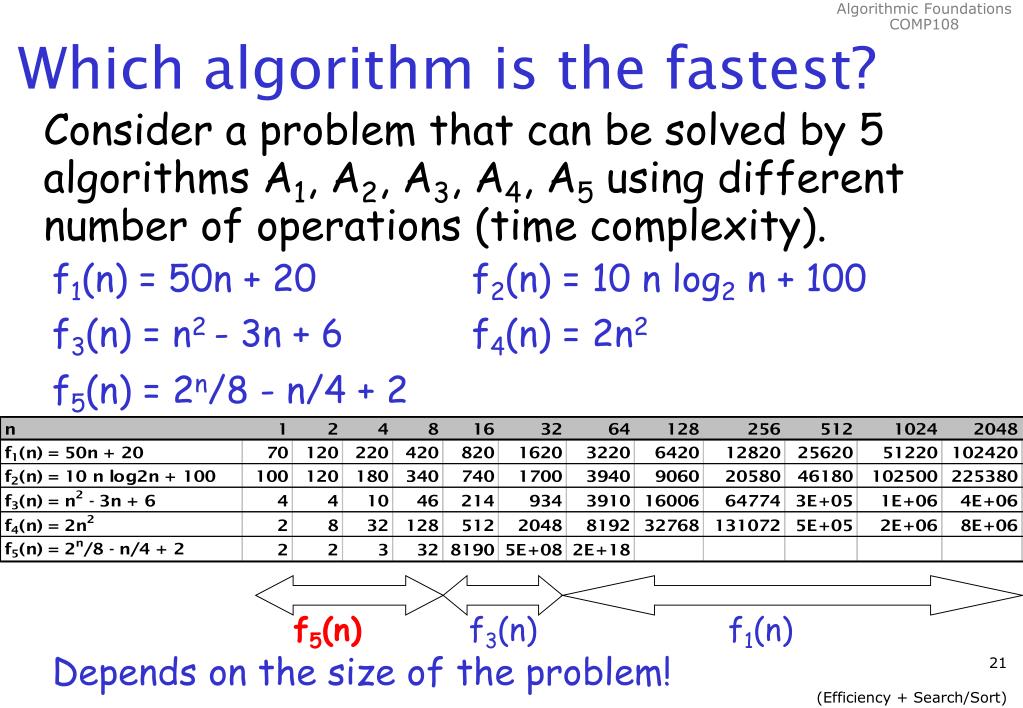

21. Which algorithm is the fastest? • Consider a problem that can be solved by 5 algorithms A1, A2, A3, A4, A5 using different number of operations (time complexity). f1(n) = 50n + 20 f2(n) = 10 n log2 n + 100 f3(n) = n2 - 3n + 6 f4(n) = 2n2 f5(n) = 2n/8 - n/4 + 2 f5(n) f3(n) f1(n) Depends on the size of the problem!

22. f1(n) = 50n + 20 f2(n) = 10 n log2n + 100 f3(n) = n2 - 3n + 6 f4(n) = 2n2 f5(n) = 2n/8 - n/4 + 2

23. What do we observe? • There is huge difference between • functions involving powers ofn (e.g., n, n log n, n2, called polynomial functions) and • functions involving powering by n (e.g., 2n, called exponential functions) • Among polynomial functions, those with same order of power are more comparable • e.g., f3(n) = n2 - 3n + 6 and f4(n) = 2n2

24. Growth of functions

25. Relative growth rate 2n n2 n log n c n

26. Hierarchy of functions • We can define a hierarchy of functions each having a greater order of magnitude than its predecessor: 1 log n n n2 n3 ... nk ... 2n constant logarithmic polynomial exponential • We can further refine the hierarchy by inserting n log n between n and n2,n2 log n between n2 and n3, and so on.

27. Hierarchy of functions (2) 1 log n n n2 n3 ... nk ... 2n • Important: as we move from left to right, successive functions have greater order of magnitude than the previous ones. • As n increases, the values of the later functions increase more rapidly than the values of the earlier ones. • Relative growth rates increase constant logarithmic polynomial exponential

28. Hierarchy of functions (3) 1 log n n n2 n3 ... nk ... 2n • Now, when we have a function, we can assign the function to some function in the hierarchy: • For example, f(n) = 2n3 + 5n2 + 4n + 7The term with the highest power is 2n3.The growth rate of f(n) is dominated by n3. • This concept is captured by Big-O notation constant logarithmic polynomial exponential

29. Big-O notation • f(n) = O(g(n)) [read as f(n) is of order g(n)] • Roughly speaking, this means f(n) is at most a constant times g(n) for all large n • Examples • 2n3 = O(n3) • 3n2 = O(n2) • 2n log n = O(n log n) • n3 + n2 = O(n3) • function on L.H.S and function on R.H.S are said to have the same order of magnitude

30. Big-O notation - formal definition • f(n) = O(g(n)) • There exists a constant c and no such that f(n) cg(n) for all n > no • cnon>no then f(n)  cg(n)

31. f(n) = O(g(n) – Graphical illustration constant c & no such thatn>no, f(n)  c g(n) c g(n) f(n) n0

32. Example – n+60 = O(n) 2n n + 60 n c=2, n0=60 n0 constant c & no such that n>no, f(n)  c g(n)

33. Example – 2nlog2n+100n+1000 = O(n log n) 3 n log n c=3, n0=600 f(n) n log n n0 constant c & no such that n>no, f(n)  c g(n)

34. f(n) = O(g(n))? c g(n) f(n) value of f(n) for n<n0does NOT matter n0 constant c & no such that n>no, f(n)  c g(n)

35. Which one is the fastest? • Usually we are only interested in the asymptotic time complexity, i.e., when n is large • O(log n) < O(n) < O(n) < O(n log n) < O(n2) < O(2n)

36. Proof of order of magnitude • Show that 2n2 + 4n is O(n2) • Since n  n2 for all n>1,we have 2n2 + 4n  2n2 + 4n2 6n2for all n>1. • Therefore, by definition, 2n2 + 4n is O(n2). • Show that n3+n2logn+n is O(n3) • Since n n3 and log n  n for all n>1,we have n2 log n  n3, andn3 + n2log n + n 3n3for all n>1. • Therefore, by definition, n3+n2logn+n is O(n3).

37. Exercise • Determine the order of magnitude of the following functions. • n3 + 3n2 + 3 • 4n2 log n + n3 + 5n2 + n • 2n2 + n2 log n • 6n2 + 2n O(n3) O(n3) O(n2 log n) O(2n)

38. Exercise (2) • n3 = n3 n • 3n2  3n3 n1 • 3  3n3n1 •  n3+3n2+3  7n3 n1 • Prove the order of magnitude • n3 + 3n2 + 3 • n3 = n3 n • 3n2  n3 n3 • 3  n3n2  n3 + 3n2 + 3  3n3 n3 • 4n2 log n + n3 + 5n2 + n • 4n2 log n  4n3 n1 • n3 = n3 n • 5n2  n3 n5 • nn3 n1  4n2 log n + n3 + 5n2 + n  7n3 n5 • 4n2 log n  4n3 n1 • n3 = n3 n • 5n2  5n3 n1 • nn3 n1  4n2log n+n3+5n2+n  11n3 n1

39. Exercise (2) cont’d • 2n2  2n2log n n2 • n2 log n = n2 log n n  2n2+n2log n  3n2log n n2 • Prove the order of magnitude • 2n2 + n2 log n • 2n2  n2 log n n4 • n2 log n = n2 log n n  2n2 + n2 log n  2n2 log n n4 • 6n2 + 2n • 6n2  6*2n n1 • 2n = 2n n  6n2 + 2n  7*2n n1

40. More Exercise • Are the followings correct? • n2log n + n3 + 3n2 + 3 O(n2)? • n + 1000 O(n)? • 6n20 + 2n O(n20)? • n3 + 5n2 logn + n O(n2 log n) ? O(n3) YES O(2n) O(n3)

41. Some algorithms we learnt input n sum = 0 for i = 1 to n do begin sum = sum + i end output sum • Computing sum of the first n numbers O(n) O(1) input n sum = n*(n+1)/2 output sum O(?) O(?) Finding the min value among n numbers min = 0 for i = 1 to n-1 do if (a[i] < a[min]) then min = i output a[min] O(n) O(?)

42. More exercise • What is the time complexity of the following pseudo code? for i = 1 to 2n do for j = 1 to n do x = x + 1 O(n2) O(?) The outer loop iterates for 2n times. The inner loop iterates for n times for each i. Total: 2n * n = 2n2.

43. Learning outcomes • Able to carry out simple asymptotic analysis of algorithms • See some examples of polynomial time and exponential time algorithms • Able to apply searching/sorting algorithms and derive their time complexities

44. More polynomial time algorithms - searching …

45. Searching • Input: a sequence of n numbers a0, a1, …, an-1; and a number X • Output: determine whether X is in the sequence or not • Algorithm (Linear search): • Starting from i=0, compare X with ai one by one as long as i < n. • Stop and report "Found!" when X = ai . • Repeat and report "Not Found!" when i >= n.

46. Linear Search To find 7 • 12 34 2 9 7 5 six numbers7number X • 12 34 2 9 7 57 • 12 34 2 9 7 57 • 12 34 2 9 7 57 • 12 34 2 9 7 57found!

47. Linear Search (2) To find 10 • 12 34 2 9 7 510 • 12 34 2 9 7 510 • 12 34 2 9 7 510 • 12 34 2 9 7 510 • 12 34 2 9 7 510 • 12 34 2 9 7 510not found!

48. Linear Search (3) • i = 0 • while i < n do • begin • if X == a[i] then • report "Found!" and stop • else • i = i+1 • end • report "Not Found!"

49. Time Complexity i = 0 while i < n do begin if X == a[i] then report "Found!" & stop else i = i+1 end report "Not Found!" • Important operation of searching: comparison • How many comparisons this algorithm requires? Best case: X is the 1st no., 1 comparison, O(1) Worst case: X is the last no. OR X is not found, n comparisons, O(n)

50. Improve Time Complexity? If the numbers are pre-sorted, then we can improve the time complexity of searching by binary search.
