  1. Cloud Concepts Rick Fleming HP Federal Practice Lead February 2009

  2. The Third Generation reach TheCloud virtualized services TheWeb information &e-commerce TheInternet “A pool of abstracted, highly scalable, and managed infrastructure capable of hosting end-customer applications and billed by consumption,” Forrester connectivity time 1970 1980 1990 2000 2005 2010 2020 2

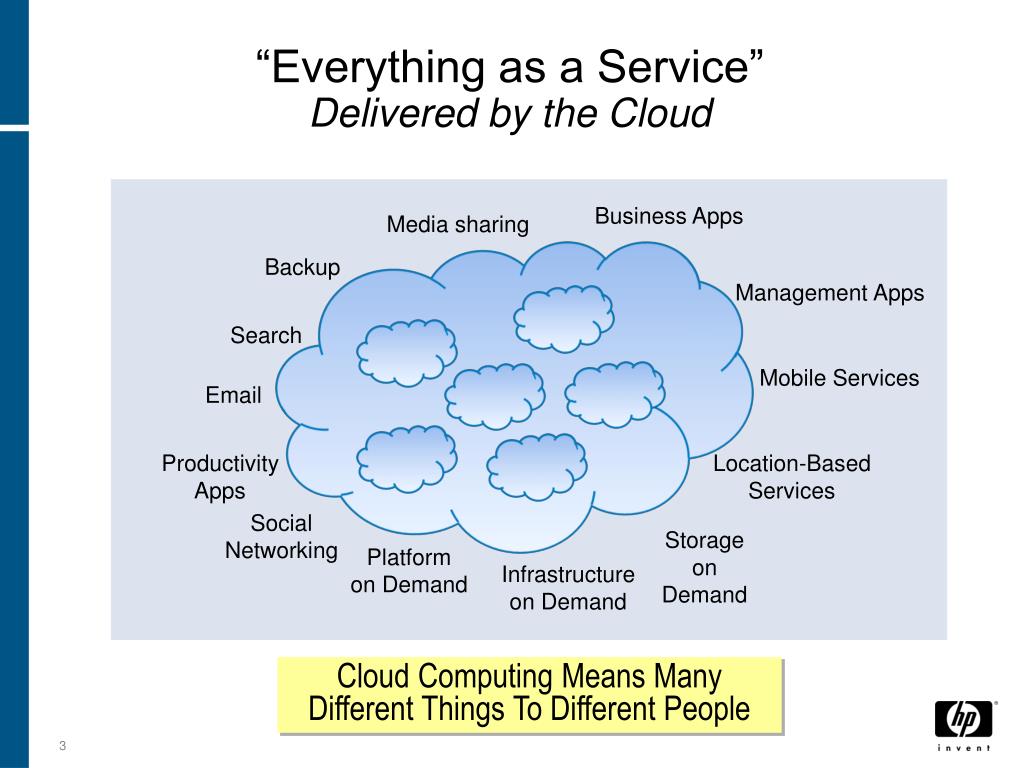

  3. “Everything as a Service”Delivered by the Cloud Business Apps Media sharing Backup Management Apps Search Mobile Services Email ProductivityApps Location-BasedServices SocialNetworking Storage onDemand Platformon Demand Infrastructureon Demand Cloud Computing Means Many Different Things To Different People 3

  4. What do we mean by cloud? Service providers Service users The cloud is a means by which global class, highly scalable and flexible services can be delivered and consumed over the internet through an as-needed, pay-per-use business model. What’s new? New access: everything is a service New capabilities: multi-tenant software New connections: information in context

  5. The cloud (r)evolution: solving problems that current technology models can’t solve Service providers Service users New connections Services and data break apart Information relevance New capabilities Flexible consumption Multi-tenant applications New accessEaaS Existing apps and infrastructure Contract-based consumption Technology over the internet

  6. Massive Scale-out and the Cloud 6 17 Decmeber 2008

  7. Adaptive Infrastructure and Business Technology Optimization enable an automated service environment Business outcomes Business outcome Technology-enabledservices Business Technology Optimization Enterprise-class applications Global-class cloud services Infrastructure as a service Adaptive Infrastructure Pooled resources -- shared infrastructure Adaptive Infrastructure Pooled resources -- shared infrastructure Internally hosted Infrastructure Utilityheterogeneous, distributed design Infrastructure Utilityhomogeneous, centralized design Externally hosted

  8. Cloud Computing Defined • What is the Cloud? Applications are increasingly “click to run” services that live in remote Internet data centers – not on the PC or local server. They scale to millions and use shared IT infrastructure. • Not all applications will move to the cloud. However, we believe that on the margin, new applications, usage and customers are moving to the cloud. • This is a disruptive change, impacting the user experience, the economics of the IT industry, product design, how companies go to market, and value capture for developers, distributors & partners. Cloud Applications On-Demand Applications MIDDLEWARE DATABASE PLATFORMS Cloud Infrastructure COMPUTING STORAGE NETWORK

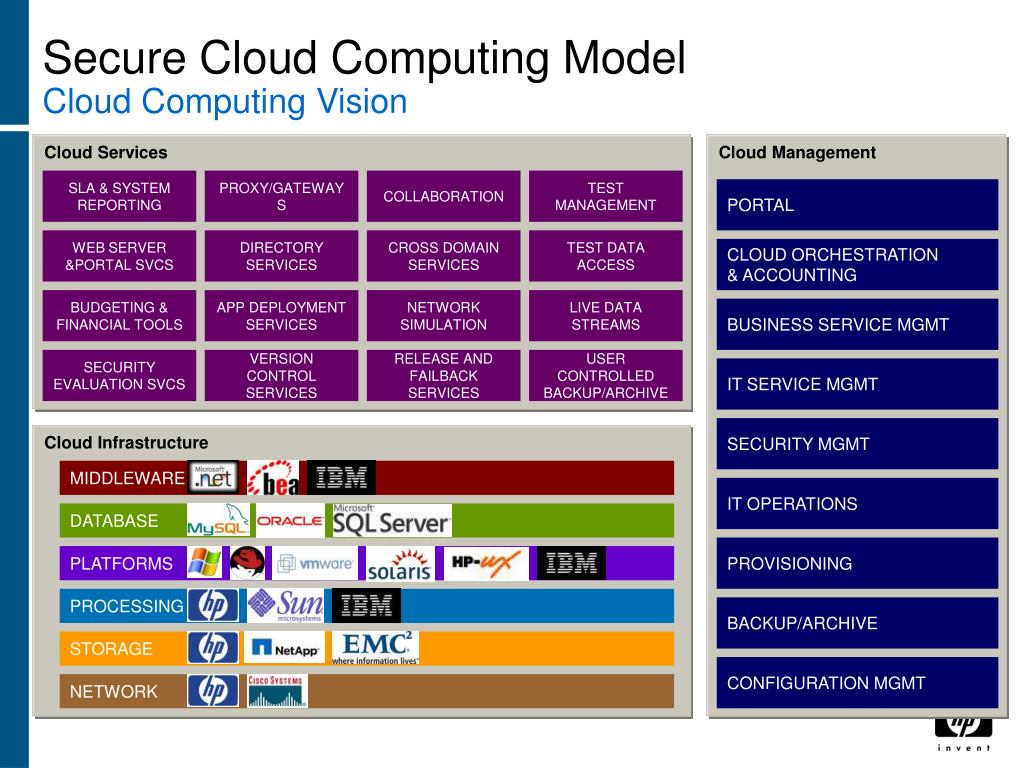

  9. Secure Cloud Computing Model Cloud Computing Vision Cloud Services Cloud Management SLA & SYSTEM REPORTING PROXY/GATEWAYS COLLABORATION TEST MANAGEMENT PORTAL WEB SERVER &PORTAL SVCS DIRECTORY SERVICES CROSS DOMAIN SERVICES TEST DATA ACCESS CLOUD ORCHESTRATION & ACCOUNTING BUDGETING & FINANCIAL TOOLS APP DEPLOYMENT SERVICES NETWORK SIMULATION LIVE DATA STREAMS BUSINESS SERVICE MGMT SECURITY EVALUATION SVCS VERSION CONTROL SERVICES RELEASE AND FAILBACK SERVICES USER CONTROLLED BACKUP/ARCHIVE IT SERVICE MGMT SECURITY MGMT Cloud Infrastructure MIDDLEWARE IT OPERATIONS DATABASE PROVISIONING PLATFORMS PROCESSING BACKUP/ARCHIVE STORAGE CONFIGURATION MGMT NETWORK

  10. Benefits of Secure Cloud ComputingStakeholder Views and Solution Aspects Benefits of Cloud Computing Span the Organization

  11. Infrastructure delivery options: On premises Off premises Mission critical Predictable demand High security Legacy / heterogeneous High internal staffing Mission critical Predictable demand High security Reduced cap ex Reduced internal staffing Dedicated W W W W W W Non-critical Variable demand High security and performance transparency Some standardization Non-critical Variable demand Lower security and performance transparency Highly standardized W W W W Shared W W W W

  12. The Dynamic Development Environment (DDE) DDE Overview. The Dynamic Development Environment (DDE) is a free foundation service for HP-IT teams that provides multiple development environments on demand leveraging existing HP services and standards. Our model is fully-automated self-service environment. A standardized development environment. A dynamic resource. A means to reduce hardware hoarded “just in case”. For development, debug, and unit test. Built on dependable servers and SAN. DDE Benefits Reduces number of physical servers required. Reduces the number of operating system instances. Quicker turn around time when provisioning aserver. Saving of server configurations for an application environment.

  13. OpenCirrus cloud computing research testbed http://www.cloudtestbed.org/ An open, internet-scale global testbed for cloud computing research a tool for collaborative research focus: data center management & cloud services Resources: Multi-continent, multi-datacenter, cloud computing system “Centers of Excellence” around the globe each with 100–400+ nodes and up to ~2PB storage and running a suite of cloud services Structure: a loose federation Sponsors: HP Labs, Intel Research, Yahoo! Initial Partners: UIUC, Singapore IDA, KIT, NSF 13 March 10, 2014 © Hewlett-Packard Company
