API 6A Gate Valve Seals_ Sour Service Certified

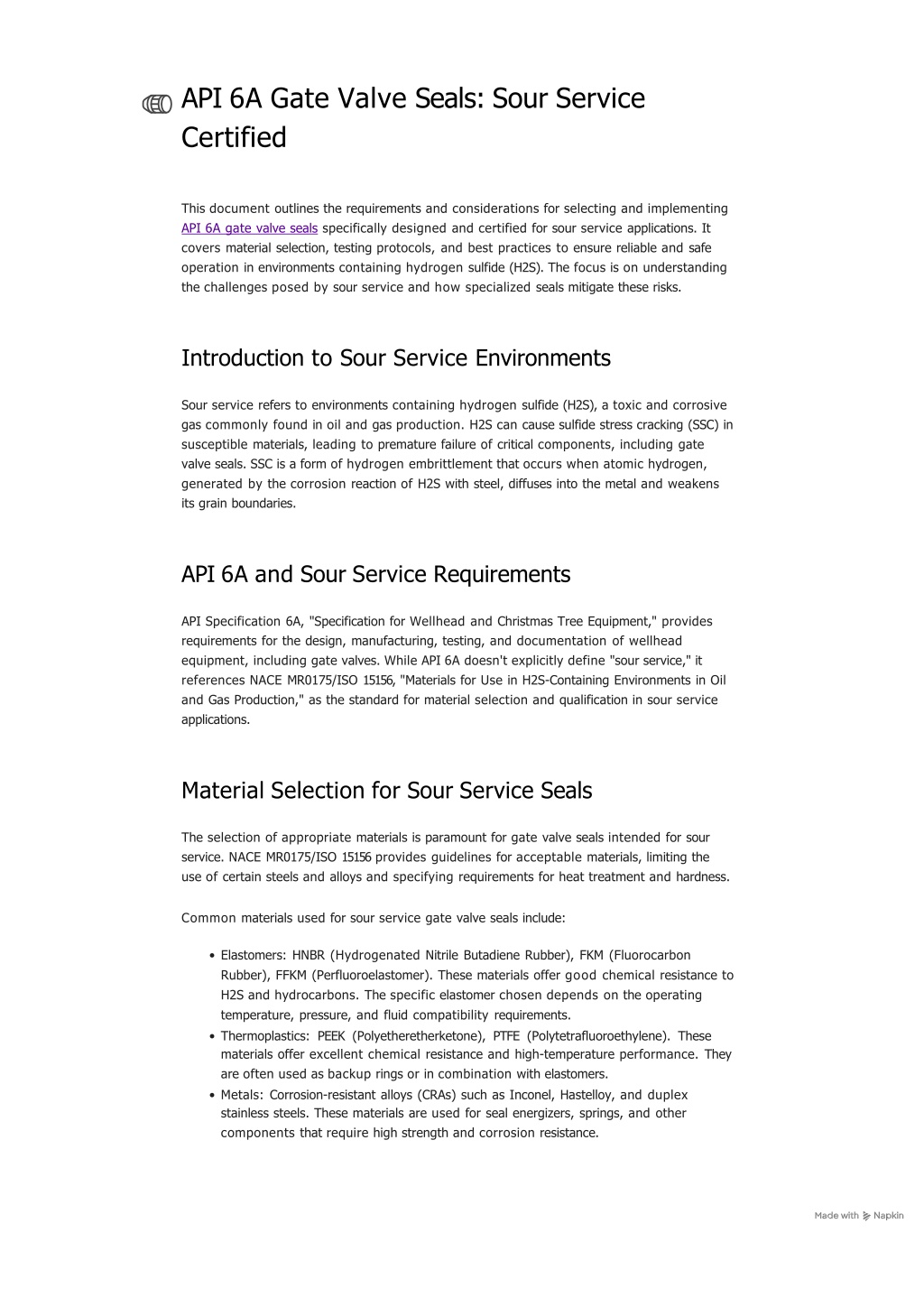

1. API6AGateValveSeals:SourService Certified Thisdocumentoutlinestherequirements and considerationsfor selecting and implementing API6Agatevalvesealsspecificallydesignedandcertifiedforsourserviceapplications.It coversmaterialselection,testingprotocols,andbestpracticestoensurereliableandsafe operationinenvironments containing hydrogensulfide(H2S).The focus isonunderstanding thechallengesposedbysourservice andhowspecializedsealsmitigatetheserisks. IntroductiontoSourServiceEnvironments Sourservicereferstoenvironmentscontaininghydrogensulfide(H2S),a toxicandcorrosive gascommonlyfoundin oil andgas production.H2Scancausesulfidestresscracking(SSC)in susceptiblematerials,leadingtoprematurefailureofcriticalcomponents,includinggatevalveseals.SSCisaformofhydrogenembrittlementthatoccurswhenatomichydrogen, generated by thecorrosionreactionofH2Swithsteel,diffusesintothemetalandweakensitsgrainboundaries. API6AandSourServiceRequirements APISpecification6A,"SpecificationforWellheadandChristmasTreeEquipment,"provides requirementsforthedesign,manufacturing,testing,anddocumentationofwellhead equipment,includinggate valves.WhileAPI6Adoesn'texplicitlydefine"sour service,"it referencesNACEMR0175/ISO15156,"MaterialsforUseinH2S-ContainingEnvironmentsinOil andGasProduction,"asthestandardformaterialselectionandqualificationinsourservice applications. MaterialSelectionforSourServiceSeals • Theselectionofappropriatematerialsisparamountforgatevalvesealsintendedforsour service. NACE MR0175/ISO15156provides guidelines foracceptablematerials,limitingtheuseofcertainsteelsandalloysandspecifyingrequirementsforheattreatmentandhardness. • Commonmaterials usedforsourservicegatevalvesealsinclude: • Elastomers:HNBR(HydrogenatedNitrileButadieneRubber),FKM(Fluorocarbon Rubber),FFKM(Perfluoroelastomer).Thesematerialsoffergoodchemicalresistanceto H2Sandhydrocarbons.Thespecificelastomerchosendependsonthe operating temperature,pressure,andfluidcompatibilityrequirements. • Thermoplastics:PEEK(Polyetheretherketone),PTFE(Polytetrafluoroethylene).These • materialsofferexcellentchemicalresistanceandhigh-temperatureperformance.They areoftenusedasbackupringsorincombinationwithelastomers. • Metals:Corrosion-resistantalloys(CRAs)suchasInconel,Hastelloy,andduplex • stainlesssteels.Thesematerialsareusedforsealenergizers,springs,andother componentsthatrequirehighstrengthandcorrosionresistance.

2. MaterialsforSourServiceGateValveSeals Metals Elastomers Thermoplastics • KeyConsiderationsforMaterialSelection: • H2SConcentration:HigherH2Sconcentrationsrequiremorerobustmaterials. • Temperature:Elevatedtemperaturescanacceleratecorrosionanddegradationof sealmaterials. • Pressure:Highpressures canexacerbatetheeffectsofH2Sonsealperformance. • FluidCompatibility:Thesealmaterialmustbecompatiblewithallfluidspresentinthe wellstream,includinghydrocarbons,water,andchemicals. • DecompressionRate:Rapiddecompression can causeexplosivedecompression(ED) • inelastomers,leadingtosealfailure.MaterialswithgoodEDresistanceshouldbe selectedforapplicationswhererapiddecompressionispossible. TestingandQualification • Gatevalvesealsforsourservicemustundergorigoroustestingtoensuretheirperformance andreliability.Commontestsinclude: • MaterialTesting:Verificationofmaterialcomposition,hardness,andmechanical propertiestoensurecompliancewithNACEMR0175/ISO15156. • PerformanceTesting:Testingundersimulatedsourserviceconditionstoevaluateseal performance,includingleakage,pressureretention,andresistancetochemicalattack. • AgingTests:Exposuretoelevatedtemperaturesandpressurestosimulatelong-term • agingandassesstheimpactonsealperformance. • ExplosiveDecompression(ED)Testing:Evaluation of sealresistancetodamage causedbyrapiddecompression. • HydrogenPermeationTesting:Measurementoftherateatwhichhydrogen • permeatesthroughthesealmaterial.

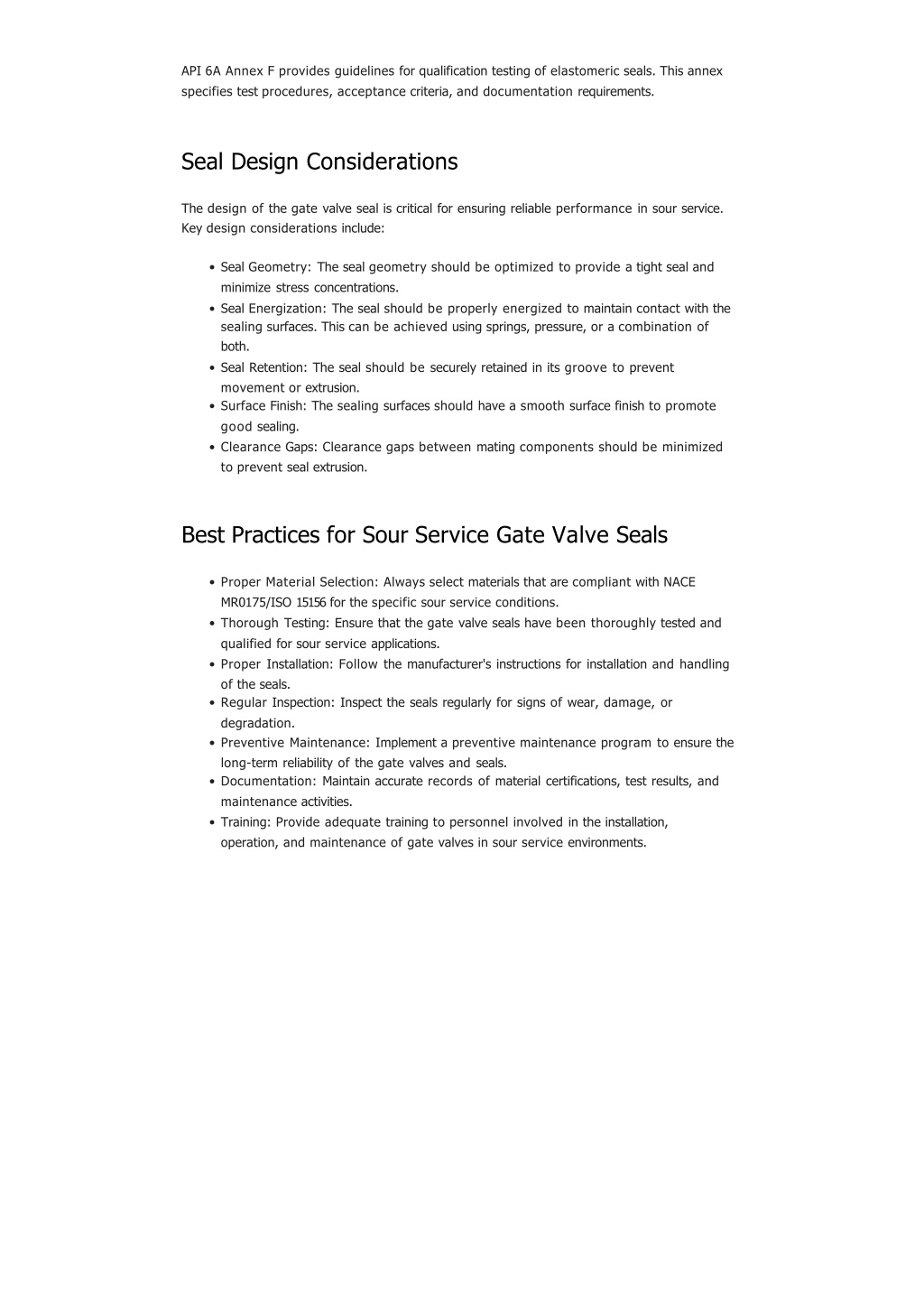

3. API6AAnnexFprovidesguidelinesfor qualificationtestingofelastomeric seals.Thisannex specifiestestprocedures,acceptancecriteria,anddocumentationrequirements. SealDesignConsiderations • Thedesignofthegatevalvesealiscriticalforensuringreliableperformanceinsourservice. Keydesignconsiderationsinclude: • SealGeometry:Thesealgeometryshouldbeoptimizedtoprovideatightsealand minimizestressconcentrations. • SealEnergization:Thesealshould beproperlyenergizedtomaintain contact withthe • sealingsurfaces.Thiscanbeachievedusingsprings,pressure,oracombinationof both. • SealRetention:Thesealshould be securelyretainedinitsgroovetoprevent • movementorextrusion. • SurfaceFinish:The sealingsurfacesshould haveasmoothsurfacefinishtopromote goodsealing. • ClearanceGaps:Clearancegapsbetweenmatingcomponentsshouldbeminimized • topreventsealextrusion. BestPracticesforSourServiceGateValveSeals • ProperMaterialSelection:AlwaysselectmaterialsthatarecompliantwithNACE MR0175/ISO15156forthespecificsourserviceconditions. • Thorough Testing:Ensurethatthegatevalvesealshavebeenthoroughlytestedand qualifiedforsourserviceapplications. • ProperInstallation:Followthemanufacturer'sinstructionsforinstallationandhandling • oftheseals. • RegularInspection:Inspectthesealsregularlyforsignsofwear,damage,or degradation. • PreventiveMaintenance:Implementapreventive maintenanceprogramto ensurethe • long-termreliabilityofthegatevalvesandseals. • Documentation:Maintainaccuraterecordsofmaterialcertifications,testresults,and maintenanceactivities. • Training:Provideadequatetrainingtopersonnelinvolvedintheinstallation, • operation, and maintenance ofgate valvesinsourservice environments.

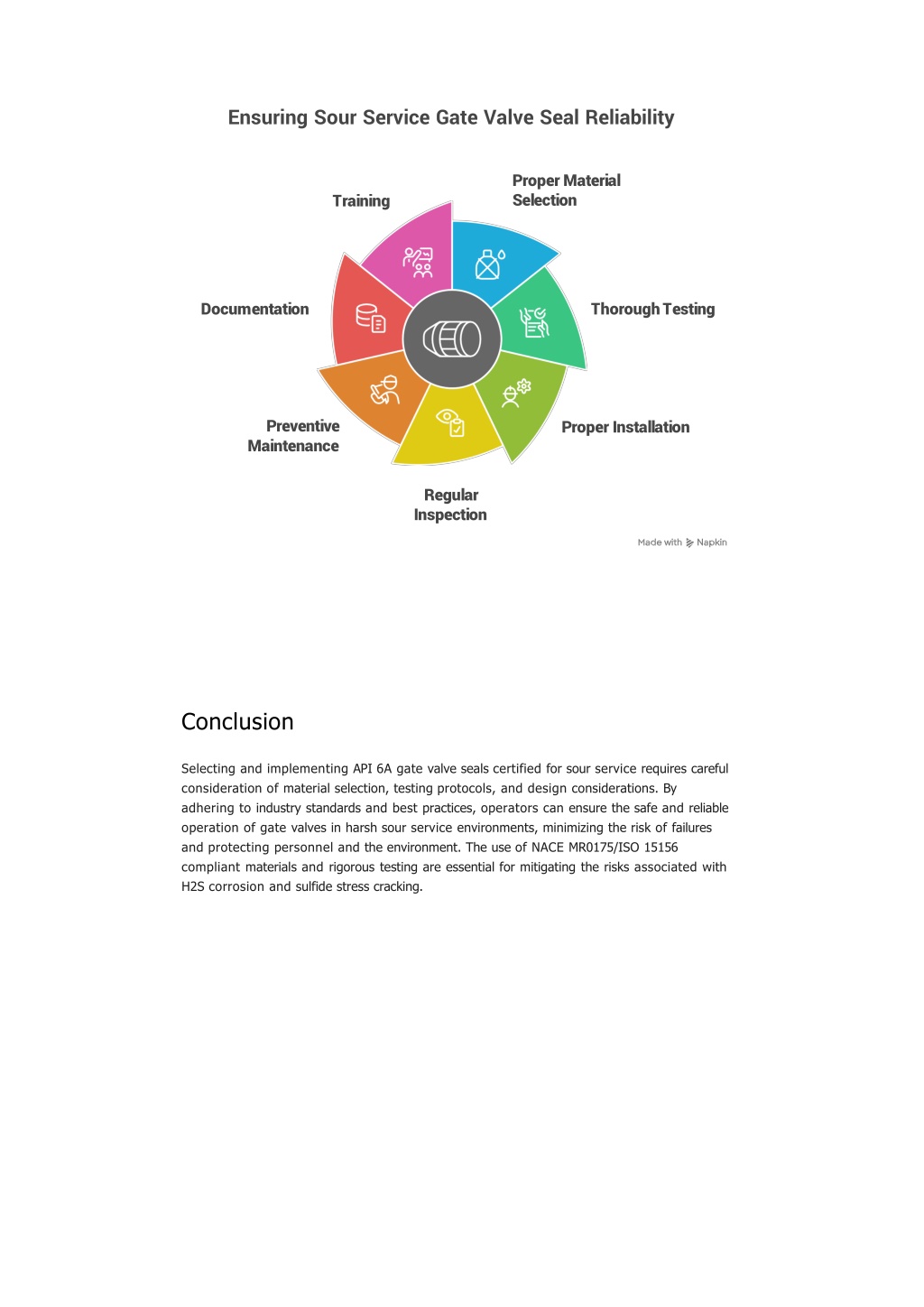

4. EnsuringSourServiceGateValveSealReliability ProperMaterial Selection Training Documentation ThoroughTesting Preventive Maintenance ProperInstallation Regular Inspection Conclusion SelectingandimplementingAPI6A gatevalvesealscertified forsour servicerequirescareful consideration ofmaterialselection,testingprotocols,anddesign considerations.Byadheringtoindustrystandardsandbestpractices,operatorscanensurethesafeandreliable operationofgatevalvesinharshsour serviceenvironments,minimizingtheriskoffailures andprotectingpersonnelandtheenvironment.TheuseofNACEMR0175/ISO15156 compliantmaterialsandrigoroustestingareessentialformitigatingtherisksassociatedwith H2Scorrosionandsulfidestresscracking.
