Activity on Arrow (AoA) Network Diagrams

Activity on Arrow (AoA) Network Diagrams. K, L depends on A, B. K depends on A, B. A. A. K. K. a. b. B. B. L. K depends on A but L depends on both A, B. K depends on A, B and L depends only on B. A. K. A. K. c. d. B. L. B. L. A. K. A. K. C. f. C. M. e. B. L. B.

JasminFlorian
Télécharger la présentation

Activity on Arrow (AoA) Network Diagrams

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Activity on Arrow (AoA) Network Diagrams K, L depends on A, B K depends on A, B A A K K a. b. B B L K depends on A but L depends on both A, B K depends on A, B and L depends only on B A K A K c. d. B L B L

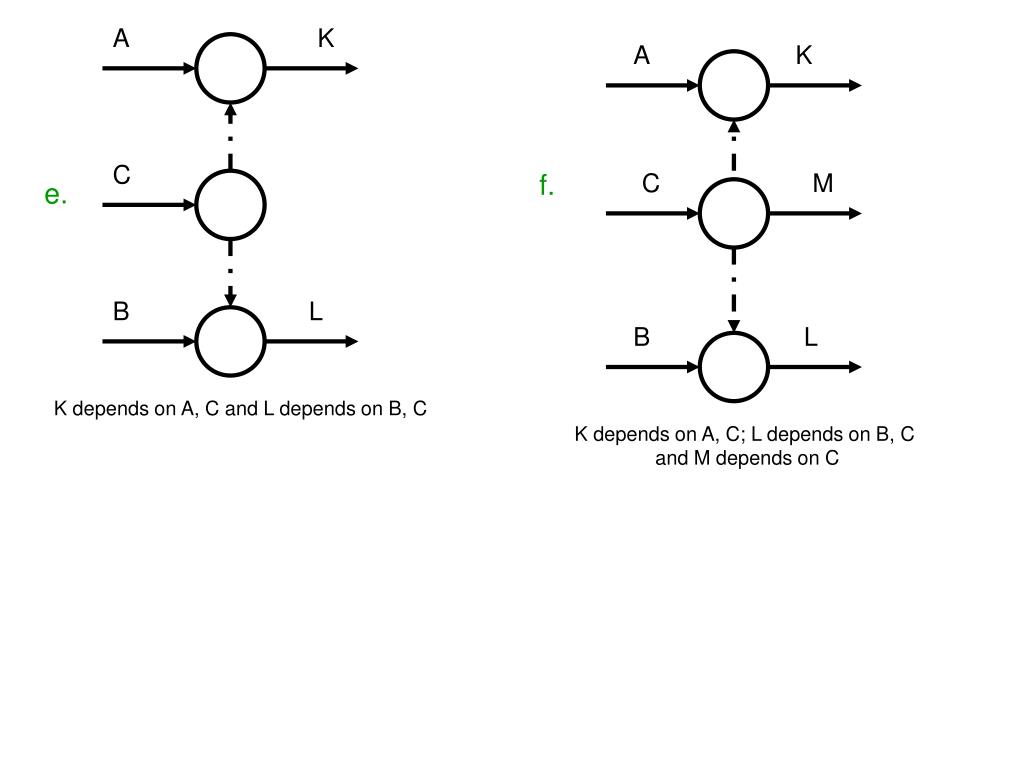

  2. A K A K C f. C M e. B L B L K depends on A, C and L depends on B, C • K depends on A, C; L depends on B, C • and M depends on C

  3. Air Traffic Control Tower A proposed ATC tower uses a control console which has to be meet the needs of the particular airfield. Activities InvolvedDuration (weeks) Design console 3 Order console 2 Fabricate and deliver console 16 Install console 2 Test console 4 Design tower 5 Design foundations 1 Order foundations material 1 Deliver foundations material 1 Construct foundations 1 Order tower construction materials 2 Deliver tower construction materials 3 Erect tower 8 1. Draw the AoA network diagram (assuming that design of the foundations is dependent on the design of the tower). 2. Fill in all the information in the Table’s outline of the Early, Late, Floats and determine the Critical Path

  4. AoA Network Diagram (ATC tower) Order console Design console Fabricate and deliver console 2 4 2 3 16 Order fnd. material Deliver fnd. material Design tower Design fnds. Construct fnd. Erect tower Install console Test console 0 8 10 12 14 18 20 22 24 5 1 3 3 3 3 3 3 Order tower material Deliver tower material 16 3 3

  5. Note: When to use IDENTITY and LOGIC “dummy” activities indicated in the CPA notes on Prof. Rowlinson’s Y2 notes Refer to: Lockyer, Keith (1984) Critical Path Analysis and other Project Network Techniques, Pitman, London. (pg 19-22) Main Library 658.4032 L81
