Handling Complexity in FEV Erik Seligman CS 510, Lecture 6, January 2009
Outline • Complexity Intro & Basics • Hierarchical Comparison • Cut Points • Case Splitting • Cheating
Outline • Complexity Intro & Basics • Hierarchical Comparison • Cut Points • Case Splitting • Cheating
Complexity = Time or Memory Blowup • Two ways to see complexity • Tool crash (hopefully won’t happen) • Compare Points reported as ‘Abort’ • What does this mean? • Logic was too complex to analyze • Maybe bad options selected
Tool Solutions • Some tool options can help resolve • set compare effort high|ultra|complete • Causes LEC to work harder before giving up • analyze datapath [-merge] | analyze multiplier • LEC looks for common datapath structures • Useful if lots of arithmetic operations • Specialized alg if you have a multiplier • compare -single • Slow, but concentrates on each point standalone • analyze abort • New feature to look at abort point & try to ID good tool options • Sloooow though (can run overnight, or abort too!)
Tool Capacity Issues • Monitor LEC process for memory blowup • May be root cause of abort or seg fault • Look for options for run on hi-mem server • Memory blowup is known FV hazard • If you were close, this may be just enough • Also try new “compare –parallel” • Uses multiple machines on network • May improve memory & runtime
Design Issues: Memories • Memories are complex • Usually bbox a memory, verify standalone • Conformal supplies special library • LEC is easy with ‘verplex memory primitives’ • Otherwise extremely hard • How are memories FEVed? • Inherently transistor-based, not simple gates • Need to define common structures for tool
Design Issues: Don’t Cares • Don’t-Care (DC) Space • Remember, a DC is an RTL ambiguity • Synthesis has freedom to decide • Large DC space makes verification hard • If DCs cause aborts, consider assigning all values • How to diagnose? • Look for this compile message • F34: Convert X assignment(s) as don't care(s) • report messages -rule F34 –verbose for exact lines • Experiment: set x conversion 0 –gold • Ambiguous (X) cases = 0 false negatives • But experiment useful to see if DCs did cause aborts
Outline • Complexity Intro & Basics • Hierarchical Comparison • Cut Points • Case Splitting • Cheating
Hierarchy Example TOP Green Yellow • Simple option: FEV full TOP design • Best option if feasible
Hierarchy Example TOP Green Yellow • Hierarchical: 3 FEV comparisons • TOP.Green, Top.Yellow • TOP with Green and Yellow bboxed • Are there problems with this approach?
Hierarchy Problem: Constraints TOP Green Yellow a d c b • Circuit topology constraints for bboxes • What constraints needed in this example?
Hierarchy Problem: Constraints TOP Green Yellow a d c b • Circuit topology constraints for bboxes • What constraints needed in this example? • Green: add pin eq a b • Yellow: add pin constraint 0 c • TOP: add pin constraint 0 Yellow.d
Hierarchy In Conformal • write hier dofile –constraint • Odd but convenient command • IDs common hierarchies • Writes new dofile, verifying all pieces • Generates summary report at end • Tricky when debugging! • Need to rerun on hierarchy with error
Generated dofile: excerpts TOP Green Yellow a d c b set root module top add pin constraint 0 yellow.d -both set sys mode lec compare report hier_compare data … set root module green add pin eq a b –both …
Challenges of Hierarchical FEV • Synthesis tools can flatten hierarchy • May make hierarchical FEV impossible • May need to request backend preserve some hierarchy • Mismatching submodule interfaces • Extra pins inserted in synthesis • Pin name changes • May need to use Conformal commands to ignore/map pins
Hierarchy Special Case: Cell Libraries • Should use pre-FEVed library • No sense in repeatedly verifying basic flops, latches, ANDs, ORs, etc • Be sure lib team is doing low-level FEV! • Check that this is the case • Should have .v (or .lib) file defining each cell • You should see simple behavioral RTL for cells, not full transistor-level logic always @(posedge clk) q<=d
Outline • Complexity Intro & Basics • Hierarchical Comparison • Cut Points • Case Splitting • Cheating

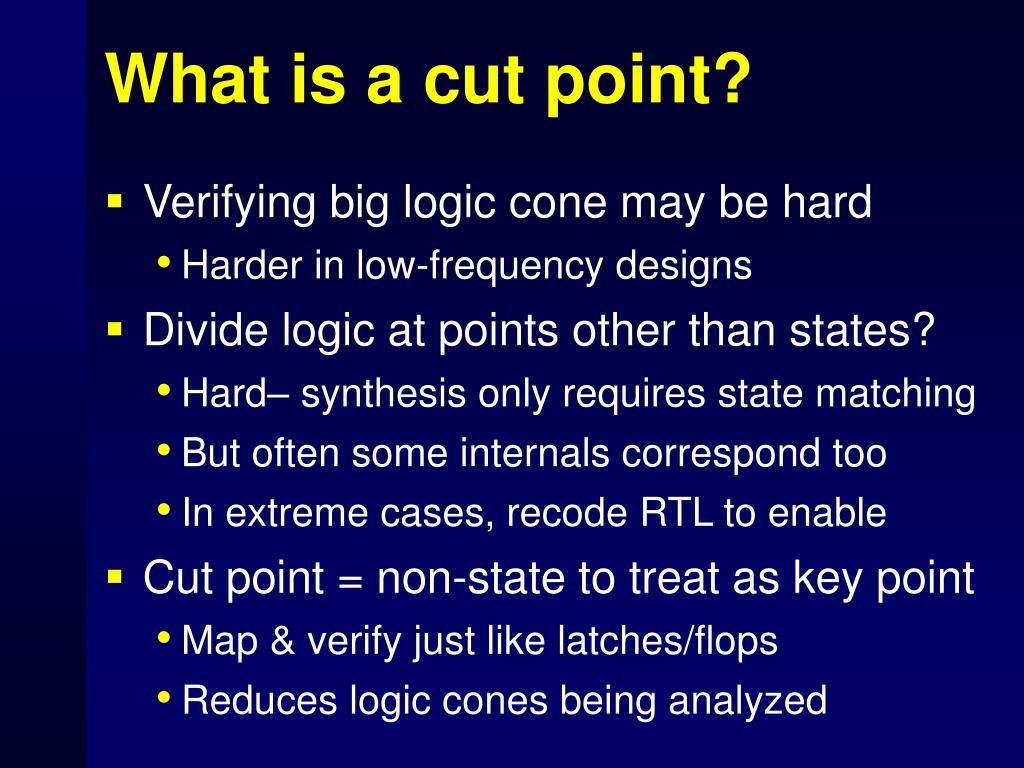

What is a cut point? • Verifying big logic cone may be hard • Harder in low-frequency designs • Divide logic at points other than states? • Hard– synthesis only requires state matching • But often some internals correspond too • In extreme cases, recode RTL to enable • Cut point = non-state to treat as key point • Map & verify just like latches/flops • Reduces logic cones being analyzed
Cut Point Example a f1 p1 b out ck a f3 out p2 b ck add cut point p1 –gold add cut point p2 –rev add ren rule r1 p1 p2 -gold
Cut Point Problems? a f1 p1 b out ck p1a a f3 out p2 b ck Is p1 still a useful cut point?
Cut Point Problems? a f1 p1 b out ck p1a a f3 out p2 b ck Is p1 still a useful cut point? Maybe…
Cut Point Problems? a f1 p1 b out ck p1a a f3 out p2 b ck • Is p1 still a useful cut point? Maybe… • Don’t forget about constraint issues too
Outline • Complexity Intro & Basics • Hierarchical Comparison • Cut Points • Case Splitting • Cheating
What is Case Splitting? • FV is analyzes all cases together • Good tool engines may be smarter • What if small inputs activate/deactivate lots of logic? • Example: mode bits • Constrain appropriate pins to 1 or 0 • Then compare twice • Or constrain <n> bits, then 2^n compares
Case Splitting Example f1 f2 a out1 ck f3 f4 out2 b ck Suppose compare of f2 & f4 Aborts, and we want to case-split on f1/f3.
Compare Case #1 CONST 0 f2 a out1 ck f4 out2 CONST 0 b ck First assign const of 0 to flop.
Compare Case #2 CONST 1 f2 a out1 ck f4 out2 CONST 1 b ck Then assign const value of 1. After both cases pass, we are equivalent!
Case splitting in Conformal • Conformal terminology: “partition” • Convenient commands • add partition key_point • write partition dofile • Be careful! • <n> partition points 2^n iterations • Poorly chosen points worse than useless!
Outline • Complexity Intro & Basics • Hierarchical Comparison • Cut Points • Case Splitting • Cheating
Simulation • Obvious, defeats point of formal! • But may be useful last resort • If small handful of points defying FEV • Be sure you exhausted FEV options! • All tool compare/analyze options? • Did you try hierarchical verify? • Did you try cut points & case splitting? • Did you consider recoding RTL to increase cut points and/or hierarchy, or reduce don’t-care space?
Simulation compare in LEC • compare –random <n> • Runs <n> simulation vectors • Should only run on specific problem points • Not a good solution • But better than nothing • Probably will get more vectors than GLS • Fast simulation only on problem cone
References / Further Reading • http://www.cdnusers.org/community/encounter/Resources/resources_design/equiv/Dtp_cdnliveemea2006_itayarom.pdf • http://www.cdnusers.org/Portals/0/cdnlive/na2006/2.4.1/2.4.1_paper.pdf • http://www.venusmultimedia.net/Aborts.htm
