  1. FAST TACTICFast TACTical Integration Console Presented by: Paul Bienhoff, Jeff Smart, and Wayne Loschen Johns Hopkins University Applied Physics Laboratory

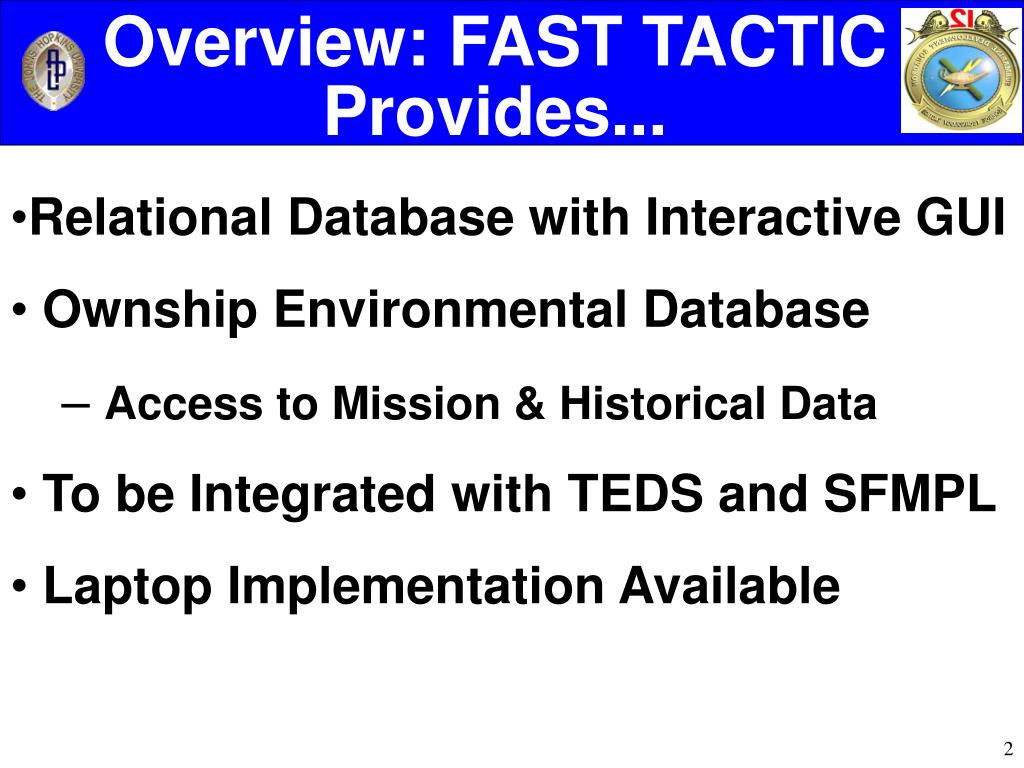

  2. Overview: FAST TACTIC Provides... • Relational Database with Interactive GUI • Ownship Environmental Database • Access to Mission & Historical Data • To be Integrated with TEDS and SFMPL • Laptop Implementation Available

  3. ARCI/BSY-1 TEDS DII/COE JMTK Display Client* FAST TACTIC Integration Concept CORBA Ownship & Contact Server Ownship environmental sensors FAST TACTIC DISPLAY Client Phase 1 SFMPL METOC Server CORBA Environmental Server Phase 2 TL Models Le * The JMTK Display runs on a UNIX Workstation

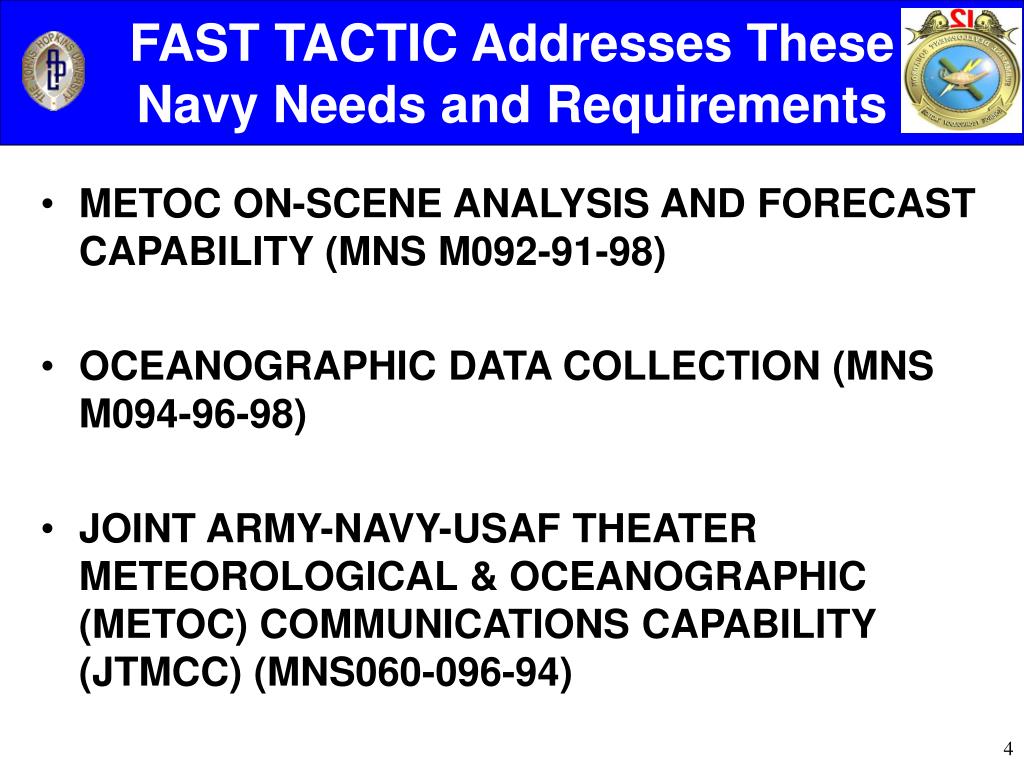

  4. FAST TACTIC Addresses These Navy Needs and Requirements • METOC ON-SCENE ANALYSIS AND FORECAST CAPABILITY (MNS M092-91-98) • OCEANOGRAPHIC DATA COLLECTION (MNS M094-96-98) • JOINT ARMY-NAVY-USAF THEATER METEOROLOGICAL & OCEANOGRAPHIC (METOC) COMMUNICATIONS CAPABILITY (JTMCC) (MNS060-096-94)

  5. FAST TACTIC Addresses These Navy Needs and Requirements (cont’d) • METEOROLOGICAL DATA COLLECTION CAPABILITY (M067-096-95) • TACTICAL ENVIRONMENTAL SUPPORT SYSTEM (TESS) (ORD 369-096-94) • GLOBAL COMMAND & CONTROL SYSTEM – MARITIME (GCCS-M) (ORD 510-06-99)

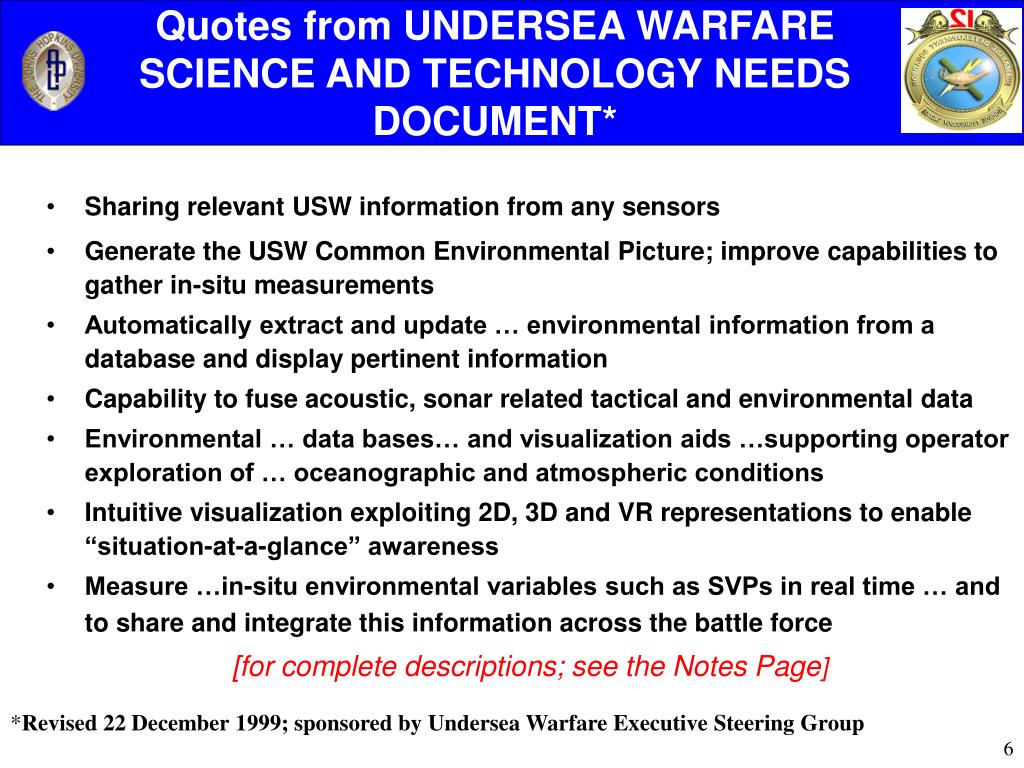

  6. Quotes from UNDERSEA WARFARE SCIENCE AND TECHNOLOGY NEEDS DOCUMENT* • Sharing relevant USW information from any sensors • Generate the USW Common Environmental Picture; improve capabilities to gather in-situ measurements • Automatically extract and update … environmental information from a database and display pertinent information • Capability to fuse acoustic, sonar related tactical and environmental data • Environmental … data bases… and visualization aids …supporting operator exploration of … oceanographic and atmospheric conditions • Intuitive visualization exploiting 2D, 3D and VR representations to enable “situation-at-a-glance” awareness • Measure …in-situ environmental variables such as SVPs in real time … and to share and integrate this information across the battle force [for complete descriptions; see the Notes Page] *Revised 22 December 1999; sponsored by Undersea Warfare Executive Steering Group

  7. Comparison Between TEDS, SFMPL, & FAST TACTIC * capability depends on platform

  8. TEDS, SFMPL, & FAST TACTICOwn Ship Environmental Data Storage * limited capability on BQQ-5D/BSY-1 sonar systems ** Being implemented on surface vessels only

  9. How Are Data Handled Now ? • SCICEX Data: • Scientists Collect/Hold Data for Years • Own-Ship Data: • Paper Charts & Manual Entry • Off-Ship Data: • ONI + NAVO Backlog ~ 2 Years • (primarily due to paper charts, hand digitizing, etc.; use of digital data from FAST TACTIC will streamline this process)

  10. Operator Console Off-ship (message) Data FAST TACTIC = SOARED + Underway Data TASKS: Vulnerability Assessments & Models Network Centric Data Management Acoustic Propagation Models For Weapons & Sonar • SOARED (Environmental Database) • CONTENTS: • Historical & Gridded Data • Recent Updates/MODAS fields • Ownship sensor data • CAPABILITIES: • Data Preview: Charts & X-Y Plots • Automated Data Quality Checks & Data Editing* • Data Compression • Data Reporting • Ownship Sensors • BQH-1 (SVP), SSXBT, XCTD, ... • Bathymetry, Le, ... Color Key: EXISTING CAPABILITY NEW CAPABILITY

  11. * GDEM = Generalized Digital Environmental Model re-sampled at 30 nmi resol. What Is SOARED ? • Fully Functional Environmental Database • Prototype to Evaluate Fast Tactic Functions • Current Contents: • SCICEX ‘95 CTD Data • NODC Historical CTDs • GDEM* Winter & Spring T, S, sound speed • SCICEX ‘95 Bathymetry (sampled once/minute) • SCICEX ‘96 Hi & Lo Resolution Ice Keel Data

  12. SOAREDData Locations Historical CTD Data (NODC) 5000 0 m SCICEX CTD/ SSXBT Data: SCICEX Bathymetry Data

  13. SOAREDData Locations GDEM (30 nmi sub-sampled) SCICEX Ice Keel Data

  14. Own Ship Environmental Data Storage Volume Estimates * assumes 90 day patrol

  15. Other Sources Available:Optics, Gravity, Sediment etc. Ocean Optics Data

  16. Ambient Noise Display Conceptfrom APL-UW

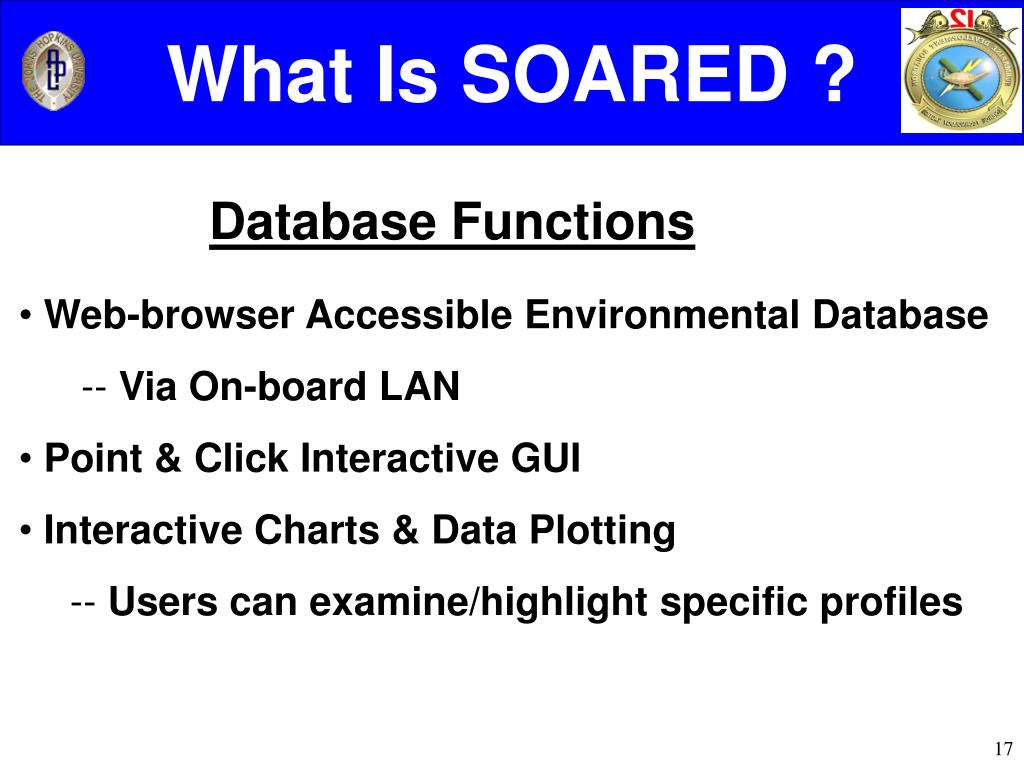

  17. What Is SOARED ? Database Functions • Web-browser Accessible Environmental Database • -- Via On-board LAN • Point & Click Interactive GUI • Interactive Charts & Data Plotting • -- Users can examine/highlight specific profiles

  18. SOARED Home Pagehttp://wood.jhuapl.edu/soared

  19. Bathymetry Start Lat Ice Hi Res Start Lon Temperature Start Year Start Day SOARED Query Screen Point & Click Graphical User Interface (GUI) Mouse-selected region Query selections& entries X End Lat (N) Ice Thickness 76 88 End Lon (N) Salinity - 45 + 30 Sound Velocity End Year 1800 1999 End Day 366 1

  20. SOARED Applications • Mission Planning & Tutorials • Data Validation • TACAID Input Selection & Validation • Bathymetry & Sediment* Data Display • Finding “Surfaceable” Features • Mission & Data Reporting * Sediment Data Not Currently Loaded in SOARED

  21. Mission Planning/Tutorials GDEM Seasonal Variability Query Region Winter Spring Highlighted Location

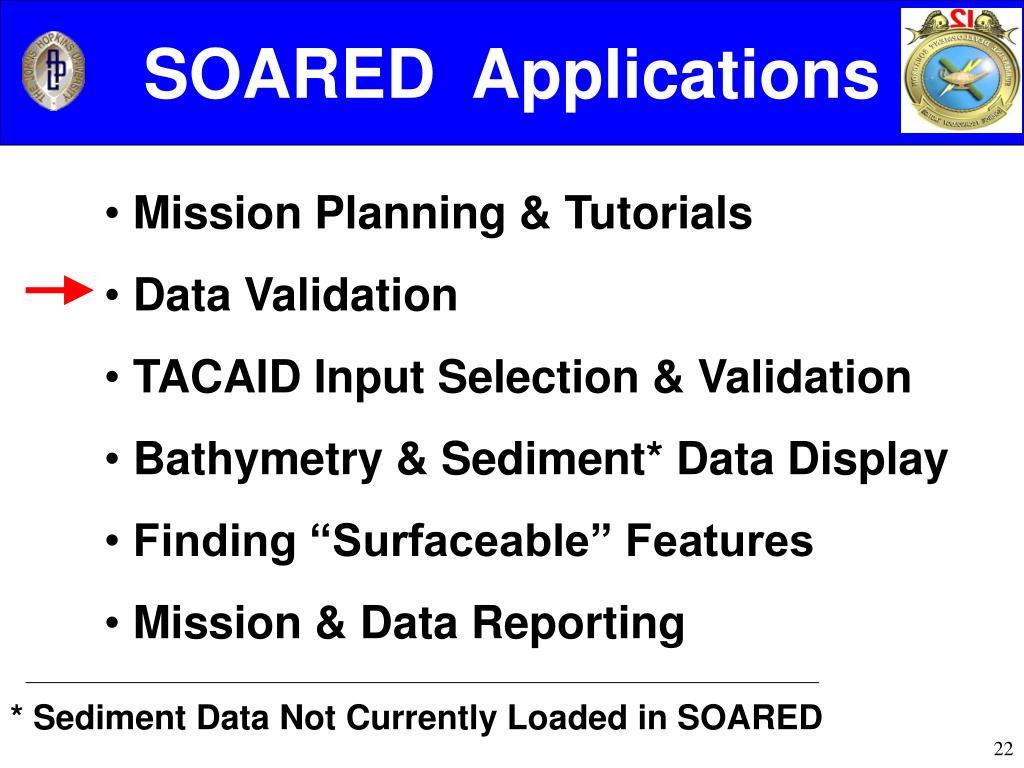

  22. SOARED Applications • Mission Planning & Tutorials • Data Validation • TACAID Input Selection & Validation • Bathymetry & Sediment* Data Display • Finding “Surfaceable” Features • Mission & Data Reporting * Sediment Data Not Currently Loaded in SOARED

  23. Data Validation(Sanity Checks) SCICEX Historical 0 SCICEX data are bright; Historical are faded Depth (m) “Actual” vs. Historical Comparisons 400 Salinity (ppt) 600 33 25

  24. Statistics Function New Statistics Button Creates a plot of the 10%, 90%, and median of the data

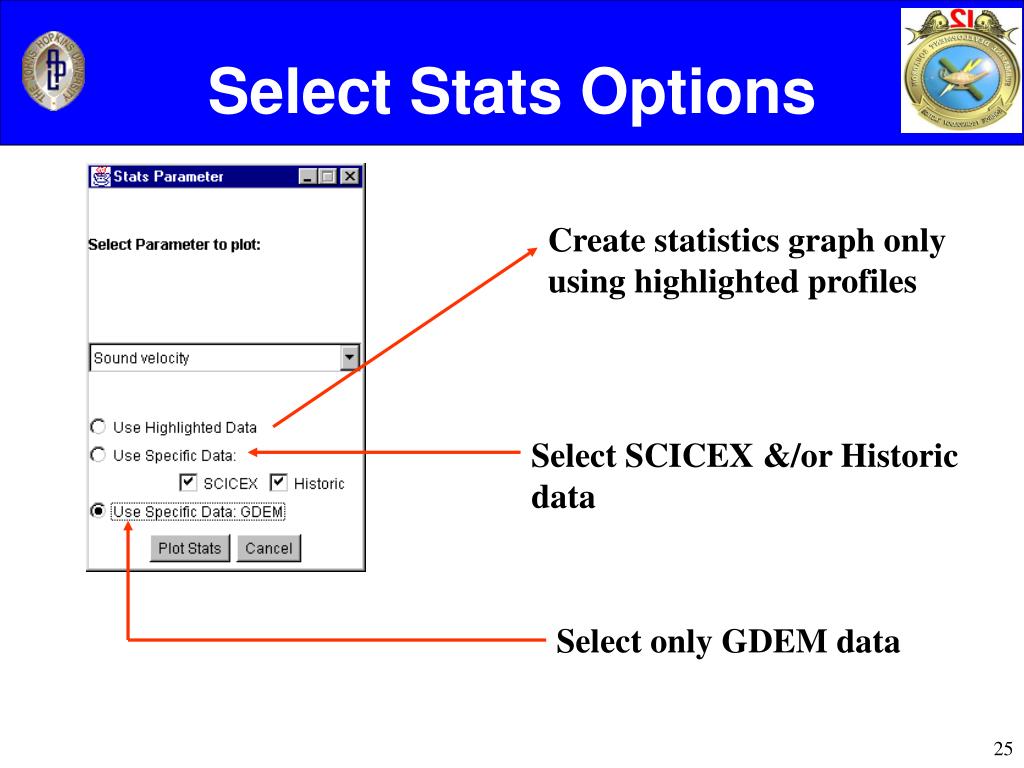

  25. Select Stats Options Create statistics graph only using highlighted profiles Select SCICEX &/or Historic data Select only GDEM data

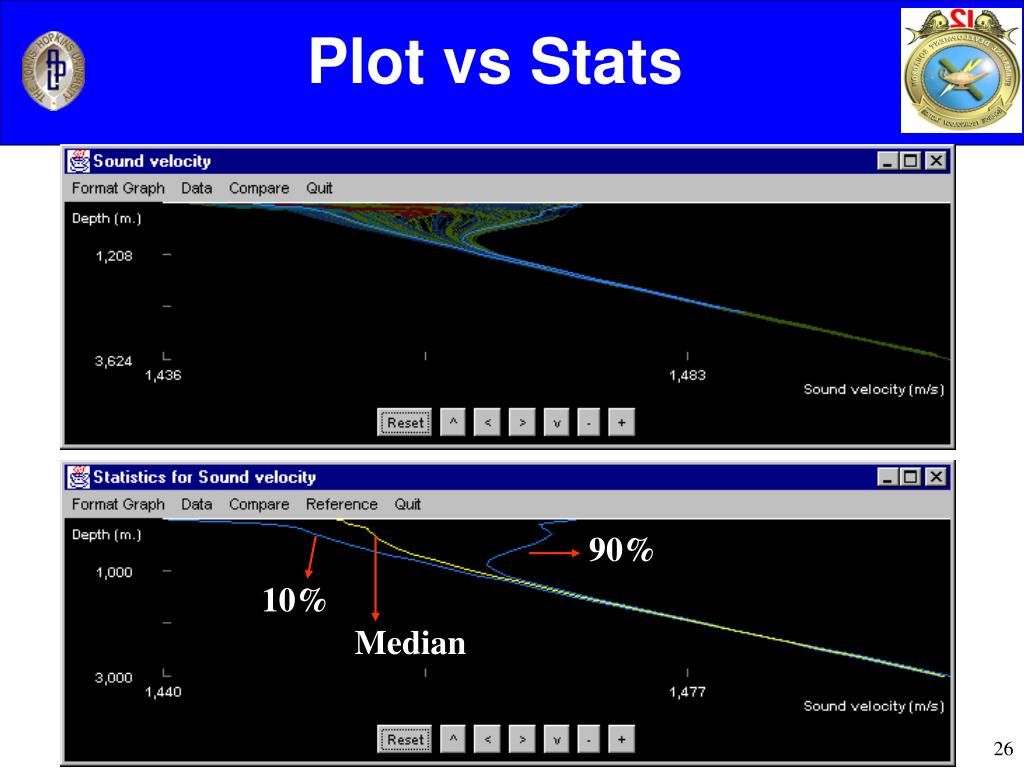

  26. Plot vs Stats 90% 90% 10% Median 10% Median

  27. SOARED Applications • Mission Planning & Tutorials • Data Validation • TACAID Input Selection & Validation • Bathymetry & Sediment* Data Display • Finding “Surfaceable” Features • Mission & Data Reporting * Sediment Data Not Currently Loaded in SOARED

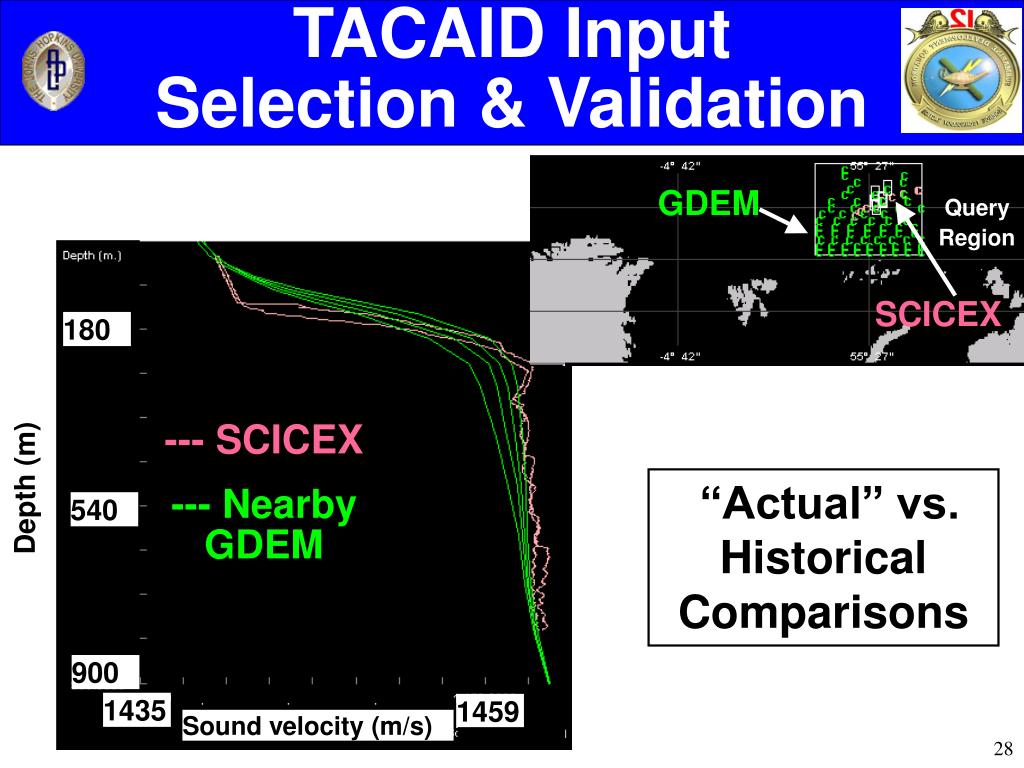

  28. 180 540 900 1435 1459 Sound velocity (m/s) TACAID Input Selection & Validation GDEM Query Region SCICEX --- SCICEX --- Nearby GDEM Depth (m) “Actual” vs. Historical Comparisons

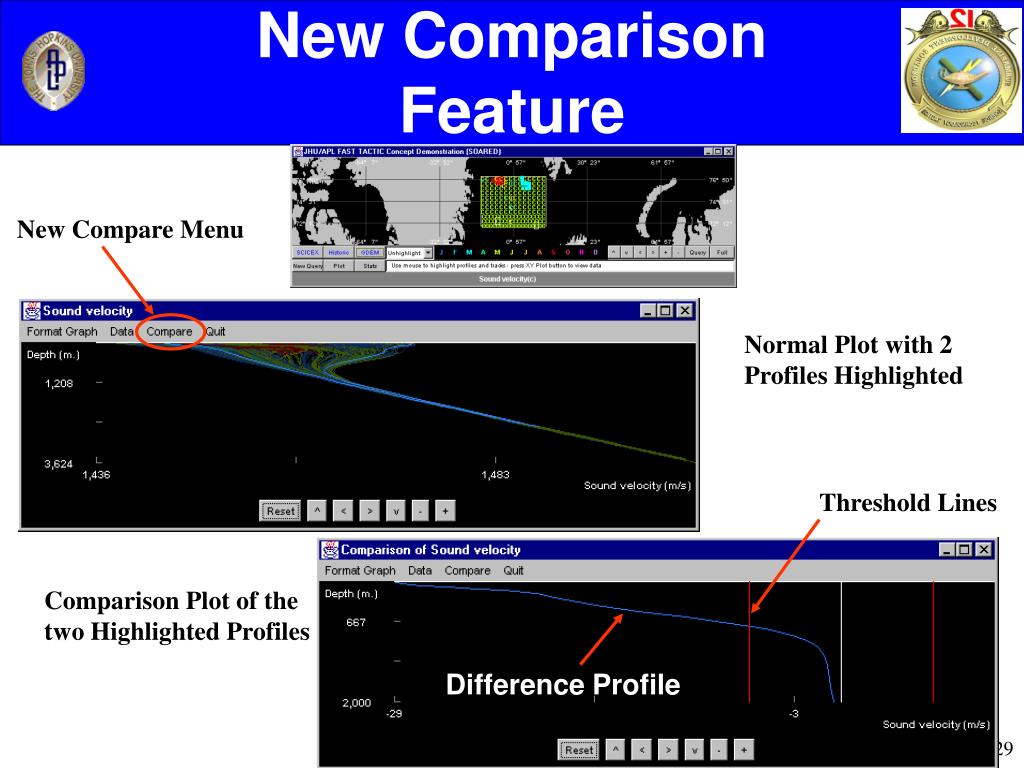

  29. New Comparison Feature New Compare Menu Normal Plot with 2 Profiles Highlighted Threshold Lines Comparison Plot of the two Highlighted Profiles Difference Profile

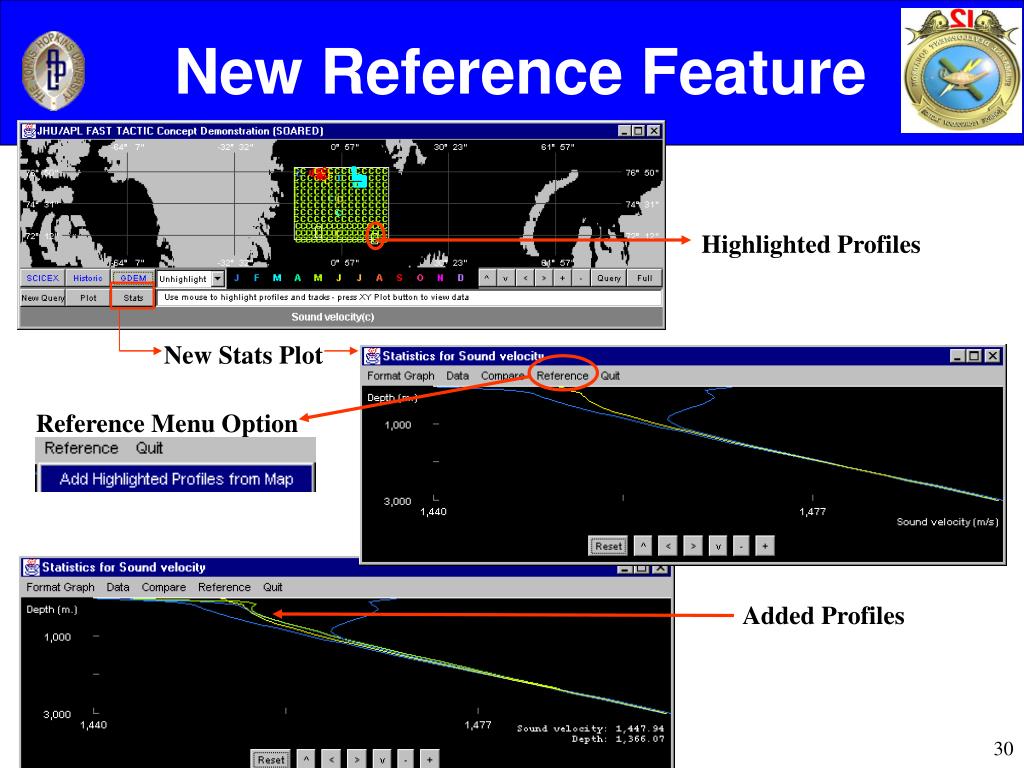

  30. New Reference Feature Highlighted Profiles New Stats Plot Reference Menu Option Added Profiles

  31. SOARED Applications • Mission Planning & Tutorials • Data Validation • TACAID Input Selection & Validation • Bathymetry & Sediment* Data Display • Finding “Surfaceable” Features • Mission & Data Reporting * Sediment Data Not Currently Loaded in SOARED

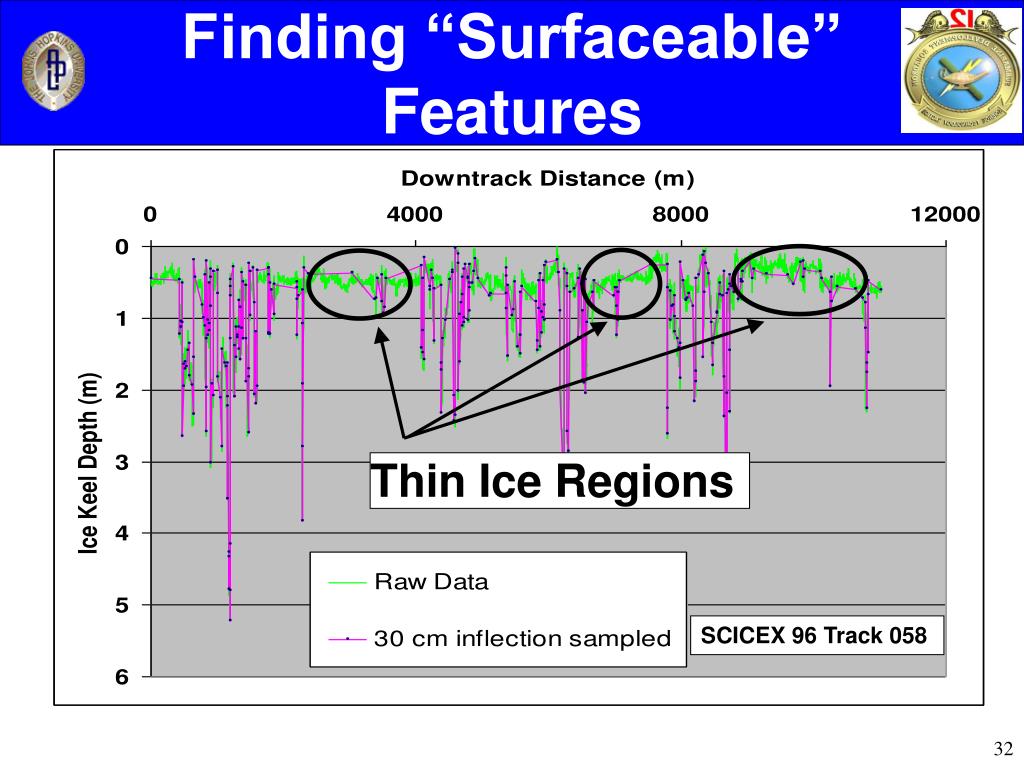

  32. Finding “Surfaceable” Features Thin Ice Regions SCICEX 96 Track 058

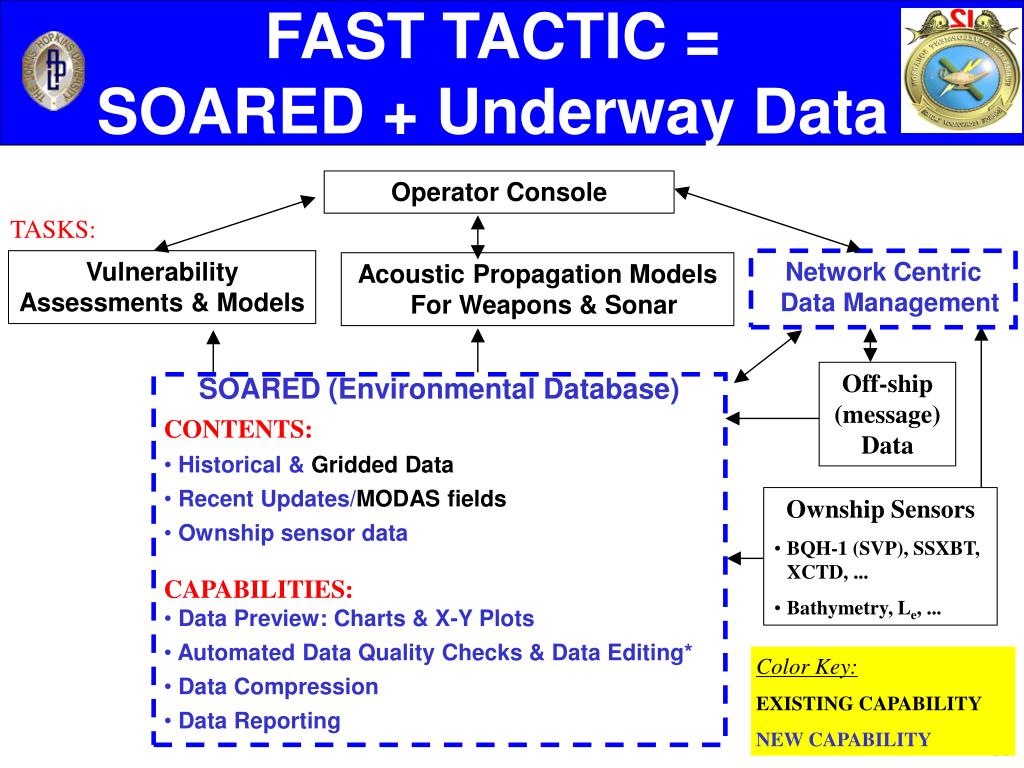

  33. Operator Console Off-ship (message) Data FAST TACTIC = SOARED + Underway Data TASKS: Vulnerability Assessments & Models Network Centric Data Management Acoustic Propagation Models For Weapons & Sonar • SOARED (Environmental Database) • CONTENTS: • Historical & Gridded Data • Recent Updates/MODAS fields • Ownship sensor data • CAPABILITIES: • Data Preview: Charts & X-Y Plots • Automated Data Quality Checks & Data Editing* • Data Compression • Data Reporting • Ownship Sensors • BQH-1 (SVP), SSXBT, XCTD, ... • Bathymetry, Le, ... Color Key: EXISTING CAPABILITY NEW CAPABILITY

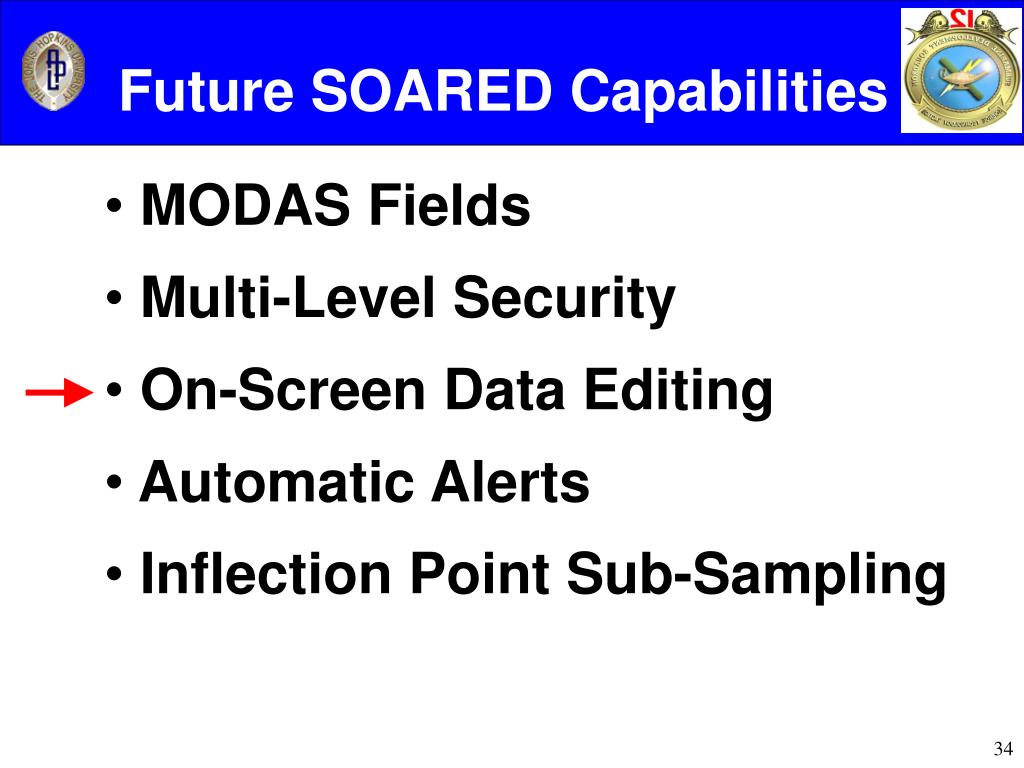

  34. Future SOARED Capabilities • MODAS Fields • Multi-Level Security • On-Screen Data Editing • Automatic Alerts • Inflection Point Sub-Sampling

  35. On-Screen Data Editing BEFORE AFTER Spikes removed Bad Data Deleted Note: These examples are from a standalone program; similar capabilities can be added to SOARED

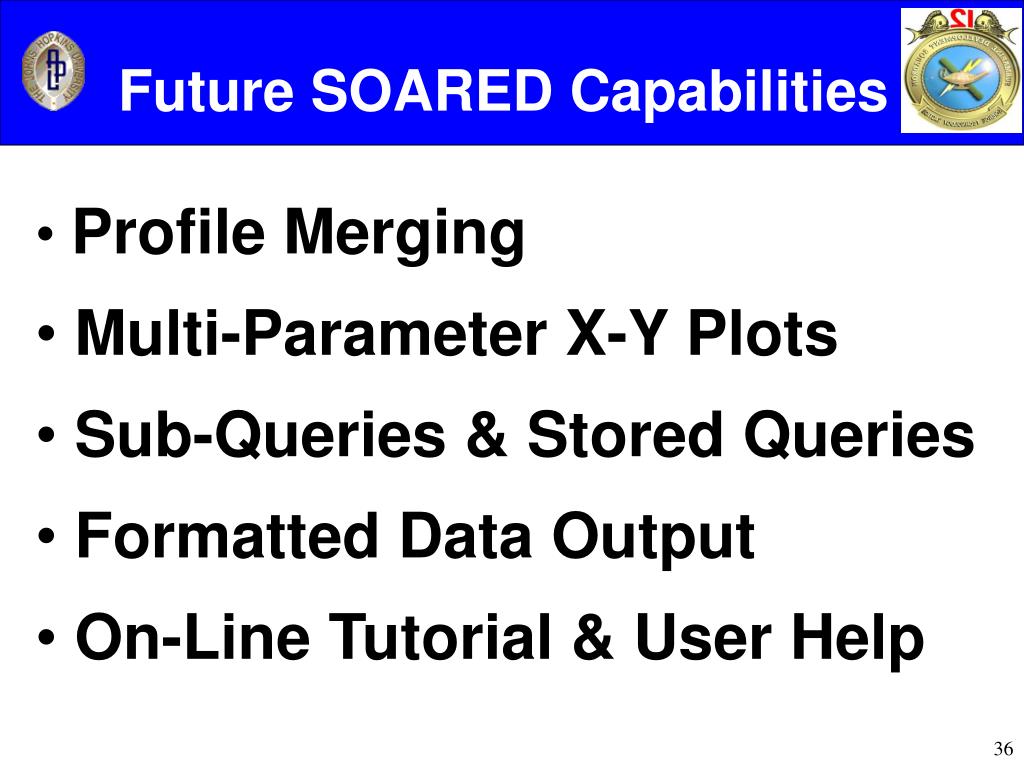

  36. Future SOARED Capabilities • Profile Merging • Multi-Parameter X-Y Plots • Sub-Queries & Stored Queries • Formatted Data Output • On-Line Tutorial & User Help

  37. FAST TACTIC Inputs • On-Board Sensors: • BQH-1, SSXBT, Fathometer, Upward • Looking Sonar, Ambient Noise, etc. • Message data: • MODAS, Fronts/Eddies, Ice Edge, • FLAP, etc. • Own-Ship Parameters: • Position, Keel Depth, Speed, Heading, etc.

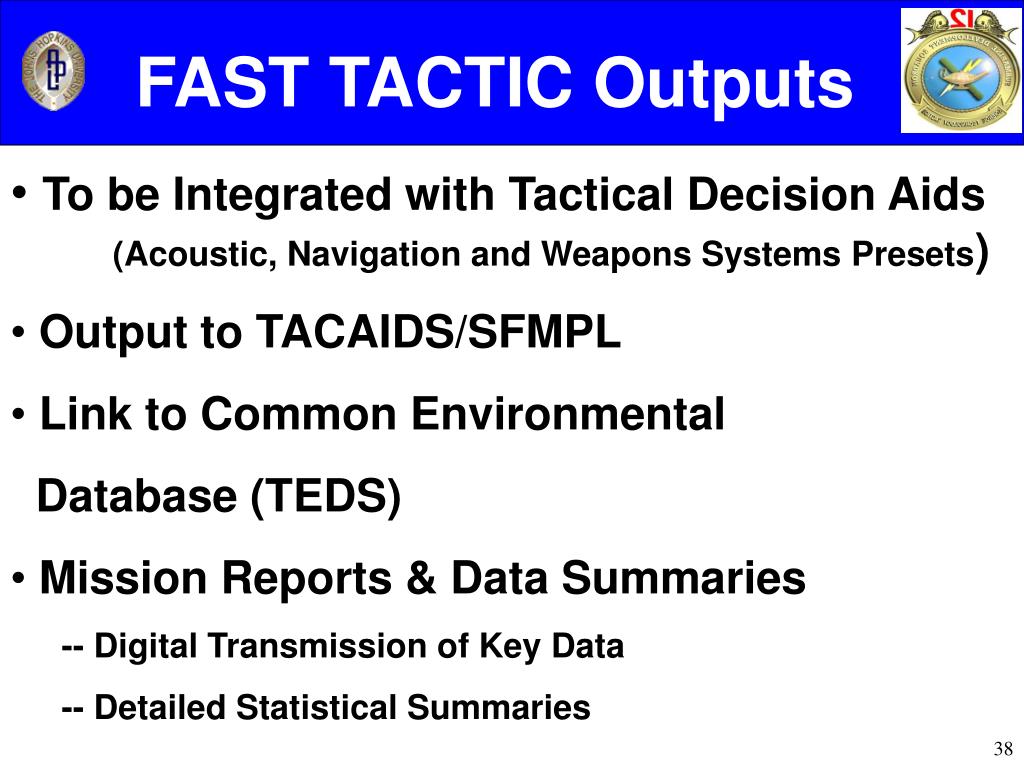

  38. FAST TACTIC Outputs • To be Integrated with Tactical Decision Aids (Acoustic, Navigation and Weapons Systems Presets) • Output to TACAIDS/SFMPL • Link to Common Environmental • Database (TEDS) • Mission Reports & Data Summaries • -- Digital Transmission of Key Data • -- Detailed Statistical Summaries

  39. Wrap-Up: FAST TACTIC Provides... • Relational Database with Interactive GUI • Ownship Environmental Database • Access to Mission & Historical Data • To be Integrated with TEDS and SFMPL • Laptop Implementation Available

  40. ARCI/BSY-1 TEDS DII/COE JMTK Display Client* FAST TACTIC Integration Concept CORBA Ownship & Contact Server Ownship environmental sensors FAST TACTIC DISPLAY Client Phase 1 SFMPL METOC Server CORBA Environmental Server Phase 2 TL Models Le * The JMTK Display runs on a UNIX Workstation

  41. Wrap-Up: How Does FAST TACTIC Help Operators ? • Provides Patrol Data in Digital Rather than Paper Form (eliminates hand entry) • Provides Easy Access to Ownship Environmental Data • Facilitates Patrol Reporting
