Halogen Moisture Analyzer

Labzee Halogen Moisture Analyser features a 110 g stainless-steel chamber operating from 5 u02daC to 35 u02daC with 0.01 g readability and a temperature range of 40 u02daC to 199 u02daC. It has HMB sensors for drying, an LCD display, a halogen lamp for moisture removal, and adjustable settings for drying.

Krystal7
Télécharger la présentation

Halogen Moisture Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

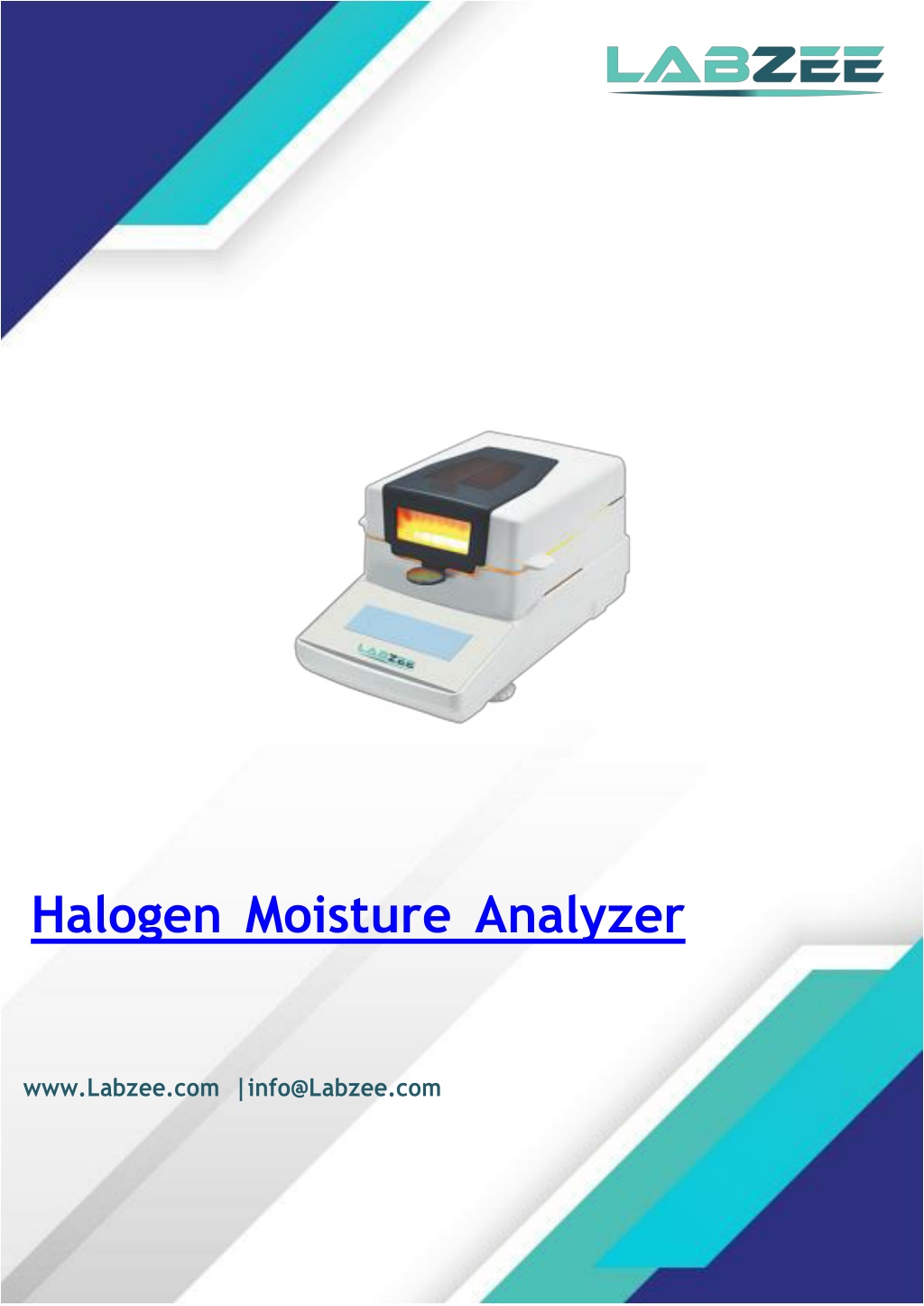

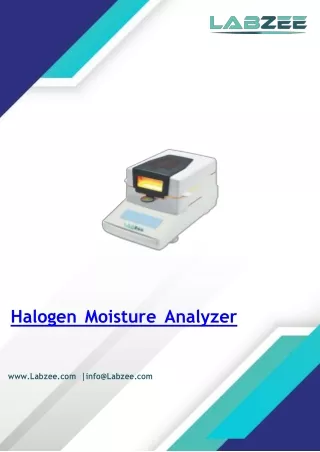

  1. Halogen Moisture Analyzer www.Labzee.com |info@Labzee.com

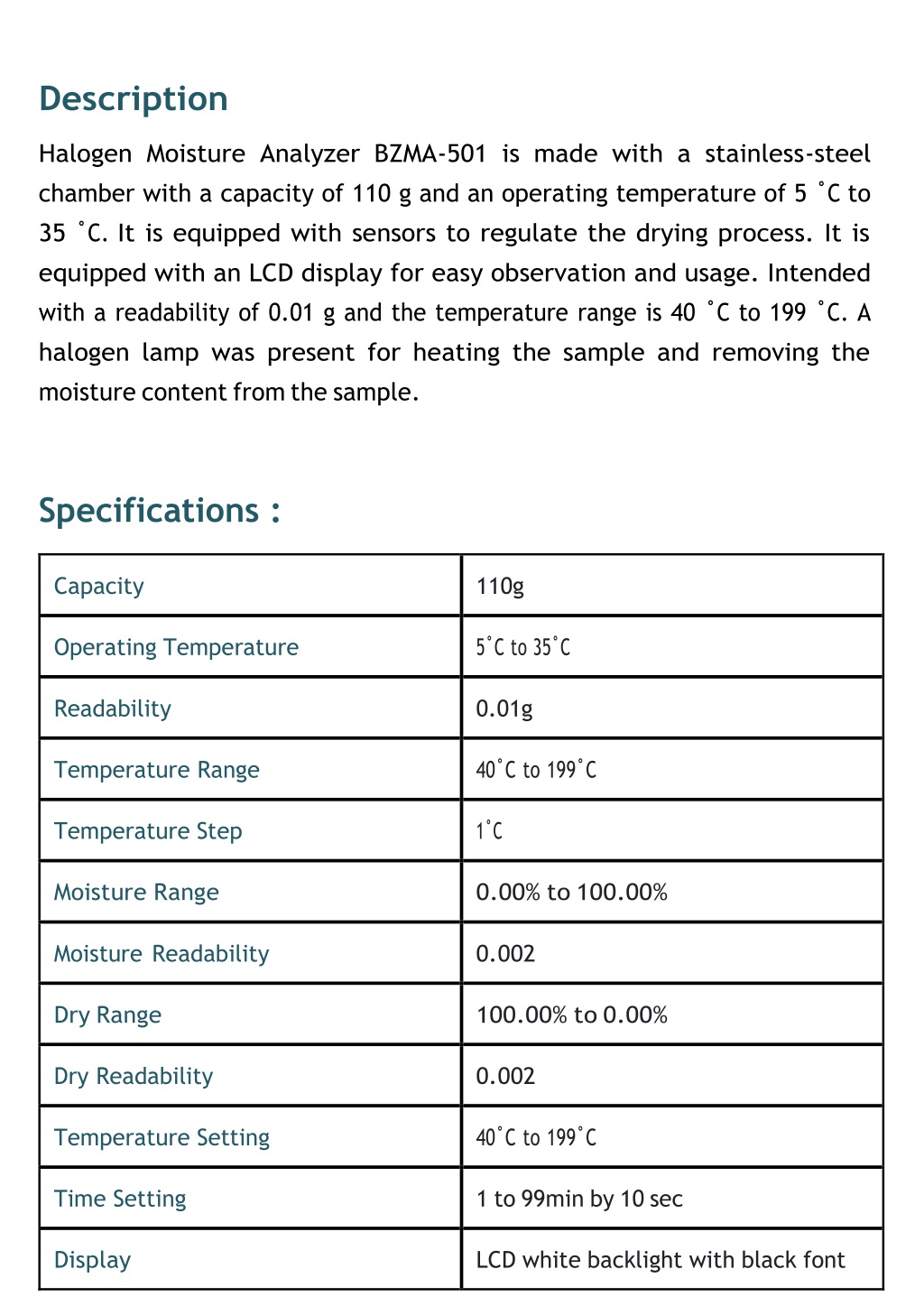

  2. Description Halogen Moisture Analyzer BZMA-501 is made with a stainless-steel chamber with a capacity of 110 g and an operating temperature of 5 ˚C to 35 ˚C. It is equipped with sensors to regulate the drying process. It is equipped with an LCD display for easy observation and usage. Intended with a readability of 0.01 g and the temperature range is 40 ˚C to 199 ˚C. A halogen lamp was present for heating the sample and removing the moisture content from the sample. Specifications : Capacity 110g Operating Temperature 5˚C to 35˚C Readability 0.01g Temperature Range 40˚C to 199˚C Temperature Step 1˚C Moisture Range 0.00% to 100.00% Moisture Readability 0.002 Dry Range 100.00% to 0.00% Dry Readability 0.002 Temperature Setting 40˚C to 199˚C Time Setting 1 to 99min by 10 sec Display LCD white backlight with black font

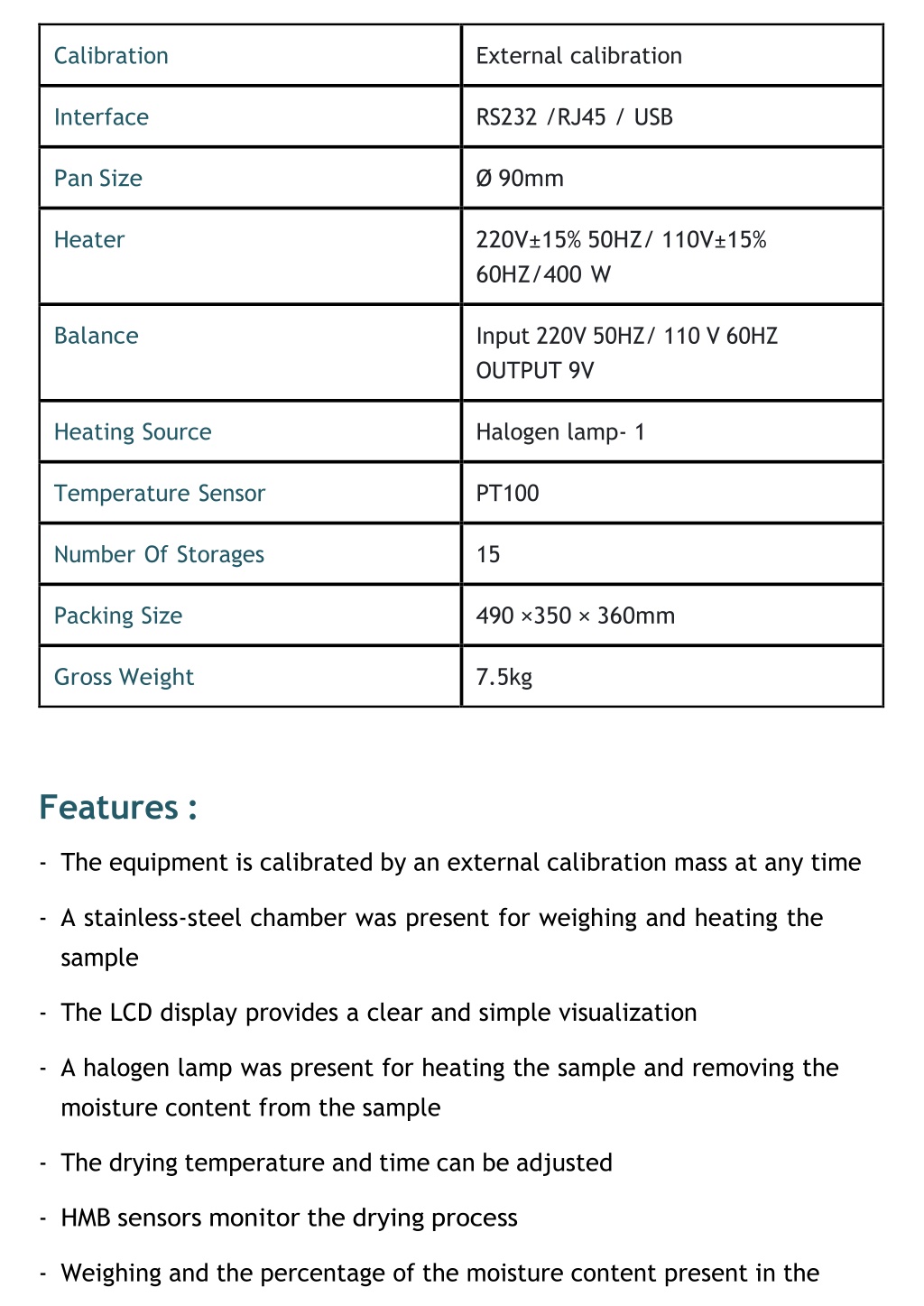

  3. Calibration External calibration Interface RS232 /RJ45 / USB Pan Size Ø 90mm Heater 220V±15% 50HZ/ 110V±15% 60HZ/400 W Balance Input 220V 50HZ/ 110 V 60HZ OUTPUT 9V Heating Source Halogen lamp- 1 Temperature Sensor PT100 Number Of Storages 15 Packing Size 490 ×350 × 360mm Gross Weight 7.5kg Features : -The equipment is calibrated by an external calibration mass at any time -A stainless-steel chamber was present for weighing and heating the sample -The LCD display provides a clear and simple visualization -A halogen lamp was present for heating the sample and removing the moisture content from the sample -The drying temperature and time can be adjusted -HMB sensors monitor the drying process -Weighing and the percentage of the moisture content present in the

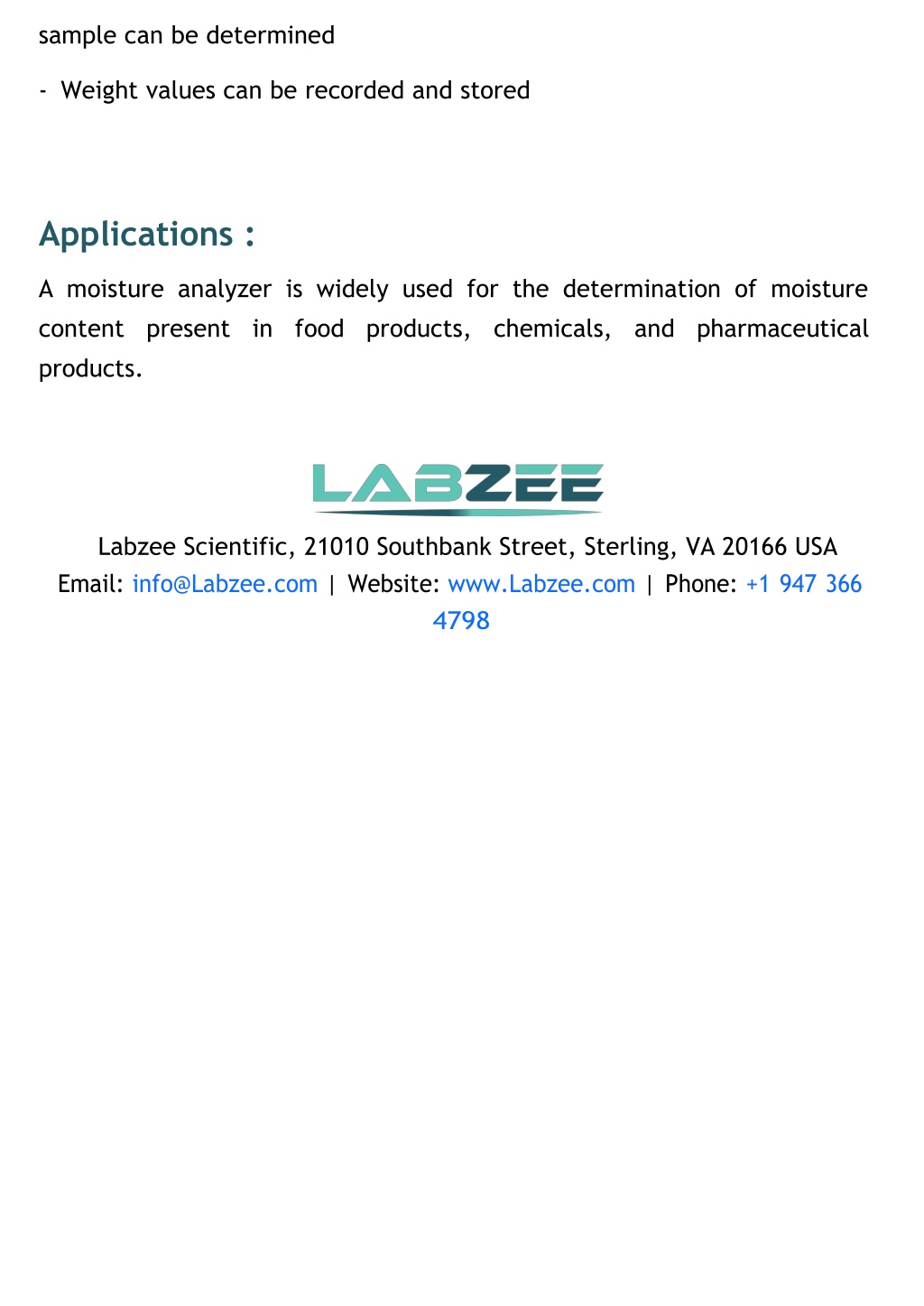

  4. sample can be determined -Weight values can be recorded and stored Applications : A moisture analyzer is widely used for the determination of moisture content present in food products, chemicals, and pharmaceutical products. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166 USA Email: info@Labzee.com | Website: www.Labzee.com | Phone: +1 947 366 4798
