Differential-Thermal-Analyzer-LDTA-A11.

DESCRIPTION

<br>Labtron differential thermal analyzer provides accurate analysis of heat absorption and emission in solid and liquid samples across a broad temperature range from RT to 1350u00b0C. Featuring a heating speed of 1 to 80u00b0C/min, it identifies and quantifies chemical composition while recording temperature. This ensures accurate detection of phase transitions such as crystallization, melting, and sublimation.

Télécharger la présentation

Differential-Thermal-Analyzer-LDTA-A11.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

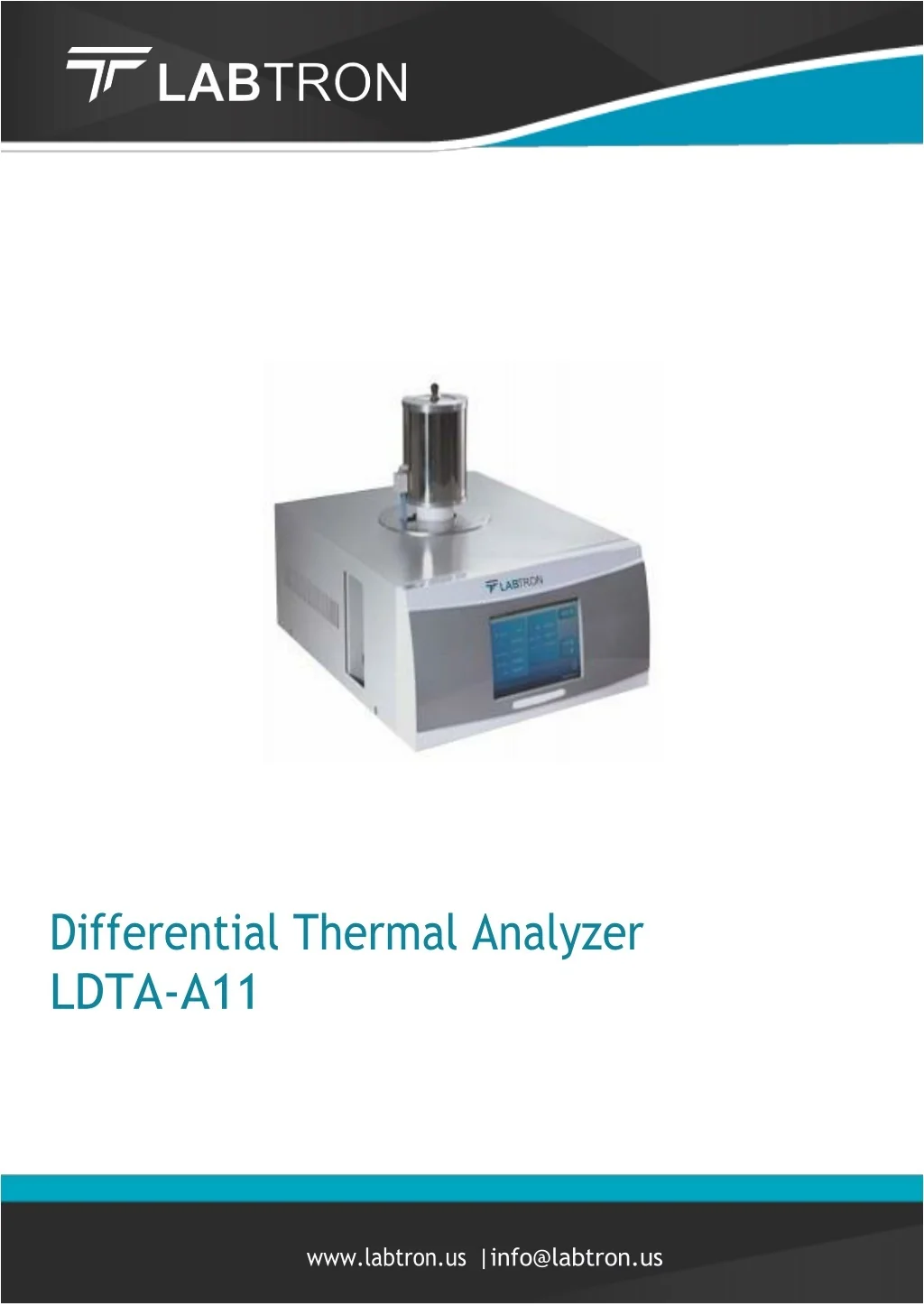

  1. Differential Thermal Analyzer LDTA-A11 www.labtron.us |info@labtron.us

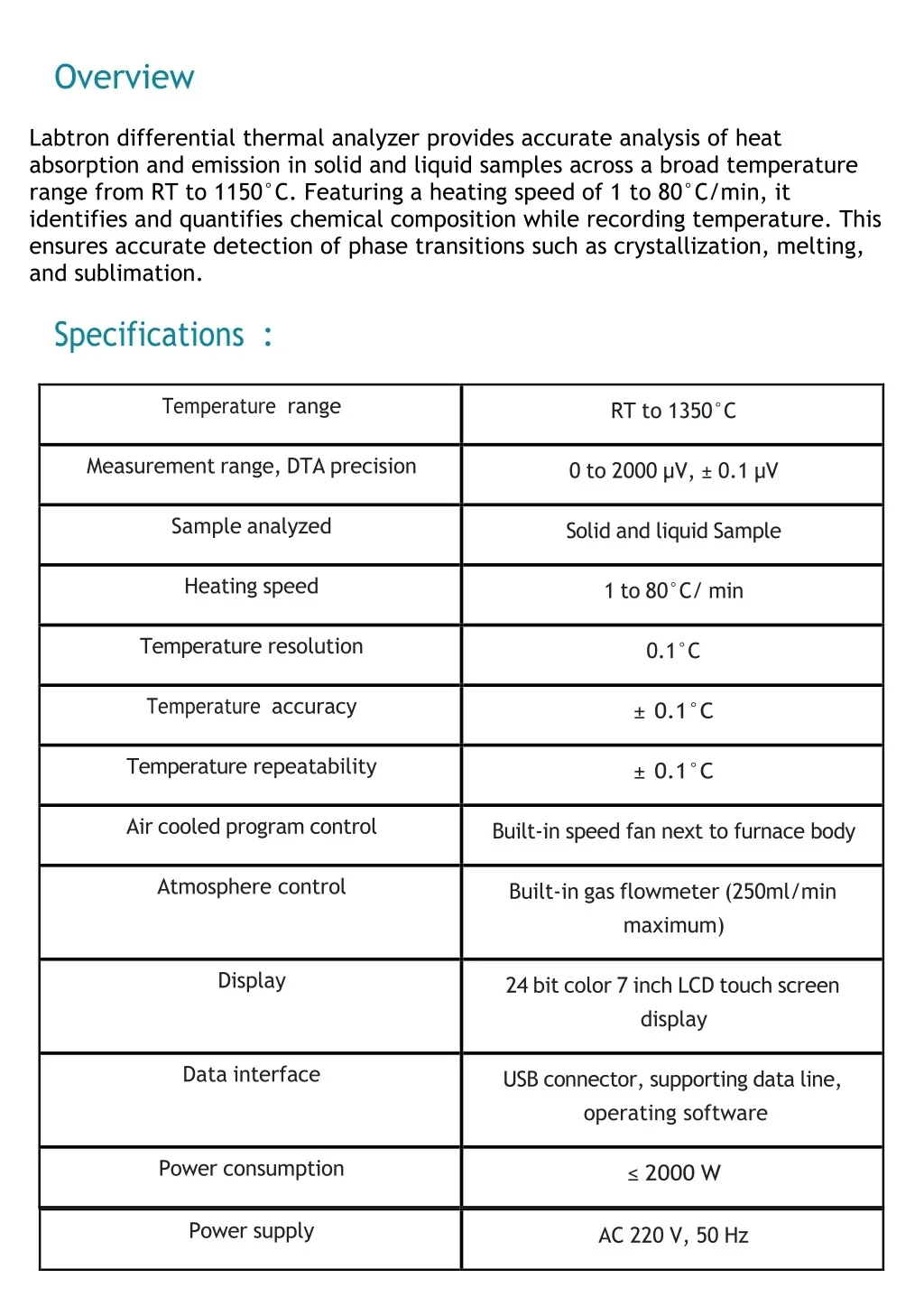

  2. Overview Labtron differential thermal analyzer provides accurate analysis of heat absorption and emission in solid and liquid samples across a broad temperature range from RT to 1150°C. Featuring a heating speed of 1 to 80°C/min, it identifies and quantifies chemical composition while recording temperature. This ensures accurate detection of phase transitions such as crystallization, melting, and sublimation. Specifications: Temperature range RT to 1350°C Measurement range, DTA precision 0 to 2000 µV, ± 0.1 µV Sample analyzed Solid and liquid Sample Heating speed 1 to 80°C/ min Temperature resolution 0.1°C Temperature accuracy ± 0.1°C Temperature repeatability ± 0.1°C Air cooled program control Built-in speed fan next to furnace body Atmosphere control Built-in gas flowmeter (250ml/min maximum) Display 24 bit color 7 inch LCD touch screen display Data interface USB connector, supporting data line, operating software Power consumption ≤ 2000 W Power supply AC 220 V, 50 Hz

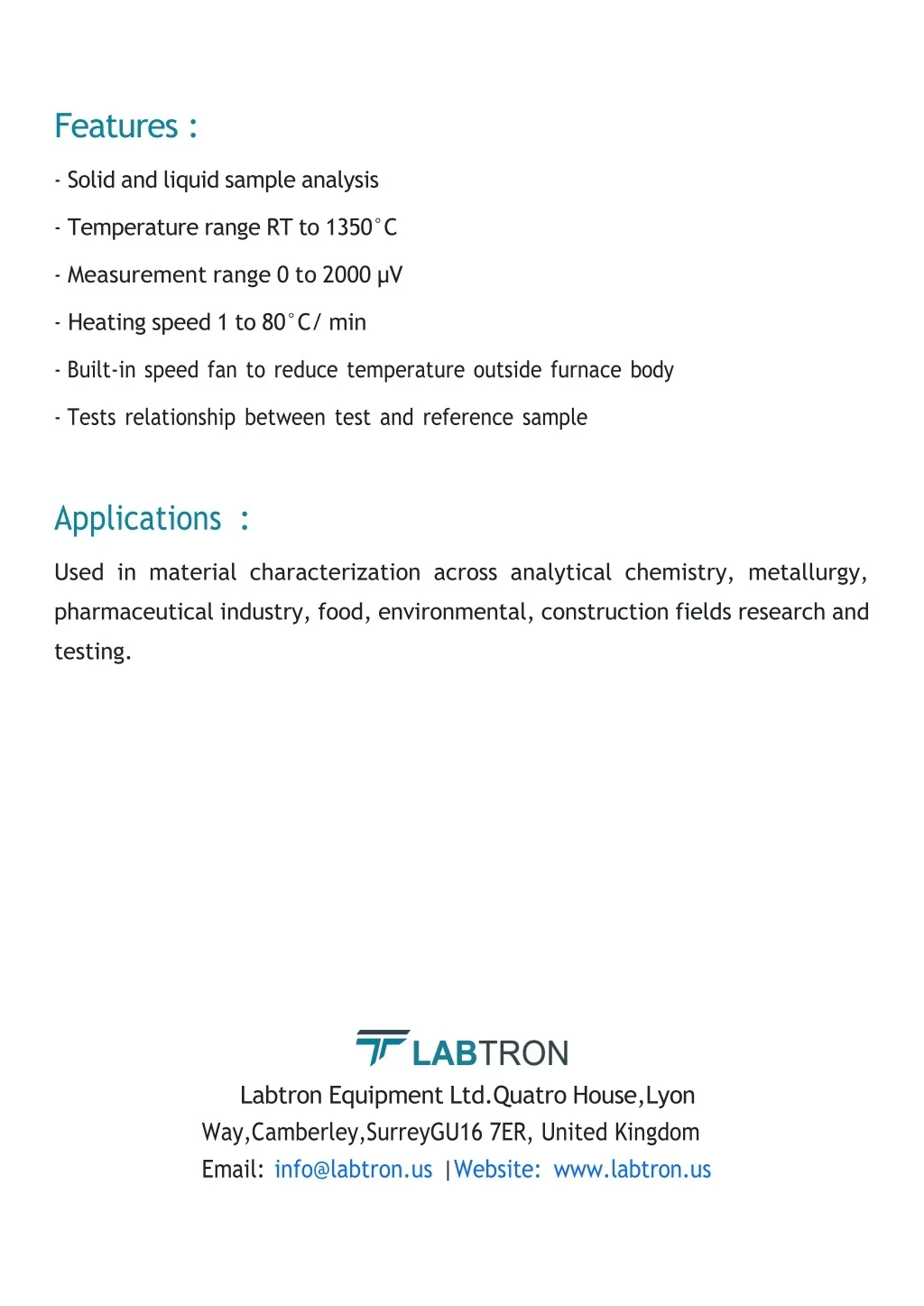

  3. Features : -Solid and liquid sample analysis -Temperature range RT to 1350°C -Measurement range 0 to 2000 µV -Heating speed 1 to 80°C/ min -Built-inspeedfantoreducetemperatureoutsidefurnacebody -Testsrelationshipbetweentestandreferencesample Applications: Used in material characterization across analytical chemistry, metallurgy, pharmaceutical industry, food, environmental, construction fields research and testing. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email:info@labtron.us|Website:www.labtron.us

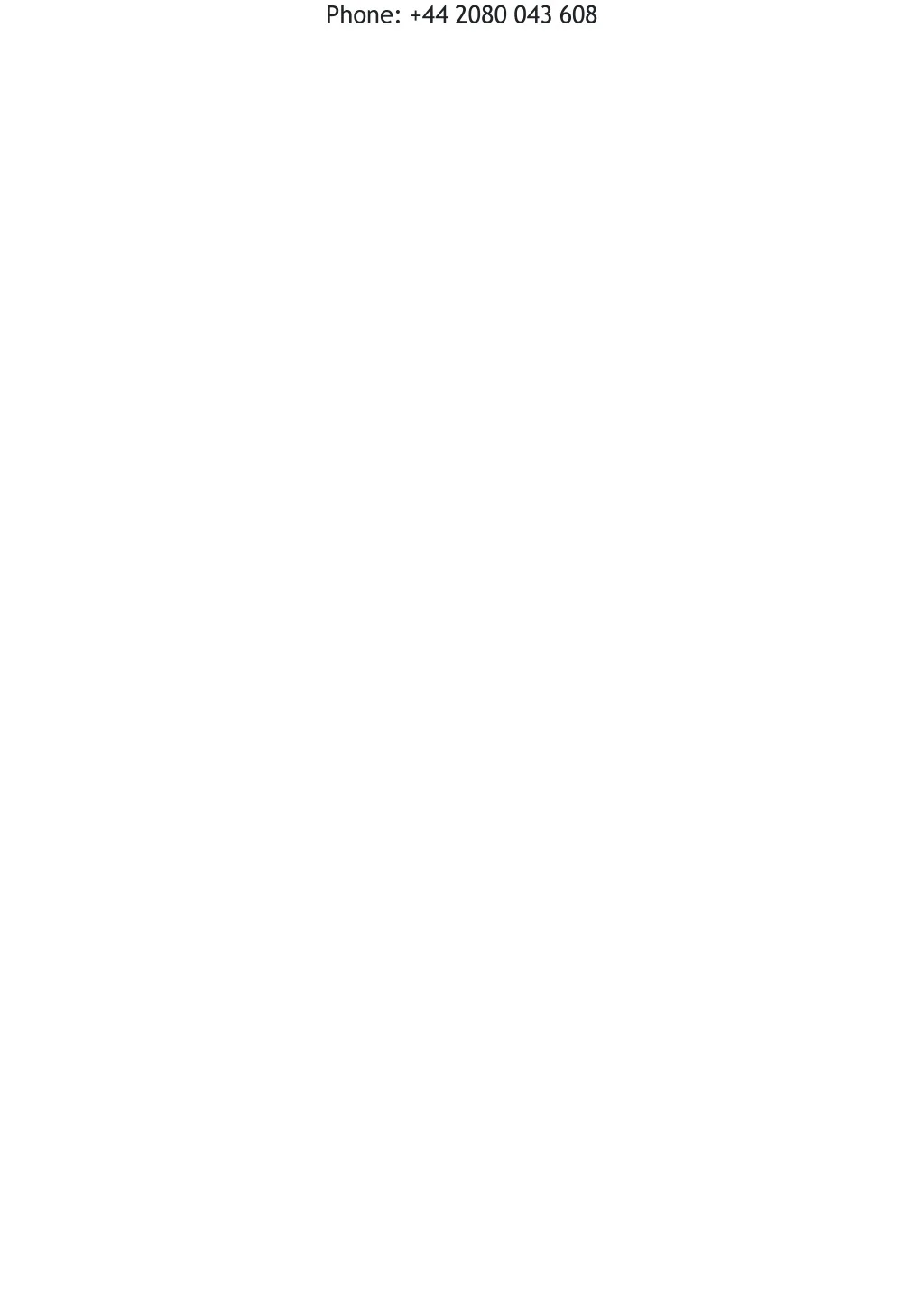

  4. Phone: +44 2080 043 608
