Introduction to Genetics

Introduction to Genetics. -the DNA molecule -nucleotides -chromosomes vs genes -DNA replication -cell division. The DNA molecule. Composed of 2 polymers of nucleotides Polymers are oriented in antiparallel Molecule resembles a spiral staircase of complementary base pairs.

LionelDale
Télécharger la présentation

Introduction to Genetics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction to Genetics -the DNA molecule -nucleotides -chromosomes vs genes -DNA replication -cell division

  2. The DNA molecule • Composed of 2 polymers of nucleotides • Polymers are oriented in antiparallel • Molecule resembles a spiral staircase of complementary base pairs

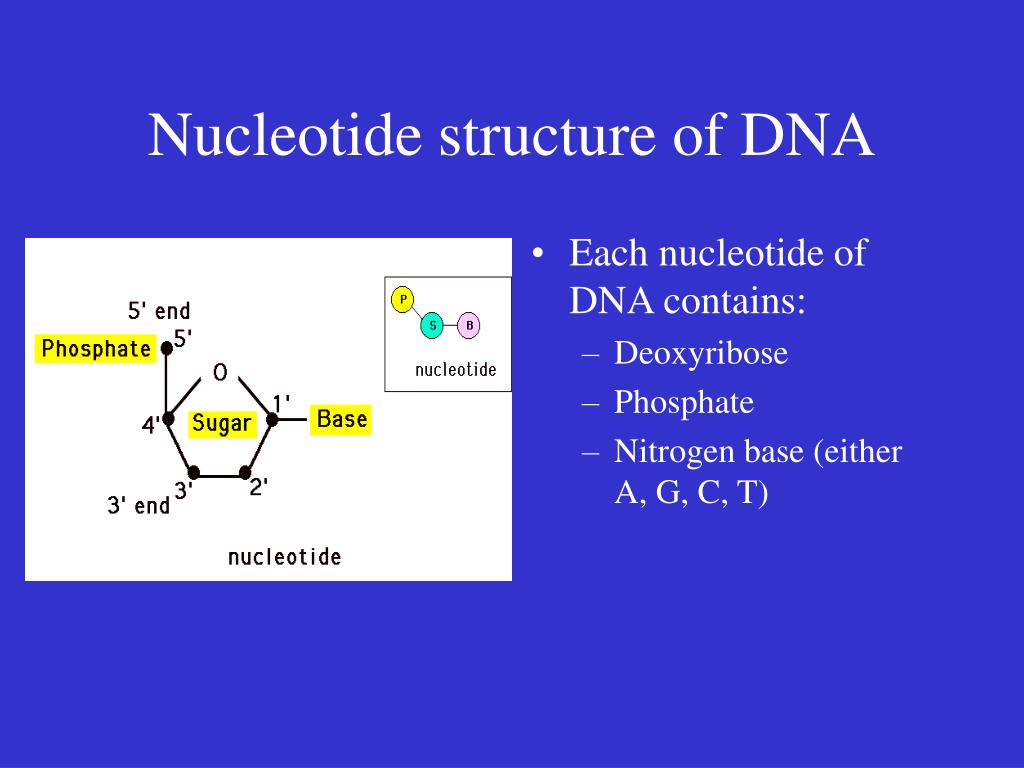

  3. Nucleotide structure of DNA • Each nucleotide of DNA contains: • Deoxyribose • Phosphate • Nitrogen base (either A, G, C, T)

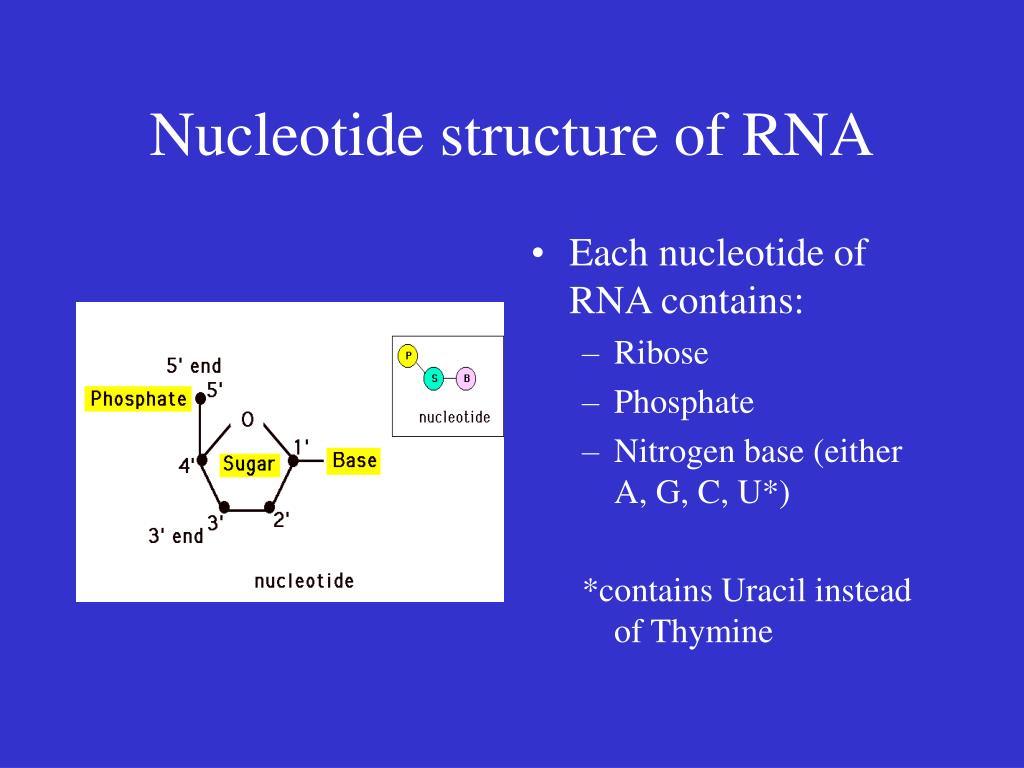

  4. Nucleotide structure of RNA • Each nucleotide of RNA contains: • Ribose • Phosphate • Nitrogen base (either A, G, C, U*) *contains Uracil instead of Thymine

  5. DNA structure • “Double helix” propsed by Watson and Crick (1953) • Antiparallel backbones • Complementary base pairing: • Adenine to Thymine • Cytosine to Guanine

  6. DNA structure

  7. Chromosomes vs Genes • A chromosomeconstitutes an entire DNA molecule + protein • Protein = histones • Supercoiled DNA in nucleosomes • Humans contain 46 such molecules (23 pairs) • 44 somatic chromosomes • 2 sex chromosomes (X +Y)

  8. Chromosomes vs Genes • Genes constitute distinct regions on the chromosome • Each gene codes for a protein product • DNA -> RNA-> protein • Differences in proteins brings about differences between individuals and species

  9. How do chromosomes become double stranded?Answer: DNA replication • During the life of the cell, each chromosome of DNA makes a copy of itself • This must occur prior to cell division to insure each daughter cell gets a complete set

  10. Therefore, prior to dividing, any cell must first replicate DNA • Each single-stranded (SS) chromosome duplicates to become a double-stranded (DS) chromosome • Example: • A human cell is formed with 46 SS chromosomes • Each chromosome replicates to produce 46 DS chromosomes

  11. DNA replication

  12. DNA replication occurs during the life of a cell = the Cell Cycle • DNA replicates (makes a copy of itself) to produce DS chromosomes • During this time, the cytoplasmic contents also duplicate • Spindle tubules form to aid in the process of cell division • Mitosis in body cells • Meiosis in sex cells

  13. The cell cycle
