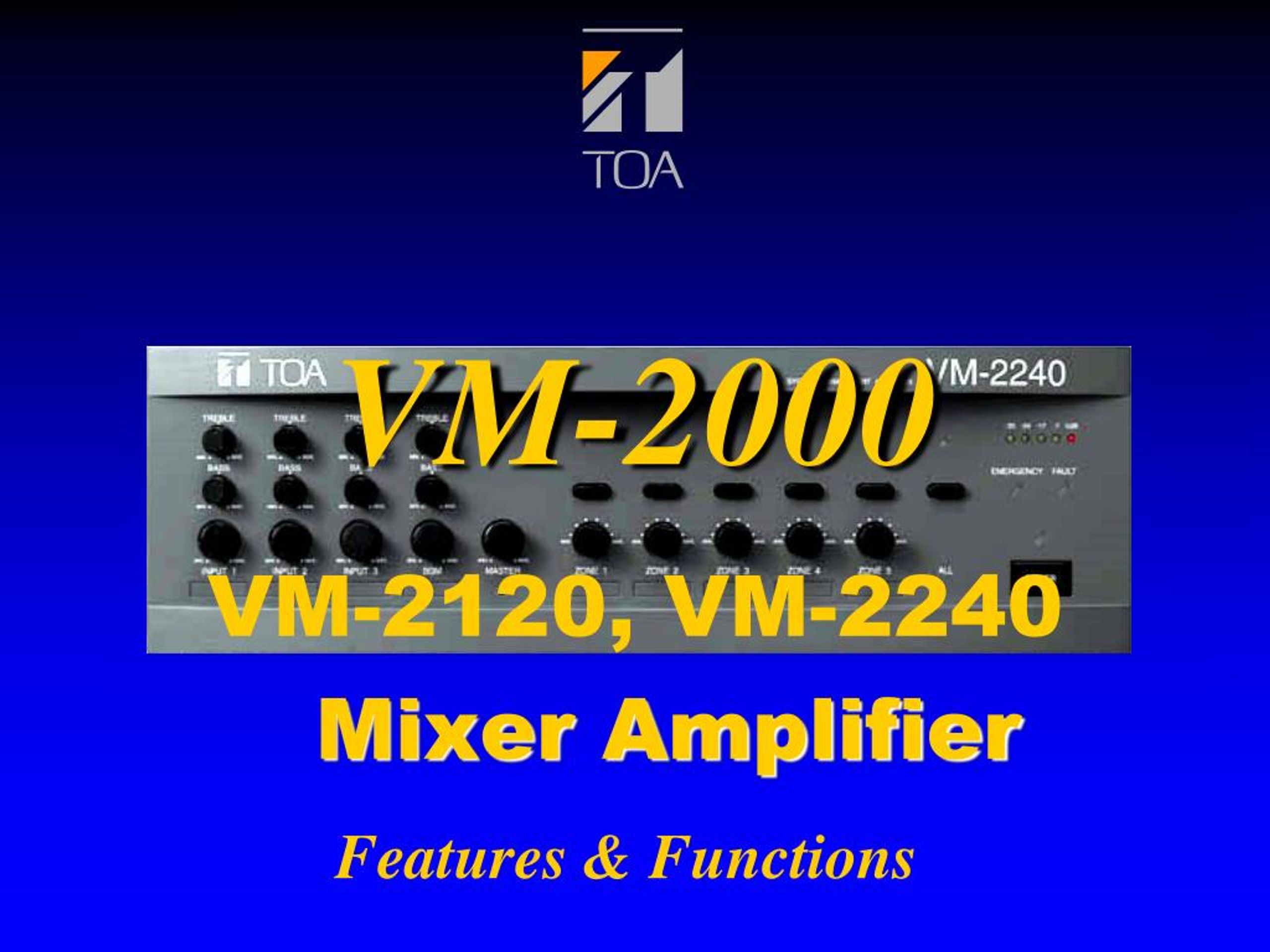

  1. VM-2000 VM-2120, VM-2240 Mixer Amplifier Features & Functions

  2. Features

  3. Features (1) INPUTS: • 2 BGM Inputs • 3 Mic/Line Inputs • 1 Telephone Input • Remote Microphone Input (for up to 4 RM-200M) • 100V Speaker Line • Power Amplifier Input

  4. Features (2) OUTPUTS: • Speaker Line Outputs: • 120W: VM-2120, 240W: VM-2240 • 100 volts (70 or 50 volt by simple modification) • 1 Direct • 5 Zones (with ON/OFF Switch and Attenuator) • 1 Line Output pre-master • 1 Line Output post-master • 1 Recording Output

  5. Features (3) • 5 priority levels are provided: Emergency: highest priority 4 priority levels (1 - 4) • Remote-Controlled Power-ON the VM is always in stand-by mode, to be switched on by external equipment (e.g. central system in emergency case) • Emergency Power (24V DC) Inlet • Cascading 9 VM-2000 9 VM-2000 can be combined to obtain up to45 zones and more output power

  6. Features (4) • Surveillance Functions: • Failure Indication on Remote Microphone and VM • Monitoring • CPU • the Communication with Remote Microphone • the voice message unit EV-200 and its memory card • Optional Surveillance Functions: • Monitoring • Speaker Line • Amplifier • Optional Voice Message Functions: • 7 Messages • 5 for commercial purpose • 2 for emergency purpose • 1 Chime

  7. Appearance

  8. Emergency and Fault Indication LED Level meter Mic/Line Inputs Master volume Zone buttons Power switch(stand-by) BGM Inputs Zone Attenuators All-call button Appearance Front Emergency and Fault Indication LED Emergency and Fault Indication LED Emergency and Fault Indication LED Emergency and Fault Indication LED EMERGENCY FAULT

  9. Line inputs+ outputs Surveillancemodule BGM inputs w. level Voice message module AC mains 24V DC Mic/lineinputs Link remote mics, VM Speakerconnector Control I/O Telephone input,priority control in Volume telephone, chime, remote mic Setting DIPswitches Appearance Rear

  10. TREBLE BASS BGM BGM Inputs 2 BGM Inputs • 2 RCA/Cinch connectors (Stereo  Mono) • 2 attenuator for each channel (pre-adjustment) • Volume, bass & treble control • Mute-level can be set: • -∞∞, -28, 0 dB: to allow just mixing, keeping BGM present during paging or to switch off • BGM has always lowest priority (priority level 4) • Assignment to Zones • The BGM signal can be routed to the zones selected by the front panel’s zone switches

  11. Control inputs (busy)on clamp terminal Inputs 1-3 (1) 3 MIC/LINE Inputs (Inputs 1~3) • combined XLR / phone jacks, balanced • Input 1 with additional DIN jack • control input included • Volume, bass & treble control • Selectable sensivity: • microphone (-60 dBV) or line signal (-10 dBV) • Phantom power: • can be switched on or off for all simultaneously when set to microphone sensivity Rear

  12. Telephone Input 1 Telephone Input • Push-in terminal block (balanced) with control input Sensivity: -10 dBV • Connection to a PABX system with an audio output and control signal output • Priority level 1 or 2 • Pre-announcement chime can be set ON or OFF Rear PCB

  13. VM-2000 (master) RJ45 Remote Microphone RM-200M Connection of up to 4 remote microphones • parallel connection in „daisy chain“ • using RJ45 connectors and category 5 cables (4 pairs with shield) * external power supply necessary for more than 1 remote microphone(AD-4800 ER, part code 100-07-291-80)

  14. Priorities • Absolute Priority 5 priority levels are provided: • Emergency: highest priority • 4 priority levels (1 - 4) • Relative Priority when inputs of the same priority level (1 or 2) are activated at the same time, valid for all inputs with control • last-in-first-out (LIFO) and first-in-first-out (FIFO) • unit no. Priority only for RM-200M and messages 1 - 5 • Mixing • in priority level 2: “priority 2 mixing” is set • in priority level 3

  15. Chime Tones • 6 Internal Chime Tones: • 2-tone chime • 2-tone chime (fast repeat) • 4-tone chime (up) • Single-tone chime • 4-tone chime (up: pre-, down: post-announcement) • Gong • 1 pre-recorded chime on EV-200 • recorded on memory card as message 8 • Westminster chime

  16. Emergency

  17. Emergency • The VM-2000 is a system managing amplifier with VA (Voice Alarm) functions So, it can be set into the Emergency Mode by: • depressing the remote microphones emergency key • external control: - starting the ALERT function - starting the EVACUATION function The Emergency mode can be stopped only by external control ! To avoid switching off easily

  18. MITRA MANDIRI SELARAS Jl. Jatijajar II No. 66 Depoktlp : 021-8743542

  19. The End
