Ch.3 Topics. x and y parts of motion adding vectors properties of vectors projectile and circular motion relative motion. Motion in Two Dimensions. displacements: x and y parts thus: x and y velocities Ex: 30m/s North + 40m/s East = 50m/s v x + v y = v

Télécharger la présentation
## Ch.3 Topics

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

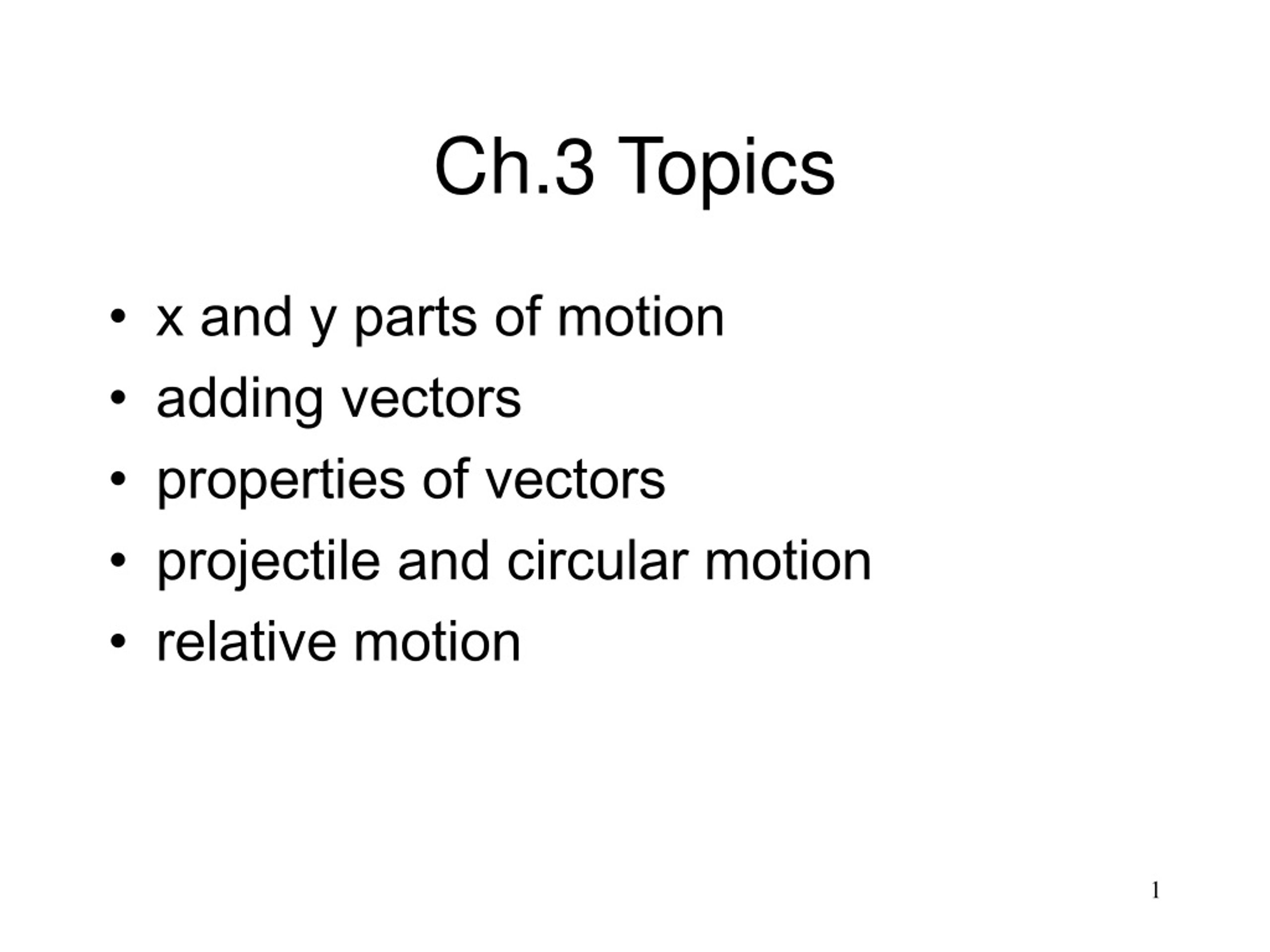

**Ch.3 Topics**• x and y parts of motion • adding vectors • properties of vectors • projectile and circular motion • relative motion**Motion in Two Dimensions**• displacements: x and y parts • thus: x and y velocities • Ex: • 30m/s North + 40m/s East = 50m/s • vx + vy = v • component set = vector**0**Two Dimensional Motion (constant acceleration)**Vector Math**• Two Methods: • geometrical (graphical) method • algebraic (analytical) method**0**Order Independent (Commutative)**0**Subtraction, head-to-head**Algebraic Component Addition**• trigonometry & geometry • “R” denotes “resultant” sum • Rx = sum of x-parts of each vector • Ry = sum of y-parts of each vector**0**Quadrants of x,y-Plane**0**Azimuth: Angle measured counter-clockwise from +x direction. Examples: East 0°, North 90°, West 180°, South 270°. Northeast = NE = 45°**0**Check your understanding: A: 180° B: 60° C: > 90° Note: All angles measured from east.**Point-Style Vector Notation**Example:**0**Components Example:Given A = 2.0m @ 25°, its x, y components are: Check using Pythagorean Theorem:**0**R = (2.0m, 25°) + (3.0m, 50°):**0**(cont) Magnitude, Angle:**0**General Properties of Vectors • size and direction define a vector • location independent • change size and/or direction when multiplied by a constant • written: Bold or Arrow**0**these vectors are all the same**A**0.5A -A -1.2A Multiplication by Constants 0**0**Projectile Motion • begins when projecting force ends • ends when object hits something • gravity alone acts on object**vo**Dy Dx = “Range” 0 Projectile Motion ax = 0 and ay = -9.8 m/s/s**0**Horizontal V Constant**0**Range vs. Angle**Circular Motion**• centripetal, tangential components • general acceleration vector • case of uniform circular motion**Relative Motion**• Examples: • people-mover at airport • airplane flying in wind • passing velocity (difference in velocities) • notation used:velocity “BA” = velocity of B – velocity of A**Ex. A Plane has an air speed vpa = 75m/s. The wind has a**velocity with respect to the ground of vag = 8 m/s @ 330°. The plane’s path is due North relative to ground. a) Draw a vector diagram showing the relationship between the air speed and the ground speed. b) Find the ground speed and the compass heading of the plane. (similar situation)**Summary**• Vector Components & Addition using trig • Graphical Vector Addition & Azimuths • Example planar motions: Projectile Motion, Circular Motion • Relative Motion**0**Example 1: Calculate Range (R) vo = 6.00m/s qo = 30° xo = 0, yo = 1.6m; x = R, y = 0**0**Example 1 (cont.) Step 1**0**Quadratic Equation**0**Example 1 (cont.) End of Step 1**0**Example 1 (cont.) Step 2 (ax = 0) “Range” = 4.96m End of Example**0**PM Example 2: vo = 6.00m/s qo = 0° xo = 0, yo = 1.6m; x = R, y = 0**0**PM Example 2 (cont.) Step 1**0**PM Example 2 (cont.) Step 2 (ax = 0) “Range” = 3.43m End of Step 2**v1**0 1. v1 and v2 are located on trajectory. a**Q1. Given**locate these on the trajectory and form Dv. 0**0**Kinematic Equations in Two Dimensions * many books assume that xo and yo are both zero.**0**Velocity in Two Dimensions • vavg // Dr • instantaneous “v” is limit of “vavg” as Dt 0**0**Acceleration in Two Dimensions • aavg // Dv • instantaneous “a” is limit of “aavg” as Dt 0**0**Conventions • ro = “initial” position at t = 0 • r = “final” position at time t.
