  1. Linux GUI • Chapter 5

  2. Graphical User Interface • GUI vs. CLI • Easier and more intuitive • More popular and advanced • Needed for graphics, web browsing • Linux GUI • advanced features • not always stable on every hardware • X Windows System • Basis of Linux GUI • For UNIX, Linux, Mac OS X, etc.

  3. X - Introduction • Developed by MIT and DEC in 1994 • Commercial and free versions • Free version for Linux: XFree86, X.Org • Based on Client-Server model • X Server • Runs on your machine • Responsible for handling graphics • X Clients • Software that needs to display on screen • Sends request to X server for display • Client and servers maybe on different machines • need a network or Internet connection in between

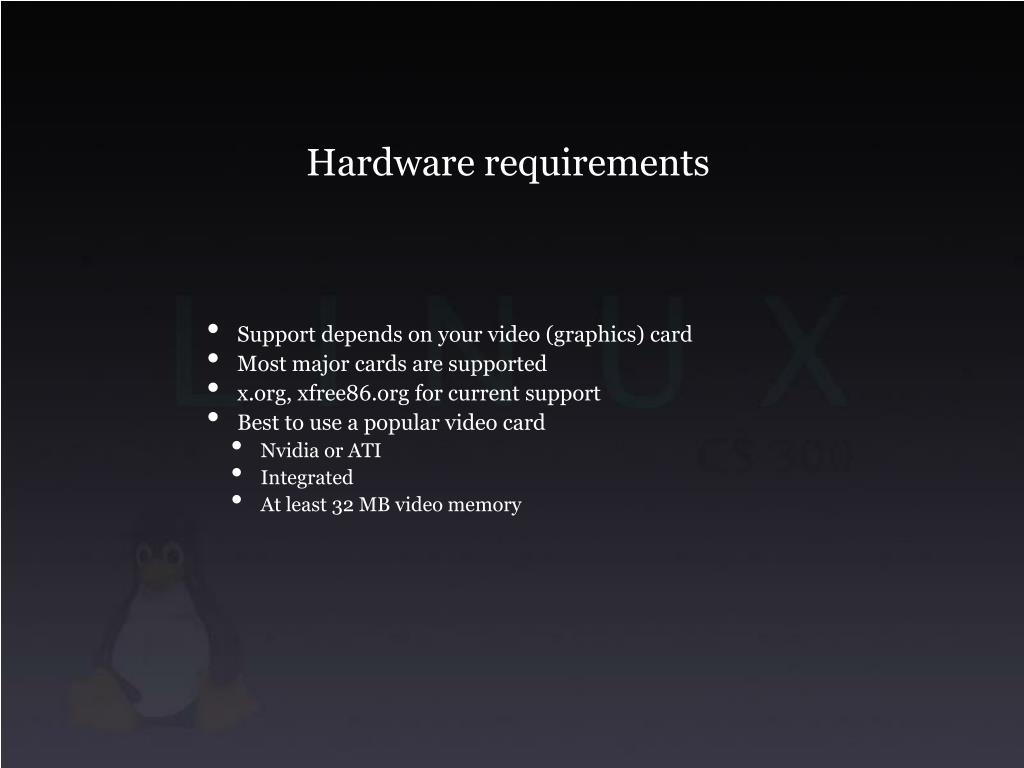

  4. Hardware requirements • Support depends on your video (graphics) card • Most major cards are supported • x.org, xfree86.org for current support • Best to use a popular video card • Nvidia or ATI • Integrated • At least 32 MB video memory

  5. XFree86, Xorg • Free implementation of X Window System on Linux • Usually installed by default • If not started after boot, startx on command line • Only one per computer • Configure by editing file • /etc/X11/XF86Config, /etc/X11/xorg.conf • If problem persists, unstable • logout • Ctrl-Alt-Backspace • Reboot (Ctrl-Alt-Delete)

  6. Window Manager • An X Client itself • Sits above X server to manage windows • WM manages applications within windows • manages window positions • window movements, opening, closing • Examples: fvwm, Enlightenment, Afterstep, Blackbox • Not very useful without a Desktop Manager / Desktop Environment

  7. Desktop Manager • Built on top of a Window Manager • Adds functionalities to a WM • Provides advanced and consistent GUI to user • Provides • A WM (of course) • A file browser • Configuration utilities • Desktop • Network • Security • Session management (login, logout, restart) • Applications • Graphics • Text Editors • Games • Office Suites

  8. Components of a GUI

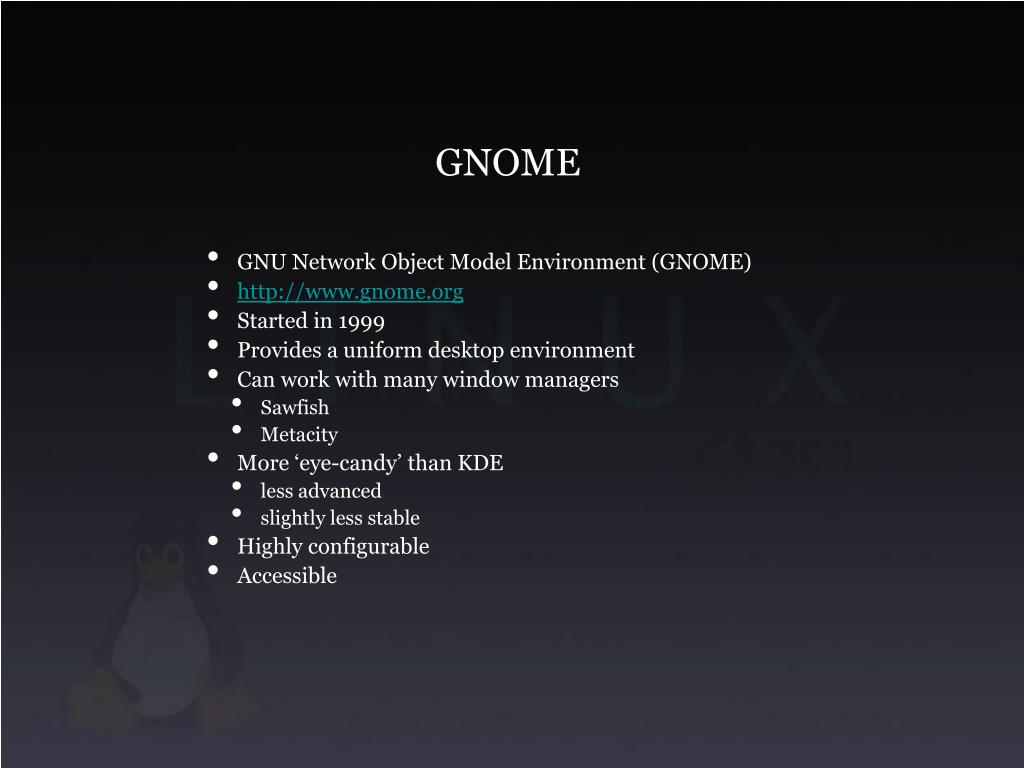

  9. GNOME • GNU Network Object Model Environment (GNOME) • http://www.gnome.org • Started in 1999 • Provides a uniform desktop environment • Can work with many window managers • Sawfish • Metacity • More ‘eye-candy’ than KDE • less advanced • slightly less stable • Highly configurable • Accessible
