WELDING

WELDING Basic Angles Project Objectives Apply appropriate techniques to: measure, cut, weld, grind, and follow instructions on a given project Review Review the use and markings of the t-square, framing square, combination square, and protractor   Review grinder safety.

Mia_John
Télécharger la présentation

WELDING

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

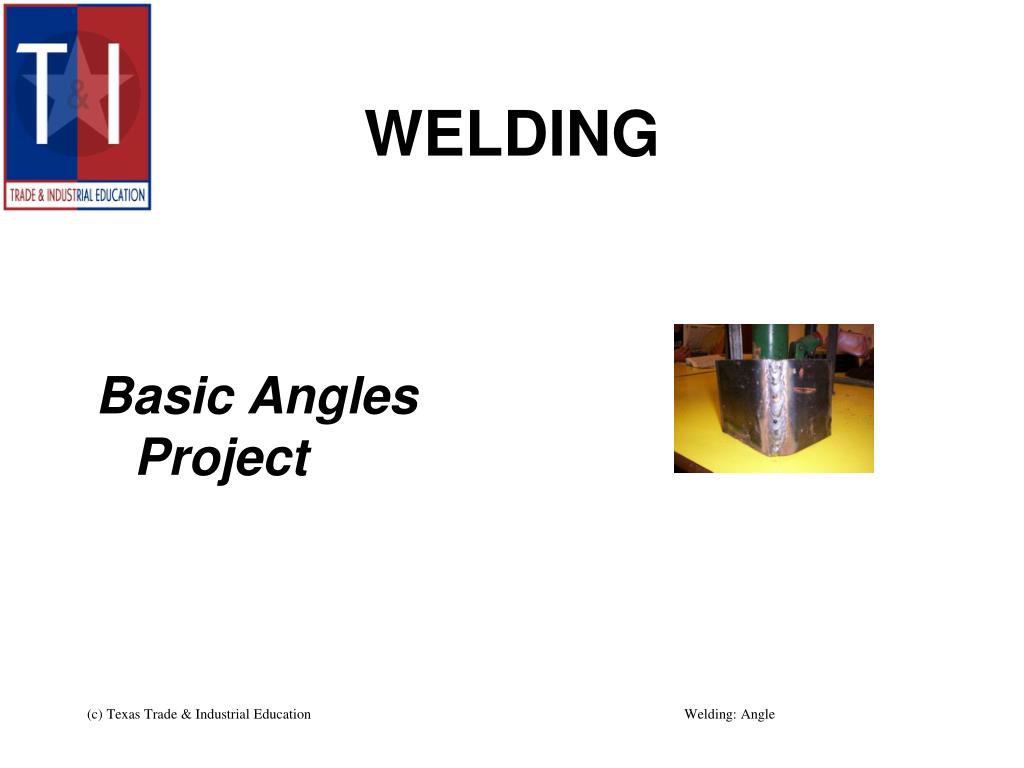

  1. WELDING Basic Angles Project Welding: Angle

  2. Objectives • Apply appropriate techniques to: • measure, • cut, • weld, • grind, and • follow instructions on a given project Welding: Angle

  3. Review • Review the use and markings of the t-square, framing square, combination square, and protractor   • Review grinder safety.  Welding: Angle

  4. Break into Groupsto Practice • Tack together pieces to create 90 degree angle.  • Use the measurement tools to ensure angle accuracy.  Cut in half to create a 45 degree angle.  • Weld together on outside only (nothing on inside).  • Grind and file to make clean lines, edges, and corners. Welding: Angle

  5. Grade • Your grade will depend on successful completion of the project. Welding: Angle
