  1. Multiphase Flow and Ansys Fluent CFD Simulation in Oil & Gas Multiphase flow is essential in many industrial processes, especially in the oil and gas industry, which supplies global energy and raw materials for petrochemicals. Process efficiency and accuracy are critical for operational and economic benefits. Simulation, particularly Computational Fluid Dynamics (CFD), is key to optimizing these processes. CFD enables engineers to analyze complex fluid flows and improve designs without costly experiments.

  2. Simulation: A Cost-Efficient Path to Process Optimization Advantages of Simulation Cost and Time Savings Simulations are more affordable and faster than experimental setups, which are costly and hard to replicate. Numerical simulation offers insight into system behavior and tests operating conditions without laboratory experiments. CFD Training CFD courses, especially in India, teach engineers how to solve real-world challenges using simulation tools like ANSYS Fluent.

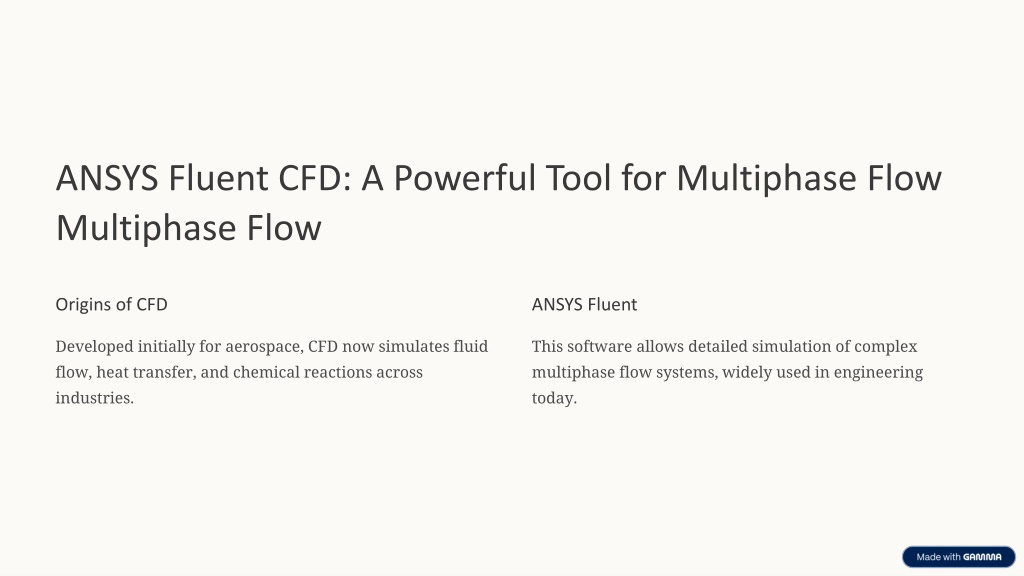

  3. ANSYS Fluent CFD: A Powerful Tool for Multiphase Flow Origins of CFD ANSYS Fluent Developed initially for aerospace, CFD now simulates fluid flow, heat transfer, and chemical reactions across industries. This software allows detailed simulation of complex multiphase flow systems, widely used in engineering today.

  4. Advancements in CFD and Multiphase Flow Modeling Hardware Progress Multiphase Flow Definition Model Variety Improved computing power has made CFD accessible and practical for complex multiphase flows. ANSYS Fluent offers multiple models tailored to different flow regimes and phase interactions. Simultaneous flow of gas, liquid, and solids, common in pipelines, boilers, and reactors.

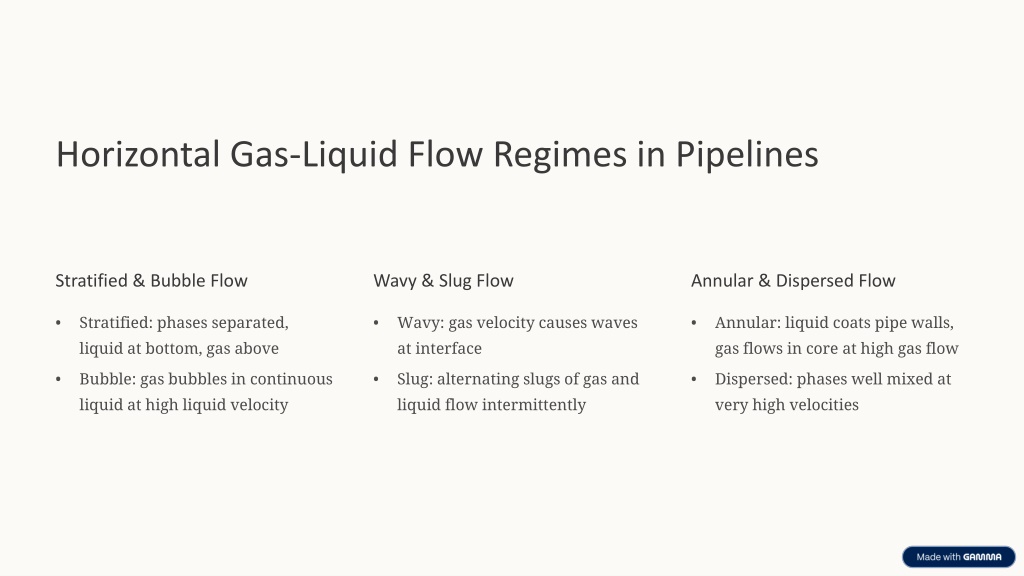

  5. Horizontal Gas-Liquid Flow Regimes in Pipelines Stratified & Bubble Flow Wavy & Slug Flow Annular & Dispersed Flow • Stratified: phases separated, liquid at bottom, gas above • Wavy: gas velocity causes waves at interface • Annular: liquid coats pipe walls, gas flows in core at high gas flow • Bubble: gas bubbles in continuous liquid at high liquid velocity • Slug: alternating slugs of gas and liquid flow intermittently • Dispersed: phases well mixed at very high velocities

  6. Predicting and Controlling Flow Regimes with ANSYS Fluent CFD Flow Regime Maps ANSYS Fluent provides maps to identify flow patterns based on velocity and phase properties. Phase Interaction Models Models simulate realistic interactions between phases for accurate predictions. Pipeline Design Accurate flow regime prediction is vital for pressure drop, heat, and mass transfer calculations.

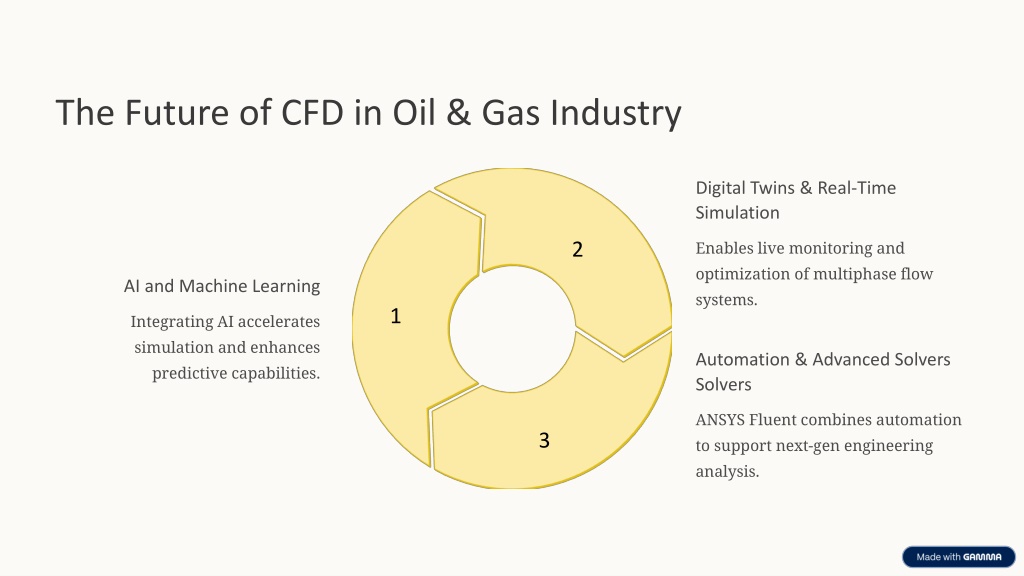

  7. The Future of CFD in Oil & Gas Industry Digital Twins & Real-Time Simulation 2 Enables live monitoring and optimization of multiphase flow systems. AI and Machine Learning 1 Integrating AI accelerates simulation and enhances predictive capabilities. Automation & Advanced Solvers ANSYS Fluent combines automation to support next-gen engineering analysis. 3

  8. Mastering Multiphase Flow Simulation with PIGSO LEARNING Comprehensive Ansys Fluent CFD Course Online Hands-on training in multiphase flow simulation and process modeling using ANSYS Fluent CFD. Practical Experience Real-world projects prepare students and professionals for industrial applications. Career Advancement Gain expertise to elevate your engineering career with structured CFD coaching in India.
