  1. Claims Identity in SharePoint 2010 Paul Schaeflein Schaeflein Consulting

  2. About Me • Developer • Trainer • Hockey Fan

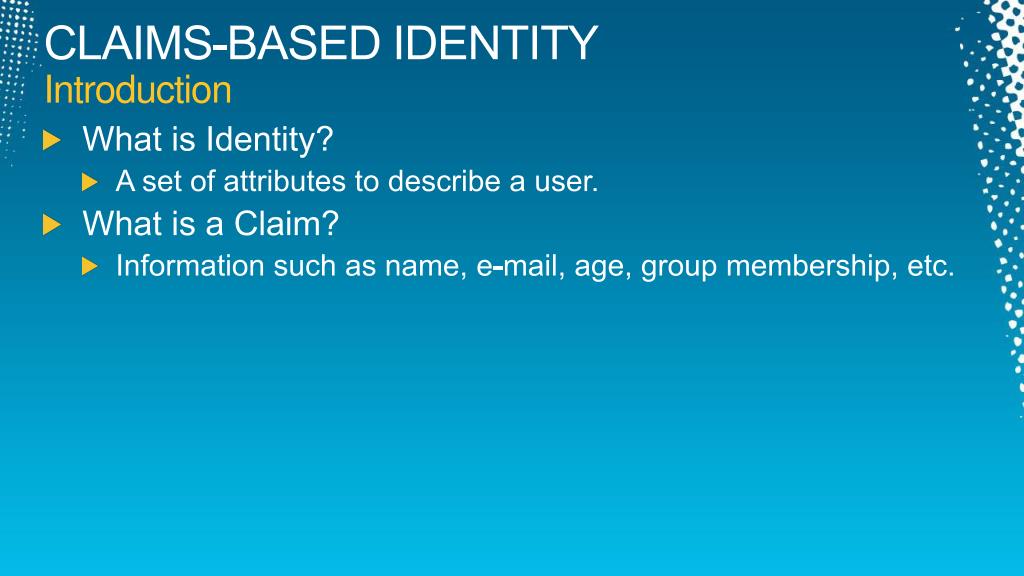

  3. CLAIMS-BASED IDENTITYIntroduction • What is Identity? • A set of attributes to describe a user. • What is a Claim? • Information such as name, e-mail, age, group membership, etc.

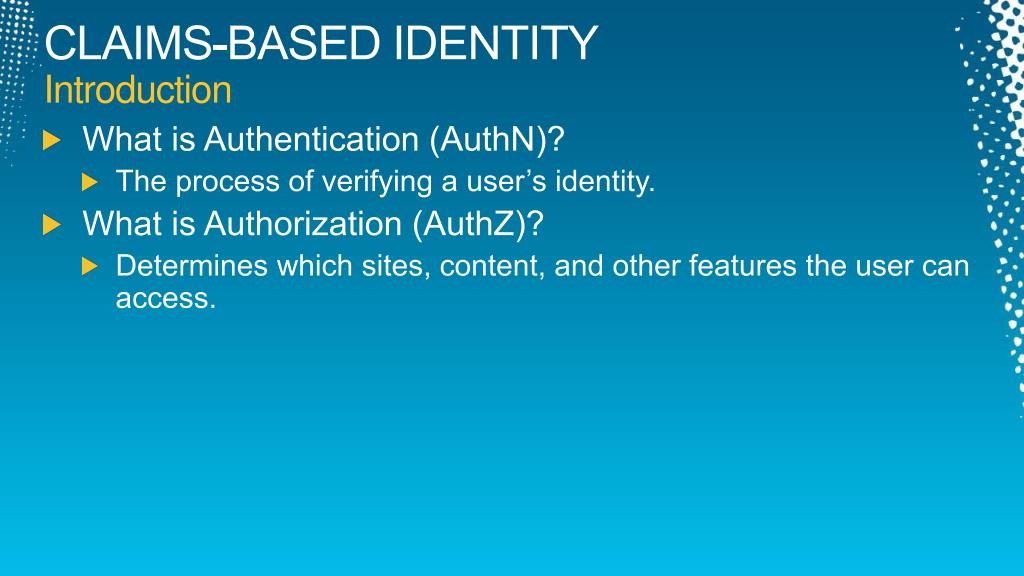

  4. CLAIMS-BASED IDENTITYIntroduction • What is Authentication (AuthN)? • The process of verifying a user’s identity. • What is Authorization (AuthZ)? • Determines which sites, content, and other features the user can access.

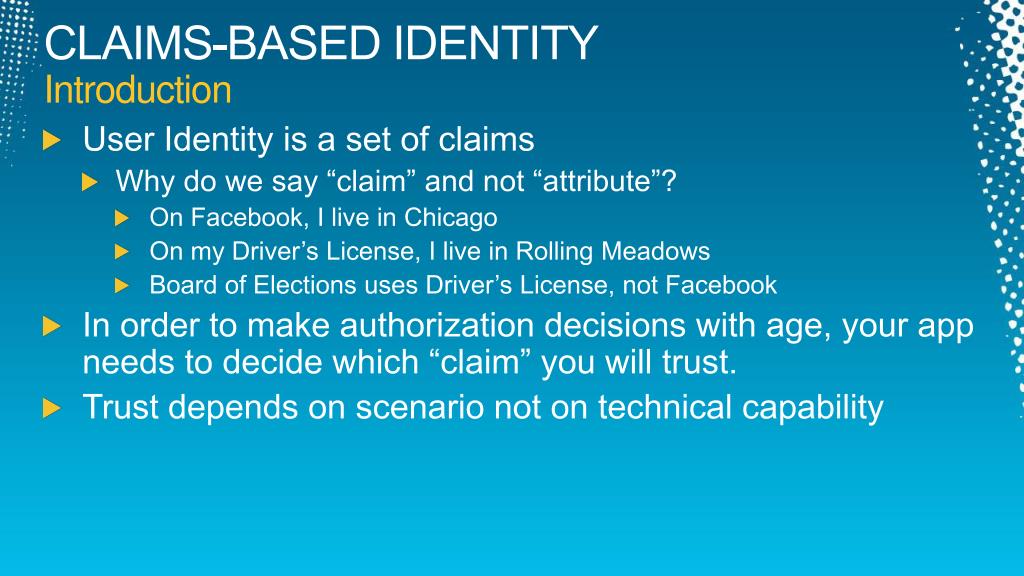

  5. CLAIMS-BASED IDENTITYIntroduction • User Identity is a set of claims • Why do we say “claim” and not “attribute”? • On Facebook, I live in Chicago • On my Driver’s License, I live in Rolling Meadows • Board of Elections uses Driver’s License, not Facebook • In order to make authorization decisions with age, your app needs to decide which “claim” you will trust. • Trust depends on scenario not on technical capability

  6. AUTHENTICATIONIdentity Provider • TokenIssuer • Has storage of users (Active Directory, Database, etc.) • Performs authentication (Password, Biometric, Smart Card, etc.) • Attributes • Group / Role membership • Other (Organizational requirements)

  7. AUTHENTICATIONIdentity Provider • <saml:AttributeAttributeName="emailaddress" • AttributeNamespace="http://schemas.xmlsoap.org/ws/2005/05/identity/claims"> • <saml:AttributeValue>administrator@lt-virt.com</saml:AttributeValue> • </saml:Attribute> • <saml:AttributeAttributeName="Group"AttributeNamespace="http://schemas.xmlsoap.org/claims"> • <saml:AttributeValue>S-1-5-21-3539477023-2881096182-2465416113-513</saml:AttributeValue> • <saml:AttributeValue>S-1-5-21-3539477023-2881096182-2465416113-520</saml:AttributeValue> • <saml:AttributeValue>S-1-5-21-3539477023-2881096182-2465416113-512</saml:AttributeValue> • <saml:AttributeValue>S-1-5-21-3539477023-2881096182-2465416113-518</saml:AttributeValue> • <saml:AttributeValue>S-1-5-21-3539477023-2881096182-2465416113-519</saml:AttributeValue> • </saml:Attribute>

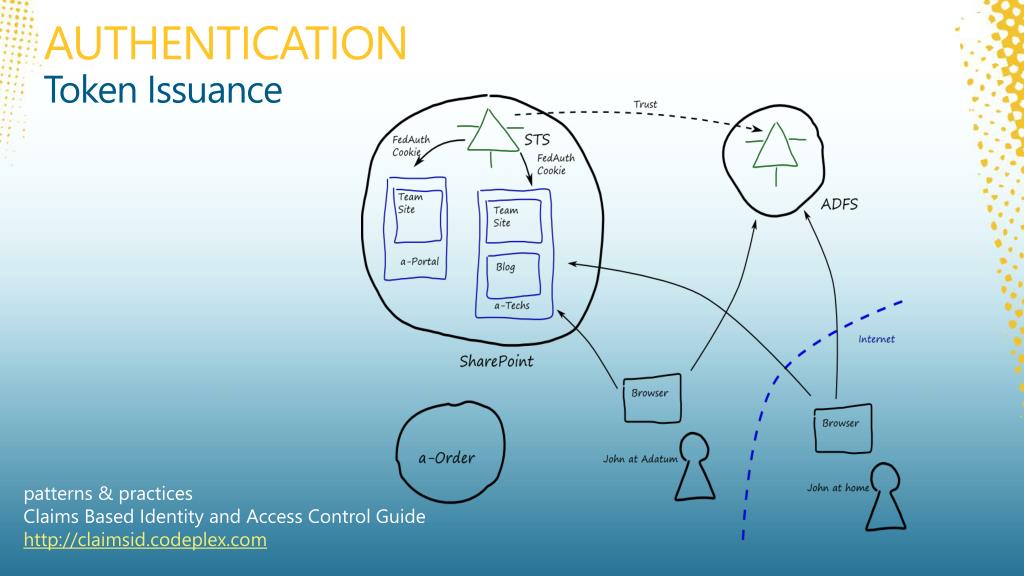

  8. AUTHENTICATIONToken Issuance patterns & practicesClaims Based Identity and Access Control Guidehttp://claimsid.codeplex.com

  9. AUTHENTICATION & SHAREPOINTChanges in SharePoint 2010 Windows SharePoint Services v3 SharePoint Foundation 2010 Authentication Methods Classic Mode Windows NT Forms-Based Claims Mode Windows NT Forms-Based SAML 1.1, WS-Fed Zones Multiple methods per zone Use default for most secure access Search crawler requires NTLM on a zone • Authentication Methods • Windows NT • Forms-Based • Zones • One AuthN method per zone

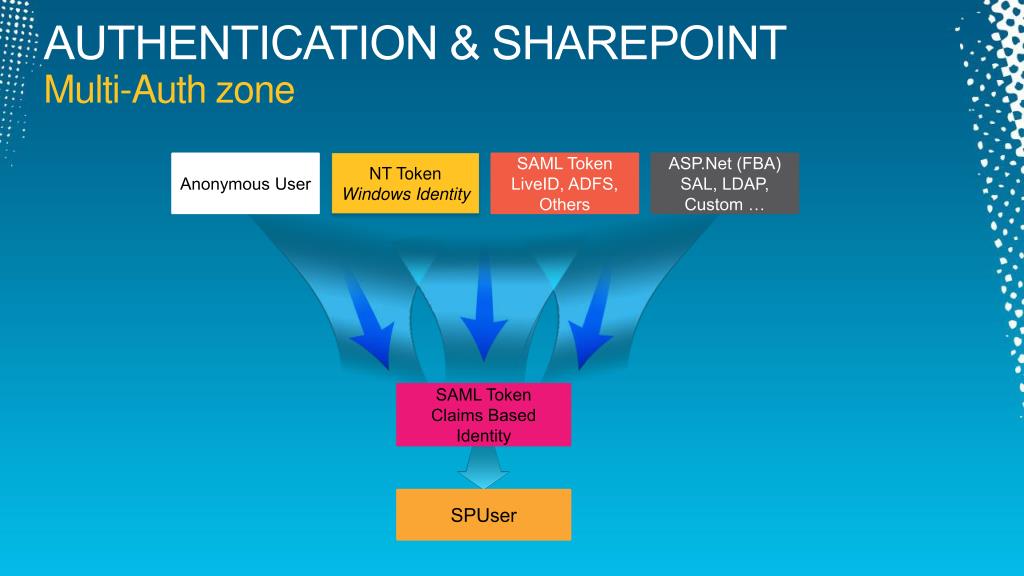

  10. AUTHENTICATION & SHAREPOINTMulti-Auth zone Anonymous User NT TokenWindows Identity SAML TokenLiveID, ADFS, Others ASP.Net (FBA)SAL, LDAP, Custom … SAML Token Claims Based Identity SPUser

  11. Multi-Auth Zone demo

  12. Identity Provider • Known as Trusted Identity Token Issuer • Configured in SharePoint via PowerShell • Activated in web application via Central Administration

  13. Configure Identity Provider demo

  14. IDENTITY PROVIDERFarm configuration • $cert = New-Object ` • System.Security.Cryptography.X509Certificates.X509Certificate2("C:\cert.cer") • $map1 = New-SPClaimTypeMapping -IncomingClaimTypeDisplayName "EmailAddress" ` • -IncomingClaimType "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress" ` • -SameAsIncoming • $realm = "urn:" + $env:ComputerName + ":adfs" • $signinurl = "https://demo2010a/adfs/ls/" • $ap = New-SPTrustedIdentityTokenIssuer -Name "ADFS20Server" -Description "ADFS 2.0" ` • -Realm $realm -ImportTrustCertificate $cert -ClaimsMappings $map1 ` • -SigninUrl $signinurl -IdentifierClaim $map1.InputClaimType

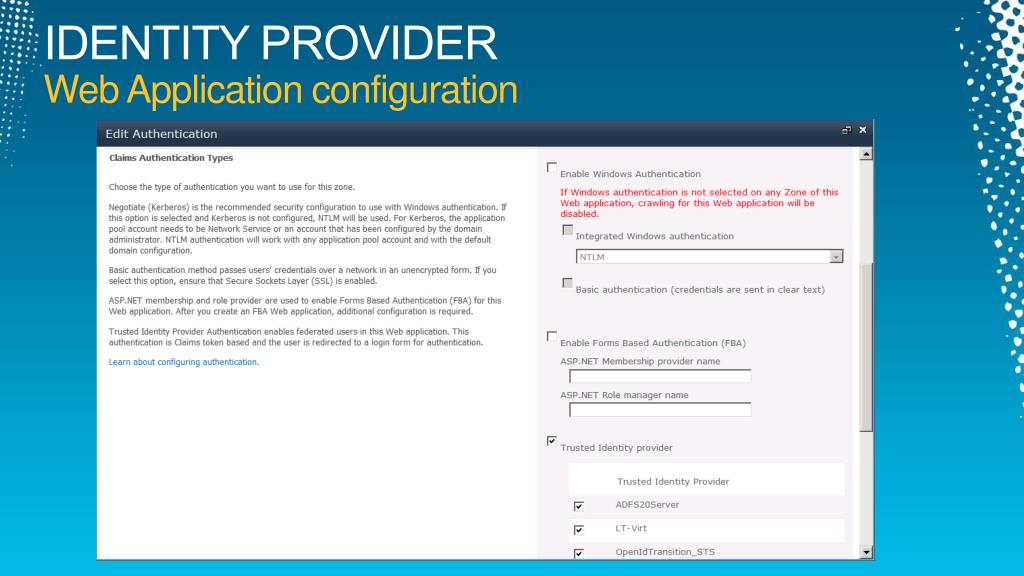

  15. IDENTITY PROVIDERWeb Application configuration

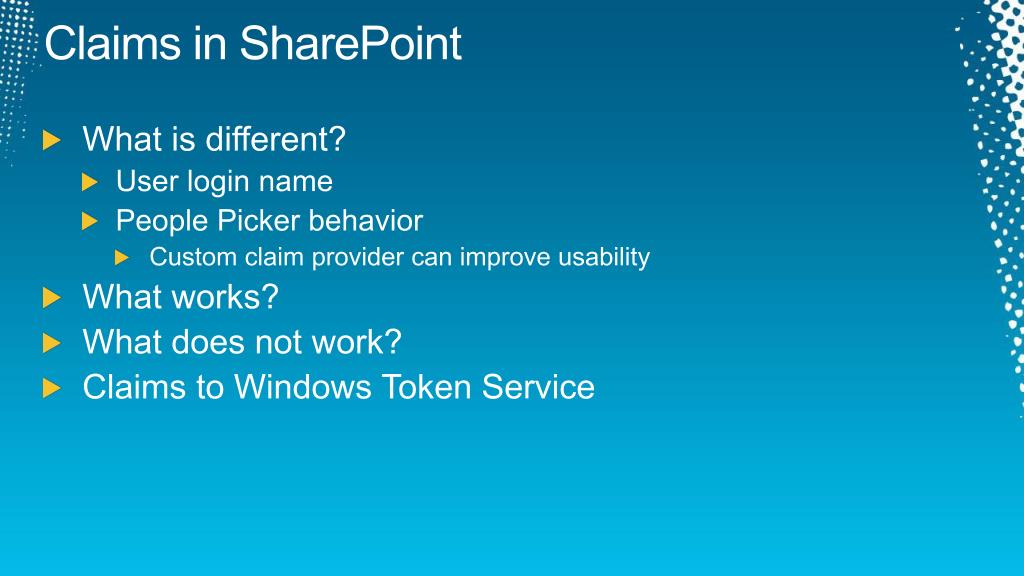

  16. Claims in SharePoint • What is different? • User login name • People Picker behavior • Custom claim provider can improve usability • What works? • What does not work? • Claims to Windows Token Service

  17. People Picker demo

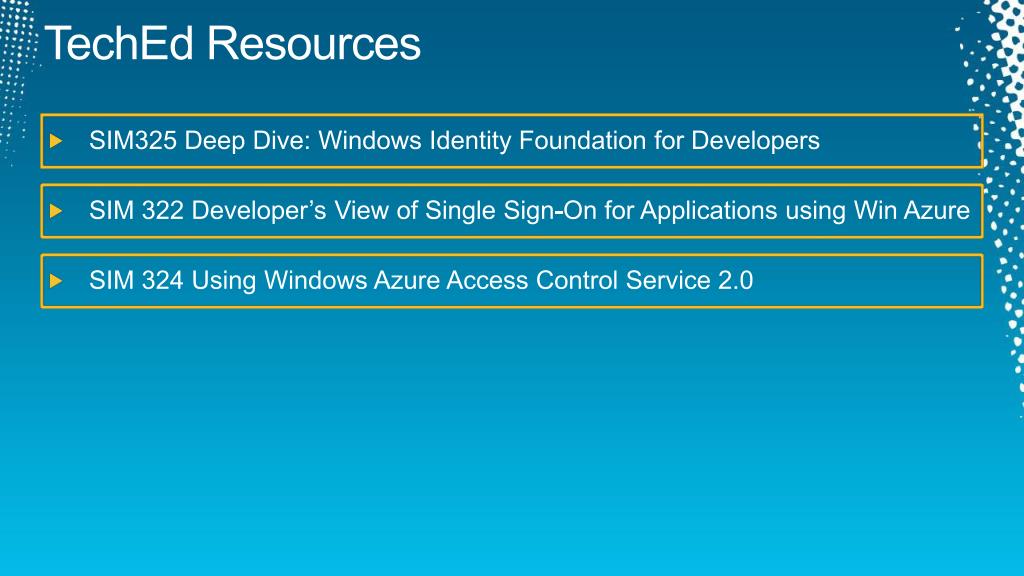

  18. Required Slide Track PMs will supply the content for this slide, which will be inserted during the final scrub. TechEd Resources • SIM325 Deep Dive: Windows Identity Foundation for Developers • SIM 322 Developer’s View of Single Sign-On for Applications using Win Azure • SIM 324 Using Windows Azure Access Control Service 2.0

  19. Resources • Connect. Share. Discuss. http://northamerica.msteched.com Learning • Sessions On-Demand & Community • Microsoft Certification & Training Resources www.microsoft.com/teched www.microsoft.com/learning • Resources for IT Professionals • Resources for Developers • http://microsoft.com/technet • http://microsoft.com/msdn

  20. Required Slide Complete an evaluation on CommNet and enter to win!
