Meshing Mistakes That Can Ruin Your CFD Analysis (And How to Avoid Them)

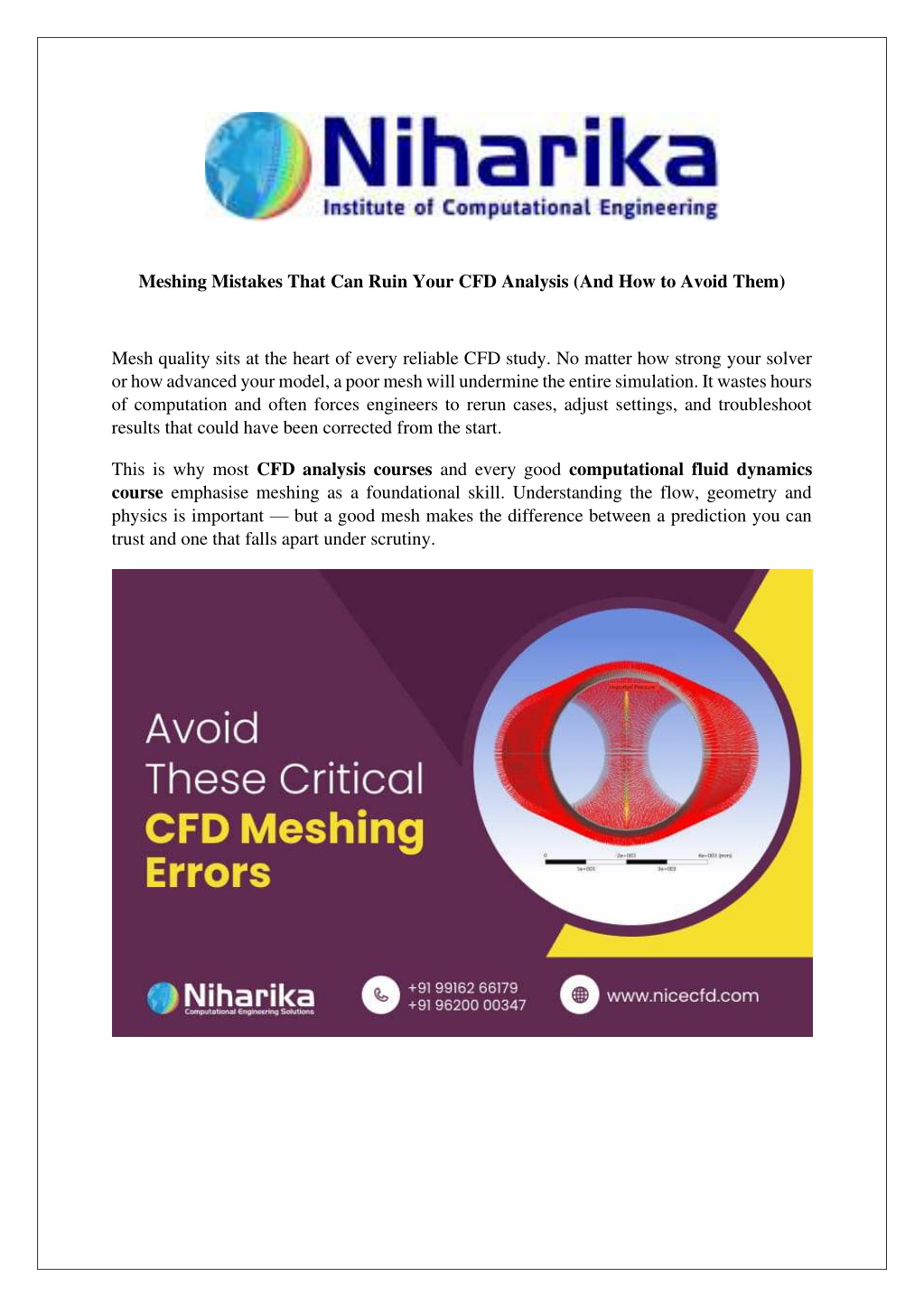

1. Meshing Mistakes That Can Ruin Your CFD Analysis (And How to Avoid Them) Mesh quality sits at the heart of every reliable CFD study. No matter how strong your solver or how advanced your model, a poor mesh will undermine the entire simulation. It wastes hours of computation and often forces engineers to rerun cases, adjust settings, and troubleshoot results that could have been corrected from the start. This is why most CFD analysis courses and every good computational fluid dynamics course emphasise meshing as a foundational skill. Understanding the flow, geometry and physics is important — but a good mesh makes the difference between a prediction you can trust and one that falls apart under scrutiny.

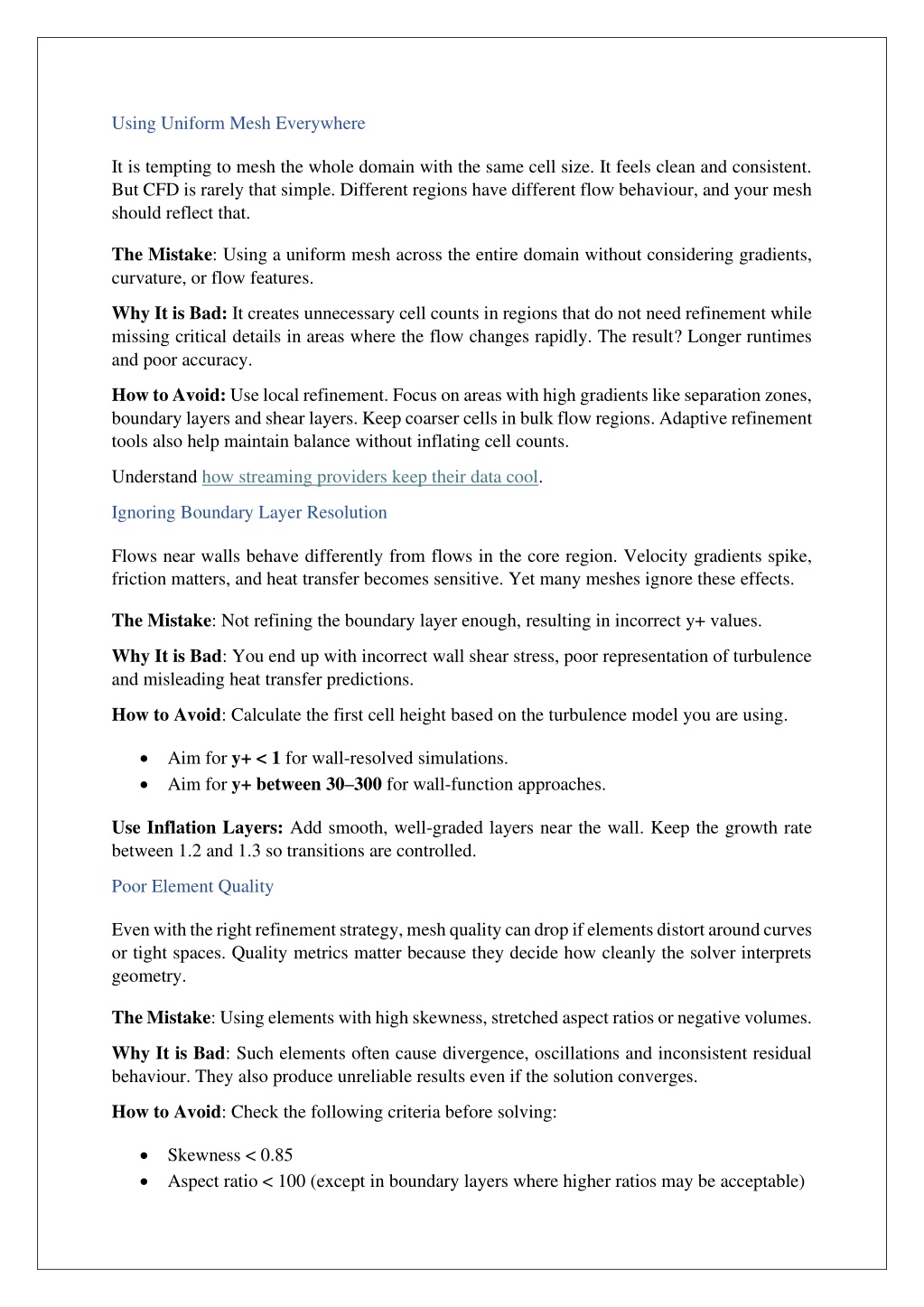

2. Using Uniform Mesh Everywhere It is tempting to mesh the whole domain with the same cell size. It feels clean and consistent. But CFD is rarely that simple. Different regions have different flow behaviour, and your mesh should reflect that. The Mistake: Using a uniform mesh across the entire domain without considering gradients, curvature, or flow features. Why It is Bad: It creates unnecessary cell counts in regions that do not need refinement while missing critical details in areas where the flow changes rapidly. The result? Longer runtimes and poor accuracy. How to Avoid: Use local refinement. Focus on areas with high gradients like separation zones, boundary layers and shear layers. Keep coarser cells in bulk flow regions. Adaptive refinement tools also help maintain balance without inflating cell counts. Understand how streaming providers keep their data cool. Ignoring Boundary Layer Resolution Flows near walls behave differently from flows in the core region. Velocity gradients spike, friction matters, and heat transfer becomes sensitive. Yet many meshes ignore these effects. The Mistake: Not refining the boundary layer enough, resulting in incorrect y+ values. Why It is Bad: You end up with incorrect wall shear stress, poor representation of turbulence and misleading heat transfer predictions. How to Avoid: Calculate the first cell height based on the turbulence model you are using. •Aim for y+ < 1 for wall-resolved simulations. •Aim for y+ between 30–300 for wall-function approaches. Use Inflation Layers: Add smooth, well-graded layers near the wall. Keep the growth rate between 1.2 and 1.3 so transitions are controlled. Poor Element Quality Even with the right refinement strategy, mesh quality can drop if elements distort around curves or tight spaces. Quality metrics matter because they decide how cleanly the solver interprets geometry. The Mistake: Using elements with high skewness, stretched aspect ratios or negative volumes. Why It is Bad: Such elements often cause divergence, oscillations and inconsistent residual behaviour. They also produce unreliable results even if the solution converges. How to Avoid: Check the following criteria before solving: •Skewness < 0.85 •Aspect ratio < 100 (except in boundary layers where higher ratios may be acceptable)

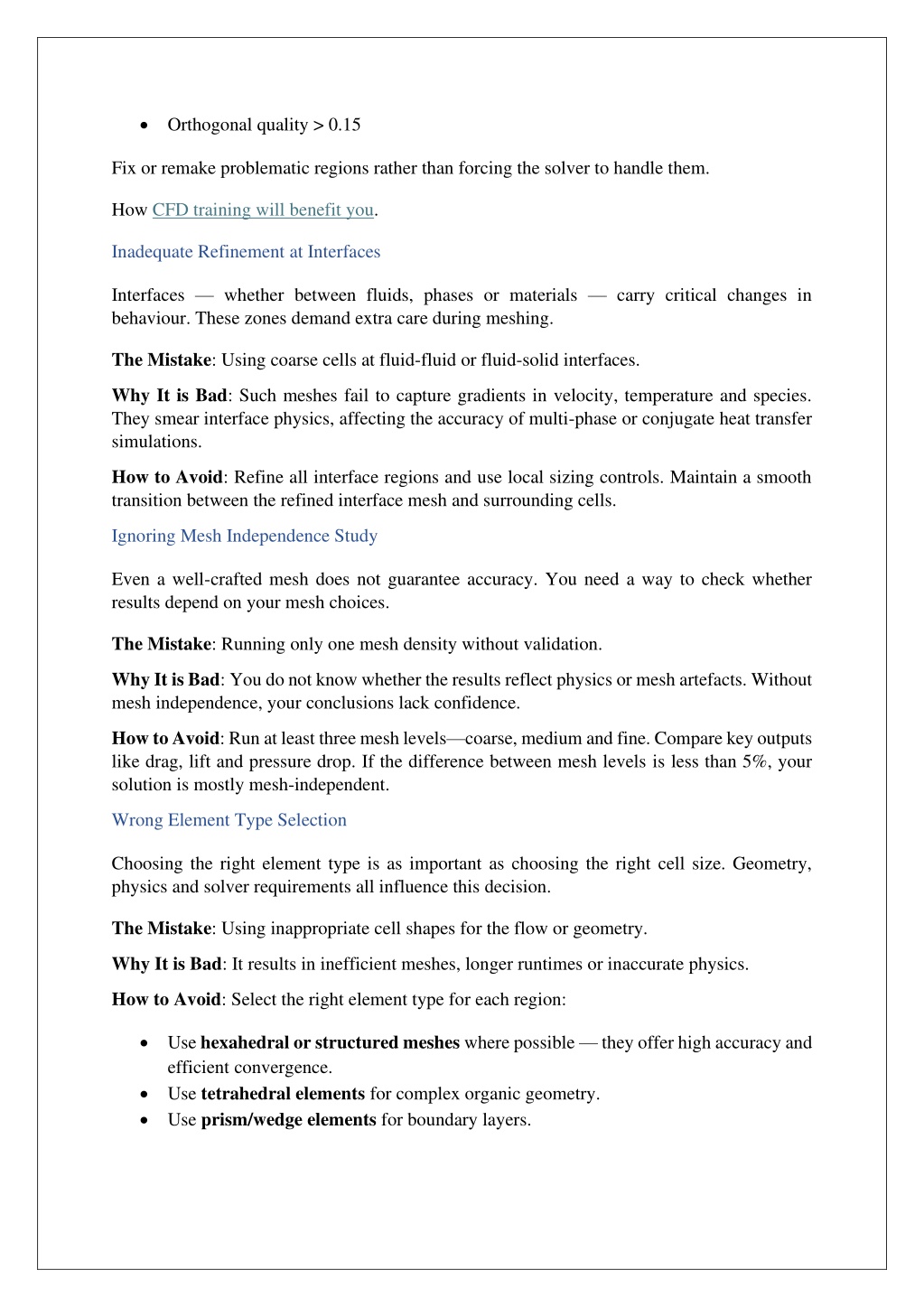

3. •Orthogonal quality > 0.15 Fix or remake problematic regions rather than forcing the solver to handle them. How CFD training will benefit you. Inadequate Refinement at Interfaces Interfaces — whether between fluids, phases or materials — carry critical changes in behaviour. These zones demand extra care during meshing. The Mistake: Using coarse cells at fluid-fluid or fluid-solid interfaces. Why It is Bad: Such meshes fail to capture gradients in velocity, temperature and species. They smear interface physics, affecting the accuracy of multi-phase or conjugate heat transfer simulations. How to Avoid: Refine all interface regions and use local sizing controls. Maintain a smooth transition between the refined interface mesh and surrounding cells. Ignoring Mesh Independence Study Even a well-crafted mesh does not guarantee accuracy. You need a way to check whether results depend on your mesh choices. The Mistake: Running only one mesh density without validation. Why It is Bad: You do not know whether the results reflect physics or mesh artefacts. Without mesh independence, your conclusions lack confidence. How to Avoid: Run at least three mesh levels—coarse, medium and fine. Compare key outputs like drag, lift and pressure drop. If the difference between mesh levels is less than 5%, your solution is mostly mesh-independent. Wrong Element Type Selection Choosing the right element type is as important as choosing the right cell size. Geometry, physics and solver requirements all influence this decision. The Mistake: Using inappropriate cell shapes for the flow or geometry. Why It is Bad: It results in inefficient meshes, longer runtimes or inaccurate physics. How to Avoid: Select the right element type for each region: •Use hexahedral or structured meshes where possible — they offer high accuracy and efficient convergence. •Use tetrahedral elements for complex organic geometry. •Use prism/wedge elements for boundary layers.

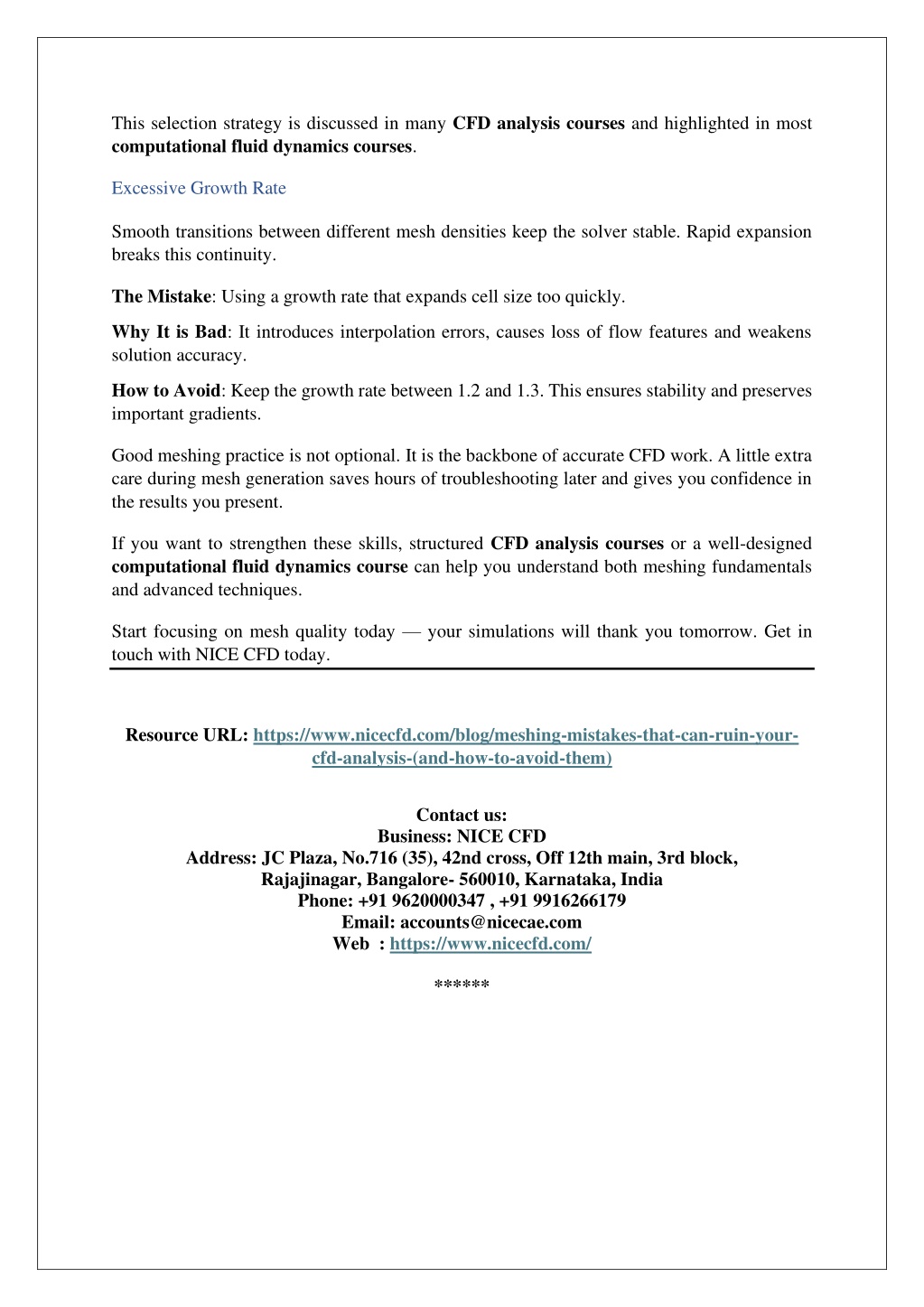

4. This selection strategy is discussed in many CFD analysis courses and highlighted in most computational fluid dynamics courses. Excessive Growth Rate Smooth transitions between different mesh densities keep the solver stable. Rapid expansion breaks this continuity. The Mistake: Using a growth rate that expands cell size too quickly. Why It is Bad: It introduces interpolation errors, causes loss of flow features and weakens solution accuracy. How to Avoid: Keep the growth rate between 1.2 and 1.3. This ensures stability and preserves important gradients. Good meshing practice is not optional. It is the backbone of accurate CFD work. A little extra care during mesh generation saves hours of troubleshooting later and gives you confidence in the results you present. If you want to strengthen these skills, structured CFD analysis courses or a well-designed computational fluid dynamics course can help you understand both meshing fundamentals and advanced techniques. Start focusing on mesh quality today — your simulations will thank you tomorrow. Get in touch with NICE CFD today. Resource URL: https://www.nicecfd.com/blog/meshing-mistakes-that-can-ruin-your- cfd-analysis-(and-how-to-avoid-them) Contact us: Business: NICE CFD Address: JC Plaza, No.716 (35), 42nd cross, Off 12th main, 3rd block, Rajajinagar, Bangalore- 560010, Karnataka, India Phone: +91 9620000347 , +91 9916266179 Email: accounts@nicecae.com Web : https://www.nicecfd.com/ ******
