  1. Counting Animals from Space: Chapter Two Transitions from Captivity to Wild Places Scott Bergen & Eric Sanderson

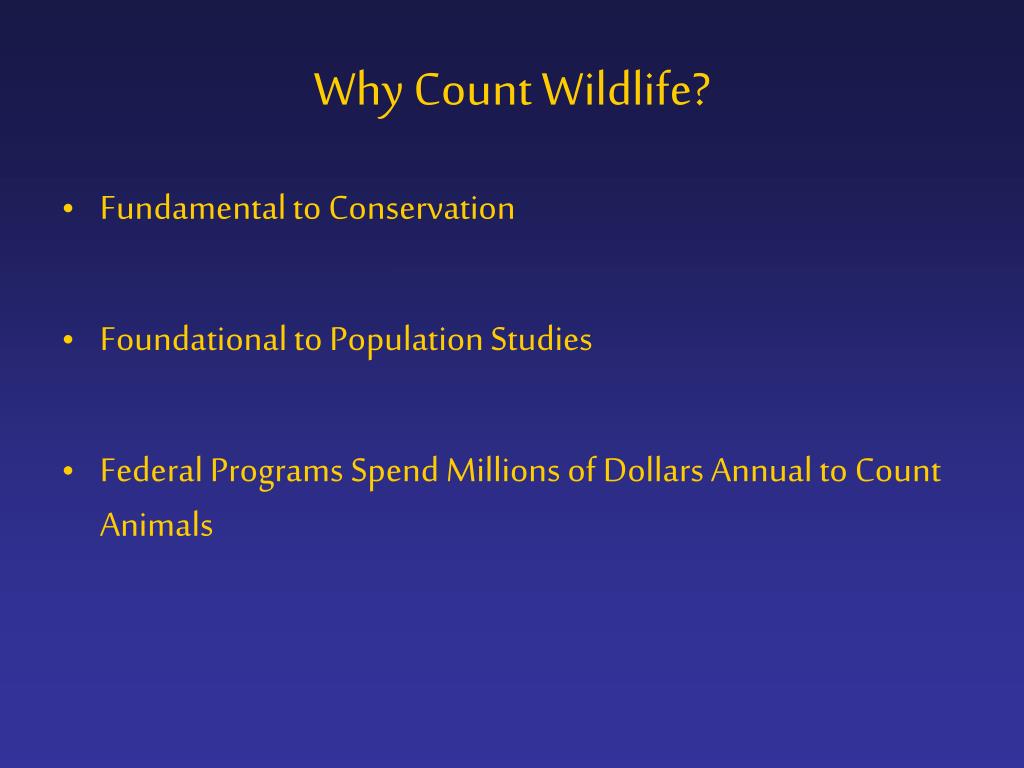

  2. Why Count Wildlife? • Fundamental to Conservation • Foundational to Population Studies • Federal Programs Spend Millions of Dollars Annual to Count Animals

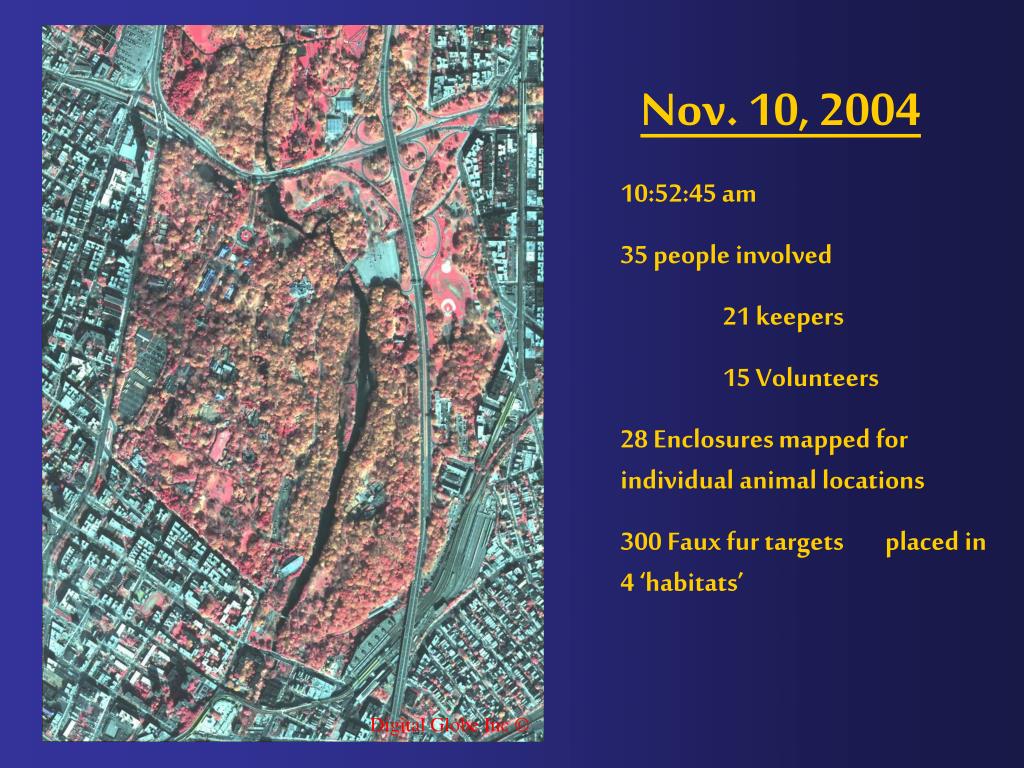

  3. Nov. 10, 2004 10:52:45 am 35 people involved 21 keepers 15 Volunteers 28 Enclosures mapped for individual animal locations 300 Faux fur targets placed in 4 ‘habitats’ Digital Globe Inc ©

  4. Ground –vs- Sky Digital Globe Inc ©

  5. Information Shadow Digital Globe Inc ©

  6. Tallying Identification by Species Logit (identified targets) = -3.666 + 0.019(Color) + 0.970(Size) - 0.230(VegHt) - 0.421(Shade).

  7. National Elk Refuge. Jackson , WY

  8. Counting Animals • Most reliable estimate use transect with repeat measures • Population estimates w/ standard deviation • Findings usually extrapolated from small area to available habitat or other limiting feature • Costly to count animals on ground • Remote sensing rarely used (aerial imagery) • Time and scale rarely match satellite scale & time • Mismatch in terms of time and location in reference to identifying- verifying high spatial resolution satellite imagery

  9. Why the National Elk Refuge? • Reliable elk & bison congregations during winter • Logistic regression equation shows good fit for size, color, vegetation and shadow • Annual census of both elk and bison

  10. Animal Count Comparisons • Refuge level, elk (weekly), bison (annual) • Ground census estimate @ time of satellite acquisition • Panoramic photo estimate @ time of satellite acquisition • Heads up digitizing estimate • Object oriented estimate

  11. Jackson Wyoming • Access limited • Freakin’ cold -20f • Snow bleaching histogram of sensor Digital Globe Inc ©

  12. Ground Census of Elk Group • High Ground limited • Limited by distance • 1360 individuals • 60/40 female- male ratio

  13. Thick In Elk Digital Globe Inc ©

  14. Panaramic Resesults • Verified over 1,000 elk sex, position, direction position in less than 10 seconds • Estimated 1070 individuals • 679 females, 299 males, 89 ? • Knew there were more but individuals > 1km were not identifiable as well as those totally blocked by other elk

  15. Heads up • 1503 individuals Digital Globe Inc ©

  16. Object Oriented Approach • Scale based segmentation • > classification • > revision • >classification • Hierarchical strutured • Means both smaller and larger Digital Globe Inc ©

  17. Segmentation • Adds new dimensions to data • Area, spectra, variability within polygons • Adjacency • Contextual • Generates data Important to distinguish animals and differentiate types of animals

  18. Initial Classification • Good Results • Identified 1540 individuals • Misidentification within riparian areas • Grouped elk in close proximity

  19. Classification • Refined with an area classifier • 1482 individuals • Further refinement, standing – sitting, elk vs bison, sexes in bison

  20. Further refinement

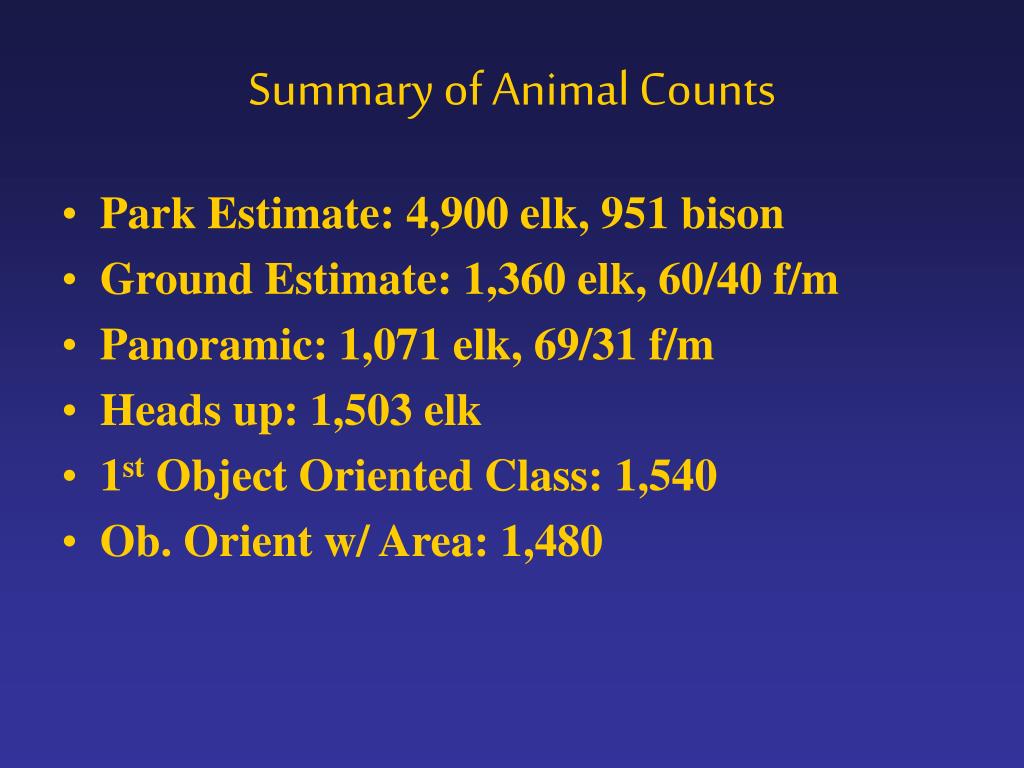

  21. Summary of Animal Counts • Park Estimate: 4,900 elk, 951 bison • Ground Estimate: 1,360 elk, 60/40 f/m • Panoramic: 1,071 elk, 69/31 f/m • Heads up: 1,503 elk • 1st Object Oriented Class: 1,540 • Ob. Orient w/ Area: 1,480

  22. Future Considerations
