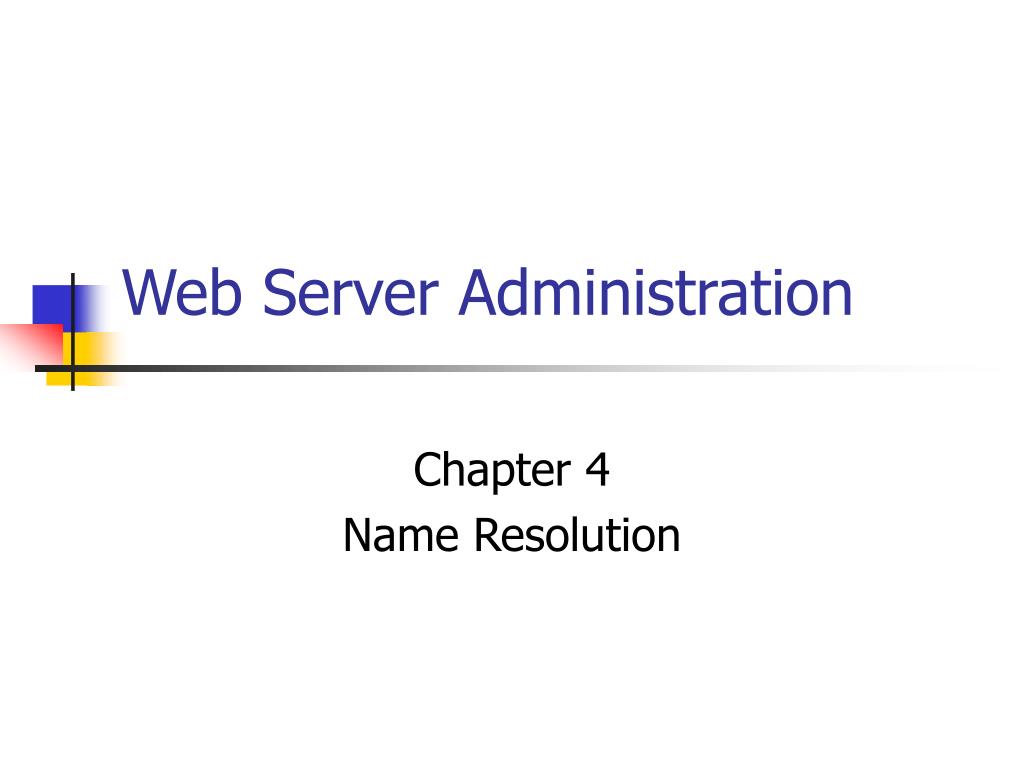

  1. Web Server Administration Chapter 4 Name Resolution

  2. Overview • Understand the domain name service (DNS) • Identify the components of DNS • Configure zone files • Install and configure DNS in Linux • Understand name resolution in Windows • Install and configure DNS in Windows 2003 • Troubleshoot DNS

  3. Understanding the DNS • DNS is used to map host names to IP addresses on the Internet • Also called name resolution or address resolution • Whenever a host is added, a configuration file has to be manually changed • A host represents a service on a server such as FTP or a Web server • There can be many hosts on a single computer • A Microsoft Windows 2003 network uses DNS to resolve computer names on a LAN • DNS in Windows is designed to be dynamic - as computers are added to the network, DNS automatically changes

  4. Clients • On your PC, the TCP/IP configuration contains the address(es) of your DNS server(s) • Whenever you use a URL, whether in a browser, or a utility such as ping, DNS servers are used

  5. Domain Namespaces • The root level domain is "." • Significant in creating DNS files • Top-level domains include com, org, fr • More have been added in 2000 • Second-level domains are often owned by companies and individuals • microsoft.com, ccsu.edu • A subdomain is a further division of a second-level domain • For ccsu.edu, there is phx.ccsu.edu • Not common

  6. Domain Namespaces • Second-level domains, such as ccsu.edu have control over naming within their domain • Create hosts such as www, ftp • A name such as www.ccsu.edu is a fully qualified domain name (FQDN) • We could create subdomains such as phx • www.phx.ccsu.edu

  7. New Top-Level Domains • .biz - businesses • .info - anyone can register • .name - must register first and last name • .pro - for professionals only • must provide proof • .aero, .museum, .coop are controlled by organizations

  8. Host Names • The first portion of a URL is typically a host name • Typically different from the name of the computer • Many hosts can be associated with the same Web server

  9. How DNS Works

  10. DNS Components • Name server – also known as DNS server • supports name-to-address and address-to-name resolution • Name resolver – also called DNS client • Can contact DNS server to lookup name • Used by browsers, e-mail clients, and client utilities such as ping

  11. DNS Servers that Define the Internet • Primary and secondary servers store the host names used on the Internet • Caching and forwarding servers search the Internet for host names

  12. Primary and Secondary Servers • Primary Server • Defines the hosts for the domain • Maintains the database for the domain • It has authority for the domain • Secondary Server • Gets data from primary server • Provides fault tolerance and load distribution • Required for Internet domains • In a simple environment, the ISP will have the primary and secondary DNS servers • ISP maintains DNS • You have to send changes to ISP • You have the secondary server which gets updates from the primary server

  13. Resolve Host Names • Caching Server • Resolves host names • Caches (saves) the results • Automatically installed when DNS is installed • No configuration necessary • Forwarding Server • Caching server that has access to the Internet and forwards traffic from other caching servers

  14. Caching and Forwarding Servers

  15. Zones • A zone is a part of the domain namespace • For a domain as small as technowidgets.com, the domain name represents a single zone • For large organizations (such as IBM), subdomains can be divided into separately maintained zones • Each zone typically has a separate DNS

  16. Zones • Zones must be contiguous • admin.ccsu.edu can be combined with ccsu.edu • admin.ccsu.edu cannot be combined with student.ccsu.edu • There must be one primary DNS server in each zone (plus a secondary server) • Each zone can have multiple secondary DNS servers

  17. Zone File Configuration • Forward Lookup • These zones contain entries that map names to IP addresses • Reverse Lookup • These zones contain entries that map IP addresses to names

  18. Lab Projects • DNS Configuration in Linux • Projects 4-1 through 4-3 • Projects 4-4 deals with multiple domains Objective: Upon completion you must show using the dig command you get the correct IP and corresponding domain name!

  19. Review of Zoning • A zone is a part of the domain namespace • For a domain as small as technowidgets.com, the domain name represents a single zone • For large organizations (such as IBM), subdomains can be divided into separately maintained zones • Each zone typically has a separate DNS • Zone file configuration • Forward Lookup • These zones contain entries that map names to IP addresses • Reverse Lookup • These zones contain entries that map IP addresses to names

  20. File name: File name: /etc/named.conf /etc/resolve.conf DNS Configuration in LinuxFile Structure Client DNS Configuration Server DNS Configuration • Adding nameserver and domain • Nameserver: Corresponding IP address • Domain: Corresponding domain name • Name resolution

  21. /var/named/ named.technowidgets.com /var/named/ named.0.168.192 Forward Lookup file Reverse Lookup File Server DNS Configuration in Linux- File Structure 1- Configure this file so it reads the proper lookup files below File name: /etc/named.conf Defines other subdomains such as: research.technowidgets.com. mail.technowidgets.com. Defines other subdomains such as: web1 192.168.0. 20 research 192.168.0.150 mail 192.168.0.200 2- Create these two files for both forward and reverse lookup files

  22. DNS Configuration in Linux • /etc/named.conf describes the files that configure the zones • There are two primary files that it describes • Forward lookup is described by named.technowidgets.com • Reverse lookup is described by named.0.168.192

  23. /etc/named.confCreating a DNS for the technowidgets.com domain • Default setup is for localhost 127.0.0.1 • This is shown in figure 4-7 • In named.conf add the following line zone "technowidgets.com" { type master; file “named.technowidgets.com”; }; • This allows technowidgets.com to be resolved by /var/named/named.technowidgets.com • There can be multiple domains in a single named.conf file

  24. /etc/named.conf Make sure 192.168.0.20 matches your hard drive number! • Also, we can add the following line zone “0.168.192.in-addr.arpa”IN { type master; file “named.0.168.192”; }; • The domain begins at IN-ADDR.ARPA and has a substructure which follows the Internet addressing structure • Example: data for Internet address 10.2.0.52 is located at domain name 52.0.2.10.IN-ADDR.ARPA • This allows for reverse lookup for the domain • It uses all or part of the 192.168.0.20 network

  25. /var/named.technowidgets.com File ContentMust be typed! $TTL 86400 @ IN SOA web1.technowidgets.com. admn.technowidgets.com. ( 2002072100 ; Serial 28800 ; Refresh 14400 ; Retry 3600000 ; Expire 86400 ) ; Minimum IN NS web1 IN A 192.168.0.20 IN MX 10 mail.technowidgets.com. web1 IN A 192.168.0. 20 www IN CNAME web1 research IN A 192.168.0.150 IN MX 10 mail mail IN A 192.168.0.200

  26. named.0.168.192 File ContentMust be typed! $TTL 86400 @ IN SOA web1.technowidgets.com. admn.technowidgets.com. ( 2002072100 ; Serial 28800 ; Refresh 14400 ; Retry 3600000 ; Expire 86400 ) ; Minimum IN NS web1 20 IN PTR web1.technowidgets.com. 150 IN PTR research.technowidgets.com. 200 IN PTR mail.technowidgets.com.

  27. Starting DNS in LinuxUseful commands • To start DNS • /etc/rc.d/init.d/named start • To restart DNS • /etc/rc.d/init.d/named restart • To stop DNS • /etc/rc.d/init.d/named stop • To make DNS start when you boot Linux • Add the above commands to start DNS to /etc/rc.d/rc.local

  28. Configuring Client DNS in Linux • Objective: How IP addresses are corresponding to domain names • Modify /etc/resolv.config • The following line directs the client to use the DNS server at 192.168.0.20  Your HD! • nameserver 192.168.0.20 • The following line associates this computer with the technowidgets.com domain • domain technowidgets.com

  29. Troubleshooting DNSdig – available on Linux Use dig command to check the results! Upon Completion; you must be able to get this! -- Must match your HD!

  30. Linux dig hostname.com dig –silent 192-168-0-xx ping Windows nslookup hostname.com nslookup –x 192-168.0.xx Ipconfig ping Troubleshooting DNS

  31. References: • For Linux: • http://www.siliconvalleyccie.com/linux-hn/dns-static.htm • For windows • http://www.microsoft.com/technet/prodtechnol/windowsserver2003/library/ServerHelp/5fe46cef-db12-4b78-94d2-2a0b62a28271.mspx • Read about IN-ADDR.ARPA domain • http://www.freesoft.org/CIE/RFC/1035/36.htm
