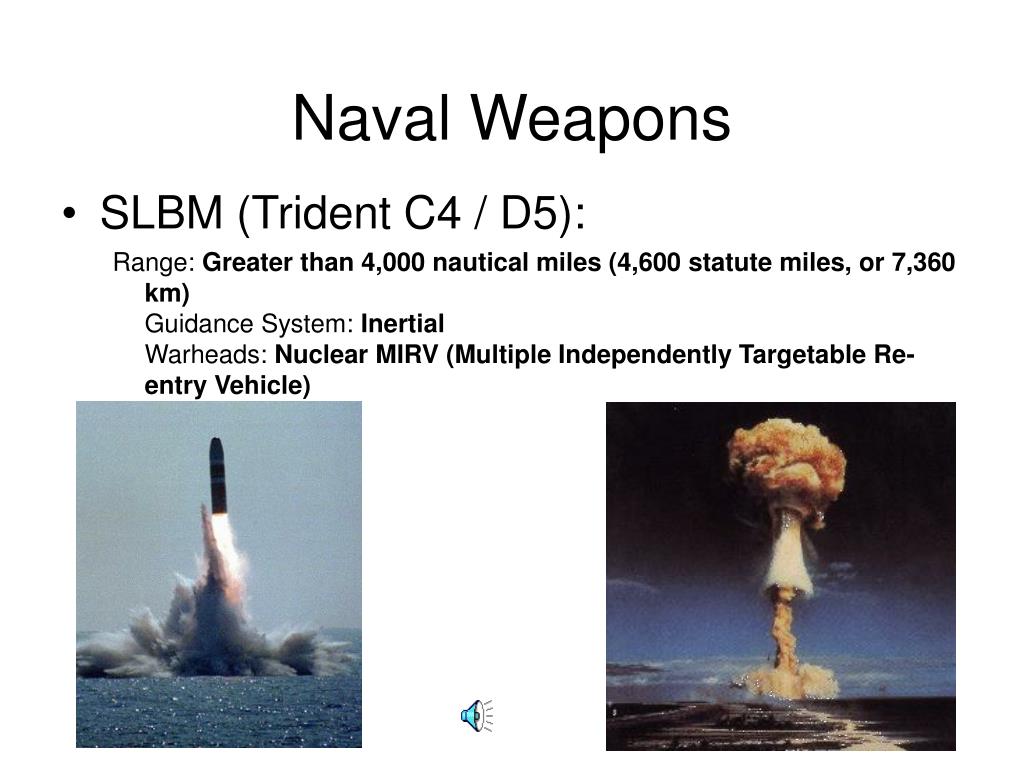

  1. Naval Weapons • SLBM (Trident C4 / D5): Range: Greater than 4,000 nautical miles (4,600 statute miles, or 7,360 km)Guidance System: InertialWarheads: Nuclear MIRV (Multiple Independently Targetable Re-entry Vehicle)

  2. STRIKE WARFARE Tomahawk Missile Launch & Strike

  3. Naval Weapons • TLAM: Range: 870 nautical miles (1000 statute miles, 1609 km)Speed: Subsonic - about 550 mph (880 km/h)Guidance System: TERCOM, DSMAC, and GPS (Block III only)Warheads: 1,000 pounds or conventional submunitions dispenser with combined effect bomblets

  4. SPECIAL FORCES SUPPORT • Submerged Launch/Recovery of: • 16 SEALs and 4 Zodiac’s • SEAL Delivery Vehicle Capable of Carrying SEALs and Ordnance Drydeck Shelter • Clandestine SOF Insertion • and Extraction • RANGE: 125 NM • CRUISE SPEED: 8 KTS • CREW: 2 • PASSENGERS: 8 SEALs + Full Gear ASDS

  5. SPECIALWARFARE

  6. SPECIAL WARFARE -THE FUTURE- Advanced Seal Delivery System This could be you! A Dry Mini Submarine - SOF Insertion and Extraction

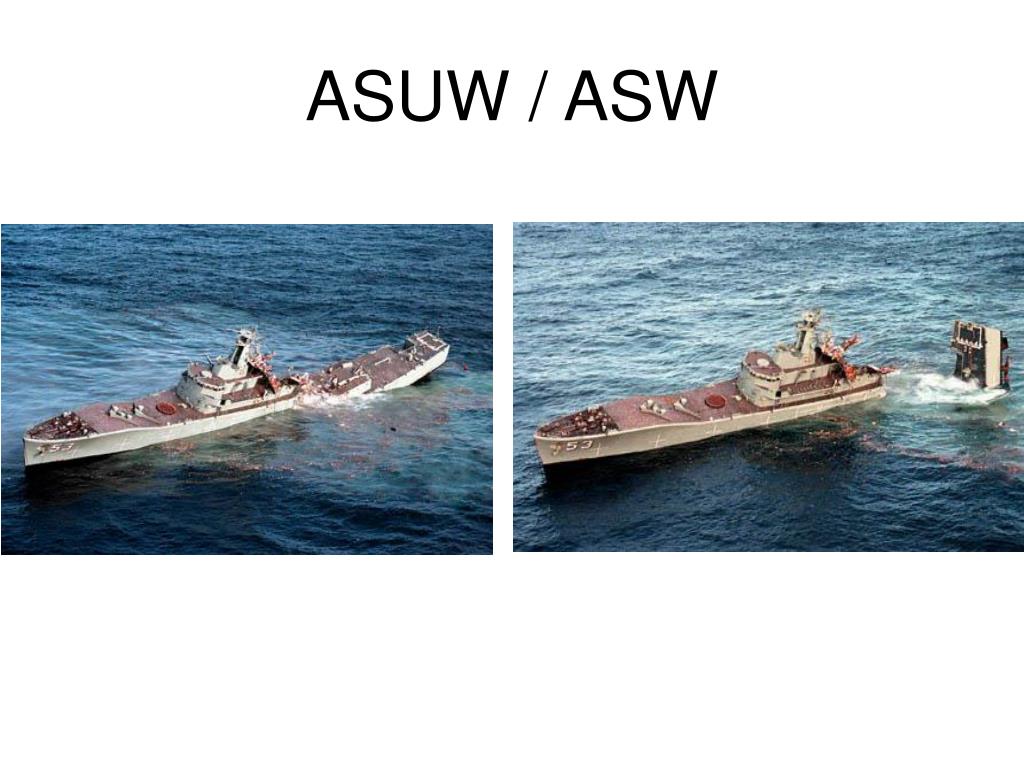

  7. ASUW / ASW Mk-48 Torpedo

  8. ASUW / ASW

  9. Naval Weapons • MK 48 ADCAP Torpedo Primary Function: Heavyweight torpedo for submarinesDiameter: 21 inches (53.34 centimeters)Range: Greater than 5 miles (8 km)Depth: Greater than 1,200 ft (365.76 meters)Speed: Greater than 28 knots (32.2 mph, 51.52 kph)Guidance System: Wire guided and passive/active acoustic homingWarhead: 650 lbs (292.5 kg) high explosive

  10. Naval Weapons • Harpoon ASM: Range: Over-the-horizon, in excess of 60 nautical miles.Speed: High SubsonicGuidance: Sea-skimming cruise monitored by radar altimeter, active radar terminal homing.Warhead: Penetration high-explosive blast (488 pounds/224 kilograms)

  11. Killers of the Deep • Current Submarines • SSN Fast Attack Submarines • 688 - Los Angeles Class • 21 - Seawolf Class - the ultimate submarine (3) • Specops: Parche and Kamehameha (decom) • 774 - Virginia Class – Littoral Warfare • SSBN • 726 - Trident Class • SSGN

  12. Virginia Class Attack Submarine Capabilities UAV ENHANCED SENSORS IMPROVED SONARS TOMAHAWK VERTICAL LAUNCH SYSTEM ADVANCED SEAL DELIVERY SYSTEM NINE MAN LOCKOUT CHAMBER UUV SSN 774 - VIRGINIA Delivery: July 2004 SSN 775 - TEXAS Delivery: July 2005 SSN 776 - HAWAII MINE AVOIDANCE CAPABILITY

  13. TRIDENT SSGN Multi-Mission Capability

  14. Trident SSGN/SOF Conversion VLS MODULE SpecWar Personnel VLS Missiles
