  1. Naval Weapons Systems Energy Fundamentals

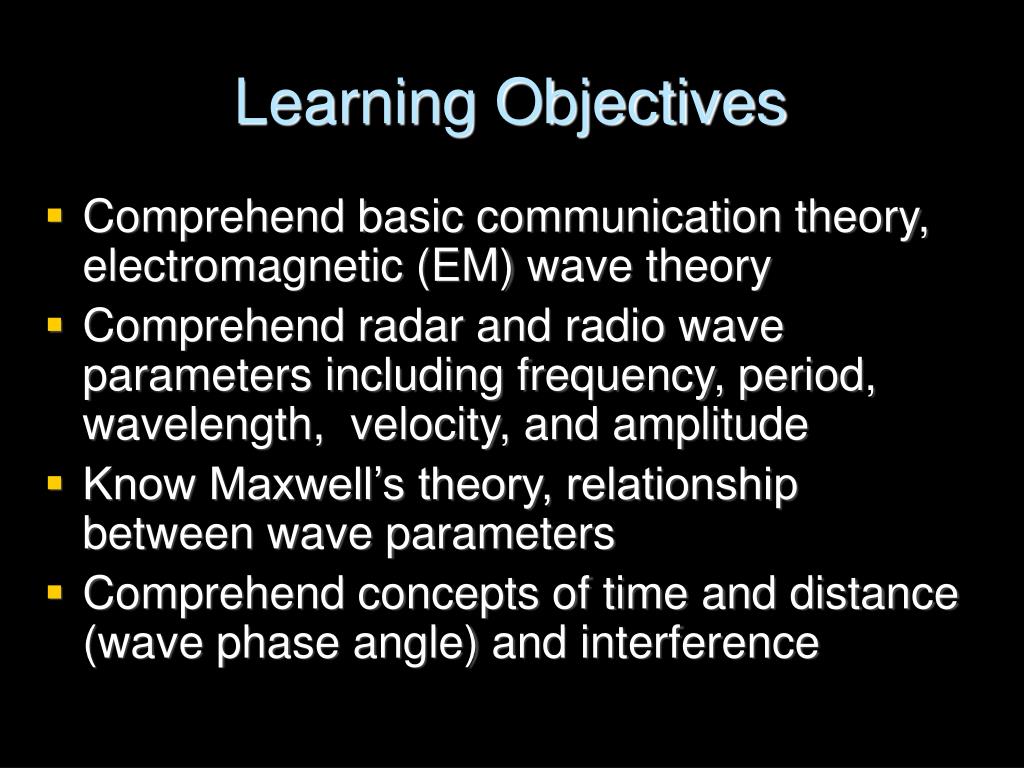

  2. Learning Objectives • Comprehend basic communication theory, electromagnetic (EM) wave theory • Comprehend radar and radio wave parameters including frequency, period, wavelength, velocity, and amplitude • Know Maxwell’s theory, relationship between wave parameters • Comprehend concepts of time and distance (wave phase angle) and interference

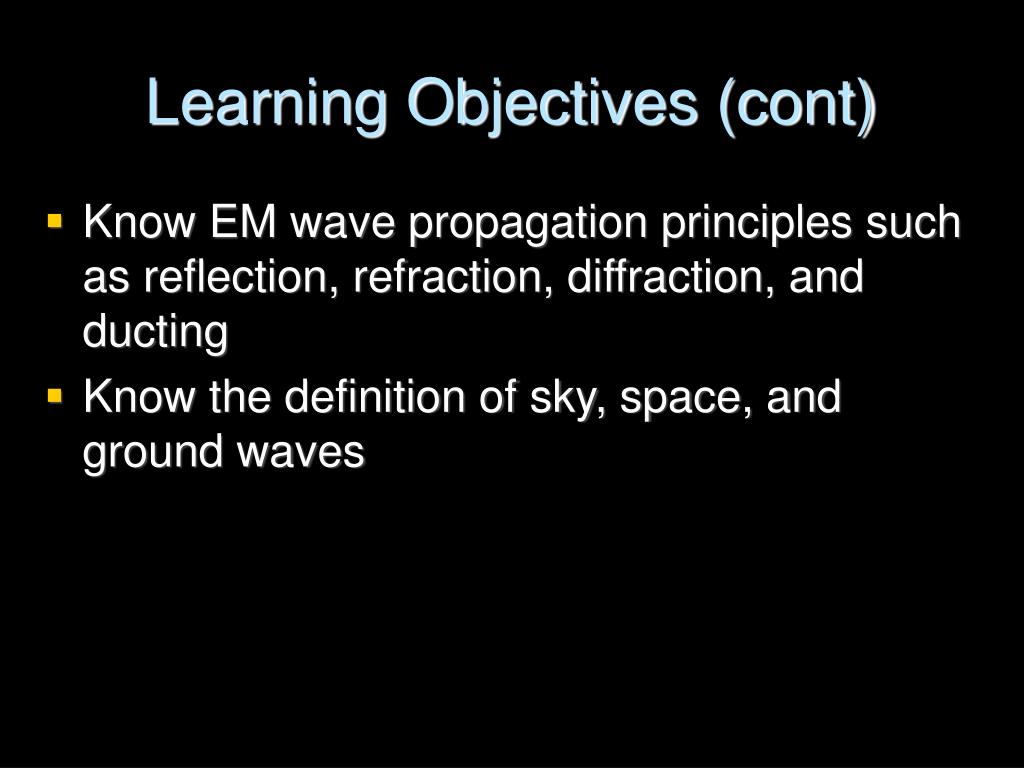

  3. Learning Objectives (cont) • Know EM wave propagation principles such as reflection, refraction, diffraction, and ducting • Know the definition of sky, space, and ground waves

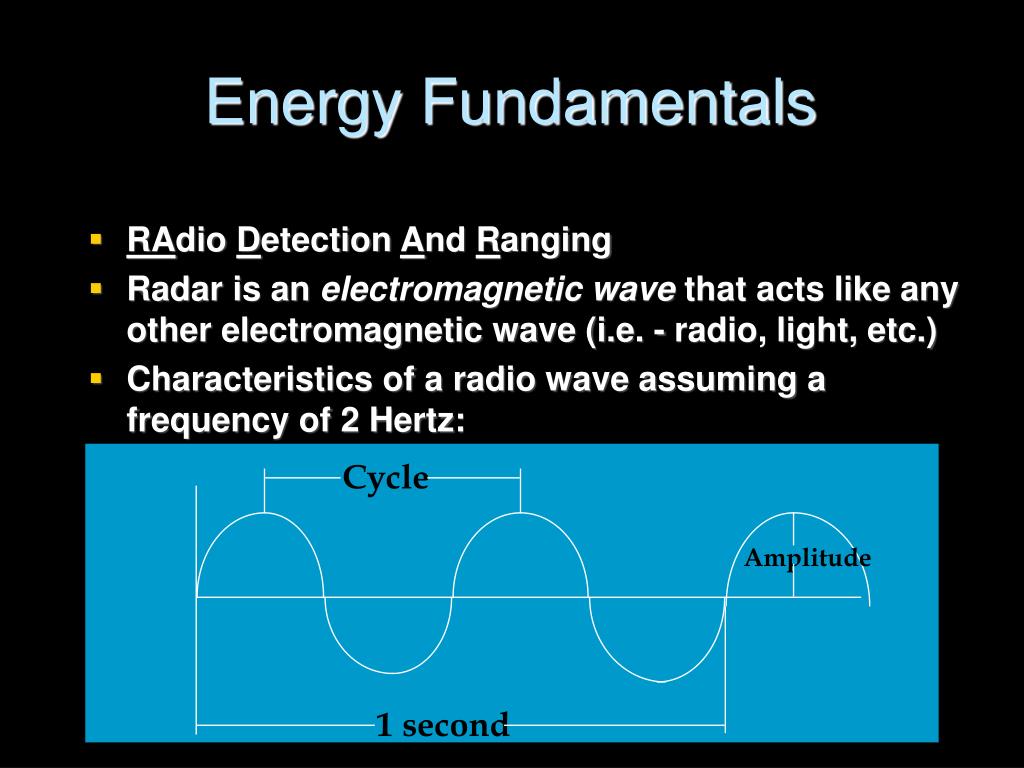

  4. Cycle Amplitude 1 second Energy Fundamentals • RAdio Detection And Ranging • Radar is an electromagnetic wave that acts like any other electromagnetic wave (i.e. - radio, light, etc.) • Characteristics of a radio wave assuming a frequency of 2 Hertz:

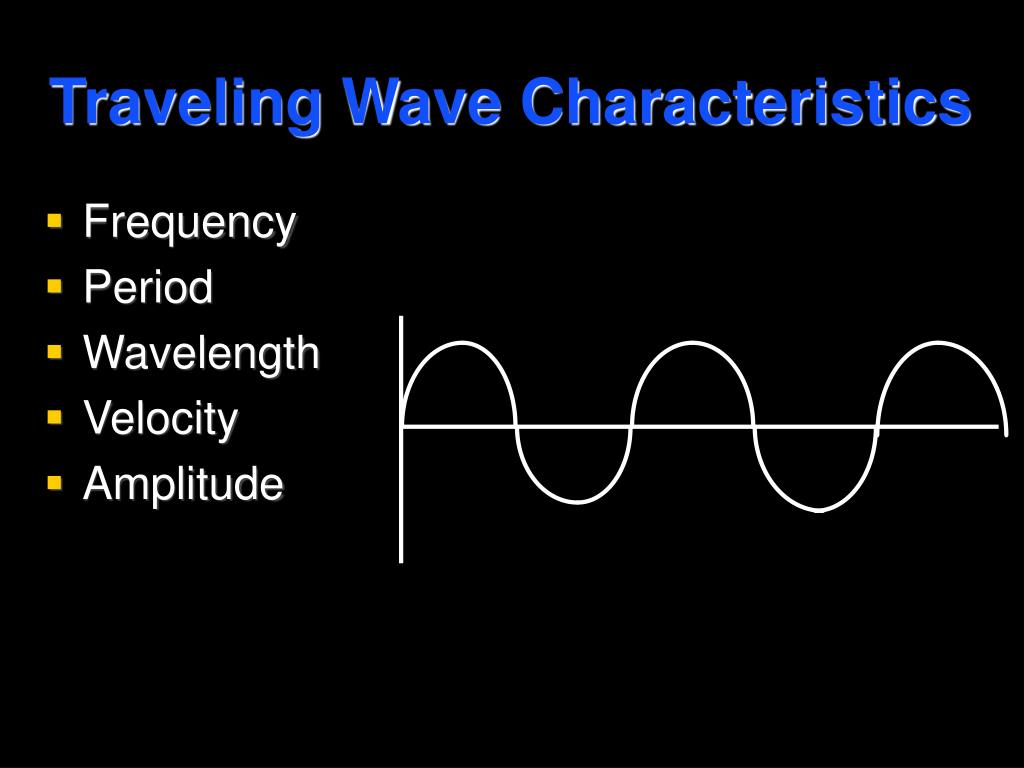

  5. Traveling Wave Characteristics • Frequency • Period • Wavelength • Velocity • Amplitude

  6. Maxwell’s Theory • An accelerating electric field will generate a time-varying magnetic field. • A time-varying magnetic field will generate a time-varying electric field. • ...and so on...and so on...and so on... Electric Field Magnetic Field Electric Field

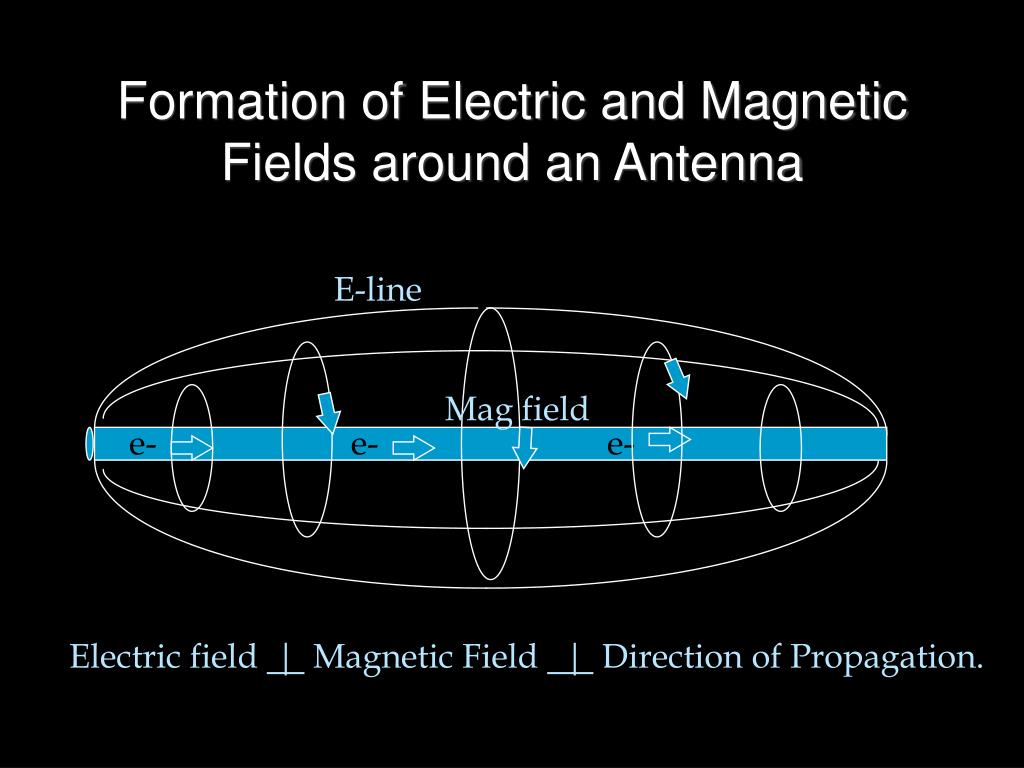

  7. Formation of Electric and Magnetic Fields around an Antenna E-line Mag field e- e- e- Electric field | Magnetic Field | Direction of Propagation.

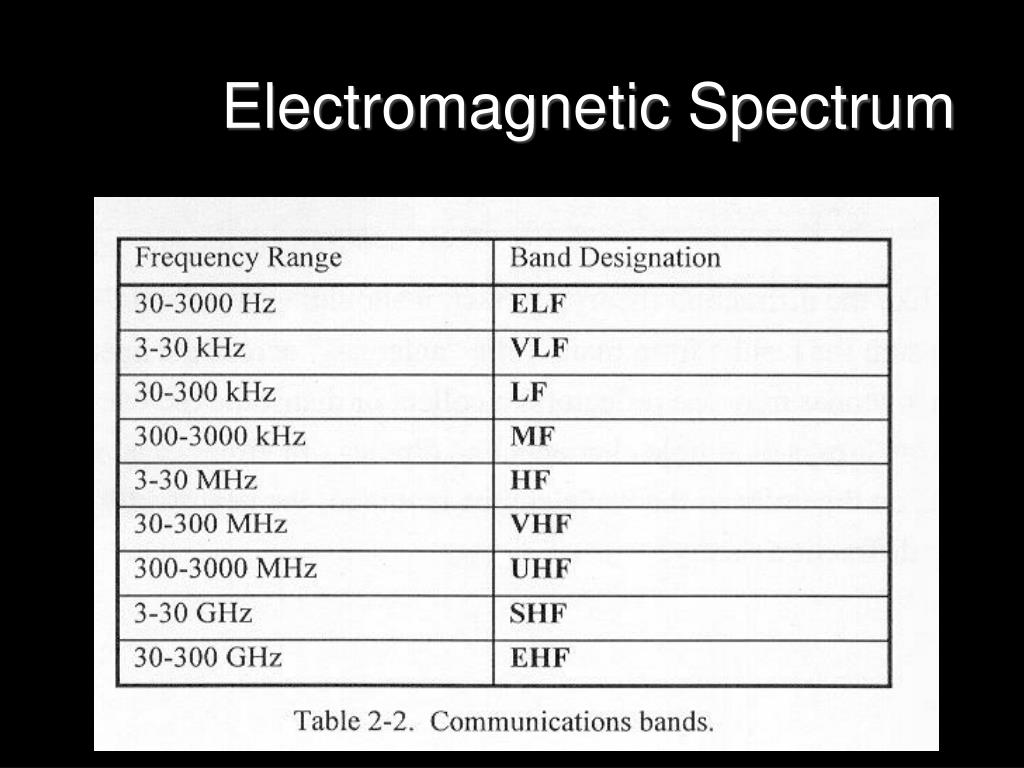

  8. Electromagnetic Spectrum

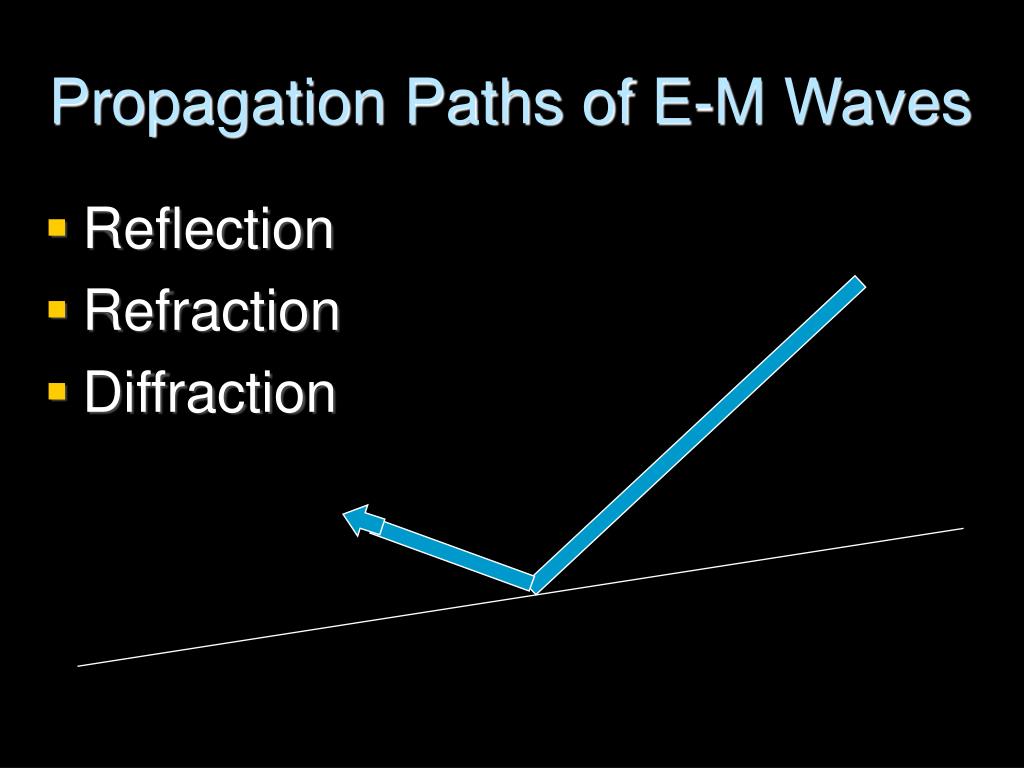

  9. Propagation Paths of E-M Waves • Reflection • Refraction • Diffraction

  10. ...Reflection... Phase shift = 180 degrees. Angle of incidence = Angle of reflected wave. Reflected Wave IncidentWave

  11. ...Refraction... • Incident wave passes through two transparent media in which the velocity of light differs... • Incident wave divides into a reflected wave and a refracted wave. • The result is that the energy ray will bend toward the area of higher density.

  12. Snell’s Law n1 * Sin θ1 = n2 * Sin θ2

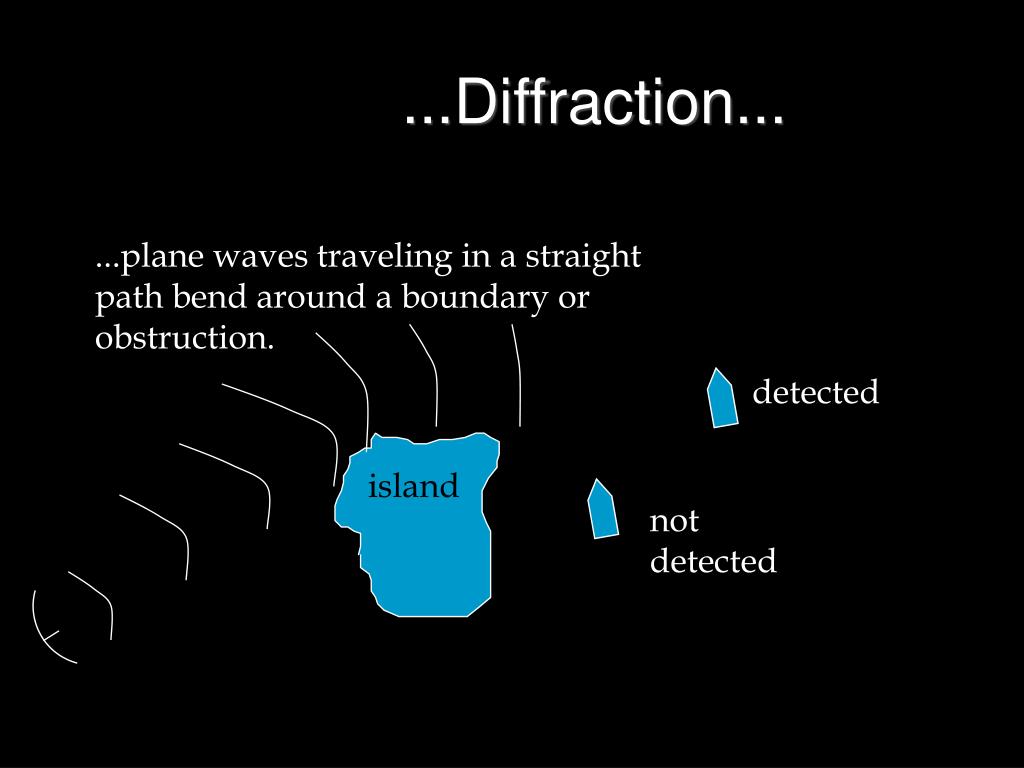

  13. island not detected ...Diffraction... ...plane waves traveling in a straight path bend around a boundary or obstruction. detected

  14. Wave Propagation – Distance and Frequency • Ground Waves • Sky Waves • Space Waves

  15. Ground Wave... • E-M energy travels along earth’s surface • Very low frequencies, 5-10Khz • Extremely long wavelengths • Shore communications stations (HF-DF)

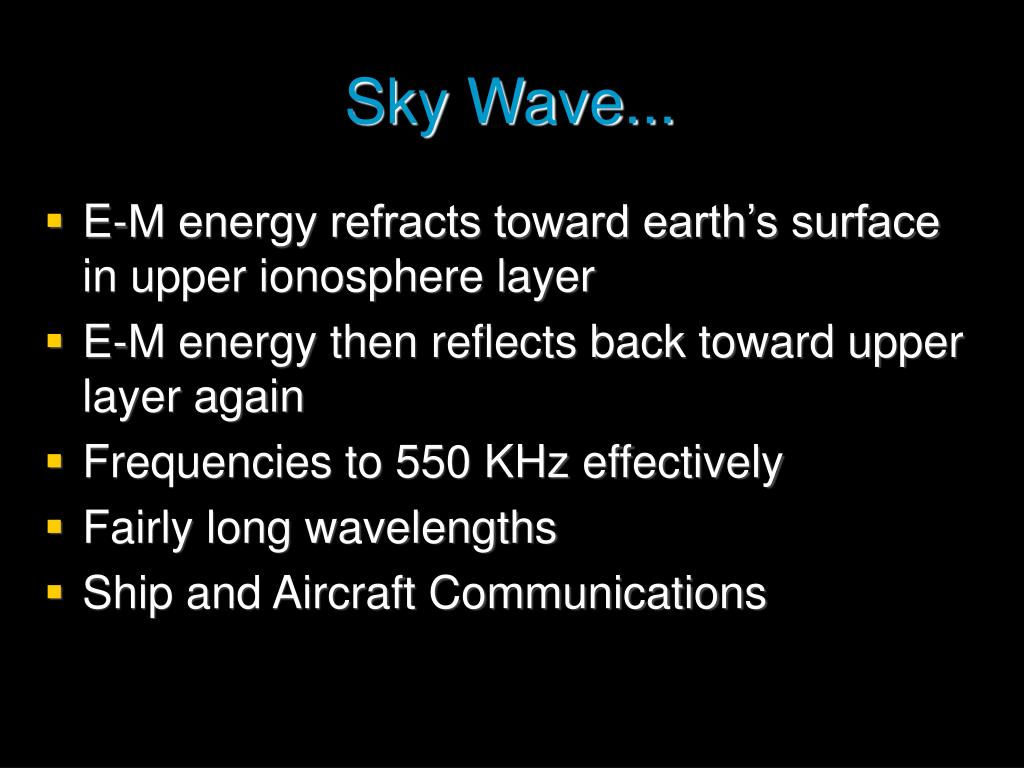

  16. Sky Wave... • E-M energy refracts toward earth’s surface in upper ionosphere layer • E-M energy then reflects back toward upper layer again • Frequencies to 550 KHz effectively • Fairly long wavelengths • Ship and Aircraft Communications

  17. Space Wave... • E-M energy refracts back toward earth’s surface in outer space (i.e. stratosphere) • Above 30 MHz, ionosphere will not refract E-M waves back toward earth.

  18. Transmission Range Factors • Antenna Height • Target Height • Ducting • Losses • Spreading • Absorption • Constructive Interference • Destructive Interference

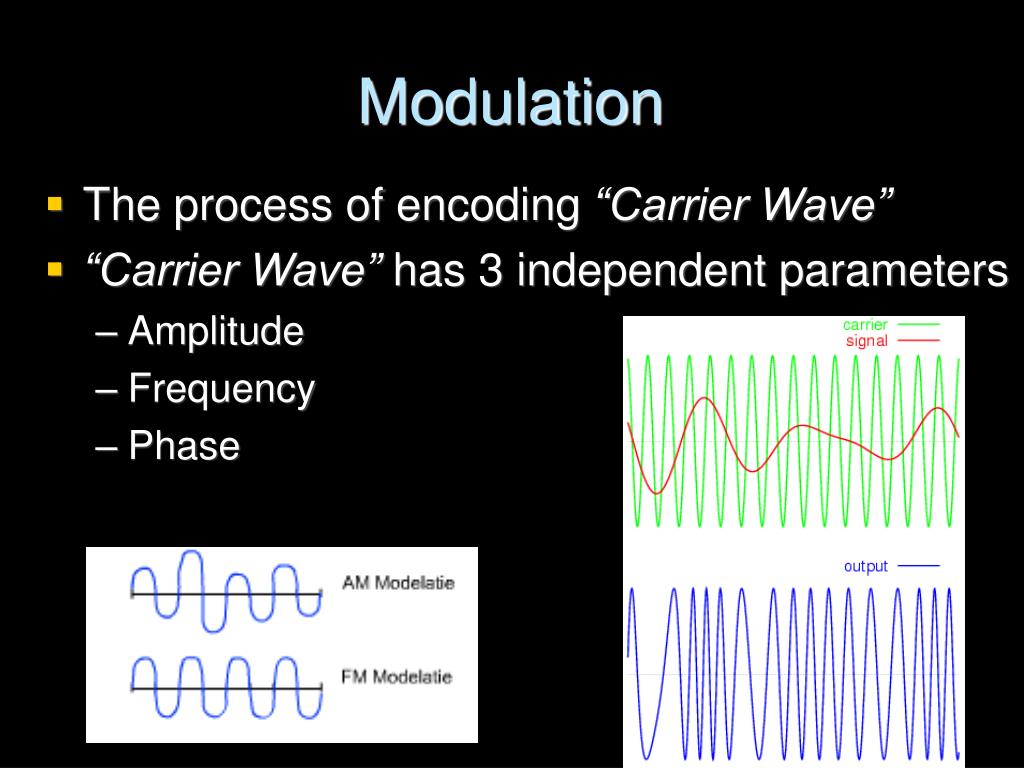

  19. Modulation • The process of encoding “Carrier Wave” • “Carrier Wave” has 3 independent parameters • Amplitude • Frequency • Phase

  20. WHEW!

  21. Questions?
