  1. Secure Remote Authentication Using Biometrics Jonathan Katz* Portions of this work done with Xavier Boyen, Yevgeniy Dodis, Rafail Ostrovsky, Adam Smith *Work supported by NSF Trusted Computing grant #0310751

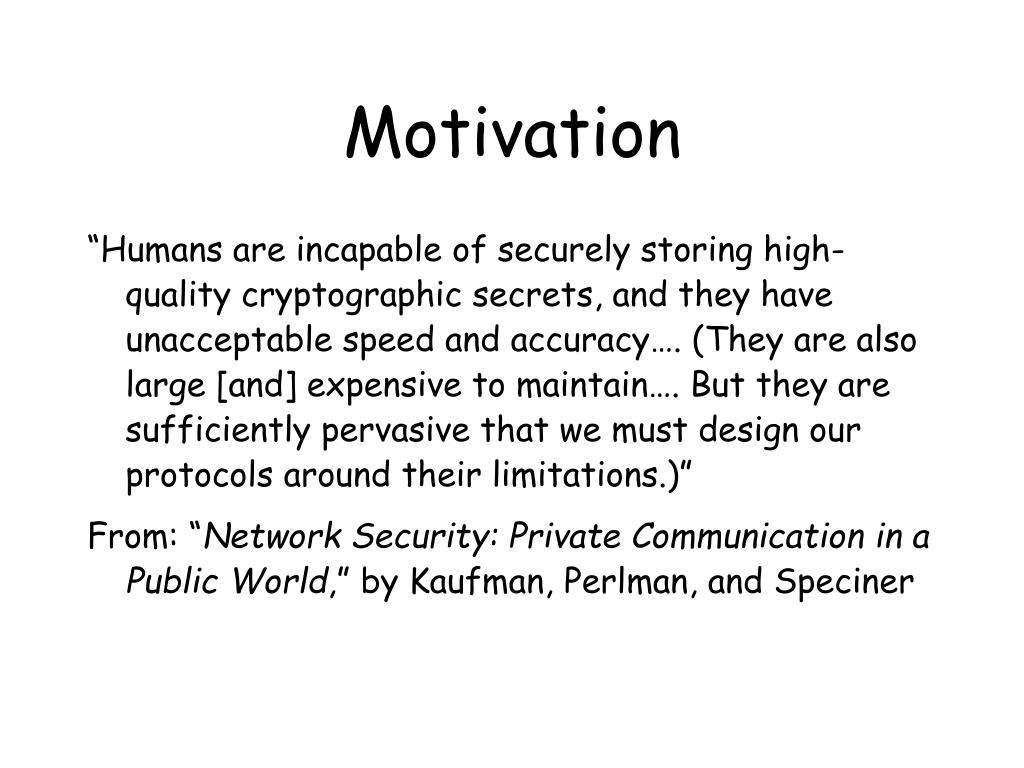

  2. Motivation “Humans are incapable of securely storing high-quality cryptographic secrets, and they have unacceptable speed and accuracy…. (They are also large [and] expensive to maintain…. But they are sufficiently pervasive that we must design our protocols around their limitations.)” From: “Network Security: Private Communication in a Public World,” by Kaufman, Perlman, and Speciner

  3. Possible solutions? • (Short) passwords? • (Hardware) tokens? • Biometrics • Storage of high-entropy data “for free”

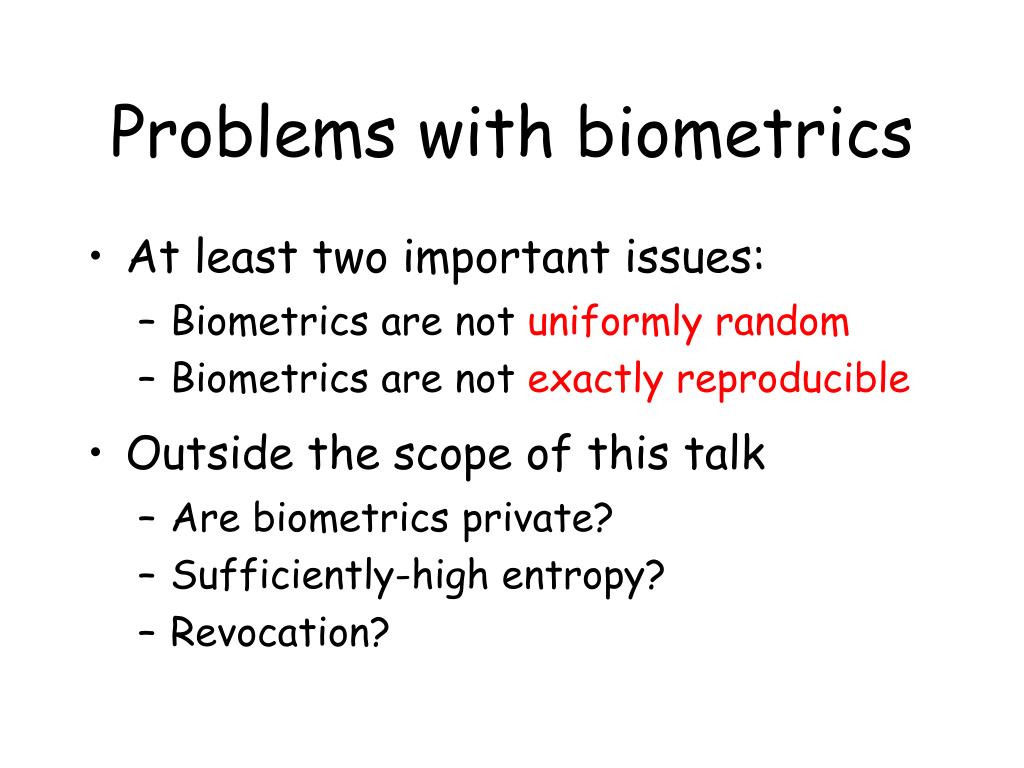

  4. Problems with biometrics • At least two important issues: • Biometrics are not uniformly random • Biometrics are not exactly reproducible • Outside the scope of this talk • Are biometrics private? • Sufficiently-high entropy? • Revocation?

  5. Previous work I • Davida-Frankel-Matt ’98; Monrose-Reiter-(Li)-Wetzel ’99, ’01 • Juels-Wattenberg ’99; Frykholm-Juels ’01; Juels-Sudan ’02

  6. Previous work II • Dodis-Reyzin-Smith ’04 • Their framework and terminology adopted here • Boyen ’04 • Two main results • One result information-theoretic; second in RO model

  7. Question: • Can we use biometric data (coupled with these techniques…) for remote user authentication? • E.g., authentication over an insecure, adversarially-controlled network? • Without requiring users to remember additional info, or the use of hardware tokens?

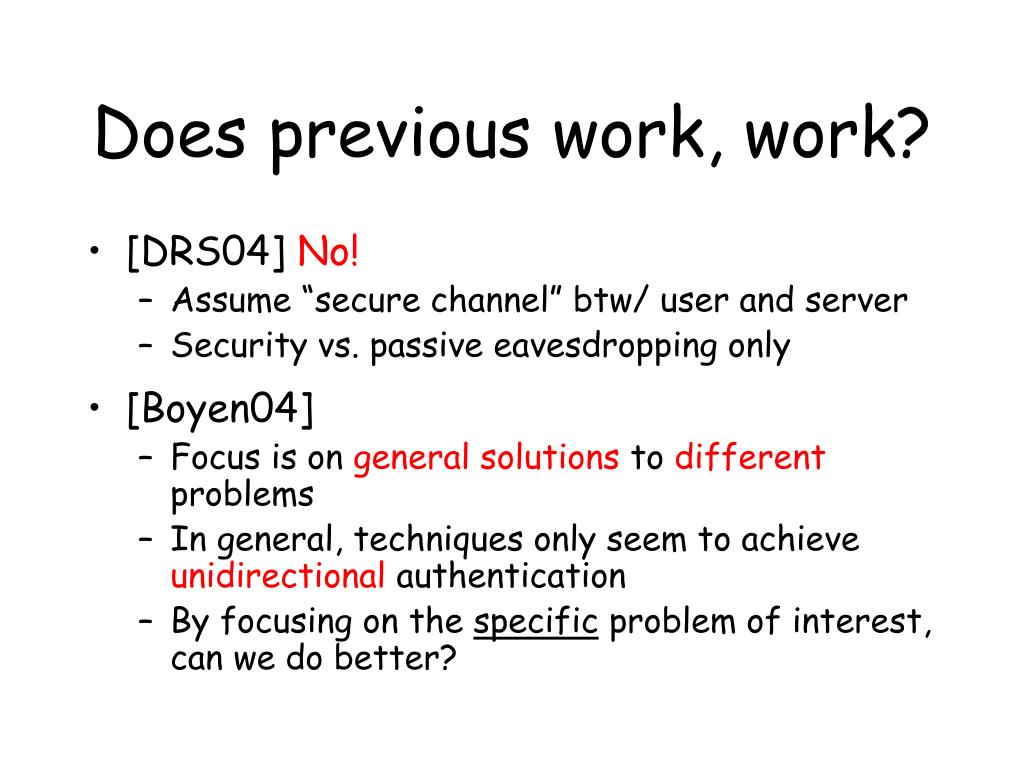

  8. Does previous work, work? • [DRS04] No! • Assume “secure channel” btw/ user and server • Security vs. passive eavesdropping only • [Boyen04] • Focus is on general solutions to different problems • In general, techniques only seem to achieve unidirectional authentication • By focusing on the specific problem of interest, can we do better?

  9. Main results • Short answer: Yes! • By focusing specifically on remote authentication, we can do better • Two solutions… • Compared to [Boyen04]: • Solution in standard model • Solutions tolerating more general errors • Achieve mutual authentication • Improved bounds on the entropy loss

  10. First solution • Generic, “plug-in” solution whenever data from server may be tampered • In particular, applies to remote authentication • Proven secure in RO model… • Tolerates more general class of errors than [Boyen04] • Mutual authentication

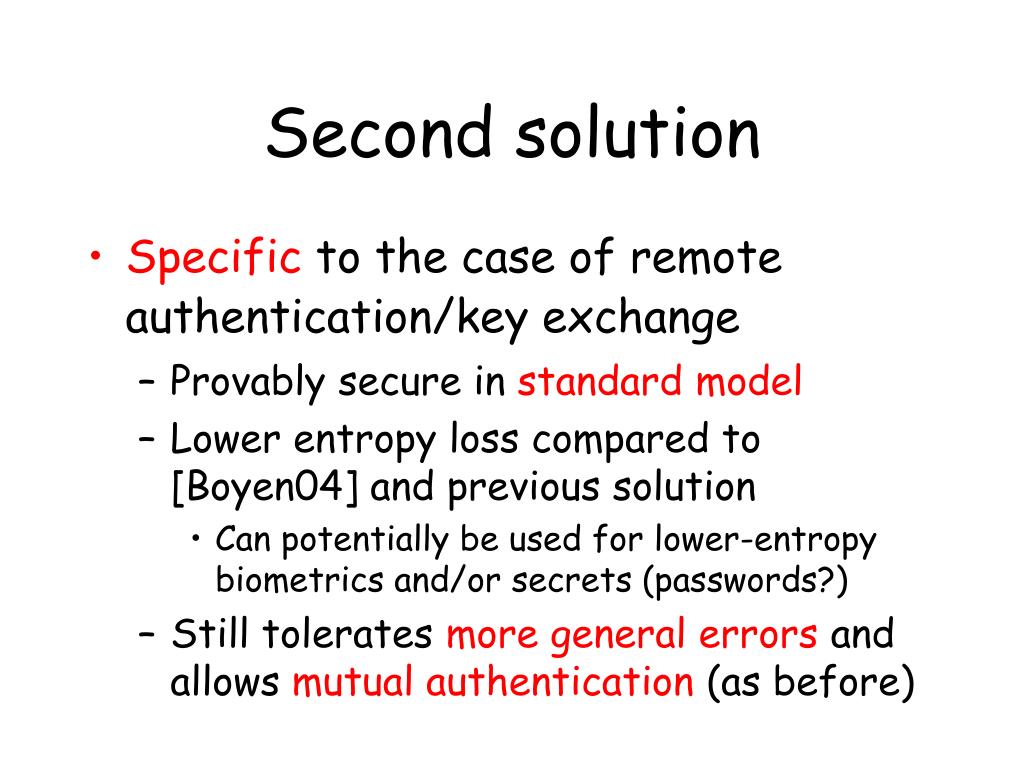

  11. Second solution • Specific to the case of remote authentication/key exchange • Provably secure in standard model • Lower entropy loss compared to [Boyen04] and previous solution • Can potentially be used for lower-entropy biometrics and/or secrets (passwords?) • Still tolerates more general errors and allows mutual authentication (as before)

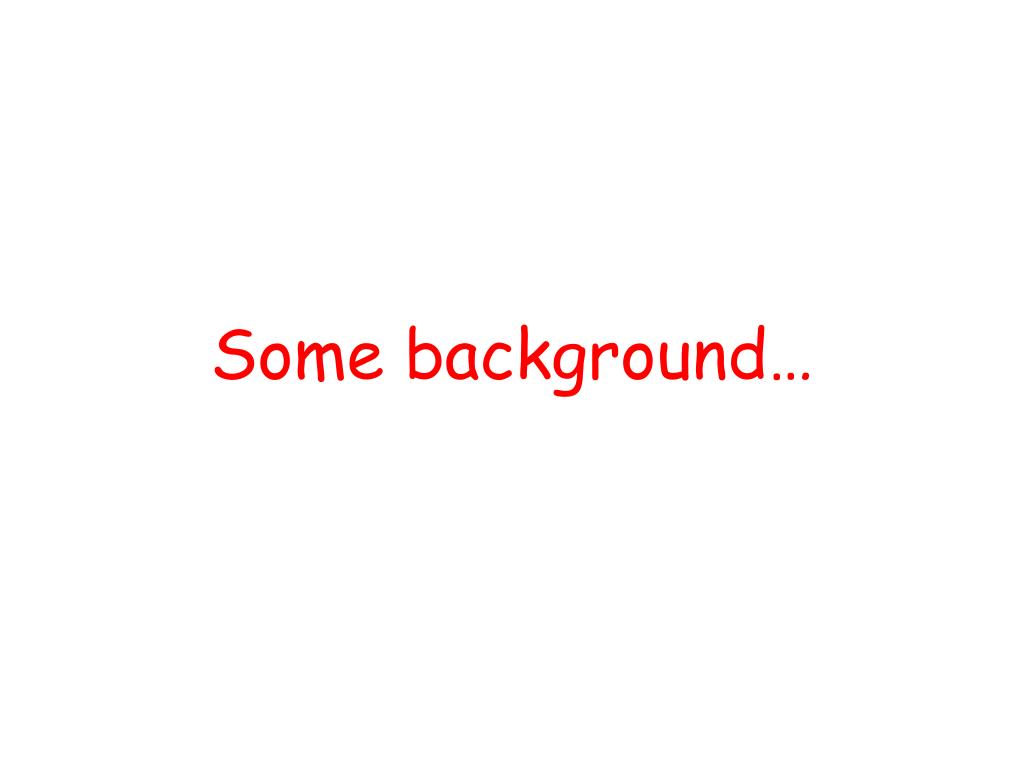

  12. Some background…

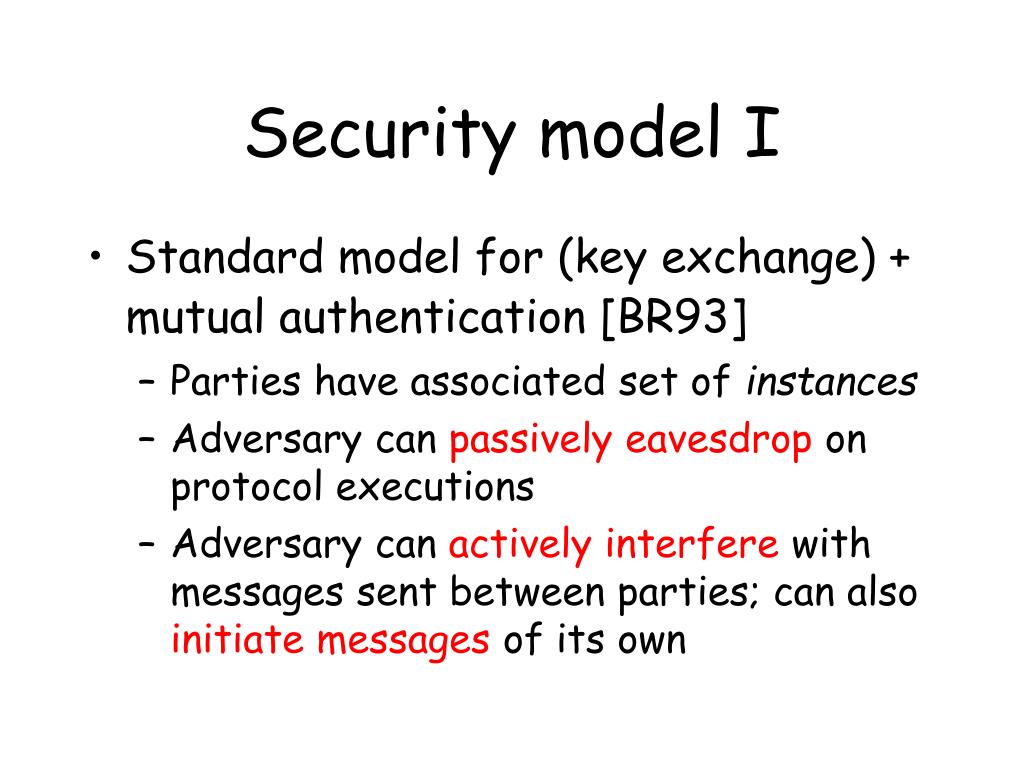

  13. Security model I • Standard model for (key exchange) + mutual authentication [BR93] • Parties have associated set of instances • Adversary can passively eavesdrop on protocol executions • Adversary can actively interfere with messages sent between parties; can also initiate messages of its own

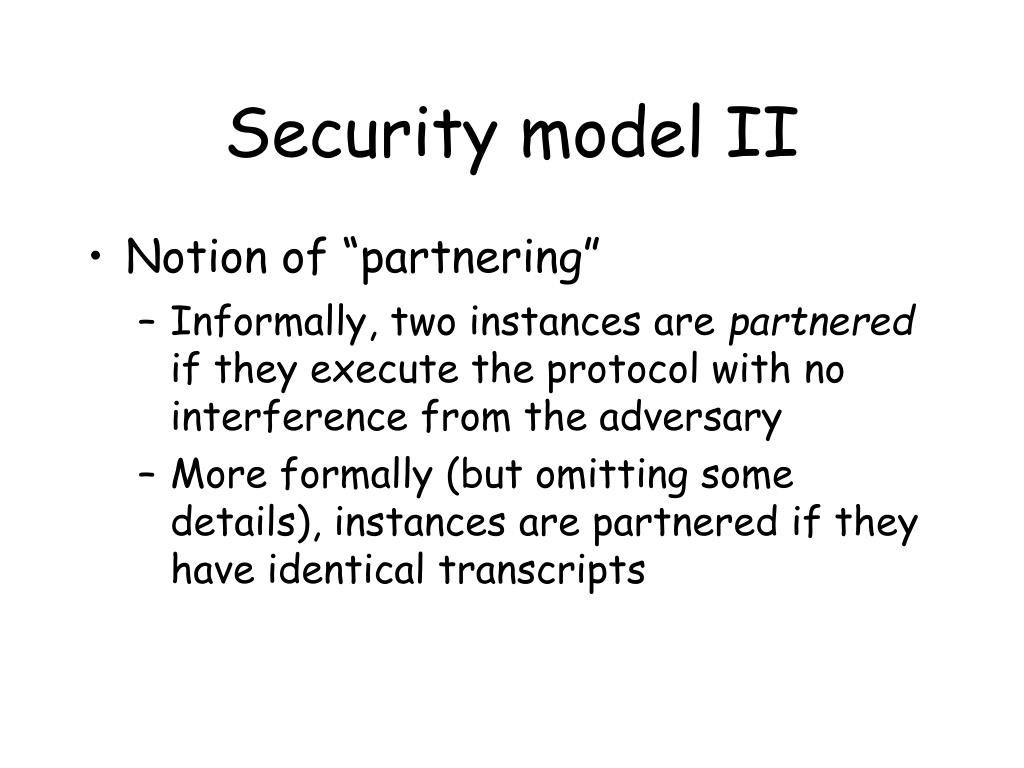

  14. Security model II • Notion of “partnering” • Informally, two instances are partnered if they execute the protocol with no interference from the adversary • More formally (but omitting some details), instances are partnered if they have identical transcripts

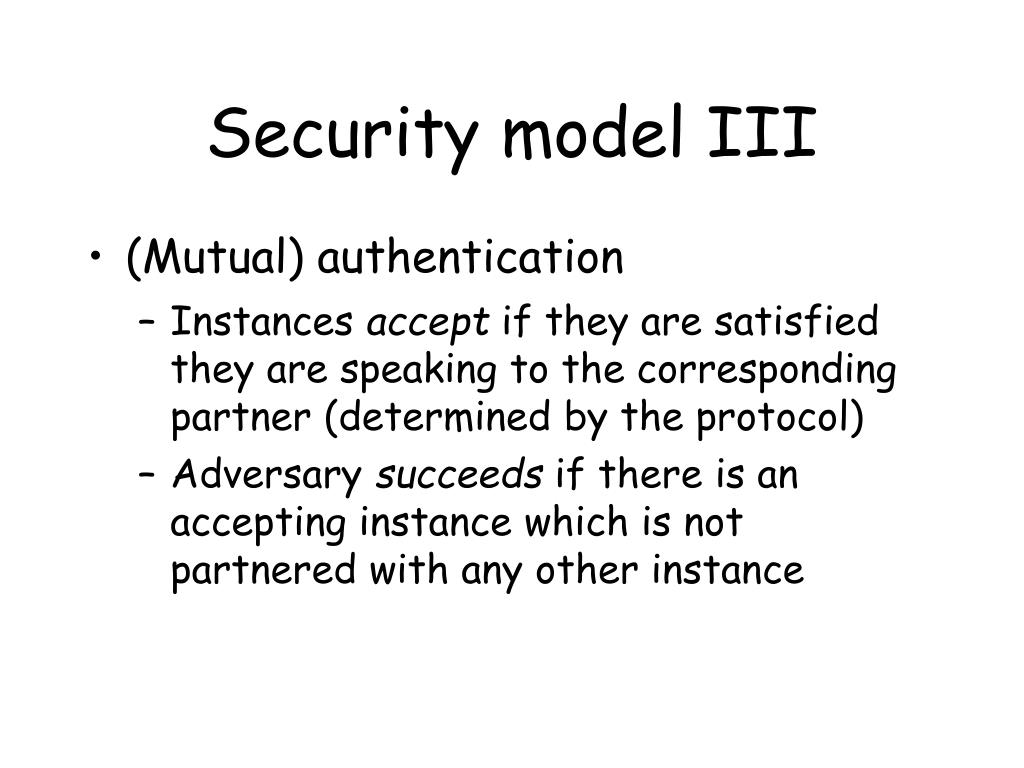

  15. Security model III • (Mutual) authentication • Instances accept if they are satisfied they are speaking to the corresponding partner (determined by the protocol) • Adversary succeeds if there is an accepting instance which is not partnered with any other instance

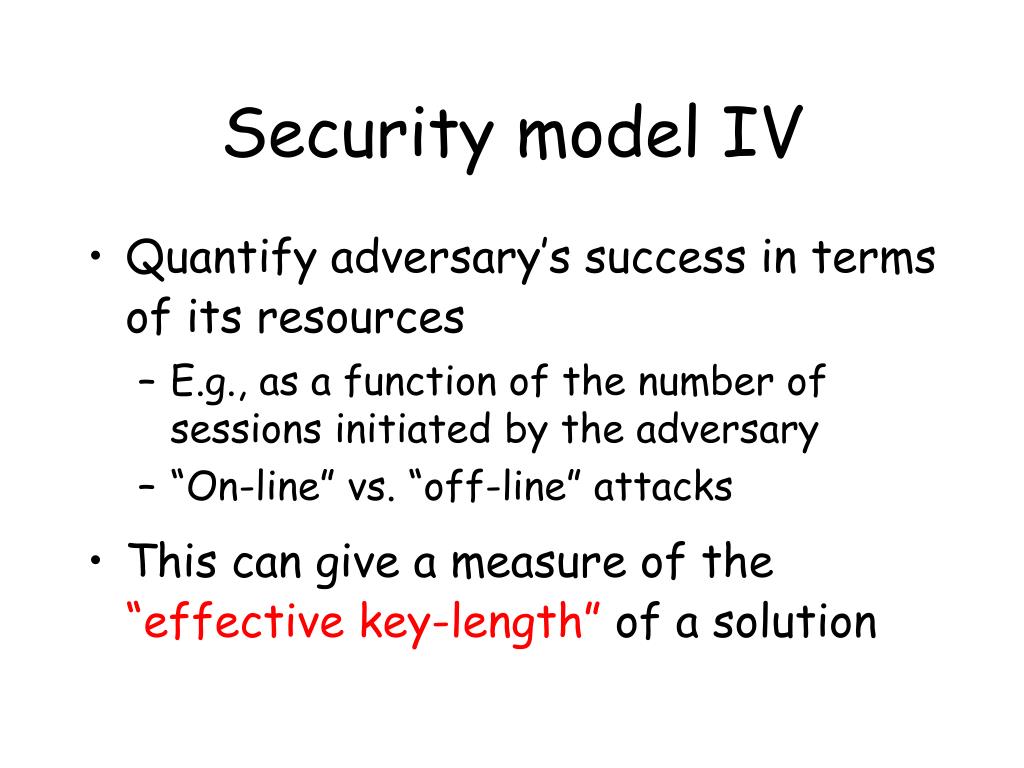

  16. Security model IV • Quantify adversary’s success in terms of its resources • E.g., as a function of the number of sessions initiated by the adversary • “On-line” vs. “off-line” attacks • This can give a measure of the “effective key-length” of a solution

  17. Recap of [DRS04] • Use Hamming distance for simplicity… • (m, m’, t)-secure sketch (SS, Rec): • For all w, w’ with d(w,w’)  t:Rec(w’, SS(w)) = w(I.e., “recovery from error”) • If W has min-entropy m, the average min-entropy of W|SS(W) is m’(I.e., “w still hard to guess”)

  18. Recap of [DRS04] • (m, l, t, )-fuzzy extractor (Ext, Rec): • Ext(w) -> (R, P) s.t. 1. SD((R, P), (Ul,P))  (I.e., R is “close to uniform”)2. For all w’ s.t. d(w,w’)  t, Rec(w’, P) = R(I.e., “recovery from error”)

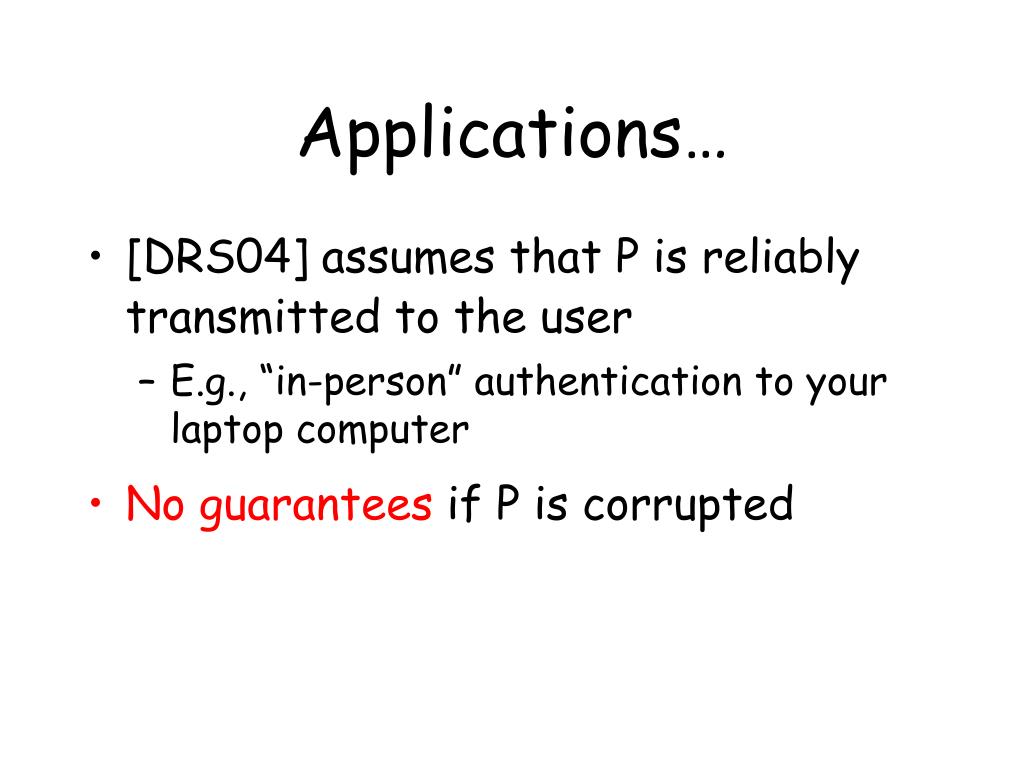

  19. Applications… • [DRS04] assumes that P is reliably transmitted to the user • E.g., “in-person” authentication to your laptop computer • No guarantees if P is corrupted

  20. [Boyen04] • Main focus is reusability of biometric data (e.g., with multiple servers) • Somewhat tangential to our concern here • Also defines a notion of security for fuzzy extractors when P may be corrupted…

  21. [Boyen04] • (Ignoring reusability aspect…) • w* chosen; (R, P) = Ext((w*)) for some ; adversary gets P • Adversary submits P1, …  P and 1, …; gets back R1 = Rec(1(w*), P1), … • “Secure” if adv. can’t distinguish R from random (except w/ small prob.)

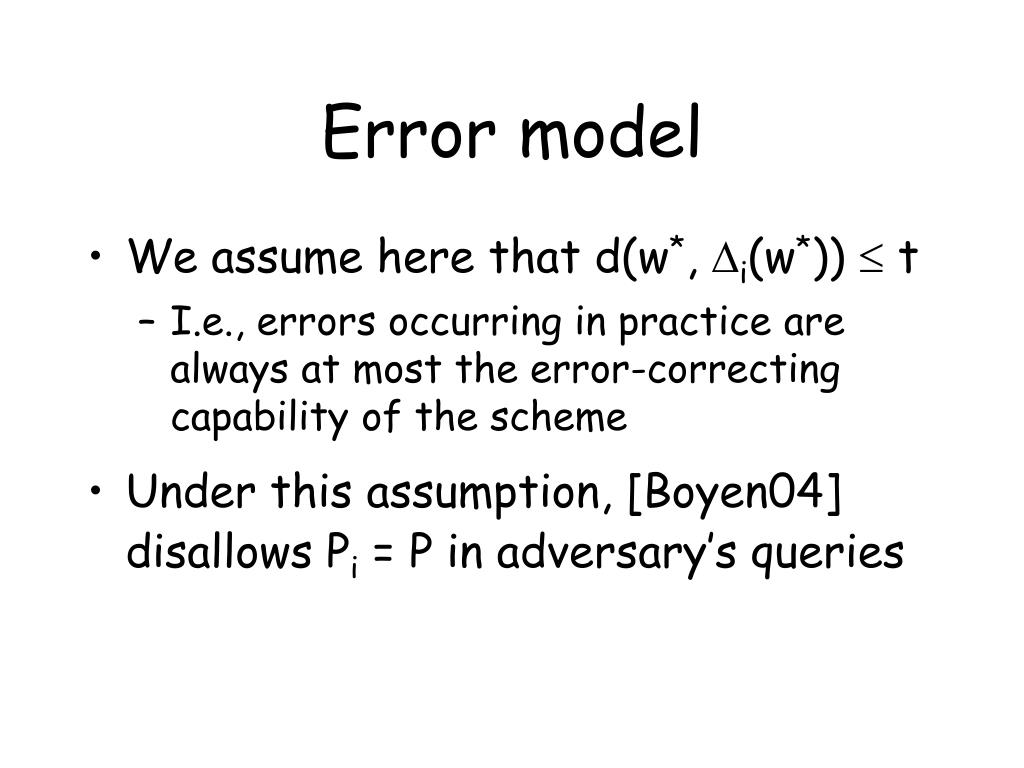

  22. Error model • We assume here that d(w*, i(w*))  t • I.e., errors occurring in practice are always at most the error-correcting capability of the scheme • Under this assumption, [Boyen04] disallows Pi = P in adversary’s queries

  23. Construction • Construction in [Boyen04] achieves security assuming errors are “data-independent” • I.e., constant shifts • Construction analyzed in RO model

  24. User Server P, nonce  Application to remote authentication Essentially as suggested in [Boyen04]: (w) (P, PK) (R,P) = Ext(w*) R -> (SK, PK) R = Rec(P, w) R -> (SK, PK)  = SignSK(nonce) Verify…

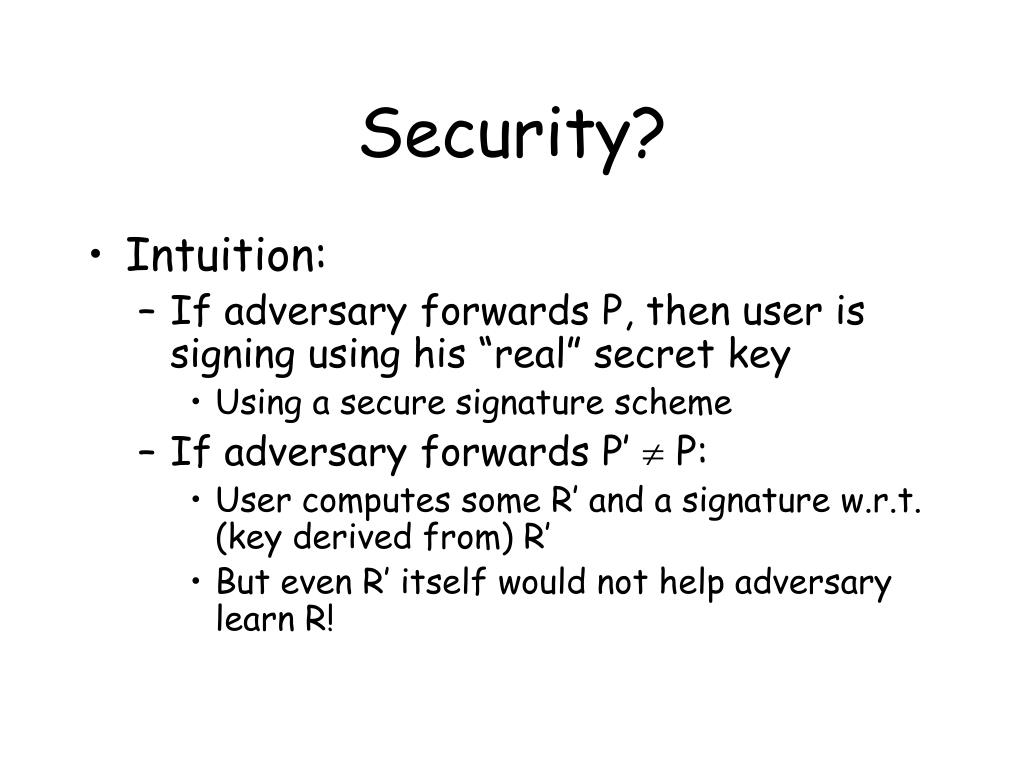

  25. Security? • Intuition: • If adversary forwards P, then user is signing using his “real” secret key • Using a secure signature scheme • If adversary forwards P’  P: • User computes some R’ and a signature w.r.t. (key derived from) R’ • But even R’ itself would not help adversary learn R!

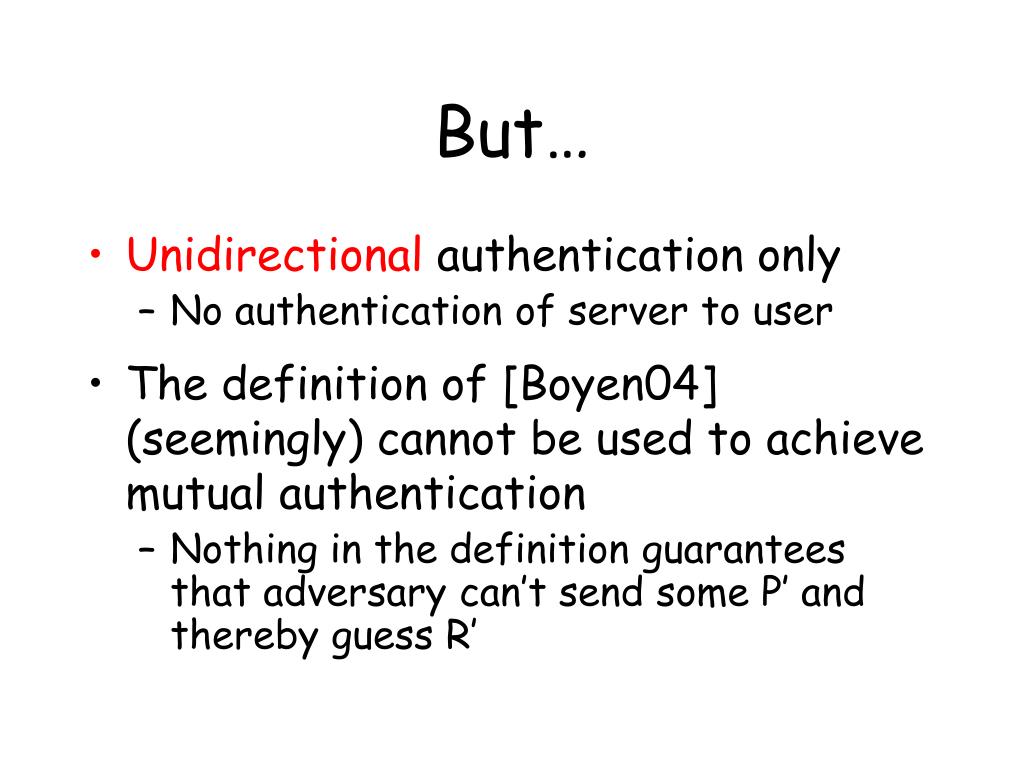

  26. But… • Unidirectional authentication only • No authentication of server to user • The definition of [Boyen04] (seemingly) cannot be used to achieve mutual authentication • Nothing in the definition guarantees that adversary can’t send some P’ and thereby guess R’

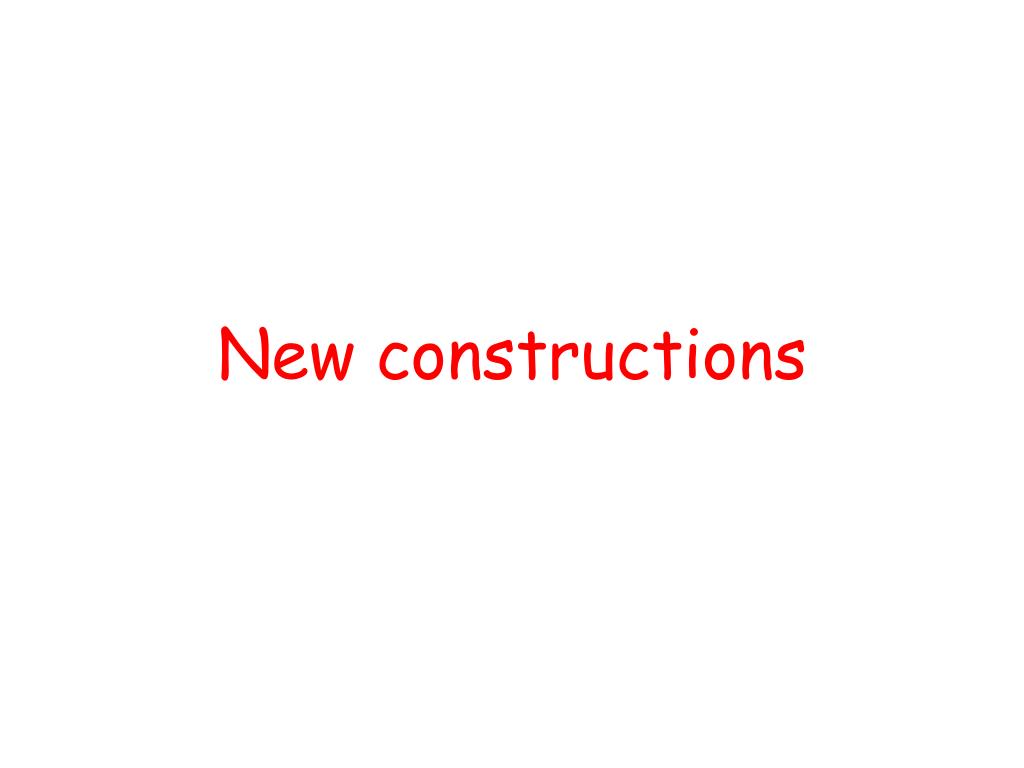

  27. New constructions

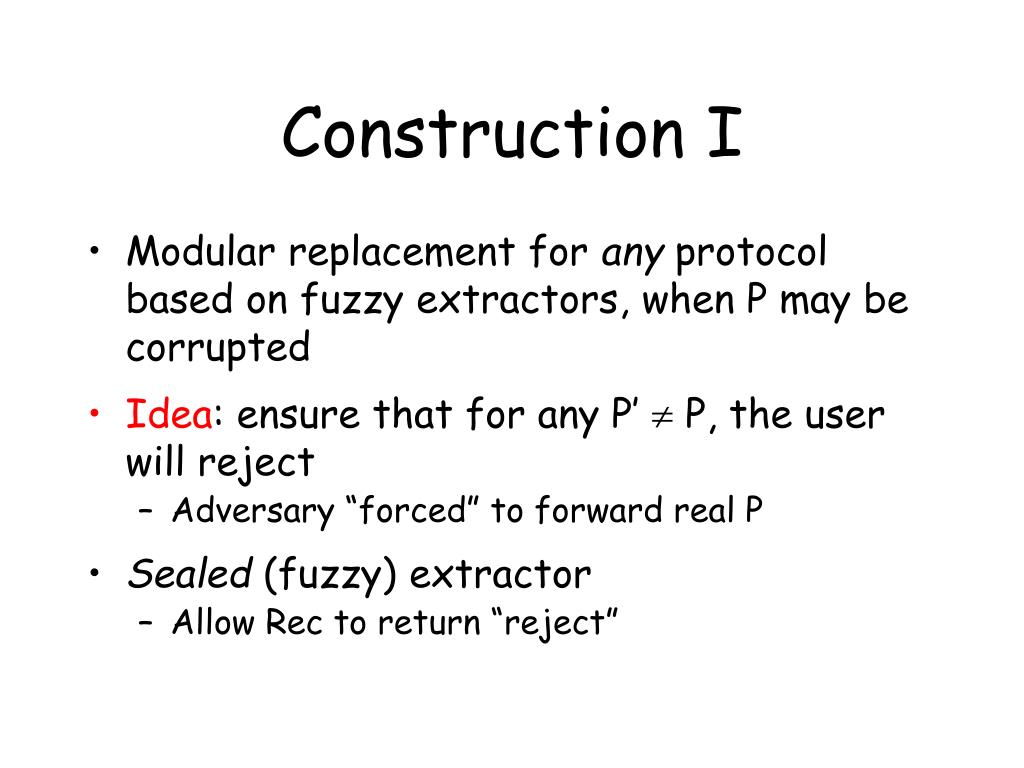

  28. Construction I • Modular replacement for any protocol based on fuzzy extractors, when P may be corrupted • Idea: ensure that for any P’  P, the user will reject • Adversary “forced” to forward real P • Sealed (fuzzy) extractor • Allow Rec to return “reject”

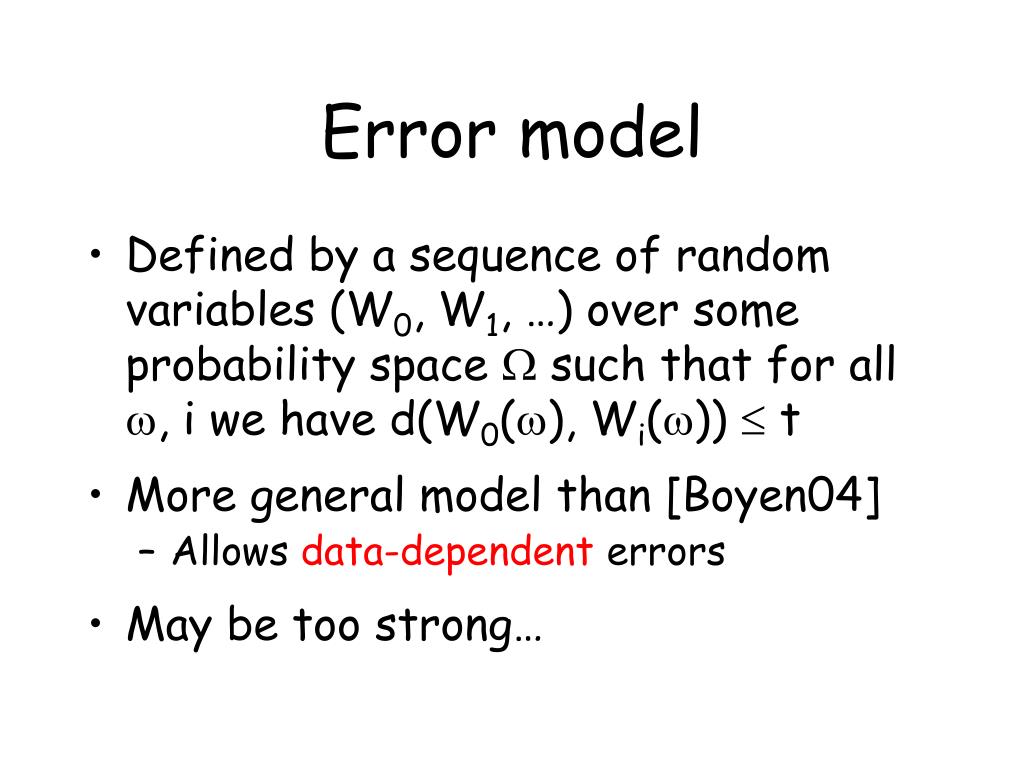

  29. Error model • Defined by a sequence of random variables (W0, W1, …) over some probability space  such that for all , i we have d(W0(), Wi())  t • More general model than [Boyen04] • Allows data-dependent errors • May be too strong…

  30. Security definition • User has w0; computes (R,P)<-Ext(w0); adversary given P • Adversary submits P1, …, Pn P • Adversary succeeds if i s.t. Rec(wi, Pi)  “reject”

  31. User Server P, n1 c2 c1, n2 Application to remote authentication (w) (P, R) (R,P) = Ext(w*) R = Rec(P, w) c1 = FR(n1) Verify… c2 = FR(n2) (Or run authenticated Diffie-Hellman)

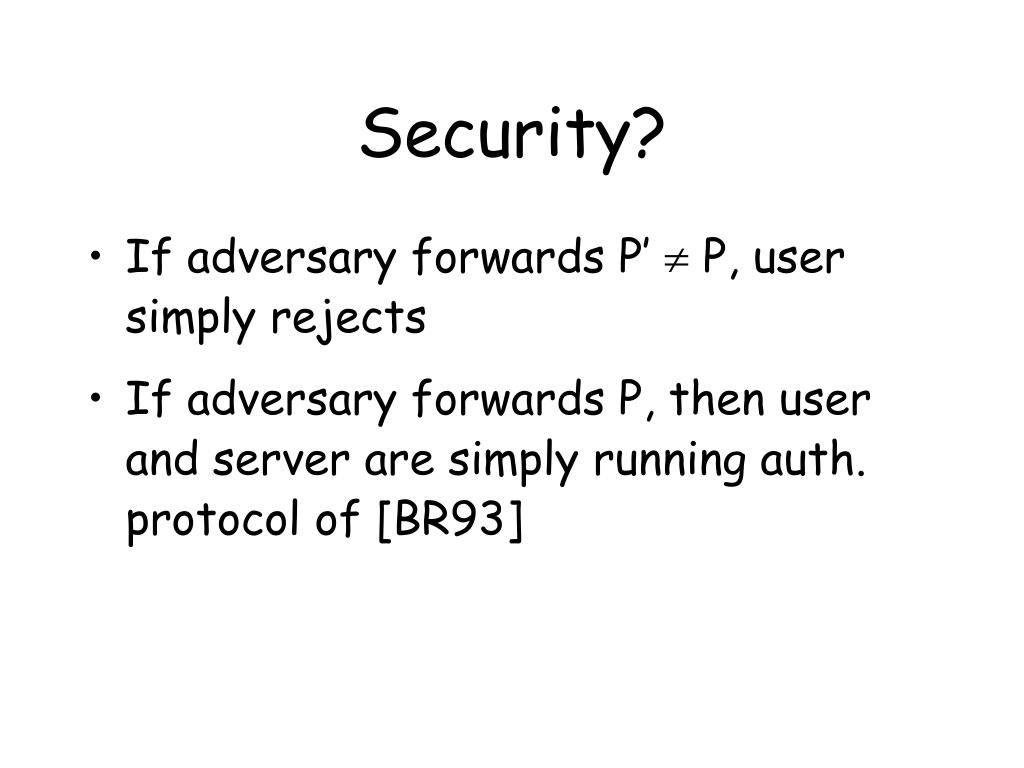

  32. Security? • If adversary forwards P’  P, user simply rejects • If adversary forwards P, then user and server are simply running auth. protocol of [BR93]

  33. Constructing sealed extractor • First construct secure sketch • Definition similar to that of sealed extractor • Construction is in the RO model • Then apply standard extractors (as in [DRS04]) • This conversion is unconditional

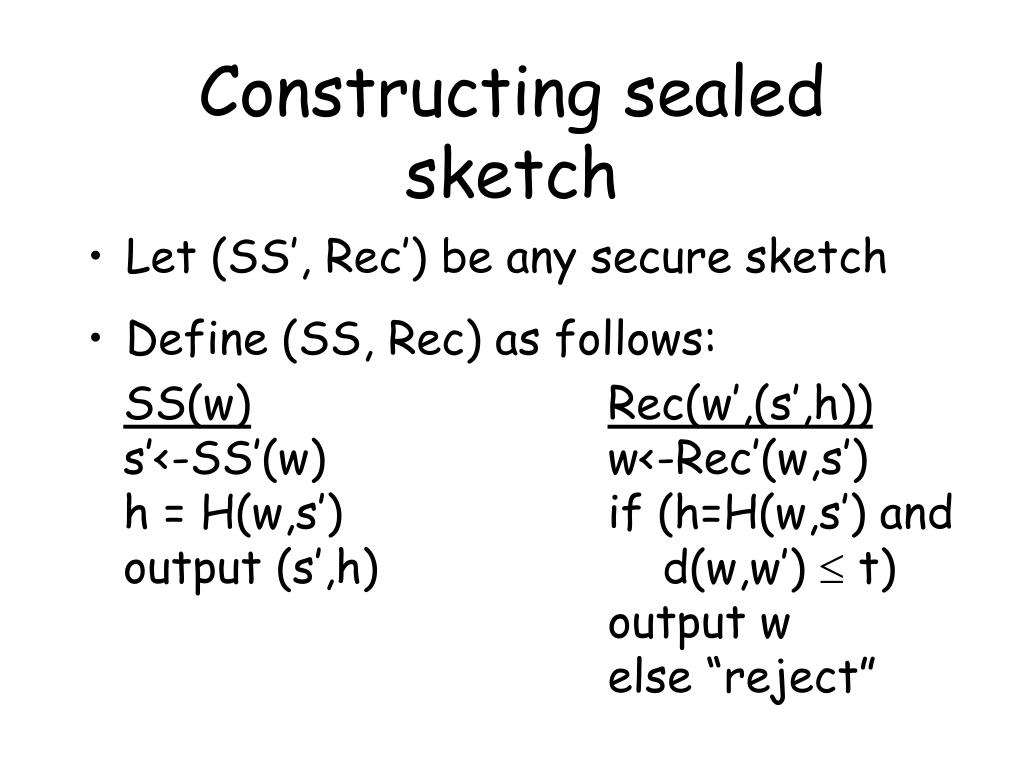

  34. Constructing sealed sketch • Let (SS’, Rec’) be any secure sketch • Define (SS, Rec) as follows: SS(w) s’<-SS’(w) h = H(w,s’) output (s’,h) Rec(w’,(s’,h)) w<-Rec’(w,s’) if (h=H(w,s’) and d(w,w’)  t) output w else “reject”

  35. Intuition? • h “certifies” the recovered value w • But because of the RO model, it does not leak (much) information about w • Also, because of RO model, impossible to generate “forged” h without making (explicitly) a certain query to the RO • Adversary doesn’t make this query (except with small probability) since min-entropy of recovered w is still “high enough”

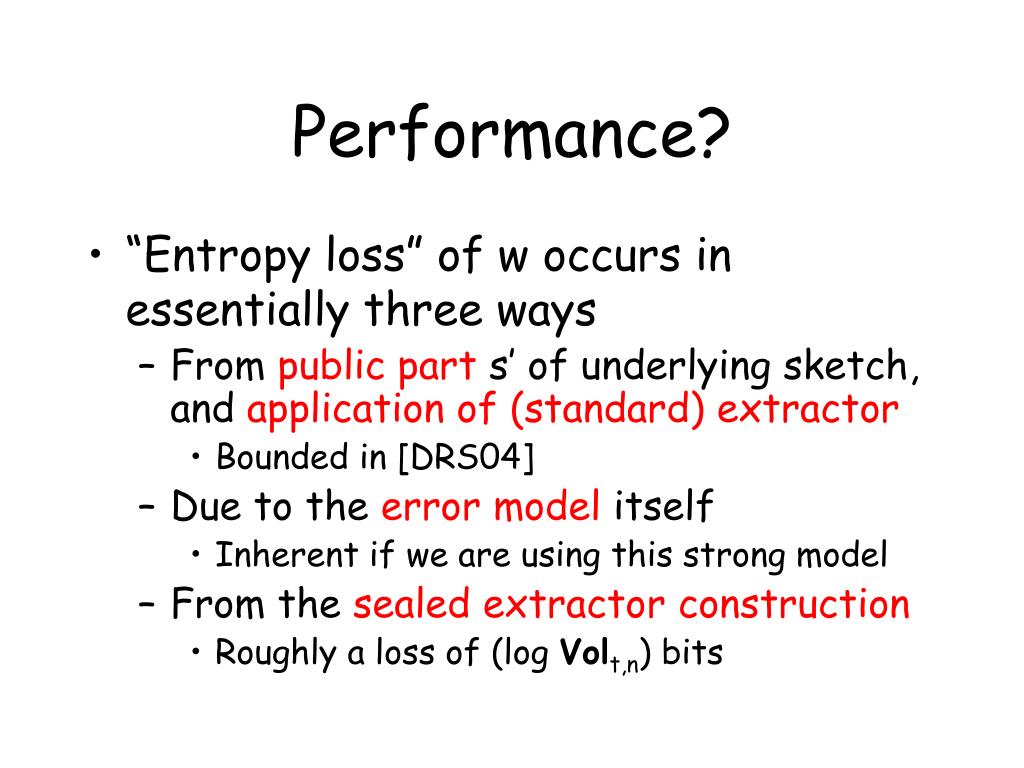

  36. Performance? • “Entropy loss” of w occurs in essentially three ways • From public part s’ of underlying sketch, and application of (standard) extractor • Bounded in [DRS04] • Due to the error model itself • Inherent if we are using this strong model • From the sealed extractor construction • Roughly a loss of (log Volt,n) bits

  37. Construction II • Specific to remote authentication • Idea: “bootstrap” using auth. protocol that can handle non-uniform shared secrets • “Problem” of non-uniformity goes away • All we are left with is the issue of error-correction

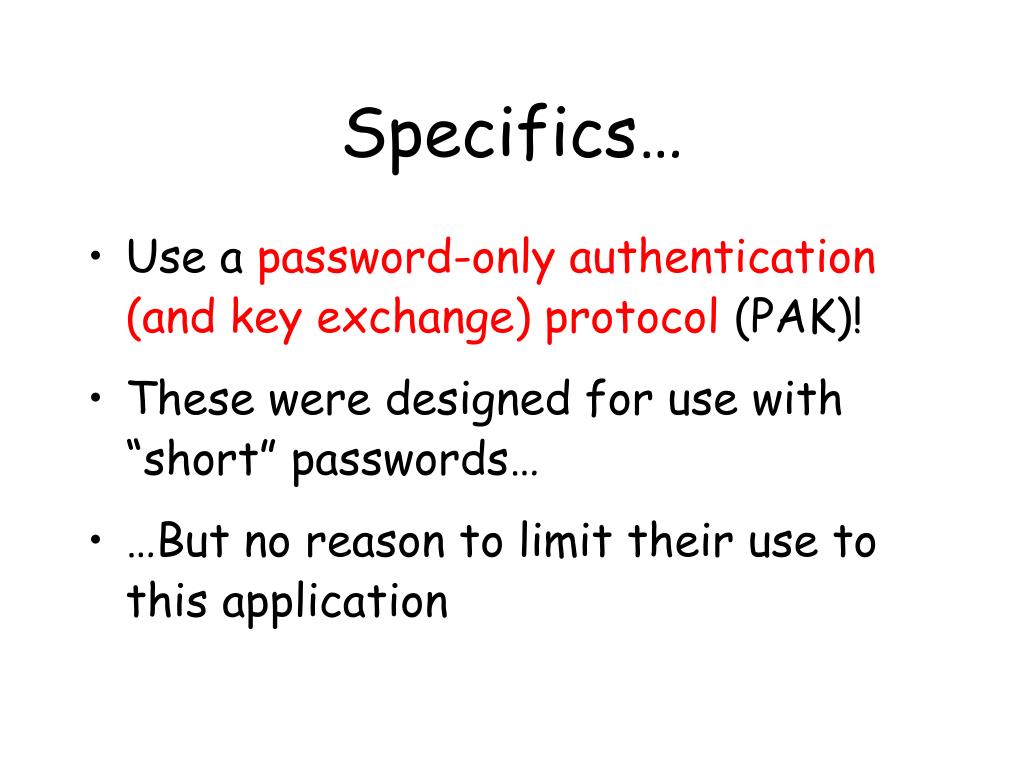

  38. Specifics… • Use a password-only authentication (and key exchange) protocol (PAK)! • These were designed for use with “short” passwords… • …But no reason to limit their use to this application

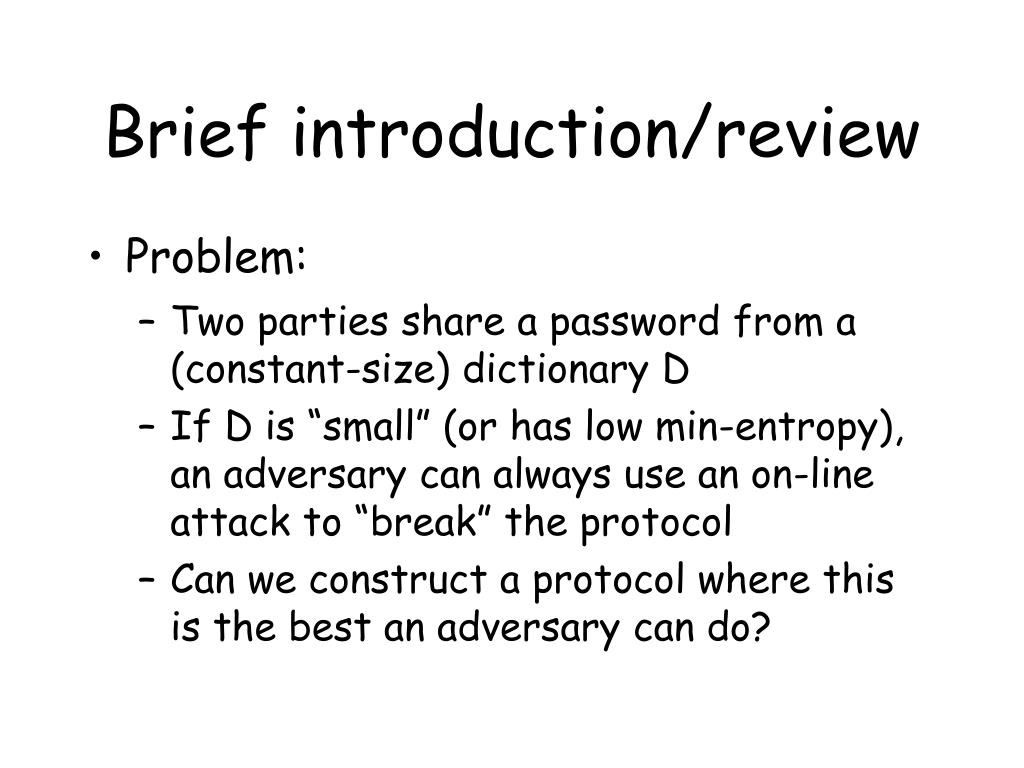

  39. Brief introduction/review • Problem: • Two parties share a password from a (constant-size) dictionary D • If D is “small” (or has low min-entropy), an adversary can always use an on-line attack to “break” the protocol • Can we construct a protocol where this is the best an adversary can do?

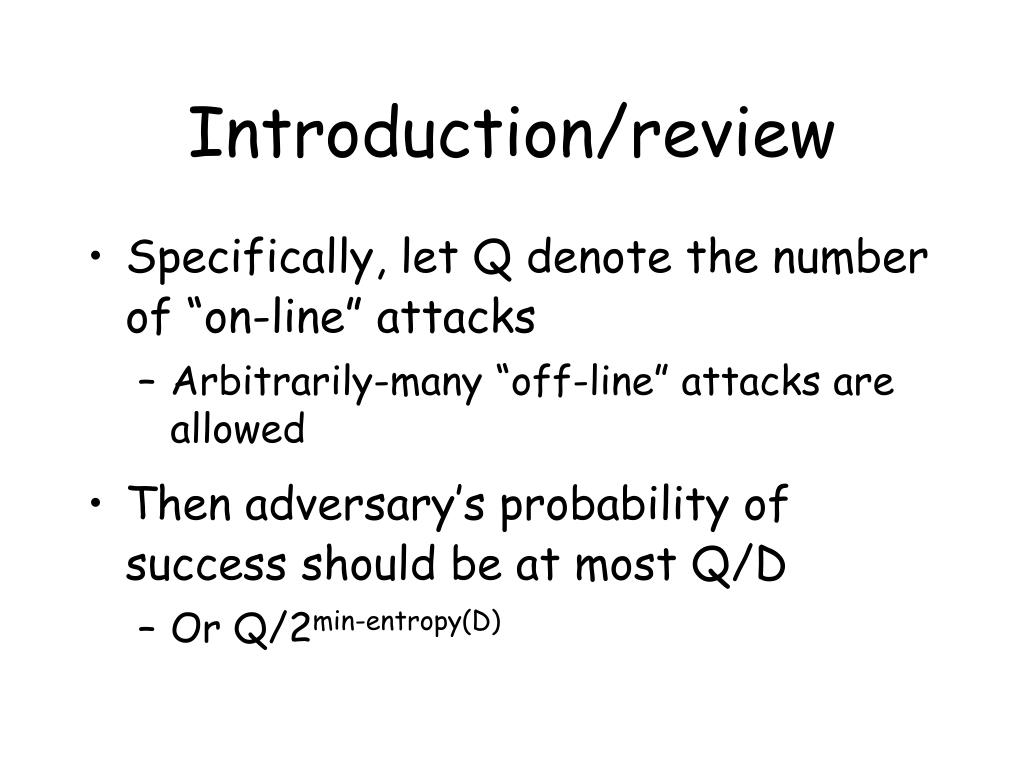

  40. Introduction/review • Specifically, let Q denote the number of “on-line” attacks • Arbitrarily-many “off-line” attacks are allowed • Then adversary’s probability of success should be at most Q/D • Or Q/2min-entropy(D)

  41. Introduction/review • Can view PAK protocols in the following, intuitive way: • Each on-line attack by the adversary represents a single “guess” of the actual password • This is the best an adversary can do!

  42. Constructions? • [Bellovin-Merrit]… • [BPR,BMP] – definitions, constructions in random oracle/ideal cipher models • [GL] – construction in standard model • [KOY] – efficient construction in standard model, assuming public parameters

  43. User Server s Run PAK using “password” (s,w*) Application to remote authentication (w) (s, w*) s = SS(w*) w* = Rec(s, w)

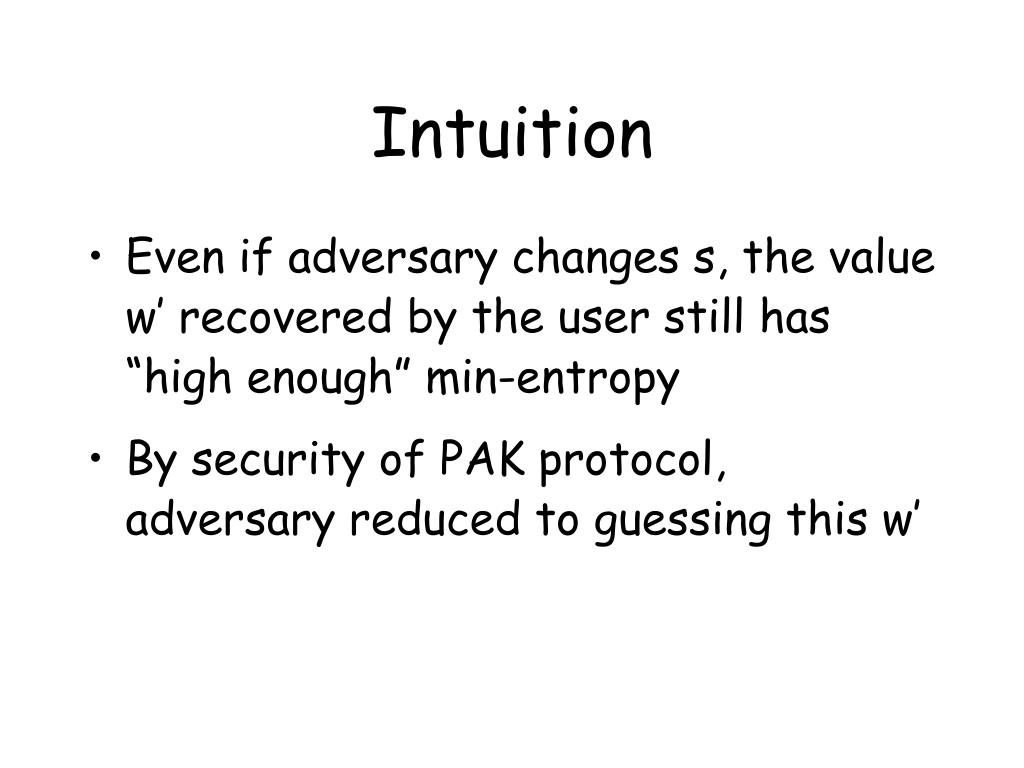

  44. Intuition • Even if adversary changes s, the value w’ recovered by the user still has “high enough” min-entropy • By security of PAK protocol, adversary reduced to guessing this w’

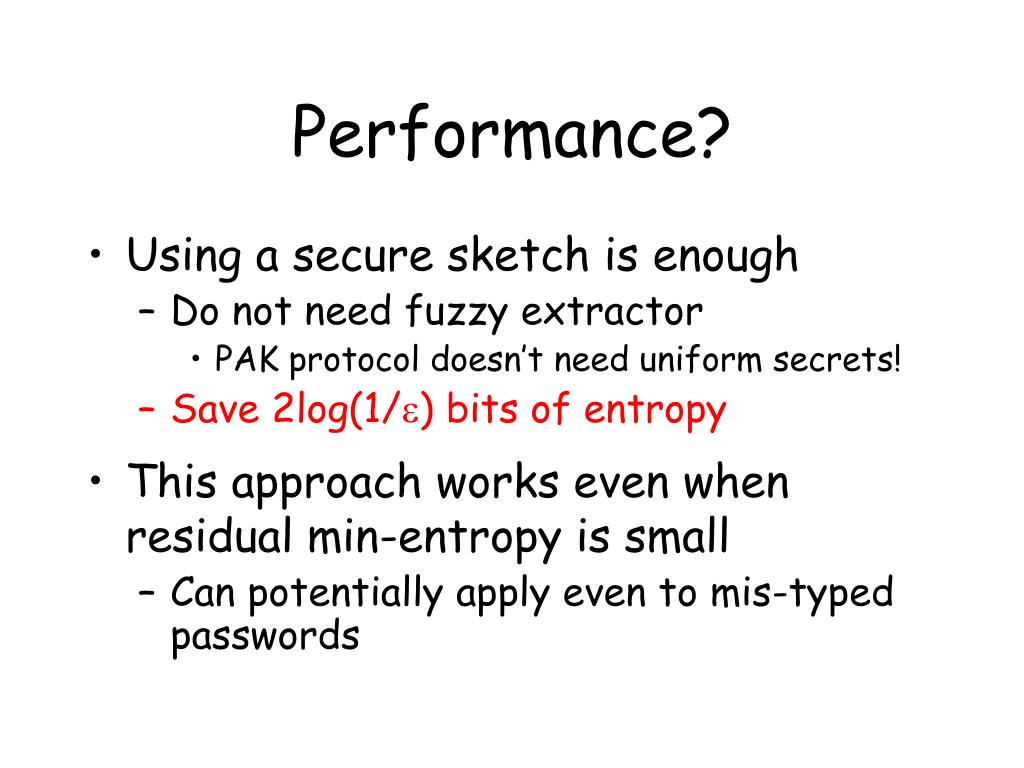

  45. Performance? • Using a secure sketch is enough • Do not need fuzzy extractor • PAK protocol doesn’t need uniform secrets! • Save 2log(1/) bits of entropy • This approach works even when residual min-entropy is small • Can potentially apply even to mis-typed passwords

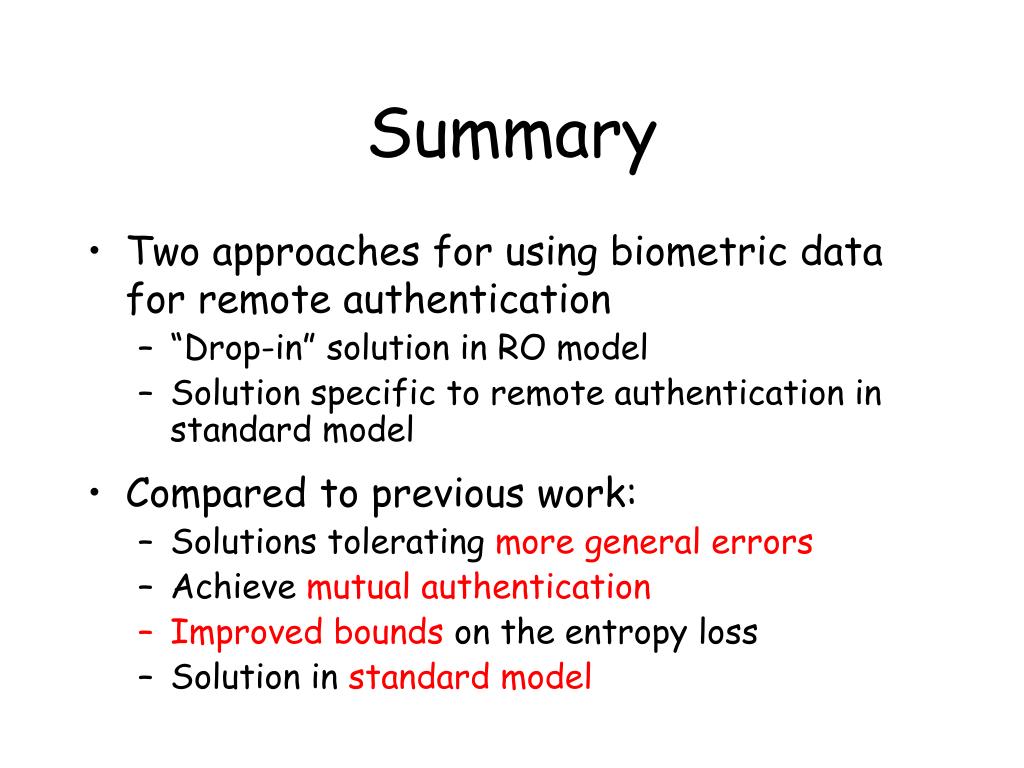

  46. Summary • Two approaches for using biometric data for remote authentication • “Drop-in” solution in RO model • Solution specific to remote authentication in standard model • Compared to previous work: • Solutions tolerating more general errors • Achieve mutual authentication • Improved bounds on the entropy loss • Solution in standard model
