  1. The Diesel Cycle By Marcus Low

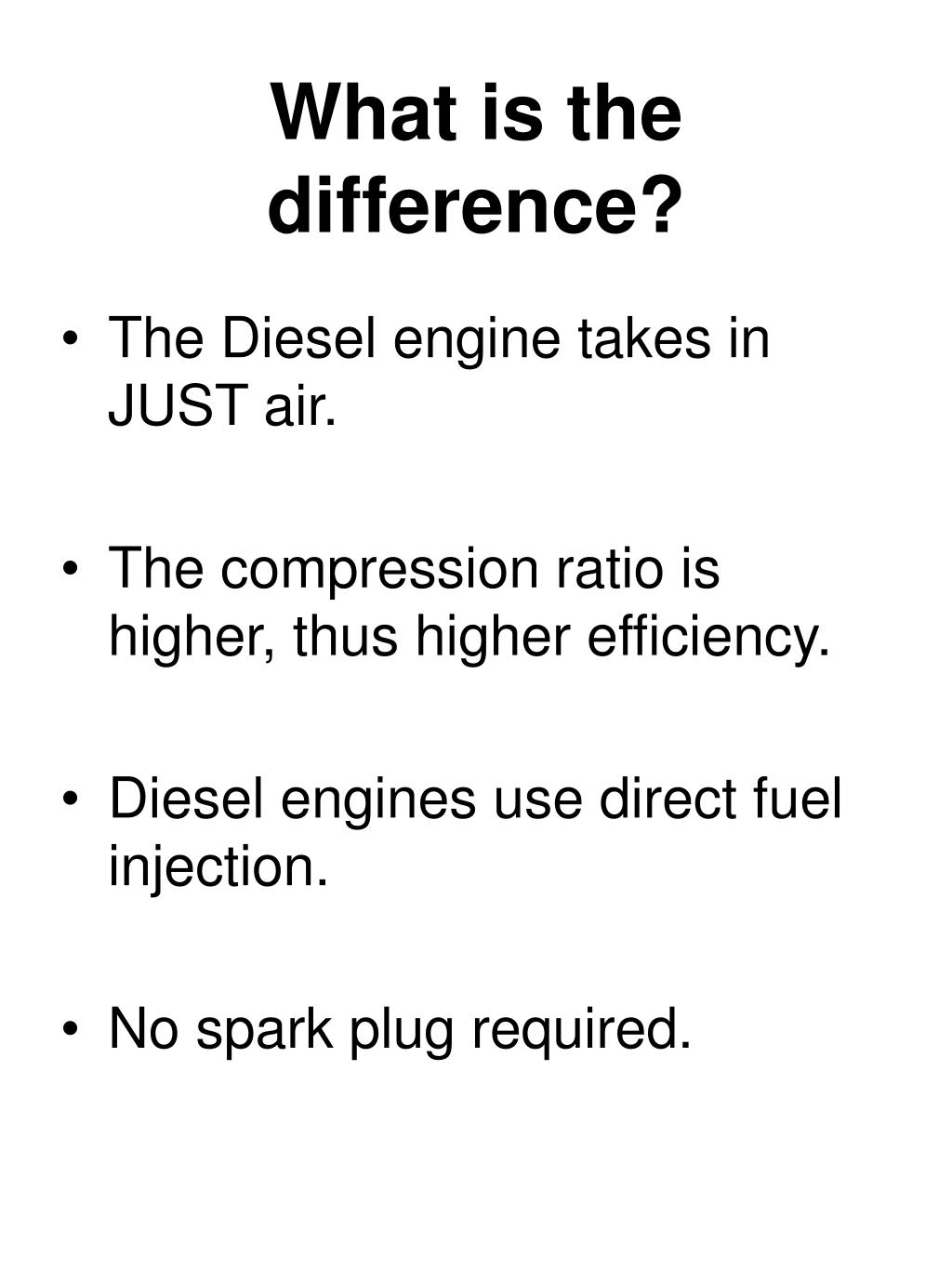

  2. What is the difference? • The Diesel engine takes in JUST air. • The compression ratio is higher, thus higher efficiency. • Diesel engines use direct fuel injection. • No spark plug required.

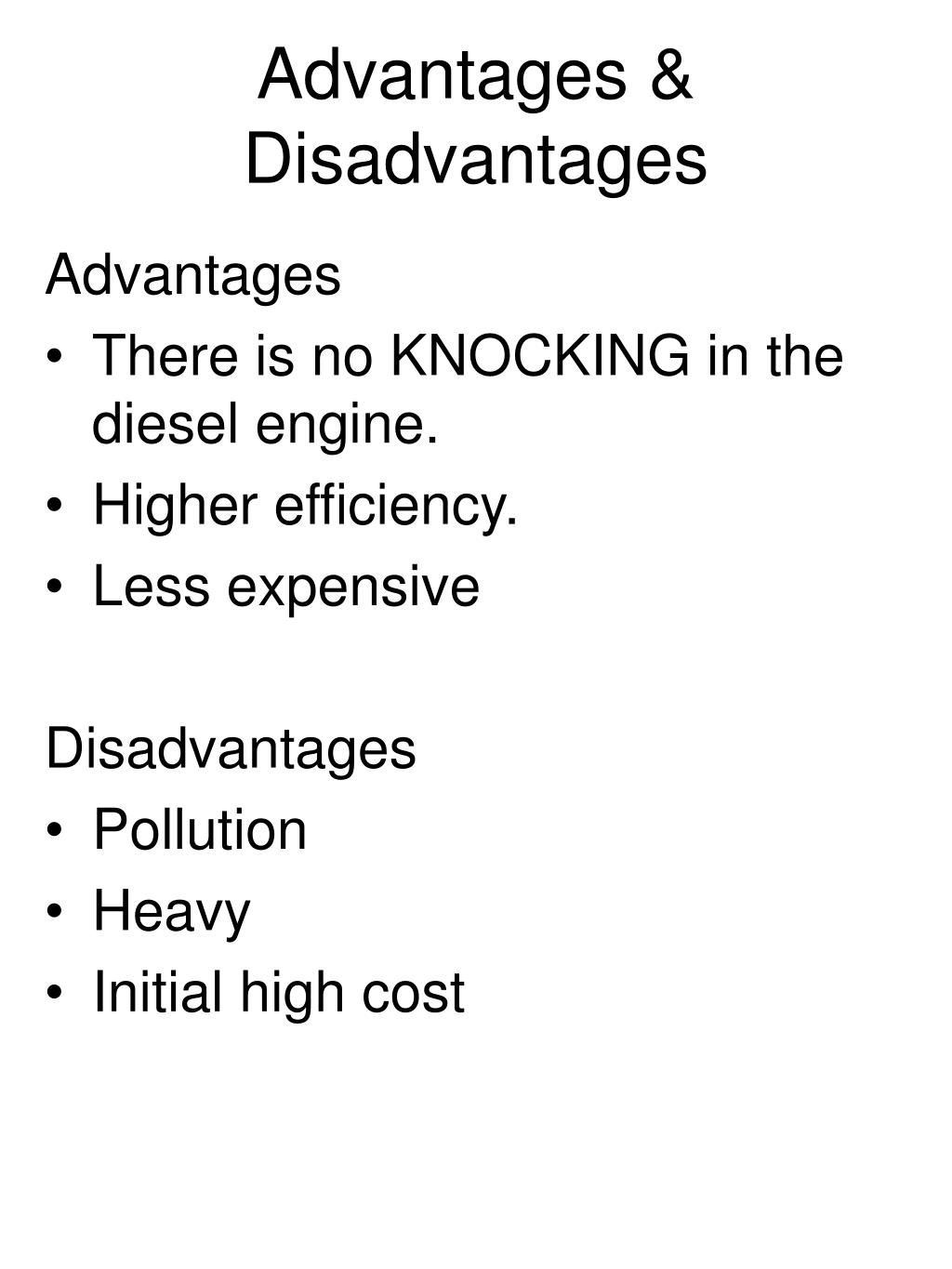

  3. Advantages & Disadvantages Advantages • There is no KNOCKING in the diesel engine. • Higher efficiency. • Less expensive Disadvantages • Pollution • Heavy • Initial high cost

  4. Examples of vehicles that use diesel engines • Cars • Trucks • Submarine • Locomotives

  5. Objective • Definition of Diesel Cycle • How the Diesel Cycle Works • Examples of Diesel Engines • Relevance of Diesel Engines Today

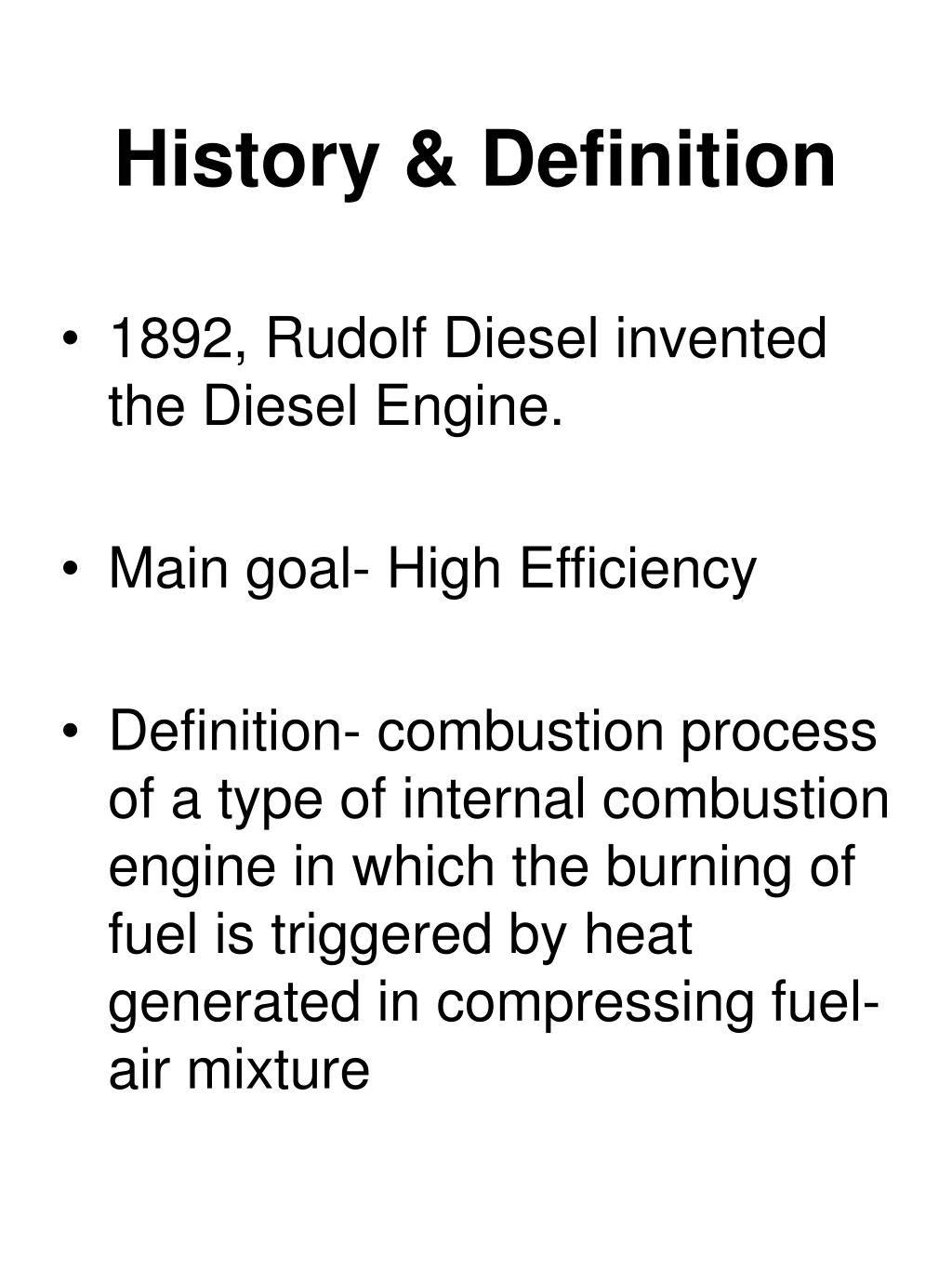

  6. History & Definition • 1892, Rudolf Diesel invented the Diesel Engine. • Main goal- High Efficiency • Definition- combustion process of a type of internal combustion engine in which the burning of fuel is triggered by heat generated in compressing fuel-air mixture

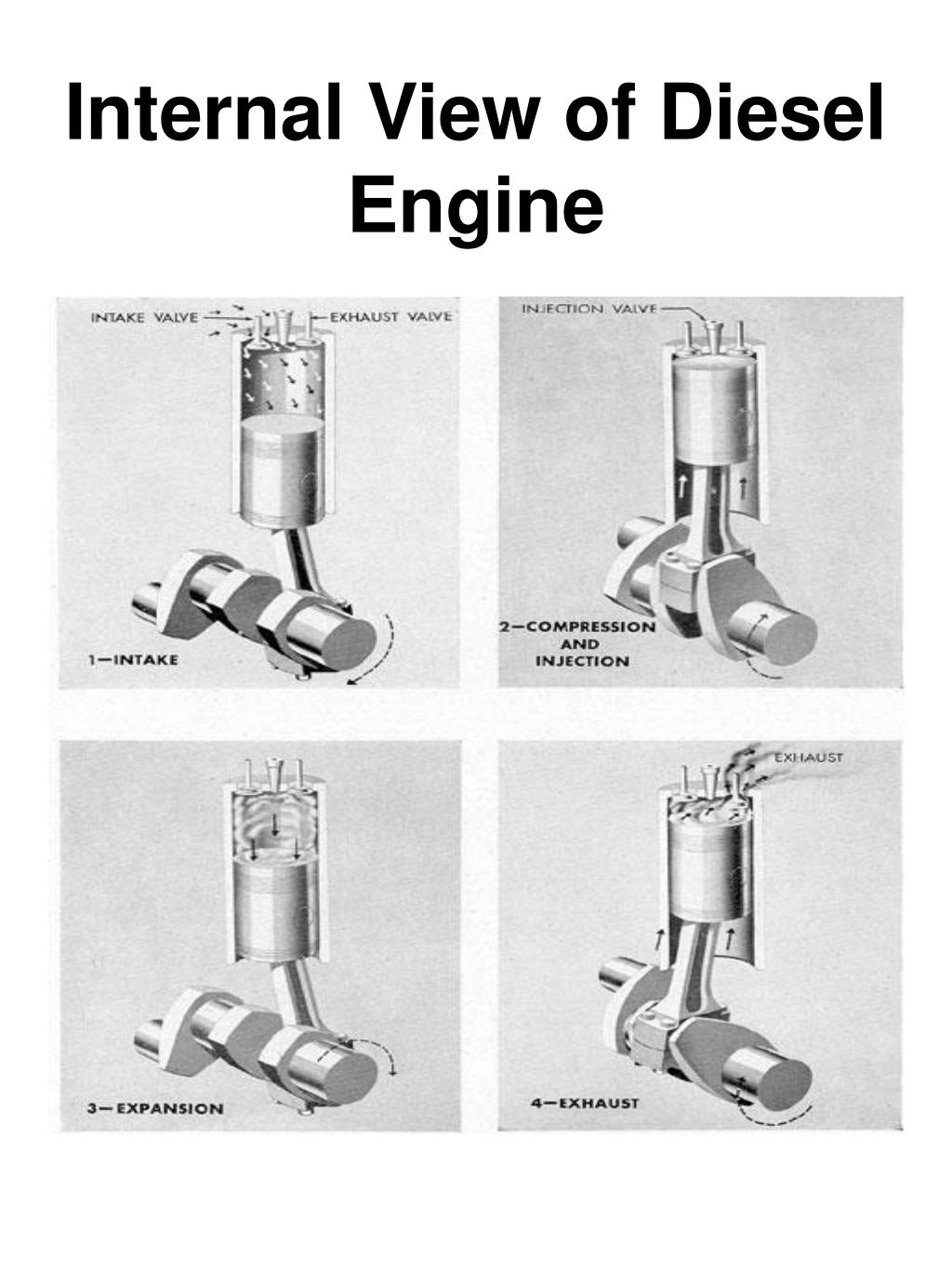

  7. InternalView of Diesel Engine

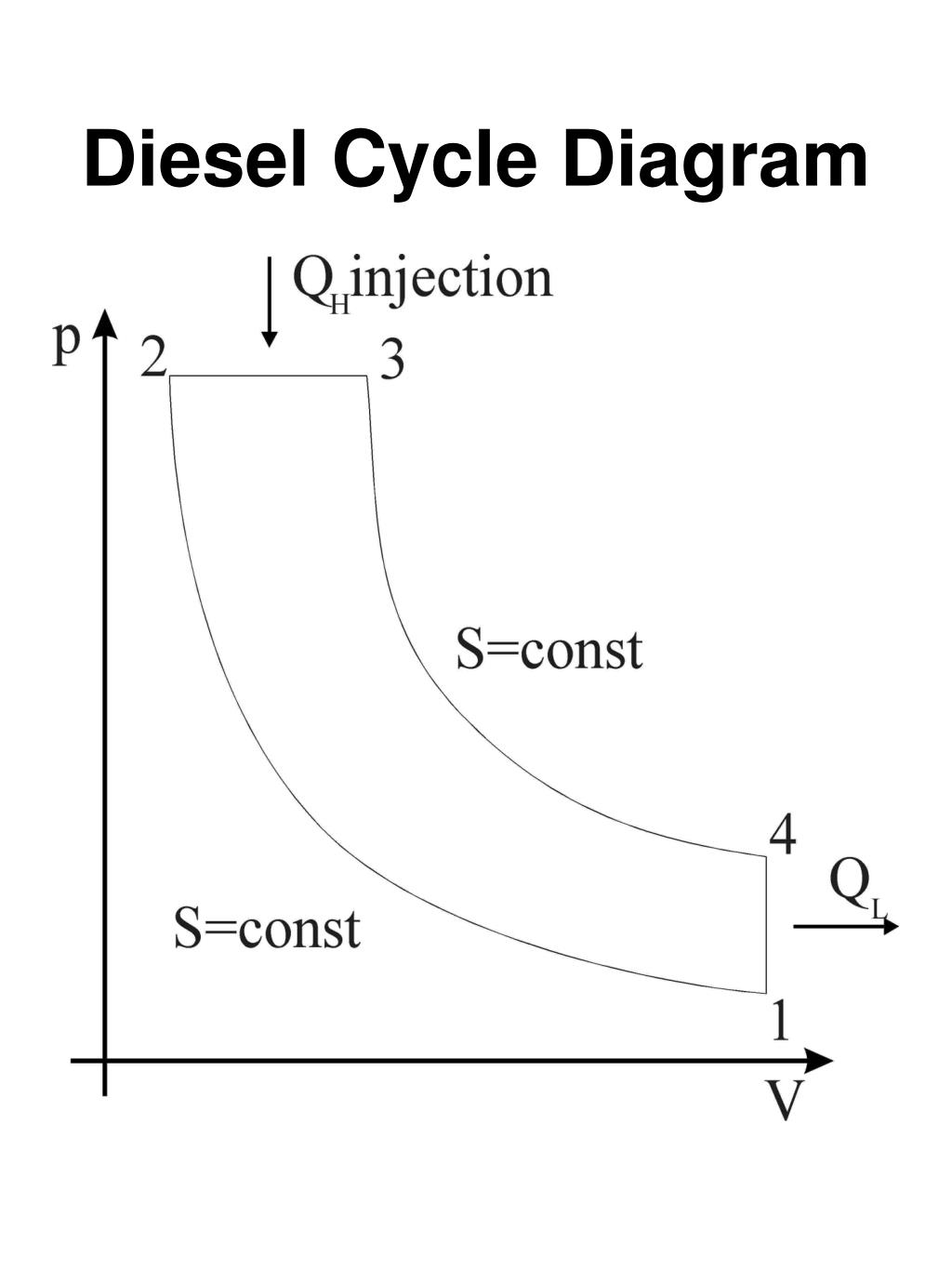

  8. Diesel Cycle Diagram

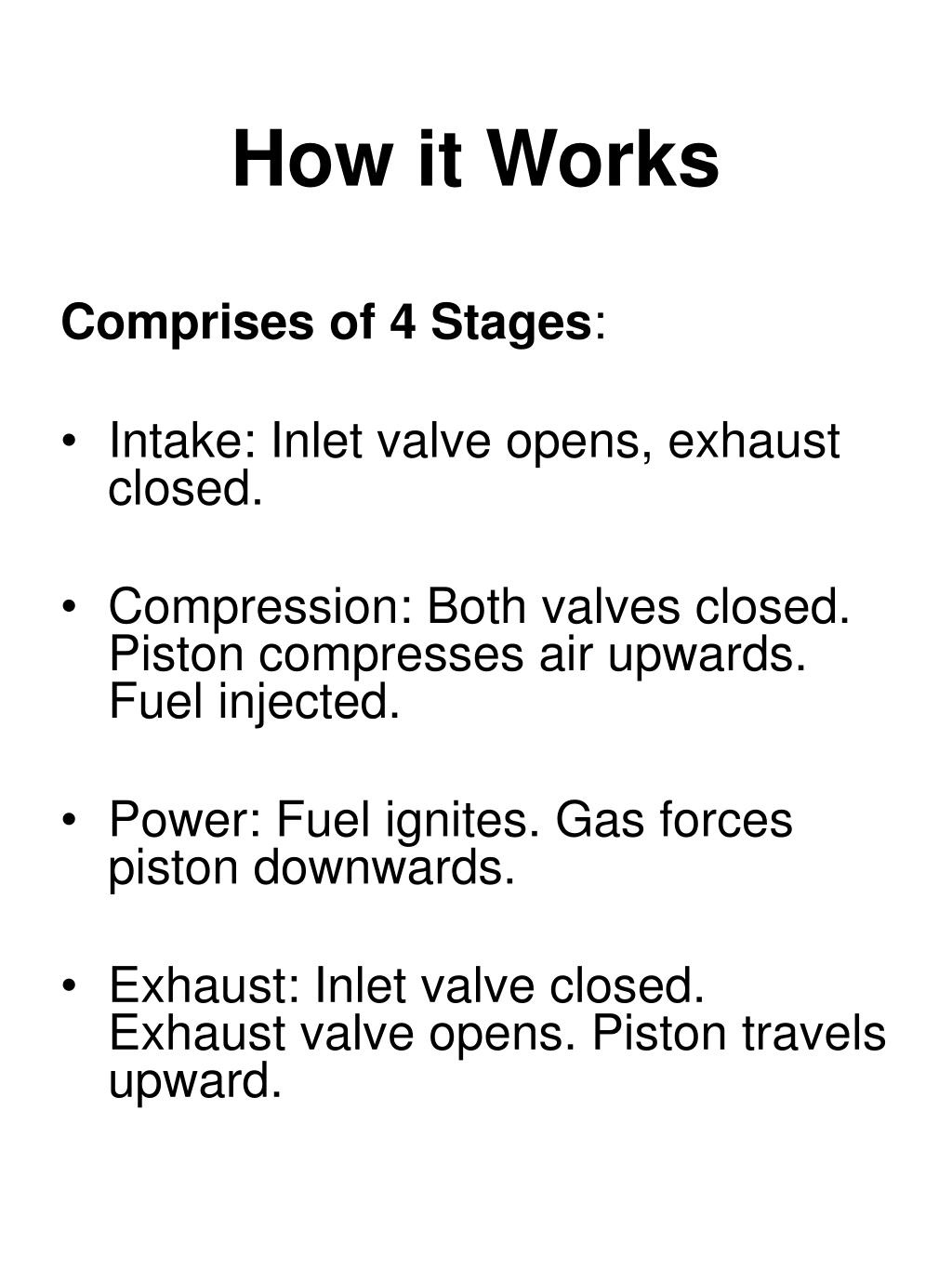

  9. How it Works Comprises of 4 Stages: • Intake: Inlet valve opens, exhaust closed. • Compression: Both valves closed. Piston compresses air upwards. Fuel injected. • Power: Fuel ignites. Gas forces piston downwards. • Exhaust: Inlet valve closed. Exhaust valve opens. Piston travels upward.

  10. References • http://auto.howstuffworks.com/diesel1.htm • http://en.wikipedia.org/wiki/Diesel_cycle • http://hyperphysics.phy-astr.gsu.edu/hbase/thermo/diesel.html
