Dvorak Pattern Classification Exercise

Dvorak Pattern Classification Exercise. Identify the Dvorak pattern type for the following 8 slides. Choose one of the five patterns shown below. 1. Curved Band 2. Shear Pattern. 3. CDO 4. Eye 4a. Banded Eye. T Number. Storm Number 1.

Rita
Télécharger la présentation

Dvorak Pattern Classification Exercise

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

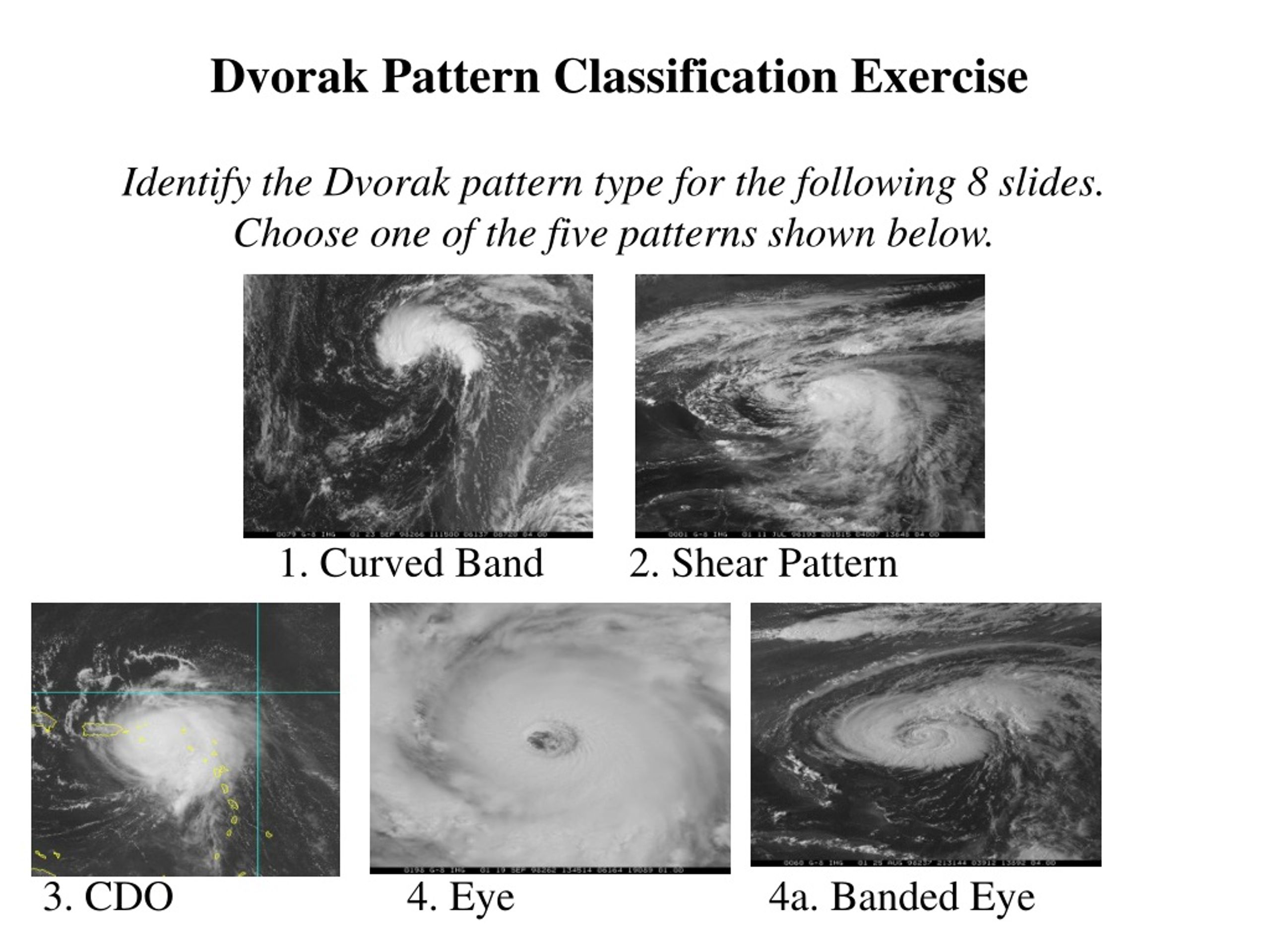

  1. Dvorak Pattern Classification Exercise Identify the Dvorak pattern type for the following 8 slides. Choose one of the five patterns shown below. 1. Curved Band 2. Shear Pattern 3. CDO 4. Eye 4a. Banded Eye

  2. T Number

  3. Storm Number 1

  4. Storm Number 2

  5. Storm Number 3

  6. Storm Number 4

  7. Storm Number 5

  8. Storm Number 6

  9. Storm Number 7

  10. Storm Number 8

  11. Dvorak Pattern Classification Exercise Solution: Patterns and T Numbers determined by NHC/SAB 1. Curved Band 2. Shear Pattern 3. CDO 4. Eye 4a. Banded Eye

  12. Storm Number 1: Eye T6.0-6.5

  13. Storm Number 2: Curved Band T3.0

  14. Storm Number 3: CDO or Curved Band T1.5-2.5

  15. Storm Number 4: Banded Eye T5.5-6.0

  16. Storm Number 5: CDO T5.0

  17. Storm Number 6: Shear T4.0-4.5

  18. Storm Number 7: Eye T4.5-5.0

  19. Storm Number 8: Curved Band T2.5
