  1. Managing Data Growth with Archiving Steve Rosenberger Manager – Database Support SBPASC Steve.Rosenberger@fepoc.com

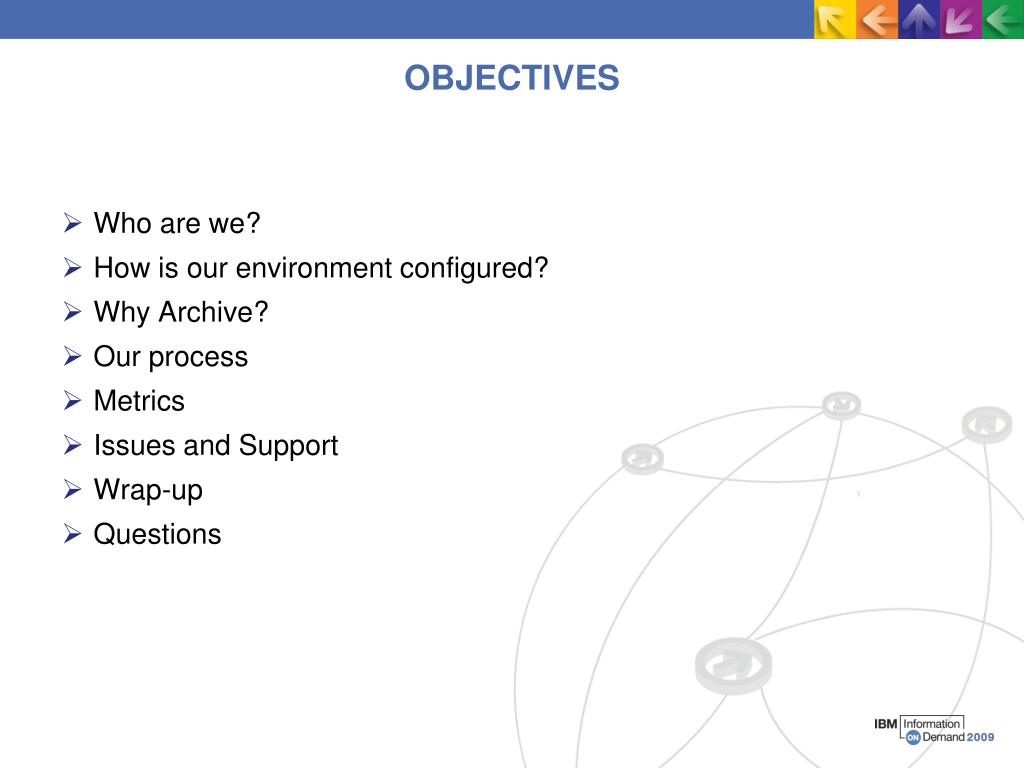

  2. OBJECTIVES • Who are we? • How is our environment configured? • Why Archive? • Our process • Metrics • Issues and Support • Wrap-up • Questions

  3. Who is SBPASC?

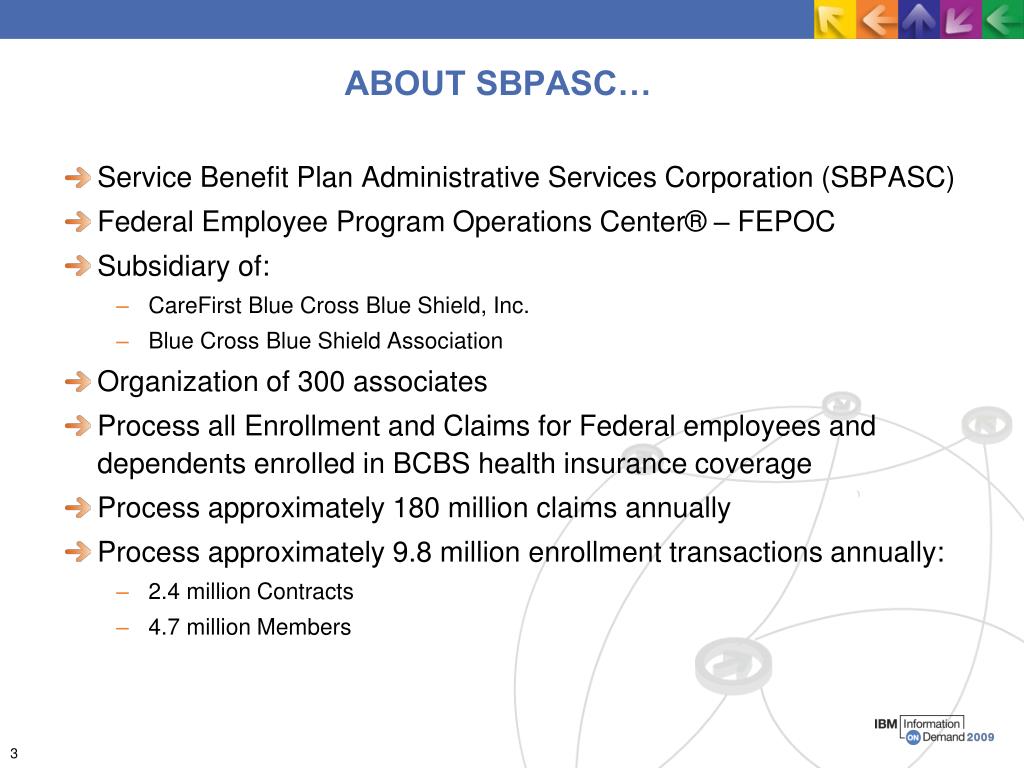

  4. ABOUT SBPASC… • Service Benefit Plan Administrative Services Corporation (SBPASC) • Federal Employee Program Operations Center® – FEPOC • Subsidiary of: • CareFirst Blue Cross Blue Shield, Inc. • Blue Cross Blue Shield Association • Organization of 300 associates • Process all Enrollment and Claims for Federal employees and dependents enrolled in BCBS health insurance coverage • Process approximately 180 million claims annually • Process approximately 9.8 million enrollment transactions annually: • 2.4 million Contracts • 4.7 million Members

  5. ENVIRONMENT CONFIGURATION

  6. BCBSA NETWORK

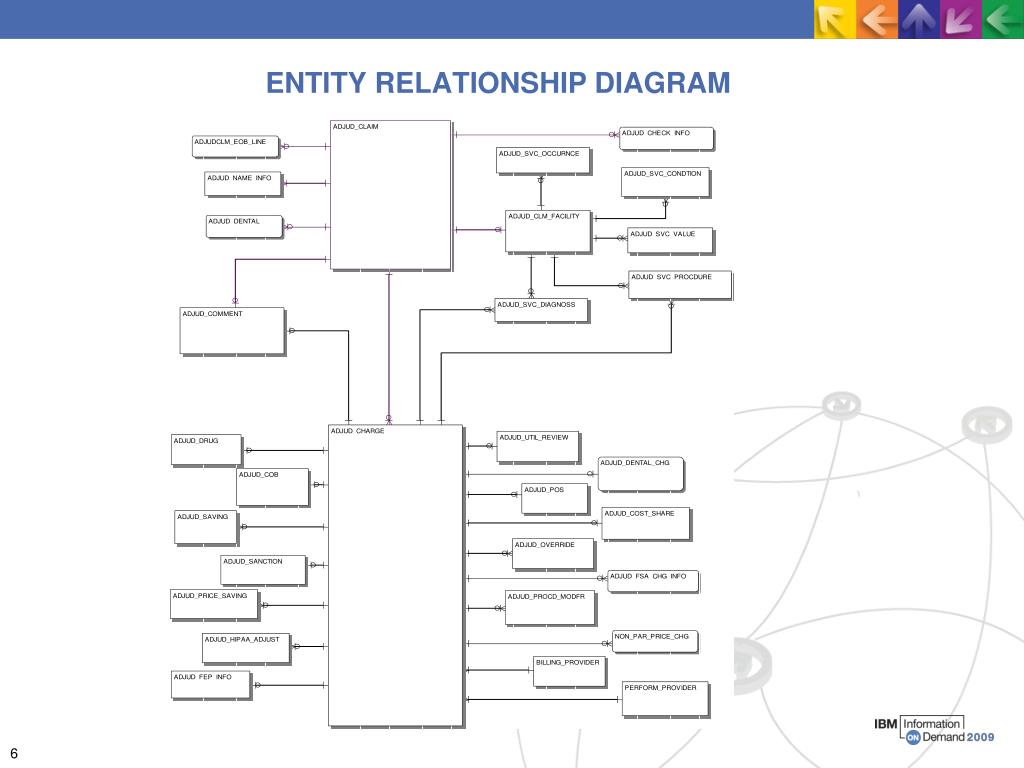

  7. ENTITY RELATIONSHIP DIAGRAM

  8. SYSTEM ARCHITECTURE • Database • DB2 V9.1 on z/OS • DB2 Application data approximately 4 TB • Current DB2 Backup Strategy • DB2 Image Copy weekly • DB2 Archive Logs multiple times daily • Some VSAM • Storage • IBM DS8100 • Mainframe • Z9 – 506 • 1C9 prior to 2007 • z/OS 1.9

  9. APPLICATION ARCHITECTURE • Application System availability 20 x 6 • Applications • Mix of COBOL and JAVA • Mix of Web based and Green Screen CICS (phasing out) • Near Real-Time Processing • Claims • Batch claims process 5 times daily • Interactive claims process within minutes • Process approximately 300,000 medical claims per day • Process approximately 280,000 pharmacy claims per day • Near Real-Time Processing • Enrollment • Process on-line every 5 minutes • Also one batch run per day • Process approximately 20,000 changes per day • Process 50,000 – 60,000 changes per day during Open Season

  10. WHY ARCHIVE?

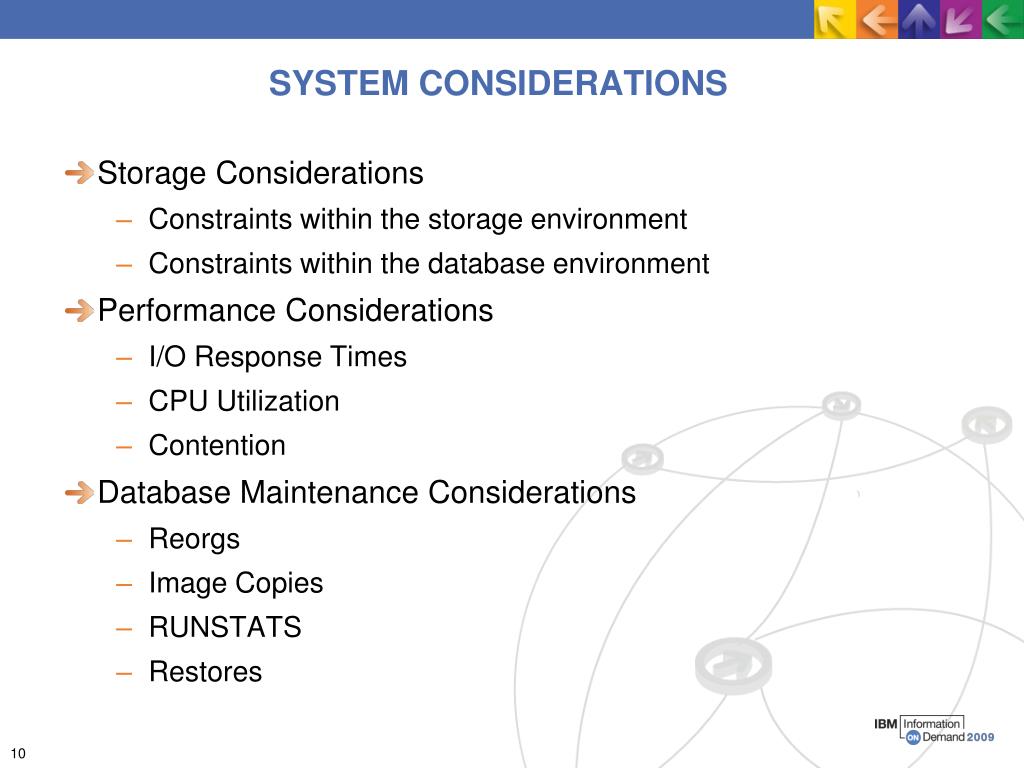

  11. SYSTEM CONSIDERATIONS • Storage Considerations • Constraints within the storage environment • Constraints within the database environment • Performance Considerations • I/O Response Times • CPU Utilization • Contention • Database Maintenance Considerations • Reorgs • Image Copies • RUNSTATS • Restores

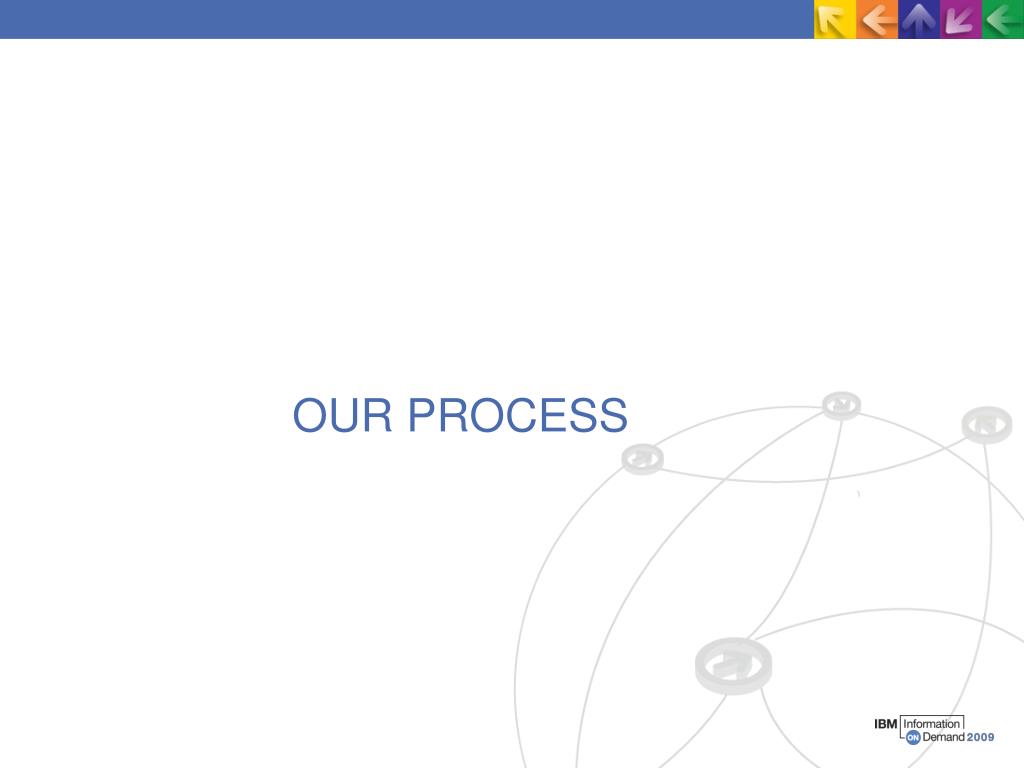

  12. OUR PROCESS

  13. ARCHIVE PROCESS • Active database holds 2 years of claims, building the 3rd • Archive the oldest year annually • Based on age (Process Date) • Contract ID range within age • 2006 was first year using archive for DB2 • Claims database was originally VSAM • Originally archived to tape • Now archive to DASD • Converted tape archives to DASD (119 tapes) • 400 GB of DASD per year of archive

  14. ARCHIVE PROCESS (Continued) • Weekly Archive Process • Two jobs per day Monday – Friday • Two steps per job • Each step archives approximately 1 million claims • Approximately 20 million claims archived per week • Deletes performed on Saturday • Four jobs with staggered start times • Five steps per job • Each step processes one archive file • Process takes 12 hours • Must be monitored due to deadlocks • Deletes all rows for all claims from one table, then the next table and so on…

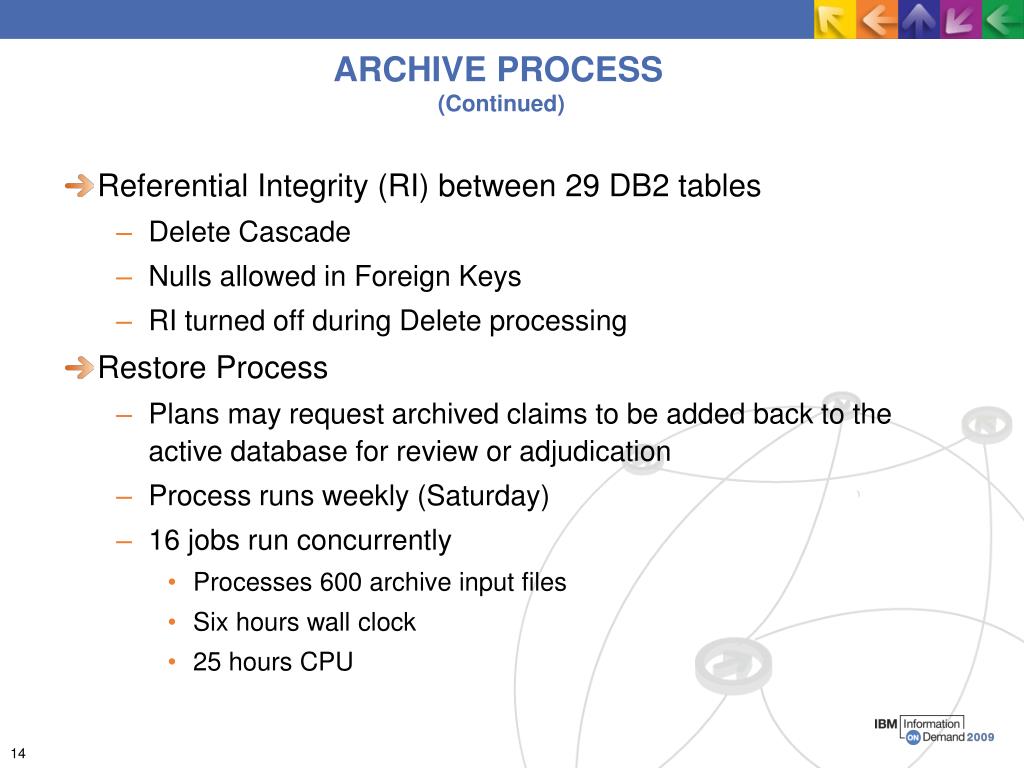

  15. ARCHIVE PROCESS (Continued) • Referential Integrity (RI) between 29 DB2 tables • Delete Cascade • Nulls allowed in Foreign Keys • RI turned off during Delete processing • Restore Process • Plans may request archived claims to be added back to the active database for review or adjudication • Process runs weekly (Saturday) • 16 jobs run concurrently • Processes 600 archive input files • Six hours wall clock • 25 hours CPU

  16. METRICS

  17. YEARLY ARCHIVE METRICS • 2003 Claims Archive/Delete • 137 million claims/2.0 billion rows • 186 CPU archive hours/93 CPU delete hours • 372 wall clock archive hours/248 wall clock delete hours • 2004 Claims Archive/Delete • 135 million claims/2.5 billion rows • 195 CPU archive hours/97.5 CPU delete hours • 390 wall clock archive hours/260 wall clock delete hours

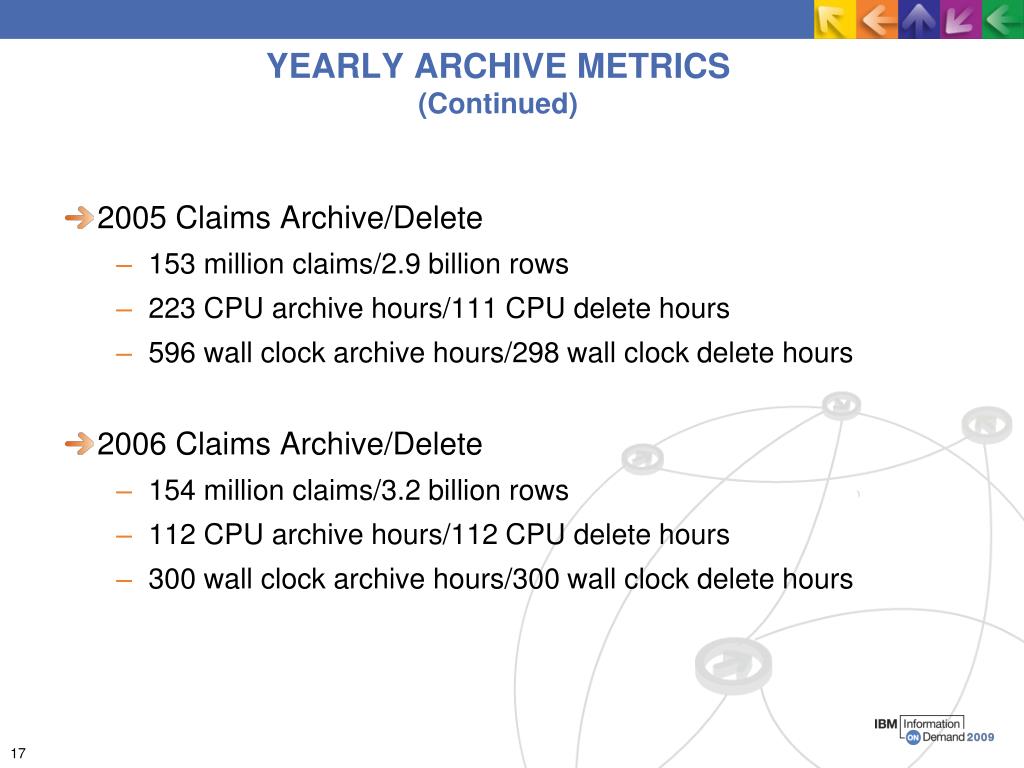

  18. YEARLY ARCHIVE METRICS (Continued) • 2005 Claims Archive/Delete • 153 million claims/2.9 billion rows • 223 CPU archive hours/111 CPU delete hours • 596 wall clock archive hours/298 wall clock delete hours • 2006 Claims Archive/Delete • 154 million claims/3.2 billion rows • 112 CPU archive hours/112 CPU delete hours • 300 wall clock archive hours/300 wall clock delete hours

  19. ISSUES and SUPPORT

  20. ISSUES ENCOUNTERED • DB2 Long Names • Ran into issue in test environment – March 2008 • Tool did not support DB2 V8 function • Work around by changing name • Tape files converted to DASD • DBA changed LRECL to be more efficient • Tool maintains this information internally • Changed LRECL back to 32K for these files

  21. ISSUES ENCOUNTERED (Continued) • Nobody’s Perfect • Test run of production archive failed in March 2008 • Restore processing working fine • Installed and tested several patches without success • Installed upgrade to tool with patches • Still failed • Installed additional patch • Everything has worked fine since • Support during this process was very responsive • We’ve incurred no other issues in four years of usage

  22. WRAP-UP

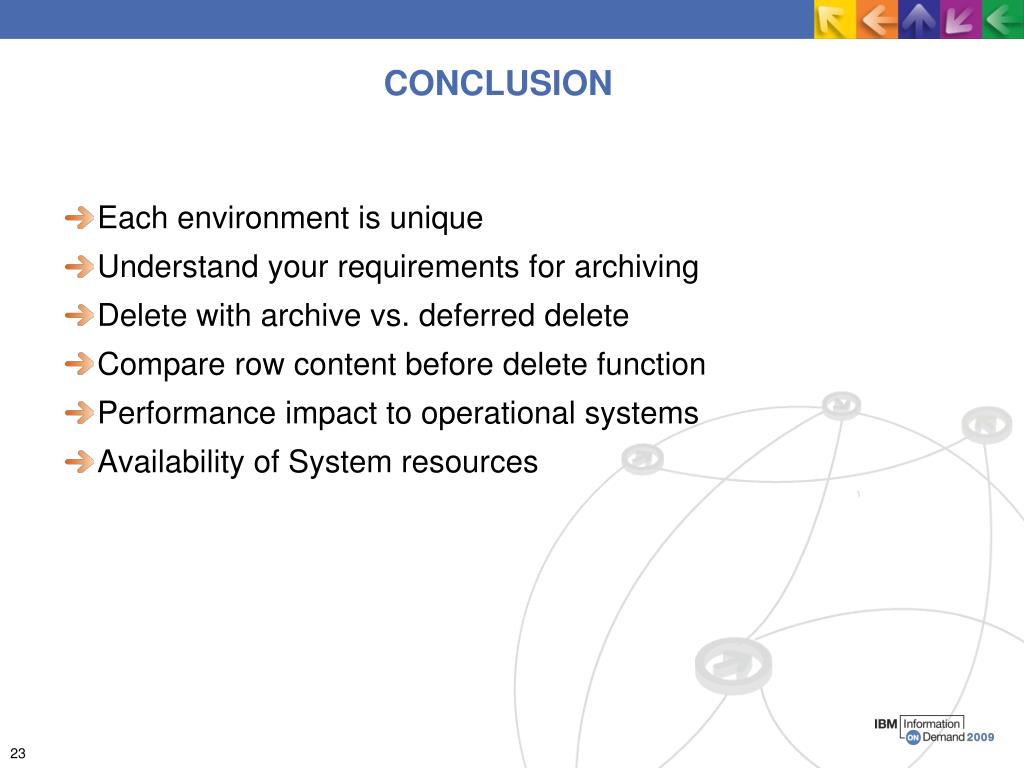

  23. CONCLUSION • Each environment is unique • Understand your requirements for archiving • Delete with archive vs. deferred delete • Compare row content before delete function • Performance impact to operational systems • Availability of System resources

  24. QUESTIONS?
