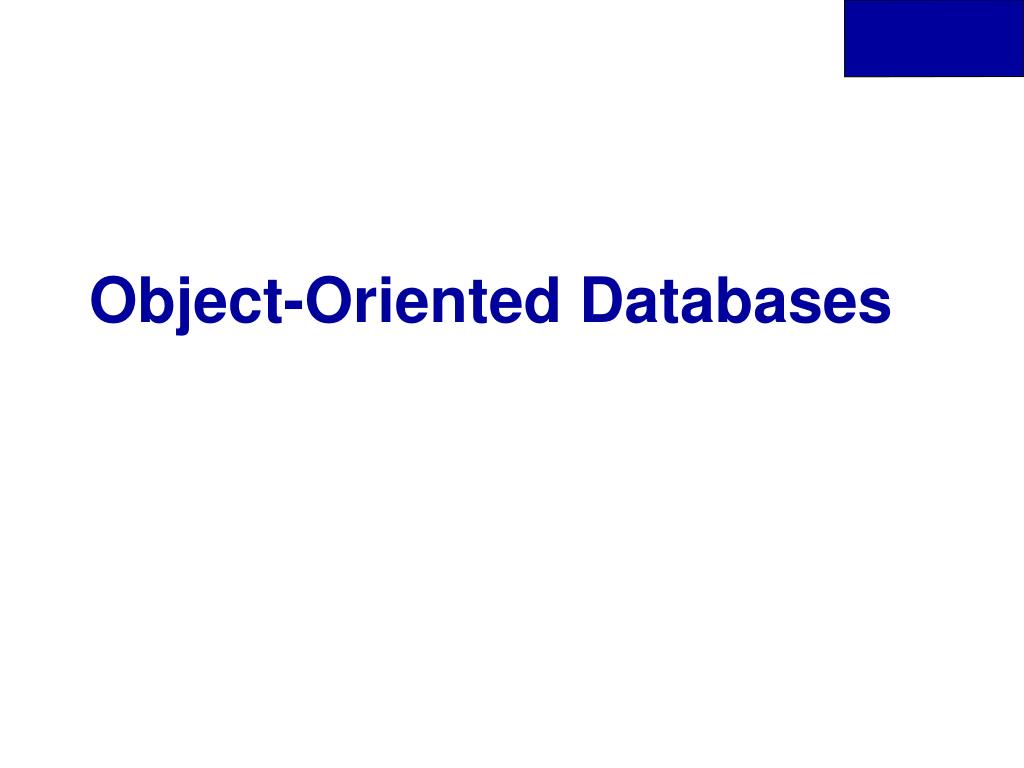

  1. Object-Oriented Databases

  2. Object Orientation • Object Orientation • Set of design and development principles • Based on autonomous computer structures known as objects • OO Contribution areas • Programming Languages • Graphical User Interfaces • Databases • Design • Operating Systems

  3. Evolution of OO Concepts • Concepts stem from object-oriented programming languages (OOPLs) • Ada, ALGOL, LISP, SIMULA • OOPLs goals • Easy-to-use development environment • Powerful modeling tools for development • Decrease in development time • Make reusable code • OO Attributes • Data set not passive • Data and procedures bound together • Objects can act on self

  4. OO Concepts: Objects • Abstract representation of a real-world entity • Unique identity • Embedded properties • Ability to interact with other objects and self • OID • Unique to object • Not a primary key • Attributes • Called instance variables • Domain • Object state • Object values at any given time

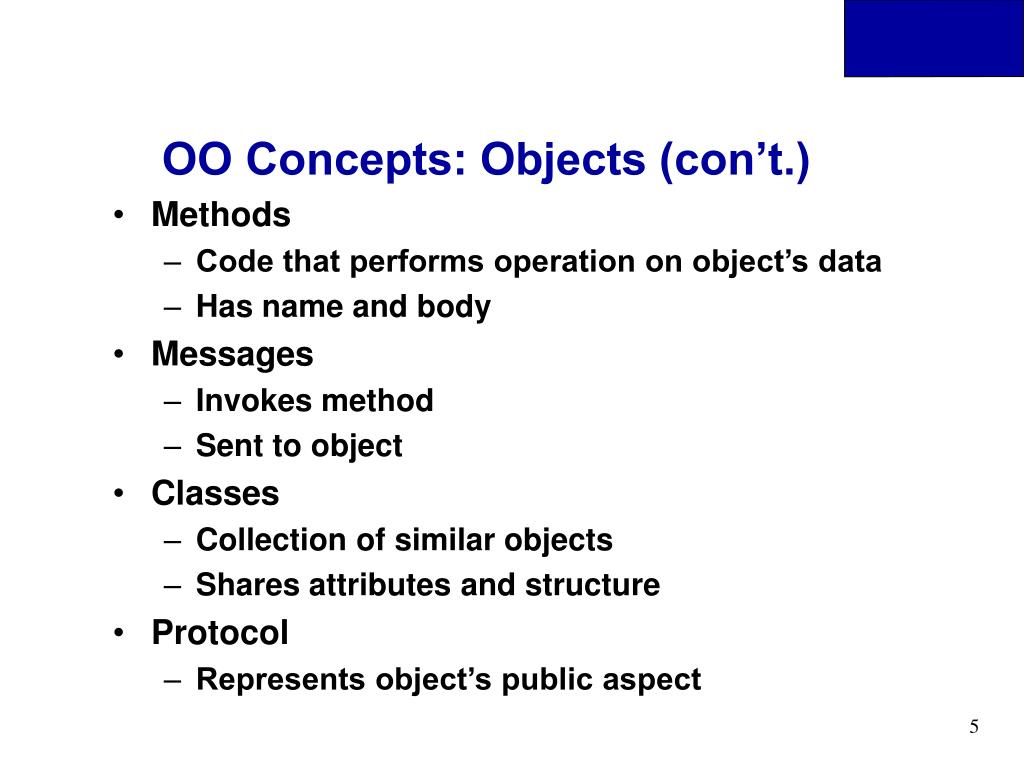

  5. OO Concepts: Objects (con’t.) • Methods • Code that performs operation on object’s data • Has name and body • Messages • Invokes method • Sent to object • Classes • Collection of similar objects • Shares attributes and structure • Protocol • Represents object’s public aspect

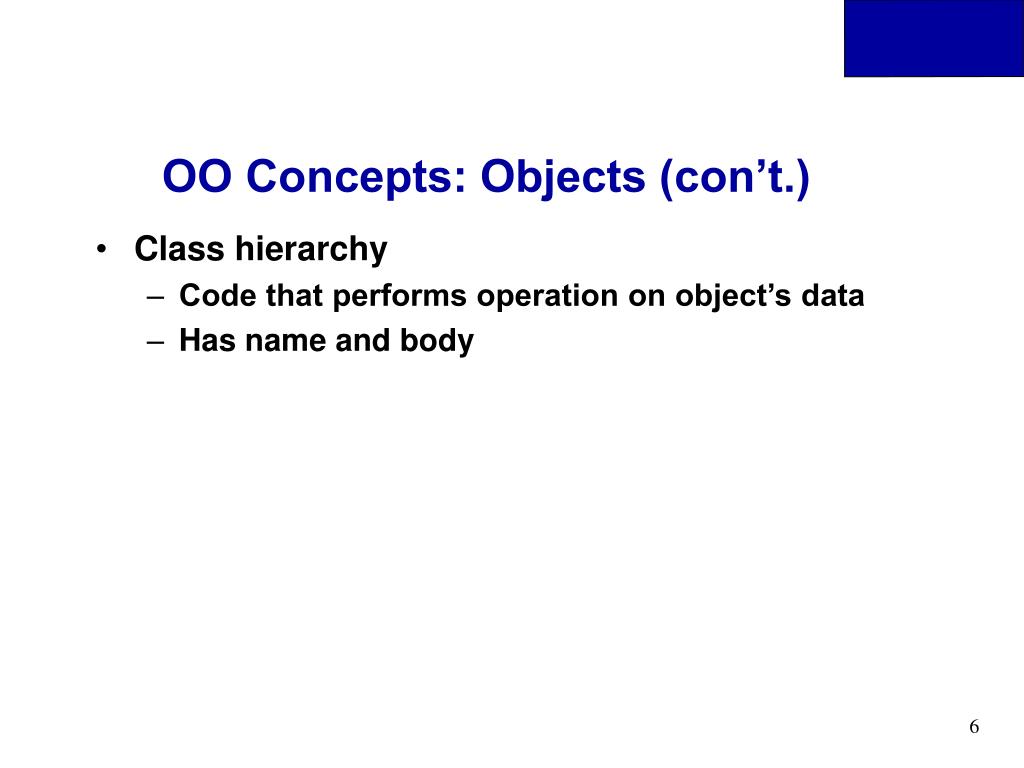

  6. OO Concepts: Objects (con’t.) • Class hierarchy • Code that performs operation on object’s data • Has name and body

  7. Characteristics of OODM • Supports complex objects • Must be extensible • Supports encapsulation • Exhibit inheritance • Supports object identity

  8. OO vs. E-R Model Components Table 11.3

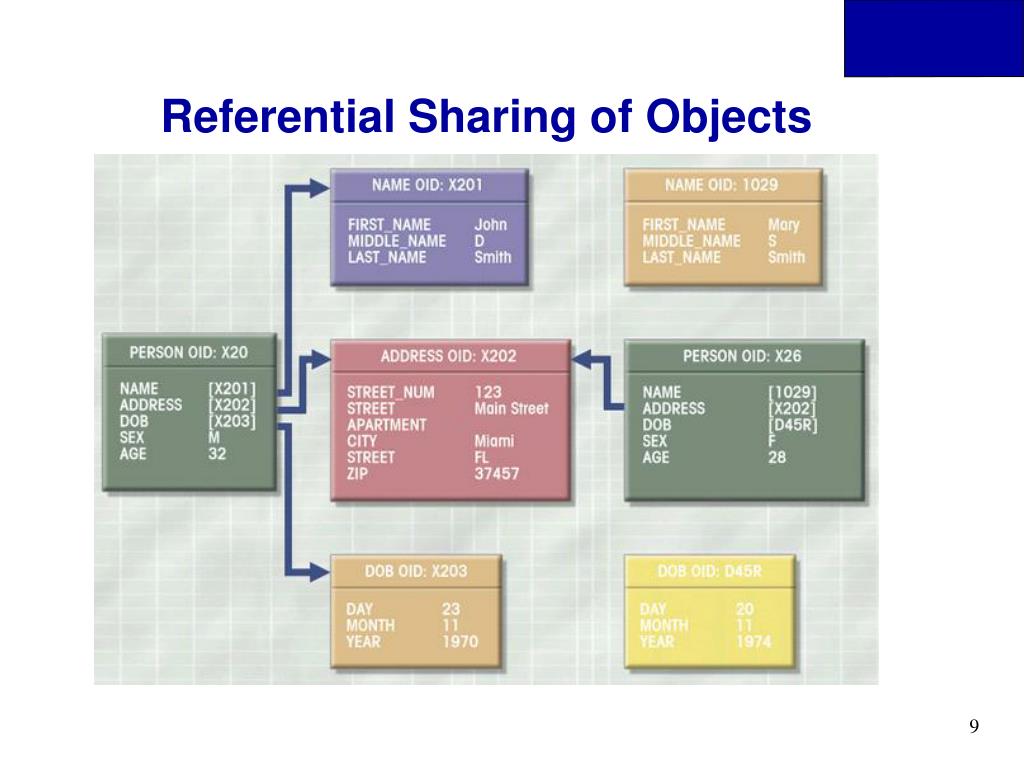

  9. Referential Sharing of Objects

  10. Class-Subclass Relationship

  11. Interobject Relationships • Attribute-Class Link • Object’s attribute references another object • Relationship Representation • Related classes enclosed in boxes • Double line on right side indicates mandatory • Connectivity indicated by labeling each box • 1:M • M:N • M:N with an Intersection Class

  12. 1:1 and 1:M Relationships

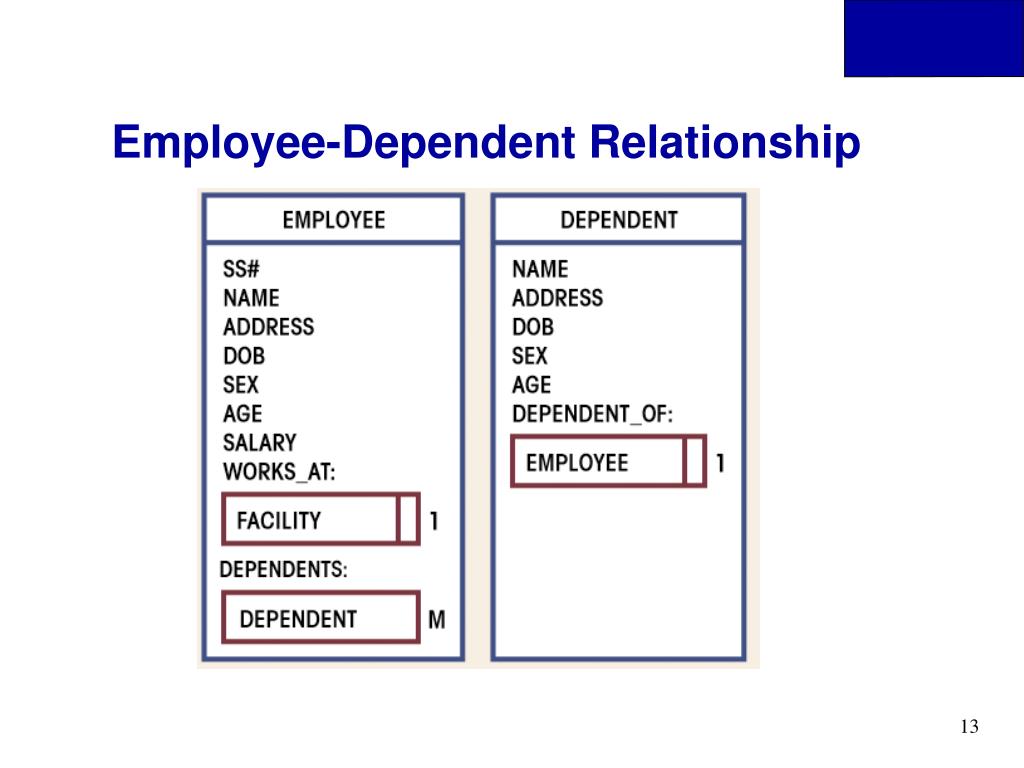

  13. Employee-Dependent Relationship

  14. Representing the M:N Relationship

  15. Late and Early Binding • Late binding • Data type of attribute not known until runtime • Allows different instances of same class to contain different data types for same attribute • Early binding • Allows database to check data type at compilation or definition time

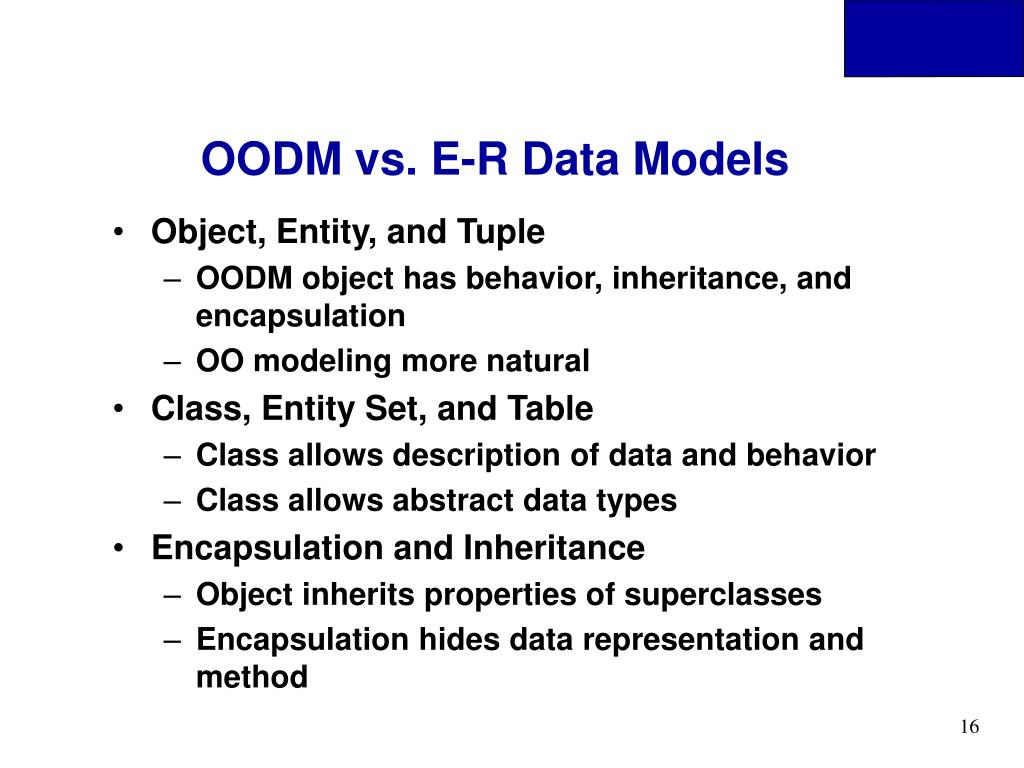

  16. OODM vs. E-R Data Models • Object, Entity, and Tuple • OODM object has behavior, inheritance, and encapsulation • OO modeling more natural • Class, Entity Set, and Table • Class allows description of data and behavior • Class allows abstract data types • Encapsulation and Inheritance • Object inherits properties of superclasses • Encapsulation hides data representation and method

  17. Object ID Not supported in relational models Relationships OODM Interclass references Class hierarchy inheritance Relational models Value-based approach Access Relational models SQL OODM Navigational Set-oriented access OODM vs. E-R Data Models (con’t.)

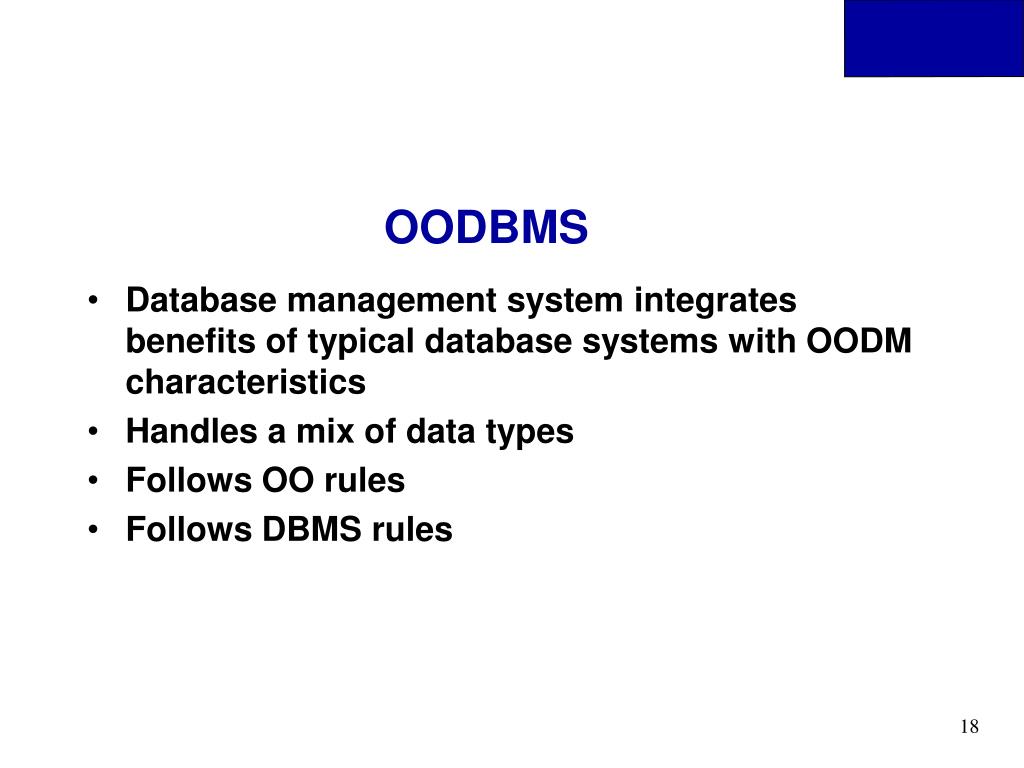

  18. OODBMS • Database management system integrates benefits of typical database systems with OODM characteristics • Handles a mix of data types • Follows OO rules • Follows DBMS rules

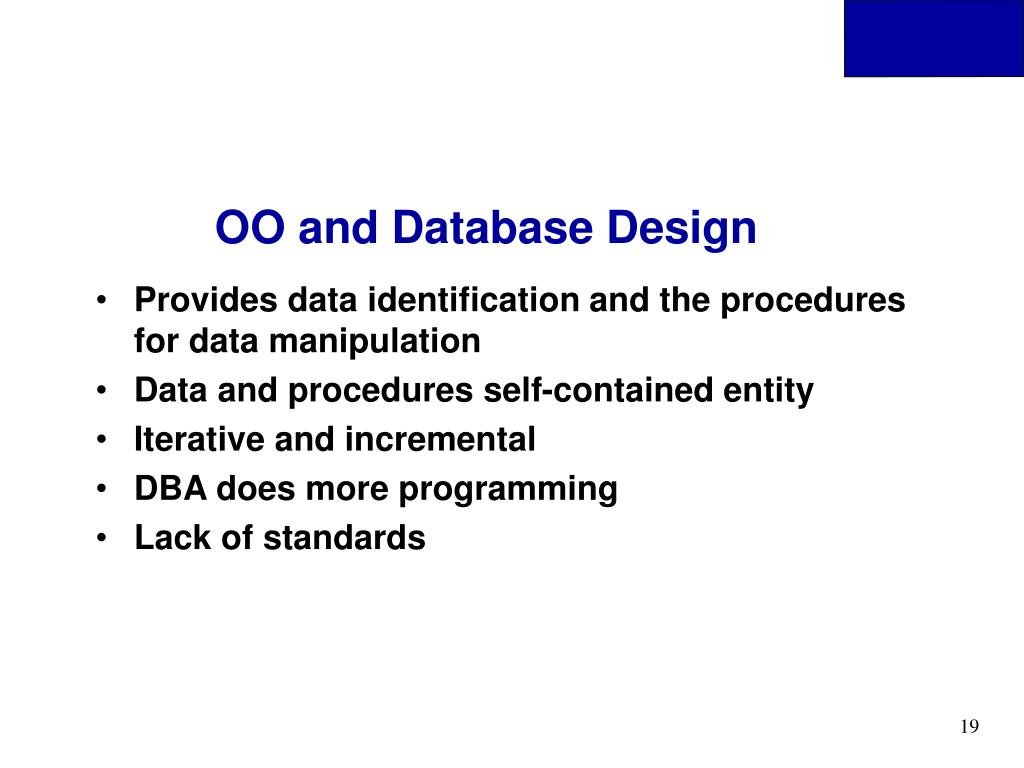

  19. OO and Database Design • Provides data identification and the procedures for data manipulation • Data and procedures self-contained entity • Iterative and incremental • DBA does more programming • Lack of standards

  20. OODBMS Advantages • More semantic information • Support for complex objects • Extensibility of data types • May improve performance with efficient caching • Versioning • Reusability • Inheritance speeds development and application • Potential to integrate DBMSs into single environment

  21. OODBMS Disadvantages • Strong opposition from the established RDBMSs • Lack of theoretical foundation • Throwback to old pointer systems • Lack of standard ad hoc query language • Lack of business data design and management tools • Steep learning curve • Low market presence • Lack of compatibility between different OODBMSs

  22. OO Influences on Relational Model • Extensibility of new user-defined (abstract) data types • Complex objects • Inheritance • Procedure calls (rules or triggers) • System-generated identifiers (OID surrogates)

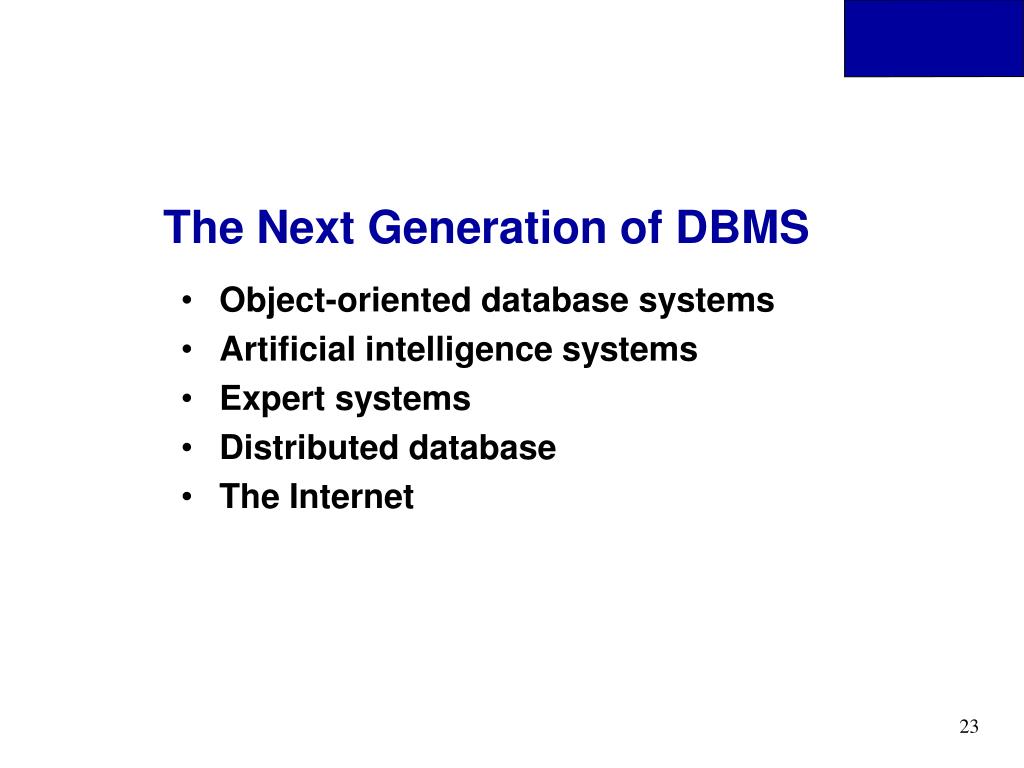

  23. The Next Generation of DBMS • Object-oriented database systems • Artificial intelligence systems • Expert systems • Distributed database • The Internet
