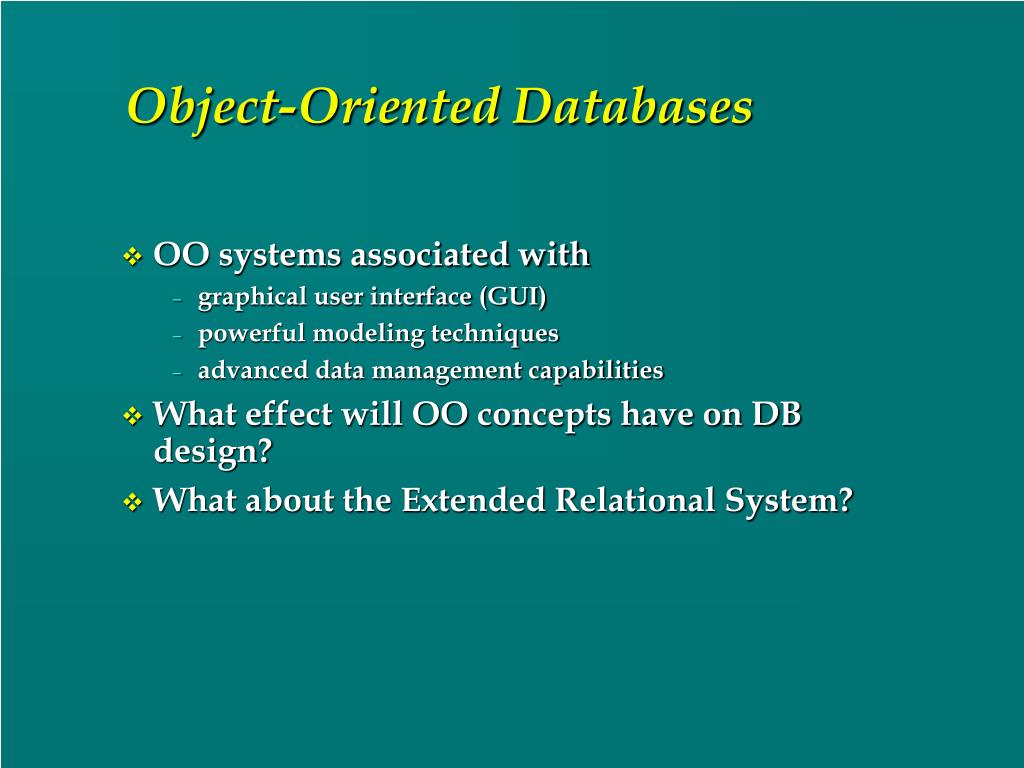

  1. Object-Oriented Databases • OO systems associated with • graphical user interface (GUI) • powerful modeling techniques • advanced data management capabilities • What effect will OO concepts have on DB design? • What about the Extended Relational System?

  2. OBJECT-ORIENTATION A set of design and development principles based on the idea of conceptually autonomous structures Each autonomous structure represents areal-world entity with the ability to interact with itself and with other objects

  3. Object Orientation • Conceptually autonomous structures • Modularity • Inconsistent OO concept definitions • Originates in OO programming • Tradition: separate procedures from data • OO: objects perform operations on themselves

  4. OO view of the world endows data with manipulative ability • Data no longer passive • Data + procedures = OBJECT • Object can act on itself • Object contains data and code • Concept natural to those with little programming experience but confusing to many with traditional programming expertise

  5. OO Concepts • Object is essentially a new name for entity • Difference: its ability to interact with other objects and itself • Object has a unique identifier (OID) and attributes called instance variables • Object attributes may reference other objects allowing the implementation of relationships • Messages and methods

  6. Depiction of an Object Object X Method 1 Method 2 Data Method 5 Method 3 Method 4

  7. OO Concepts • Every operation to be performed on an object must be implemented by a method • Every method is identified by its name and has a body • Body is composed of computer instructions in some programming language • To invoke a method a message is sent to an object containing that method • Message contains object identification, method name and any required parameters • Encapsulation: hiding internal details on attributes and methods • Objects with common characteristics are grouped into classes

  8. Private Aspect Public Aspect Protocol Class defines collection of Instance variables Methods Messages are the names of the that trigger defines a set of values for its belongs to a implemented by a set of Object has State OID (unique) Behavior OO Summary

  9. Superclasses, Subclasses, Inheritance • Classes are organized in a class hierarchy or class lattice • Object inherits attributes and methods of its class and all classes above it • Inheritance enables reusability • Single and multiple inheritance • Method overriding and polymorphism • Abstract data types, implemented as classes, provide support for complex objects

  10. Hierarchical CODASYL (network) Relational Entity-Relationship Semantic Object-Oriented Extended Relational The Evolution of Data Models Physical data dependency Difficult to represent M:N relationships No ad hoc queries Access path predefined (navigational access) Provide ad hoc queries Set-oriented access Weak semantic contents Easy to understand Incorporates more semantics More semantics in data model Support for complex objects Inheritance

  11. Characteristics of OODM • Supports complex objects • Enables the definition of abstract data types • Supports encapsulation • Exhibits inheritance • Supports the notion of object identity (OID)

  12. Comparing OODM and ERDM OO Data Model E-R Model Object Class Instance Variable N/A OID Method Class hierarchy Entity Entity set Attribute Primary key N/A N/A E-R diagram

  13. Object Diagrams SO Model from page 177

  14. Class-Subclass Relationships
