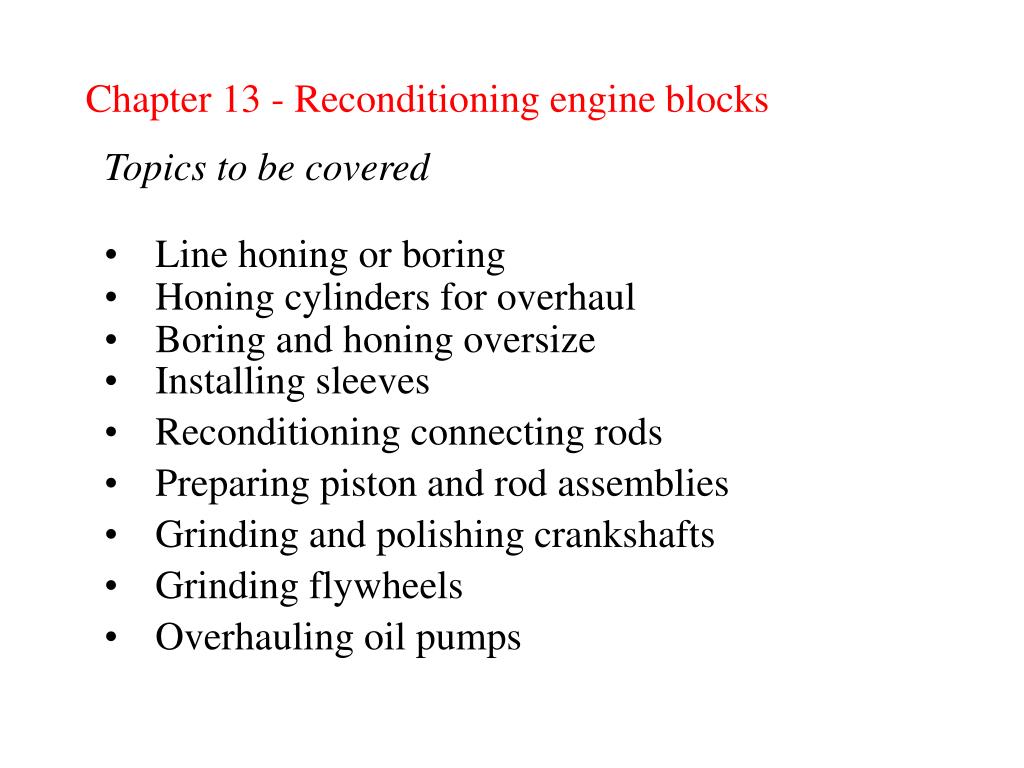

  1. Chapter 13 - Reconditioning engine blocks • Topics to be covered • Line honing or boring • Honing cylinders for overhaul • Boring and honing oversize • Installing sleeves • Reconditioning connecting rods • Preparing piston and rod assemblies • Grinding and polishing crankshafts • Grinding flywheels • Overhauling oil pumps Copyright 2003 Gary Lewis – Dave Capitolo

  2. Reconditioning engine blocks • Line honing and boring • Purpose • Advantages of line boring • Advantages of line honing • Procedure • Changes crankshaft centerline

  3. Reconditioning engine blocks • Reconditioning cylinders • Measuring wear • Overhaul limits for taper & out of round • Honing for overhauls • If ring ridge remains…

  4. Reconditioning engine blocks • Reconditioning cylinders for oversize pistons Boring and honing cylinders oversize • Boring machine vs. boring bar • Common sizes of oversize pistons • Bore cylinders .003” to .005” under final size • Hone to final size and surface finish

  5. Reconditioning engine blocks • Reconditioning cylinders for oversize pistons Honing cylinders oversize • Cylinder alignment stays original • Rough hone & leave .002” to .003” • Finish hone to size and surface finish • Stone selection

  6. Reconditioning engine blocks • Surface finishes for cylinders RMS, AA, & RA • Range is 15 to 40 micro-inches • Crosshatch pattern • Chrome & cast iron rings = 25AA micro-inches • Moly rings = 15AA micro-inches

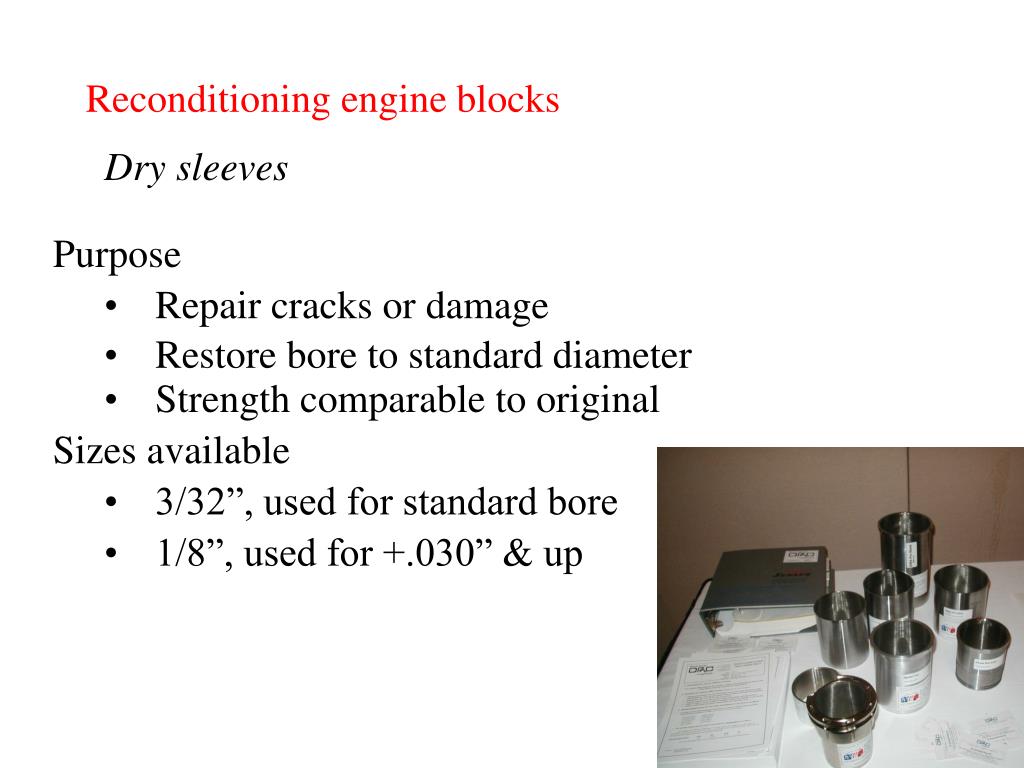

  7. Reconditioning engine blocks • Dry sleeves Purpose • Repair cracks or damage • Restore bore to standard diameter • Strength comparable to original Sizes available • 3/32”, used for standard bore • 1/8”, used for +.030” & up

  8. Reconditioning engine blocks • Dry sleeves Setting the boring bar • Measure sleeve in 6 spots • Average measurements • .0005” to .001” press for each inch of bore • 3/16” step at bottom of cylinder

  9. Reconditioning engine blocks • Dry sleeves Preparation • Lightly deburr top & bottom of cylinder • Chamfer bottom of sleeve • Clean sleeve Installing sleeves • Hammer & driver • Chill sleeve & heat block • Hydraulic press

  10. Reconditioning engine blocks • Dry sleeves Finishing the sleeve • Trim top with boring bar and file/surface • Bore ID, and leave .003” to .005” to hone

  11. Reconditioning engine blocks • Piston rings Stresses on rings • Do pistons ever stop while the engine is running? • Long stroke & high RPM • High compression

  12. Reconditioning engine blocks • Piston rings Oil control rings • Wipe excess oil from cylinder walls • Excess oil is returned through rings & pistons • Rails conform to shape of cylinder • Expanders are required for thin rails

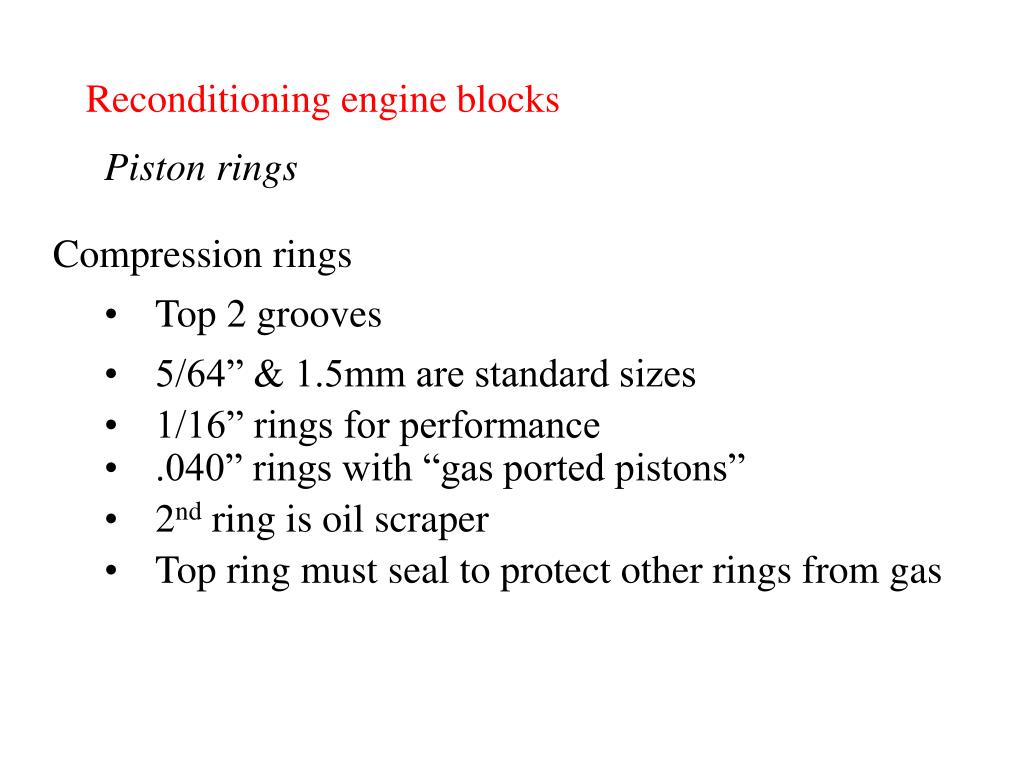

  13. Reconditioning engine blocks • Piston rings Compression rings • Top 2 grooves • 5/64” & 1.5mm are standard sizes • 1/16” rings for performance • .040” rings with “gas ported pistons” • 2nd ring is oil scraper • Top ring must seal to protect other rings from gas

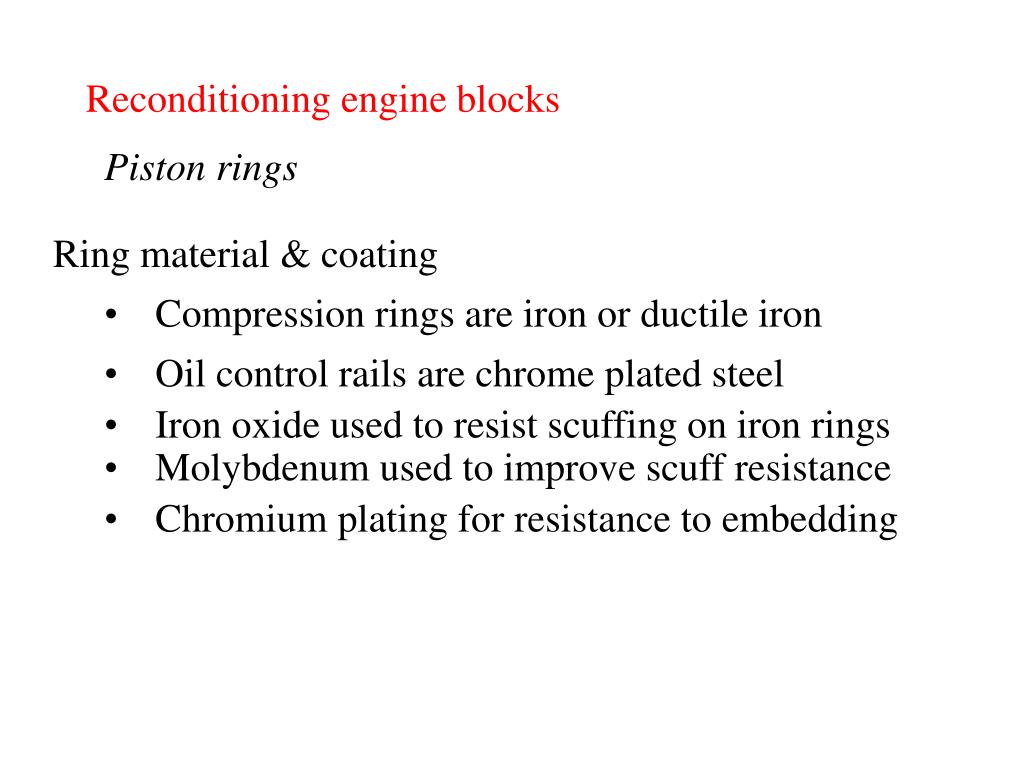

  14. Reconditioning engine blocks • Piston rings Ring material & coating • Compression rings are iron or ductile iron • Oil control rails are chrome plated steel • Iron oxide used to resist scuffing on iron rings • Molybdenum used to improve scuff resistance • Chromium plating for resistance to embedding

  15. Reconditioning engine blocks • Piston rings More ring materials • Carbon steel • Stainless steel • Tool steel More coatings • Chromium Nitride, Titanium Nitride • Diamondlike Carbon

  16. Reconditioning engine blocks • Piston rings Ring assembly • Oil control expander lined up with center of pin • Oil control rails 2” either side • Bottom compression ring lined up at end of pin • Top ring lined up at opposite end of pin • Watch for overlapping expanders • Watch for proper end gap offset

  17. Reconditioning engine blocks • Connecting Rods Pin fit for press-fit piston pins • Can be checked by feel • .001” press fit in rod • .0005” clearance in piston pin bores • Replace pistons, pins, or oversize pins if needed

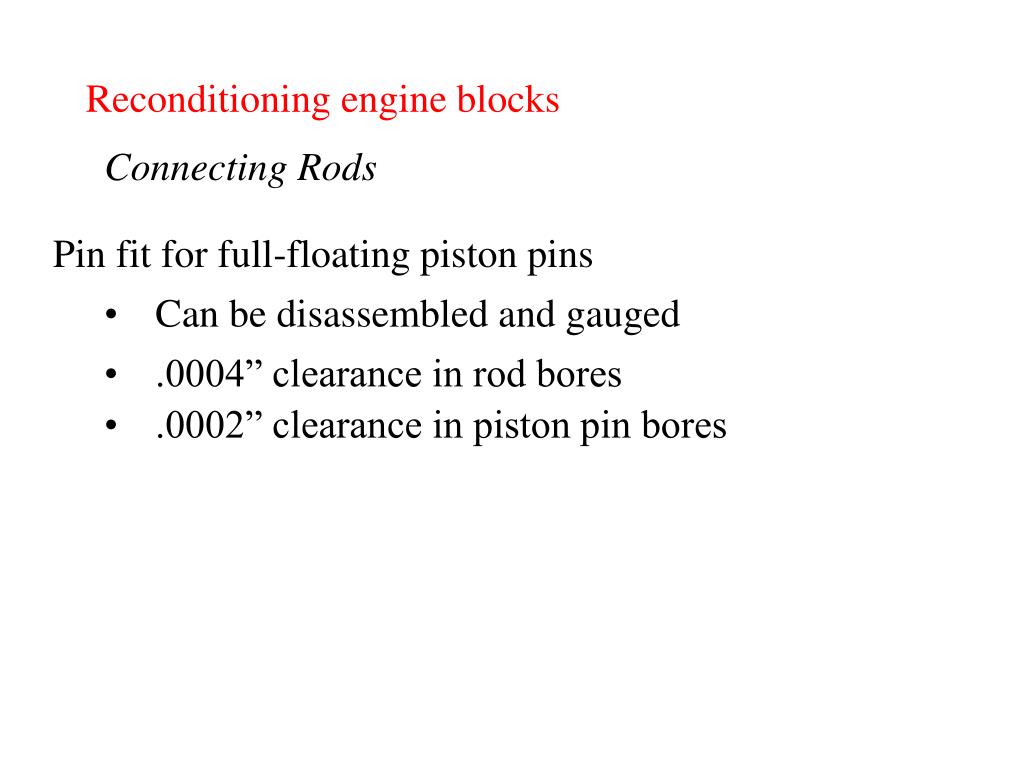

  18. Reconditioning engine blocks • Connecting Rods Pin fit for full-floating piston pins • Can be disassembled and gauged • .0004” clearance in rod bores • .0002” clearance in piston pin bores

  19. Reconditioning engine blocks • Connecting Rods Measuring pin fits • Two pins used to set gauge • Measure rod bore • Measure piston pin bore

  20. Reconditioning engine blocks • Connecting Rods Replacing bushings • Bushings are pressed into small end of rod • Line up oil hole/drill if not present • Expand bushing into bore and face off excess bushing

  21. Reconditioning engine blocks • Connecting Rods Replacing bushings • Rough hone to within .002” of finished size • Finish hone to size with finishing stones

  22. Reconditioning engine blocks • Connecting Rods Sizing with a boring machine • Corrects for bend and twist • Center-to-center can be equalized

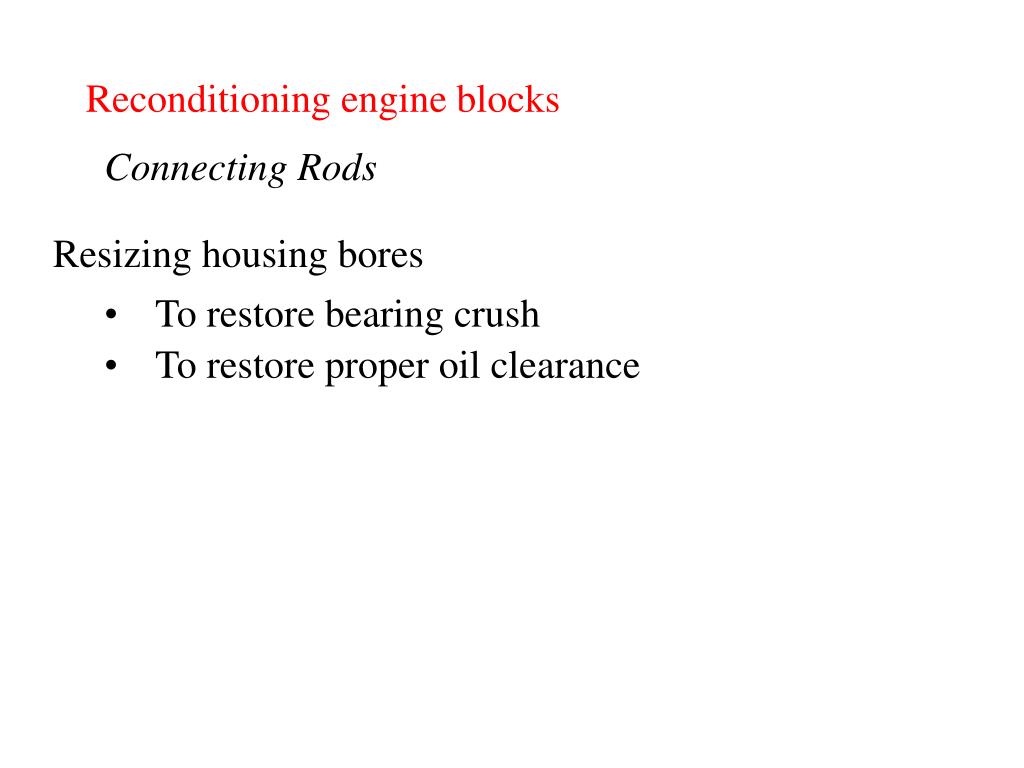

  23. Reconditioning engine blocks • Connecting Rods Resizing housing bores • To restore bearing crush • To restore proper oil clearance

  24. Reconditioning engine blocks • Connecting Rods Resizing housing bores • Stretched housing bores are common • Should be resized to within .0003” roundness

  25. Reconditioning engine blocks • Connecting Rods Procedure for resizing rods • Remove rod bolts • Grind .002” from both cap and rod, or until clean • Keep grinding equal for each set of rods

  26. Reconditioning engine blocks • Connecting Rods Preparation for resizing rods • Clean and reassemble – May need new hardware • Torque to specs • Set gauge to specs • Hone to size

  27. Reconditioning engine blocks • Connecting Rods Honing housing bores • With power-stroking attachment • Set RPM and stroke rate • RPM, stroke rate, & • overstroke help stone life

  28. Reconditioning engine blocks • Connecting Rods Honing housing bores • Without attachment, hone two rods at a time • Reverse position of rods for quality

  29. Reconditioning engine blocks • Connecting Rods Honing housing bores with diamond tools • Minimal abrasive wear • Better size control • Methods similar to abrasive • stones

  30. Reconditioning engine blocks • Connecting Rods Center-to-center distances • Keep length within .003” • Shortest rod becomes standard • Recut rod caps that are > .003” longer • Excessive honing may damage bearing grooves

  31. Reconditioning engine blocks • Connecting Rods More reconditioning • Deburr sides of rods with file • Rechamfering may be required

  32. Reconditioning engine blocks • Connecting Rods Assembling piston & rod assemblies • Check position of pistons & rods in the engine

  33. Reconditioning engine blocks • Connecting Rods Assembling full floating assemblies • Clean, oil, and assemble • Inspect/replace locks

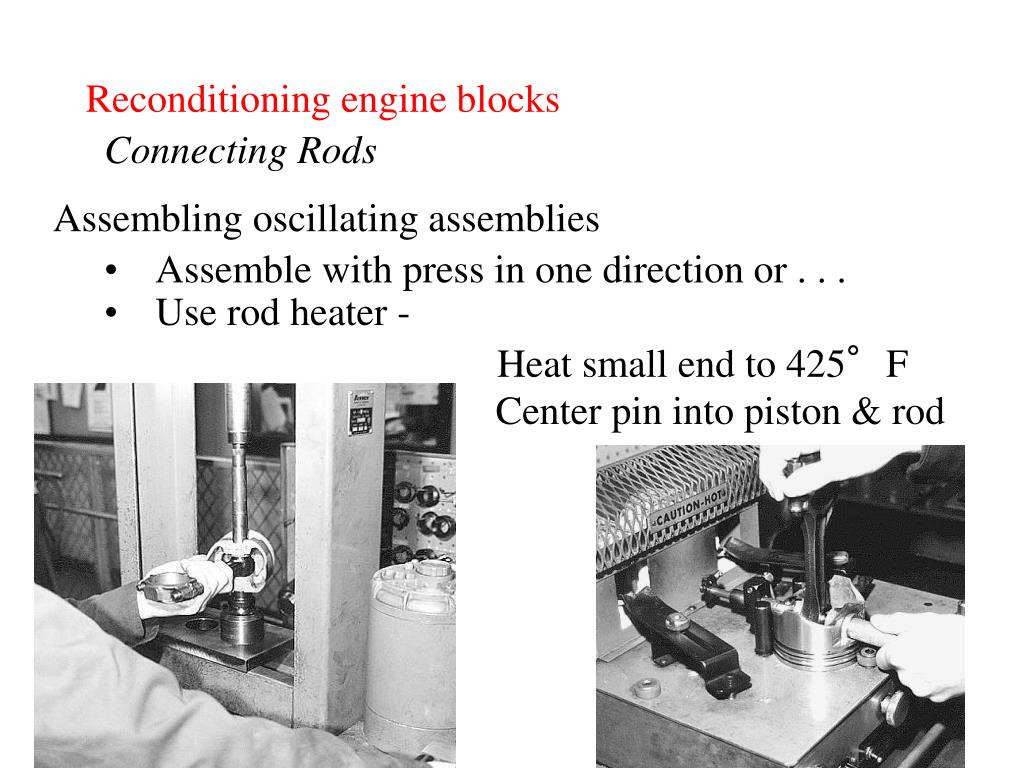

  34. Reconditioning engine blocks • Connecting Rods Assembling oscillating assemblies • Assemble with press in one direction or . . . • Use rod heater - • Heat small end to 425°F • Center pin into piston & rod

  35. Reconditioning engine blocks • Connecting Rods Checking rod alignment • Bend and twist

  36. Reconditioning engine blocks • Connecting Rods Correcting press-fit assemblies • Assemble piston & rod first • Check & correct bend first

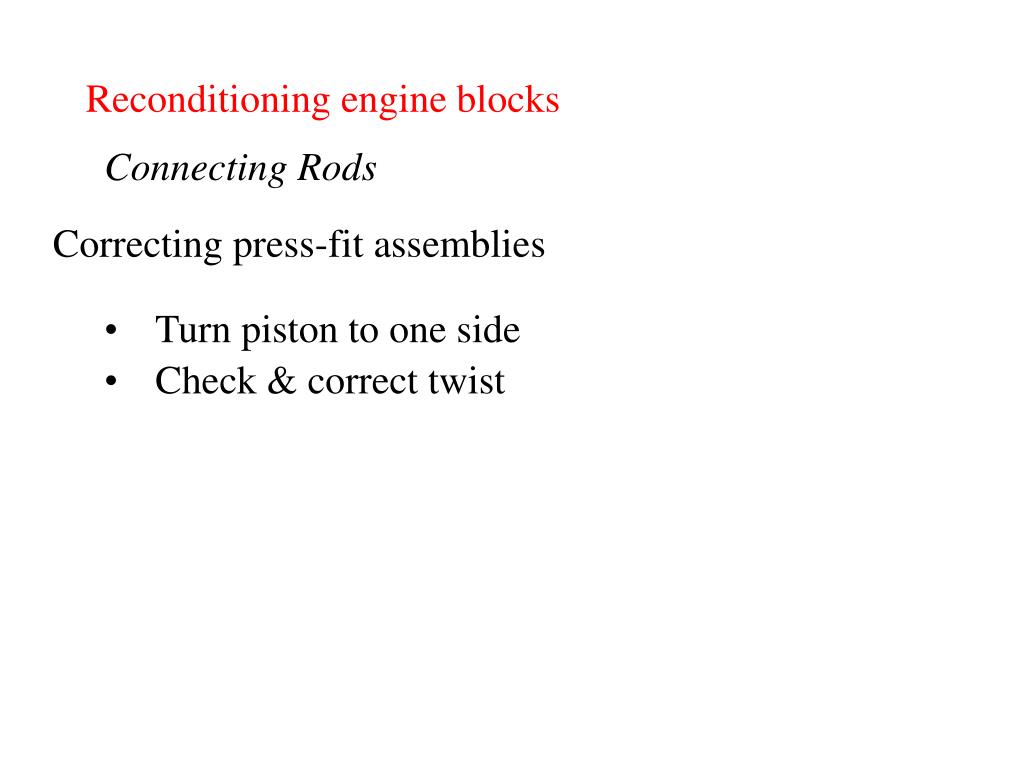

  37. Reconditioning engine blocks • Connecting Rods Correcting press-fit assemblies • Turn piston to one side • Check & correct twist

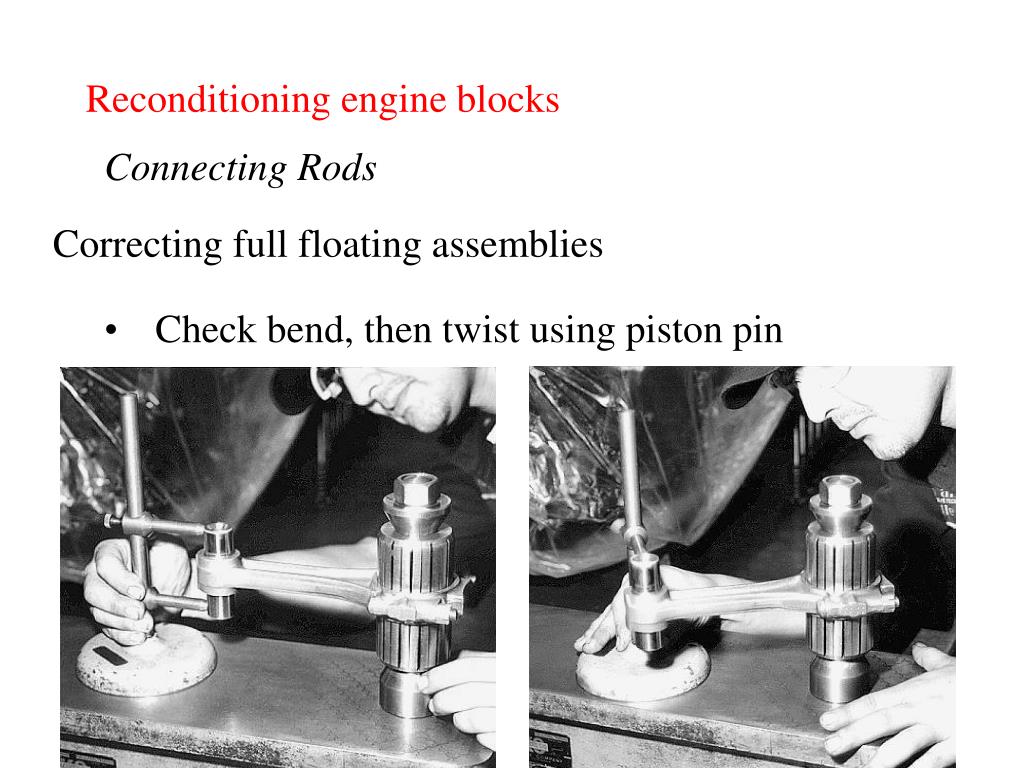

  38. Reconditioning engine blocks • Connecting Rods Correcting full floating assemblies • Check bend, then twist using piston pin

  39. Reconditioning engine blocks • Connecting Rods Checking rod offset • Measure difference between each side of rod • and face of aligner

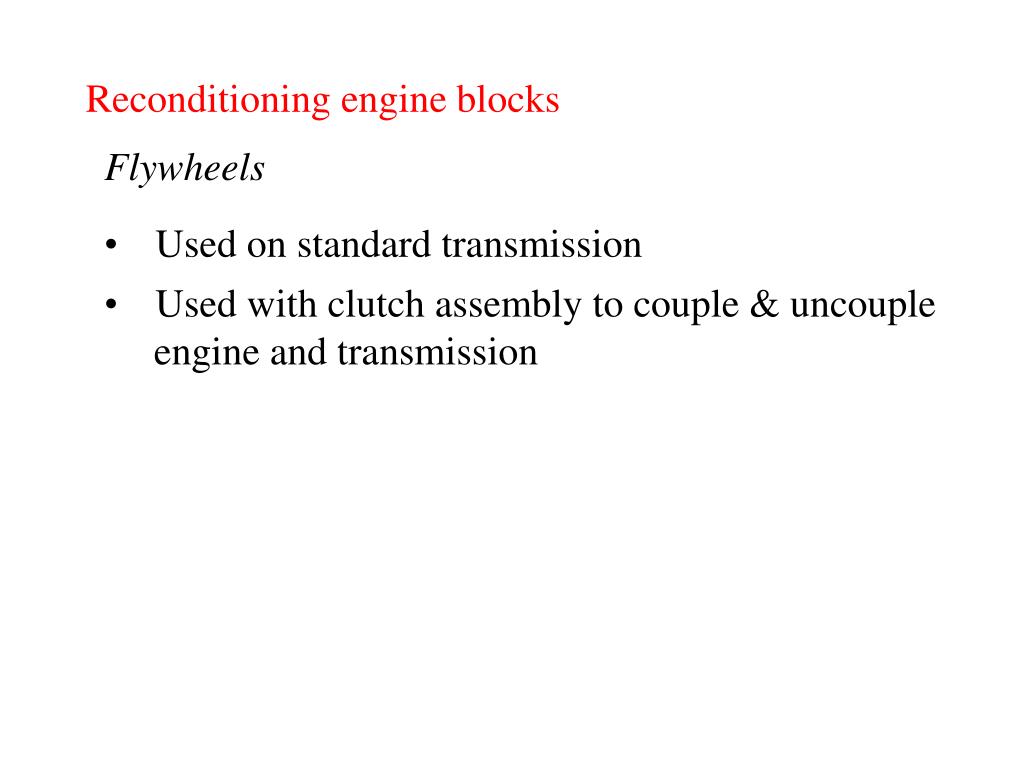

  40. Reconditioning engine blocks • Flywheels • Used on standard transmission • Used with clutch assembly to couple & uncouple • engine and transmission

  41. Reconditioning engine blocks • Flywheels Resurfacing • To restore flatness • To remove heat checking • To restore parallelism

  42. Reconditioning engine blocks • Flywheels Set up • Magna-flux back of flywheel • Parallelism should be less than .005” TIR

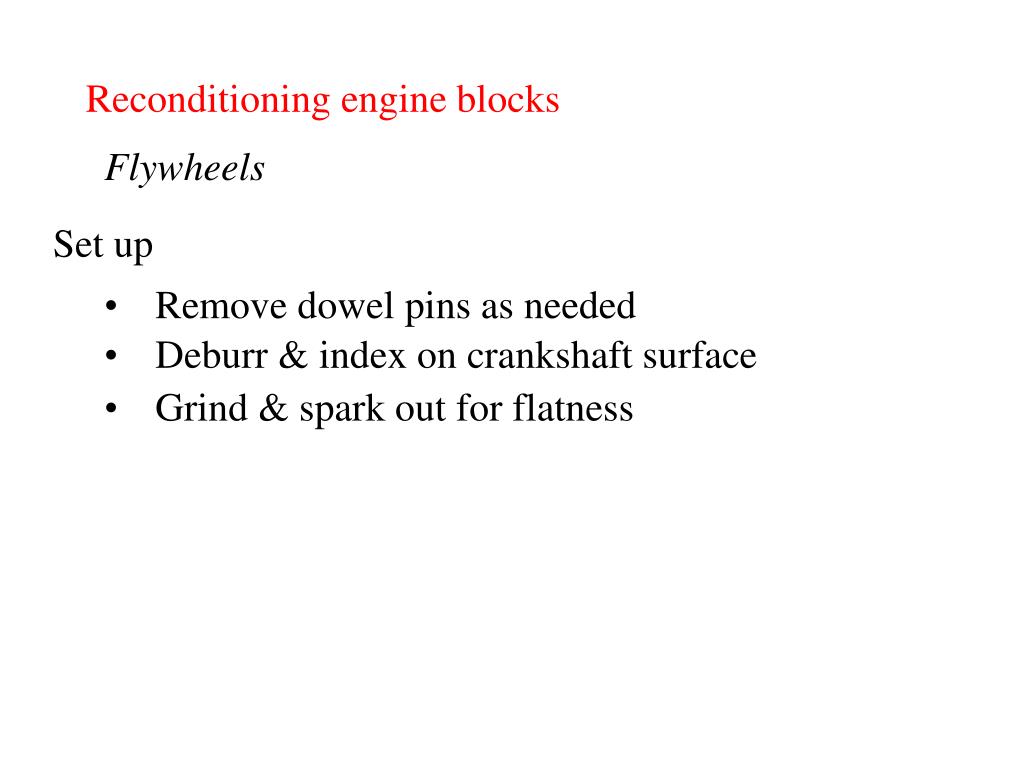

  43. Reconditioning engine blocks • Flywheels Set up • Remove dowel pins as needed • Deburr & index on crankshaft surface • Grind & spark out for flatness

  44. Reconditioning engine blocks • Crankshaft fitting Housing bores • Diameters within tolerance • Round within .0003” Bearings • Specified thickness • Installed to specified clearance Crankshaft • Diameters within tolerance • Round within .0005” • Straight within ½ of oil clearance • Surface finish 10Ra or better

  45. Reconditioning engine blocks • Crankshafts Inspection • Clean • Check for cracks (wet mag) • Size & out of round • Straightness

  46. Reconditioning engine blocks • Crankshafts If ground while bent, crankshafts . . . • Become out of balance • Cause stroke length differences • Cause alignment problems

  47. Reconditioning engine blocks • Crankshafts Welding crankshafts • To keep undersize to a minimum • Gas shield method • Welding is covered by Argon or CO2 • Submerged arc method • Welding is covered by flux powder

  48. Reconditioning engine blocks • Crankshafts Welding crankshafts • Journals are built up • Then ground to size

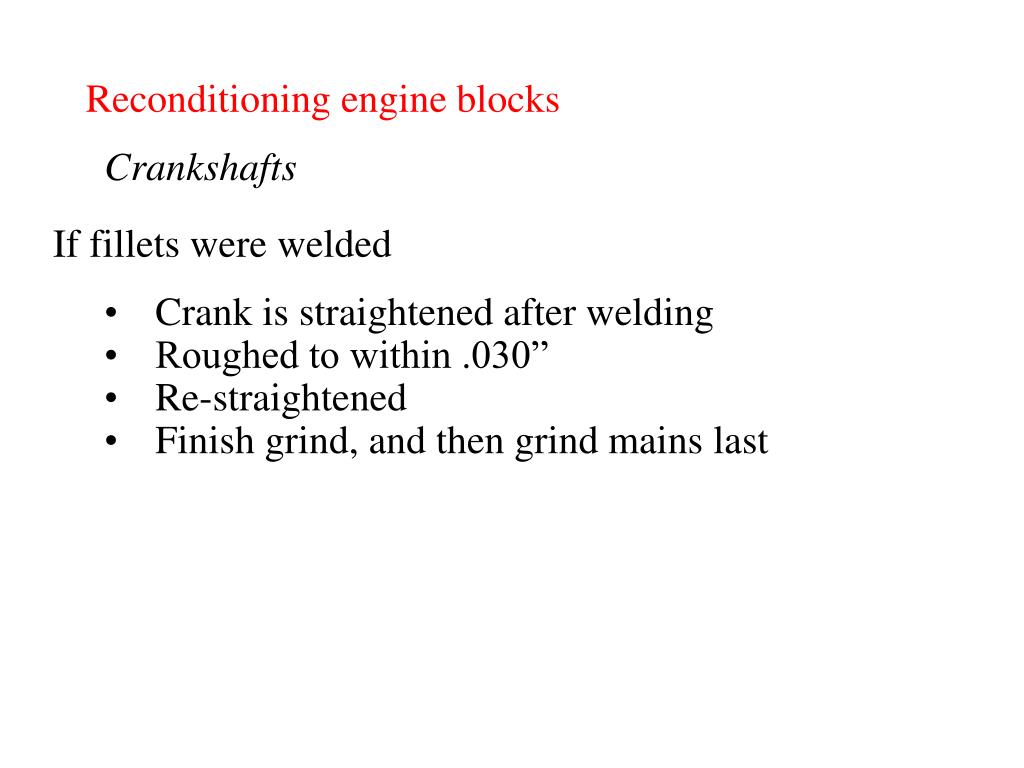

  49. Reconditioning engine blocks • Crankshafts If fillets were welded • Crank is straightened after welding • Roughed to within .030” • Re-straightened • Finish grind, and then grind mains last

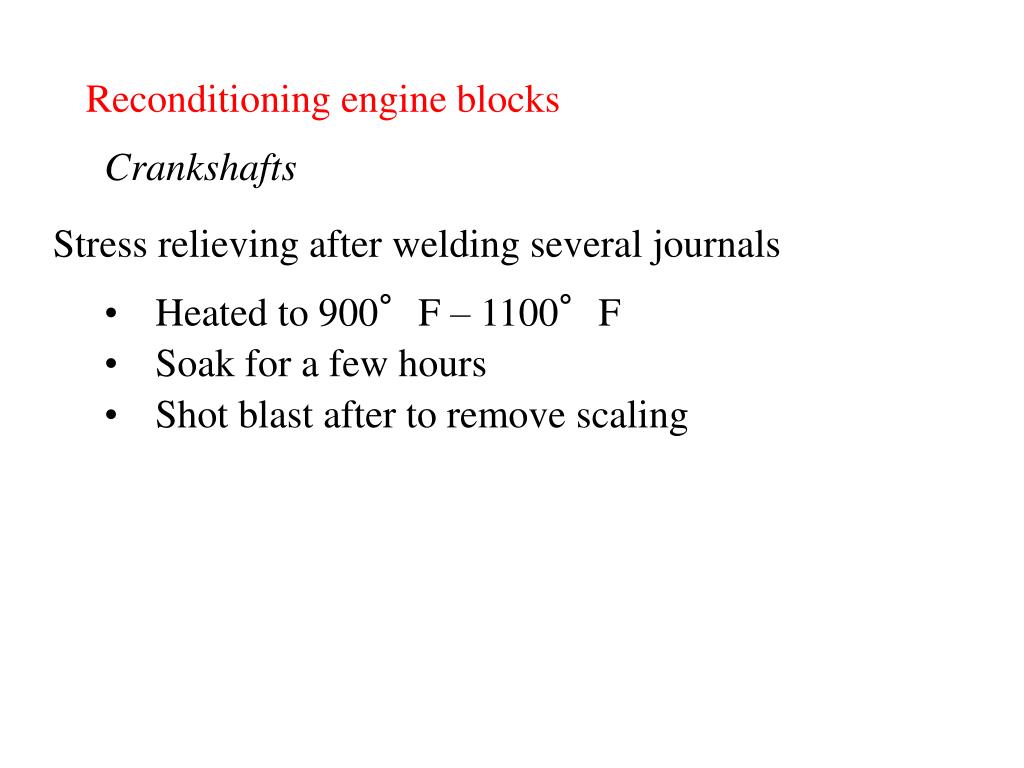

  50. Reconditioning engine blocks • Crankshafts Stress relieving after welding several journals • Heated to 900°F – 1100°F • Soak for a few hours • Shot blast after to remove scaling
