  1. Lecture V:Game Theory Zhixin Liu Complex Systems Research Center, Academy of Mathematics and Systems Sciences, CAS

  2. In the last two lectures, we talked about Multi-Agent Systems • Analysis • Intervention

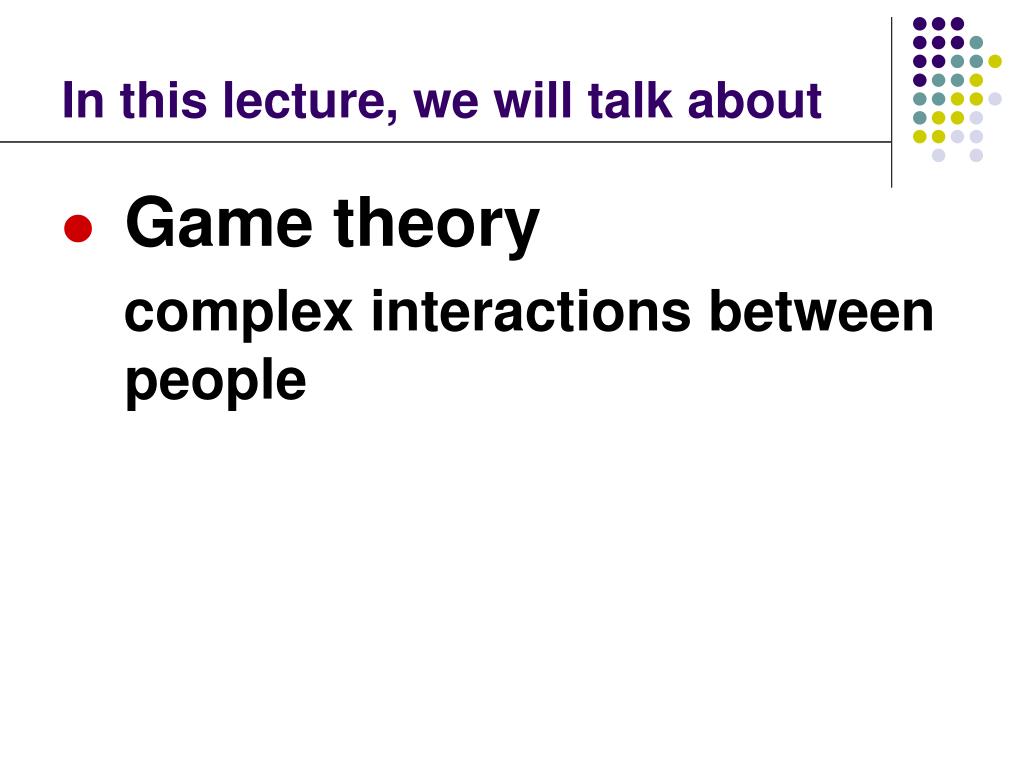

  3. In this lecture, we will talk about • Game theory complex interactions between people

  4. Start With A Game Rock-paper-scissor B rock paper scissor rock 0,0 -1,1 1,-1 A paper 1,-1 0,0 -1,1 scissor -1,1 1,-1 0,0 Other games: poker, go, chess, bridge, basketball, football,…

  5. From Games To Game Theory • Some hints from the games • Rules • Results (payoff) • Strategies • Interactions between strategies and payoff • Games are everywhere. • Economic systems: oligarchy monopoly, market, trade … • Political systems: voting, presidential election, international relations … • Military systems: war, negotiation,… • Game theory the study of the strategic interactions among rational agents. • Rationality implies that each player tries to maximize his/her payoff Not to beat the other players

  6. History of Game Theory • 1928, John von Neumann proved theminimax theorem • 1944, John von Neumann & Oskar Morgenstern,《Theory of Games and Economic Behaviors》 • 1950s, John Nash, Nash Equilibrium • 1970s, John Maynard Smith, Evolutionarily stable strategy • Eight game theorists have won Nobel prizes in economics

  7. Elements of A Game • Player: Who is interacting? N={1,2,…,n} • Actions/ Moves: What the players can do? Action set : • Payoff: What the players can get from the game

  8. Strategy • Strategy: complete plan of actions • Mixed strategy:probability distribution over the pure strategies • Payoff: Pure strategy is a special kind of mixed strategies

  9. An Example:Rock-paper-scissor B • Players:A and B • Actions/ Moves: {rock, scissor, paper} • Payoff: u1(rock,scissor)=1 u2(scissor, paper)=-1 • Mixed strategies s1=(1/3,1/3,1/3) s2=(0,1/2,1/2) u1(s1, s2) = 1/3(0·0+1/2·(-1)+1/2·1)+ 1/3(0·1+1/2·0+1/2·(-1))+1/3(0·(-1)+1/2·1+1/2·0) = 0 rock paper scissor rock 0,0 -1,1 1,-1 A paper 1,-1 0,0 -1,1 scissor -1,1 1,-1 0,0

  10. Classifications of Games • Cooperative and non-cooperativegames Cooperative game: players are able to form binding commitments. Non cooperative games:the players make decisions independently • Zero sum and non-zero sum games Zero sumgame: the total payoff to all players is zero. E.g., poker, go,… Non-zero sum game: e.g., prisoner’s dilemma • Finite game and infinite game Finite game: the players and the actions are finite. • Simultaneous and sequential (dynamic) games Simultaneousgame: players move simultaneously, or if they do not move simultaneously, the later players are unaware of the earlier players' actions Sequential game: later players have some knowledge about earlier actions. • Perfect information and imperfect information games Perfect informationgame: all players know the moves previously made by all other players. E.g., chess, go,… Perfect information ≠ Complete information Every player know the strategies and payoffs of the other players but not necessarily the actions.

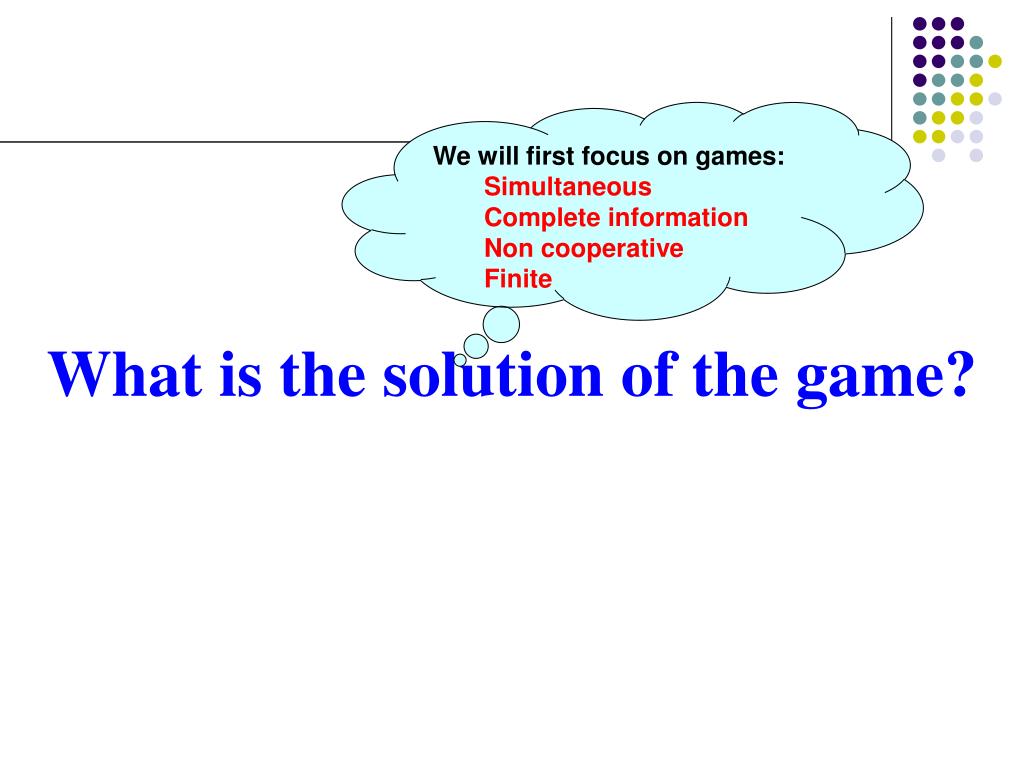

  11. We will first focus on games: • Simultaneous • Complete information • Non cooperative • Finite What is the solution of the game?

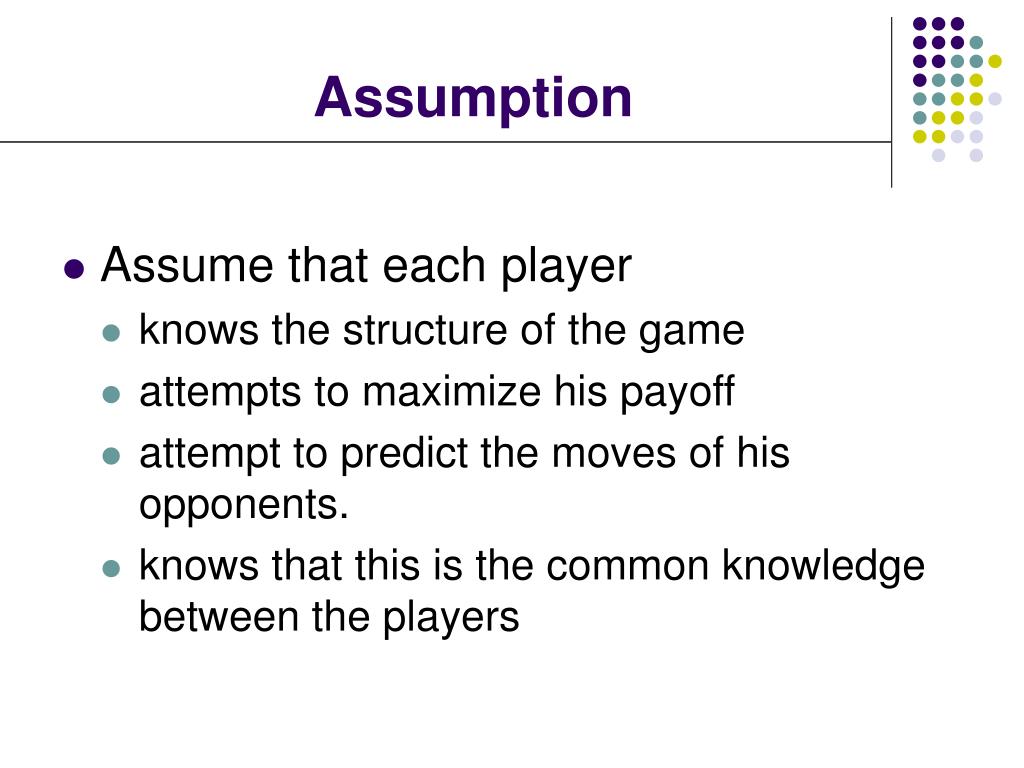

  12. Assumption • Assume that each player • knows the structure of the game • attempts to maximize his payoff • attempt to predict the moves of his opponents. • knows that this is the common knowledge between the players

  13.  Dominated Strategy  A strategy is dominated if, regardless of what any other players do, the strategy earns a player a smaller payoff than some other strategies. Strategy s' of the player i is called a strictly dominated strategy if there exists a strategys*, such that S-i: the strategy set formed by all other players except player i

  14. Elimination of Dominated Strategies  Example: L M R L R L R L U 4,3 5,1 6,2 U 4,3 6,2 U 4,3 M 2,1 8,4 3,6 M 2,1 3,6 U 4,3 6,2 3,0 9,6 2,8 D 3,0 2,8 D (U,L) is the solution of the game. A dominant strategy may not exist!

  15. Definition of Nash Equilibrium • Nash Equilibrium (NE): A solution concept of a game • (N, S, u):a game • Si: strategy set for player i • : set of strategy profiles • : payoff function • s-i: strategy profile of all players except player i • A strategy profile s* is called a Nash equilibrium if where σi is any pure strategy of the player i.

  16. Remarks on Nash Equilibrium • A set of strategies, one for each player, such that each player’s strategy is a best response to others’ strategies • Best Response: The strategy that maximizes the payoff given others’ strategies. • No player can do better by unilaterally changing his or her strategy • A dominant strategy is a NE

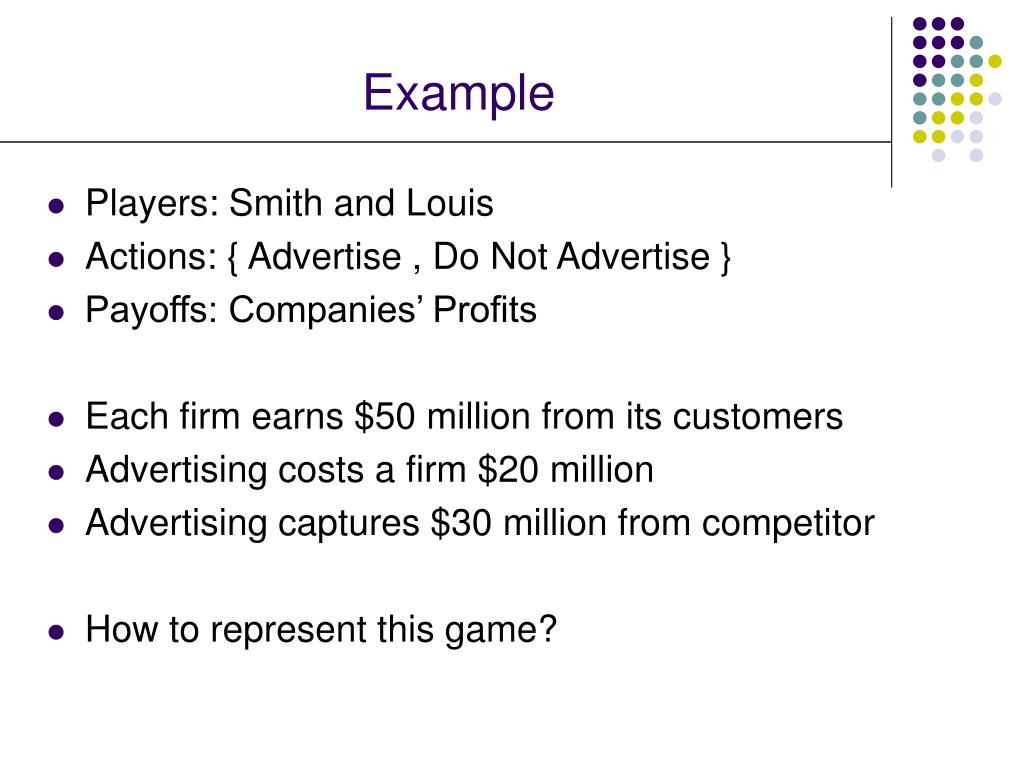

  17. Example • Players: Smith and Louis • Actions: { Advertise , Do Not Advertise } • Payoffs: Companies’ Profits • Each firm earns $50 million from its customers • Advertising costs a firm $20 million • Advertising captures $30 million from competitor • How to represent this game?

  18. Strategic Interactions Smith Ad No Ad (50,50) (20,60) No Ad Louis (60,20) (30,30) Ad

  19. Best Responses • Best response for Louis: • If Smith advertises: advertise • If Smith does not advertise: advertise • The best response for Smith is the same. • (Ad, Ad) is a dominant strategy! • (Ad, Ad) is a NE! • This is another Prisoners’ Dilemma! Smith No Ad Ad (20,60) (50,50) No Ad Louis (30,30) (60,20) Ad

  20. Nash Equilibrium • NE may be a pair of mixed strategies. • Example: B Tail head (-1,1) (1,-1) head A (1,-1) (-1,1) Tail Matching Pennies (1/2,1/2) is the Nash Equilibrium.

  21. Existence of NE • Theorem (J. Nash, 1950s) For a finite game, there exists at least one Nash Equilibrium (Pure strategy, or mixed strategy).

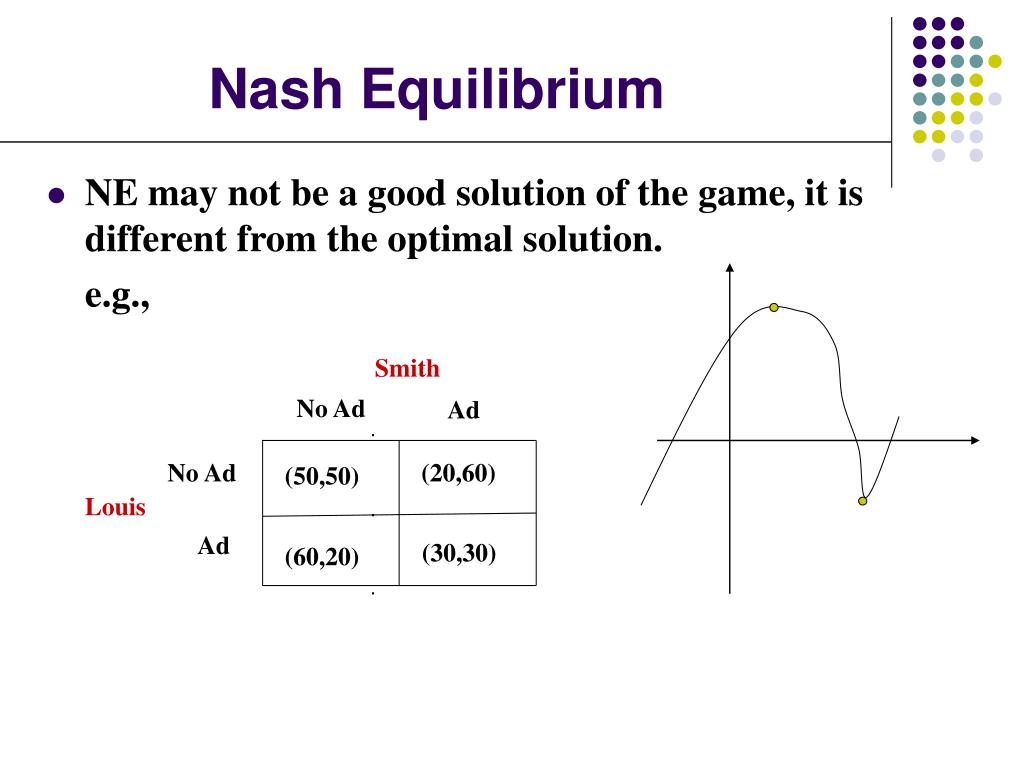

  22. Nash Equilibrium • NE may not be a good solution of the game, it is different from the optimal solution. e.g., Smith No Ad Ad (20,60) (50,50) No Ad Louis (30,30) (60,20) Ad

  23. Nash Equilibrium • A game may have more than one NE. e.g., The Battle of Sex NE: (opera, opera), (football, football), ((2/3,1/3),(1/3, 2/3)) Husband opera football (0,0) (2,1) opera Wife (1,2) (0,0) football

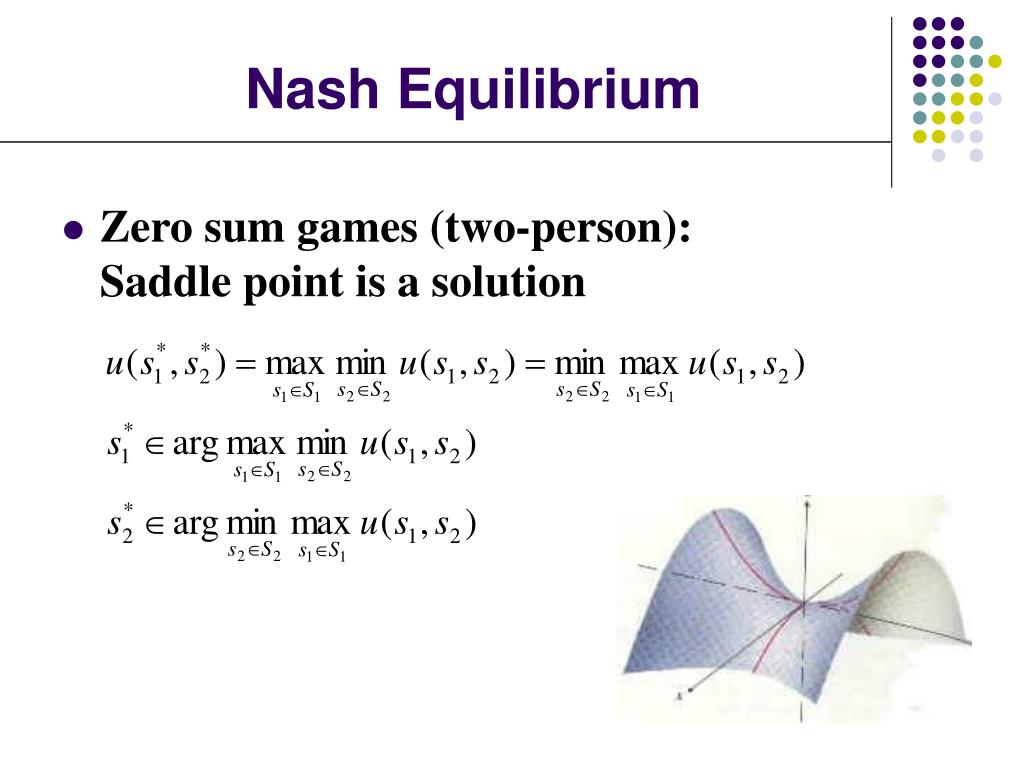

  24. Nash Equilibrium • Zero sum games (two-person): Saddle point is a solution

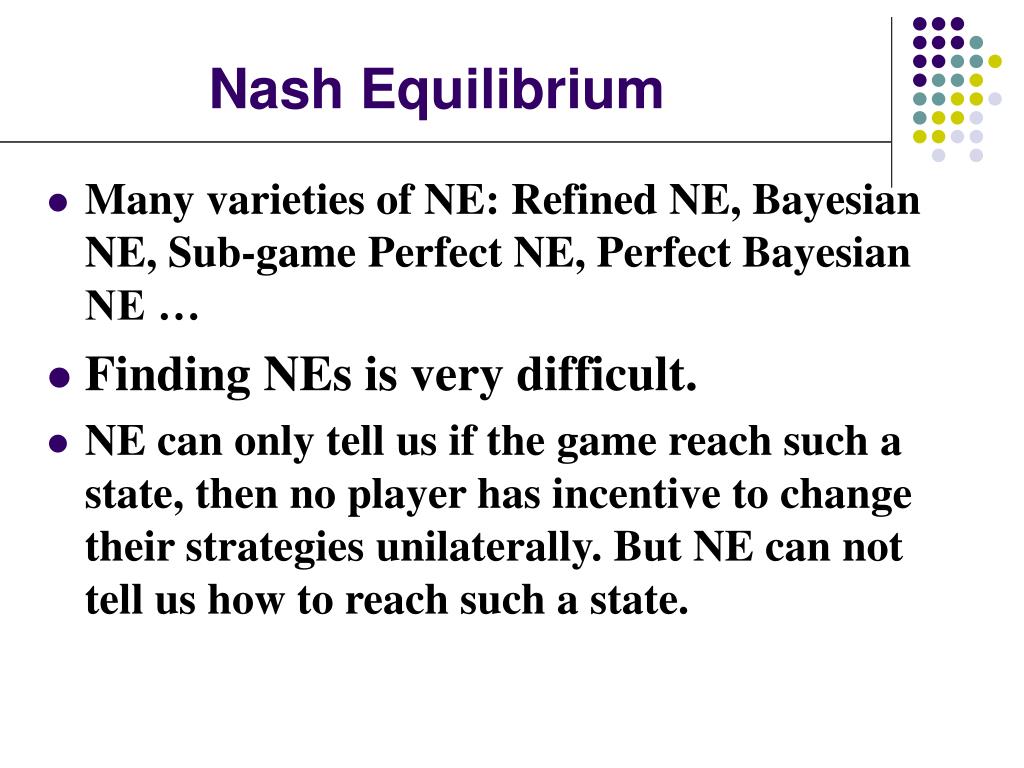

  25. Nash Equilibrium • Many varieties of NE: Refined NE, Bayesian NE, Sub-game Perfect NE, Perfect Bayesian NE … • Finding NEs is very difficult. • NE can only tell us if the game reach such a state, then no player has incentive to change their strategies unilaterally. But NE can not tell us how to reach such a state.

  26. Iterated Prisoner’s Dilemma

  27. Cooperation • Groups of organisms: • Mutual cooperation is of benefit to all agents • Lack of cooperation is harmful to them • Another types of cooperation: • Cooperating agents do well • Any one will do better if failing cooperate • Prisoner’s Dilemma is an elegant embodiment

  28. Prisoner’s Dilemma • The story of prisoner’s dilemma Player: two prisoners Action: {Cooperation, Defecti} Payoff matrix Prisoner B C D (0,5) (3,3) C Prisoner A (1,1) (5,0) D

  29. Prisoner’s Dilemma • No matter what the other does, the best choice is “D”. • (D,D) is a Nash Equilibrium. • But, if both choose “D”, both will do worse than if both select “C” Prisoner B C D (0,5) (3,3) C Prisoner A (1,1) (5,0) D

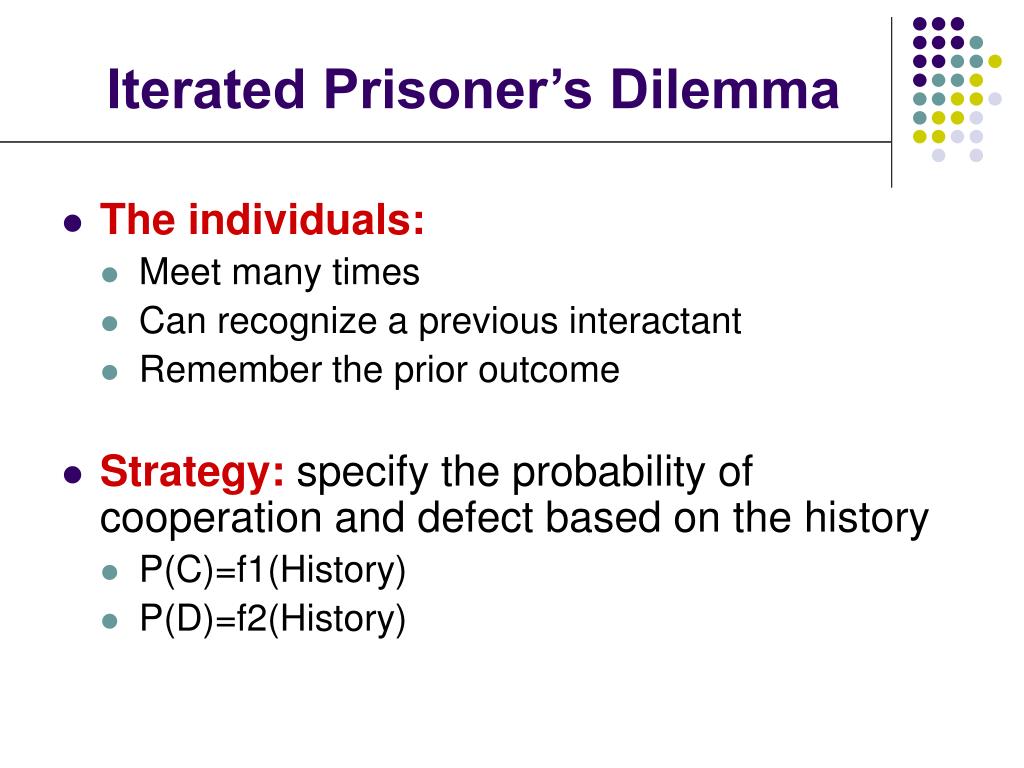

  30. Iterated Prisoner’s Dilemma • The individuals: • Meet many times • Can recognize a previous interactant • Remember the prior outcome • Strategy: specify the probability of cooperation and defect based on the history • P(C)=f1(History) • P(D)=f2(History)

  31. Strategies • Tit For Tat – cooperating on the first time, then repeat opponent's last choice. Player A C D D C C C C C D D D D C… Player B D D C C C C C D D D D C…

  32. Strategies • Tit For Tat - cooperating on the first time, then repeat opponent's last choice. • Tit For Tat and Random - Repeat opponent's last choice skewed by random setting.* • Tit For Two Tats and Random - Like Tit For Tat except that opponent must make the same choice twice in a row before it is reciprocated. Choice is skewed by random setting.* • Tit For Two Tats- Like Tit For Tat except that opponent must make the same choice twice in row before it is reciprocated. • Naive Prober (Tit For Tat with Random Defection) - Repeat opponent's last choice (ie Tit For Tat), but sometimes probe by defecting in lieu of cooperating.* • Remorseful Prober (Tit For Tat with Random Defection) - Repeat opponent's last choice (ie Tit For Tat), but sometimes probe by defecting in lieu of cooperating. If the opponent defects in response to probing, show remorse by cooperating once.* • Naive Peace Maker (Tit For Tat with Random Co-operation) - Repeat opponent's last choice (ie Tit For Tat), but sometimes make peace by co-operating in lieu of defecting.* • True Peace Maker (hybrid of Tit For Tat and Tit For Two Tats with Random Cooperation) - Cooperate unless opponent defects twice in a row, then defect once, but sometimes make peace by cooperating in lieu of defecting.* • Random - always set at 50% probability.

  33. Strategies • Always Defect • Always Cooperate • Grudger(Co-operate, but only be a sucker once) - Cooperate until the opponent defects. Then always defect unforgivingly. • Pavlov (repeat last choice if good outcome) - If 5 or 3 points scored in the last round then repeat last choice. • Pavlov / Random (repeat last choice if good outcome and Random) - If 5 or 3 points scored in the last round then repeat last choice, but sometimes make random choices.* • Adaptive - Starts with c,c,c,c,c,c,d,d,d,d,d and then takes choices which have given the best average score re-calculated after every move. • Gradual - Cooperates until the opponent defects, in such case defects the total number of times the opponent has defected during the game. Followed up by two co-operations. • Suspicious Tit For Tat - As for Tit For Tat except begins by defecting. • Soft Grudger - Cooperates until the opponent defects, in such case opponent is punished with d,d,d,d,c,c. • Customised strategy 1 - default setting is T=1, P=1, R=1, S=0, B=1, always co-operate unless sucker (ie 0 points scored). • Customised strategy 2 - default setting is T=1, P=1, R=0, S=0, B=0, always play alternating defect/cooperate.

  34. Iterated Prisoner’s Dilemma • The same players repeat the prisoner’s dilemma many times. • After ten rounds • The best income is 50. • A real case is to get 30 for each player. • An extreme case is that each player selects “defection”, each player can get 10. • The most possible case is that each player will play with a mixing strategy of “defect” and “cooperate” . Prisoner A C D (0,5) (3,3) C Prisoner B (1,1) (5,0) D

  35. Iterated Prisoner’s Dilemma • Which strategy can thrive/what is the good strategy? • Robert Axelrod, 1980s • A computer round-robin tournament AXELROD R. 1987. The evolution of strategies in the iterated Prisoners' Dilemma. In L. Davis, editor, Genetic Algorithms and Simulated Annealing. Morgan Kaufmann, Los Altos, CA.

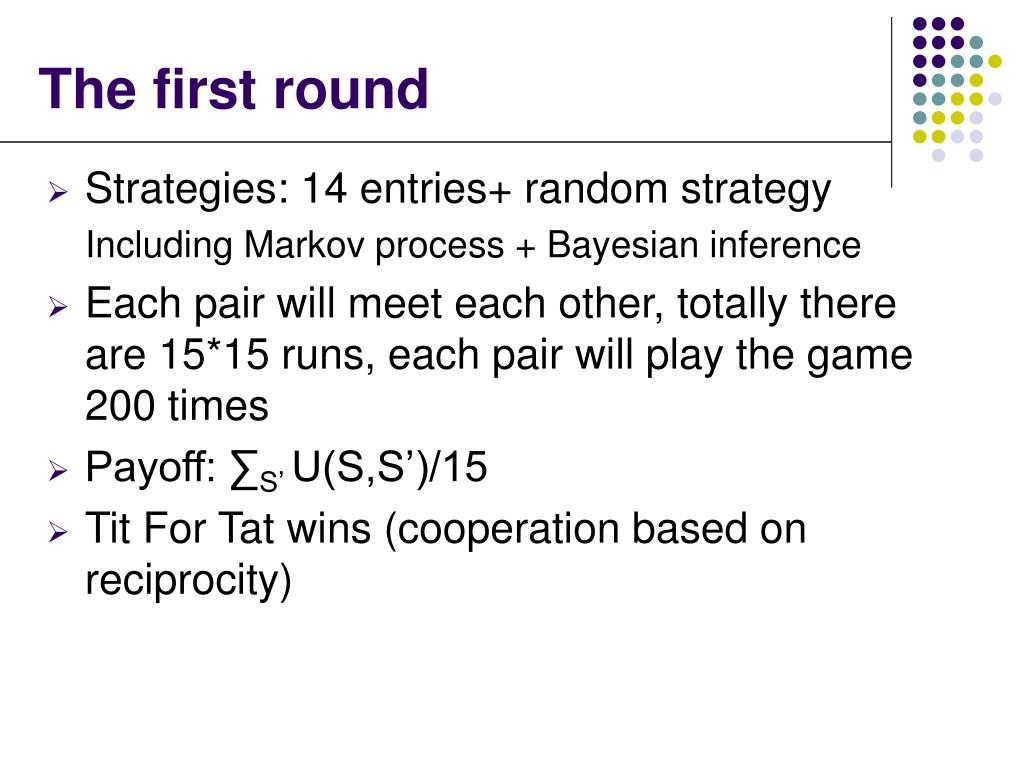

  36. The first round • Strategies: 14 entries+ random strategy Including Markov process + Bayesian inference • Each pair will meet each other, totally there are 15*15 runs, each pair will play the game 200 times • Payoff: ∑S’ U(S,S’)/15 • Tit For Tat wins (cooperation based on reciprocity)

  37. The first round Naive Prober - Repeat opponent's last choice but sometimes probe by defecting in lieu of cooperating • Characters of “good” strategies Goodness: never defect first TFT vs. Naive prober Forgiveness: may revenge, but the memory is short. TFT vs. Grudger Grudger- Cooperate until the opponent defects. Then always defect unforgivingly

  38. Winning Vs. High Scores • This is not a zero sum game, there is a banker. • TFT never wins one game. The best result for it is to get the same result as its opponent. • “Winning the game” is a kind of jealousness, it does not work well • It is possible to arise “cooperation” in a “selfish” group.

  39. The second round • Strategies: 62 entries+ random strategy • “goodness” strategies • “wiliness: strategies • Tit For Tat wins again • “Win” or “lost” depends on the circumstance.

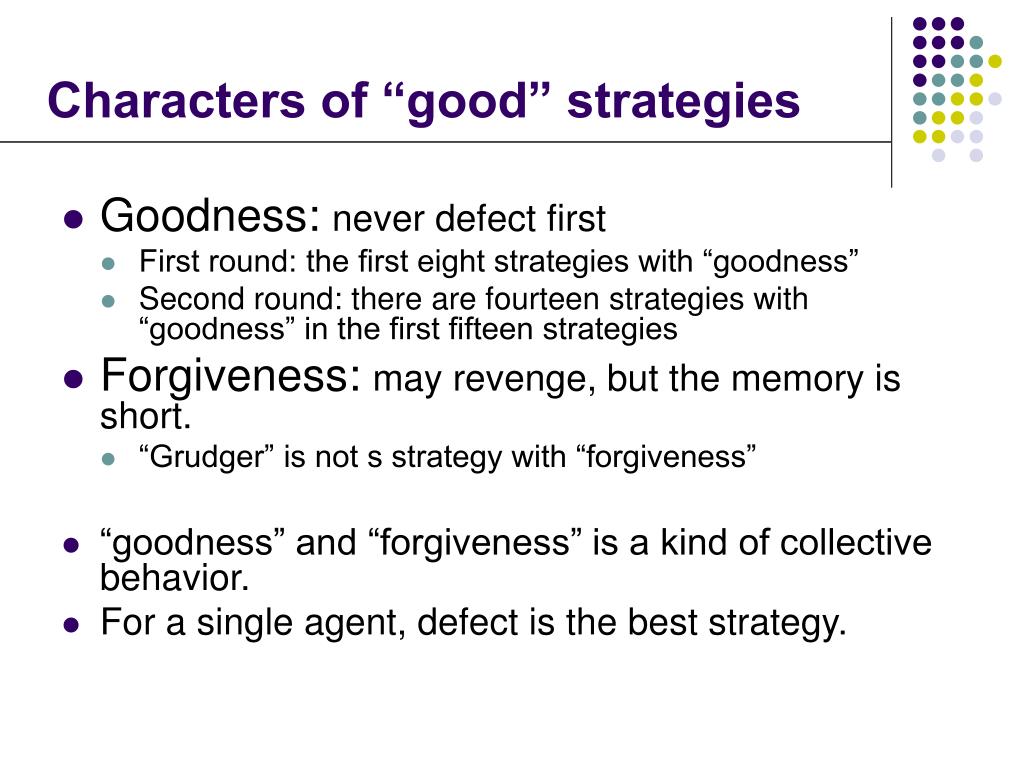

  40. Characters of “good” strategies • Goodness: never defect first • First round: the first eight strategies with “goodness” • Second round: there are fourteen strategies with “goodness” in the first fifteen strategies • Forgiveness: may revenge, but the memory is short. • “Grudger” is not s strategy with “forgiveness” • “goodness” and “forgiveness” is a kind of collective behavior. • For a single agent, defect is the best strategy.

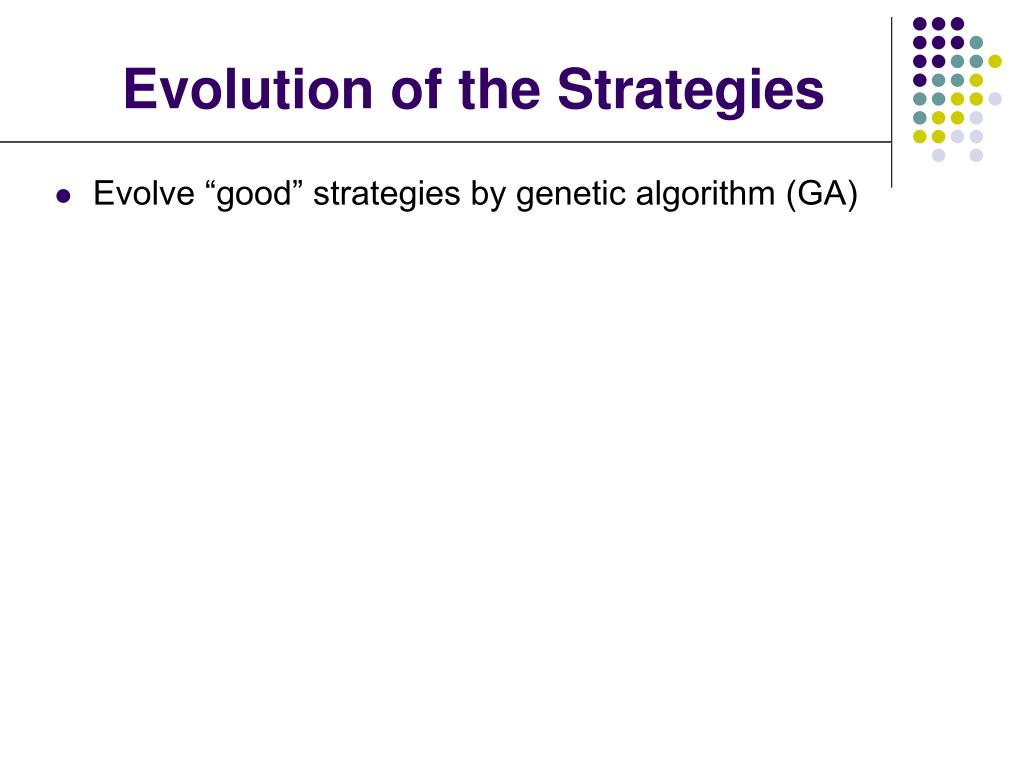

  41. Evolution of the Strategies • Evolve “good” strategies by genetic algorithm (GA)

  42. What is a “good” strategy? • TFT is a good strategy? • Tit For Two Tats may be the best strategy in the first round, but it is not a good strategy in the second round. • “Good” strategy depends on the environment. • Tit For Two Tats- Like Tit For Tat except that opponent must make the same choice twice in row before it is reciprocated. Evolutionarily stable strategy

  43. Evolutionarily stable strategy (ESS) • Introduced by John Maynard Smith and George R. Price in 1973 • ESS means evolutionarily stable strategy, that is “a strategy such that, if all member of the population adopt it, then no mutant strategy could invade the population under the influence of natural selection.” • ESS is robust for evolution, it can not be invaded by mutation. John Maynard Smith, “Evolution and the Theory of Games”

  44. Definition of ESS • A strategy x is an ESS if for all y, y  x, such that holds for small positiveε.

  45. ESS • ESS is defined in a population with a large number of individuals. • The individuals can not control the strategy, and may not be aware the game they played • ESS is the result of natural selection • Like NE, ESS can only tell us it is robust to the evolution, but it can not tell us how the population reach such a state.

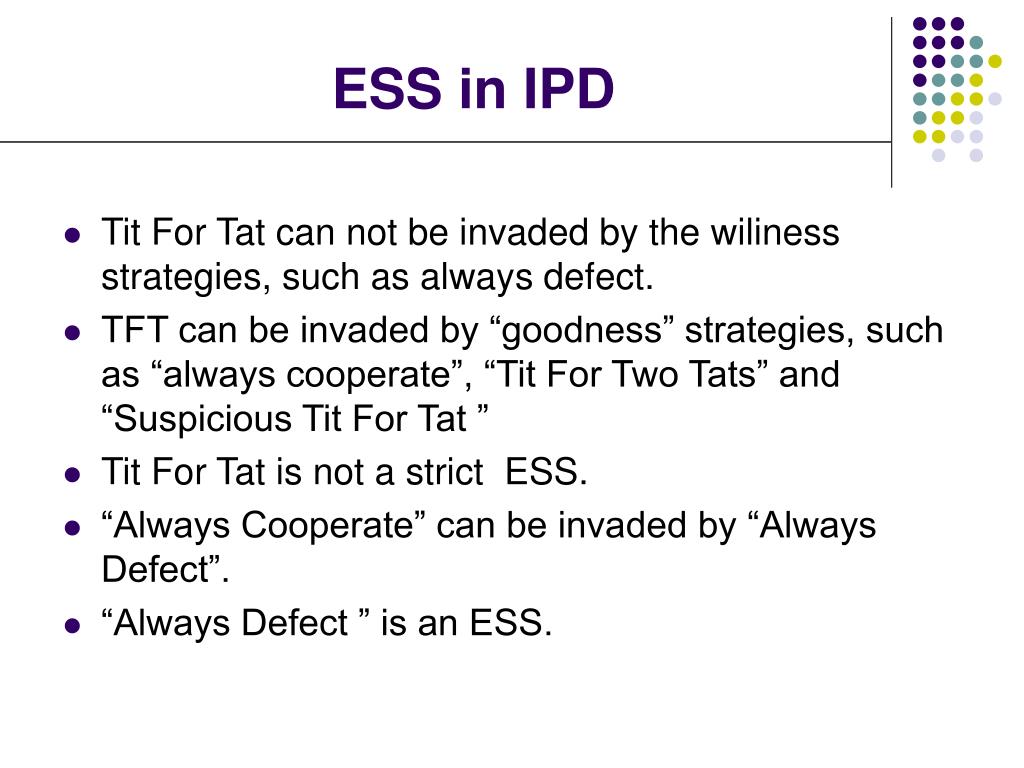

  46. ESS in IPD • Tit For Tat can not be invaded by the wiliness strategies, such as always defect. • TFT can be invaded by “goodness” strategies, such as “always cooperate”, “Tit For Two Tats” and “Suspicious Tit For Tat ” • Tit For Tat is not a strict ESS. • “Always Cooperate” can be invaded by “Always Defect”. • “Always Defect ” is an ESS.

  47. references • Drew Fudenberg, Jean Tirole, Game Theory, The MIT Press, 1991. • AXELROD R. 1987. The evolution of strategies in the iterated Prisoners' Dilemma. In L. Davis, editor, Genetic Algorithms and Simulated Annealing. Morgan Kaufmann, Los Altos, CA. • Richard Dawkins, The Selfish Gene, Oxford University Press.

  48. Concluding Remarks • Tip Of Game theory • Basic Concepts • Nash Equilibrium • Iterated Prisoner’s Dilemma • Evolutionarily Stable Strategy

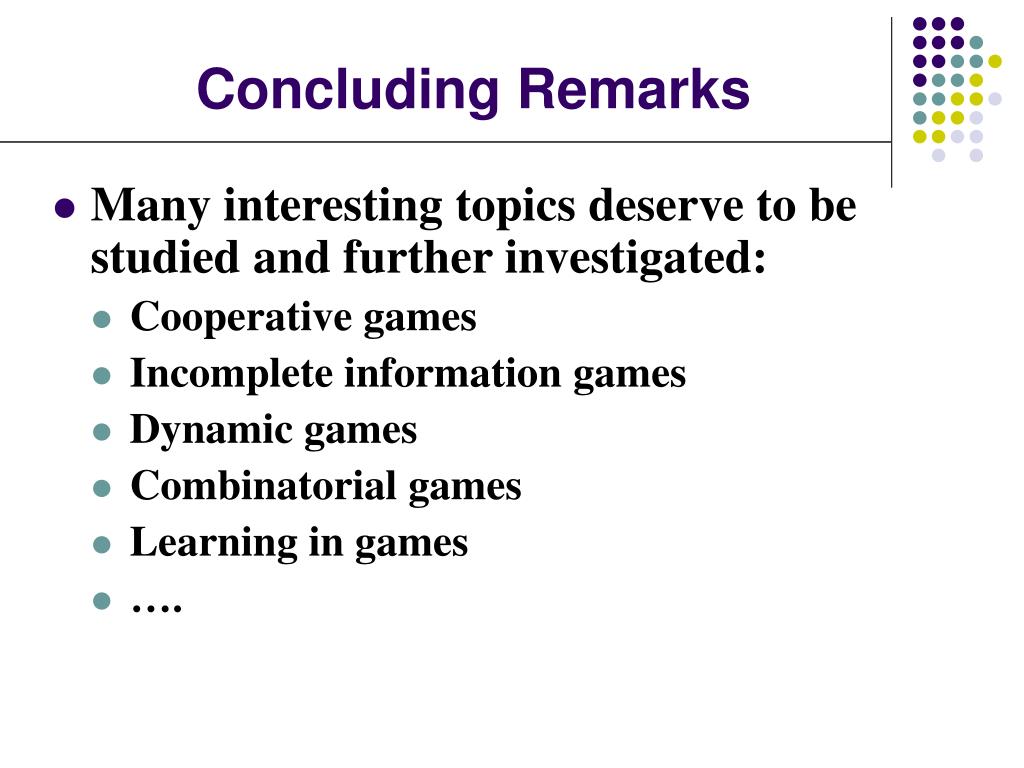

  49. Concluding Remarks • Many interesting topics deserve to be studied and further investigated: • Cooperative games • Incomplete information games • Dynamic games • Combinatorial games • Learning in games • ….

  50. Thank you!
